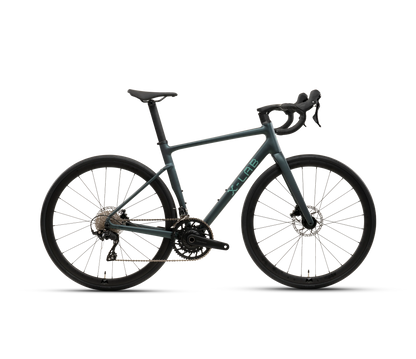

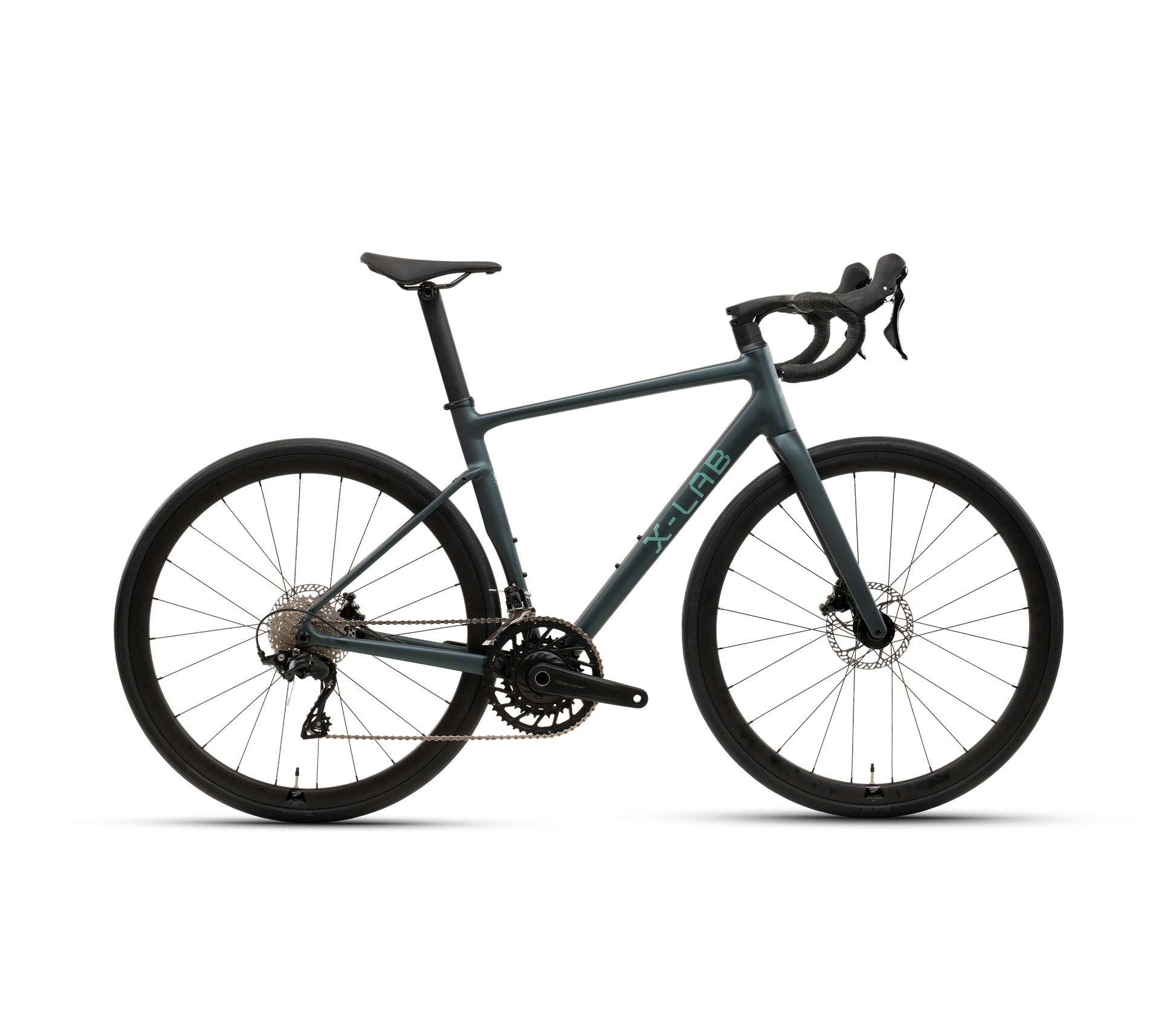

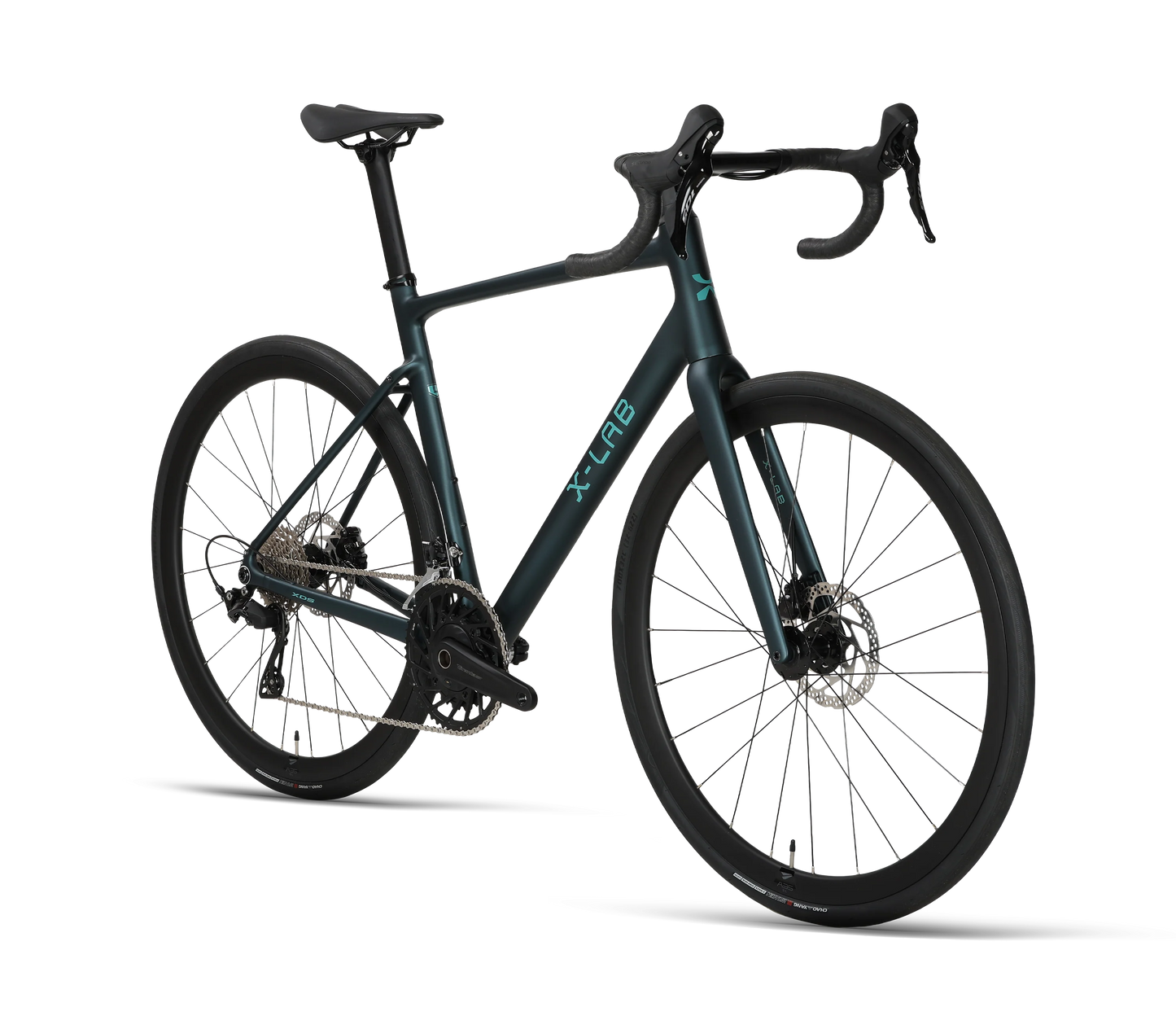

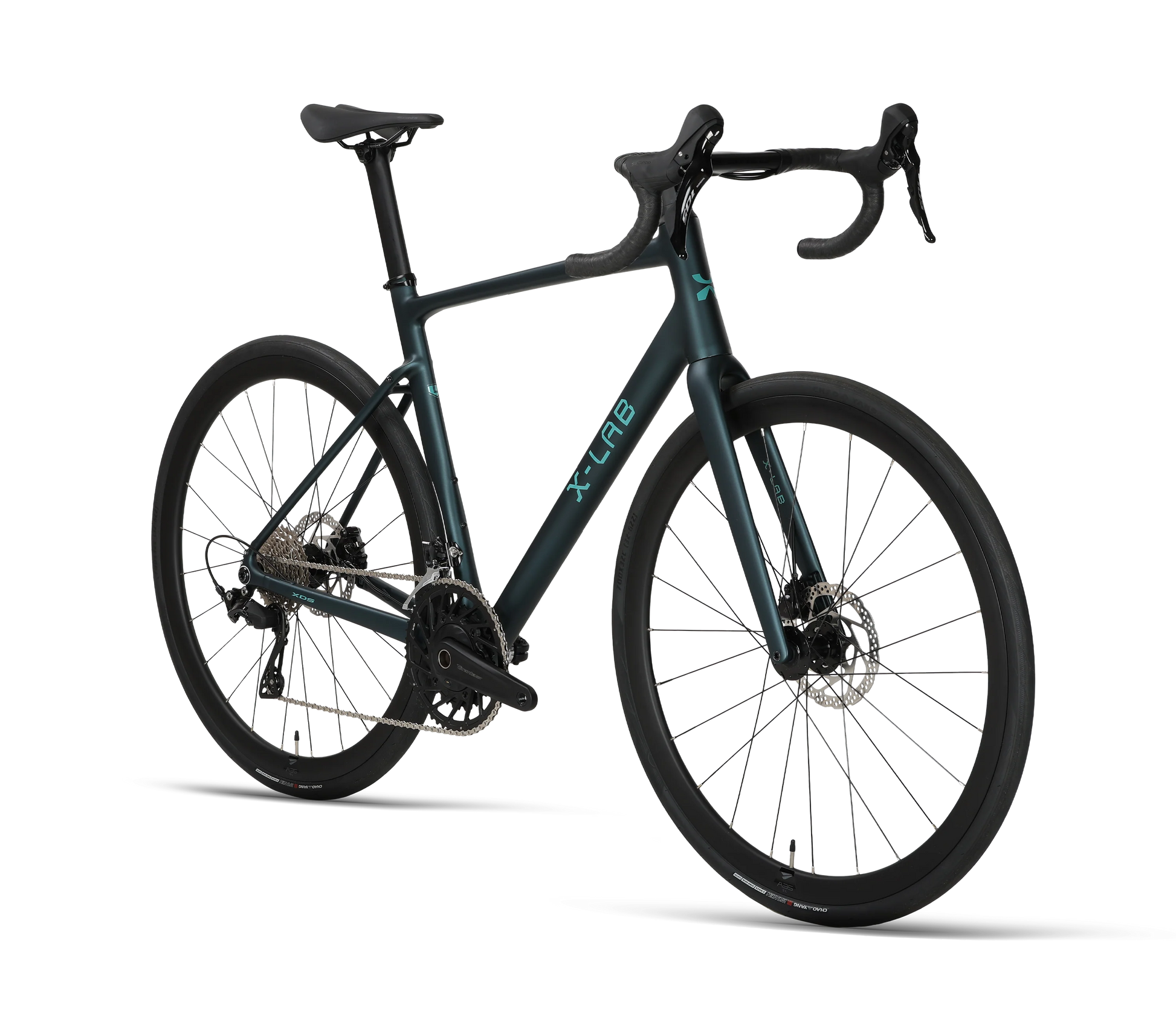

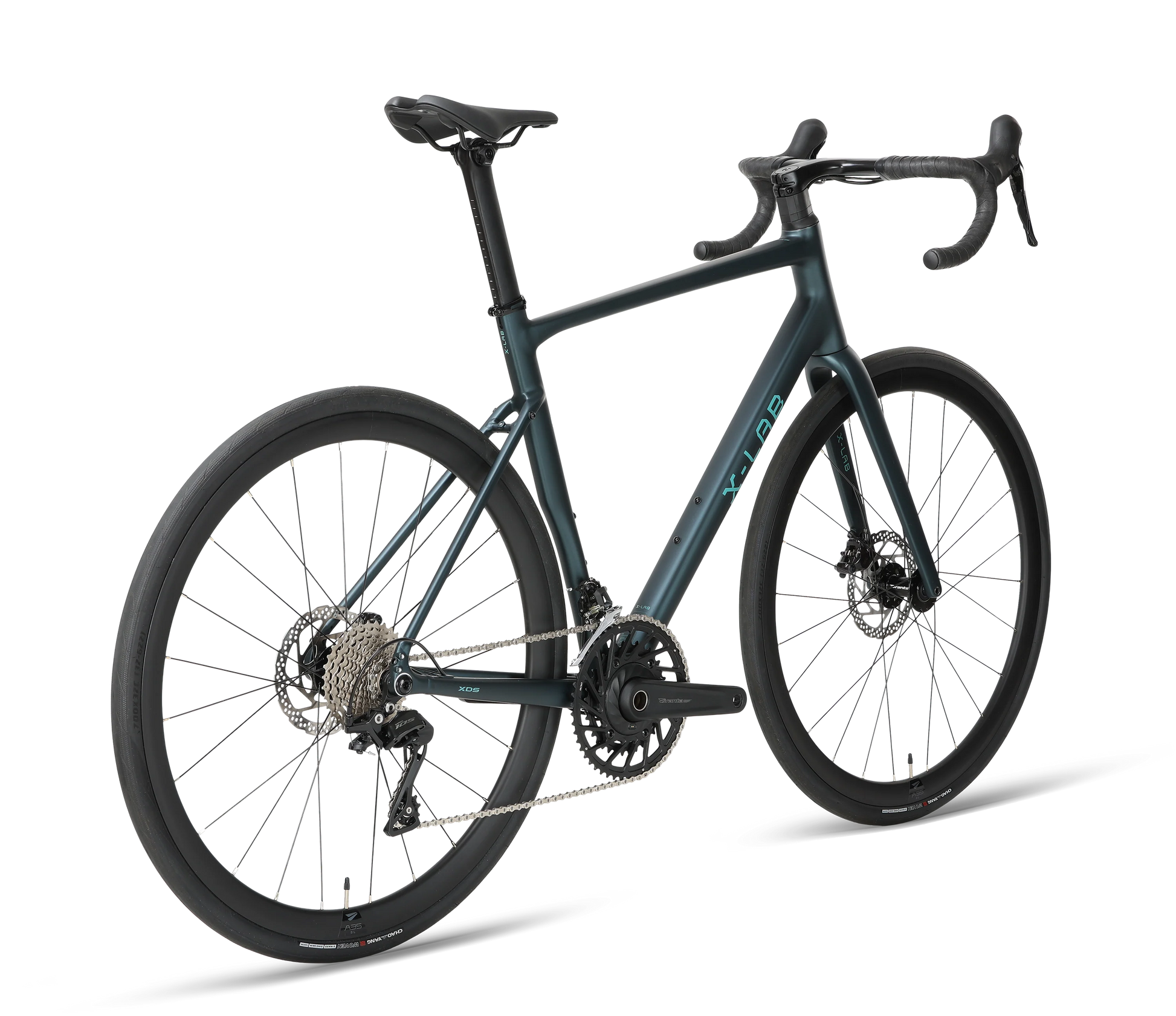

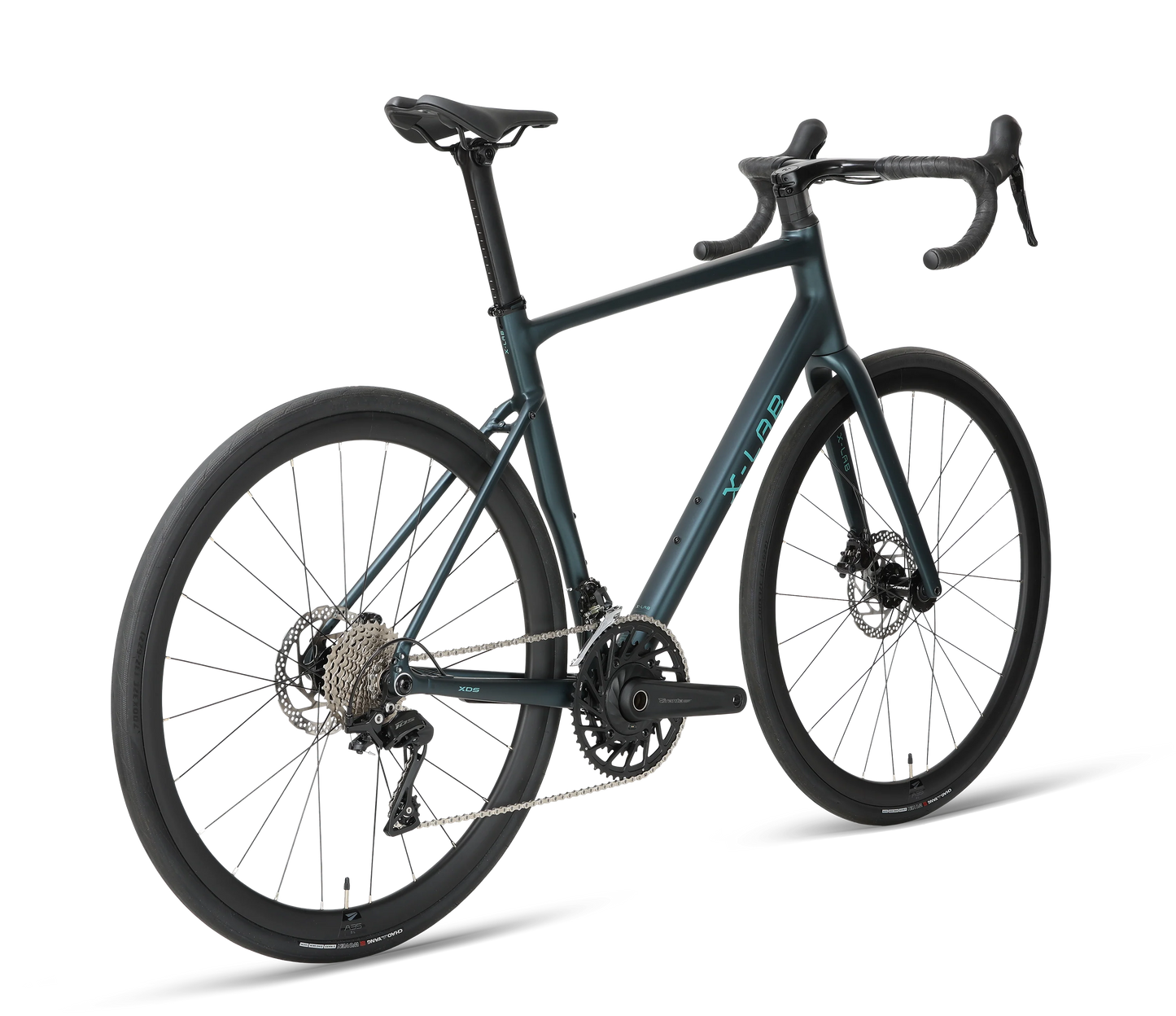

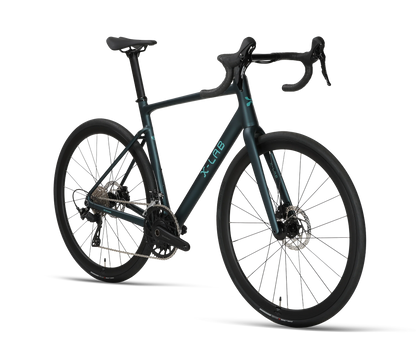

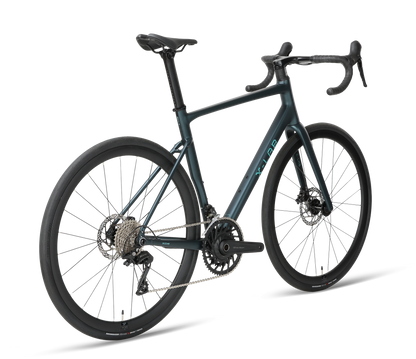

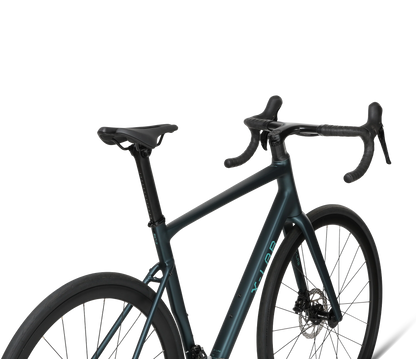

X-Lab RS5 700c

Balanced comfort and function, for wherever the road takes you.

The RS5 delivers the X-LAB riding experience in a versatile and approachable form.

Built with durable X6 aluminum alloy and a semi-integrated cockpit, it offers reliable performance, confident handling, and lasting comfort.

Whether you're discovering the sport or simply enjoying the ride, the RS5 is designed to make every mile feel smooth, responsive, and rewarding

Key Features

• X6 Alloy Frame
• 38mm Tire Clearance

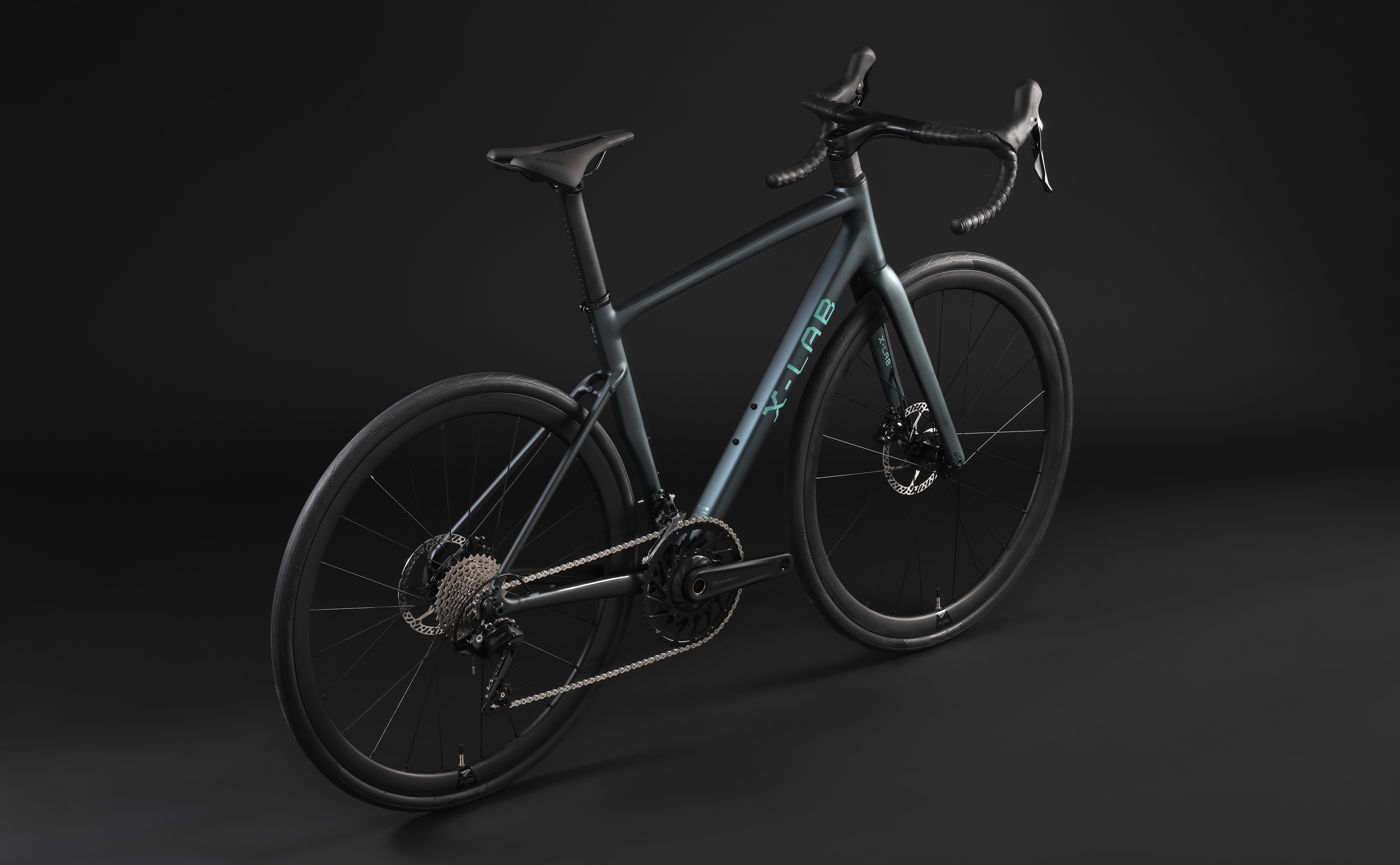

Integrated Design, Real-World Road Bike

RS5 brings the X-LAB fluent design and engineering language to an alloy platform, with a clean cockpit integration paired with Shimano 105 performance so the bike looks and rides like it belongs far above its category.

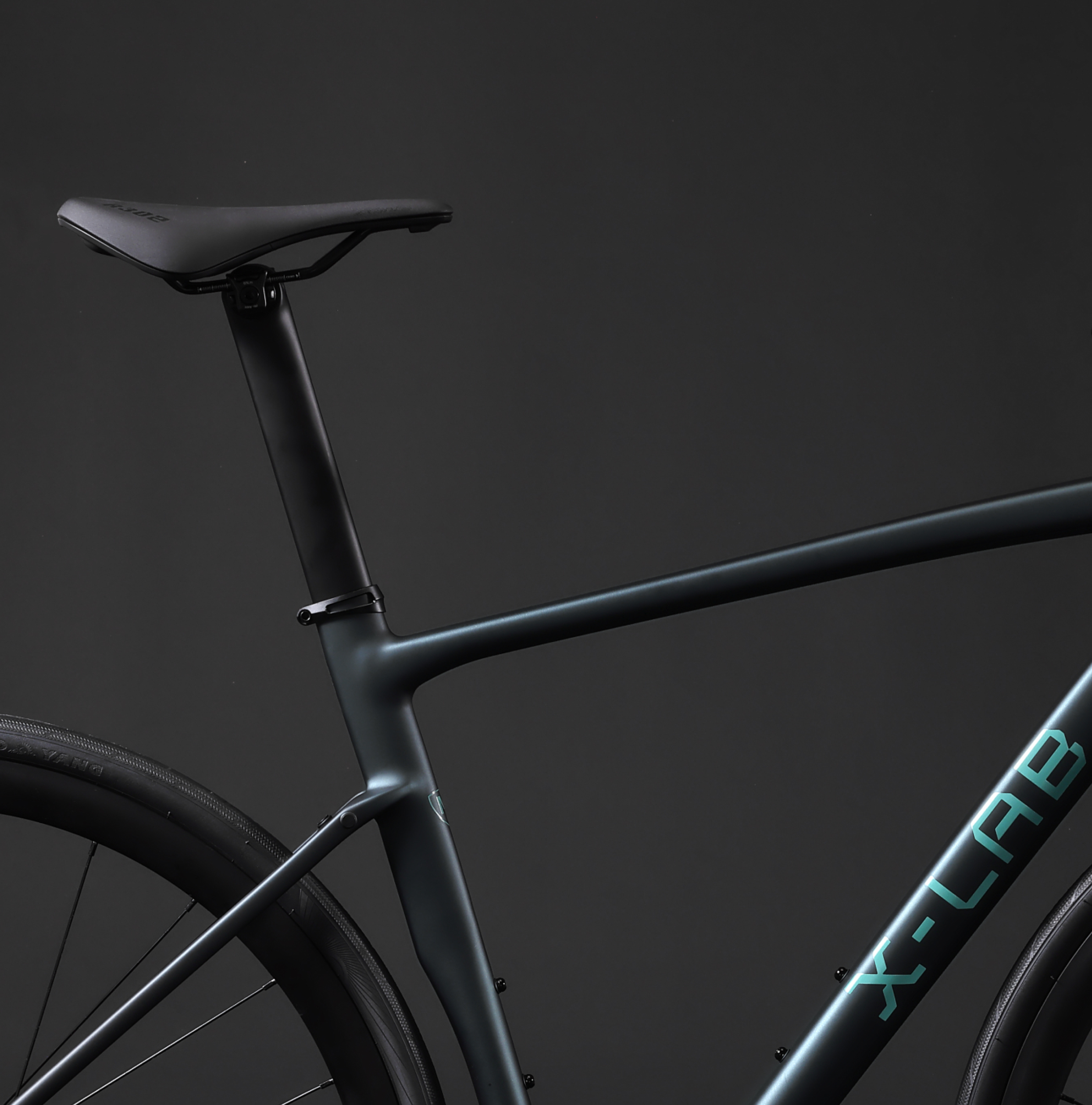

Alloy Done the X-LAB Way

A precision-engineered alloy frame delivers the kind of durability and ride quality riders trust. The RS5 is built for long miles, daily commutes, and everything in between.

Power + Security, Standard

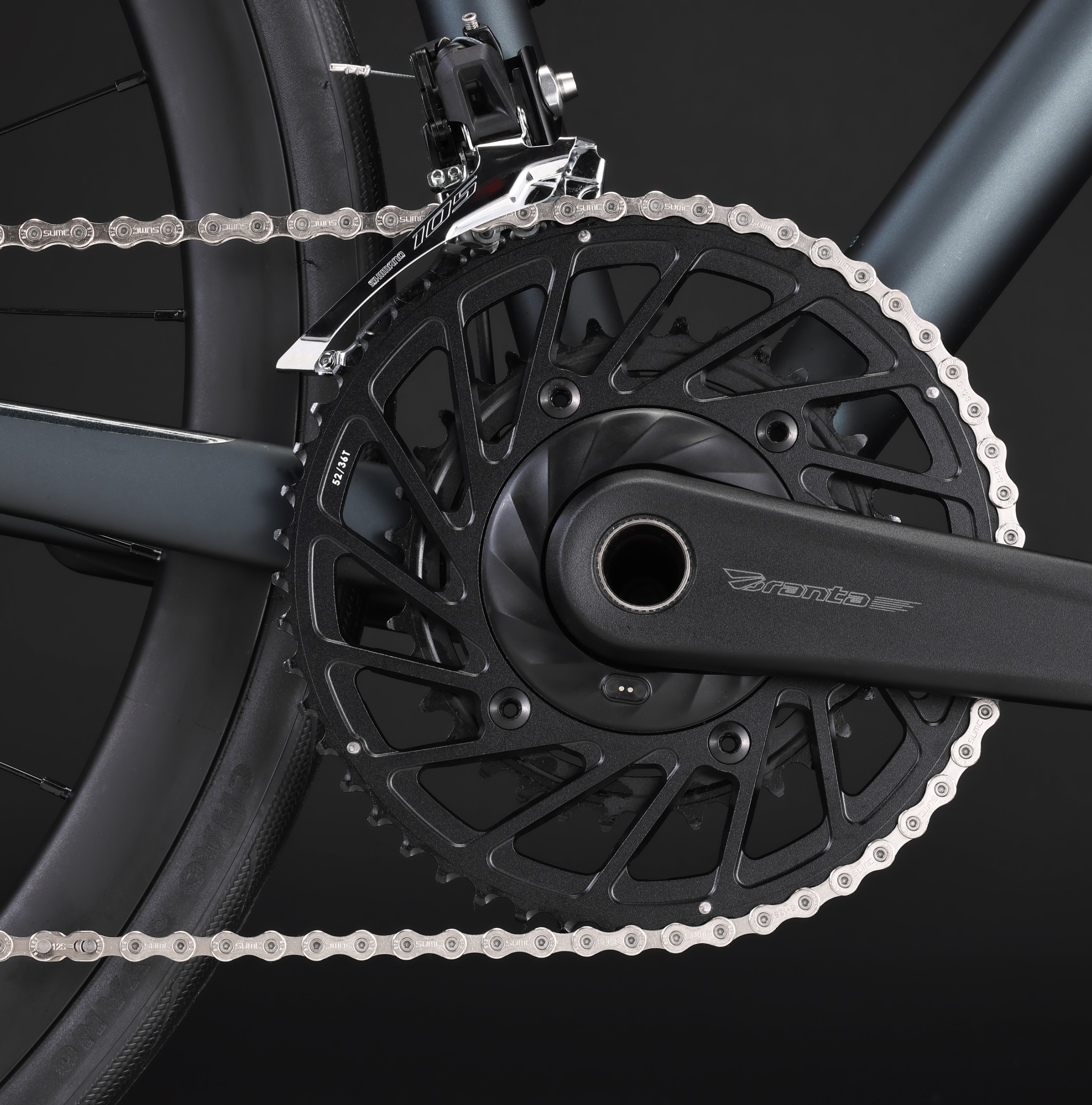

Branta’s in-house alloy crankset integrates a power meter and Find My tech, turning the RS5 into a smarter bike to train on, track, and own, without asking riders to bolt on costly extras.

Specifications

FRAMEXDS X6 Alloy Frame, UDH Compatible

FORKXDS Carbon Fork, 100x12mm Thru-axle

HANDLEBAR / STEMBranta Alloy Integrated

SEATPOSTXDS Carbon Seatpost, Aero Profile

REAR DERAILLEURShimano 105 RD-R7100

FRONT DERAILLEURShimano 105 FD-R7100

SHIFTERSShimano 105 ST-R7120

BRAKESShimano 105 BR-R7170

CASSETTECS-R9012, 12-Speed, 11-34T

CRANKSETBranta Alloy Power Meter Crankset, 52-36T, 24mm Steel Spindle, Apple Find My Anti-Theft Technology

BOTTOM BRACKETBSA 24mm

ROTORSShimano SM-RT56-S, F:160mm R:160mm

CHAINSUMC SX12

WHEELSETBranta A35 SL, Alloy Rims

TIRESBranta R332, 700x32C, 60TPIMax Tire Clearance: 38C

SADDLEBranta R302, Steel Rails

WEIGHT9.54 kg / 21.03 lbs (Size L)

SIZE OPTIONSXS / S / M / L / XL

Sizing & Geometry
