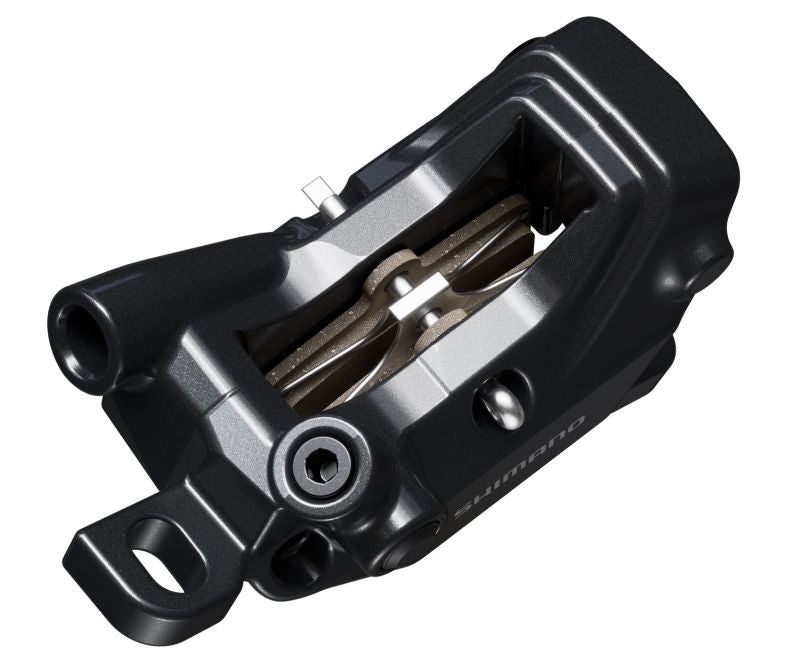

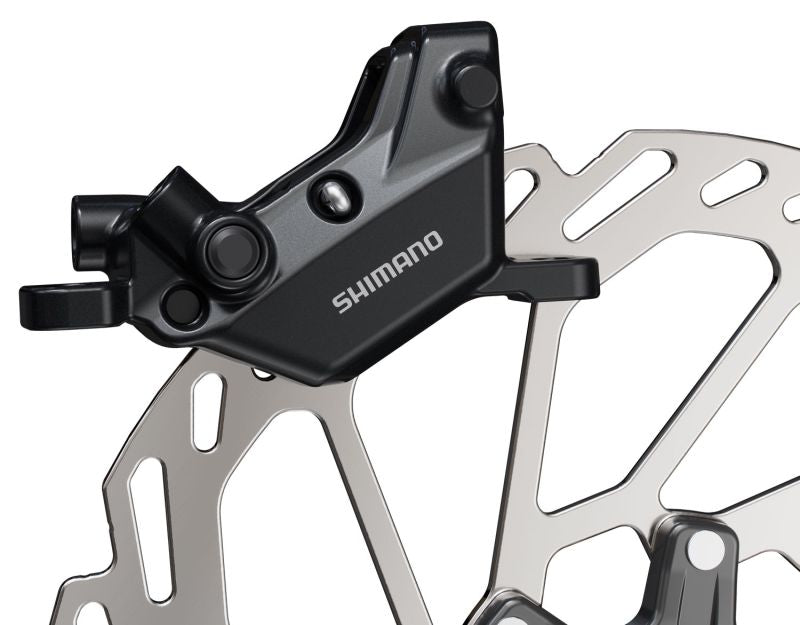

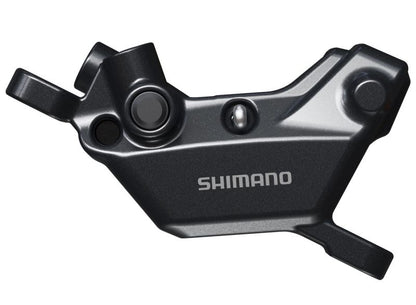

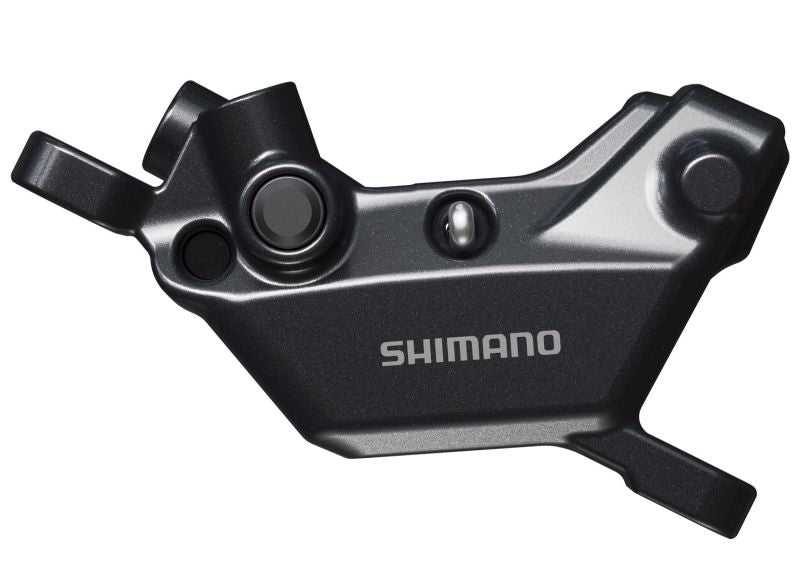

Shimano Deore MT620 Disc Brake Caliper

The BR-MT620 hydraulic 4-piston brake caliper with Post-Mount standard is an evolution of Shimano’s previous lightweight Post-Mount brake caliper. It is designed for use with the BL-MT620 brake lever.

The BR-MT620 4-piston hydraulic disc brake calipers bring consistent and powerful braking performance to the product range. The calipers are based on a rigid, two-piece design and offer better control over the bike thanks to the new low-viscosity oil, the new piston seal and the new heat-resistant plastic piston. The braking system remains stable across a wide temperature range. The calipers are compatible with metal or plastic pads without cooling fins, as well as with standard and thicker 2.2 mm brake discs.

*Rotor Not Included

Features - Shimano BR-MT620 4-piston brake caliper

• Consistent braking control: The all-new low-viscosity mineral oil ensures a reliable and powerful performance curve at all temperatures and on any terrain
• Predictable braking power: DH-suitable performance curve, perfected for enduro racing
• Heat dissipation: Resin or metal pads, with or without cooling fins, allow for precise tuning of braking behaviour in combination with SHIMANO brake discs
• No rattling: Redesigned brake pads and the oval mount eliminate unnecessary noise
• Option without groupset integration: The same functional features as the DEORE M6220 brake calipers, but with a different surface finish

Product features

• Application: MTB, Enduro
• Model: BR-MT620 (4-piston)
• Brake type: Hydraulic disc brake
• Mounting: Front wheel / Rear wheel
• Caliper mount: Post-mount
• Brake pad: Resin D03S-RX without cooling fins
• Hose connection: Straight
• One-way bleed: Yes
• Brake fluid: Low-viscosity mineral oil (SM-LV-OIL)
• Recommended brake lever: BL-MT620
• Recommended brake hose: SM-BH90-SBM
• Recommended brake disc: SM-RT70

Material

• Aluminium

Colour

• black

Contents

• 1 x BR-MT620 brake caliper
• 1 x Resin D03S-RX brake pads without cooling fins
• 2 x mounting bolts (M6 x 14.6) for brake caliper
