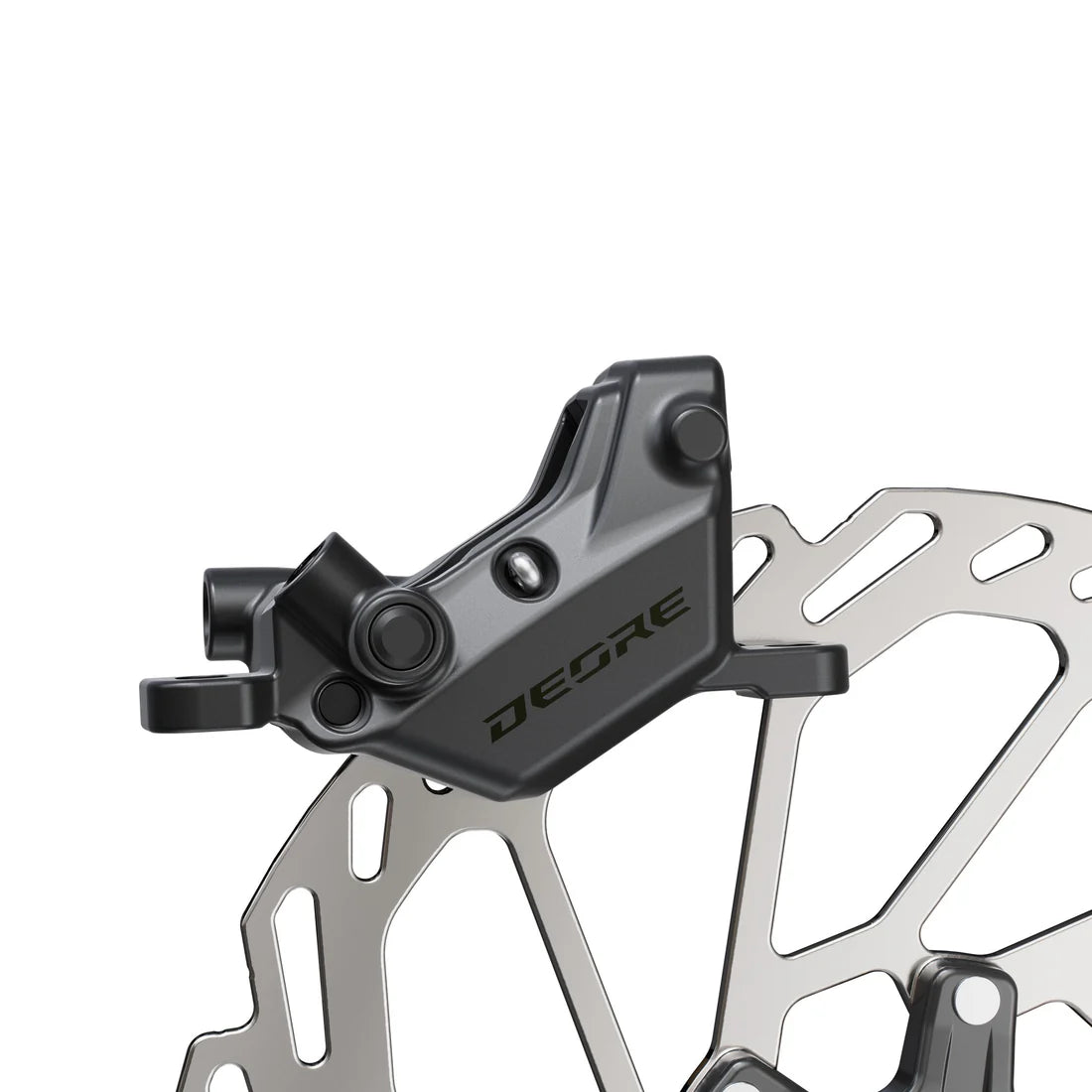

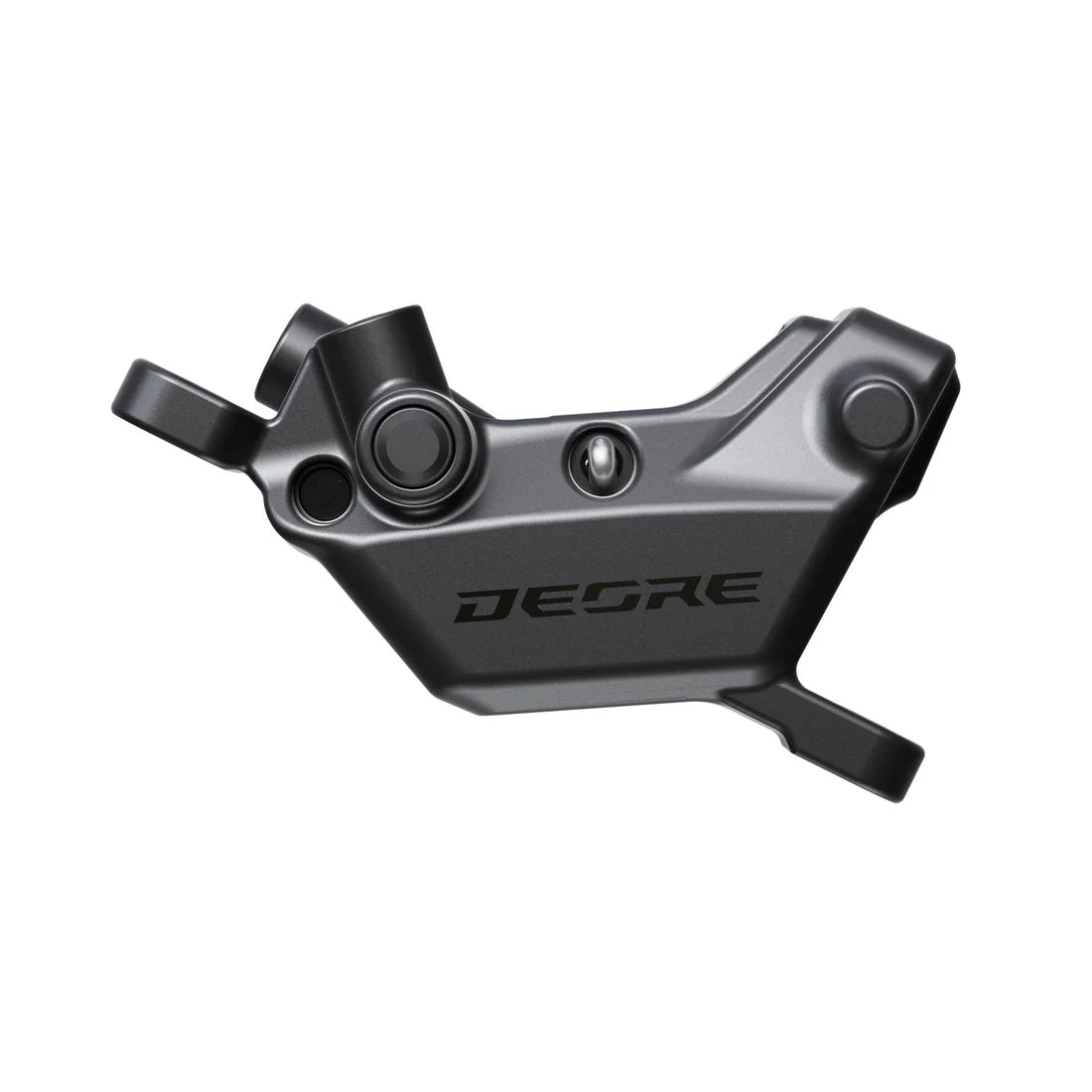

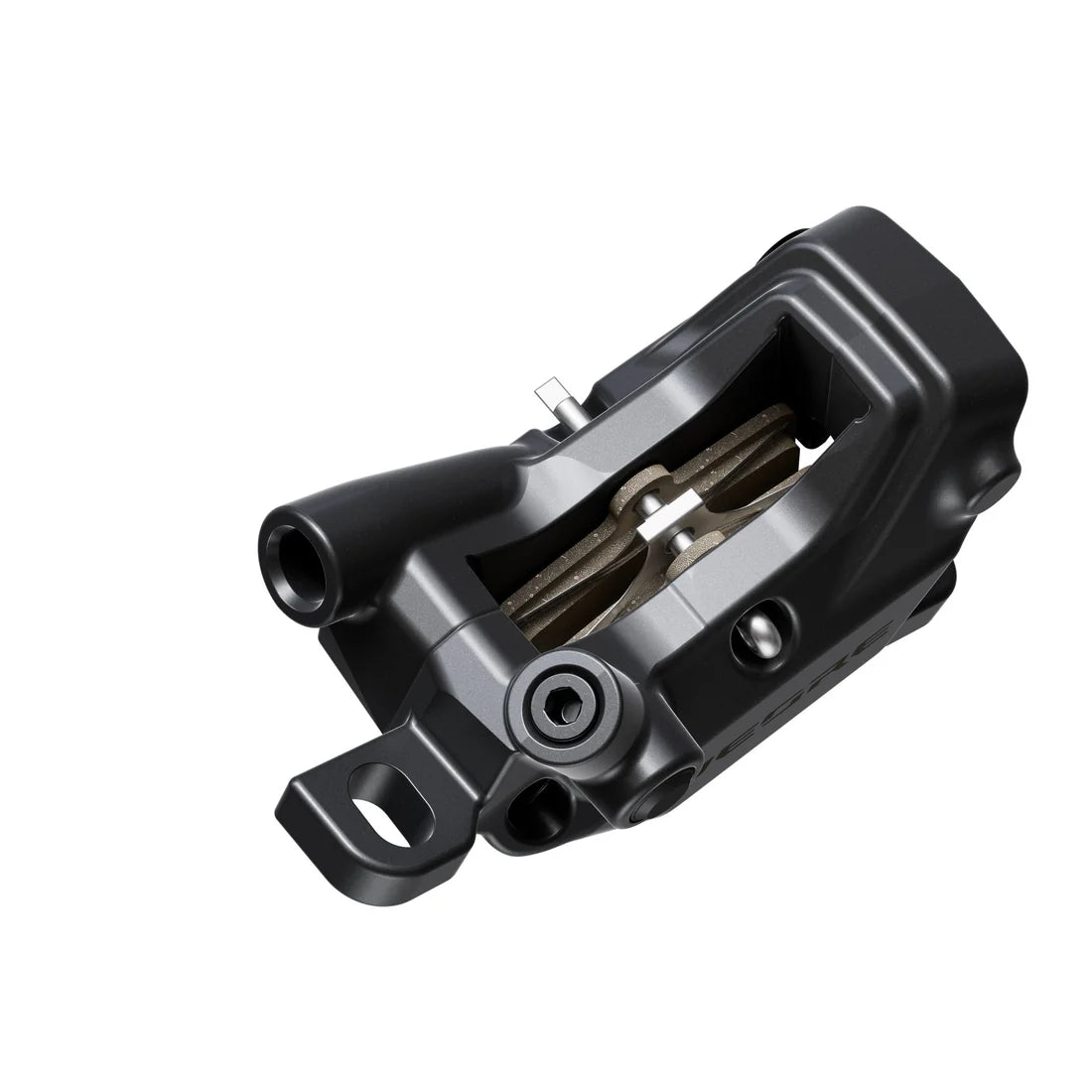

Shimano Deore M6220 Disc Brake Caliper

Four pistons, full power. The DEORE BR-M6220 is a four-piston calliper built for the ultimate power and control on trail and enduro rides, packaged in a rigid two-piece design. A dual-diameter piston layout delivers strong, controllable stopping power that won't slow you down but won't hold you back either.

A new piston seal keeps rebound speed consistent, a heat-resistant resin piston manages the heat of long, hard descents, and Shimano's low-viscosity mineral oil keeps the feel stable across a wide temperature range. The M6220 is fully compatible with Shimano's new 2.2mm thick rotors (RT-CL750 and RT-6B750) for a serious braking upgrade, and works with current Shimano pads in metal and resin (without fin).

Features

• Dual-diameter four-piston design for high power and control
• Rigid two-piece construction
• New piston seal for consistent rebound speed
• Heat-resistant resin piston
• Low-viscosity mineral oil for stability over a wider temperature range
• Compatible with 2.2mm thick rotors (RT-CL750 / RT-6B750)
• Compatible with current Shimano pads — metal and resin (without fin)

Specification

• Series: SHIMANO DEORE M6200

• Type: Hydraulic disc brake calliper

• Pistons: 4-piston (dual diameter)

• Intended Use: Trail / Enduro

• Fluid: Low-viscosity mineral oil (SM-LVOIL)

• Rotor Compatibility: Supports 2.2mm thick rotors

• Pad Compatibility: Metal / resin (without fin)

• Front Or Rear - No Adapter
