Shimano Deore M6200 Disc Brake - Front - J Kit

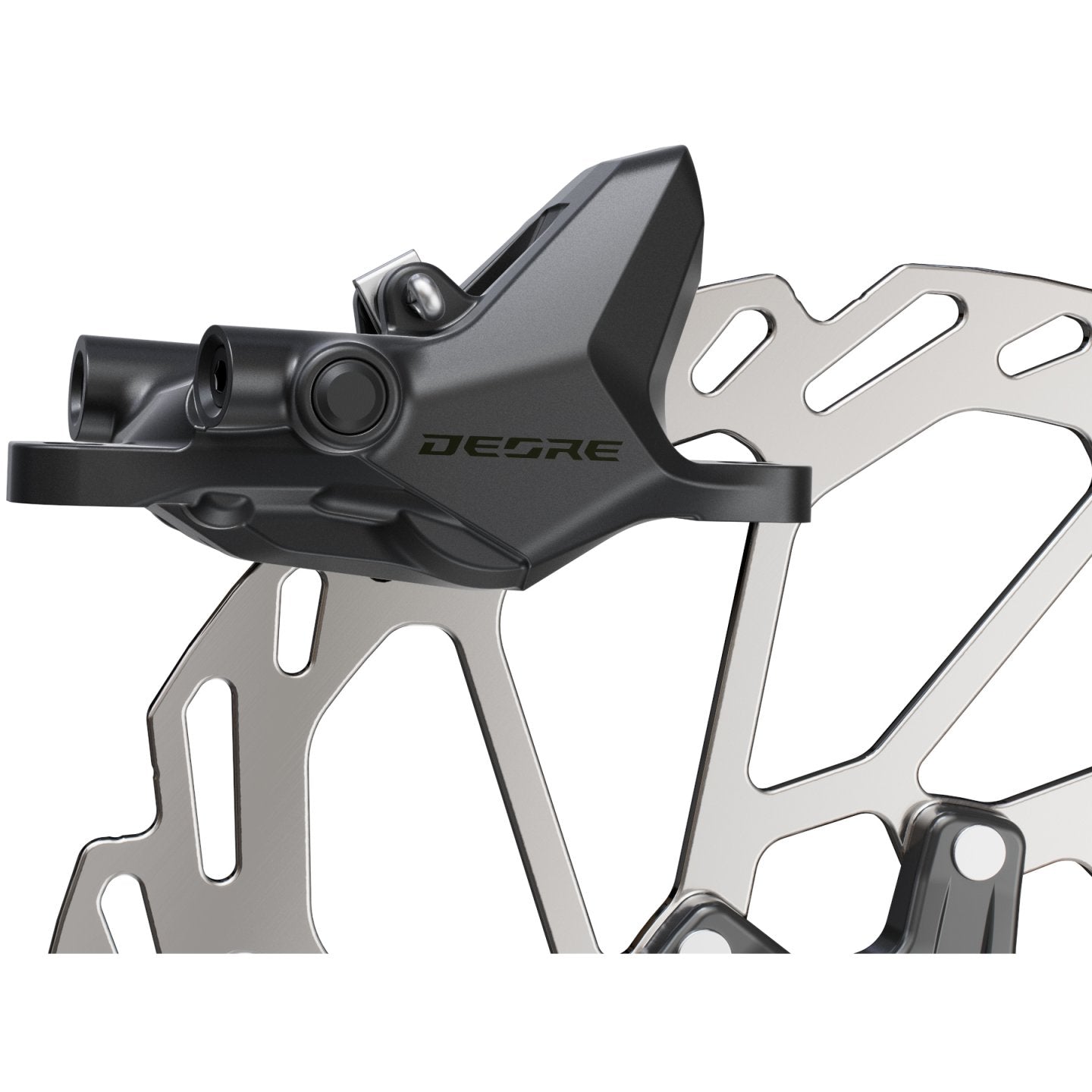

Shimano Deore BR-M6200 disc brake caliper

Note: Front brake only rotor not included

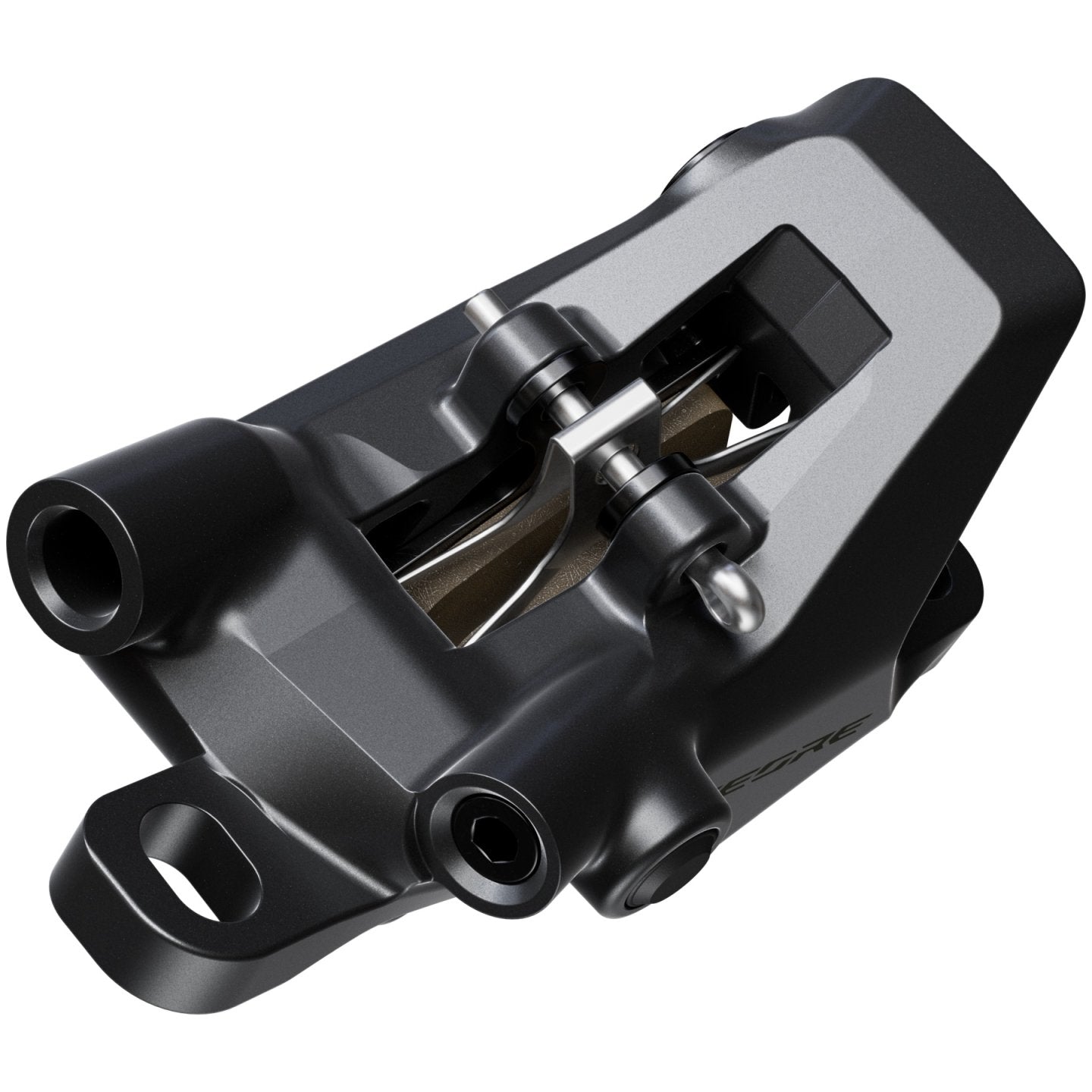

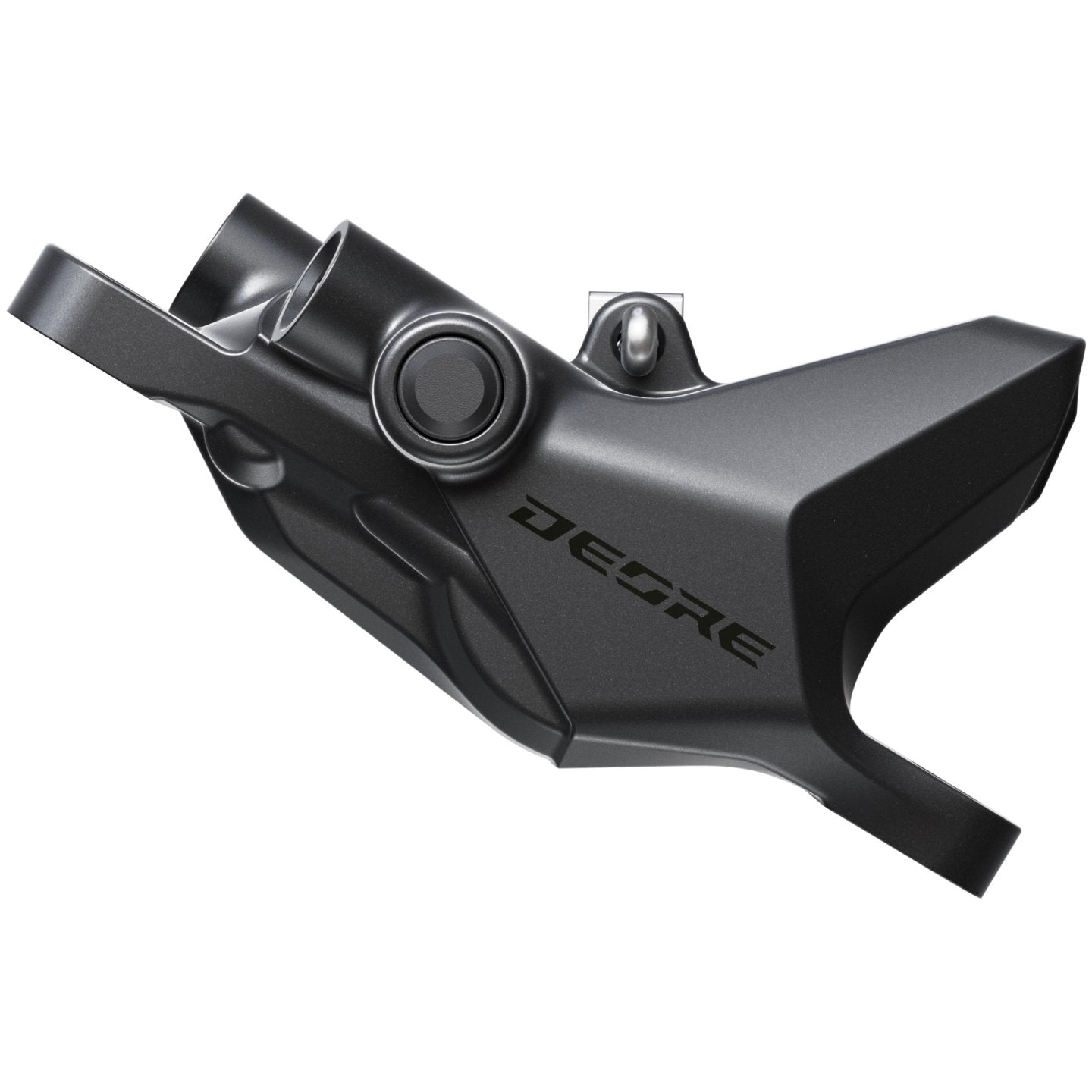

Full-Spectrum Stability. To ensure stable piston retraction, the calipers in the current Deore series feature improved internal gaskets. The use of Shimano’s reformulated, low-viscosity mineral oil ensures smooth flow, which is essential for consistent braking feel regardless of temperature. While the two-piece construction of the BR-M6200 brake caliper enhances durability, the use of a single pair of pistons keeps the weight low without compromising the necessary braking power.

For brake systems with J-Kit brake hose connection, the brake lever has an integrated squeeze seal (olive), which makes the installation and removal of the brake line much easier overall.

SERVOWAVE | This brake system manages the friction between the brake pads and the rotor throughout the entire pull phase to achieve an optimized power curve and correspondingly more balanced braking behavior. The SERVOWAVE brake lever covers a long distance at the start of its movement, allowing the brake pads to be brought into contact with the rotor with minimal lever travel. Once the brake pads make contact, the force transmission ratio increases rapidly. The majority of the lever travel is thus still available to increase braking power and modulate it more precisely.

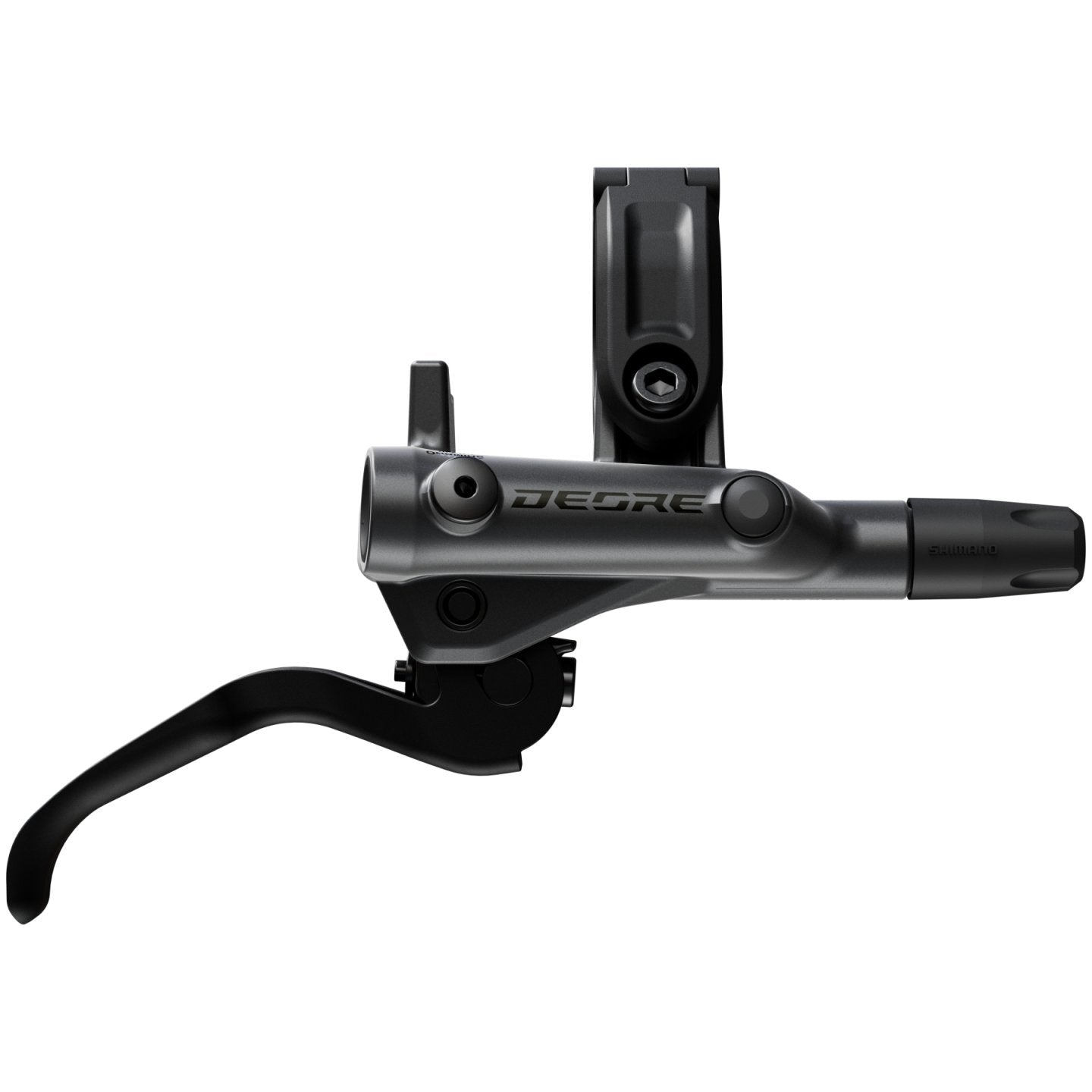

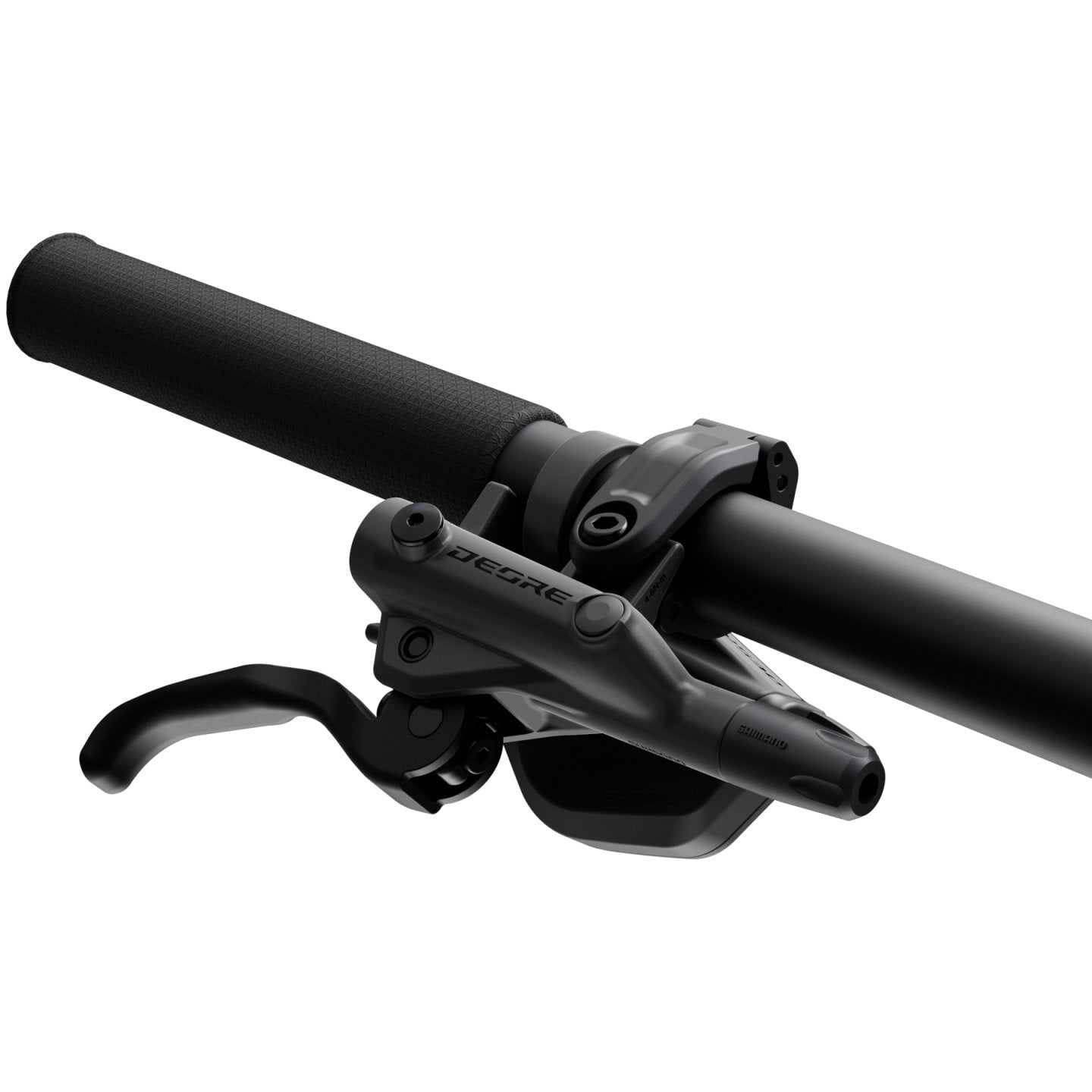

I-Spec EV | Shimano’s integrated I-Spec mounting system for brake and shift levers enables a clean, performance-optimized cockpit layout that helps riders maintain greater concentration and flexibility. The ergonomic design, faster lever access, and smooth operation enhance riding comfort. Thanks to the EV version’s even wider adjustment range, every type of rider can easily find their optimal position, regardless of riding style, preferences, or hand and arm position. On the I-Spec EV brake levers, the clamp that is set further inward creates an additional contact point with the handlebar, further improving the stiffness of the lever unit.

Compatibility:

• brake fluid: Shimano mineral oil (low viscosity)

Scope of supply:

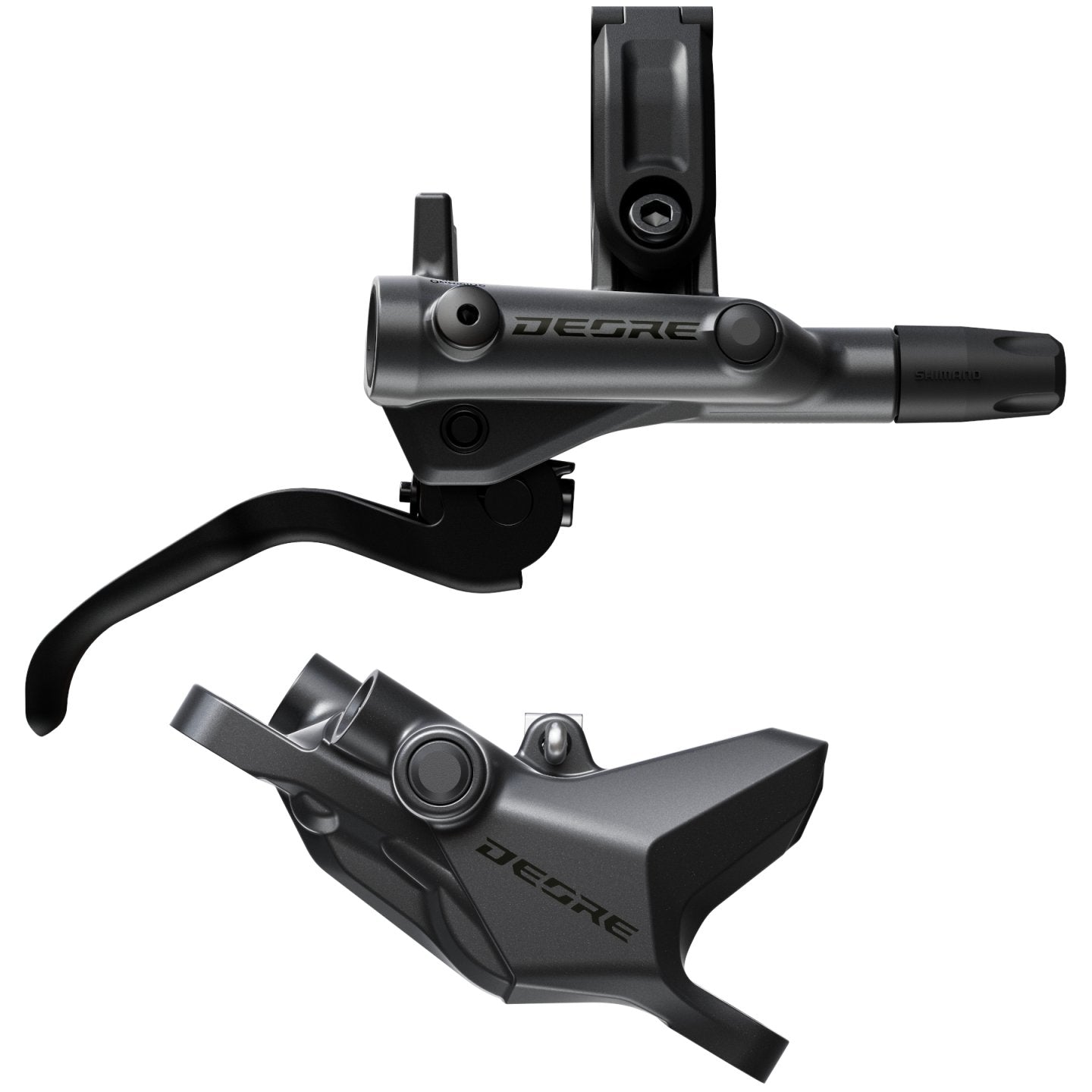

1 brake lever + 1 brake caliper (set, filled and bled)

• Front variant L (left): incl. brake pads (resin or metal) and brake hose (SM-BH90-JK-SS, 1000 mm)
