Description

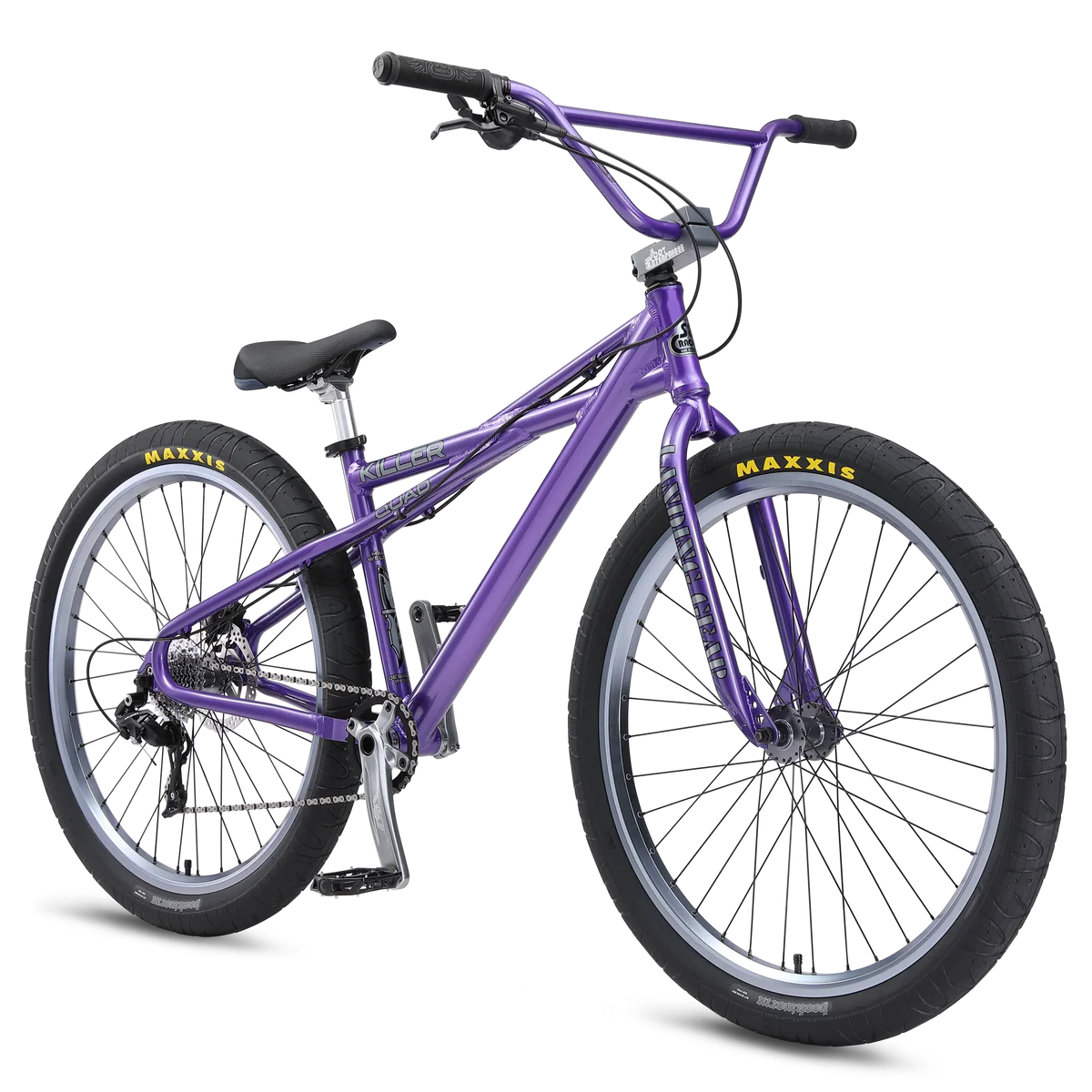

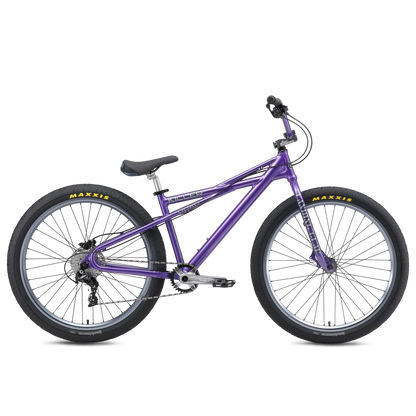

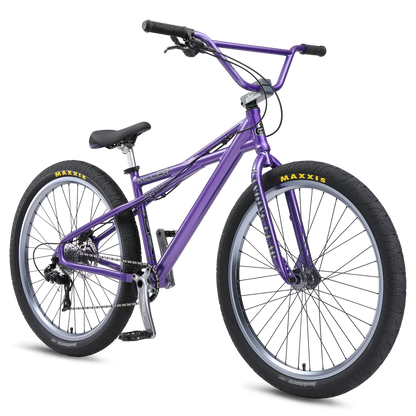

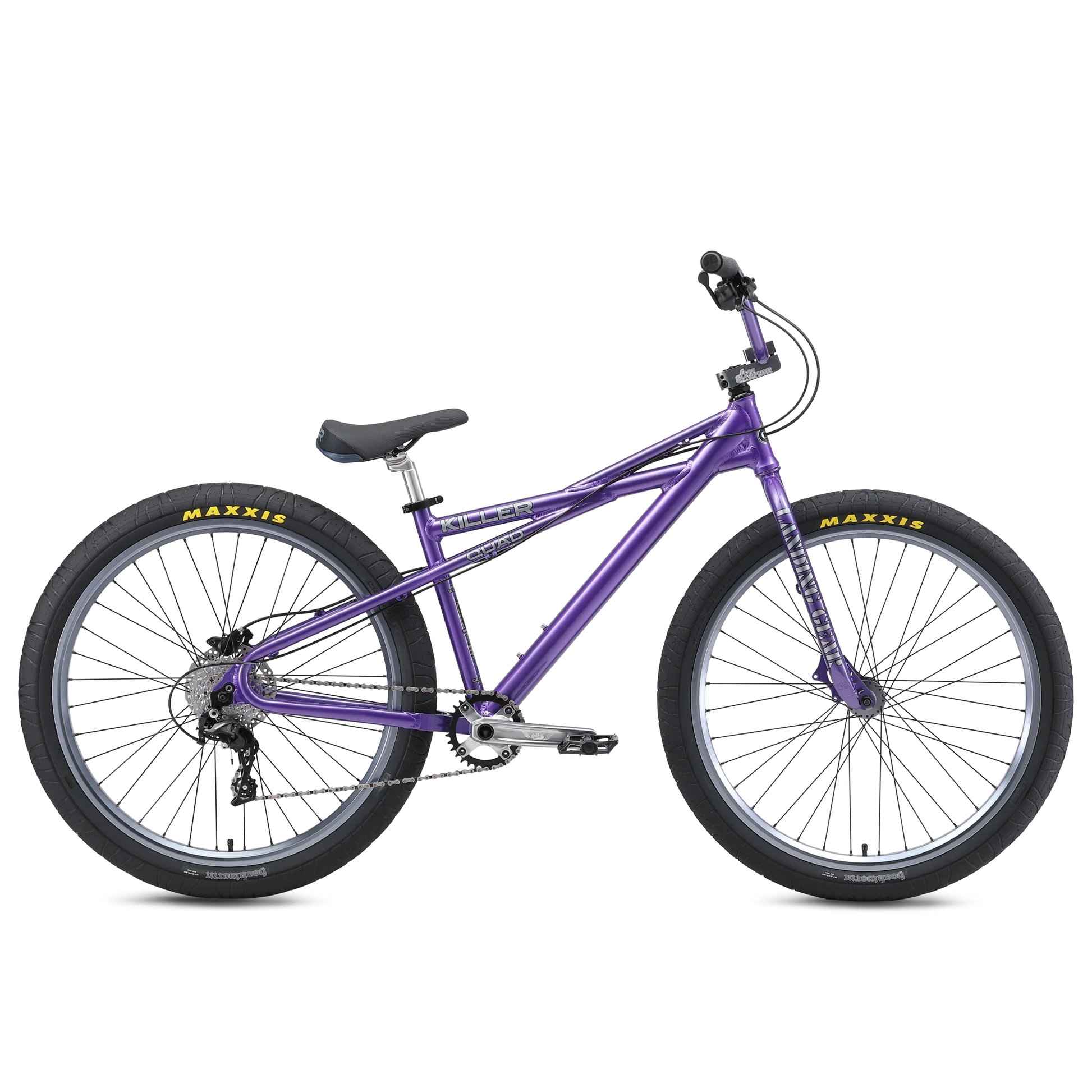

SE Bikes Killer Quad 27.5

The 27.5" Killer Quad is back, and it's a testament to a legendary SE Quadangle frame design. The Killer Quad is equipped with a smooth Microshift 1x10 drivetrain, giving you a wide range of gears for every session. The Shimano MT200 hydraulic disc brake provide all the stopping power you need. New for this year, the double-wall rims and sealed bearing hubs roll on 27.5" x 2.5" Maxxis Hookworm tires for a secure grip and smooth roll. The flangeless Mushroom Wing grips will keep your hands comfortable, and the new SE Captive seat provides a secure and comfortable feel. The bike is finished off with a quick-release seat clamp for easy adjustments, and water bottle mounts were also added to the frame this year.

Key Details:

6061 Aluminum Killer Quad frame with oversized downtube, integrated headset, water bottle mounts, and Looptail rear end 
Full Cr-Mo Landing Gear forks 
SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring 
FSA Orbit CE integrated sealed bearing headset 
Maxxis Hookworm 27.5" x 2.5" tires 
MicroShift XLE RD-M61S 1x10 short-cage derailleur 
Sealed-bearing rear alloy hub with double-wall rims and MicroShift 11-32T 10-speed cassette 
Shimano MT200 hydraulic disc brake, dual piston, 160mm rotor
NEW SE Captive Seat with concave design for ultimate hold and comfort

Specifications:

Frame	6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, Water Bottle Mounts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger
Fork	Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts
Crankset	SE Racing 170mm Forged Alloy 2-pc Cranks, Pedal Boss Inserts, 32T Narrow/Wide Alloy Chainring, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle
Pedals	X-Pedo Low-profile Platform w/ Removable Pins
Shifters	MicroShift XLE Xpress SL-M850-R, 1x10, Sealed Bearing, Alloy Lever
Cassette	MicroShift XLE CS-H100, 10-speed, 11-32T
Chain	KMC X10
Wheelset	Sealed Bearing Alloy 36H Nutted Hubs, 135mm Rear Hub, 110mm Front Hub, Double-wall Rims w/ Eyelets, 11-32T 10-speed Cassette, Stainless Spokes
Tires	Maxxis Hookworm, 60TPI, 27.5" x 2.5" Front & Rear
Brakeset	Shimano MT200, Hydraulic Disc, Dual Piston, One Way Bleeding, 160mm Rotor, Rear Only
Headset	FSA Sealed Bearing, Integrated, Orbit CE, 1-1/8"
Handlebar	Big Honkin' Cr-Mo Cruiser Bar, 31" x 7", 12° Backsweep, 2° Upsweep
Stem	Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
Grips	SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs
Seat	New SE Captive Seat, Concave Design for Ultimate Hold & Comfort, w/ Custom SE Bottle Opener Brace
Seatpost	Micro-Adjust Alloy, 27.2mm
Accessories	Alloy Valve Caps, Water Bottle Mounts, Removable Derailleur Hanger

Sizing & Geometry:

Video:

SE Bikes
