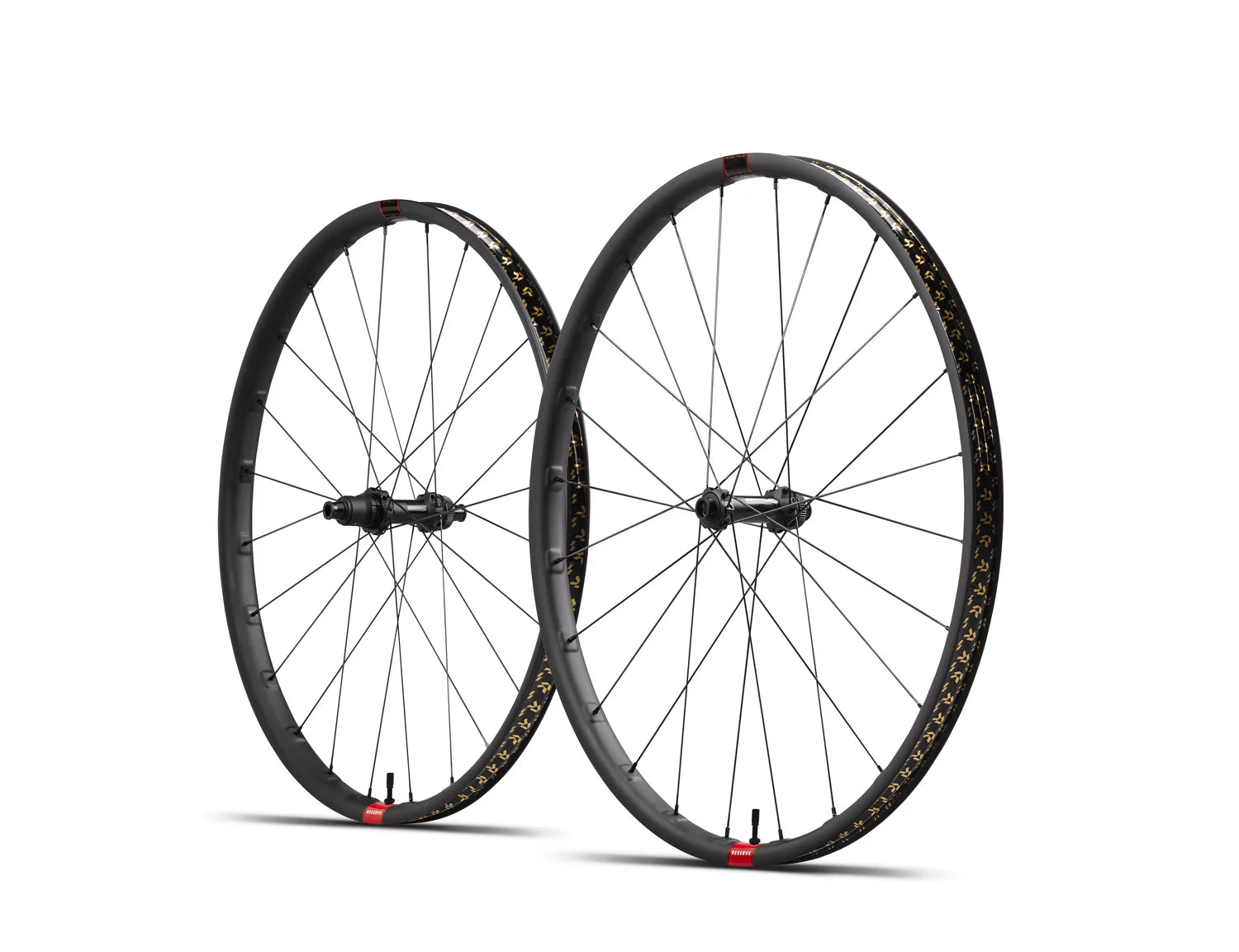

Reserve Wheels 28 XC SL/DT 180 29" Carbon MTB Wheelset
The Reserve 28|XC is the race-ready culmination of everything we’ve learned from years at the highest levels of competition. At 1387g for a complete DT Swiss 180 hub wheelset with tape and valves (AND no rider weight limit and lifetime warranty), the 28|XC features a wider and lower rim profile than our previous XC race wheels, increasing strength and lateral rigidity while adding vertical compliance. The new rim shape also eases tubeless tire installation and improves tire bead retention at lower pressure. The Reserve 28|XC is sturdy and strong enough for a rowdy XC ride, but light and fast enough for a jaunt on the World Cup XC circuit.
Freehub - XD, Rotor - Centerlock
Key Details:
Spoke Reinforcements
Reserve uses externally reinforced spoke holes to strengthen the area where the rim sees the most force, around the spoke nipple. This provides for improved strength without adding unnecessary weight.
Redesigned Rim Bed
The 28|XC's redesigned rim bed eases tubeless installation, with a shaped rim bed utilizing offset spoke holes that allows the tire to easily push past the bead bump to seat tubeless tires.
Asymmetrical Design
Asymmetrical rims front and rear make for a stiffer, stronger and more reliable wheels by improving the bracing angles and equalizing the spoke tensions between the drive and non-drive side spokes.
Specifications:
| Specification | Details |
|---|---|
| Designed For | XC Riding and Racing |
| Hub Spacing | Boost: 15x110 F - 12x148 R |
| Spoke Count | 24 |
| Wheelset Weight | DT 180 - 1387g, DT 240 - 1433g, DT 350 - 1491g |
| Rim Weight | 385g |
| Inner Width | 28mm |
| External Width | 37mm |
| Rim Depth | 20mm |
| Asymmetric Offset | 2.8mm |
| ERD | 595mm |
| Recommended Tire Dimensions |
2.2" to 2.5" |
