Description

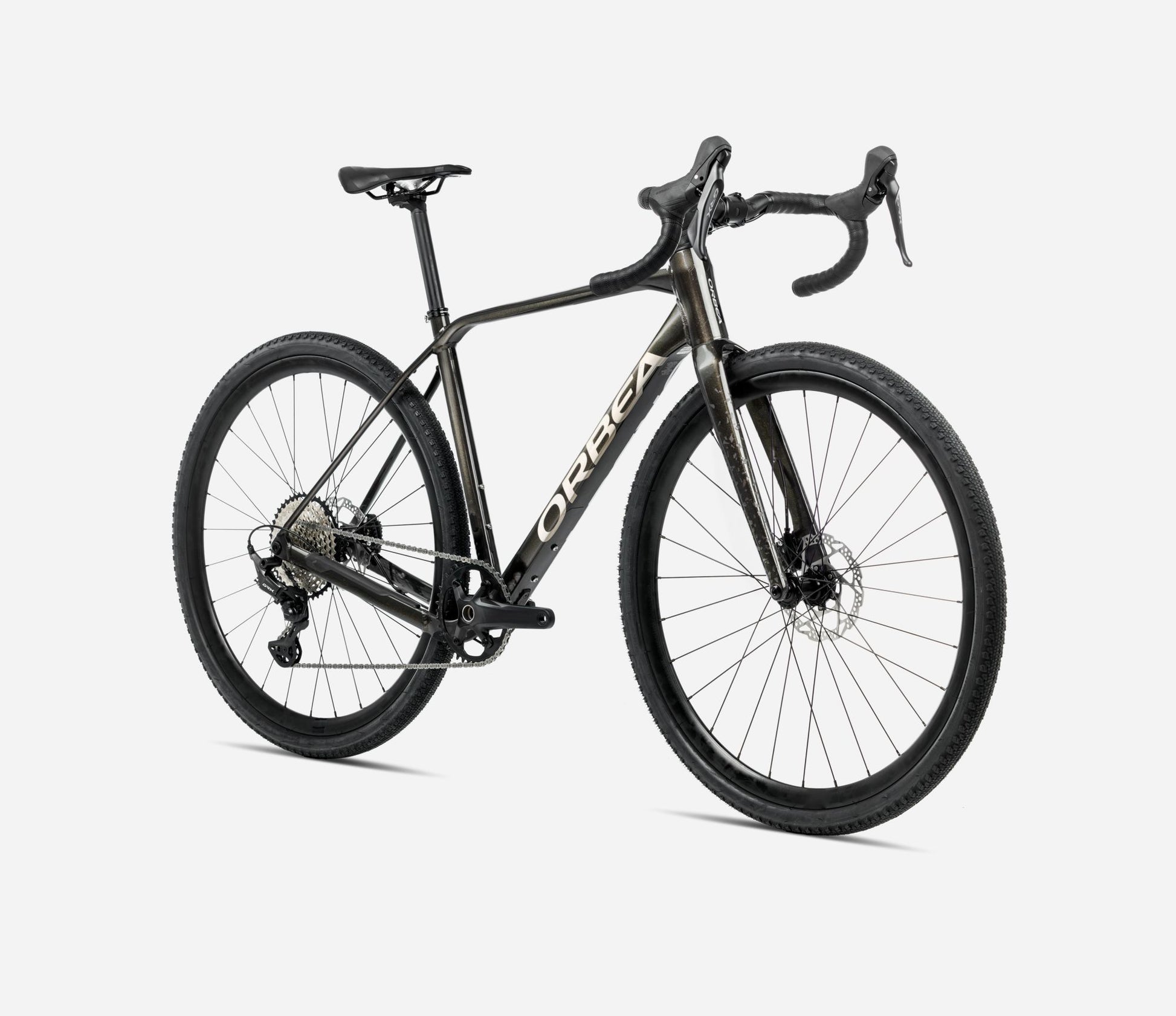

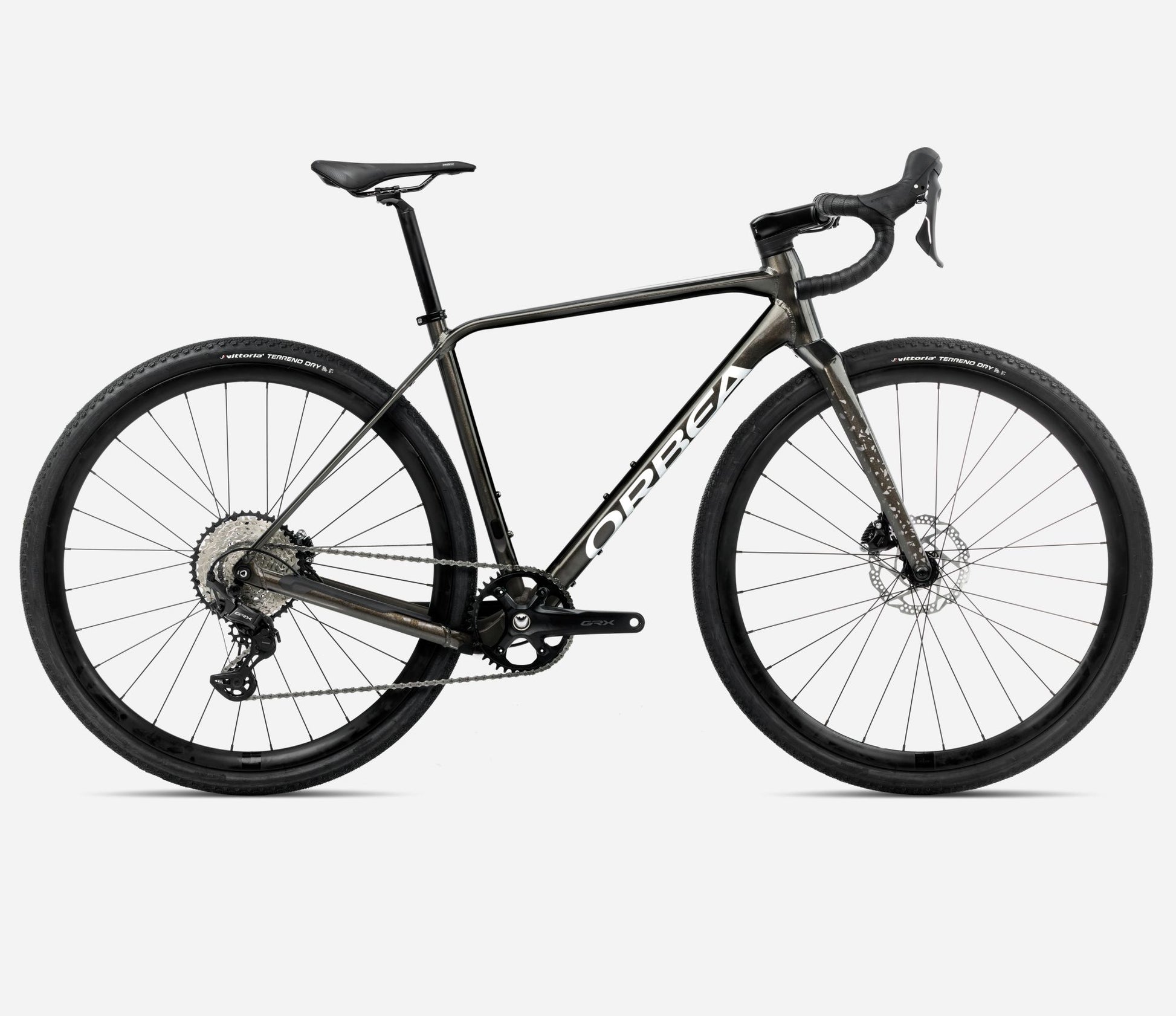

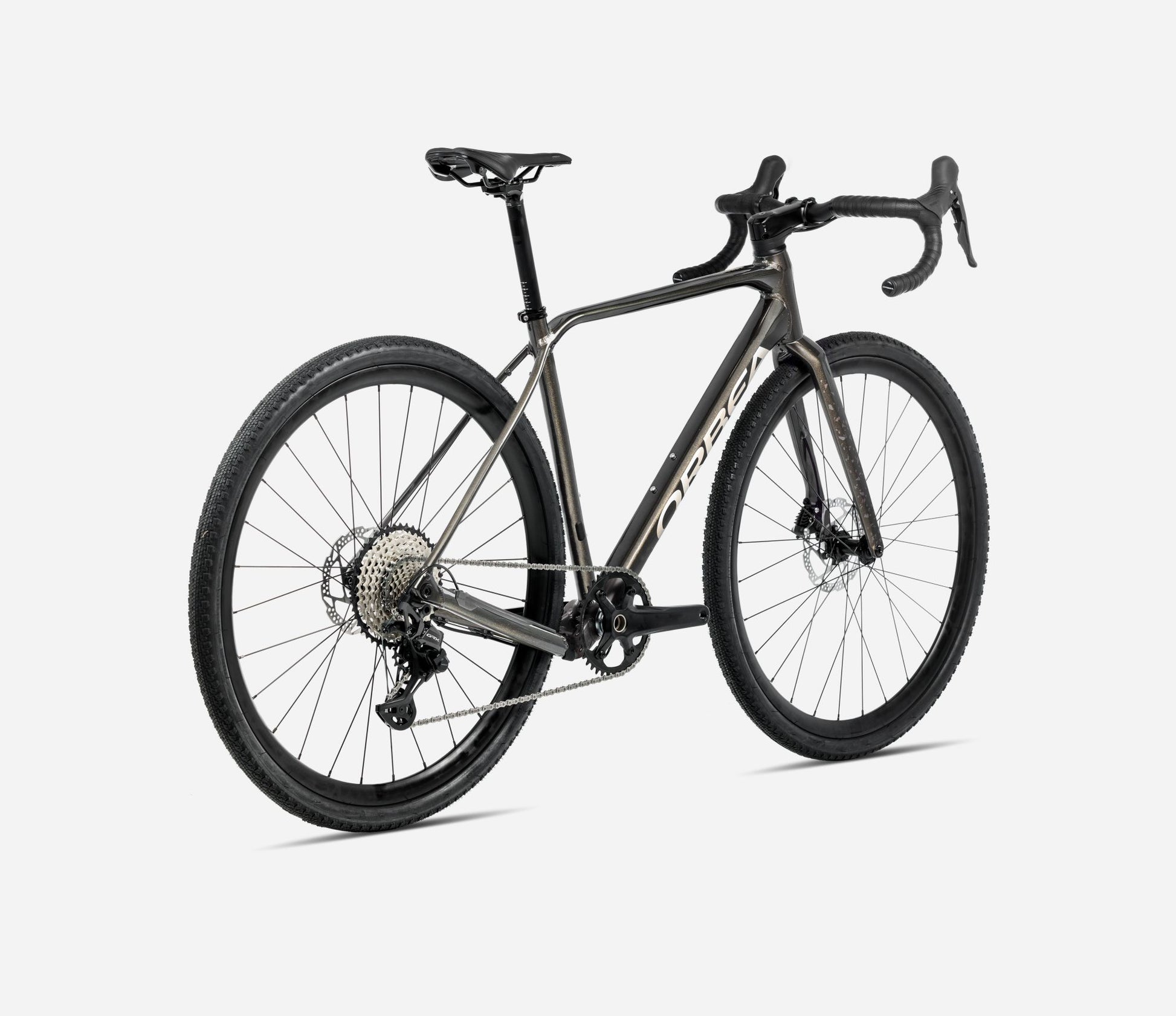

Orbea Terra H30 1X 700c

GRAVEL FROM THE GROUND UP

Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.

Features:

  • Tire Clearance
    Terra can be mounted with 700c x 45 tires for speed and efficiency on dirt roads, or with 650b x 50 tires for extreme durability and high-volume comfort if you need a bit more traction.

  • Drivetrain Compatibility
    Designing the frame from the ground up allowed addressing a common problem in gravel frames—providing a range of drivetrain options without compromising tire clearance.

  • Lockr
    The Carbon frame offers a storage area inside the downtube, hidden behind the water bottle area, where there is space for a tube, pump, or CO2 cartridge, as well as a selection of tools.

Specifications:

Frameset

  • Frame: Orbea Terra Hydro Disc, hydroformed triple-butted aluminium, HS 1.5", PF bottom bracket, 12x142mm rear thru-axle (M12x2 P1), DT internal cable routing, 27.2mm seat tube, MMS system

  • Fork: Orbea Terra ICR, full carbon, tapered 1-1/8"–1.5" head tube, 12x100mm front thru-axle (M12x2 P1)

  • Steerer Tube: FSA 1-1/2" integrated aluminium cup

Drivetrain

  • Crankset: Shimano GRX RX610, 40T

  • Shifters: Shimano GRX RX610

  • Cassette: Shimano CS-M7100, 12-speed, 10-45T

  • Rear Derailleur: Shimano GRX RX822 GS

  • Chain: Shimano M6100

Cockpit

  • Handlebar: OC Gravel GR31-R, Rise 15, Reach 70mm, Drop 110mm

  • Stem: OC Road Performance RP22, -5º

Brakes

  • Brakes: Shimano RX400 hydraulic disc

  • Brake Configuration: N/A

Wheels & Tyres

  • Wheels: Alloy, tubeless-ready, 700c, 21c internal width

  • Tyres: Vittoria Terreno Dry Gravel, 700x38c

  • Front Axle: Orbea 12x100mm thru-axle (M12x2 P1, solid)

  • Rear Axle: Orbea 12x142mm thru-axle (M12x2 P1, solid, inner threaded)

Components

  • Seatpost: SP 0.2 Carbon, 27.2mm, 20mm setback

  • Saddle: Prologo Akero AGX, black rails, 155mm width

  • Handlebar Tape: Orbea EVA

  • Mudguard: N/A

Orbea reserve the right to make changes to the product and component information appearing on their site at any time without notice, including with respect to equipment, specifications, models, colors, and materials

Orbea

Orbea Terra H30 1X 700c - Infinity Green-Ivory White - 2026

Orbea Terra H30 1X 700c - Infinity Green-Ivory White - 2026

Regular price $2,699.00
Regular price $2,699.00 Sale price $2,699.00
Color
Size

Product ID: GM071025-80

Only 1 Items Left
