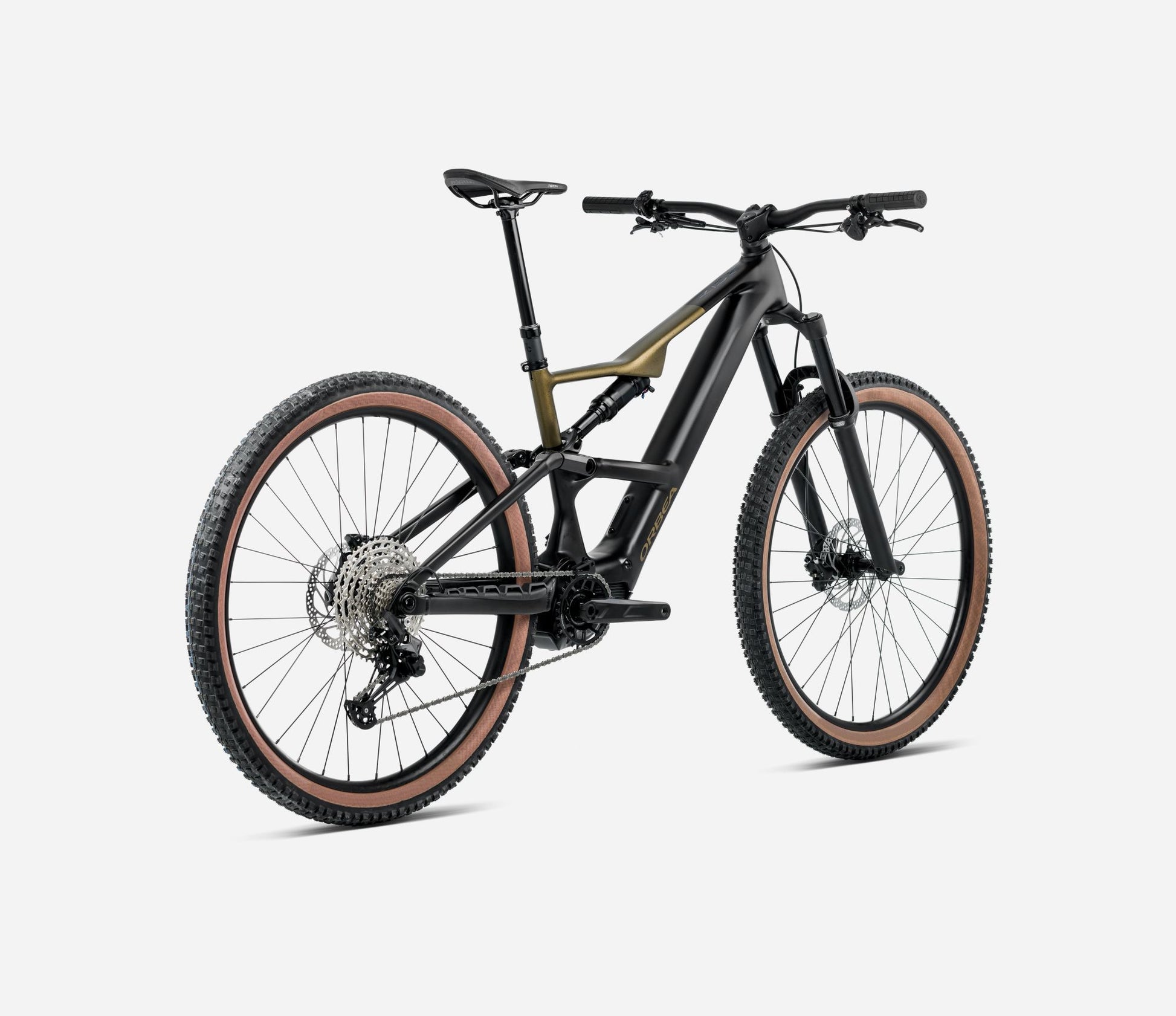

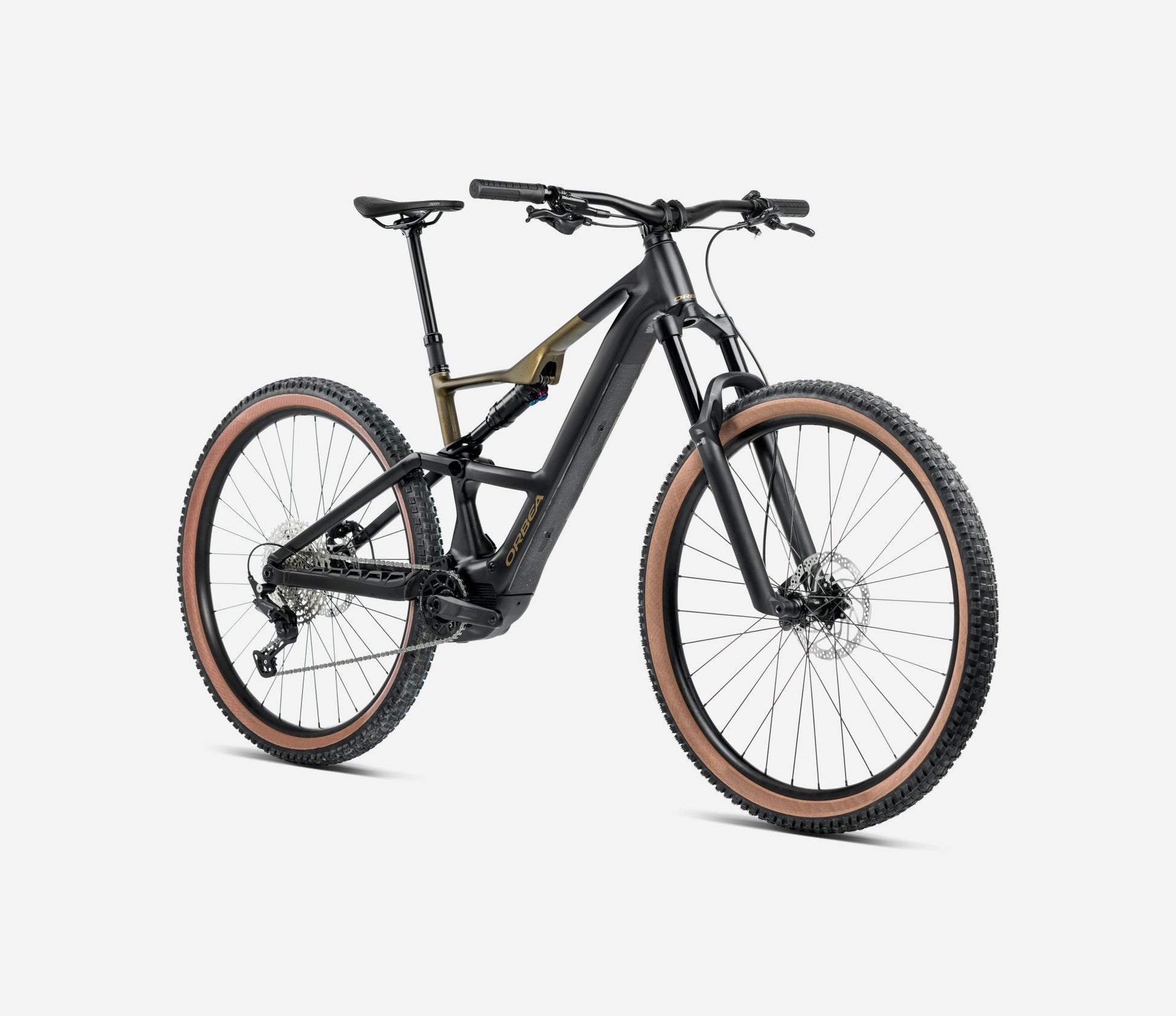

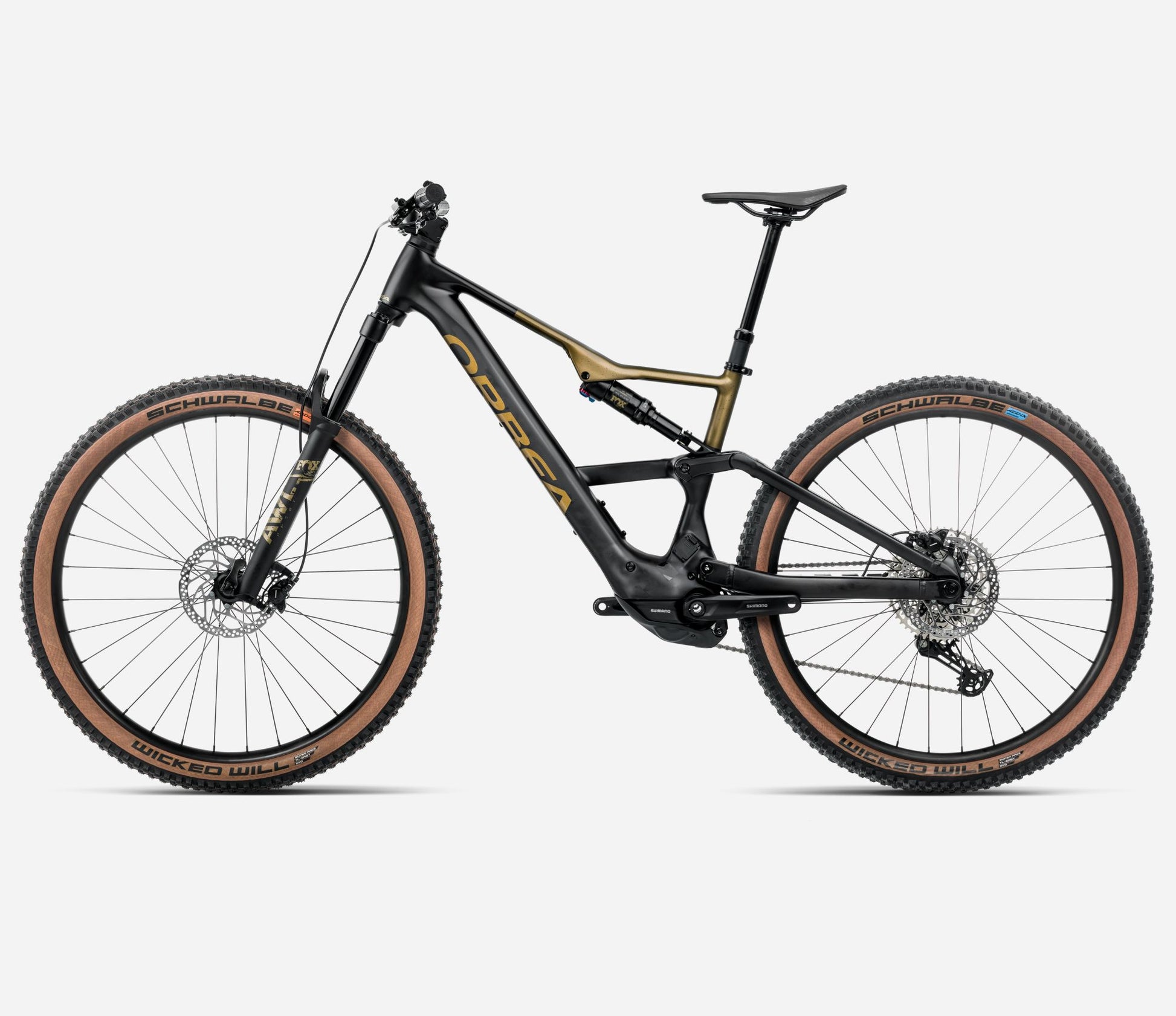

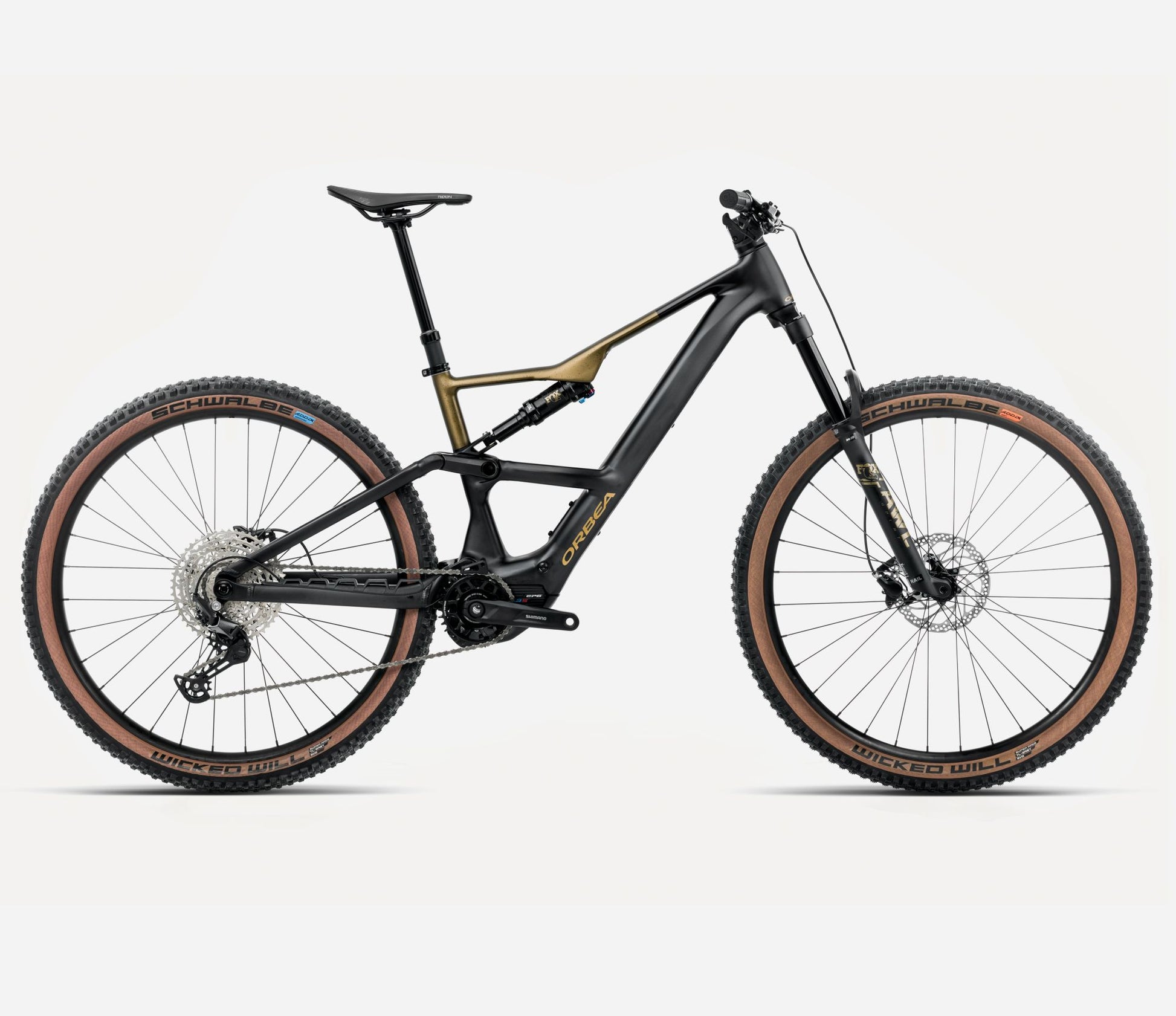

Orbea Rise SL H30 29 20mph

Find flow in every adventure. Rise SL offers 140mm of efficient suspension and a fast trail geometry giving a nimble, fun ride.

THE BEST JUST GOT BETTER

Rise is ready to reshape the lightweight e-bike market once again. Leaner and keener than ever, with more energy packed into every gram.

Better handling, more power and increased stamina. Our updated Rider Synergy means more control than ever before, giving an unbeatable trail experience no matter where you ride.

Features:

• High Polished Alloy
  Each weld on the main frame is polished smooth, matching the aesthetics of a monocoque frame. The polishing increases fatigue resistance at high stress points.

• Tuned Rigidity & High Performance Handling
  For the best handling, bikes need the correct rigidity, in the correct places. Rise’s new asymmetric frame design is key to tuning the frame rigidity.

• The New Rider Synergy
  Rider Synergy (RS) is the heart of Rise. It offers the most natural, elastic, and best-in-class battery range for epic adventures. Now with an option to increase torque to 85Nm.

• Steep 'n' Deep Dropper
  Drop the saddle right out of the way to give more space to move your body and improve control. Supports up to a 230mm dropper for long-travel droppers.

• Further and Faster
  The natural RS Gen2 assistance works with you to involve you in the ride, providing assistance where needed and conserving battery life elsewhere.

Specifications:

Frameset

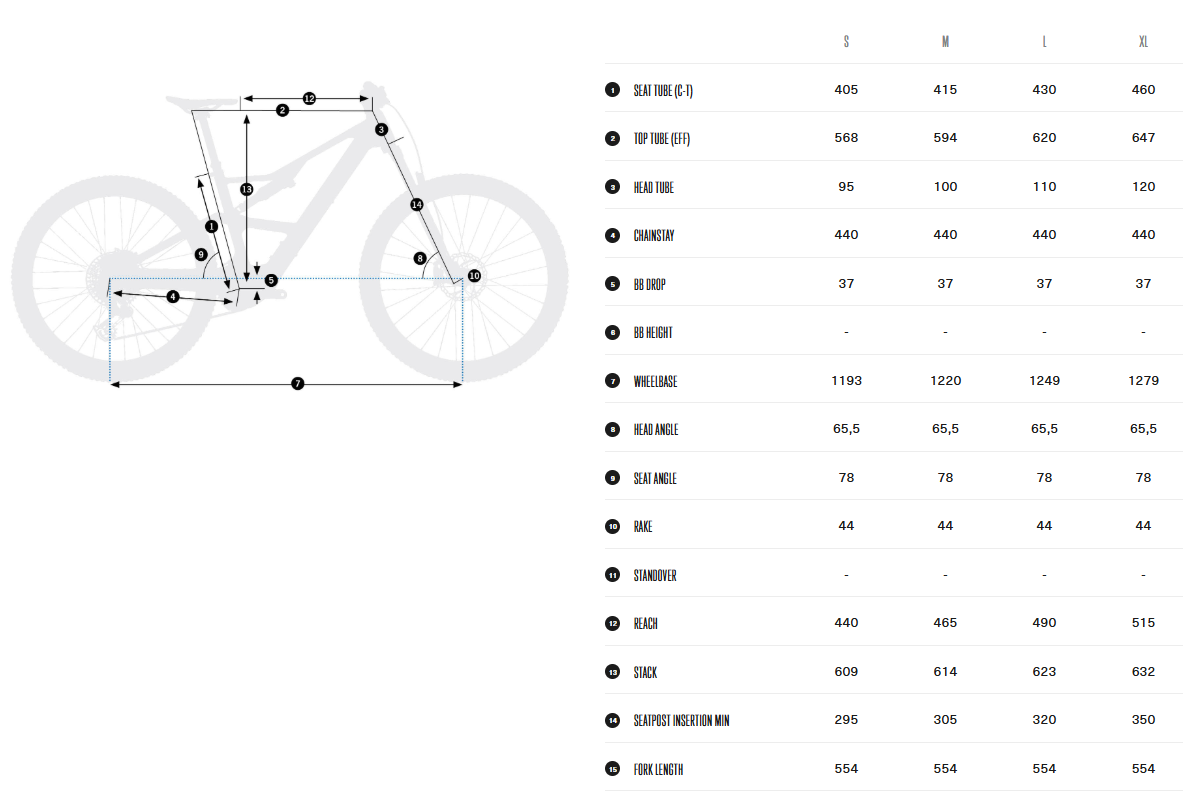

• Frame: Orbea Rise SL Hydro 2025, 140mm travel, 29" wheels, Concentric Boost 12x148

• Shock: Fox Float Performance 2-Pos Evol LV custom tune, 210x50mm

• Fork: Fox 34 Float AWL Sport 140, QR15x110

• Steerer Tube: Alloy 1-1/2", Black Oxidated Bearing

E-Bike System

• Battery: Orbea Internal 540Wh

• Range Extender: N/A

• Motor: Shimano EP600 RS Gen2 MC

• Display: N/A

• Charger: Orbea 2nd Generation eBike Smart Charger, 42V / 2-4A

• Remote: EN600-L

Drivetrain

• Chainring: ethirteen Helix Core espec Direct Mount 32T, 55mm Chainline

• Crank: Shimano Steps EM600

• Shifters: Shimano Deore M6100

• Cassette: Shimano CS-M6100, 10-51T, 12-Speed

• Rear Derailleur: Shimano Deore M6100 SGS Shadow Plus

• Chain: Shimano M6100

• Chainguide: Orbea eBike chainguide

Cockpit

• Handlebar: OC Mountain Control MC31, Rise 20mm, Width 800mm

• Stem: OC Mountain Control MC20, 0°

• Computer Mount: OC Computer Mount CM-05, Garmin/Sigma compatible

Brakes

• Brakes: Shimano MT201 Hydraulic Disc

• Rotors: Shimano SMRT30, 180mm front / 180mm rear

Wheels & Tyres

• Wheels: Alloy, Tubeless Ready, 29", 29c, 32H

• Front Tyre: Schwalbe Wicked Will Evo TLE, 29x2.40, Super Race, Soft Compound, Addix, Brown

• Rear Tyre: Schwalbe Wicked Will Evo TLE, 29x2.40, Super Race, Speed Grip, Addix, Brown

Components

• Seatpost: OC Mountain Control MC22, 31.6mm, Dropper

• Seatpost Lever: Shimano SL-MT500

• Saddle: Fizik Terra Ridon X5, 145mm

• Grips: OC Lock On

Accessories

• Lights: N/A

• Tools: N/A

Orbea reserve the right to make changes to the product and component information appearing on their site at any time without notice, including with respect to equipment, specifications, models, colors, and materials
