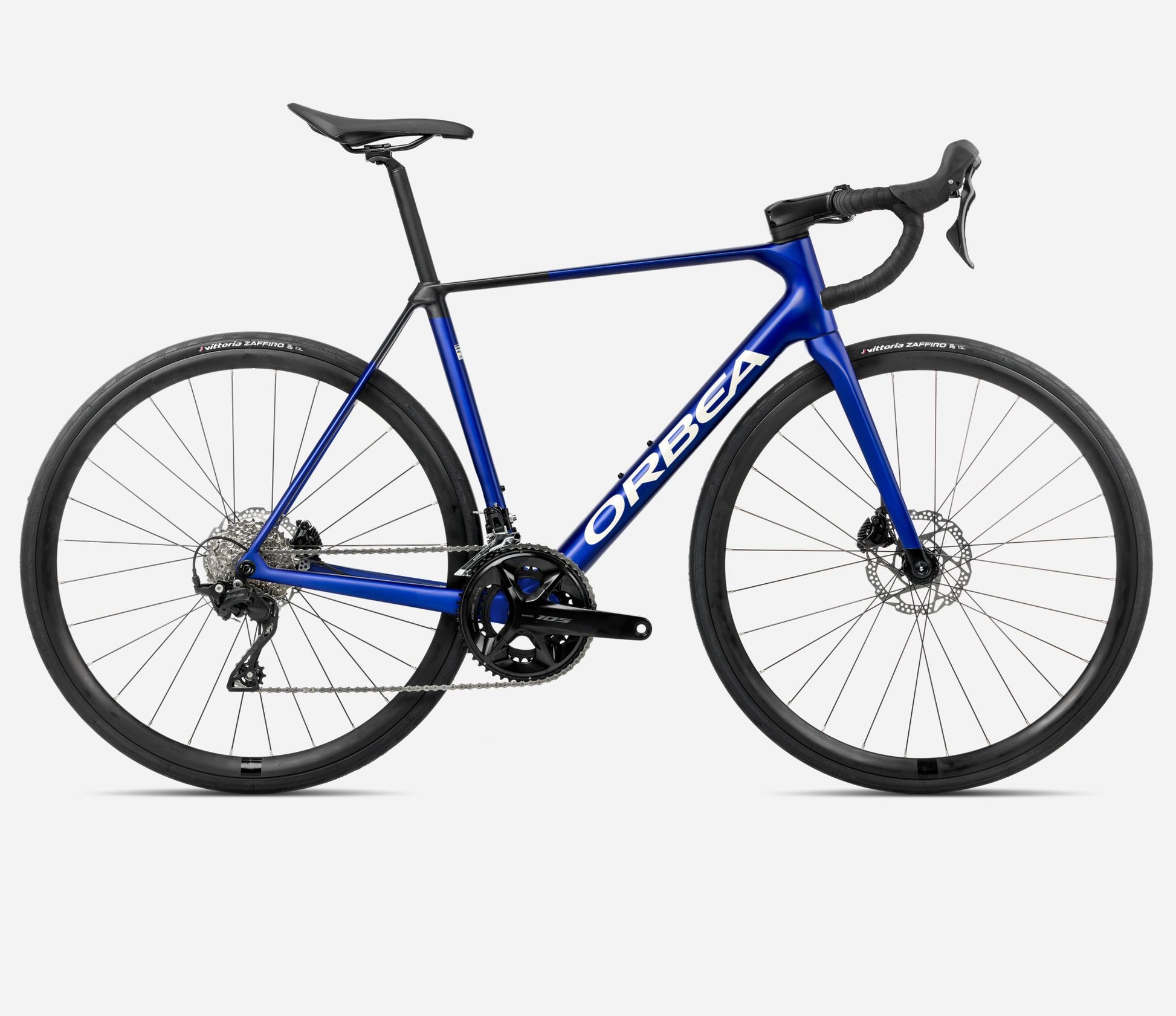

Orbea Orca M30 700c

The Orbea Orca is a lightweight carbon climbing machine, made for those seeking the perfect partner with which to attack every mountain pass.

Features:

• Size Tuned Stiffness
  We alter the carbon layup for each frame size to ensure every Orca feels the same. It is a lot more work, but these are the small details you notice when you ride.

• Powerspine
  The lower spine of the frame handles the large majority of torsional and lateral loads.

• ICR Plus
  Internal Cable Routing is carefully guided along the best path under and through the head tube, with no rub or rattle, and is optimized for traditional and electronic shifting systems.

• 32 mm Tire Clearance
  Modern road riders have discovered the advantages of bigger tires on rougher surfaces.

Specifications:

Frameset

• Frame: Orbea Orca carbon OMR 2026, monocoque construction, HS 1.5", BB 386mm, powermeter compatible, rear thru axle 12×142mm (thread M12×2 P1), internal cable routing

• Fork: Orbea Orca OMR ICR 2024, full carbon, 1-1/8"–1.5" tapered head tube compatible, thru axle 12×100mm (thread M12×2 P1)

• Steerer Tube: FSA 1-1/2" integrated aluminium cup

Drivetrain

• Crankset: Shimano 105 R7100, 34×50T

• Shifters: Shimano R7120

• Cassette: Shimano 105 R7100, 11–34T, 12-speed

• Rear Derailleur: Shimano 105 R7100

• Front Derailleur: Shimano 105 R7100

• Chain: Shimano M6100

Cockpit

• Handlebar: OC Road Performance RP31, reach 80mm, drop 125mm

• Stem: OC Road Performance RP23, -5°

Brakes

• Type: Shimano R7170 hydraulic disc

• Configuration: N/A

Wheels & Tyres

• Wheels: Alloy, tubeless-ready, 700c, 19c internal width, 28H

• Tyres: Continental Grand Prix foldable, 700×28c

• Front Axle: Orbea thru axle 12×100mm, M12×2 P1 hollow

• Rear Axle: Orbea thru axle 12×142mm, M12×2 P1 hollow

Components

• Seatpost: SP 0.2 carbon, 27.2mm diameter, 20mm setback

• Saddle: Fizik Aliante R5

Accessories

• Handlebar Tape: Orbea EVA

• Storage: OC Toolbox TB02PP
