Norco Search A CUES 700c

Singletrack, dirt roads, city parks, even the most remote backcountry trails – are you roaming or racing? Search A CUES is ready for your next adventure with modern gravel geo, a lightweight aluminum frame, carbon fork with adventure mounts, Shimano CUES 2x10 drivetrain, tire clearance up to 50c, and full-coverage fender, toptube bag, and water bottle mounts.

A progressive, modern gravel bike.
Search A CUES features new-school gravel geo fit for a fast, lively, confident ride on any terrain. With a taller headtube, slacker head angle, and longer reach, it’s more stable on rough terrain and ready to tackle steeper grades with ease.

The updated, longer fork adds stability and new-school geometry is compatible with suspension forks if you want to add some extra cushion. The frame is UDH compatible and supports fitments for all the latest wide range 1x drivetrain technologies.

Fully guided cable routing and a fully threaded BSA bottom bracket makes maintenance a breeze.

Details:

Progressive and confidence-inspiring
A lightweight frame with options
Simplified Maintenance
Wider Tire Clearance
Adventure-Ready Mounts
No Other Way Limited Lifetime Warranty

Component	Description
Frameset	Search Butted Aluminum w/Smooth Welds

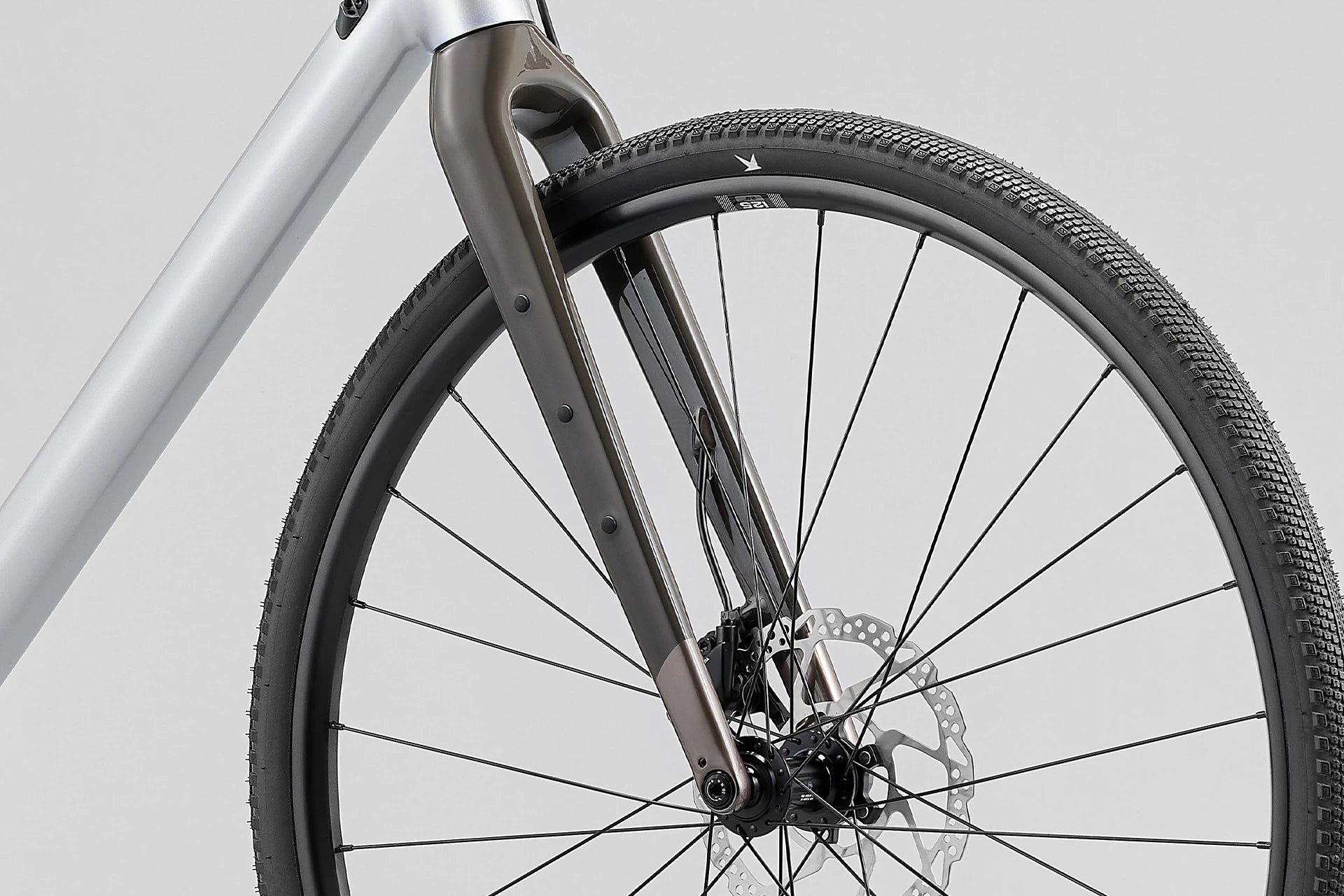

Fork	Search Carbon, 51mm Offset, 12x100mm TA

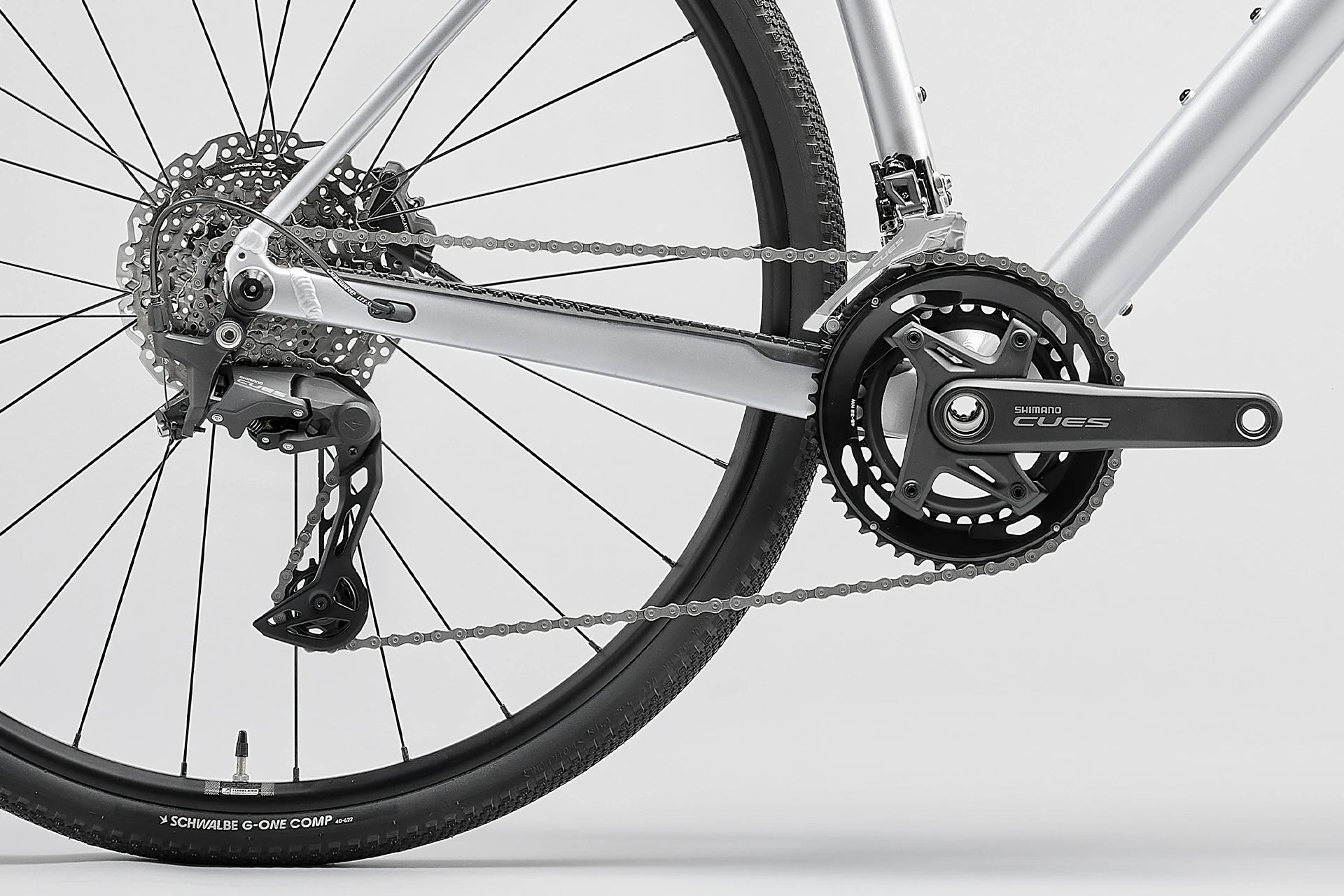

Drivetrain
Rear Shifter	Shimano CUES ST-U6030, 11sp
Rear Derailleur	Shimano CUES RD-U6020, Shadow, 10sp
Front Shifter	Shimano CUES ST-U6030, 2sp
Front Derailleur	Shimano CUES FD-U6030, 9/10sp, Down Swing
Crankset	Shimano CUES FC-U6030, 46-32T, 170mm
Bottom Bracket	Shimano Cartridge Bearing, 68mm BSA
Cassette	Shimano LG-400, 11-39T, 10sp
Chain	KMC XGlide
Brakes	Front & Rear: Shimano CUES BR-U6030, Resin Pads
Brake Rotors	Shimano SM-RT54 - 160mm, C-lock
Brake Levers	Shimano CUES ST-U6030
Components

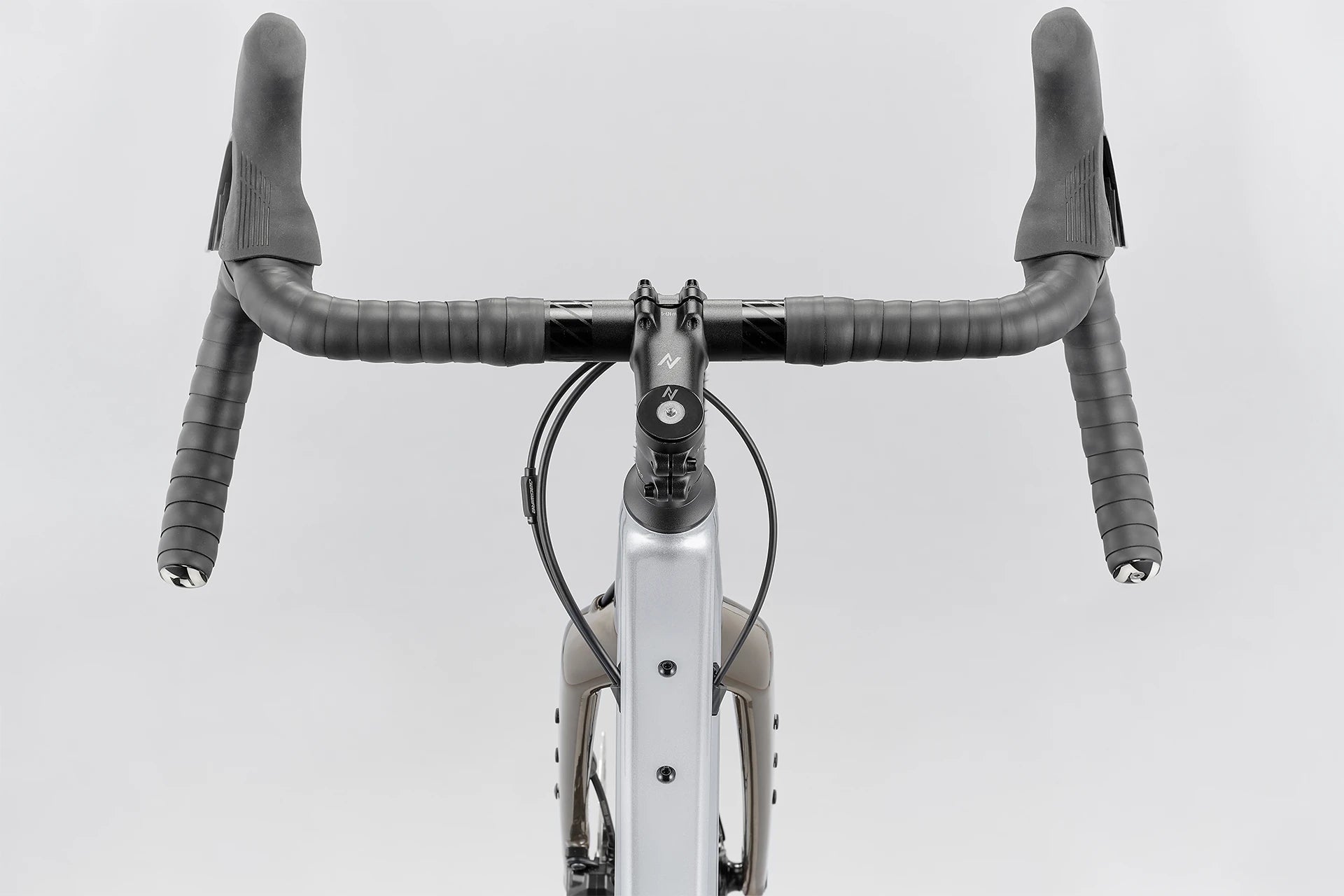

Handlebar	Norco Super Flare Aluminum Compact, 40cm (S1,S2) - 46cm (S5), 16°
Stem	Norco SL Alloy, 70mm Length, 31.8mm Clamp
Seatpost	Norco Alloy, 27.2mm, 12° Offset, 300mm length
Headset	FSA Integrated Sealed Bearings No. 42, Tapered 1-1/8" - 1.5" (IS42/28.6 \| IS52/40)
Saddle	Selle Royale SRX Gravel, 148mm
Grips	Griptacular Shockproof Tape 3mm
Seatpost Clamp	Norco Aluminum, 31.8mm ID
Wheels
Front Hub	Shimano HB-TC500 Sealed Bearing, 12x100mm, 28H, C-lock
Rear Hub	Shimano FH-TC500 Sealed Bearing, 12x142mm, HG, 28H
Rims	WTB ST i25 2.0, 28h, 25mm ID
Front Tire	Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Rear Tire	Schwalbe G-One Comp, K-Guard Recyclable, 700x40c
Spokes/Nipples	Sapim Leader 2.0mm - Black w/Black Brass Nipples
Valves	WTB TCS Tubeless Valve, Brass
Sealant	WTB TCS Tubeless Tire Sealant, 8oz/236ml
Rim Tape	WTB TCS 2.0 Solid Strip

Sizing & Geometry:
