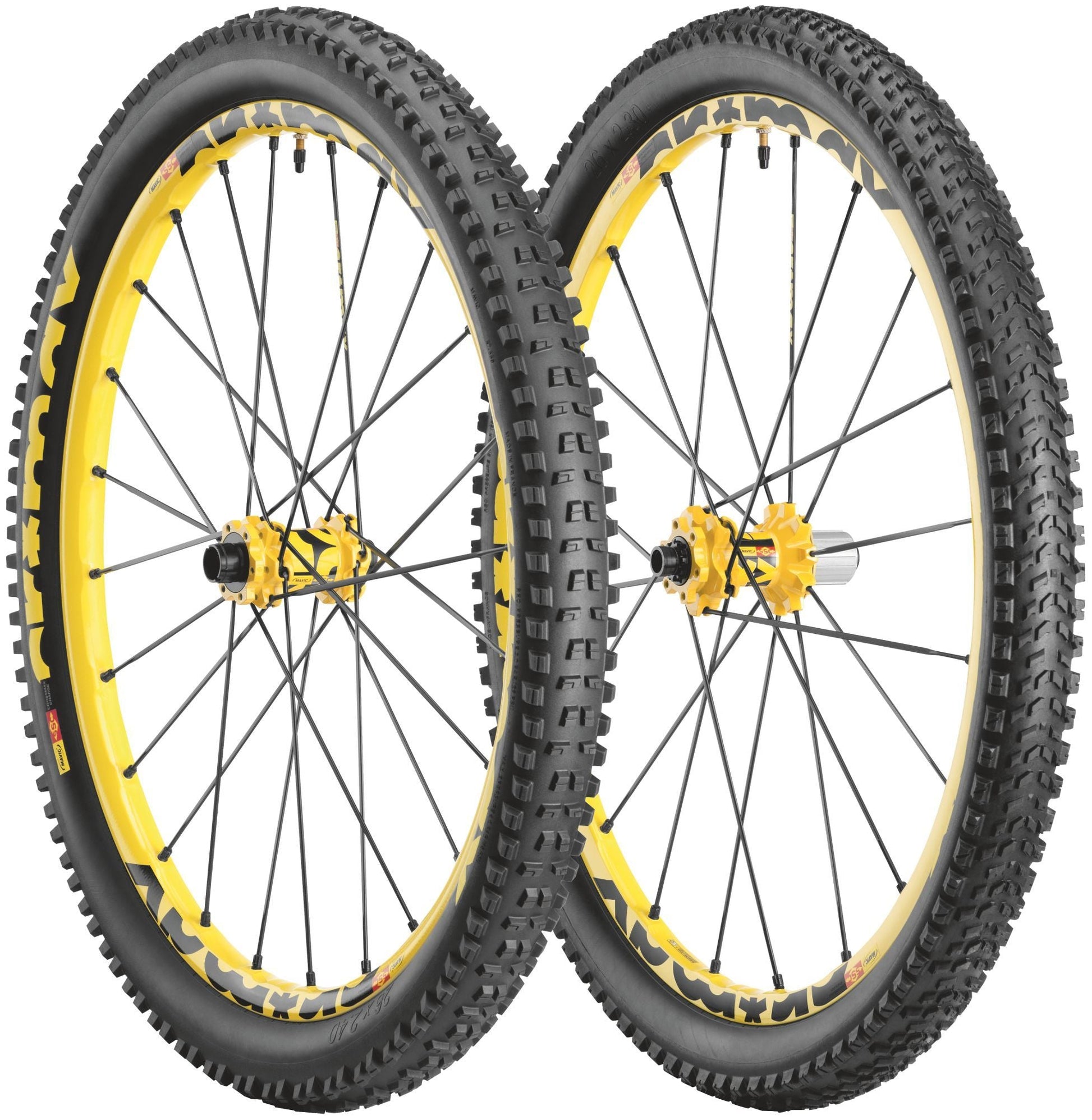

Mavic Crossmax Enduro WTS MTB Wheelset

Developed with world's fastest Enduro athletes (Clementz, Chausson), the Crossmax Enduro is 100% developed to maximize the Enduro experience. Different rims widths front and rear to accommodate different tire width and tread pattern, unique features to offer the ultimate combination of grip and responsiveness.

Benefits:

• Grip and comfort front: 21mm rim and 2.4 aggressive tire
• Responsiveness rear: 19c rim and 2.3 faster rolling tire
• More responsiveness: ISM, Isopulse, UST Tubeless Ready
• Reliability: Maxtal, Zicral, Guard 2
• Full compatibility for front and rear hubs
• Endorsed and used by pro athletes

Features:



Weight:


• Pair wheel-tyre system 26": 3460 grams

• Pair 26": 1660 grams

• Front 26": 825 grams

• Rear 26": 835 grams

• Pair wheel-tyre system 650b/27,5": 3610 grams

• Pair 650b/27,5": 1710 grams

• Front 650b/27,5": 850 grams

• Rear 650b/27,5": 860 grams




Rims:


• Material: Maxtal

• Joint: SUP

• Drilling: Fore

• Disc brake specific profile

• Weight reduction: ISM

• Valve hole diameter: 6.5mm

• Tyre: UST Tubeless and tubetype

• Internal width: 21mm front and 19mm rear

• ETRTO size 26": 559x21C front & 559x19C rear

• ETRTO size 650b/27.5": 584x21C front & 584x19C rear

• Recommended tyre sizes: 2.0 to 2.5




Spokes:


• Material: Zicral

• Shape: straight pull, bladed, double butted

• Nipples:   Fore integrated aluminum

• Count: 24 front and 20 rear

• Lacing: front crossed 2, rear Isopulse




Hubs:


• Front and rear bodies: aluminum

• Axle material: aluminum

• Adjustable sealed cartridge bearings

• Freewheel: ITS-4 alloy

• Shimano 11 speeds compatible

• XD Compatible (XX1-X01) with optional kit




Tyre:


• Crossmax Charge Front - Crossmax Roam XL Rear

• Type: UST Tubeless Ready

• Front Tread Single Compound, Rear Tread Dual Compound

• Casing: 2x66 TPI

• Dimension 26": 2.40 Front & 2.30 Rear

• Dimension 650b/27.5": 2.40 Front & 2.20 Rear




Versions:


• Front: 6 bolts 15mm & 20mm (QR with optional adapters)

• Rear: 6 bolts QR & 12x135 & 12x142


Technologies:

• FTS-L: Force Transfer System LightReinforcement of key transmission components: the contact area between the pawl and the hub body is reinforced by 2 stainless steel inserts, which allows the use of a 100% aluminum hub body.

• POWERLINK: Low rolling resistanceA rear tyre, whether a clincher or a tubular, must fully liberate the wheel’s ability to transfer power and generate speed. Therefore, PowerLink tyres are optimized for rear wheel use, by minimizing the rolling resistance.

• QRM+: Qualité de Roulements Mavic + Our most demanding level. Those cartridge bearings are of course double sealed with C3 internal clearance, and toped with a micro-adjustability system.

• GRIPLINK: Grip and controlA front tyre, whether a clincher or a tubular, must fully liberate the wheel’s ability to hold the ground and control the bike. Therefore, GripLink tyres are optimized for front use, by offering a superior grip and extra puncture protection.

• UB CONTROL: Usiné Brut Control The braking surfaces are precisely CNC machined.

• MAXTAL: Light and strongExclusive to Mavic, this specific aluminum alloy offers a higher strength to weight ratio than conventional 6106 alloy.

• SUP: Stronger and smoother joint.

• ISM:Inter Spoke Milling. An exclusive Mavic patented concept, ISM involves the machining of the lower bridge of the rim between each spoke hole to create a light and rigid rim without reducing the durability of the rim.
