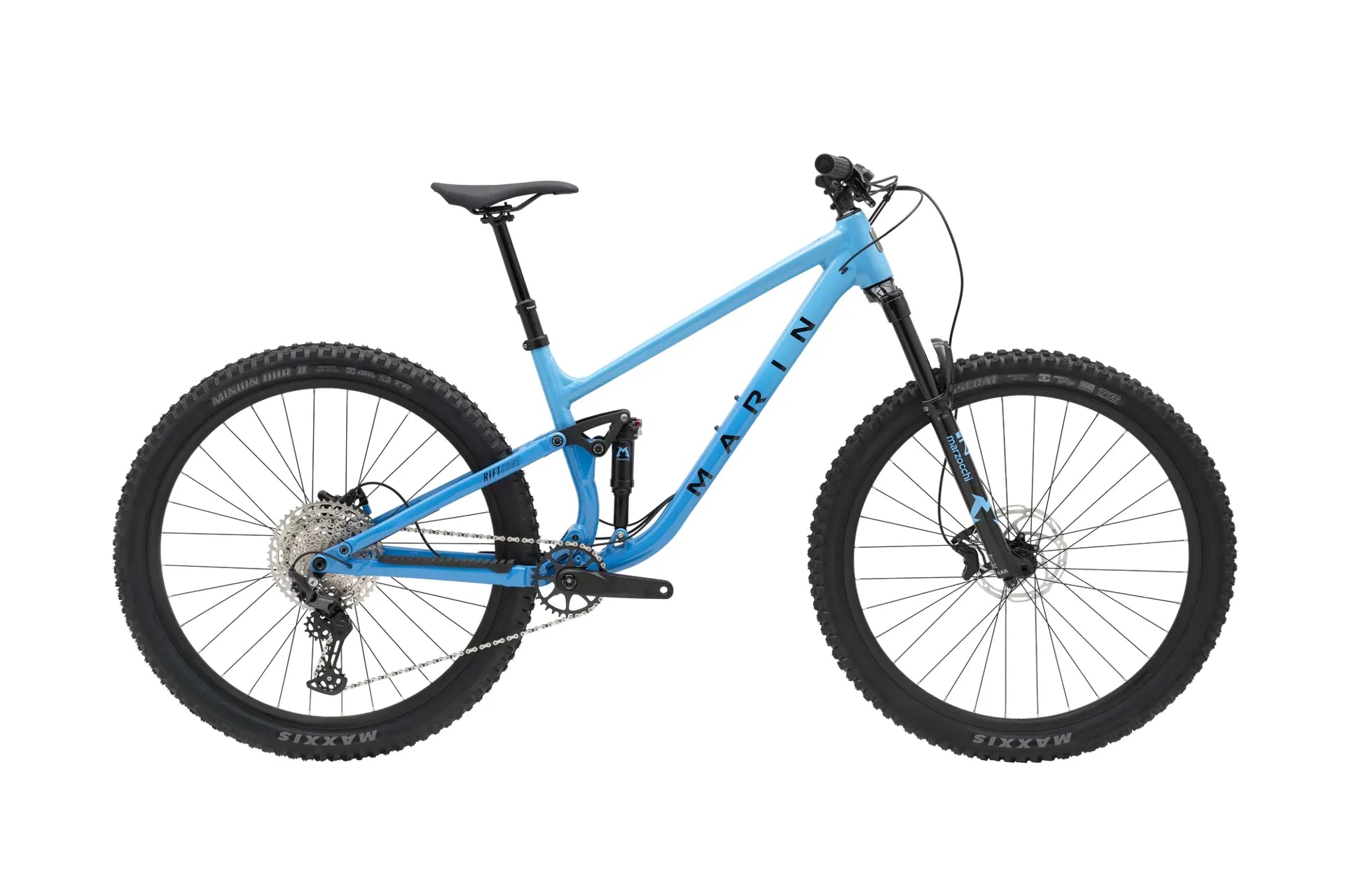

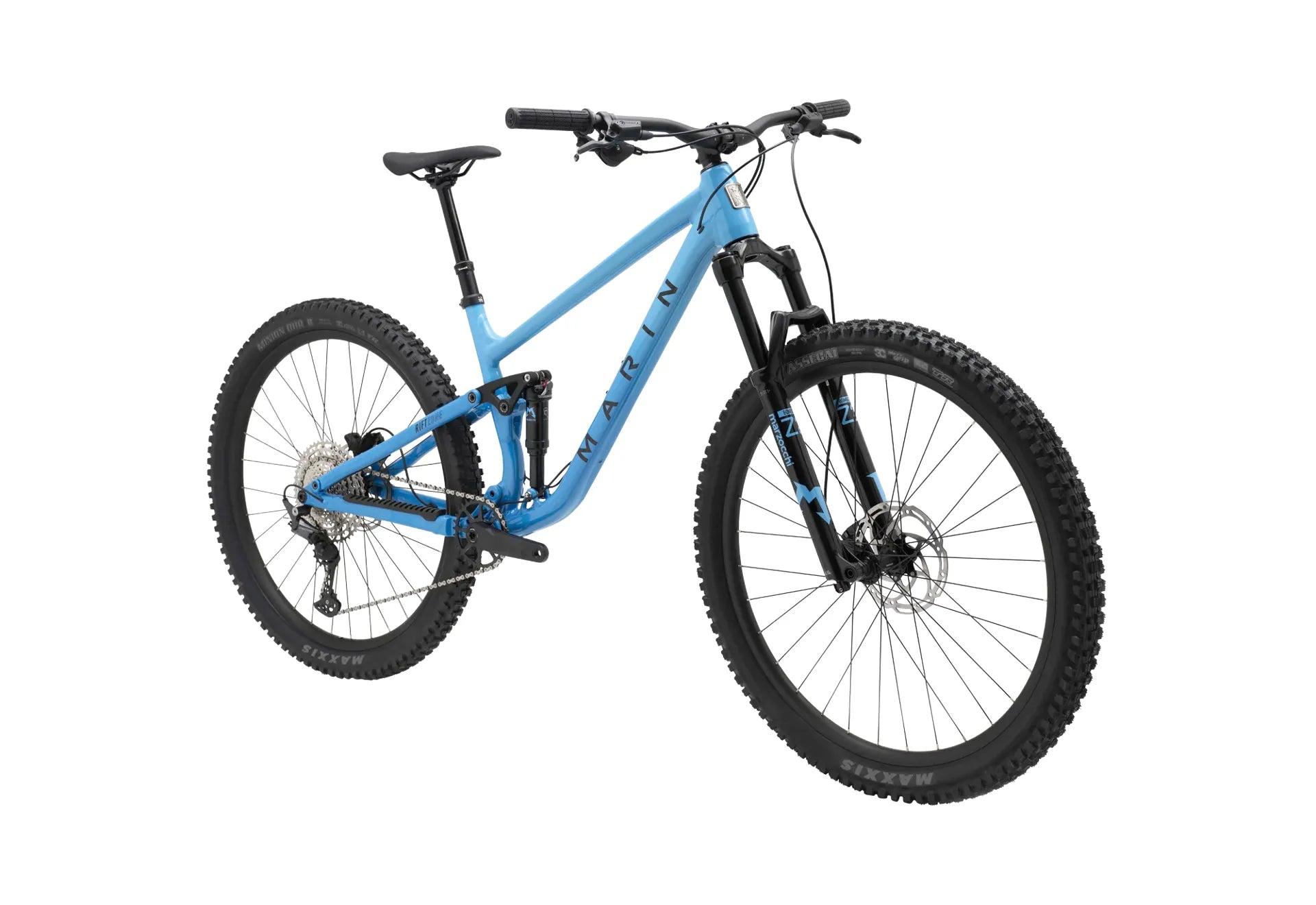

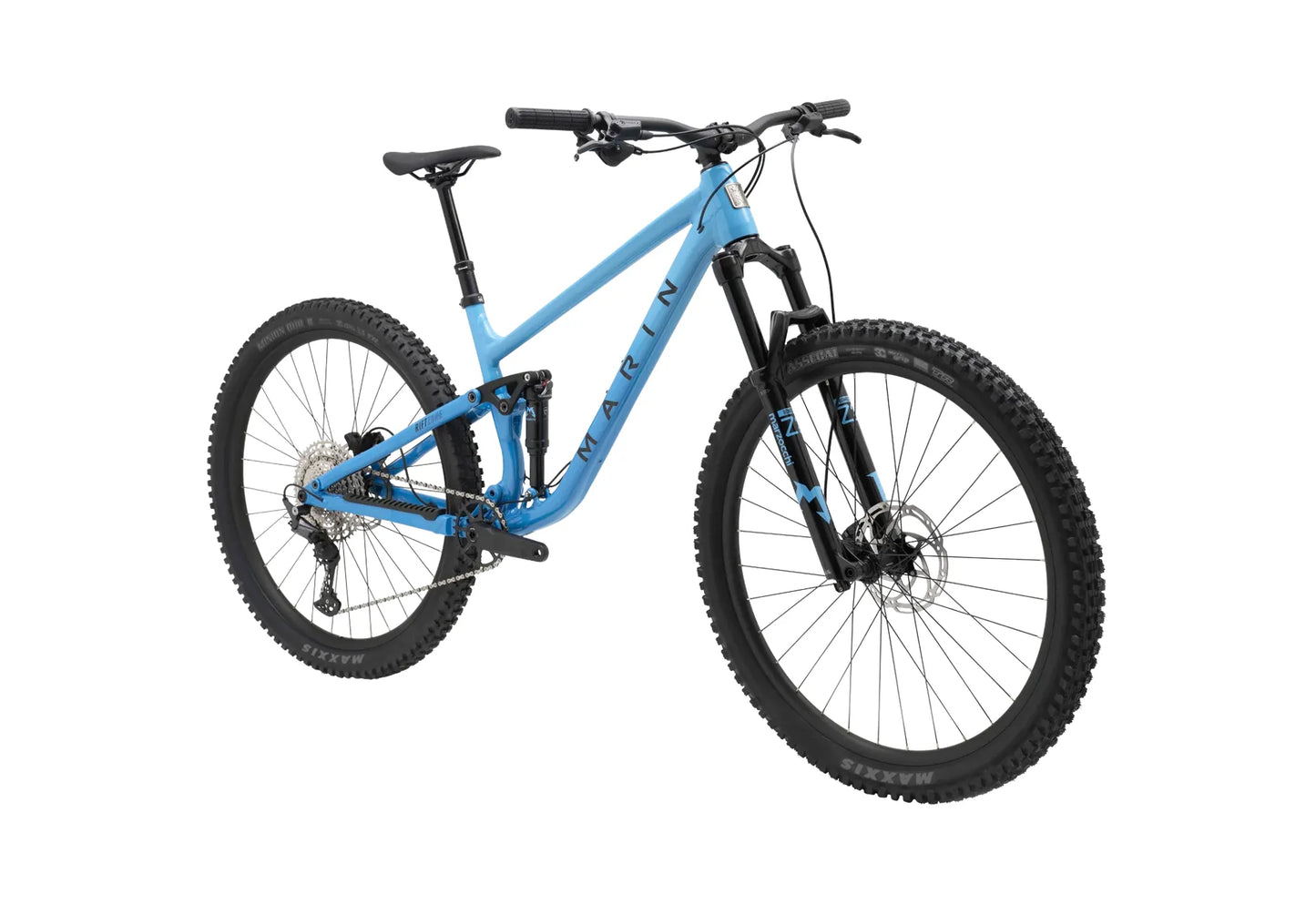

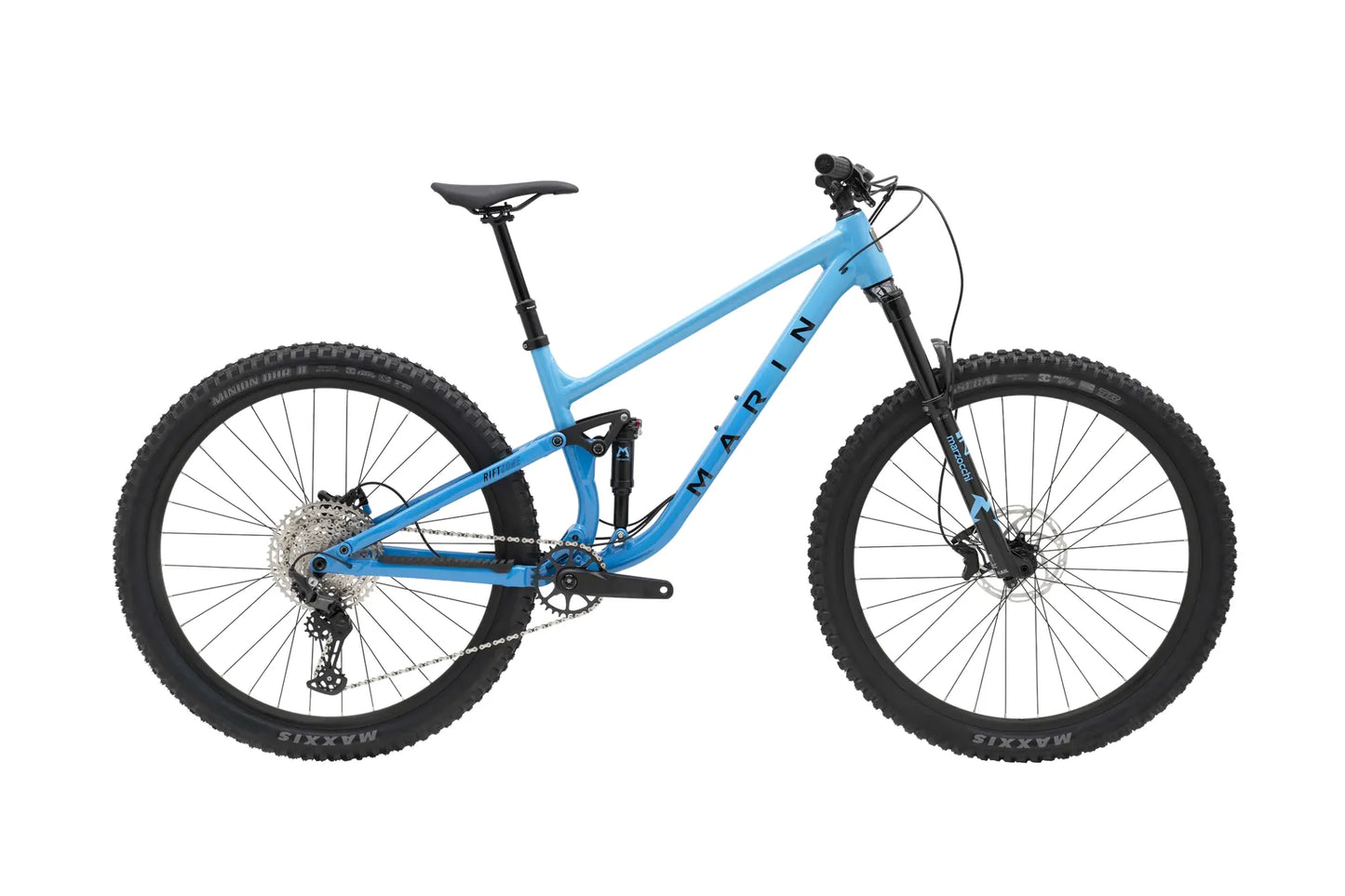

Marin Rift Zone 2 27.5

The Marin Rift Zone 2 is the Rifty everyone wants to ride, with a hand-picked selection of our favorite components. We've chosen a buttery-smooth Marzocchi and RockShox suspension duo, grippy Vee Flow Snap WCE tires, plenty of super-reliable Shimano components and a whole load of our favorite Marin finer details to complete the package.

Key Details:

• Suspension: 130mm MultiTrac rear suspension paired with Marzocchi front forks for balanced small‑bump response and confident big‑hit control.
• Frame: Series 3 Aluminum frame tuned for sharp handling on tight singletrack and stable tracking at speed.
• Dropper: Trans X dropper for fast, reliable saddle height changes on technical terrain.
• Components: Shimano drivetrain and controls for smooth shifting and familiar feel.
• Tyres: Maxxis rubber for grip and predictable traction in varied conditions.
• Value: High‑end ride characteristics shared with range‑toppers, packaged at a sensible price.
• Trail confidence: Geometry and kit chosen to help you ride faster, more confidently, and with less fuss.

Specifications:

• Frame: Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
• Fork: Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
• Rear Suspension: Marzocchi Bomber Air Inline, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
• Rim: Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
• Hub Rear: Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body
• Hub Front: Shimano HF-MT410B, 110x15mm, Centerlock
• Spokes: 14g Black Stainless Steel
• Tyres: Front: Maxxis Assegai MAXX GRIP, 2.5" EXO+; Rear: Maxxis Minion DHR II, MAXXTERRA, 2.5" EXO+, Tubeless compatible
• Derailleur Rear: Shimano Deore, 12-Speed, SGS
• Shift Lever: Shimano Deore, 12-Speed, SL-M6100-R
• Crankset: FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
• Bottom Bracket: External Sealed Cartridge Bearing
• Chain: KMC X-12 Silver and Black
• Cassette: Shimano, Deore M6100, 12-Speed, 10-51T
• Brakes Front: Tektro HD-M535 Hydraulic Disc, 180mm Rotor
• Brakes Rear: Tektro HD-M535 Hydraulic Disc, 180mm Rotor
• Brake Levers: Tektro HD-M535
• Handlebar: Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
• Stem: Marin 3D Forged Alloy, 35mm
• Grips: Marin Grizzly Lock On
• Headset: FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
• Seatpost: TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
• Saddle: Marin Speed Concept
• Extras: Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Please Note – Whilst we endeavour to provide up-to-date information, the manufacturer's specifications and designs can change without prior notice.
