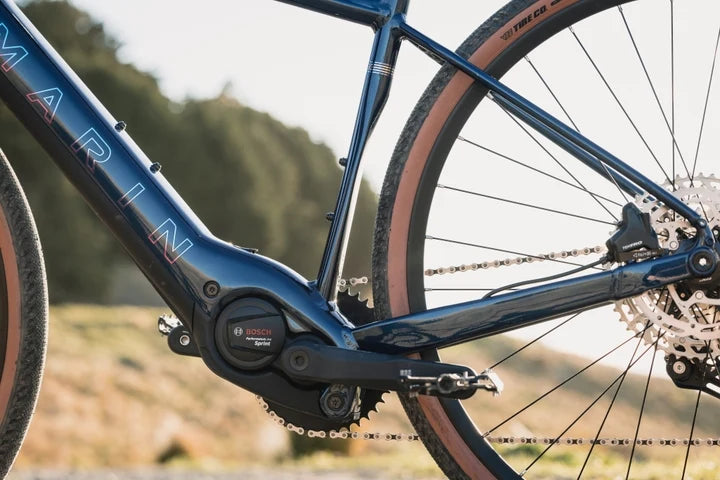

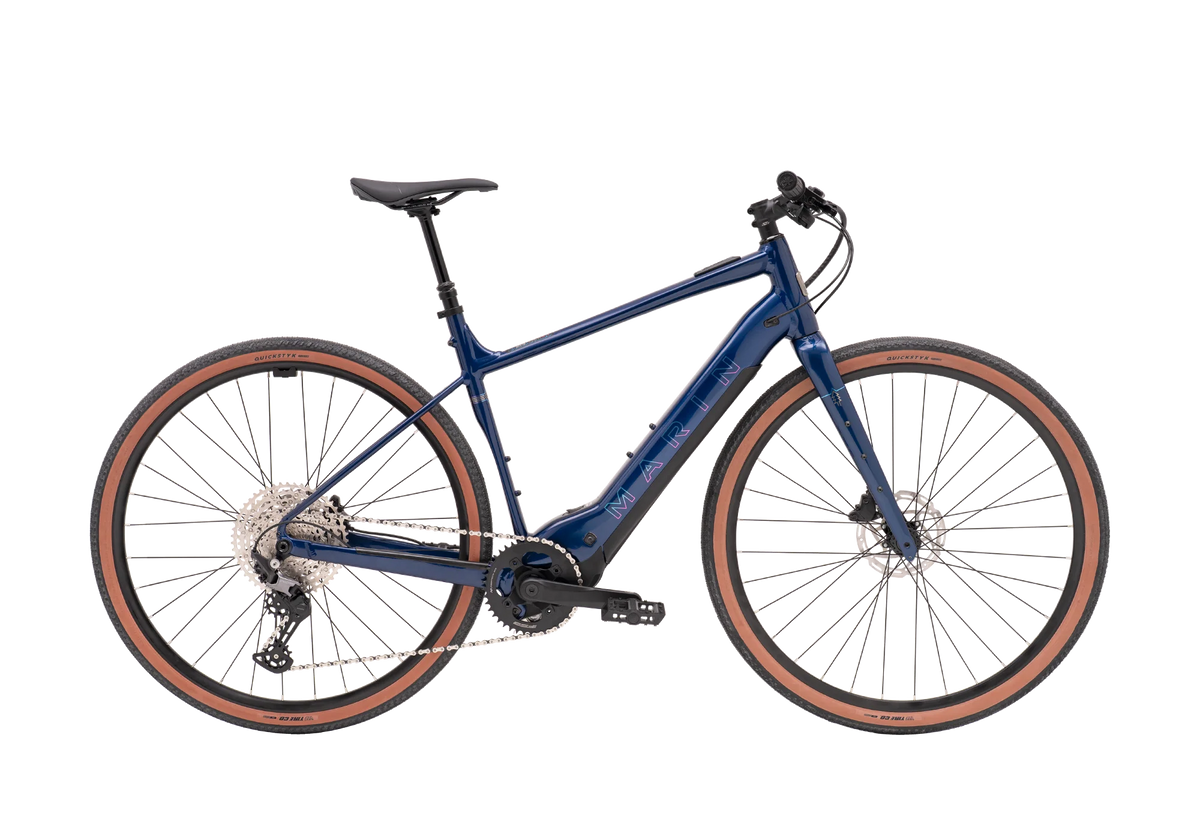

Marin DSX E 700c
The DSX E doesn't pick a surface and neither should you. The Bosch SX Sprint motor has smooth assist up to 28mph, working with rather than instead of the rider. Expert engineering makes the Series 4 Aluminum frame a smooth operator. Shimano Deore 12-speed gearing beats any gradient the motor doesn't. Vee Tire Quikstyk rubber is wide, tubeless-ready and confident on any surface. A dropper seatpost sorts the descents. Rack and fender mounts are the bike's ace in the hole.
The DSX E is built for the ride you didn't plan.
Specifications
Range
14-85 miles / 22-137km
Display
Bosch Purion 400
Switch
Bosch MiniRemote, Bluetooth
Battery
Bosch Compact Power Tube 400, 400Wh
Motor
Bosch SX, 250W, 55Nm, Class 1 (25Km/h)
Fork
Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Frame
All-New Series 4 DSX, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Rim
Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Hub Rear
Forged Aluminum Alloy, 142x12mm, Disc, 32H
Hub Front
Forged Aluminum Alloy, 100x12mm, Disc, 32H
Spokes
14g Black Stainless Steel
Tires
Vee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
Derailleur Rear
Shimano Deore, RD6100, 12-Speed
Shift Lever
Shimano Deore, SLM6100, 12-Speed
Crankset
Forged Aluminum, 42T Steel Narrow Wide Chainring
Bottom Bracket
Sealed Outboard Bearing
Chain
KMC X12
Cassette
Shimano Deore, CSM6100, 12-Speed, 10-51T
Brakes Front
Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor
Brakes Rear
Tektro HD-R3020, Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers
Tektro Clean Cockpit
Handlebar
Marin MiniRiser
Stem
Marin 3D Forged Alloy
Grips
Marin MTB
Headset
FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Seatpost
TranzX YSP38J, Alloy Remote, Size S 70mm, All Other Sizes 100mm Travel,
Saddle
Marin DSX
Pedals
Nylon Platform
Geometry
Marin

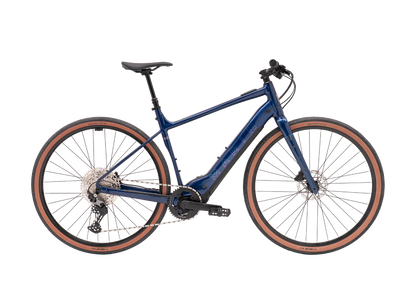

Marin DSX E 700c - Dark Blue
Marin DSX E 700c - Dark Blue
Product ID: GM091525-17
