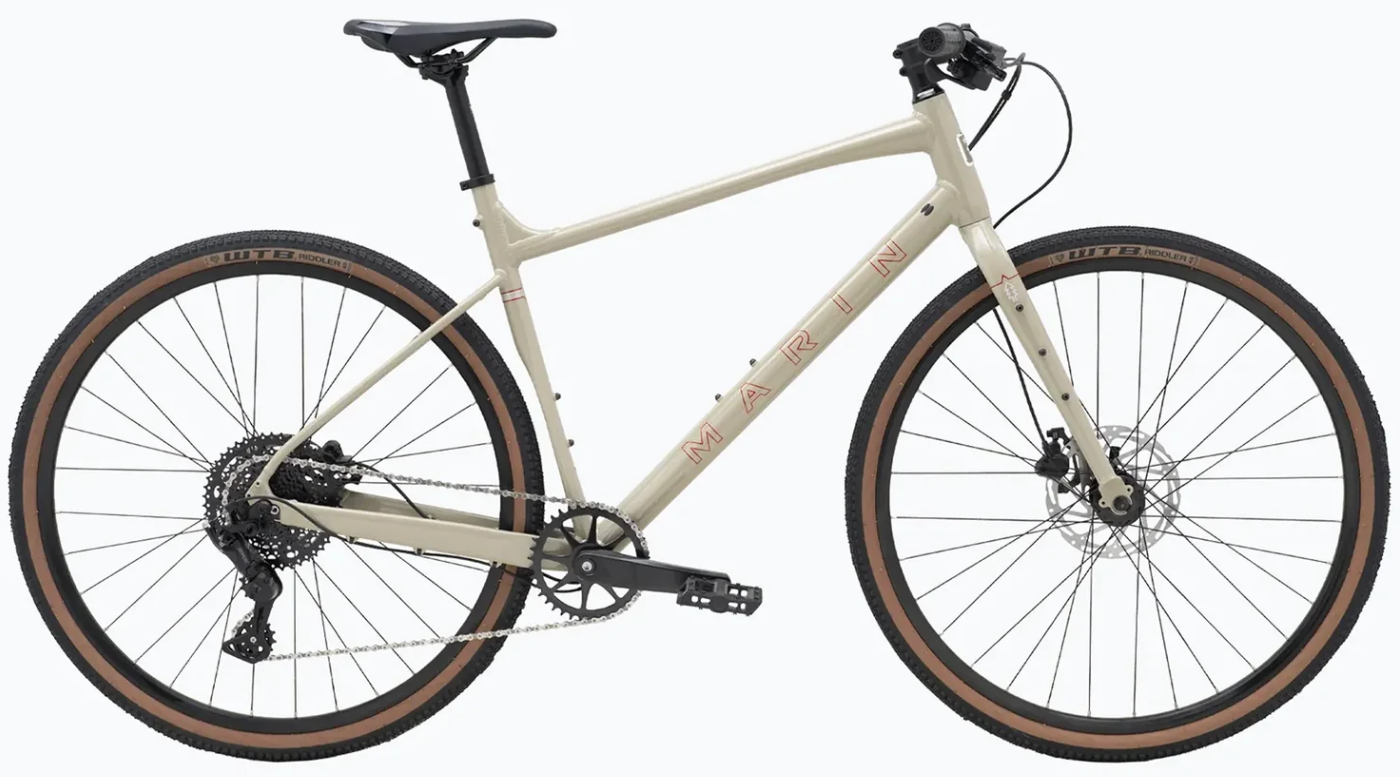

The DSX is a flat bar gravel bike based on our Gestalt X dropbar platform with Series 3 and Series 2 aluminum frames and carbon forks with large tire clearance, low standover, hydraulic disc brakes, and 1x drivetrains with the comfort and heads up positioning of a flat handlebar. Mountain bike sensibilities in a flat bar package capable of fast commutes, long Saturday adventures spanning pavement and light singletrack, and all-day gravel events.
Key Details:
Tektro HDM275 Hydraulic Brakes
The Marin DSX 700C gravel bike is equipped with Tektro HDM275 hydraulic disc brakes, which guarantee confidence and precision in braking under all weather conditions. With 160 mm diameter rotors both front and rear, the bike offers excellent control over speed. This setup is particularly useful during descents and sudden stops, enhancing user safety.
MicroSHIFT Advent 9 Drivetrain
The drivetrain of the Marin DSX 700C gravel bike is based on the MicroSHIFT Advent 9 system, which offers 9 gears. The rear derailleur, equipped with a clutch, ensures smooth and precise gear shifts, making riding comfortable on both flat sections and inclines. The SunRace 9-Speed cassette with a range of 11-46T, along with a crankset featuring a narrow-wide 38T chainring, allows for efficient traversal of varied routes.
Comfort and Equipment
The Marin DSX 700C gravel bike comes with a comfortable Marin DSX saddle and pedals included, enabling immediate use. The wheels feature double-walled aluminium and are equipped with WTB Riddler tyres sized 700Cx45mm, providing good grip and stability on various surfaces. Additionally, the bike is fitted with mounts for fenders and racks, making it an ideal choice for longer journeys.
Specifications:
| Frame | Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount |
|---|---|
| Rims | Marin Aluminum Double Wall, Disc Specific |
| Hubs | Forged Aluminum Alloy, Disc Specific, 32H |
| Tires | WTB Riddler, 700Cx45mm |
| Crankset | Alloy Crank, Steel Narrow-Wide Chainring, 38T |
| Shifters | microSHIFT Advent 9 Trail |
| Rear Derailleur | microSHIFT Advent 9, Clutch |
| Cassette/Freewheel | SunRace 9-Speed, 11-46T |
| Chain | KMC X9 |
| Brakes | Clark's Clout Hydraulic , 160mm Rotor |
| Brake Levers | Clark's Hydraulic |
| Handlebars | Marin MiniRiser |
| Tape/Grips | Marin MTB |
| Stem | Marin 3D Forged Alloy |
| Headset | FSA, Orbit CE No.8B |
| Seatpost | Marin Alloy |
| Saddle | Marin DSX |
| Pedals | Nylon Platform |
Geometry:
