Description

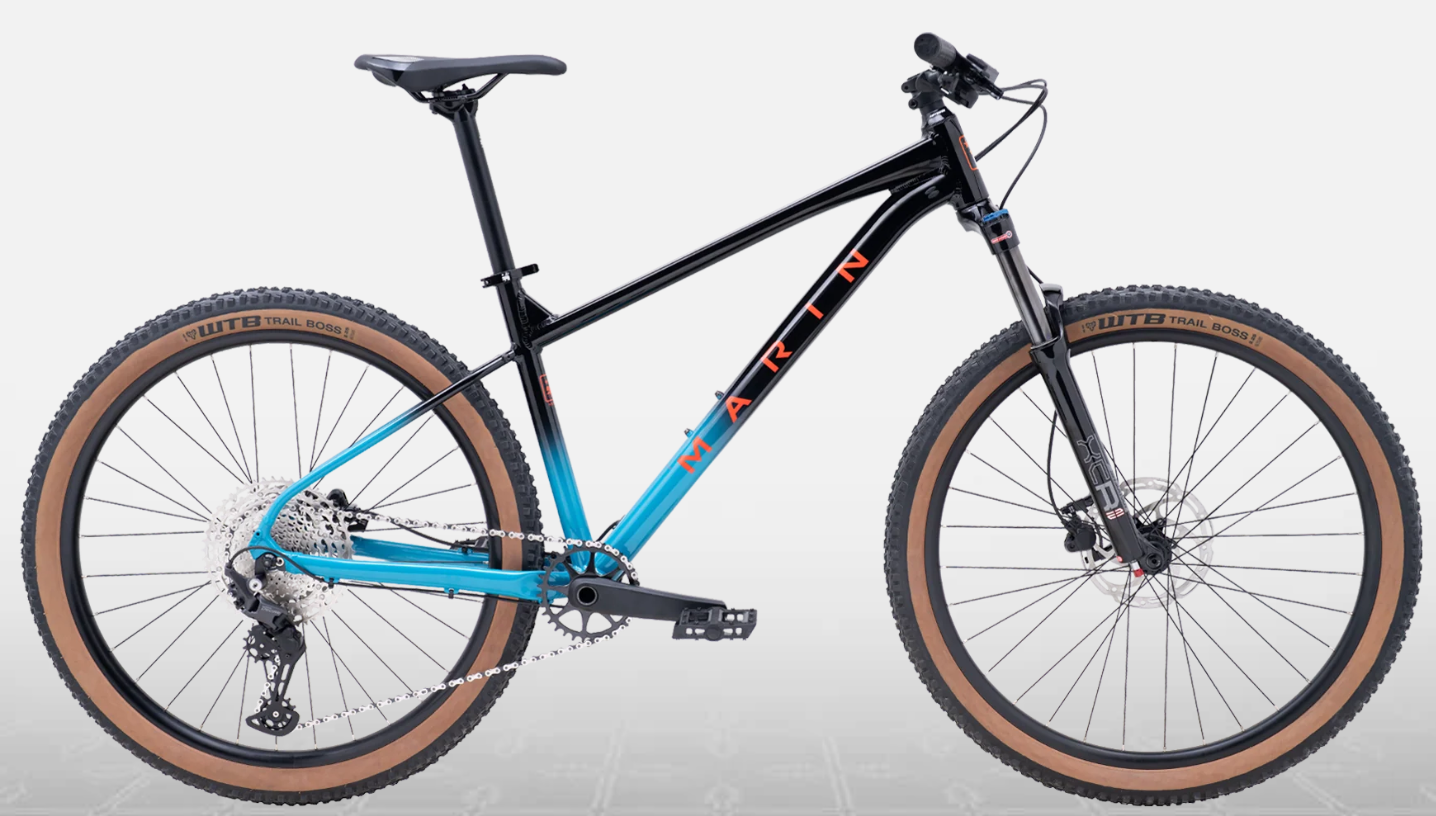

Marin Bobcat Trail 5 27.5

The best of the Bobcat family, the Marin Bobcat Trail 5 is our chance to really push what our bang-for-buck MTB can do. Fast, comfy and fun Series 2 aluminum frame? Check. 1X drivetrain? You got it. SR/Suntour XCR fork? You bet. Shimano CUES 11-speed shifting, Tektro hydraulic brakes and trendy tan wall WTB tires? Damn straight! And, of course, your choice of 27.5” or 29” wheels.

Key Details:

Shimano 11 Speed Transmission
Series 2 Aluminum Frame
SR Suntour XCR Suspension Fork

Specifications:

Component	Details

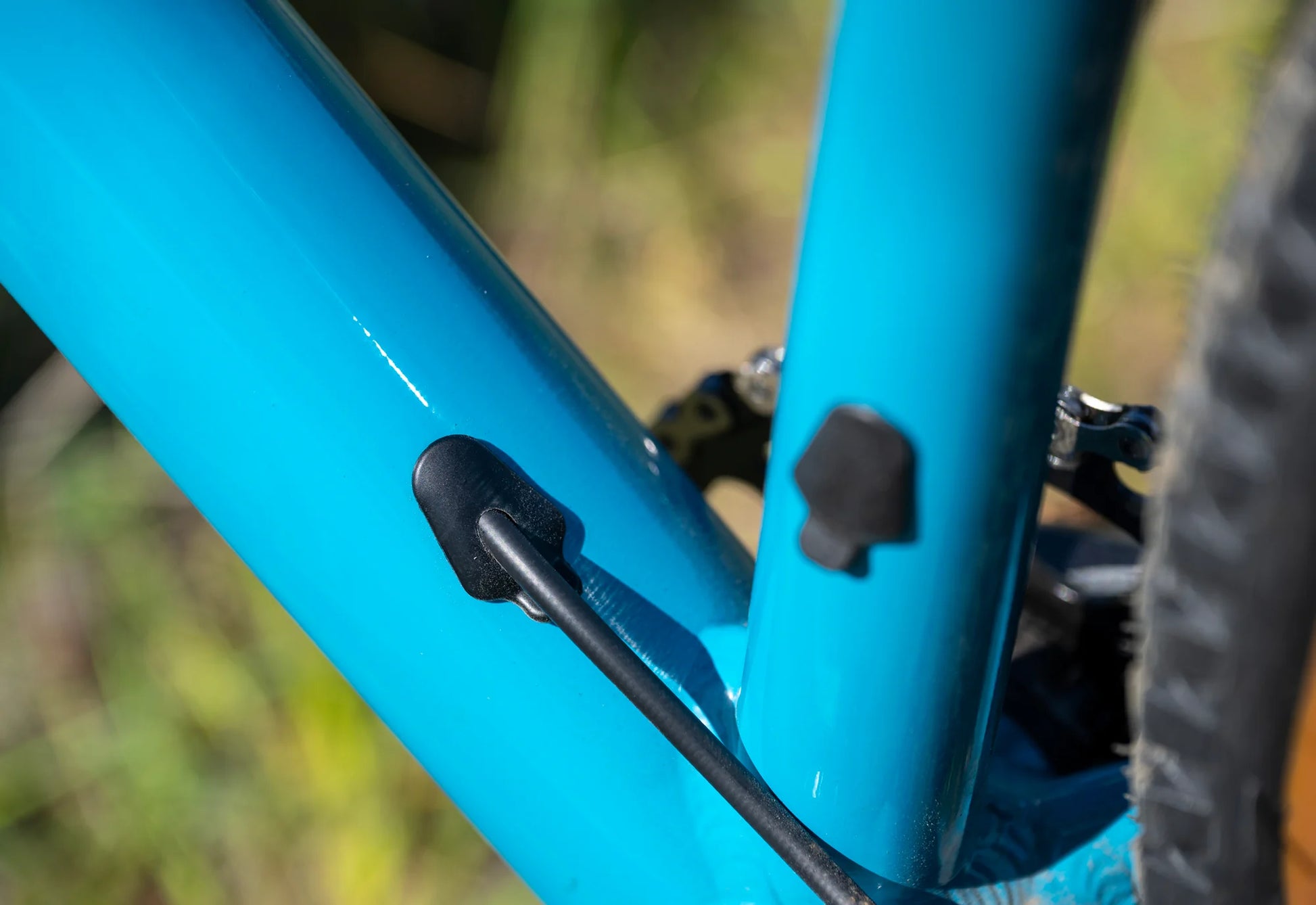

Frame	Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Front Suspension	SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets
Rim	Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Hub Rear	Forged Alloy, Disc, 32H
Hub Front	Forged Alloy, Disc, 32H
Spokes	14g Black Stainless Steel
Tires	Delium, Versatile, Triple Compound Tread, Tubeless-Compatible Wire Bead, 27.5/29x2.4"
Derailleur Rear	Shimano Deore RDM5100, 11-speed, w/Clutch
Shift Lever	Shimano Deore SLM5100, 11-Speed
Crankset	Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bottom Bracket	Sealed Cartridge Bearings, Square Taper
Chain	KMC X11
Cassette	Shimano CSM5100, 11-Speed, 11-51T

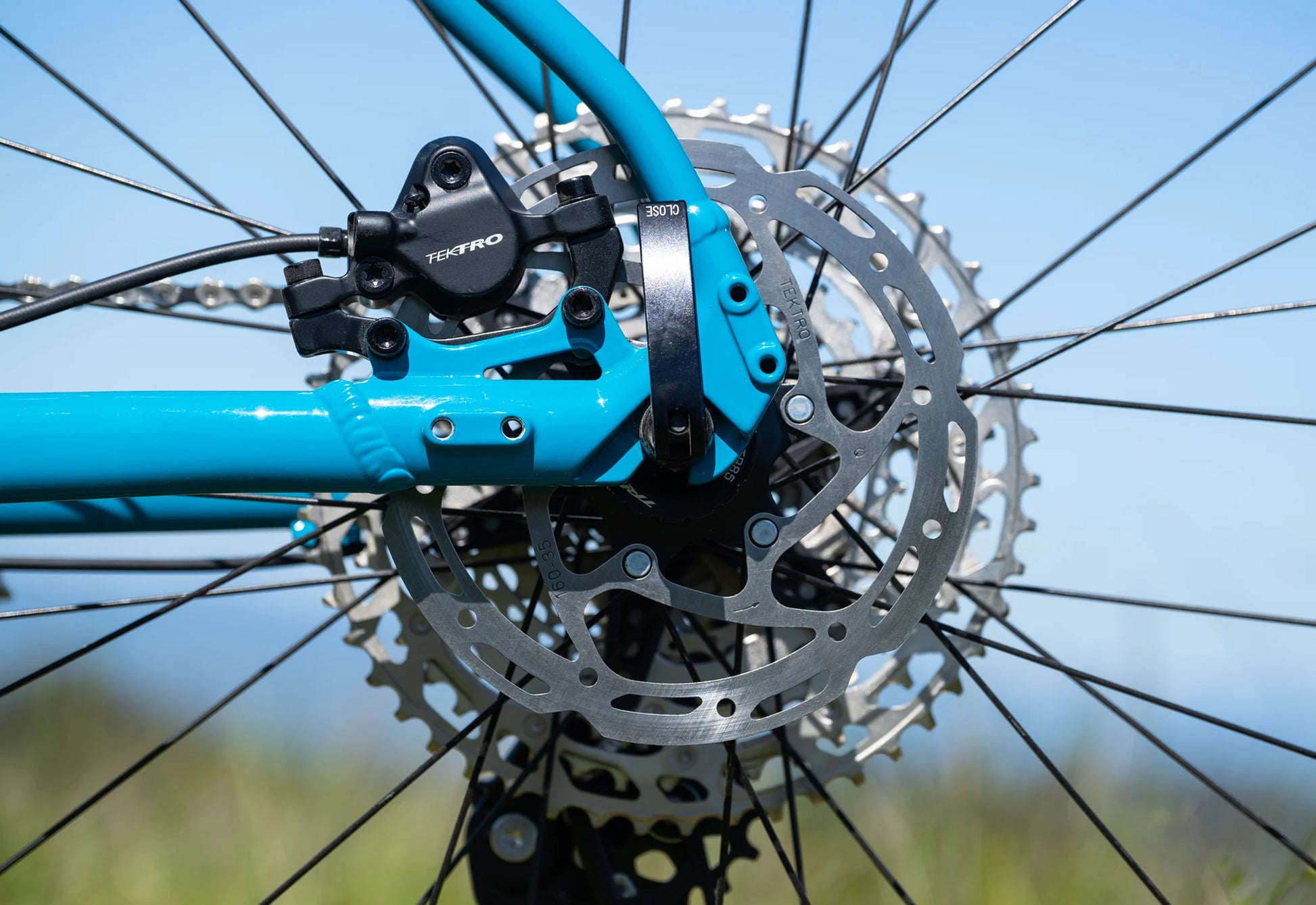

Brakes Front	Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brakes Rear	Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Brake Levers	Shimano BL-MT201
Handlebar	Marin 31.8 Riser, 12mm Rise, 780mm Width
Stem	Marin Alloy, 31.8mm Clamp, 45mm
Grips	Marin MTB, Closed End
Headset	FSA No.10-P
Seatpost	Marin Alloy, 30.9
Saddle	Marin MTB
Pedals	Nylon Platform

Geometry:
