Description

Kuat Pivot V3 Bike Rack 2" - Sandy Black

The Pivot v3 builds on our best-selling swing-away hitch adapter with refined upgrades that improve stability and confidence. A new safety pin closure system enhances driving stability. With quick-release 90-degree and 120-degree swing positions, the Pivot v3 makes accessing tailgates and trunks easy.

Gaining full rear-vehicle access is easier than ever. The Pivot v3 evolves Kuat’s trusted swing-away hitch accessory with purposeful design upgrades that enhance ease of use, stability, and everyday performance.

A newly engineered safety pin closure system significantly increases stability, helping reduce movement when carrying heavy loads while driving. 

The Pivot v3 features quick-release 90-degree and 120-degree swing-away positions, giving you unobstructed access to tailgates, rear doors, and cargo areas without removing your bike rack or gear. Available in both driver- and passenger-side swing options, it adapts to a wide range of vehicles with a 2” (minimum Class III required) hitch, including trucks, SUVs, hatchbacks, and vans. 

Finished with thoughtful details like a black matte powder coat, locking hitch pin, and Kuat's patented Flatlock Hitch Cam system, the Pivot v3 delivers the premium feel, security, and reliability expected from Kuat. Backed by our No Worries Limited Warranty, it’s built to perform wherever your adventures lead.

Compatible Products:

Beta
NV
NV 2.0
NV 2.0 Add-On
NV Base 2.0
NV Base 2.0 Add-On
Piston ION
Piston Pro
Piston Pro Add-On
Piston Pro X
Piston Pro X Add-On
Piston SR Hitch Rack
Sherpa 2.0
Transfer 2.0

Highlights

Weight Capacity 250 lbs
Quick-release 90 and 120-degree swing-away positions
Driver or Passenger side swing options available
Innovative pin closure system for increased stability
Updated hitch tube design
Flatlock Hitch Cam system
Locking hitch pin included
No Worries Limited Warranty
Minimum Class III hitch required

Vehicle and RV Compatibility

All Models

YES - Cars, Trucks, SUVs and Vans
YES - Flat-Towed Vehicles
NO - Travel Trailers
NO - Motorhomes
NO - Fifth-Wheel

Must be a chassis mounted hitch receiver. Must be less than 64” distance from the center of the rear axle to the center of the hitch pin hole.

Always check the User Guide and specifications for any change in weight capacity dependent on use. Hitch extenders and adapters should not be used when mounting the rack to an RV. Please refer to Kuat’s RV & Off-road Limitations for more information.

Features

250 LB. Capacity

The Pivot v3 supports up to 250 pounds.

The farther the weight is from the hitch, the more torque is applied, which limits how much weight or how many bikes can be safely carried. 

Kuat racks are limited to 3 bikes (maximum 250 lbs), and all other bike racks or cargo systems should follow the distance-to-weight guidelines:

Up to 28" (from the accessory’s hitch-pin hole to the furthest point): 250 lbs max total weight
28–40" (from the accessory’s hitch-pin hole to the furthest point): 150 lbs max total weight

Refer to the Pivot v3’s Loading Capacity Guide (below) to learn more.

Loads within the 40" limit may exceed some Class III receiver ratings — check your vehicle or hitch manufacturer for exact tongue-weight details.

Driver OR Passenger SIDE OPTIONS

We offer two versions of the Pivot v3 so you can choose which side of your vehicle to swing toward.

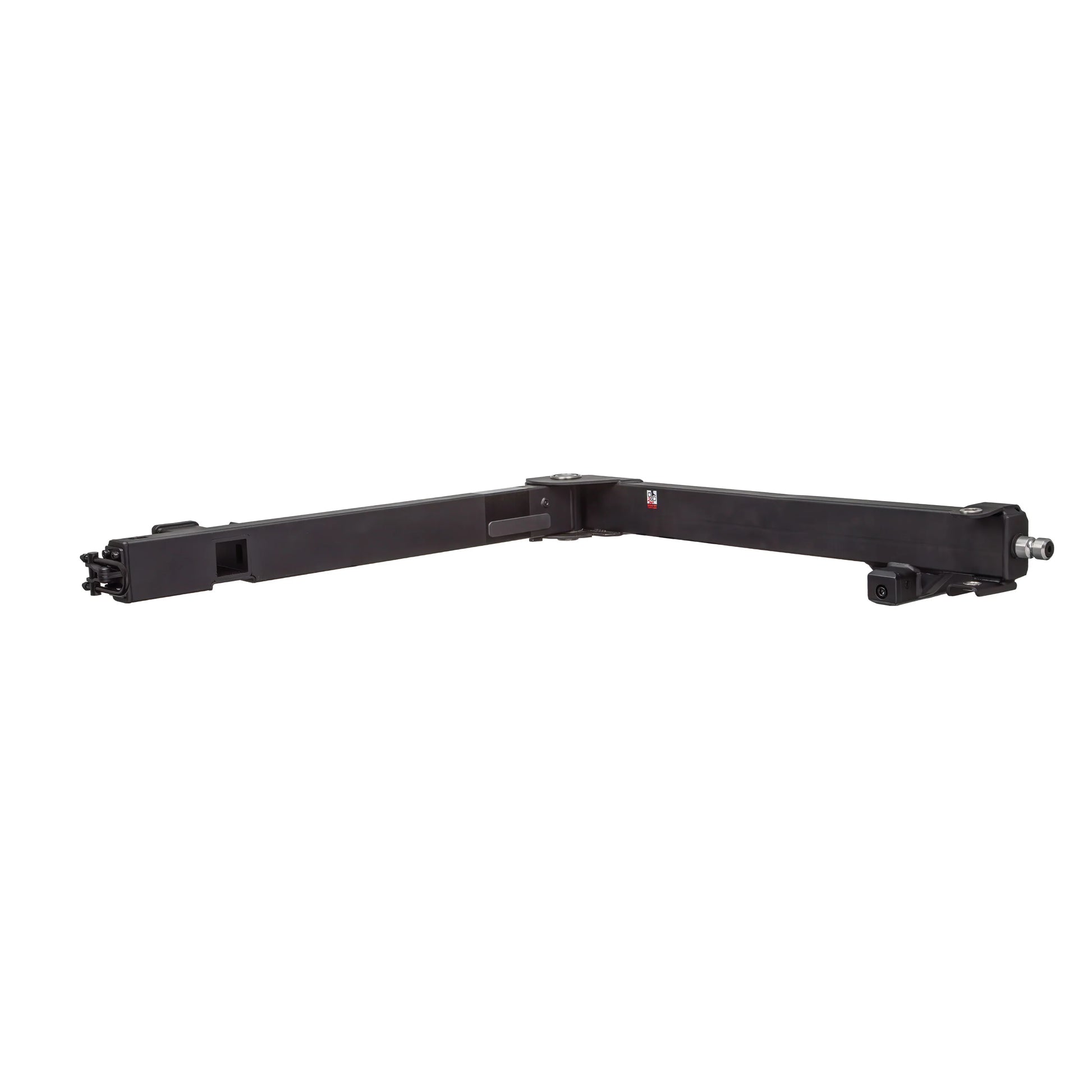

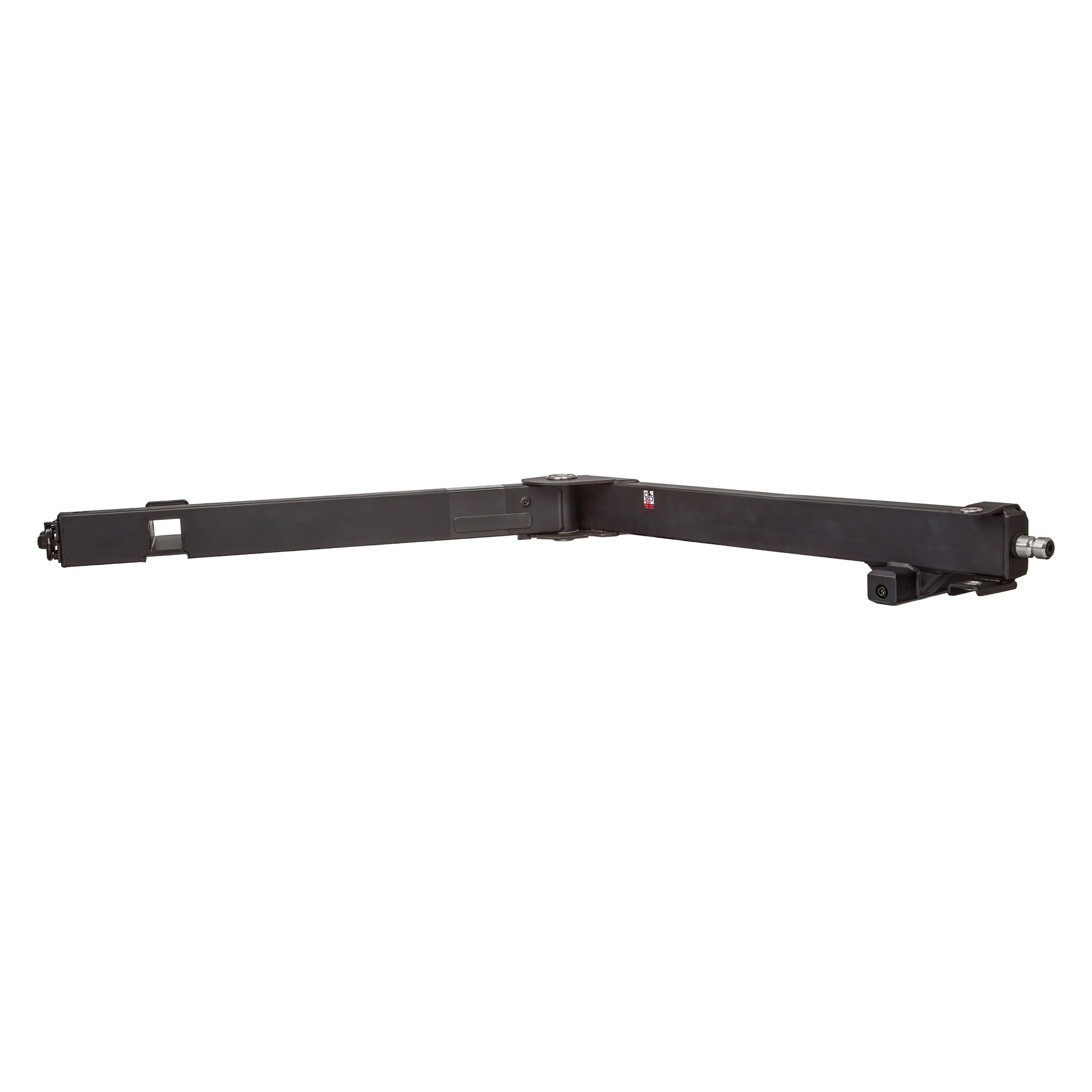

90° to 120° LOCKING POSITIONS

The quick-release swing-away positions gives you unobstructed access to tailgates, rear doors, and cargo areas without removing your bike rack or gear.

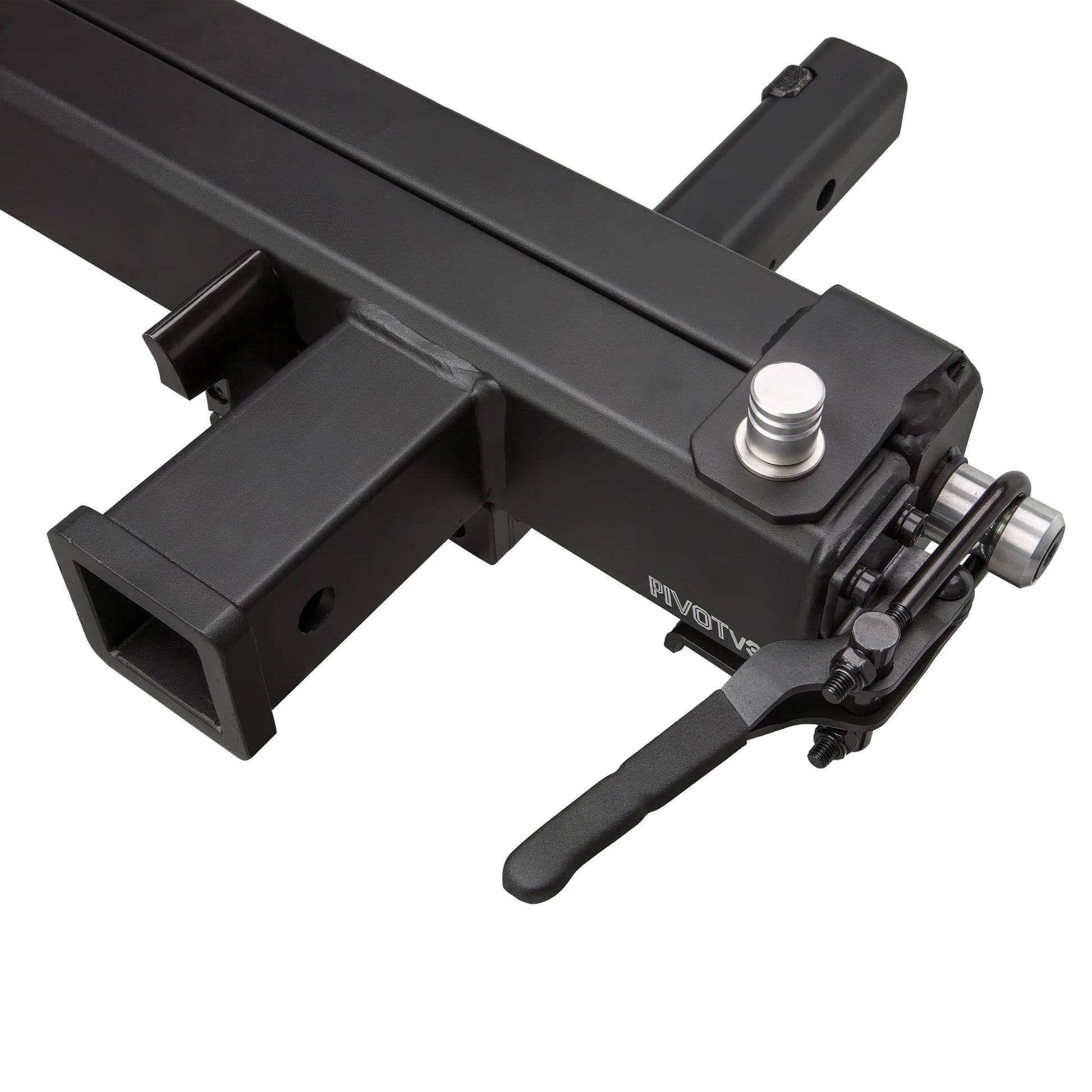

Pin closure

A newly engineered safety pin closure system significantly increases on-road stability, helping reduce movement when carrying heavy loads.

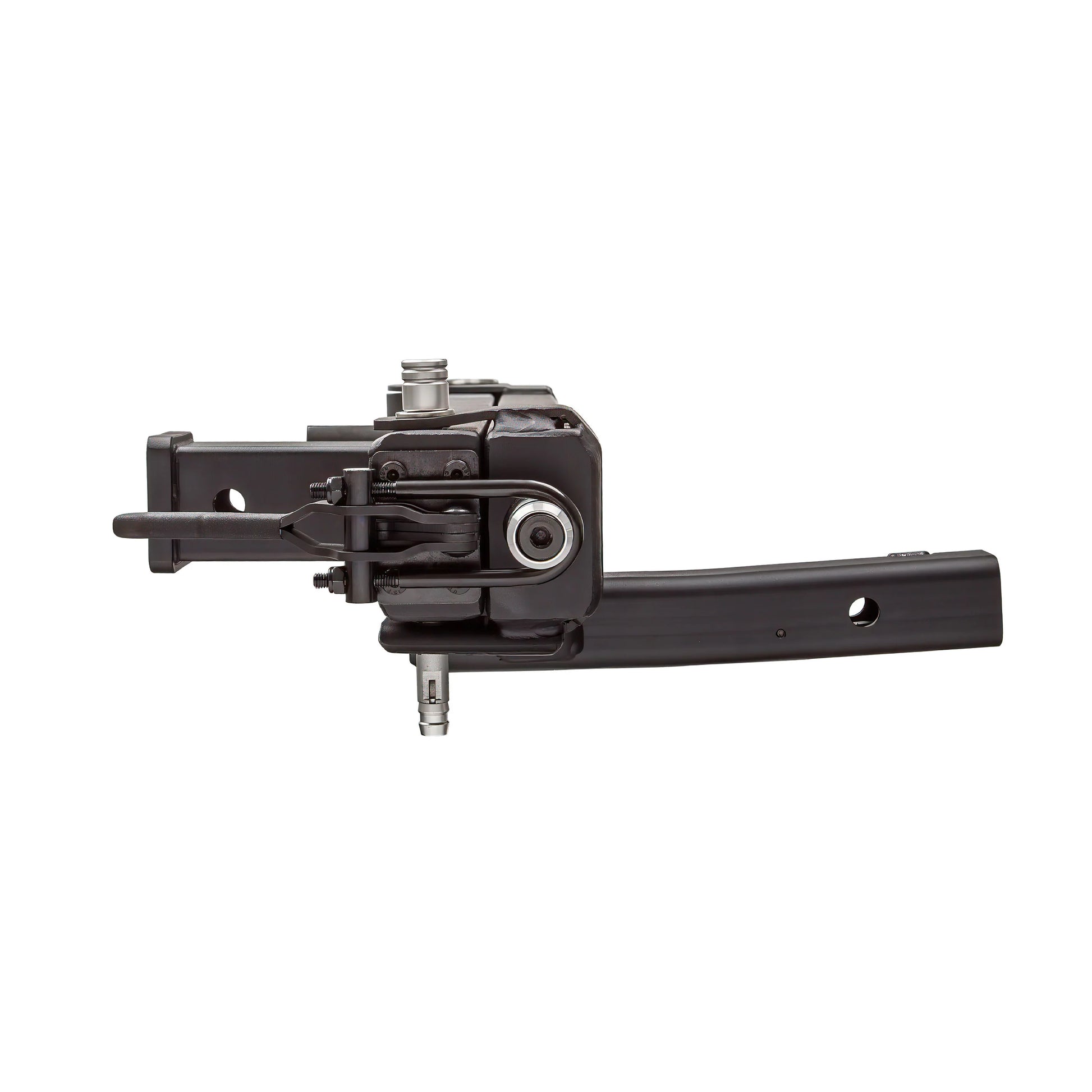

Flatlock^™ Hitch cam system

Advanced cam mechanism provides a tight, rattle-free connection to your vehicle's receiver. The cam system applies consistent pressure to eliminate play and ensure smooth operation mile after mile.

Locking hitch pin

Includes a locking hitch pin. The durable lock mechanism deters opportunistic theft while maintaining easy operation for legitimate use.

Specifications

CAPACITY

250 lbs. Maximum weight capacity.

Vertical hanging style racks are not compatible. It is not recommended to use Kuat bike racks in more than a 3-bike platform rack configuration with the Pivot v3.

WEIGHT

51 lbs.

DIMENSIONS

Pivot v3 Product Dimensions

SHIPPING

Shipping Dims: 42” x 23” x 9”
Shipping Weight: 61 lbs.
