Description

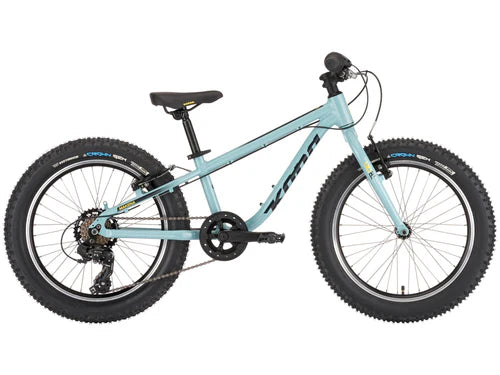

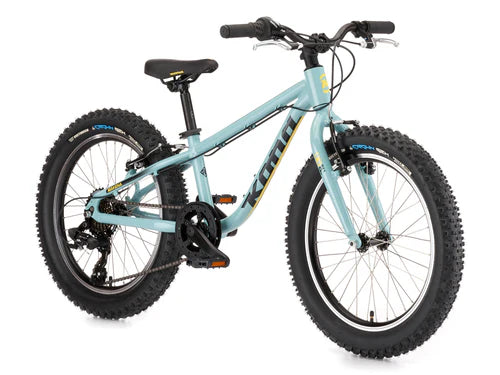

Kona Makena 20" Kids Bike

When you’re a kid, riding a bike is the ultimate form of freedom. The Makena is the perfect starter bike for your little cyclist. This kid-friendly frame features 20” wheels with chubby 2.6” tires for excellent traction, a 28-tooth chainring and low standover make it friendly for the littles, while a 1x drivetrain allows for single-handed shifting and make it an awesome first “real” bike.

Specifications

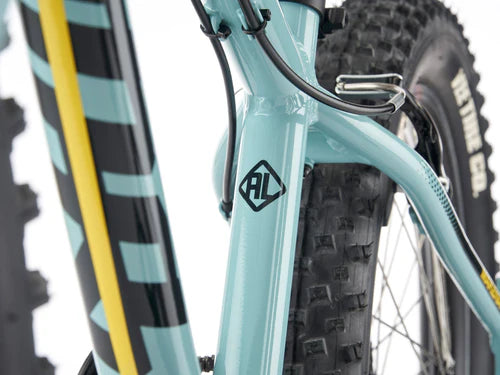

Frame Material	Kona 6061 Aluminum Butted
Sizes	11"
Rear Shock	n/a

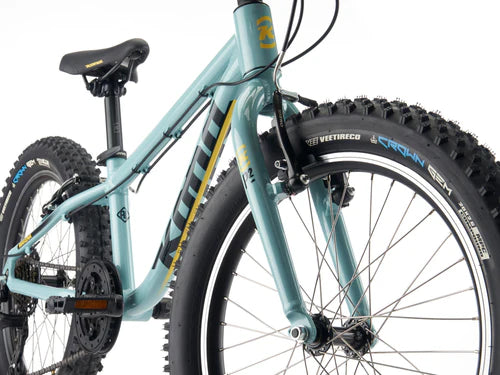

Fork	Kona Project Two JR
Crankarms	Samox

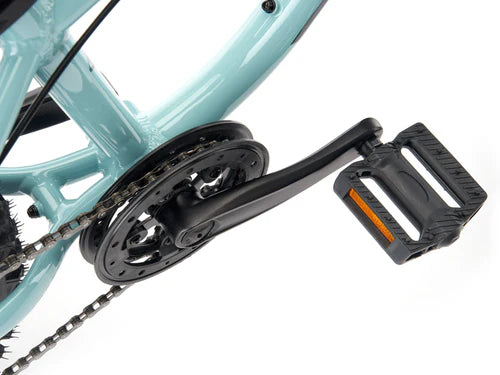

Chainrings	28t/Guard
B/B	Shimano 68mm
Pedals	FPD Platform
Chain	KMC HV500
Cassette	Shimano 14-34t 7spd
Chainguide	n/a
F/D	n/a

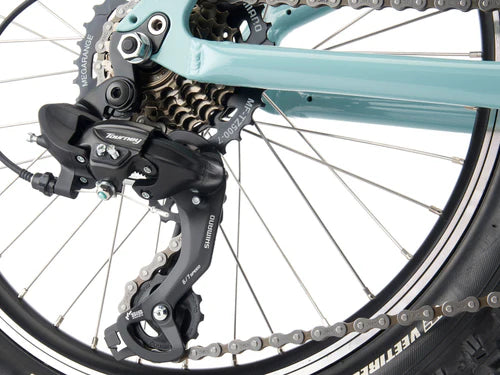

R/D	Shimano Tourney SS

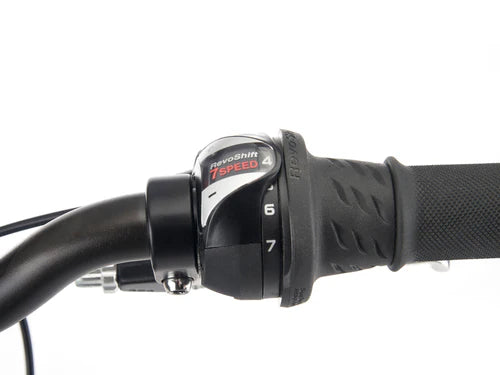

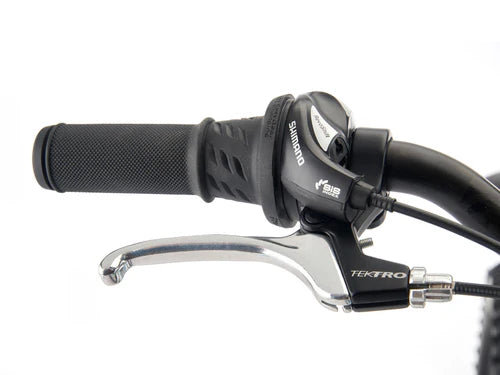

Shifters	Shimano Revo Shift

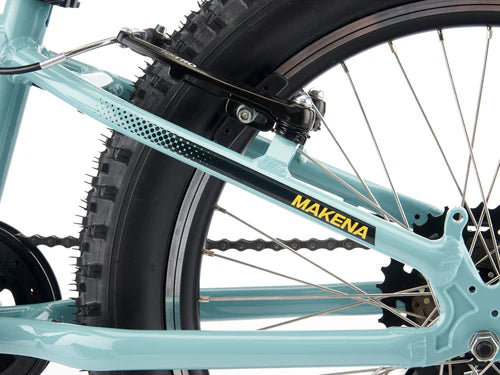

Brake Calipers	Tektro V-Brake
Front Brake Rotor	n/a
Rear Brake Rotor	n/a

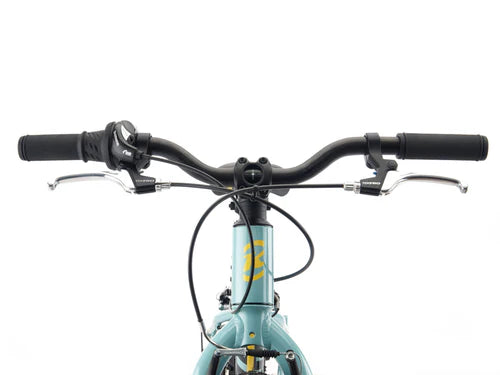

Brake Levers	Tektro Junior

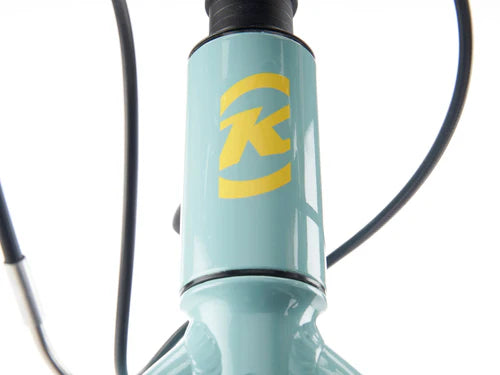

Headset	Feimin FP-H863B

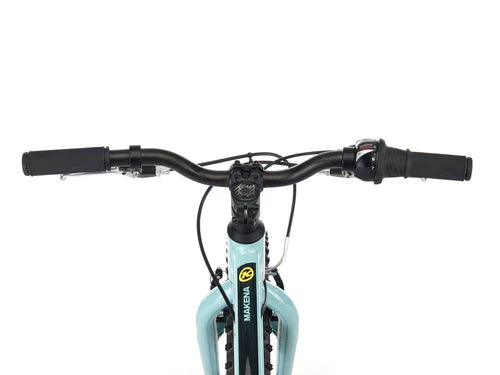

Handlebar	Kona Riser
Stem	Kona Control
Seatpost	Kona Thumb 27.2mm
Seat Clamp	Kona QR
Grips	Velo Junior
Saddle	Kona Junior
Front Hub	Formula 140x100mm nutted axle
Rear Hub	Formula 175x130mm nutted axle
Spokes	Stainless 14g
Rims	Double Wall alloy
Front Tire	Vee Tire Crown Gem 20x2.6"
Rear Tire	Vee Tire Crown Gem 20x2.6"
Paint Color	Gloss Harbor Grey w/ Charcoal & Butter Decals
Extras	n/a

All specifications are subject to change without notice.

Sizing & Geometry

Bike Geometry

Size	S
1	ST Length	255
2	TT Length	466
3	Reach	323
4	Stack	414
5	Standover	538
6	HT Angle	69.0
7	HT Length	90
8	ST Angle	71.0
9	CS Length	375
10	BB Drop	15
11	BB Height	259
12	Wheelbase	899
13	Front Center	525
14	Fork Length	350
15	Fork Offset	45
