Fox Rear Shock Mount Hardware Kit – M6 x 19mm
Smooth Suspension Starts at the Mount

Ensure optimal performance and long-term durability from your Fox rear shock with this genuine M6 x 19mm Rear Shock Mount Hardware Kit. This complete hardware assembly is engineered to eliminate play, reduce bushing wear, and provide smooth, quiet operation through every hit, drop, or pedal stroke.

Designed to fit Fox rear shocks with M6 bolts and a 19mm wide mounting interface, this kit includes all necessary components to restore a tight and precise suspension feel.

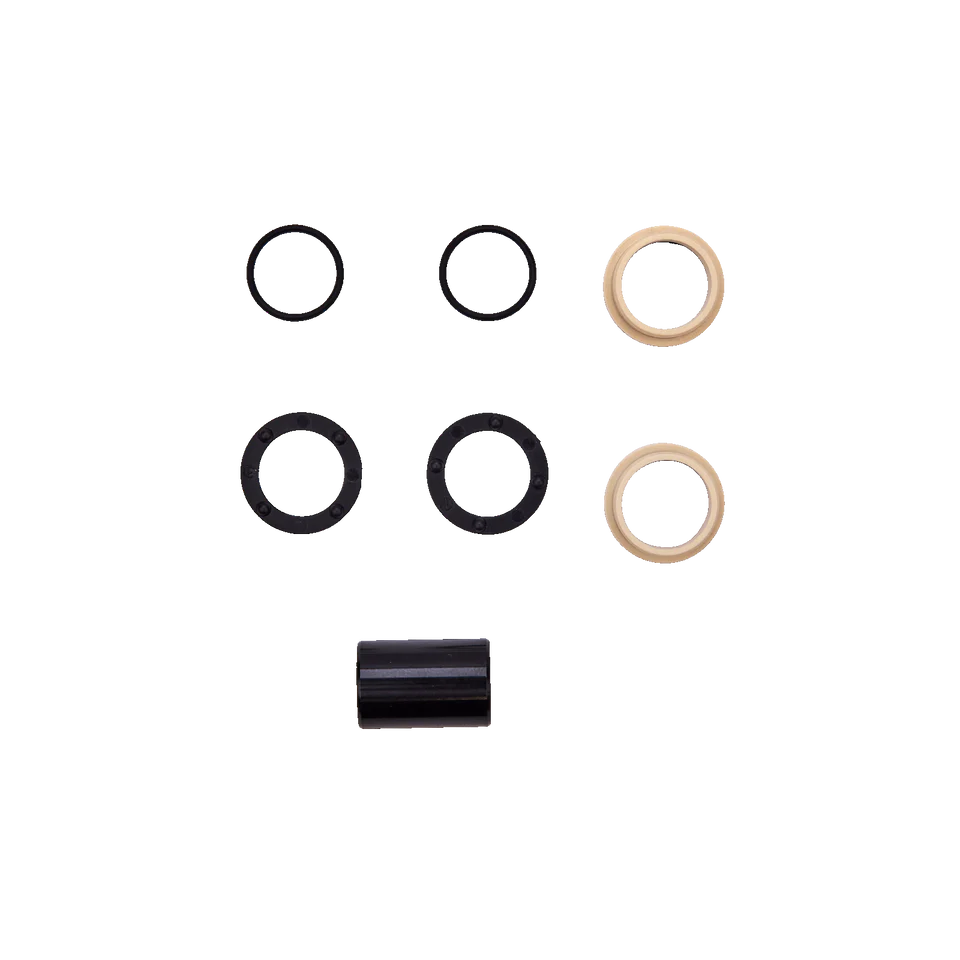

Kit Includes

• (2) Beige flanged bushings – Press-fit into the eyelet to provide a secure and smooth pivot point
• (1) Hollow mounting pin – Slides through the bushings to connect the shock to the frame linkage
• (2) Black Delrin spacers – Center the pin and minimize lateral movement
• (2) Thin O-rings – Placed between bushings and spacers to prevent contamination and premature wear

Features

• Direct replacement for worn or damaged hardware
• Helps eliminate unwanted shock movement or “slop”
• Reduces friction and noise during suspension movement
• Protects bushing interfaces from dirt and moisture
• Compatible with Fox rear shocks using M6 bolts and 19mm width mounting

Compatibility

• Fox rear shocks (FLOAT, DHX, X2, etc.) with 19mm wide mounting hardware
• M6 bolt mounting interface
  Check frame and shock specs to ensure correct fitment before ordering

Pro tip: Replacing old hardware when servicing or swapping rear shocks not only improves ride quality but also extends the life of your bushings and suspension components.
