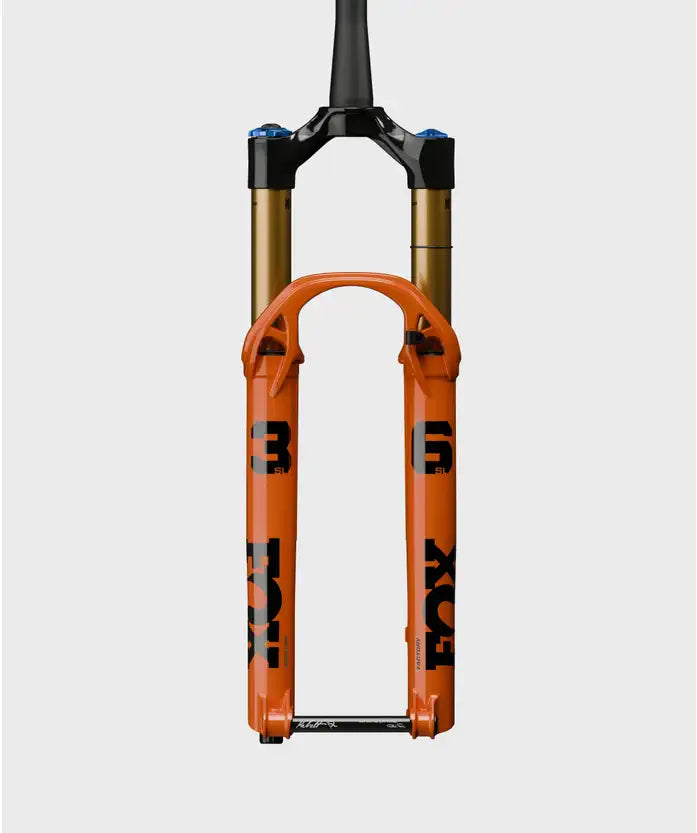

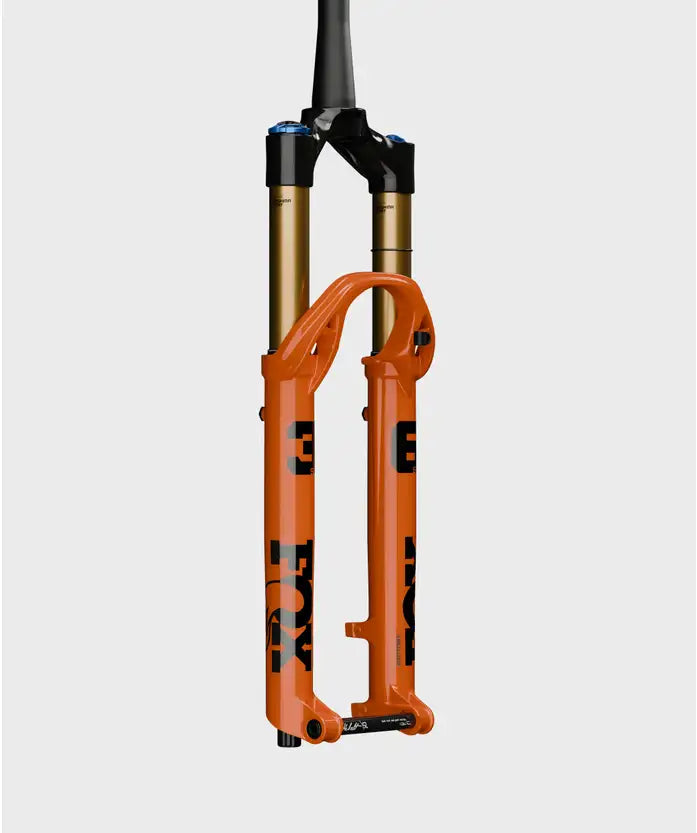

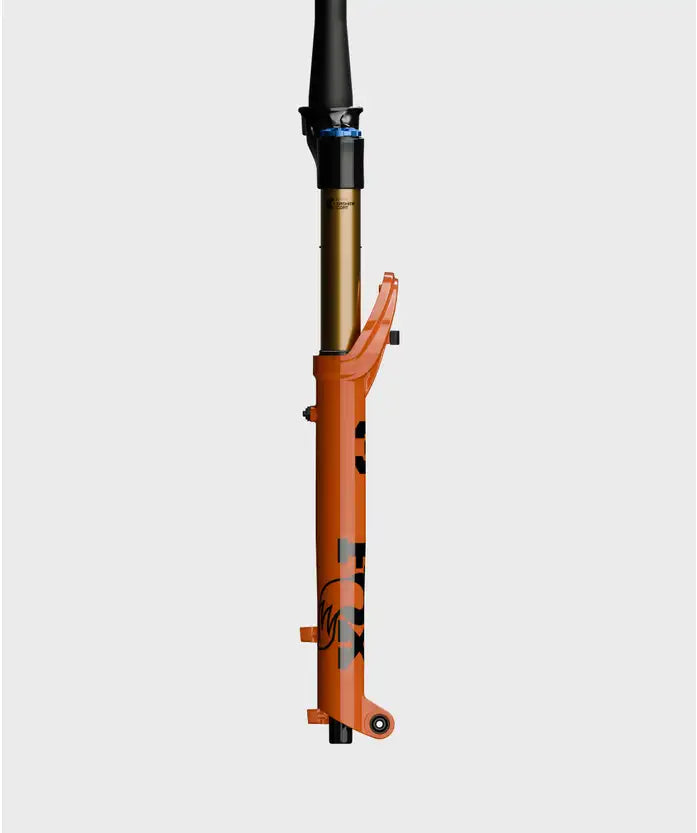

Fox Suspension 36 Float 150 Factory 29 Kabolt X 110

Available with with GripX or GripX2

Precision-tuned for versatility, built for aggressive Trail riding

The latest evolution of the FOX 36 brings big fork energy to Trail and All-Mountain riding, delivering an ideal balance of stiffness, control, and smooth suspension performance. With increased steering precision and a notably supple ride feel, the 36 captures an Enduro-inspired character without the added weight, making it perfectly suited to modern, demanding trails.

Built around a refined standard chassis, the FOX 36 offers confident front-end tracking and responsive handling across varied terrain. Its optimised stiffness profile enhances control at speed while maintaining comfort and compliance over rough ground, giving riders the confidence to push harder on technical climbs and fast descents alike.

At its core is the updated GRIP X damper, engineered to deliver exceptional performance with minimal weight. Designed to approach the ride feel of GRIP X2, it offers impressive sensitivity and control, making it one of the most efficient dampers in its class. Paired with the FLOAT EVOL GlideCore air spring, the fork delivers a supple initial stroke with supportive mid-stroke performance, maximising traction and consistency throughout the ride.

Finished with Genuine Kashima coating for reduced friction and enhanced durability, and equipped with practical features such as bleed valves and optional mudguard compatibility, the FOX 36 Factory Series is built for riders who demand reliability and performance. Available in 150mm or 160mm travel and optimised for modern Trail geometry, it’s a fork designed to handle aggressive riding with ease.

Option 1 - GRIP X Damper Efficiency Rundown

The GRIP X damper is tuned for Trail performance, balancing sensitivity, support, and lightweight efficiency. Designed to emulate the feel of GRIP X2 in a simpler, lighter package, it delivers consistent damping and confident control across a wide range of trail conditions.

Option 2 - GRIP X2 Damper Control

At its core is the gravity-ready GRIP X2 damper, updated for maximum control on steep, fast, and technical terrain. With unmatched adjustability and damping consistency, it pairs seamlessly with the FLOAT EVOL GlideCore air spring to deliver a supple initial stroke, supportive mid-stroke, and controlled end-stroke performance.

Purpose-built for 29” wheels, the 36 SL Factory gives modern Trail riders the confidence to ride bigger lines, tackle tougher descents, and maintain efficiency—without the weight holding them back.

GRIP X2 Damper Control

The GRIP X2 damper delivers elite-level tuning with independent high- and low-speed compression and rebound adjustment (HSC, LSC, HSR, LSR). Designed for demanding terrain, it provides exceptional sensitivity, support, and consistency—keeping the fork composed through steep, rough, and technical trails.

Key Features - GRIPX

• Trail and All-Mountain focused chassis with balanced stiffness and control
• Updated GRIP X damper for lightweight, high-performance damping
• FLOAT EVOL GlideCore air spring for enhanced sensitivity and support
• Genuine Kashima-coated upper tubes for reduced friction and durability
• Integrated bleed valves and air channels for consistent performance
• Optional FOX 36/38 mudguard with secure 4-point mount

Specifications

• Travel: 150mm (also available in 160mm)
• Damper: GRIP X
• Air Spring: FLOAT EVOL GlideCore
• Axle: Kabolt-X 110
• Steerer: 1.5” Tapered

Key Features - GripX2

• All-Mountain focused chassis with Enduro-level stiffness and control
• GRIP X2 damper with full adjustability (HSC, LSC, HSR, LSR)
• FLOAT EVOL GlideCore air spring for enhanced sensitivity and support
• Kashima-coated upper tubes for reduced friction and durability
• Integrated bleed valves for consistent performance
• Optional FOX 36/38 mud guard with secure 4-point mount

Specifications

• Wheel Size: 29”
• Travel: 160mm
• Damper: GRIP X2
• Air Spring: FLOAT EVOL GlideCore
• Axle: Kabolt-X 110
• Rake: 44mm
• Steerer: 1.5” Tapered
• Rotor Size: 200mm direct Post Mount (up to 230mm compatible)
