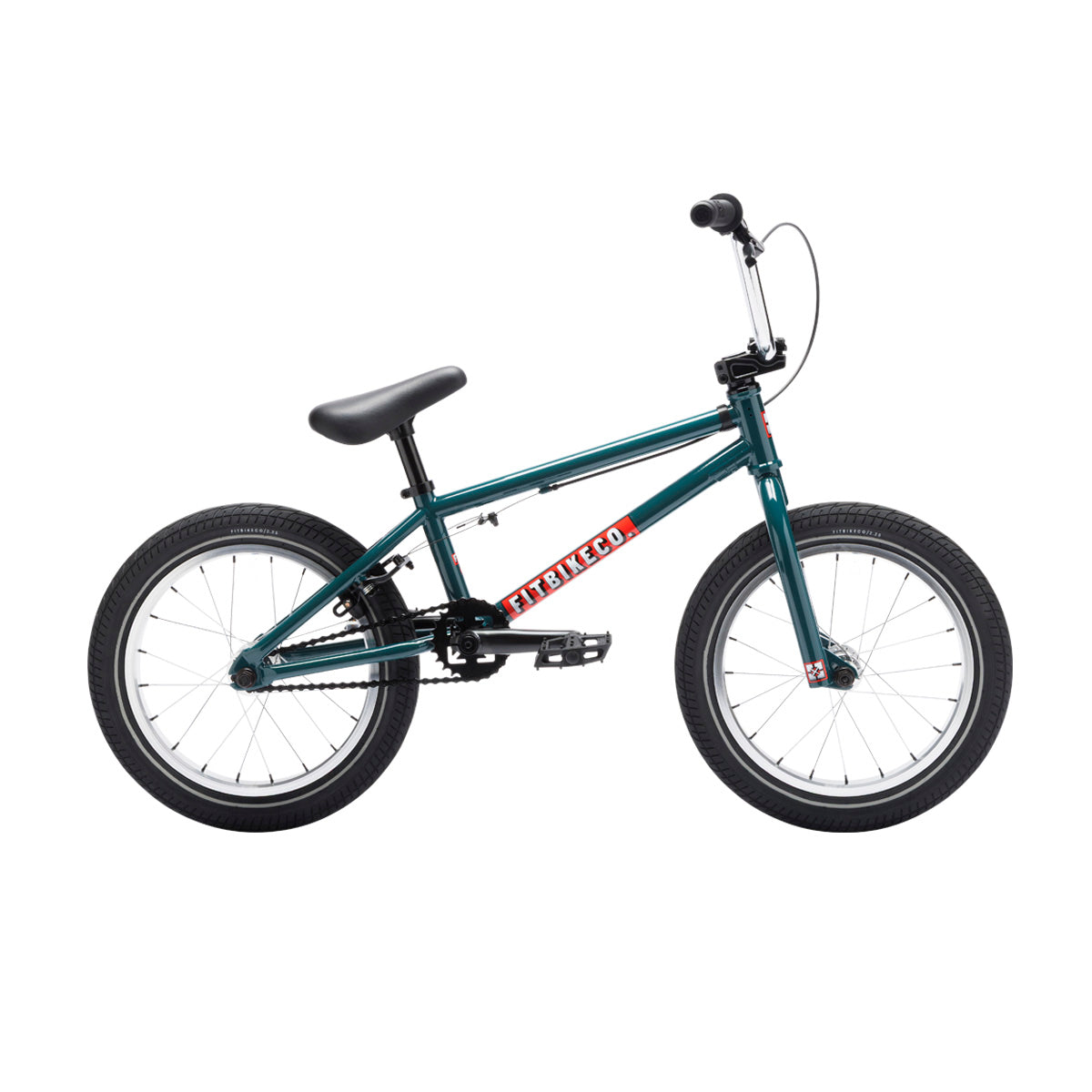

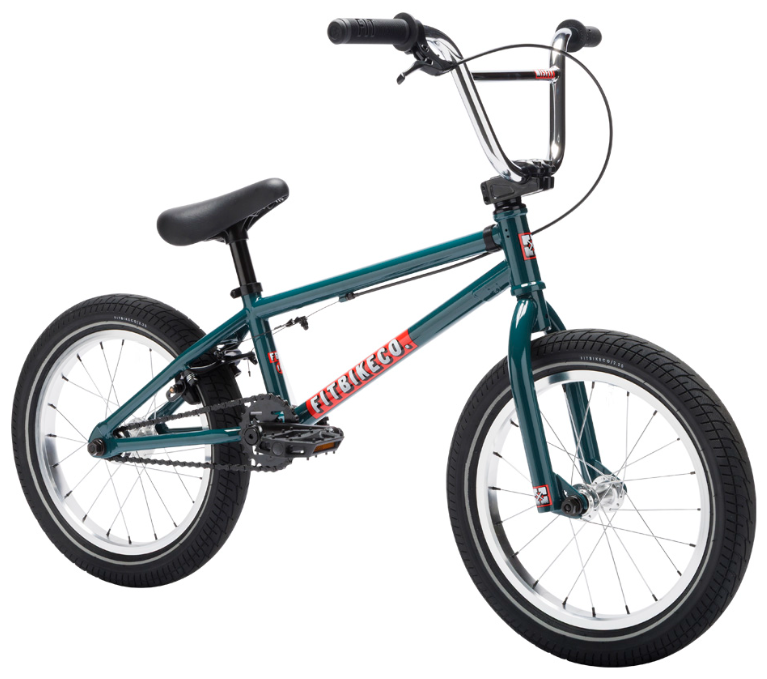

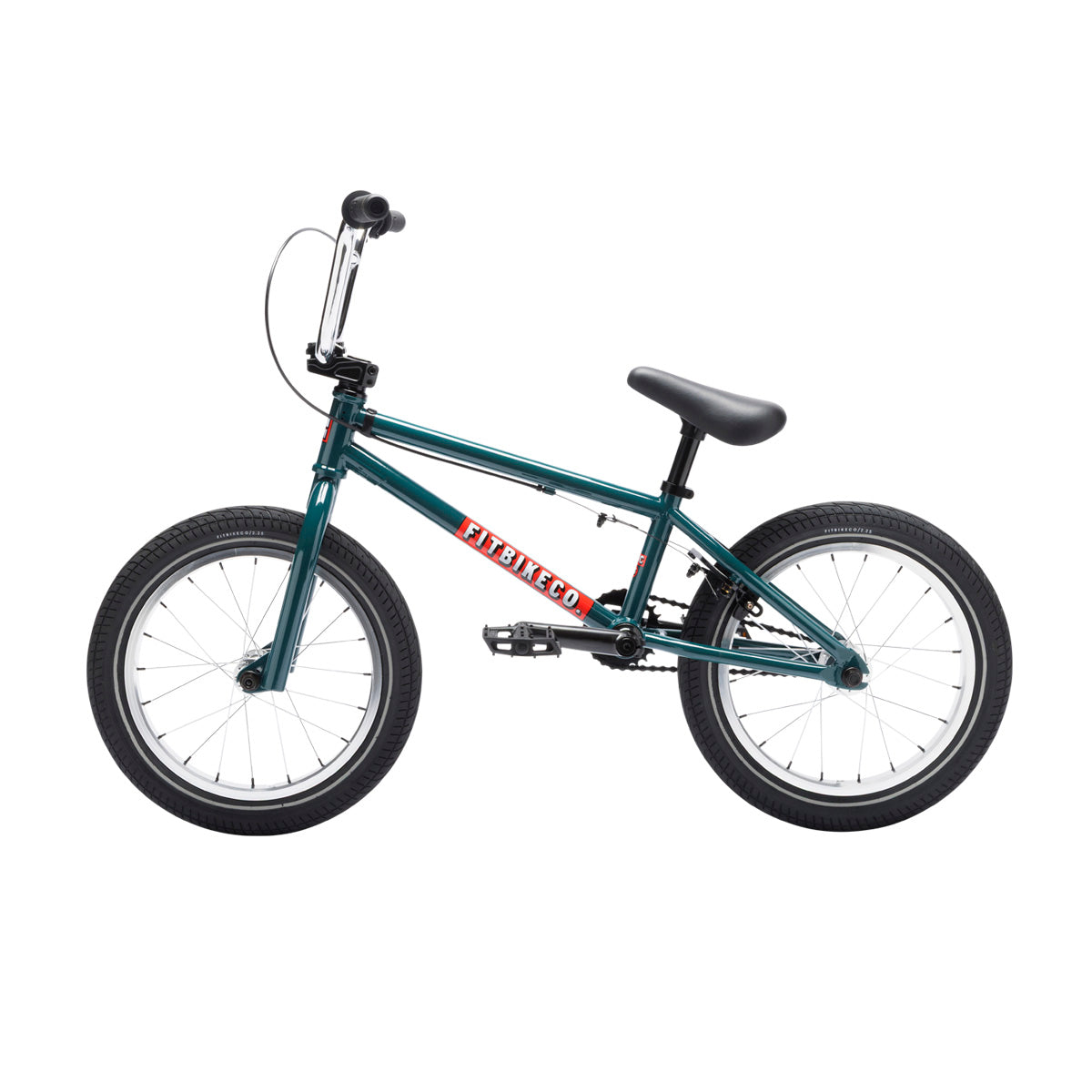

Fit Bike Co Misfit 16 BMX

With young riders pushing the level of riding, smaller bikes need to keep up. The MISFIT 16” is the smallest bike in our line to feature a fully sealed Integrated Headset. Utilizing a CNC machined headtube, also drilled for thread-on Gyro tabs, the headset rests inside the head-tube rather than in press-in cups to avoid broken cups or the lower cup shifting when a fork is bent causing a tight spot in your headset. Also drawing influence from its aftermarket counterpart we’ve lightened up the frame and fork for ’26 creating a bike as limitless as today’s riders imaginations.

Details

MISFIT 16″

• TT SIZE: 16.25”
• FRAME: Cro-Mo Top & Down Tubes
• GEOMETRY: 16
• HEADSET: Integrated w/Gyro Holes Integrated
• BB: Mid Sealed
• BARS: 2-Piece 7” x 24”
• FORK: New 31mm Offset Cro-Mo Steerer
• STEM: Mini Top Load
• SEAT: 25.4mm Flatter/ More Padded Integrated Combo

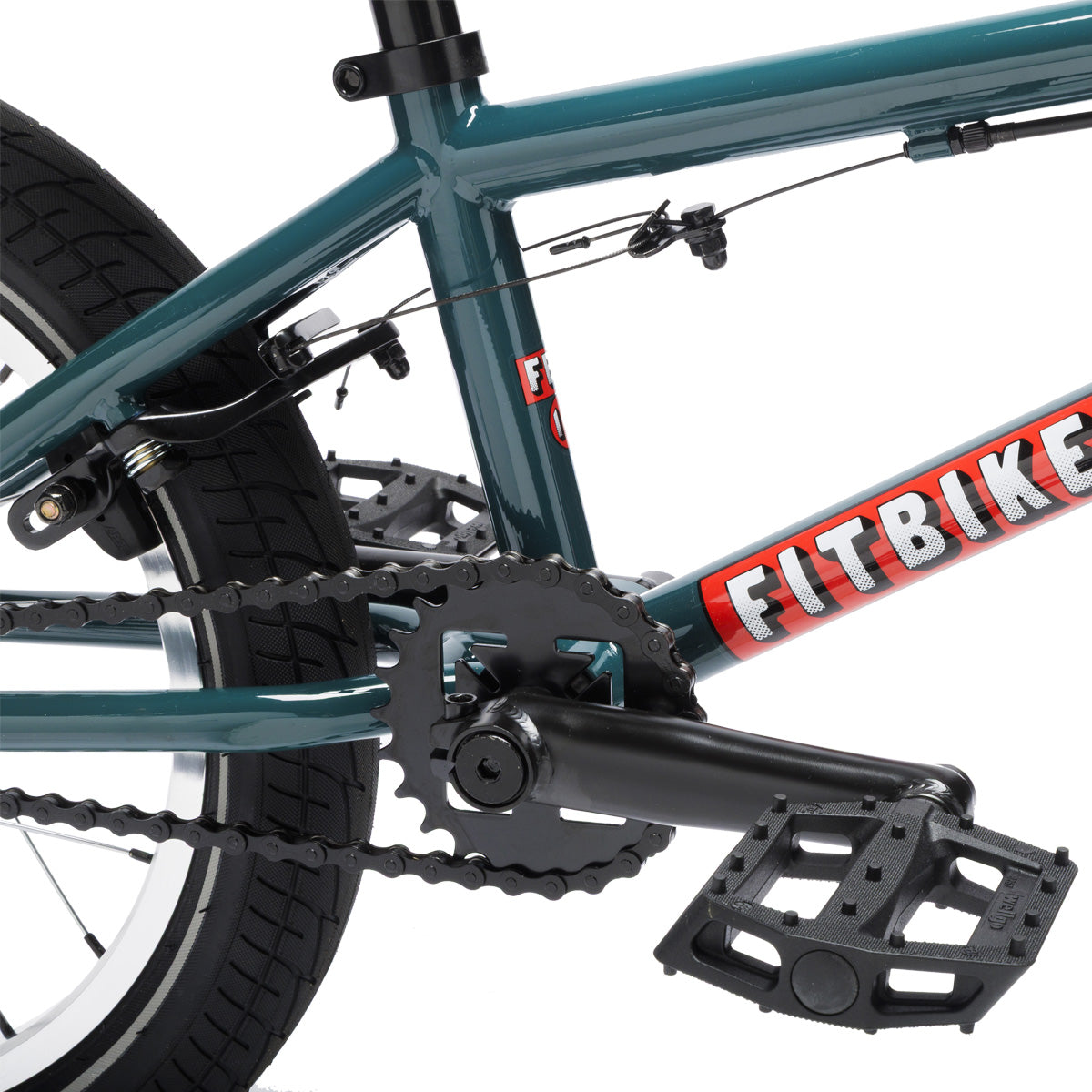

• CRANKS: Tubular Cro-Mo 127mm
• SPROCKET: Fit Bite 24T
• PEDALS: Nylon Platform 9/16”
• FRONT WHEEL: Wider 20H Single Wall w/Unsealed Hub
• REAR WHEEL: Wider 20H Single Wall w/Sealed 9T Cassette
• TIRES: FIT OEM 2.25”
• BRAKES: U-Brake w/Low Tension Springs, Short Reach Lever, Linear Cable
• MISC: 17mm Rear Axle Nuts
