Description

ENVE Melee 700c Frameset

The Melee is our dedicated performance road platform, engineered for efficiency, precise handling, and the demands of modern racing. Aerodynamic tube shapes, integrated design, and refined carbon construction work together to deliver a fast, responsive ride. Built for riders who value purposeful engineering and consistent performance.

Key Details:

  • Real-World Fast™ aero optimization
  • Tube shapes complement SES rim shapes
  • Max Tire Clearance: 35 mm
  • Frame Weight: 850 grams (56cm, Painted, No Hardware)

Features:

Real-World Fast™ Defined:

  • Balanced for aero efficiency and weight savings
  • Tube shapes complement SES rim shapes
  • Integrated Front-End hides wires and brake
  • Wind tunnel tested for performance at 32 kph/20 mph and 48 kph/30 mph

Integrated For Speed

The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the two-piece Integrated Aero Stem and SES AR Handlebar, the Melee capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.

Personalize your Chasis

An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Integrated Aero Stem(Not Included)

ENVE's new Integrated Aero Stem debuts with the Melee. This stem takes design cues from the Aero Road Stem but allows cables, wires, and brake hoses to pass from the handlebar into the head tube. The -7 degree stem is available in 80, 90, 100, 110, 120, and 130 mm lengths. Compatible with the ENVE x K-Edge Aero Stem accessory and computer mount.

Aero Seatpost(Not Included)

The Melee features an all-new aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.

Material Optimized Design(M.O.D)

We are carbon experts, artisans of our craft, using the best material for the application and making the products that we want to ride. At ENVE, we design and build to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.

35mm Of Freedom

Given the Melee’s race-bred pedigree, geometry and handling characteristics are tuned for tire sizes between 27 and 32 mm. However, the needs of the day may dictate that more tire volume will result in more speed. When the moment presents itself, a max tire clearance of 35 mm means that your Melee will be ready.

Drivetrain Compatibility

The Melee is compatible with most drivetrain brands, models, and configurations on the market. The Integrated Front-End provides internal brake hose, housing, and wire routing for 2x and 1x drivetrains alike.

  • Mechanical (Shimano Only*)
  • Electronic Wired
  • Electronic Wireless
  • 1x
  • 2x

*Melee mechanical routing requires continuous housing from shifter to derailleur. This prevents some brand's front derailleurs from Melee compatibility.

Threaded T47 Inboard-bearing bottom bracket

Featuring a threaded T47 inboard-bearing bottom bracket for smooth, silent, creak-free operation. Your bottom bracket is the last thing you should have to think about.

 Specifications:

Frame Material ENVE M.O.D Carbon
Fork Material ENVE M.O.D Carbon
Target Application Road Race/Performance
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43, 39
Frame Size/Fork Rake 47cm/55, 50cm/51, 52cm/47, 54cm/47,
56cm/43, 58cm/43, 60cm/39
Frame Weight 850g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.5, TL:14)
Minimum Tire Size 25c
Optimal Tire Size 27c-32c
Maximum Listed Tire Clearance 35c
Frame Routing Internal

Sizing & Geometry:

Component and Drivetrain Compatibility:

Handlebars ENVE IN-Route Recommended
Stem ENVE IN-Route Recommended
Seat Posts Aero Seatpost
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (Melee requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (Melee requires continuous housing for FD)
Campy Wired EPS No
Campy Wireless EPS Yes

Video:

ENVE

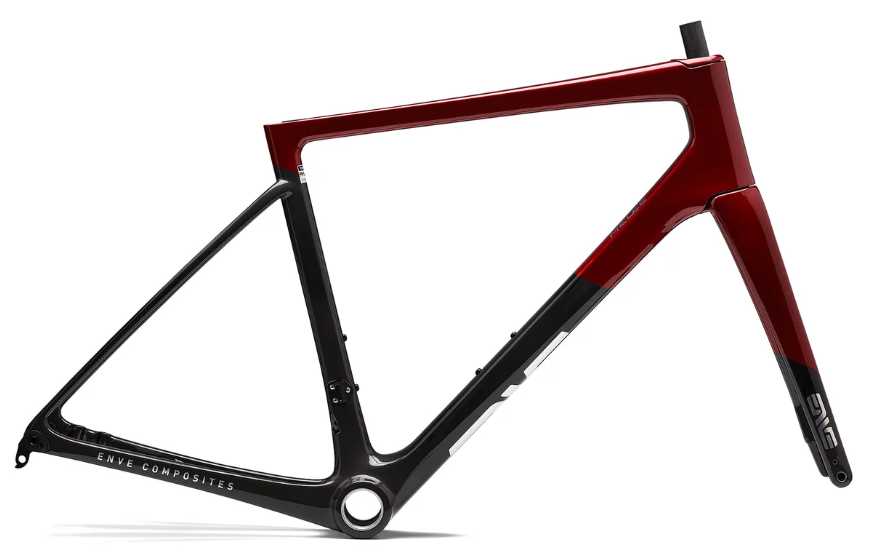

ENVE Melee 700c Frameset - Iconic Red
