Description
ENVE Fray 700c Frameset
"At its core, the Fray is a performance road bike, with incredible versatility that lends itself to forays onto mixed surfaces. In the absence of the Fray, there were those looking for an “all-road” solution from ENVE amongst our Melee and MOG offering. ENVE products are purpose-built, and the Fray embodies this ethos."
- Jake Pantone, ENVE VP of Product and Brand.
Key Details:
Real-World Fast™ Defined:
- Balanced for aero efficiency and weight savings
- Tube shapes complement SES rim shapes
- Integrated Front-End hides wires and brake
Integrated For Speed
The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the two-piece Integrated Aero Stem and SES AR Handlebar, the Melee capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.
Personalize your Chasis
An ENVE Chassis is the canvas upon which you can build your dream bike. The Melee is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.
IN-Route System
The enve In-route system routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.
Aero Seatpost
The Fray features an aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.
Material Optimized Design(M.O.D)
We are carbon experts, artisans of our craft, using the best material for the application and making the products that we want to ride. At ENVE, we design and build to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.
Optimized for all Roads
The Fray geometry is optimized around 31 to 35mm tires, though it can fit up to 40mm. Combined with progressive endurance geometry and the ENVE Cargo Bay for in-frame downtube storage, the Fray brings road race performance to those seeking a wider range of surfaces and terrain.
Threaded T47 Inboard-bearing bottom bracket
Featuring a threaded T47 inboard-bearing bottom bracket for smooth, silent, creak-free operation. Your bottom bracket is the last thing you should have to think about.
Cargo Bay Frame Storage
Borrowing from the MOG, the Fray also features ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.
Rider Specific Fit and Tune
At the foundation of performance is bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry and space age materials in the world won’t save your ride. You need an optimized fit and tuned geometry to give you the confidence and comfort needed to reach your performance potential.
Offered in seven sizes with four fork rakes and giving you the opportunity to choose your bar model, bar width, stem length, stem rise, seatpost length and offset, the Fray has your ideal fit in mind. This ensures that all Frays, regardless of size, will deliver the same level of responsive, confidence inspiring handling required from a performance all road bike
Specifications:
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible |
| Target Application | All Road / Endurance / Mixed Surface / Sportif / Fondo |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43 |
| Frame Size/Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, |
| 56cm/47, 58cm/47, 60cm/43 | |
| Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5″ IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12×100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12×142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 27mm |
| Optimal Tire Size | 31mm - 35mm |
| Maximum Listed Tire Clearance 1x | 40mm |
| Maximum Listed Tire Clearance 2x | 38mm |
| In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each) |
| Frame Routing | Internal |
| Waterbottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Compatible | Yes |
| Wheel Size | 700c |
Sizing & Geometry:
Component and Drivetrain Compatibility:
| Handlebars | ENVE IN-Route Recommended |
| Stem | ENVE IN-Route Recommended |
| Seat Posts | Aero Seatpost |
| Shimano Mechanical 1x | Yes |
| Shimano Mechanical 2x | Yes |
| Shimano Electronic Di2 (1x/2x) | Yes |
| SRAM Mechanical 1x | Yes |
| SRAM Mechanical 2x | No (Fray requires continuous housing for FD) |
| SRAM AXS (1x/2x) | Yes |
| Campy Mechanical 1x | Yes |
| Campy Mechanical 2x | No (Fray requires continuous housing for FD) |
| Campy Electronic EPS | Not Compatible |
| Fork |
Fork is 160mm only
|
| Frame |
Rear brake/frame is 140mm or 160mm with adapter.
|
Video:
ENVE

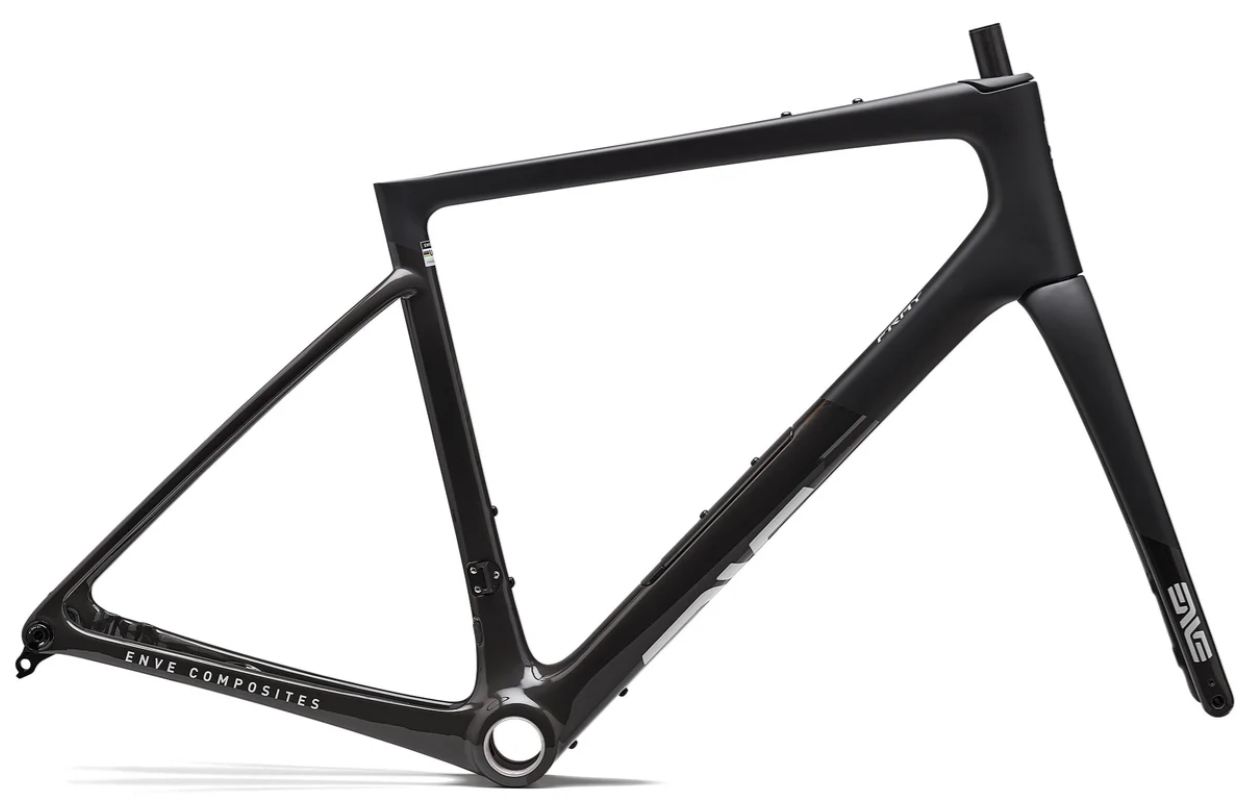

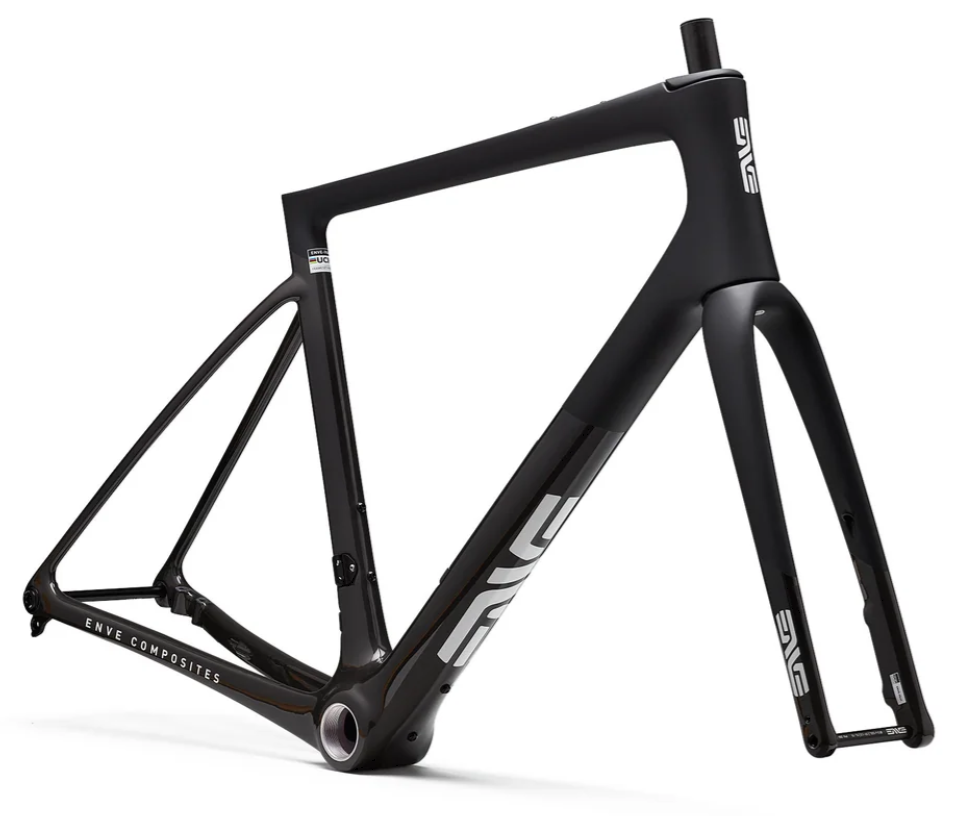

ENVE Fray 700c Frameset - Clear Smoke
