Description

The EC90 ALX wheels offer an aero advantage to gravel riders in the pursuit of speed.

Aerodynamics are of growing importance in gravel – riders are battling headwinds, washboard roads, and 10-hour+ days in the saddle. We set out to design an aerodynamic wheelset that struck a precise balance between rim depth and ride quality, with the goal of elevating gravel speed and experience. The EC90 ALX wheelset answers the aero needs of gravel riders.

We carefully selected a 36mm rim depth to yield a clear aerodynamic benefit over shallower rims, while avoiding drawbacks of added weight, rougher ride quality, and crosswind-fueled instability. Paired with a 24mm internal rim width, we created a rim shape optimized for aerodynamic advantage using gravel tires. Sapim cx-ray bladed spokes lace these rims to our durable and quick-engaging Easton vault hubs. These wheels are light, comfortable, fast and protected by our lifetime warranty. Aero for gravel, without compromise.

Specifications

  • Wheelset Weight: 1495g (xdr, without tape & valves)
  • Finish: matte carbon/vinyl decals
  • Rim Type: hookless tubeless ready
  • Rim Material: carbon
  • Rim Depth: 36mm
  • Internal Rim Width: 24mm
  • External Rim Width: 30mm
  • Spokes: sapim cx-ray bladed spokes
  • Braking Surface: disc/centerlock rotor mount (max. 180mm)
  • Nipple Type: external secure lock aluminum
  • Hub Type: Easton vault center-lock 12x100/12x142*
  • Engagement: 60 point/6°
  • Bearing Type: sealed cartridge bearings
  • Tire Compatibility: 700c/30-53c
  • Includes: Easton tubeless tape & valves, extra rear spokes

Easton

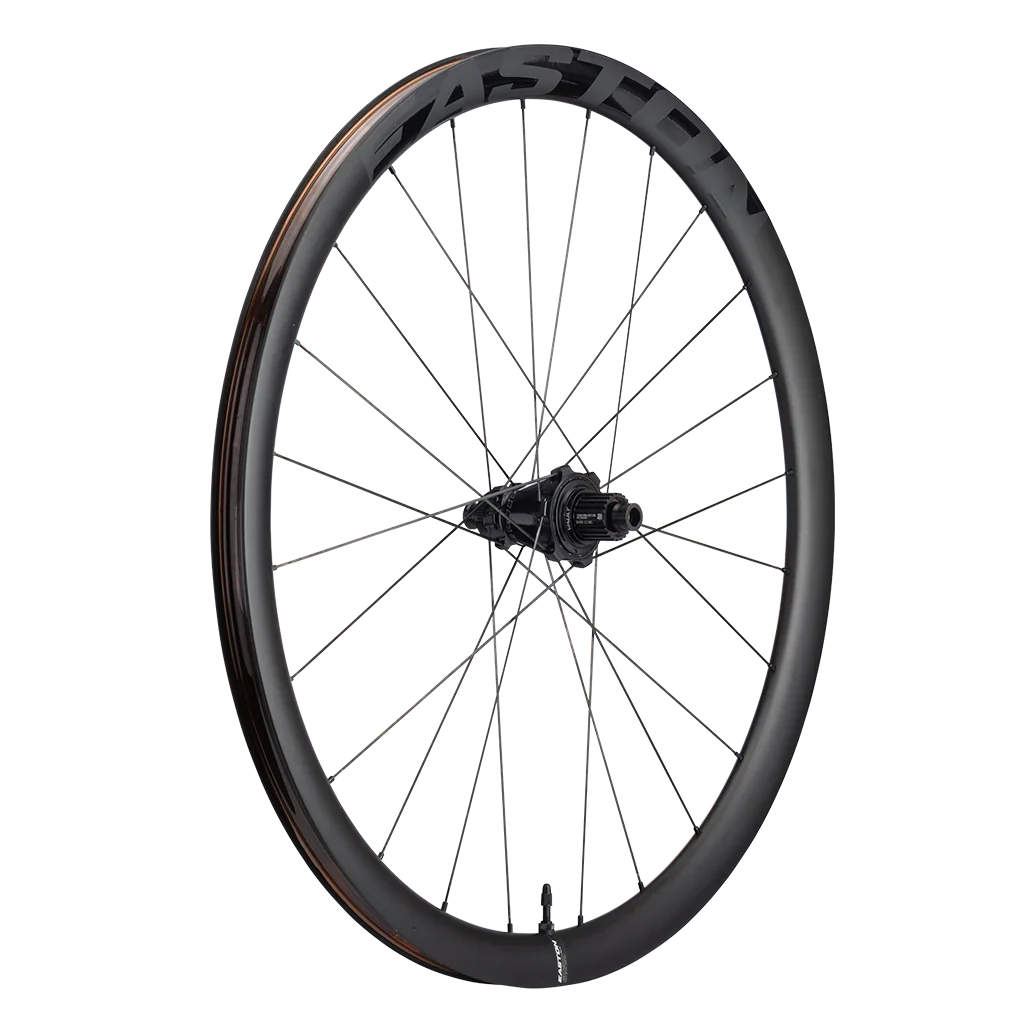

Easton EC90 AX 700c Carbon Disc Wheel - Rear

Easton EC90 AX 700c Carbon Disc Wheel - Rear

Regular price $749.00
Regular price $749.00 Sale price $749.00

Color
Option

Product ID: GM042424-12

Only 1 Items Left



Shop all Easton   |   Shop all Cyclocross Wheels

View full details
