Description

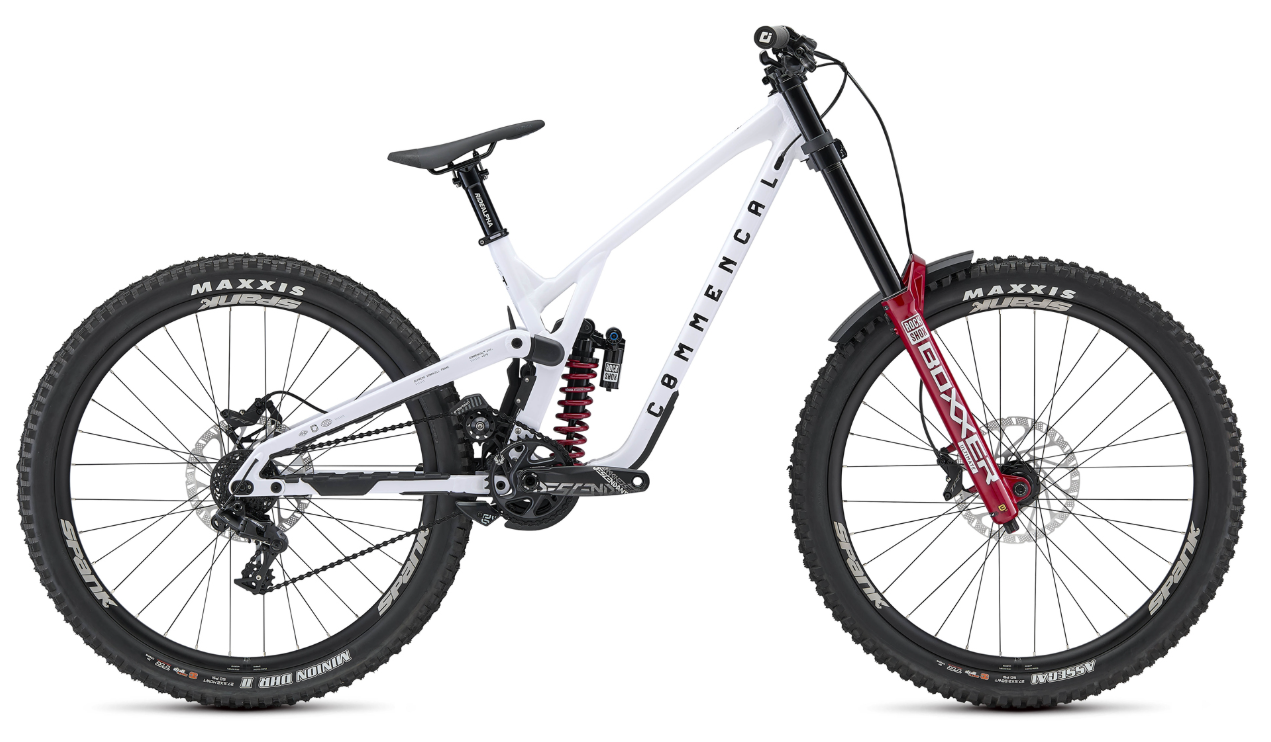

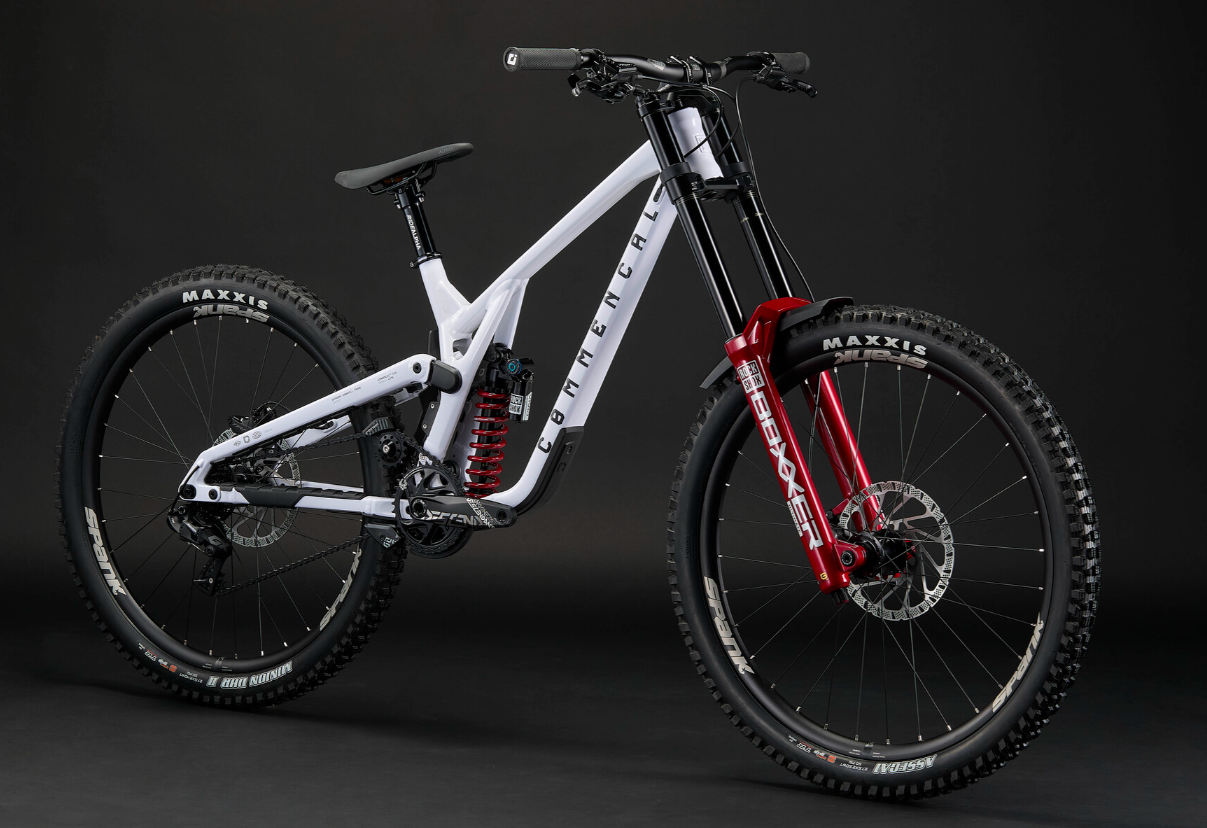

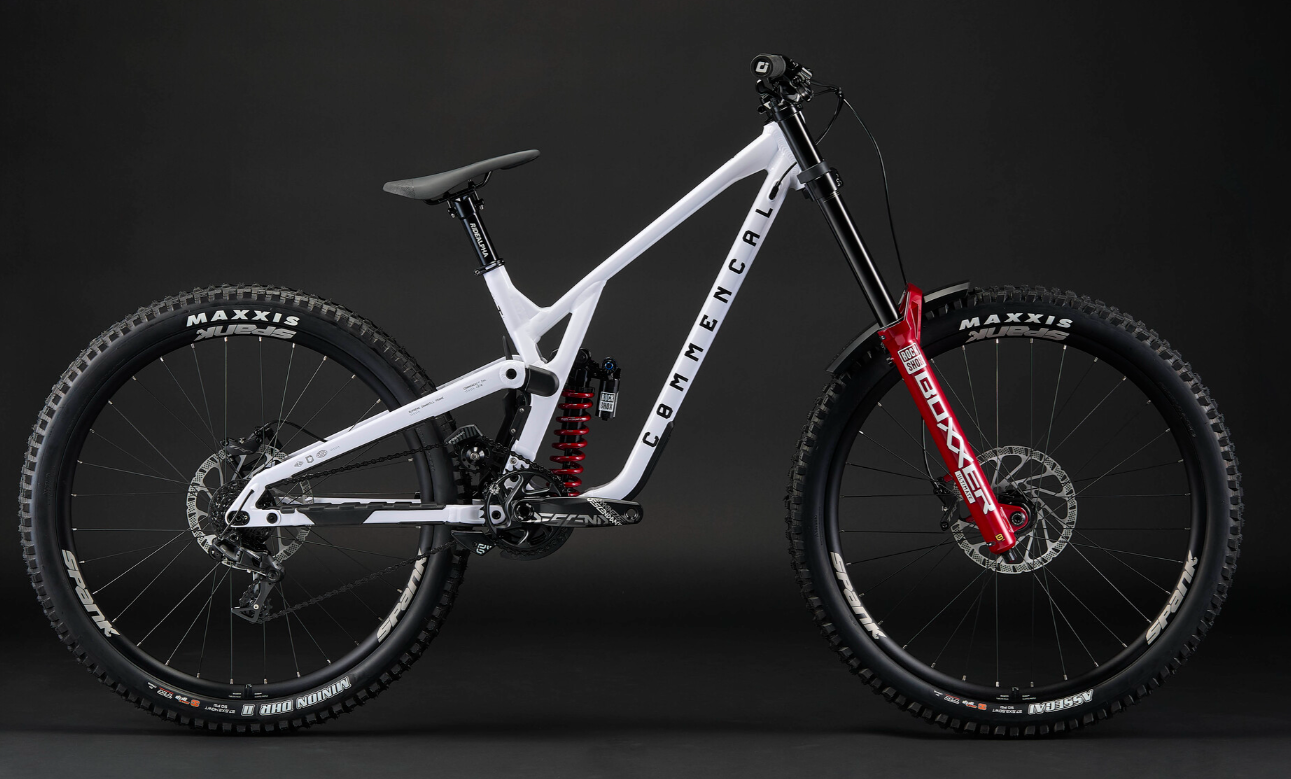

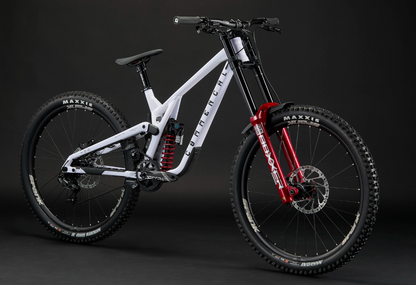

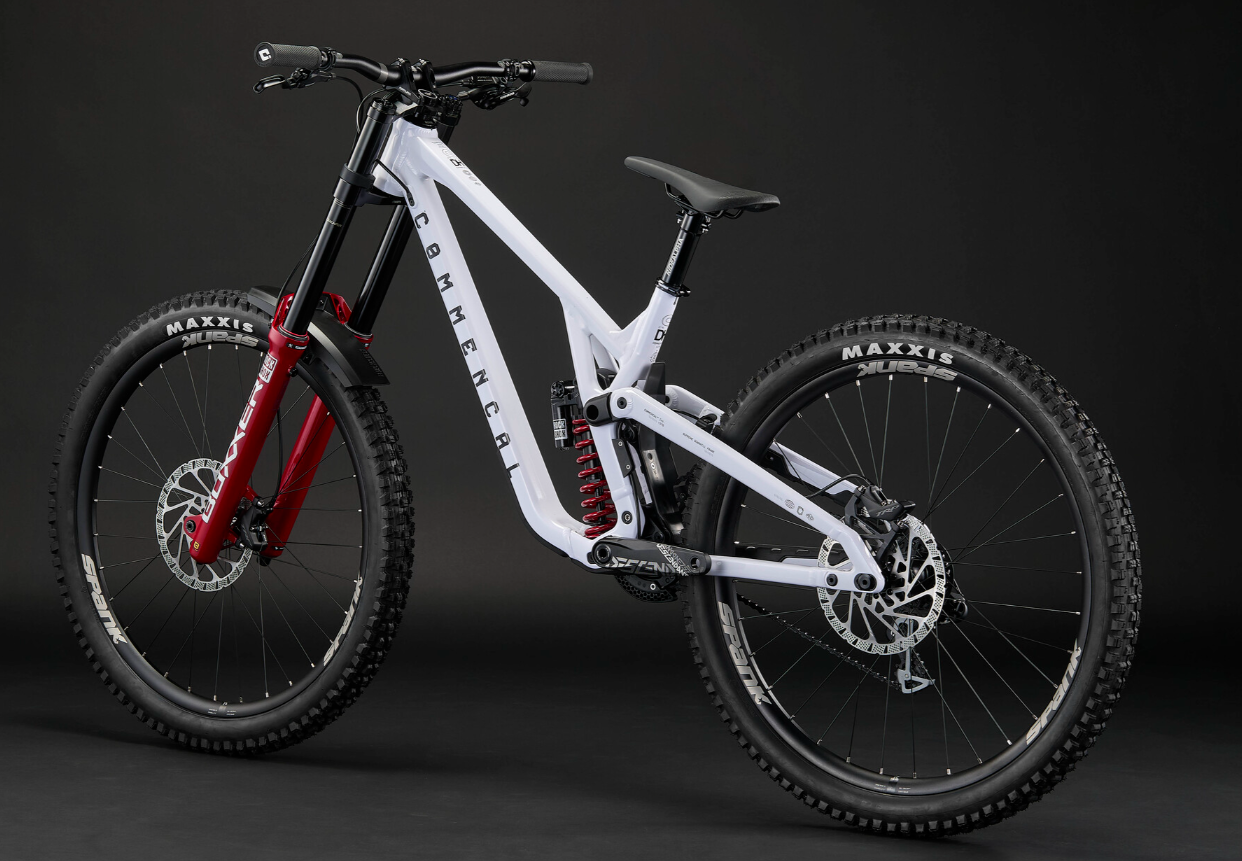

Commencal Supreme DH V5 XS MX - RockShox

The SUPREME DH V5 XS is the kid’s version of our World Cup Downhill winning bike. Coming from a race background, it is the bike that put Amaury Pierron on the top step of the World Cup DH podium. Ultra efficient and super adjustable; it has no limits. The XS version in 27.5" is specifically designed for teenagers and smaller riders.

The goal of the SUPREME DH V5 XS is clear: to allow smaller riders to benefit from the best technologies and to win races.

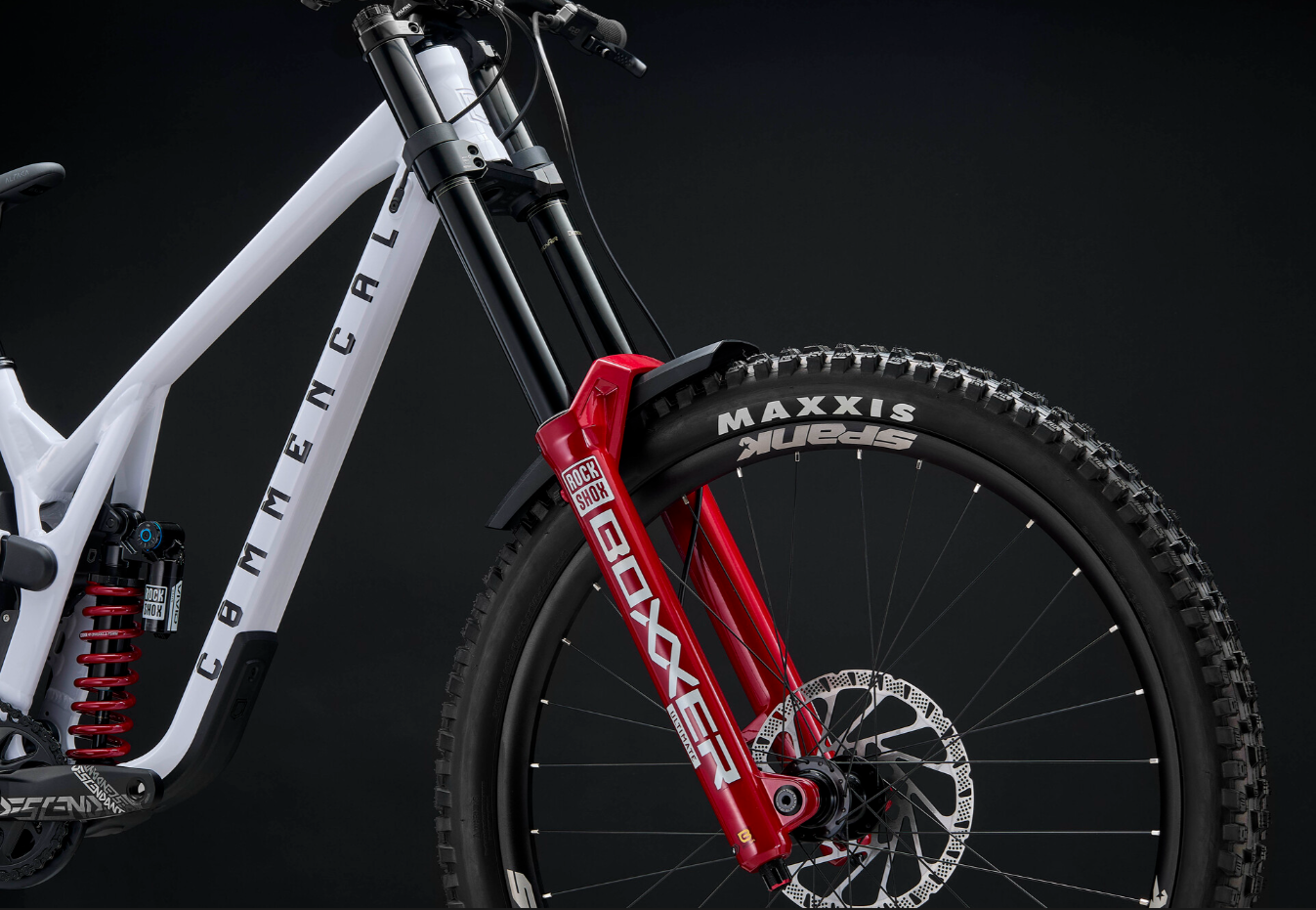

• The ROCKSHOX BoXXer Ultimate fork is among the most efficient and ergonomic in terms of adjustments. Its forgiving chassis is perfectly suited to this model designed for lightweight riders. The Vivid Coil Ultimate DH shock provides increased sensitivity and optimal control on the most demanding terrain.

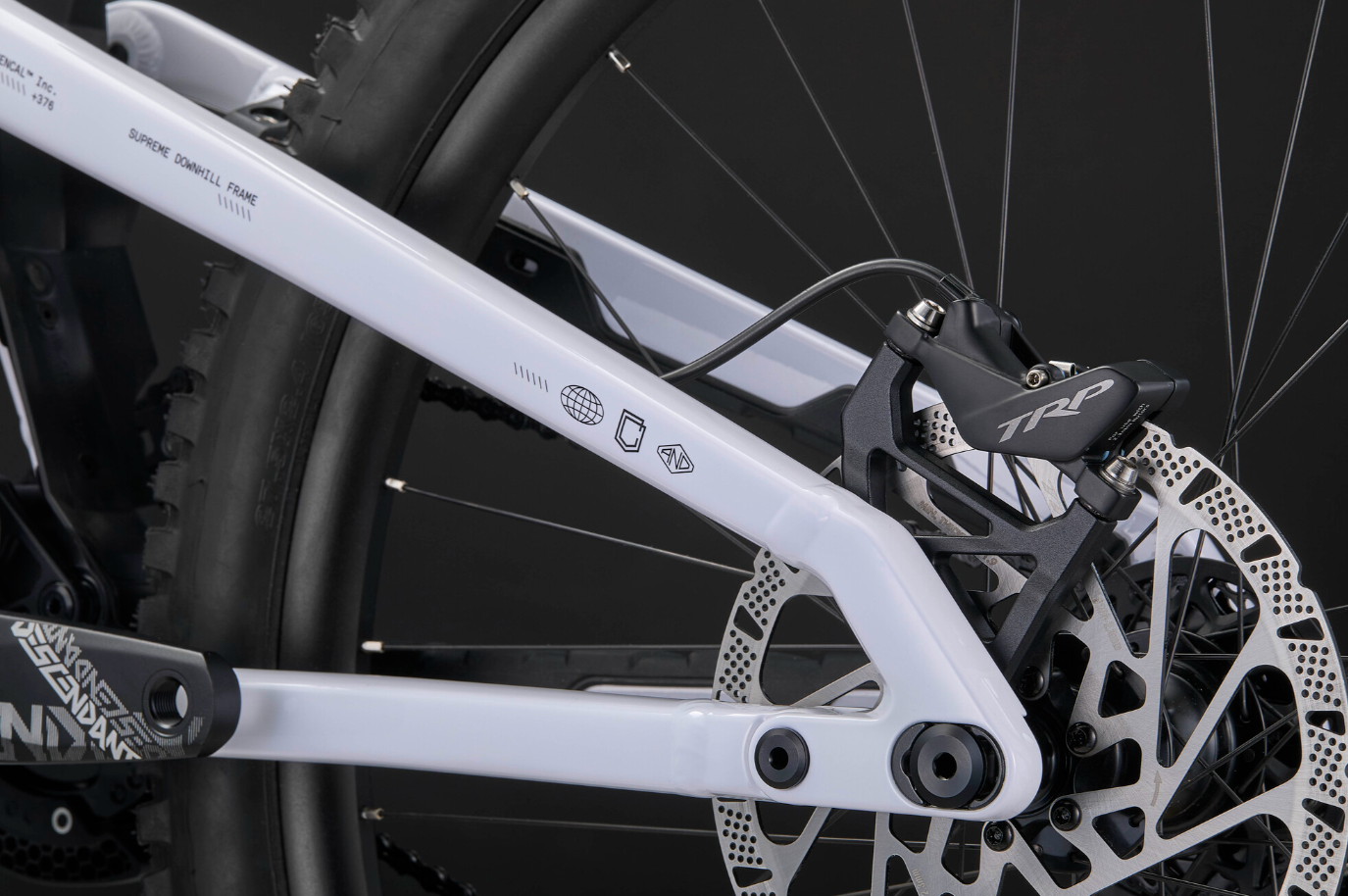

• The TRP DH-R Evo 4-piston brakes with 223mm rotors are powerful and durable. They provide a progressive feel and precise braking.
• SPANK Race 33 rims are perfect for riders looking for solid and reliable wheels.

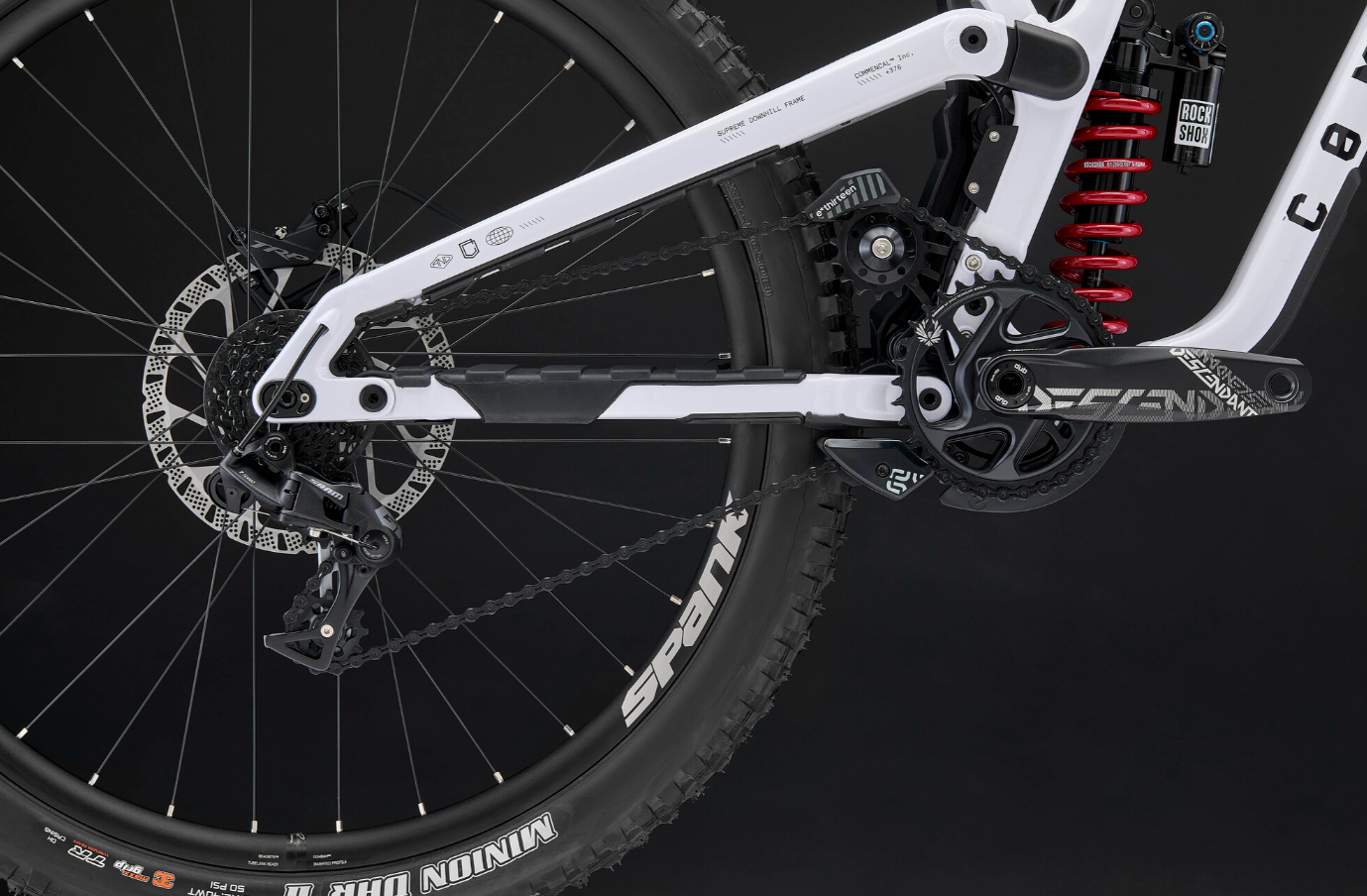

• The SRAM GX DH 7-speed drivetrain is designed for gravity use. It is responsive and robust.

Specifications

Component	Details
Frame	2025 Supreme DH V5 XS, 220mm travel, 27.5", Alloy 6066, triple butted tubes, T4, T6. Bolu bearings

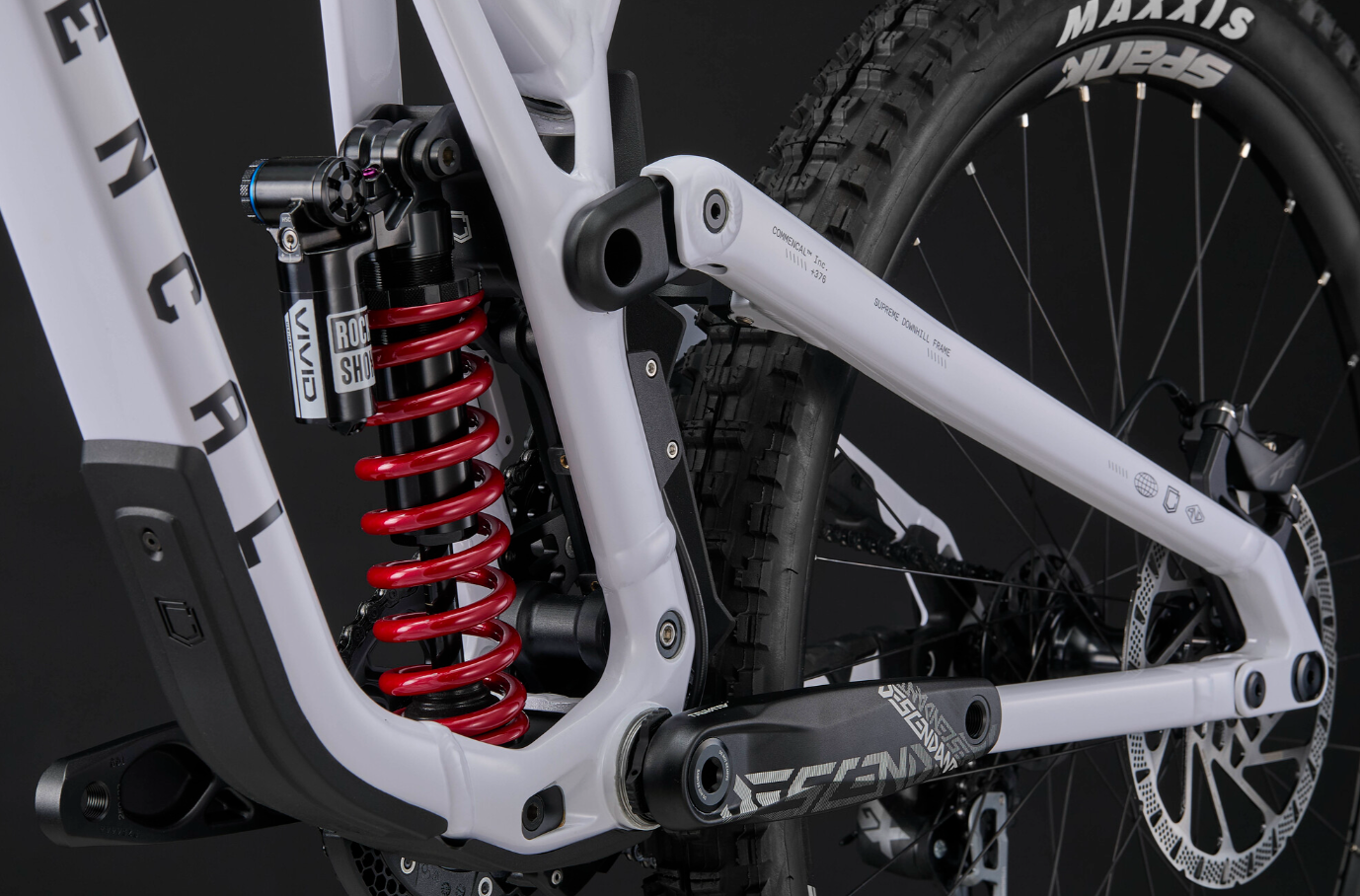

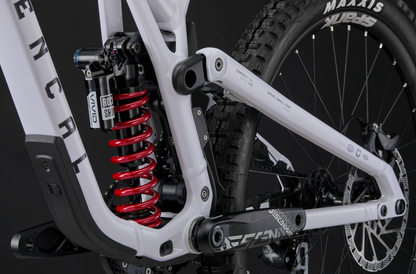

Shock	ROCKSHOX Vivid coil ultimate DH, 250x75mm, rebound, DebonAir, 0 token, Spring rate: 350 lbs on XS
Fork	ROCKSHOX Boxxer Ultimate, 200mm travel, 27.5", Charger 3 RC2 damper, DebonAir+, rebound, Boost (20x110mm), 48 mm offset, 0 Token
Headset	ACROS ZS56/ZS56, Alloy cups, sealed bearings

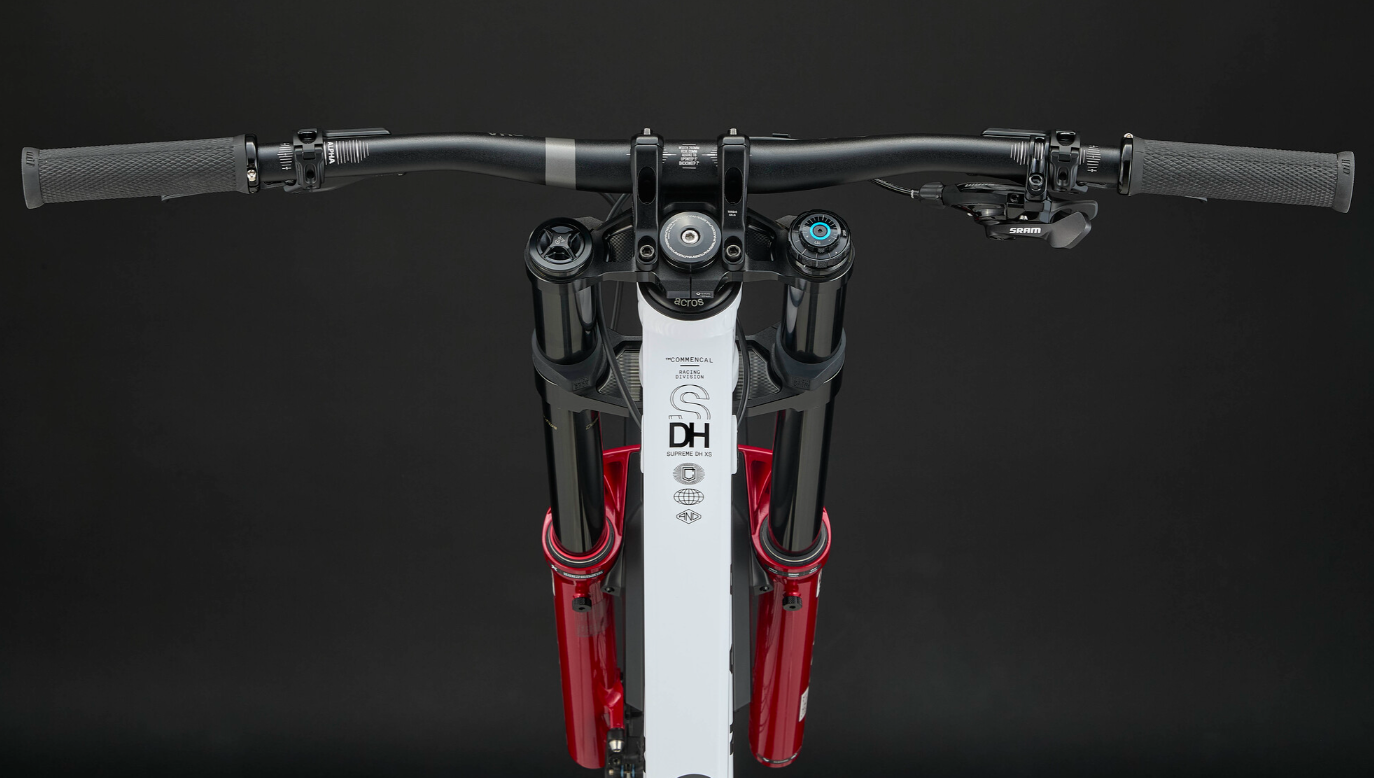

Stem	RIDE ALPHA DH 40, 40mm extension, direct mount, 31.8mm

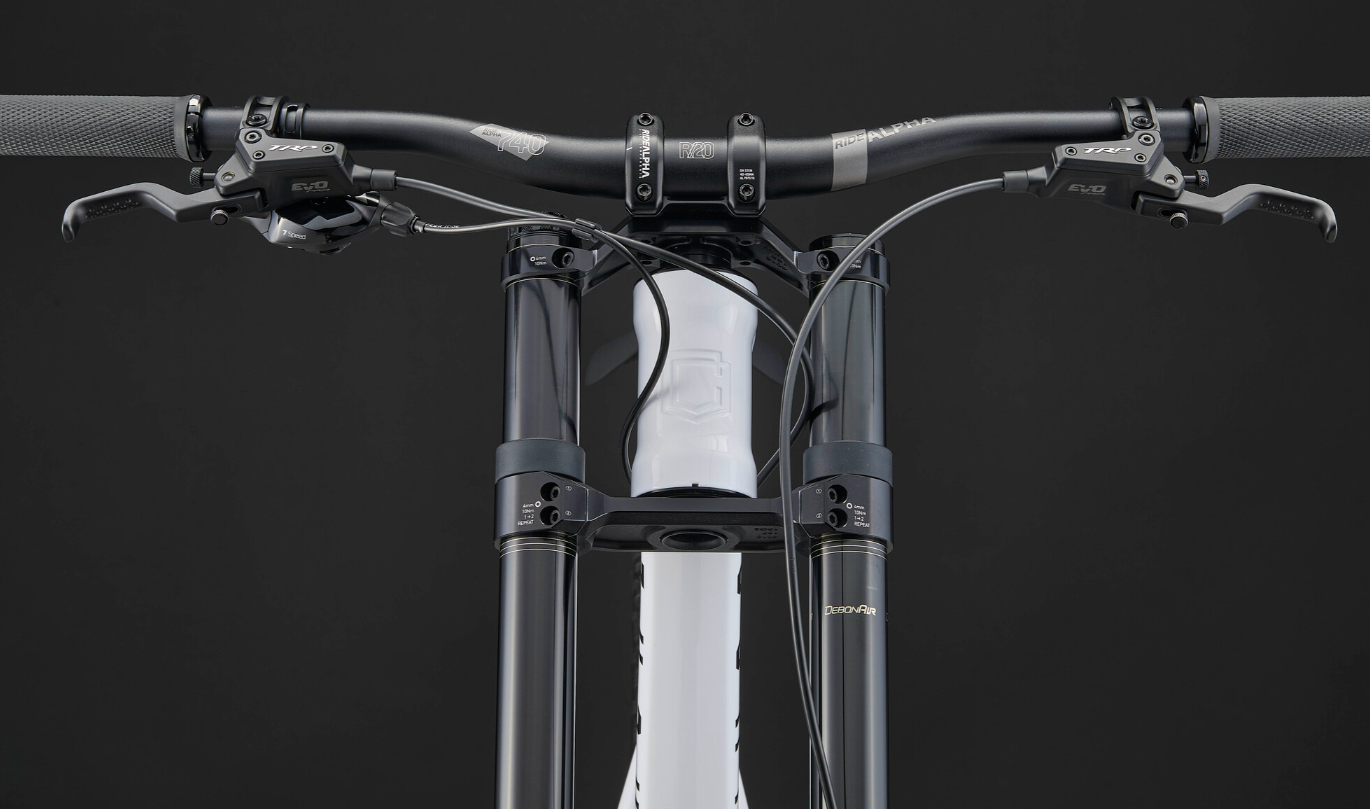

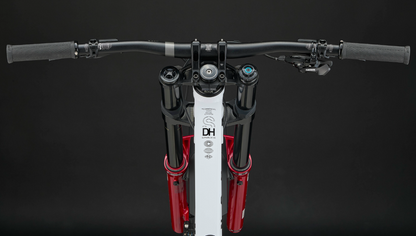

Handlebar	RIDE ALPHA R20, 31.8 mm, 740 mm width, 20 mm rise, Alloy 6061
Grips	ODI Elite Motion, Soft pro compound, single clamp, black
Brakes	TRP DH-R EVO PRO, 4 pistons, Rotors: TRP R2 203mm, 6-bolt, 2.3 mm width
Shifters	SRAM GX DH, 7s
Chain Guide	E13 LG1 + Bottom Guide, 32 - 34t
Rear Derailleur	SRAM GX DH, 7s
Bottom Bracket	SRAM DUB, 107 Pressfit

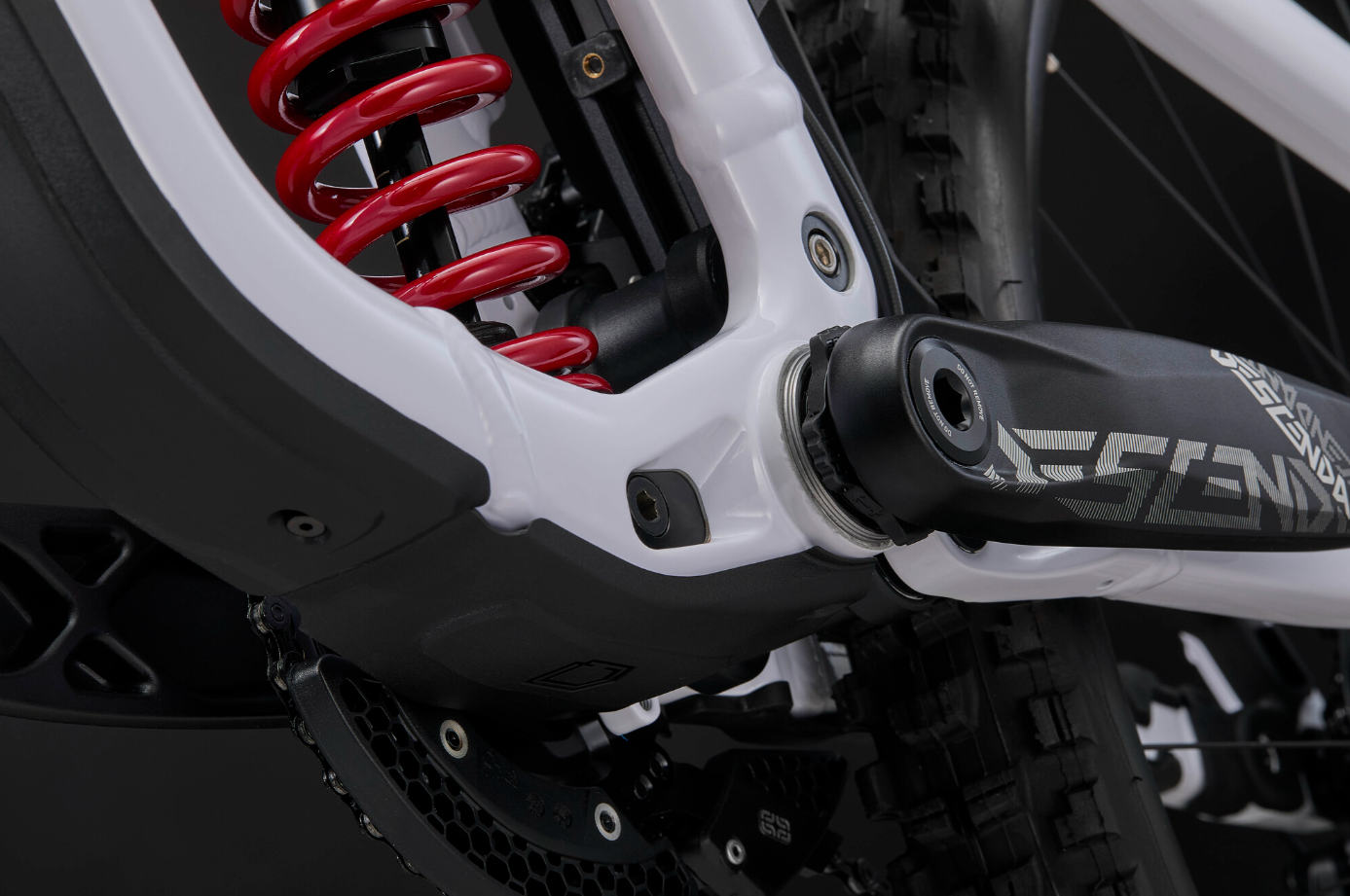

Crankset	TRUVATIV Descendant DH, 165mm crank arms, DUB, 34t chainring
Chain	KMC X11EL, Black
Cassette	SRAM GX DH, 7s, 11-25t
Rims	SPANK Spike Race 33, 27.5", 32h, 28mm inner width, tubeless ready
Hubs	Rear: FORMULA DHG-157, 32h, sealed bearings, 12 x 157 mm; Front: FORMULA DHL-93, 20 x 110 mm Boost, black
Spokes/Nipples	SAPIM D-Light, J-Bend, 2.0-1.65-2.0mm, double butted, stainless, with Nylok, black
Tyres	REAR: MAXXIS DHR II, 27.5" x 2.4", WT, 3C MaxxGrip, Double Down, Tubeless Ready; FRONT: MAXXIS Assegai, 27.5" x 2.5", WT, 3C MaxxGrip, Double Down, Tubeless Ready
Seat Post	RIDE ALPHA Super Light, 31.6 mm, 250 mm, Alloy 7075
Saddle	FIZIK Gravita Alpaca X5, S-Alloy rails, Wing Flex
Weight	16.8 kg / 37.04 lbs. Average weight for XS size, without pedals. Slight manufacturing tolerances.
Pedals Included	No
Colour	Pure White, Shiny Finish
Accessories	Chainstay protector, seatstay protector, fork bumpers, downtube protector, roller cover, fork fender

Technical Info

Info	Details
Bicycle Type	Kids bike - Downhill Racing
Frame Material	AL 6066 T4, T6
Frame Weight	5.3 kg / 11.68 lb
Rear Travel	220mm
Shock Length/Stroke	250x75mm
Recommended SAG	20-25% / 15-19mm
Piggy Back Shock Compatible	Yes
Shock Bushings	30x8mm / 30x8mm
Recommended / Max Fork Height	581mm / 586mm
Headset Type	ZS56 / ZS56
ICR Compatible	No
Wheels Size	27.5’’ - 27.5’’
Max. Rear Tyre Dimension - ETRTO	65mm - Ø584mm
Rear Brake Mounting Type	Postmount 200mm
Rear Brake Rotor Max. Size	223mm
Seatpost / Seat Clamp Diameter	31.6mm / 34.9mm
Seatpost Insertion Max.	130mm
Bottom Bracket Type	Press Fit BB 107mm
Chain Guide	ISCG 05 lower - Custom upper idler guide
Recommended / Max Chainring Teeth	34T / 36T
Chain Line	56.5mm
Rear Hub Dimension	157x12mm
Rear Axle Dimension	Custom, 200mm, M12, P1.0mm
UDH Hanger	No
Shock Anchor Adjustment	4 positions
Rear Wheel Base Length Adjustment	3 positions
Rear Triangle Stiffness Adjustment	3 thickness
