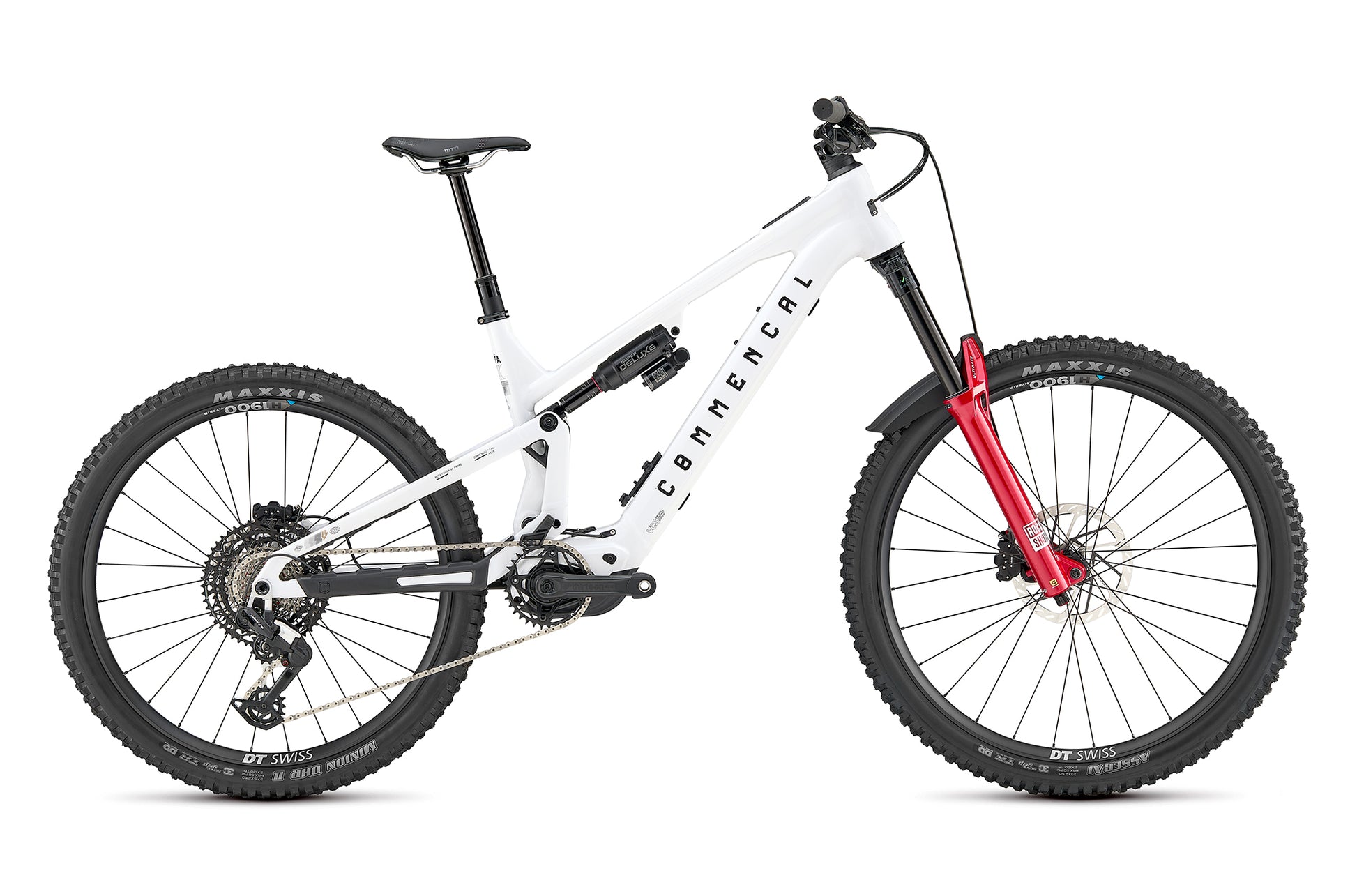

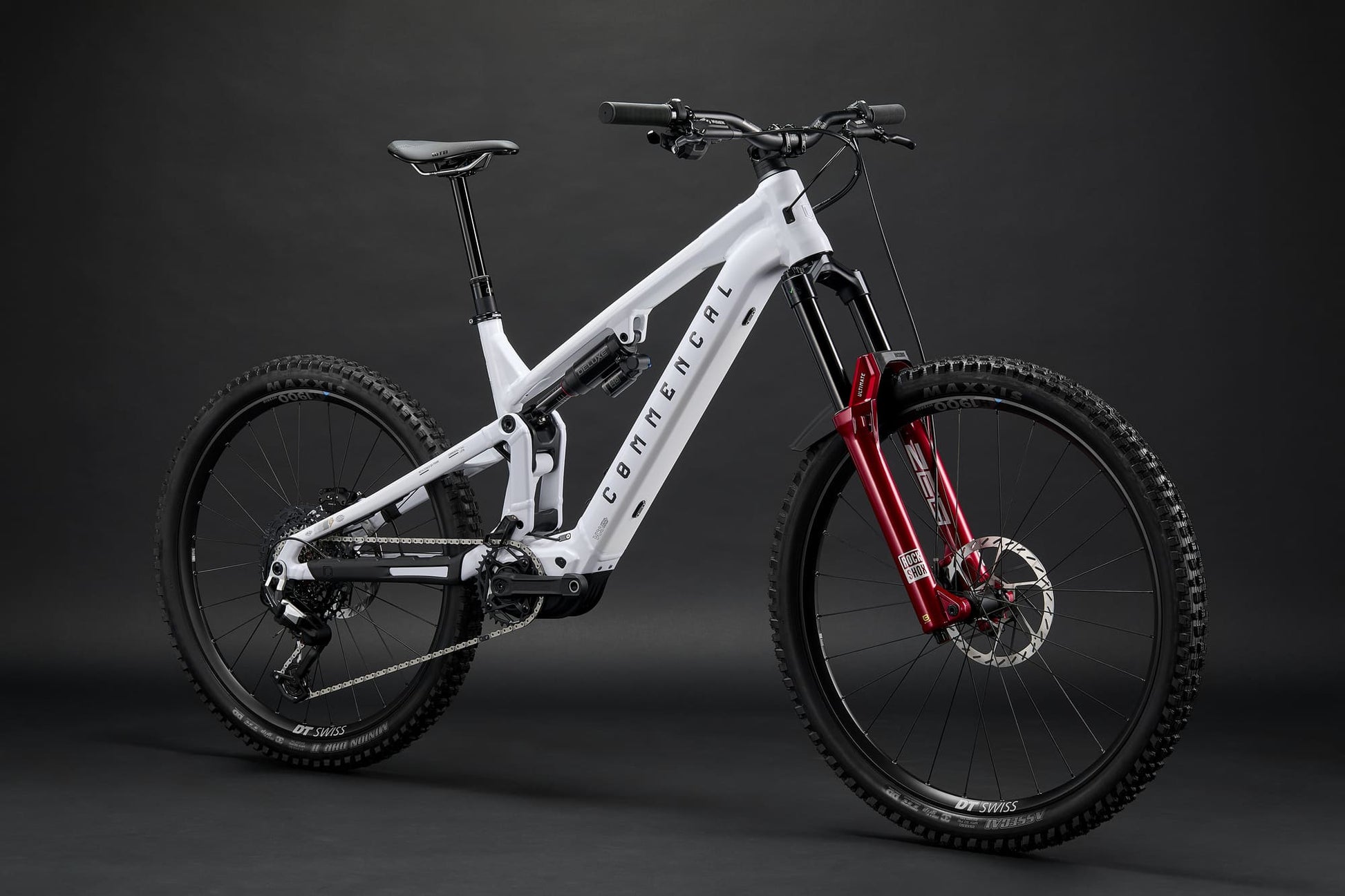

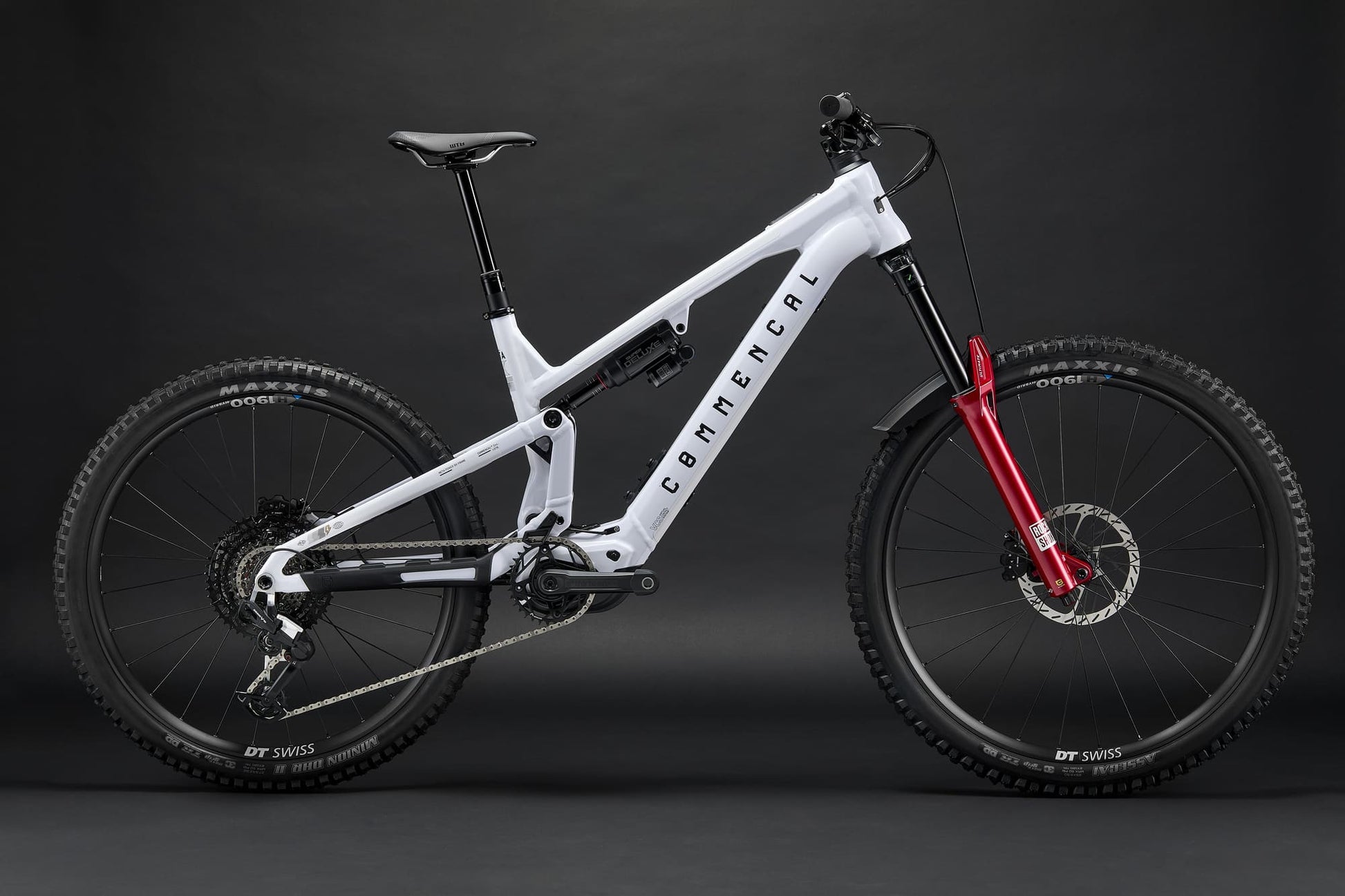

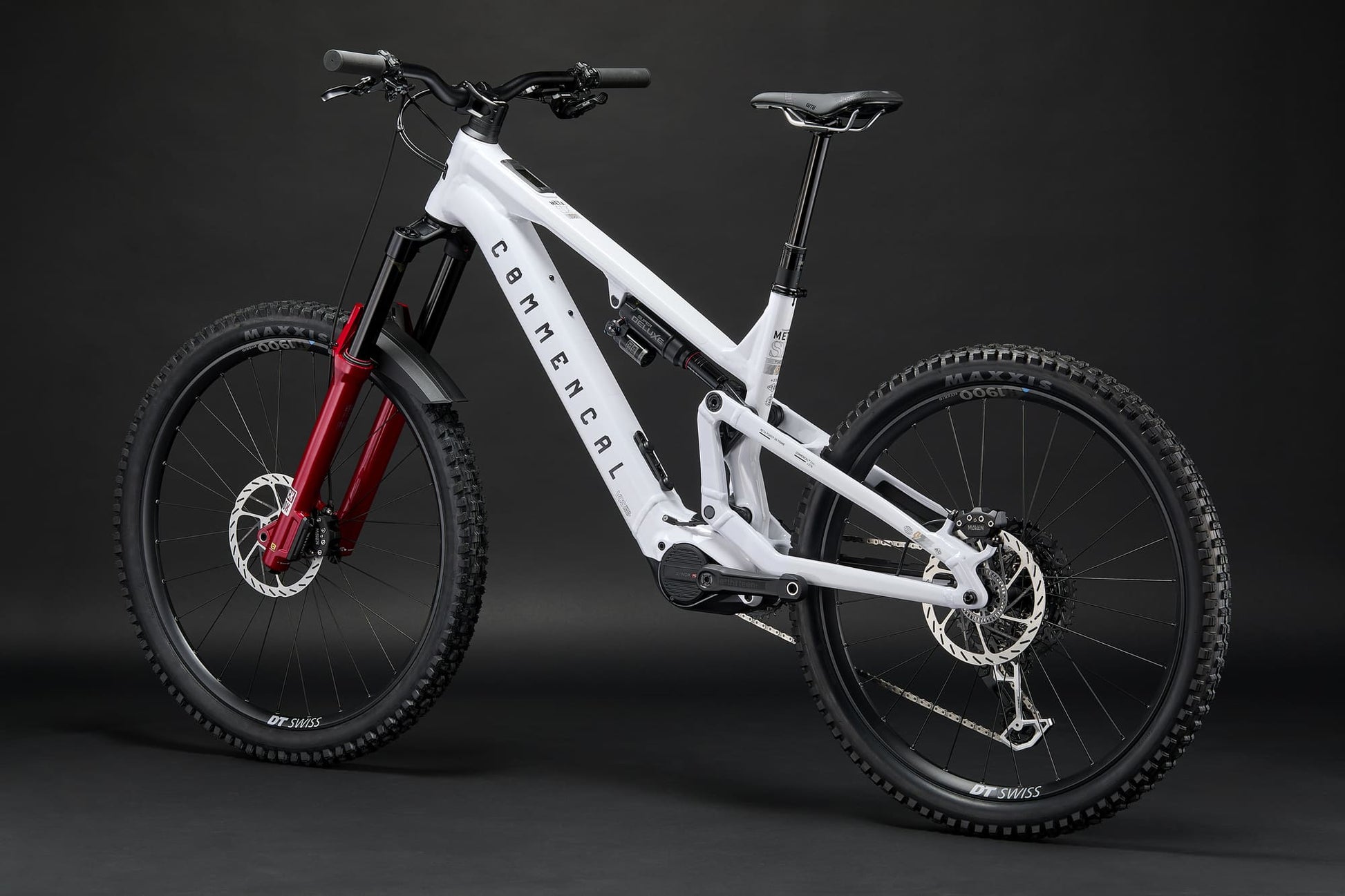

Commencal Meta Power SX Avinox MX - RockShox - Pure White
The META POWER SX AVINOX combines power, liveliness, handling and manoeuvrability. It's designed for those who want long rides with a powerful and torquey motor. Complete with 160mm of travel, the suspension benefits from our Virtual Contact System (VCS) linkage. Low in weight and with a 27.5" rear wheel, this bike is responsive and particularly agile.
The META POWER SX AVINOX ROCKSHOX offers a configuration designed to get the best from our virtual pivot point kinematics, both climbing and descending.
• The new ROCKSHOX Zeb Ultimate in 170mm combined with the ROCKSHOX Super Deluxe Select shock absorber offers support, sensitivity, and precision to perform on the most technical terrain.
• Braking relies on SRAM Maven with SRAM HS2 200/200 mm discs, ensuring power and consistency.
• DT SWISS H1900 wheels mounted on DT SWISS 370 hubs are particularly strong and provide dynamism and comfort.

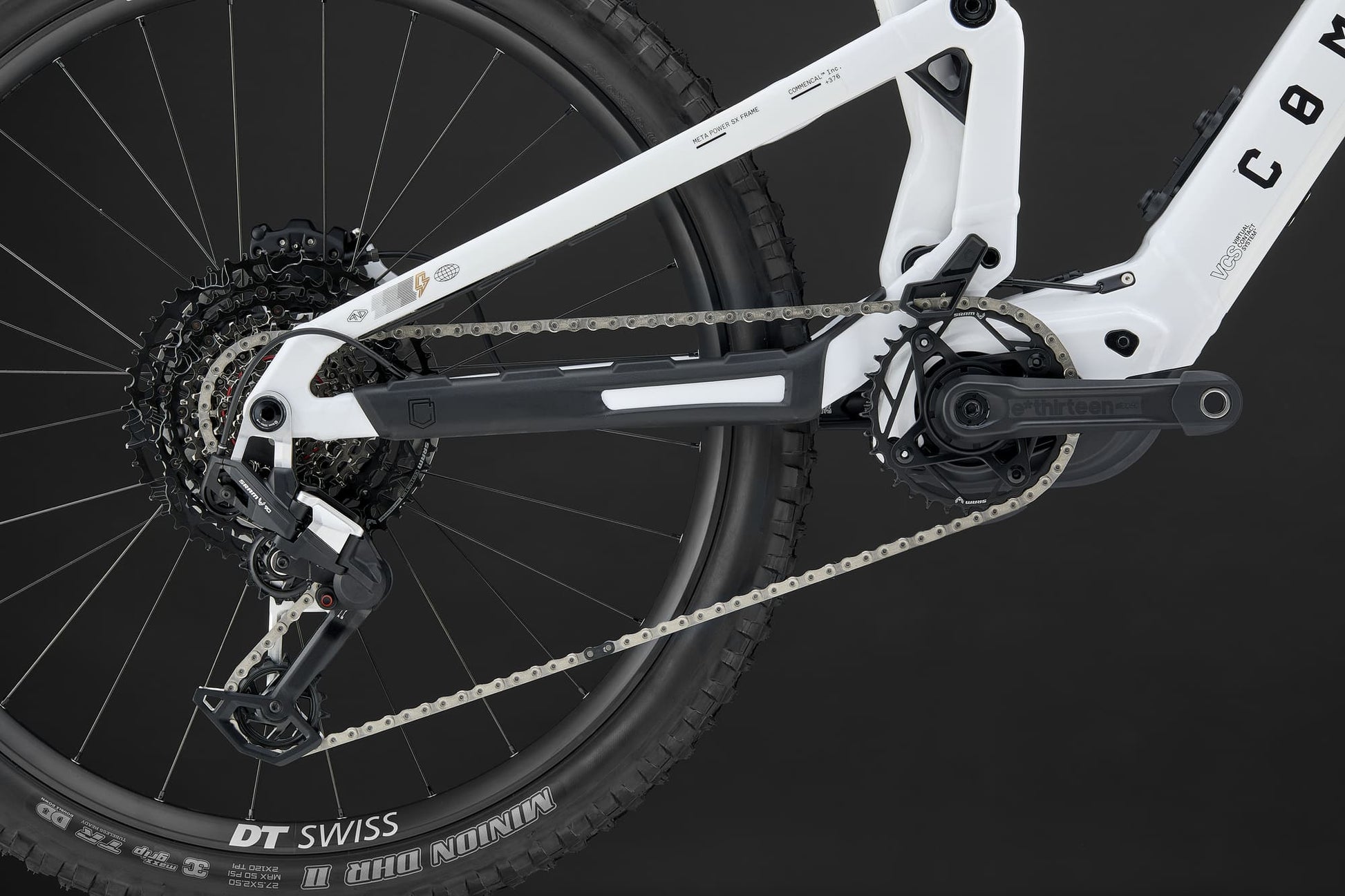

• The SRAM Eagle 90 T-Type 12-speed drivetrain, combined with the E13 Helix Core 155 mm crankset, guarantees precise gear shifts and exemplary durability.
Specifications
| Specification | Details |
|---|---|
| Frame | META POWER SX AVINOX, 160 mm travel, 29''-27.5'', alloy 6066, triple butted tubes, T4, T6 |

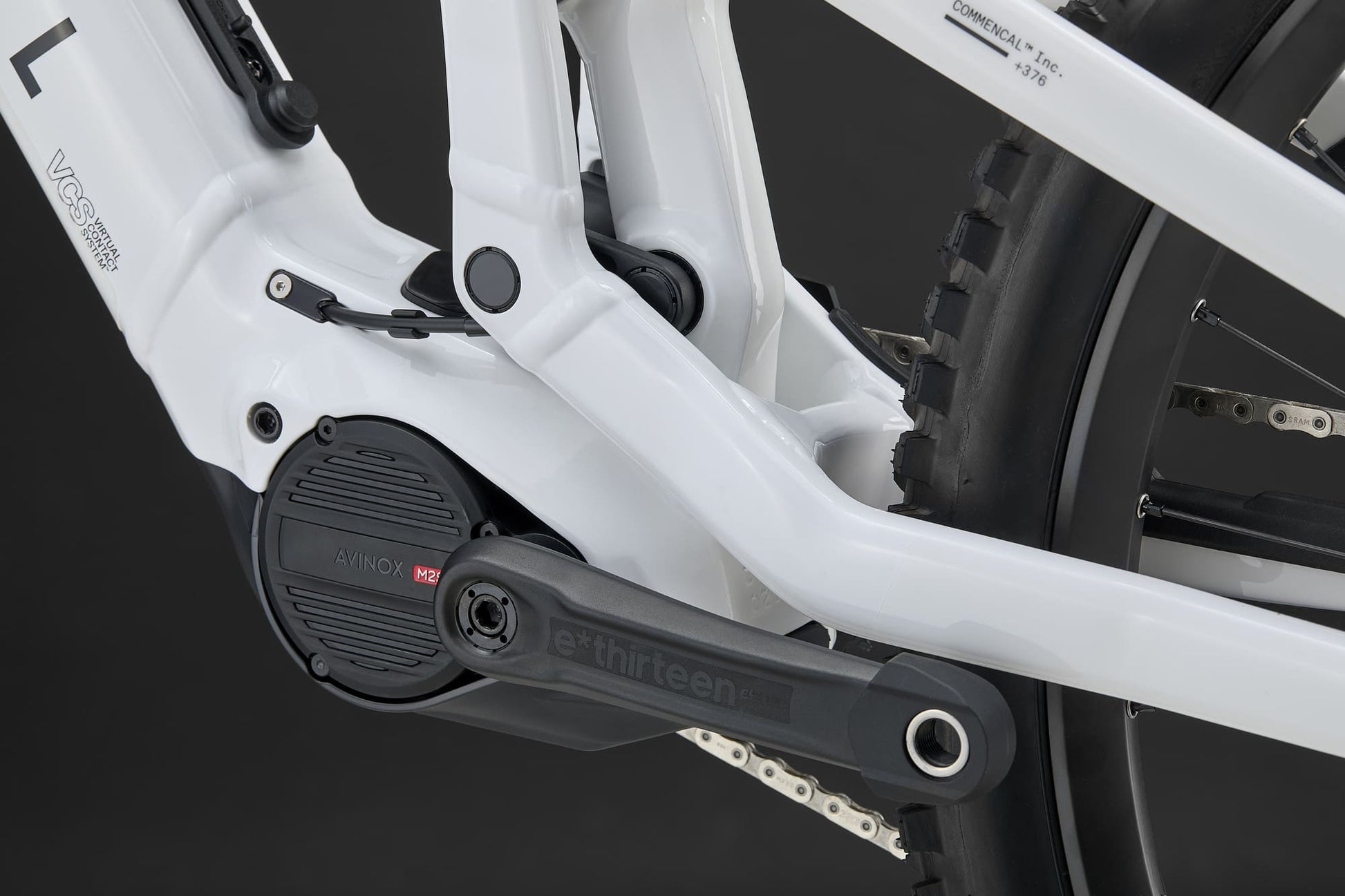

| Motor | AVINOX M2S, 150 Nm peak / 1300 W boost, normal: 130 Nm / 1300 W |
| Battery | AVINOX, 600 Wh (S), 800 Wh (M/L/XL), fully integrated, 508W fast charger |

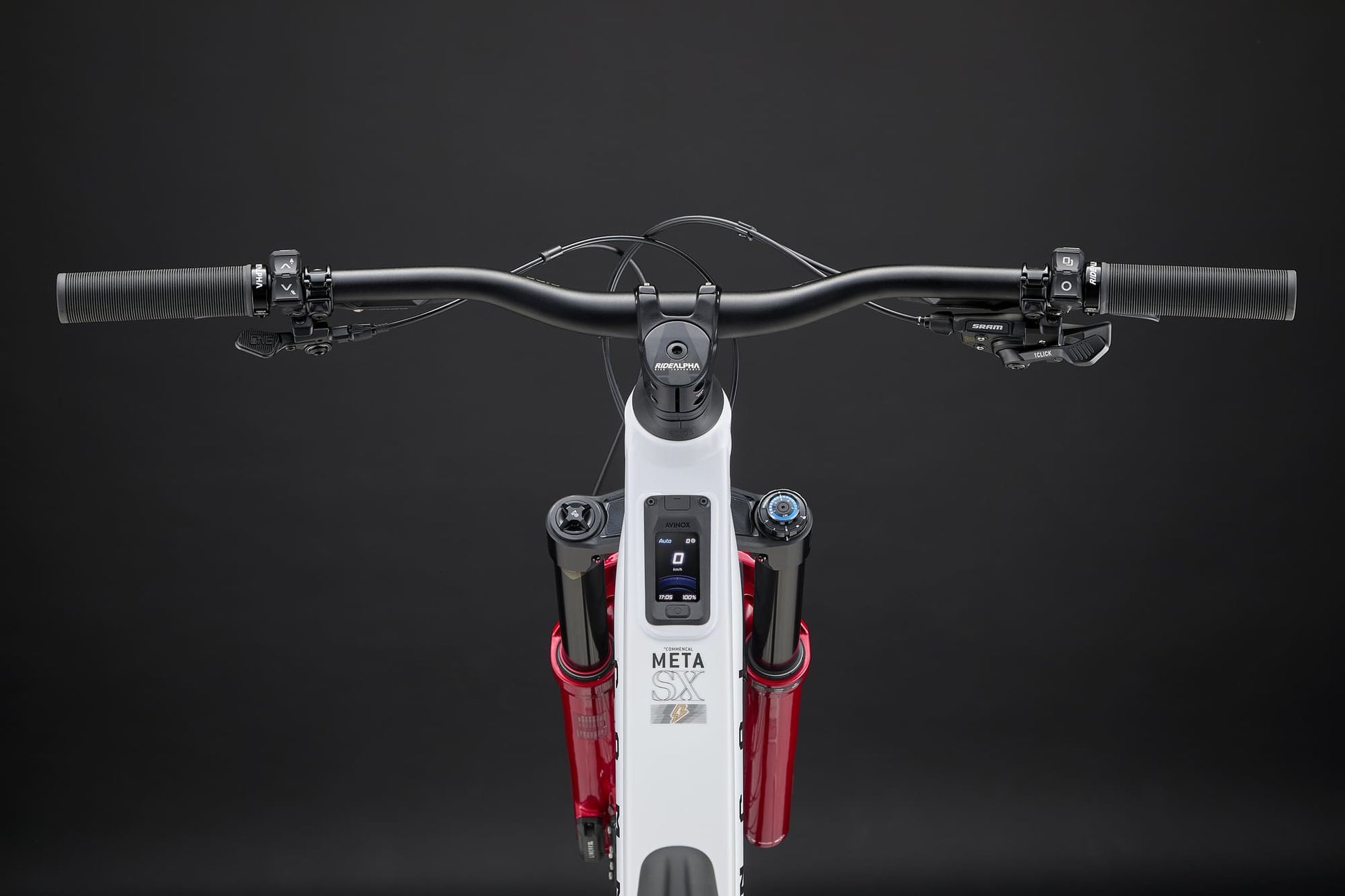

| Display | AVINOX DP100, integrated colored touchscreen, info: speed, ride mode, battery, fitness, elevation, altitude; USB-C, GPS, barometer, compass, 4G, theft alarm; switch: AVINOX BC100, wireless controller |

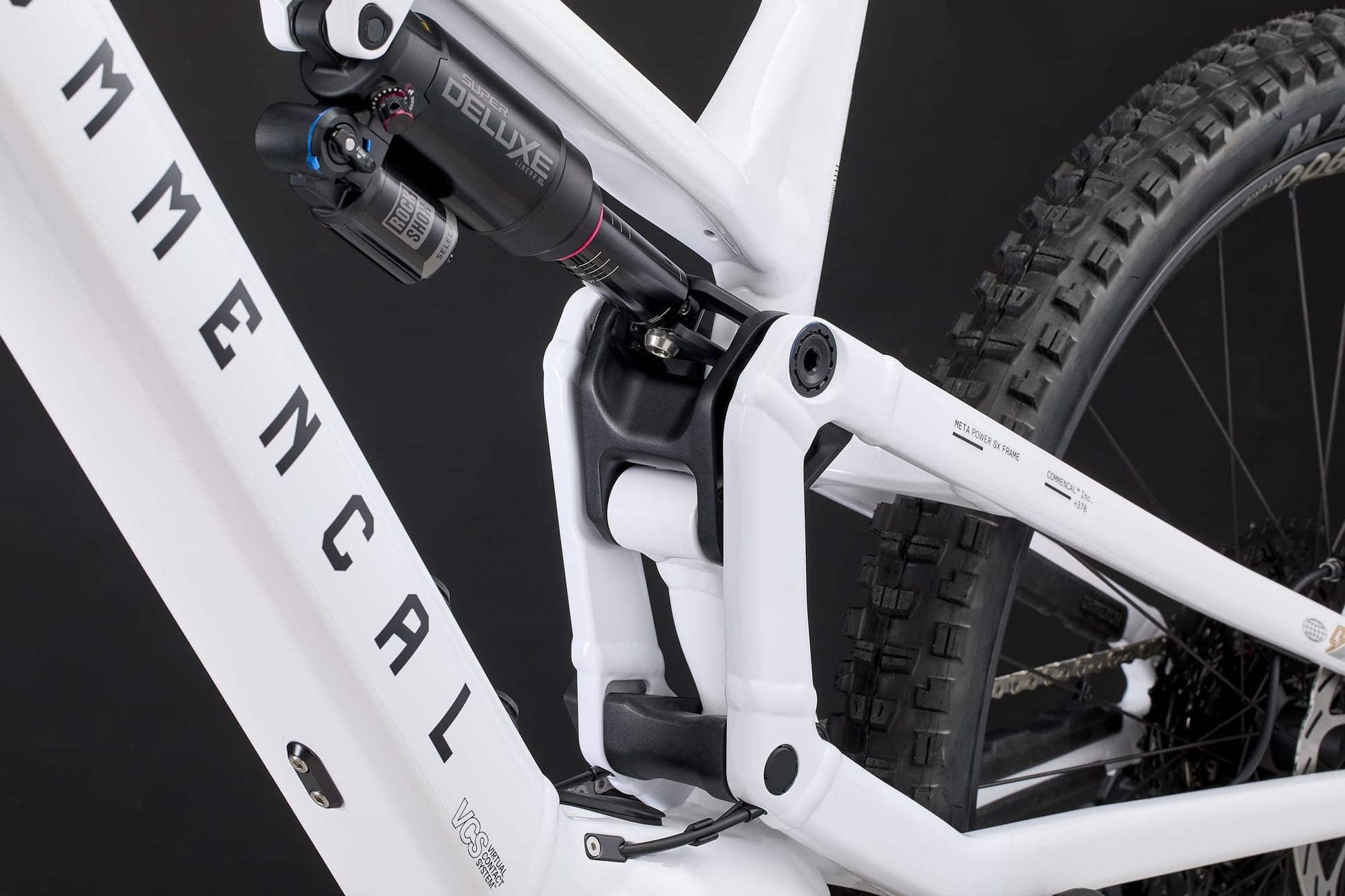

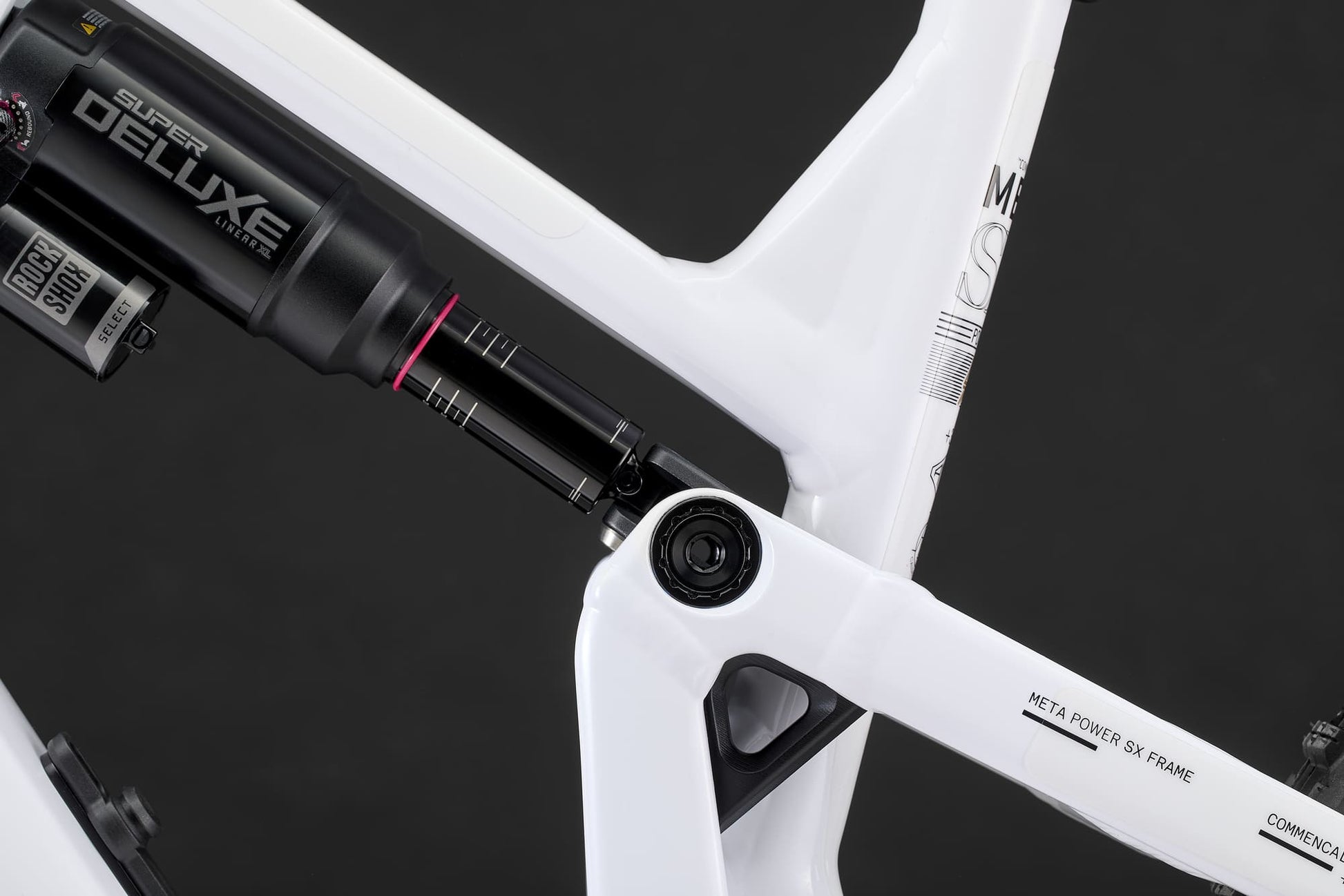

| Shock | ROCKSHOX Super Deluxe Select 2027, 230x60 mm, Debonair +, 2-position (open/firm), Rebound |

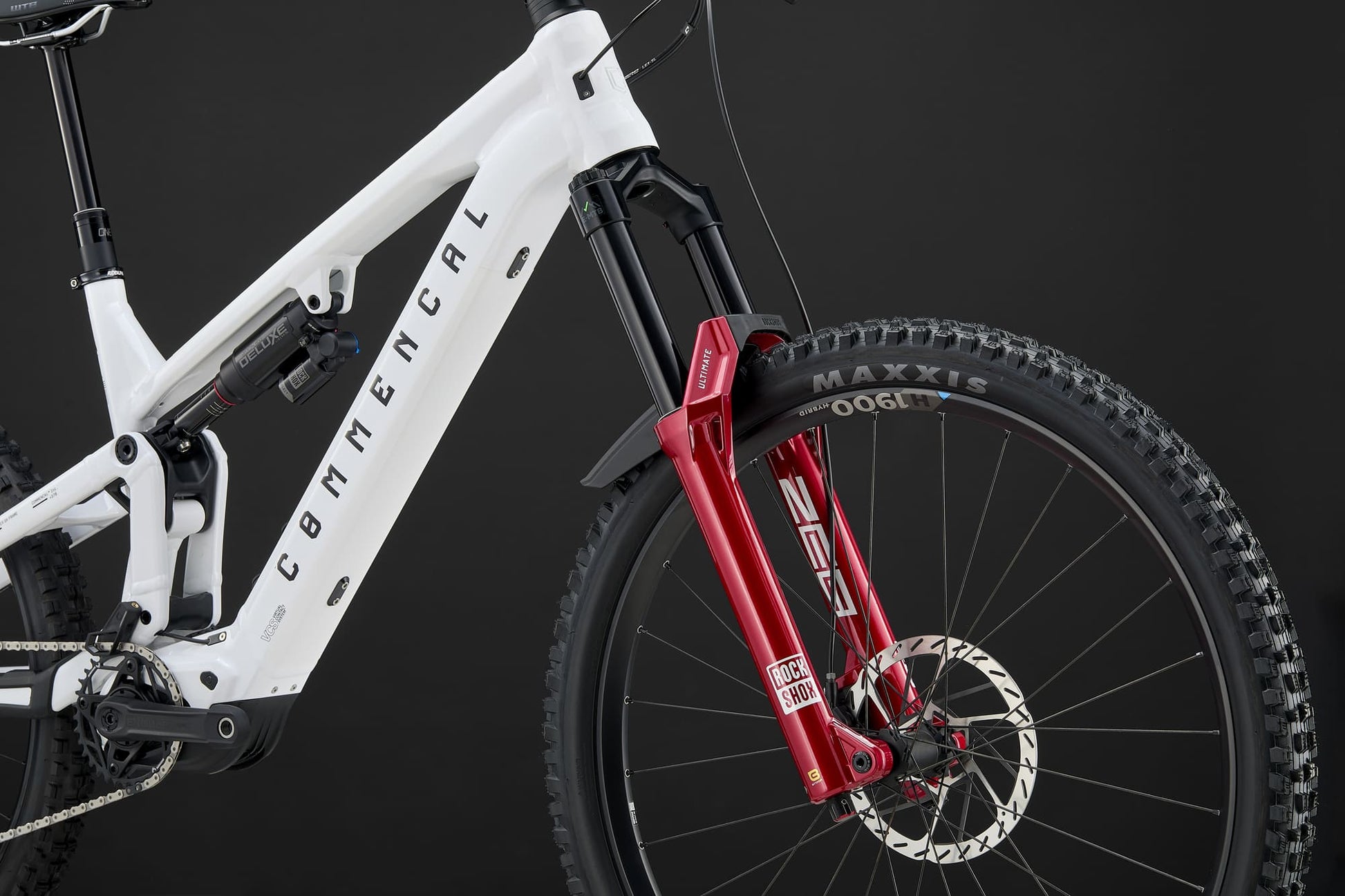

| Fork | ROCKSHOX Zeb Ultimate 170 mm 2027, 29", damper 3.2 RC2 Linear XL, HSC, LSC, HSR, LSR, Boost (15x110 mm), 44 mm offset |
| Headset | ACROS ZS56/ZS66, alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40 mm extension, 31.8 mm |

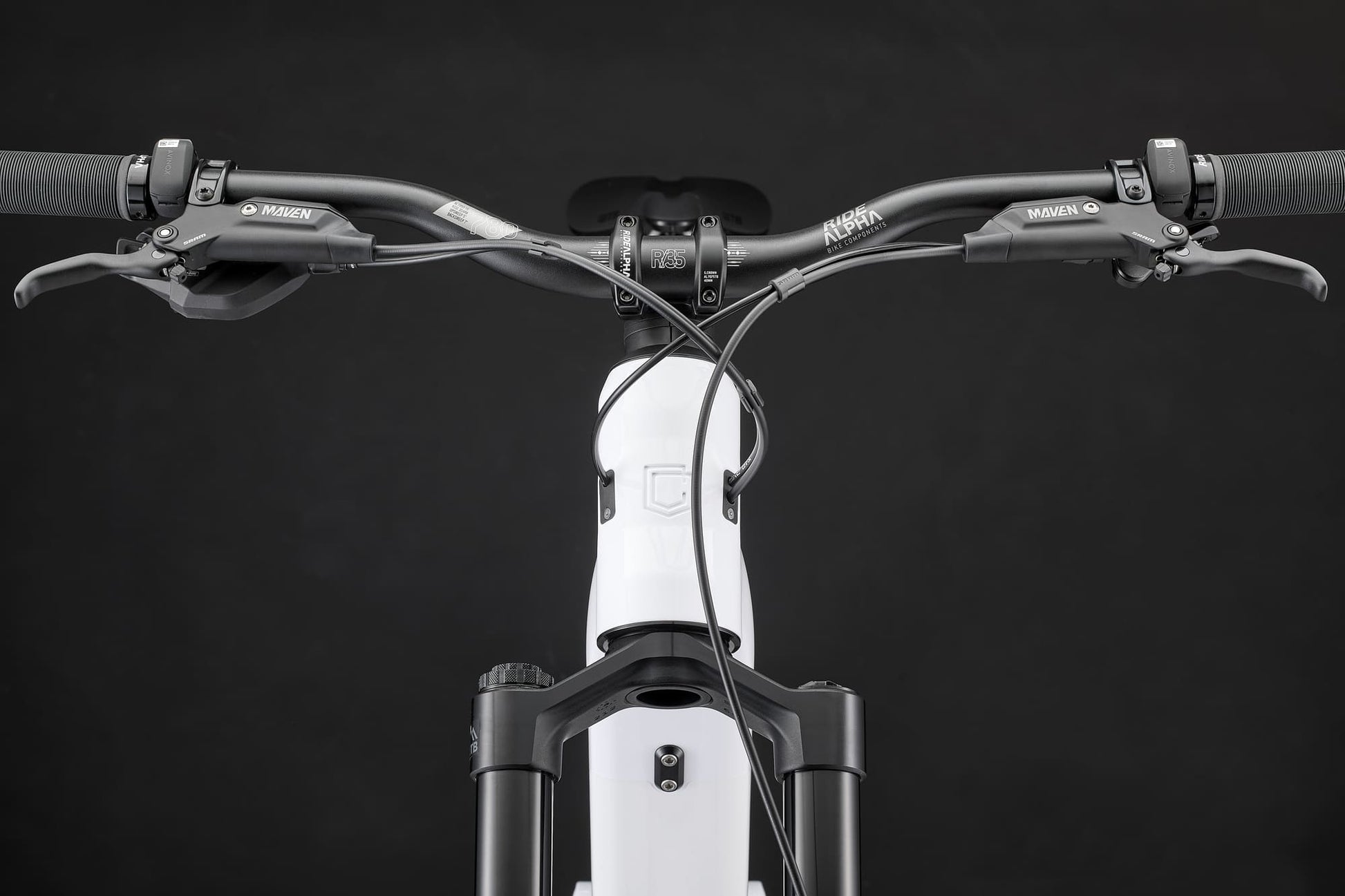

| Handlebar | RIDE ALPHA R20 760 (S), RIDE ALPHA R27 780 (M/L), RIDE ALPHA R27 800 (XL), 31.8 mm, 760-800 mm width, 20-27 mm rise, Alloy 6061 |
| Grips | RIDE ALPHA MUSHROOM, soft, single clamp, black |
| Brakes | SRAM Maven Base, 4 pistons, 220 mm rotors (SRAM HS2) |
| Shifters | SRAM Eagle 90, 12s |
| Chain Guide | RIDE ALPHA, 32-34t |
| Rear Derailleur | SRAM Eagle 90, 12s, T-TYPE |
| Crankset | E13 HELIX CORE, 155 mm, SRAM CR T-Type, 34t |
| Chain | SRAM GX T-type, 12s |
| Cassette | SRAM XS 1270 T-Type, 12s, 10-52t |
| Rims | DT SWISS H 1900, Rear: 27.5'', 28h, 30 mm inner; Front: 29'', 28h, 30 mm inner |
| Hubs | DT SWISS 370 Hybrid, Rear: 28h, sealed, 12x148 mm, Hyperglide; Front: 28h, sealed, 15x110 mm |
| Spokes/Nipples | DT SWISS Hybrid 1, straightpull, 2.34/2.0mm, double butted, stainless, black |
| Tyres | Rear: MAXXIS Minion DHRII 27.5x2.50WT, TR, Double Down; Front: MAXXIS Assegai 29x2.50WT, TR, Double Down |
| Seat Post | ONE UP V3, 34.9 mm, 150 mm (S), 180 mm (M), 210 mm (L/XL) |
| Saddle | WTB SOLANO, 142x240 mm, Medium |
| Weight | 26 kg / 57.32 lbs |
| Pedals | CRANKBROTHERS Stamp 1, white |
| Accessories | RideWrap Lotus Pro™, motor protector, chain stay protector, seat stay protector, fork fender, FIDLOCK base |
Additional Info
| Info | Details |
|---|---|
| Bicycle Type | E-bike - Enduro / Freeride |
| Frame Material | AL 6066 T6 |
| Frame Weight | 4.795 kg / 10.57 lb |
| Rear Travel | 160mm |
| Shock (L x S) | 230x60mm |
| SAG | 29-32% / 17.5-19mm |
| Piggy Back Shock | Yes |
| Shock Bushings | 20x10mm / no bushing needed |
| Fork Height | 576mm / 586mm |
| Headset Type | ZS56 / ZS66 |
| ICR | Yes |
| Wheels | 29’’ - 27.5’’ |
| Max Tyre (ETRTO) | 65mm - Ø584mm |
| Brake Mount | Postmount 200mm |
| Rotor Max | 223mm |
| Seatpost/Clamp | 34.9mm / 38.5mm |
| Seatpost Max | S:180mm, M:220mm, L:240mm, XL:260mm |
| Motor Interface | AVINOX |
| Chain Guide | Custom upper guide |
| Chainring Teeth | 34T / 36T |
| Chain Line | 55 |
| Hub | 148x12mm |
| Axle | UDH, 180mm, M12, P1.0mm |
| UDH Hanger | Yes |
