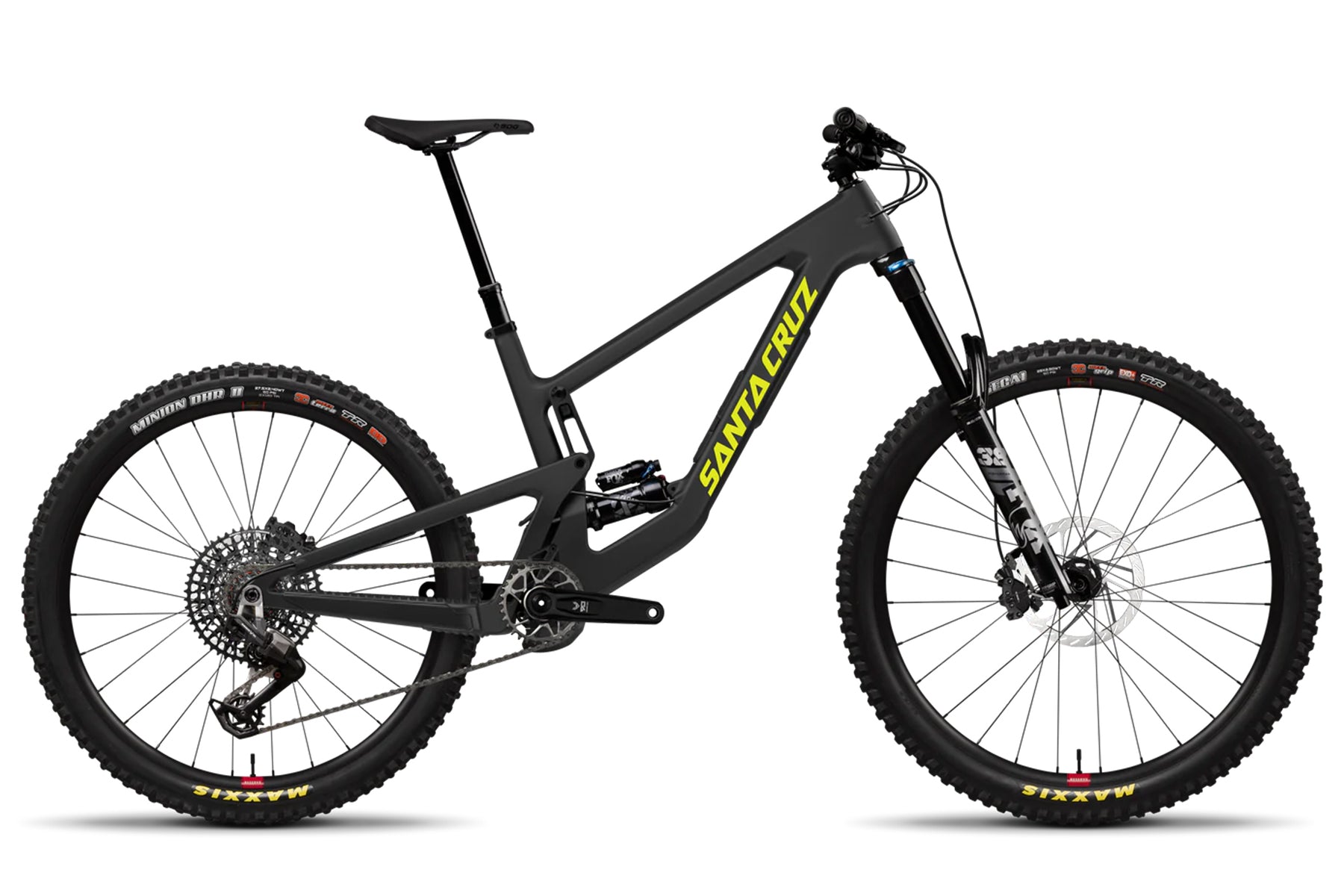

Built to Bash. Tuned to Send. Ready for Anything.

The Nomad 90 Kit is your ticket to the wildest rides on the planet. With a full 170mm of travel front and rear, a gravity-focused mixed-wheel setup, and a FOX + SRAM T-Type build, this bike doesn’t just survive sketchy lines—it thrives on them. Whether it’s a park day, backcountry freeride, or an enduro stage that feels like DH, the Nomad 90 says “yes” before you even finish the thought.

This thing is part bruiser, part ballerina—and fully committed to chaos.

🔥 Why You’ll Love the Nomad 90 Kit

✔ 170mm Travel Front & Rear – Cushions the hits, grips the chutes, begs for more
✔ Mixed Wheel Setup (29/27.5) – Monster truck rollover meets playful rear wheel agility
✔ FOX 38 + Float X Suspension – Performance-spec plushness built to go hard
✔ SRAM T-Type Transmission – The future of shifting with full-send toughness
✔ Reserve Alloy Wheels – Lifetime warranty, gravity-ready reliability
✔ Double Down Rear Tire – Heavy-duty traction for bike park punishment

🛠 Component Breakdown

Frame & Suspension

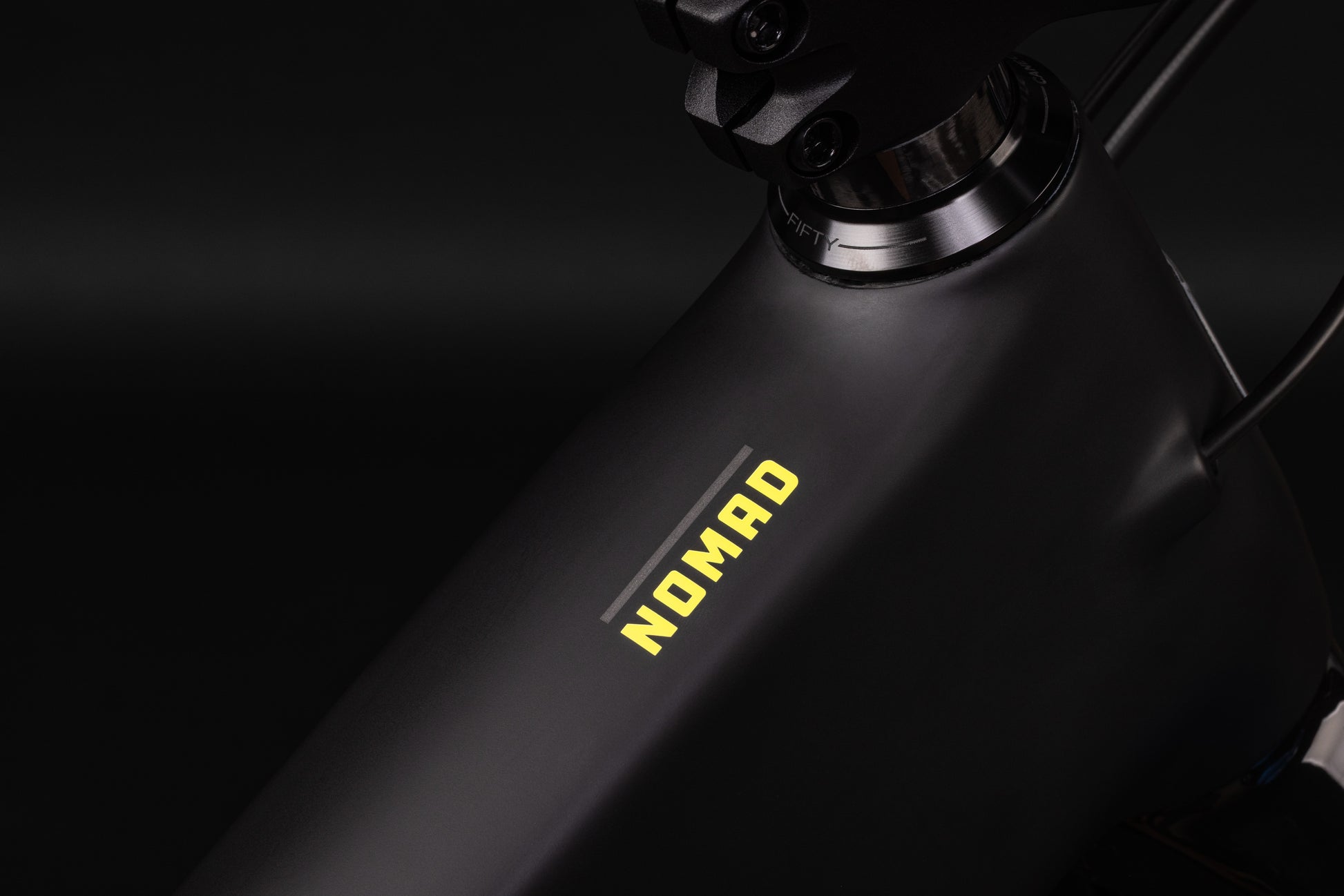

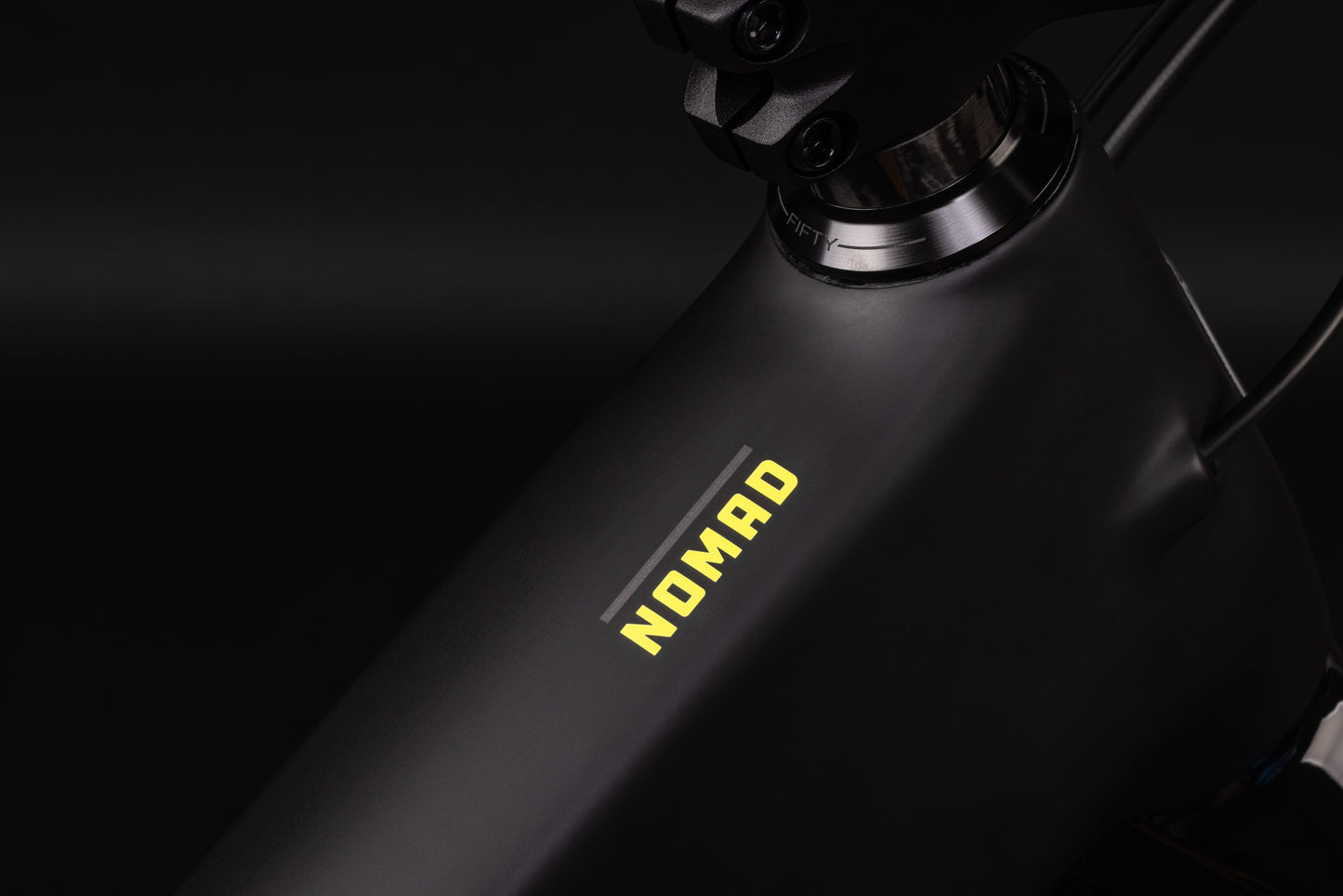

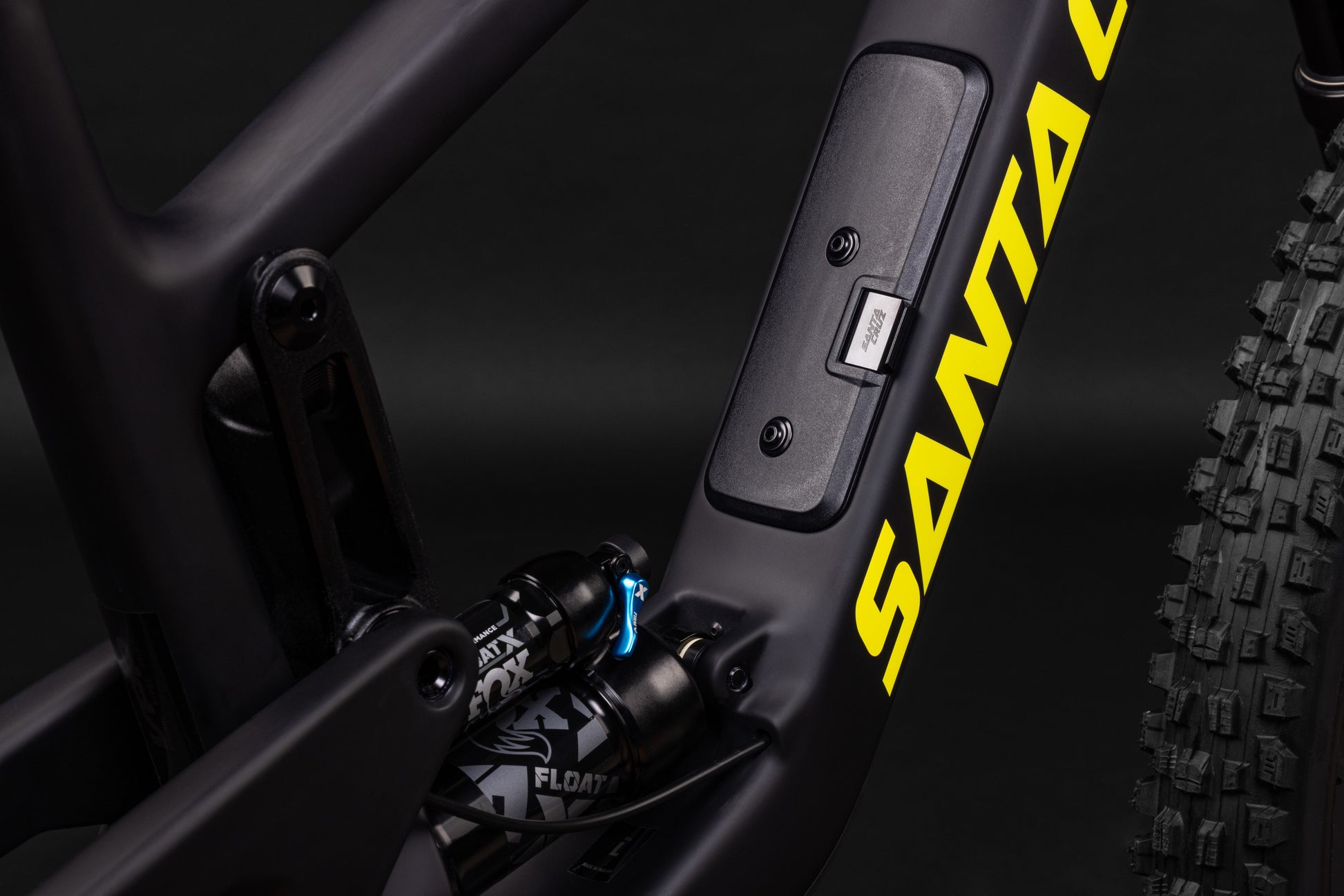

• Frame: Santa Cruz Carbon C MX, 170mm VPP™ Travel

• Fork: FOX 38 Float Performance, Grip damper, 170mm travel

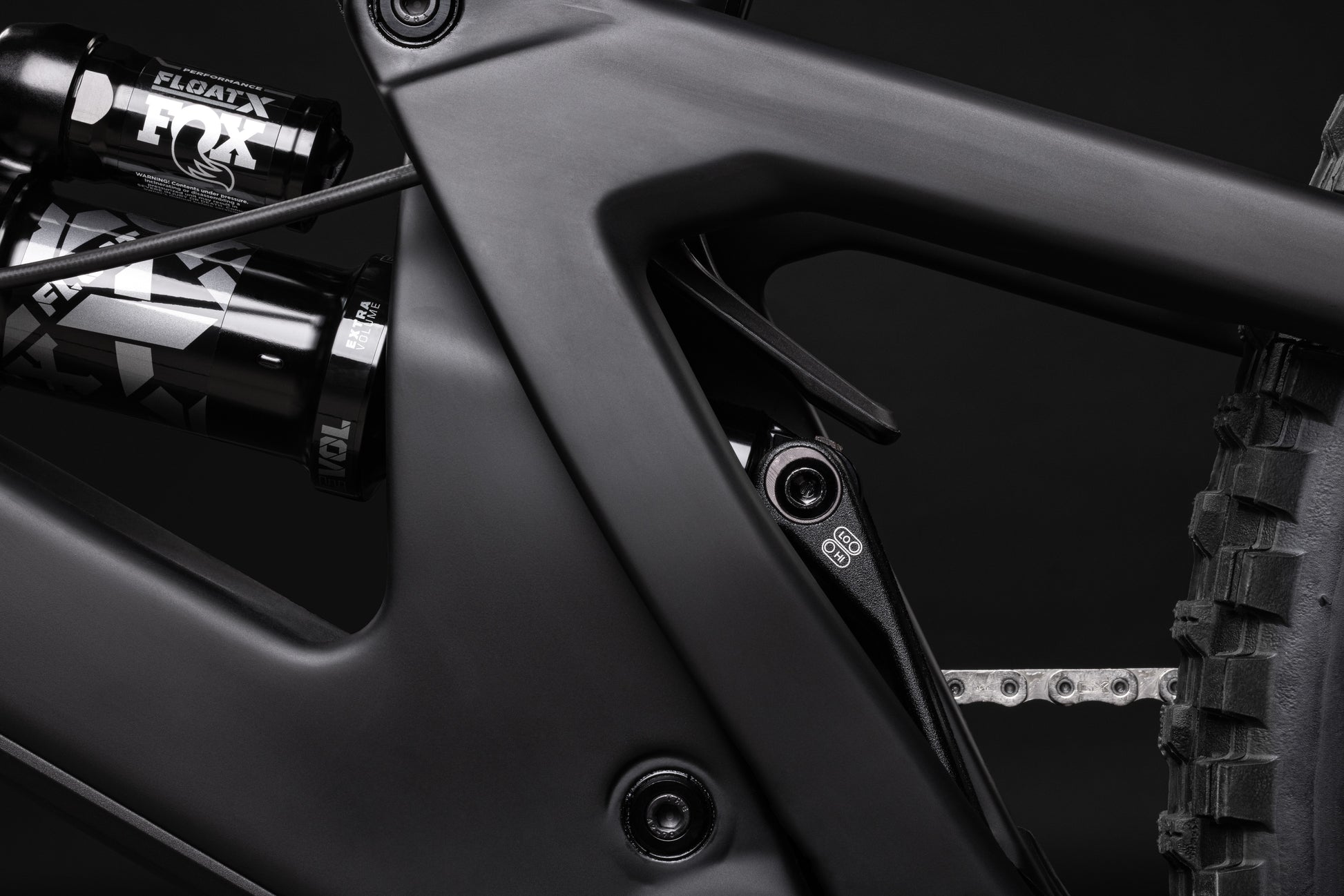

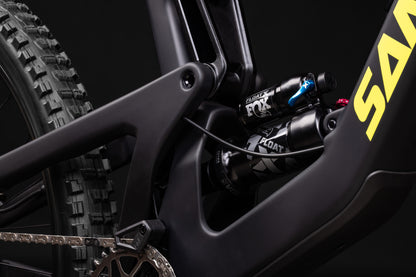

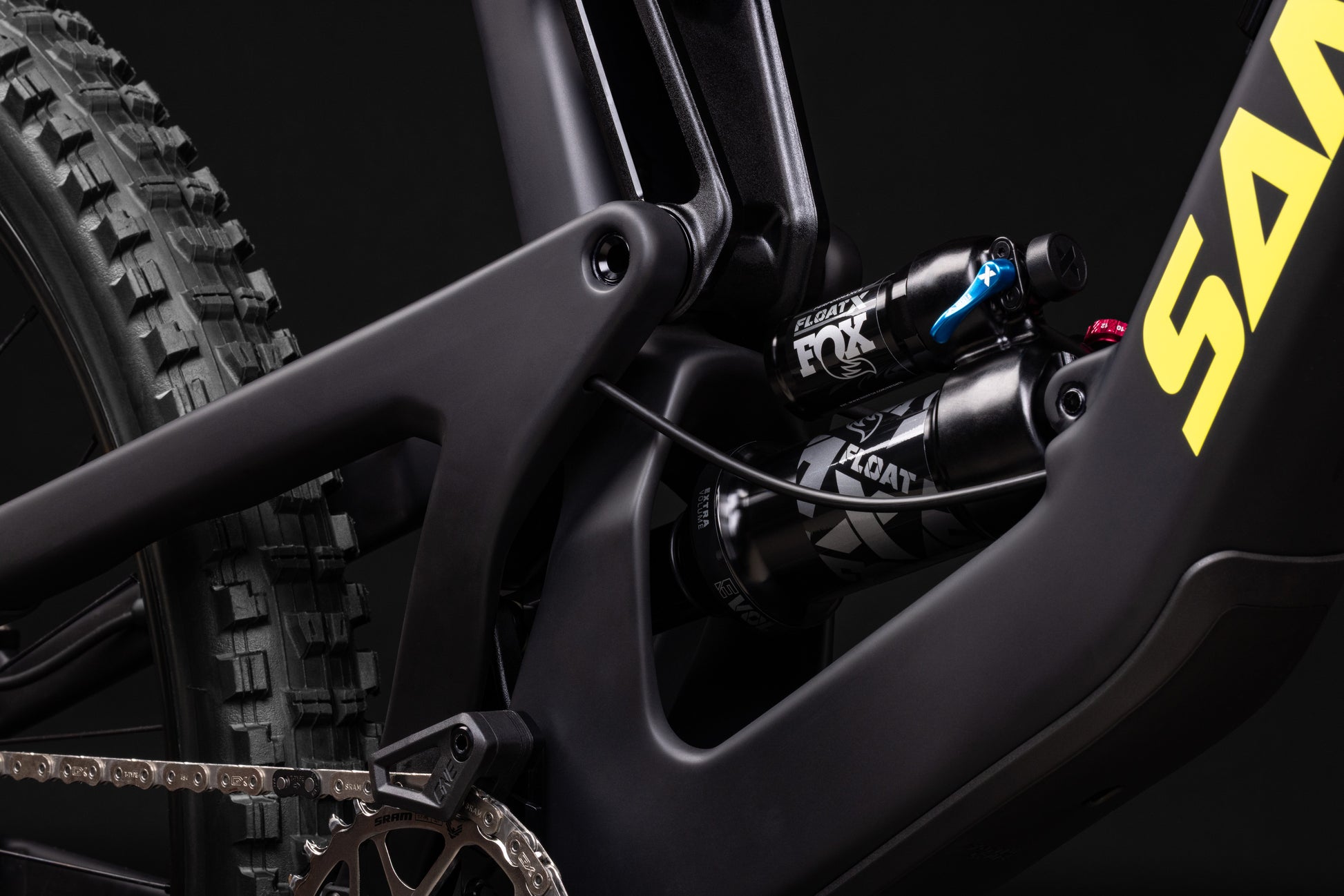

• Shock: FOX Float X Performance, 230x65mm

Drivetrain

• Rear Derailleur: SRAM 90 Eagle T-Type, 12-speed

• Shifter: SRAM 90 Eagle T-Type, 12-speed

• Crankset: SRAM 90 Eagle DUB T-Type, 32T

• Cassette: SRAM XS 1275 Eagle T-Type, 10–52T

• Chain: SRAM GX Eagle T-Type Flattop

• Bottom Bracket: SRAM DUB 73mm MTB Wide

Brakes

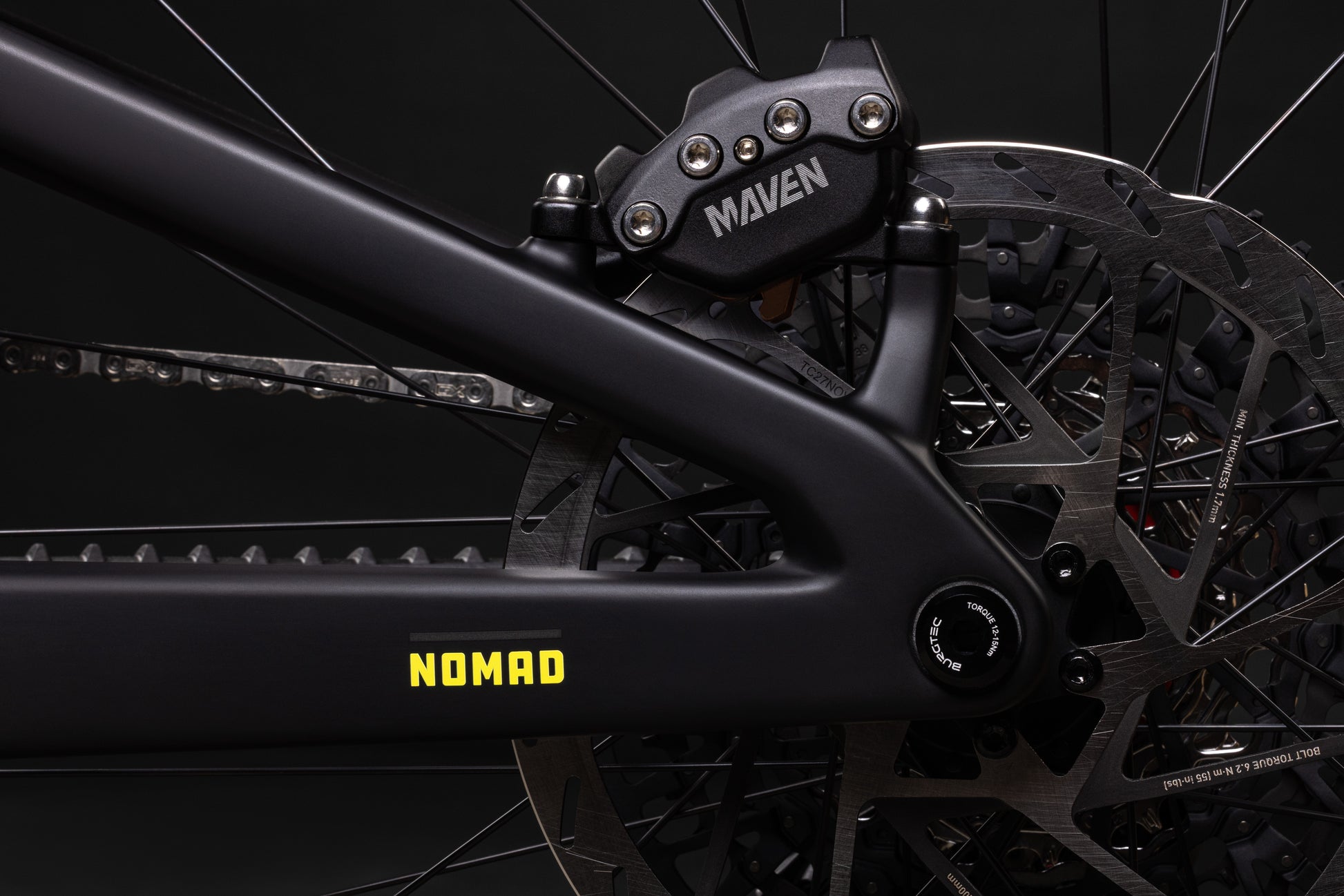

• Brakes: SRAM Maven Base

• Rotors: SRAM HS2 – 200mm front & rear

Cockpit

• Handlebar: OneUp Aluminum Bar

• Stem: OneUp Enduro Stem, 42mm

• Grips: Santa Cruz House Grips

• Headset: Cane Creek 50 IS Integrated

• Seatpost: OneUp Dropper Post, 31.6mm

• Saddle: SDG Bel-Air V3 Lux-Alloy

Wheels & Tires

• Front Rim: Reserve 30|TR AL

• Rear Rim: Reserve 30|HD AL

• Front Hub: DT Swiss 370, 15x110mm, 28H

• Rear Hub: DT Swiss 370, 12x148mm, XD, 36t, 32H

• Front Tire: Maxxis Assegai 29x2.5", 3C MaxxGrip, EXO+

• Rear Tire: Maxxis Minion DHR II 27.5x2.4", 3C MaxxTerra, Double Down

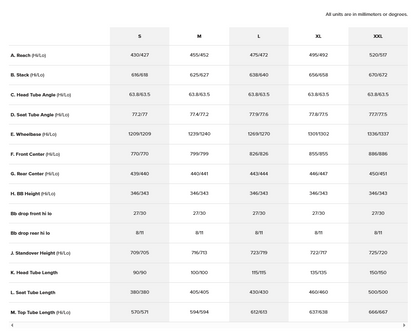

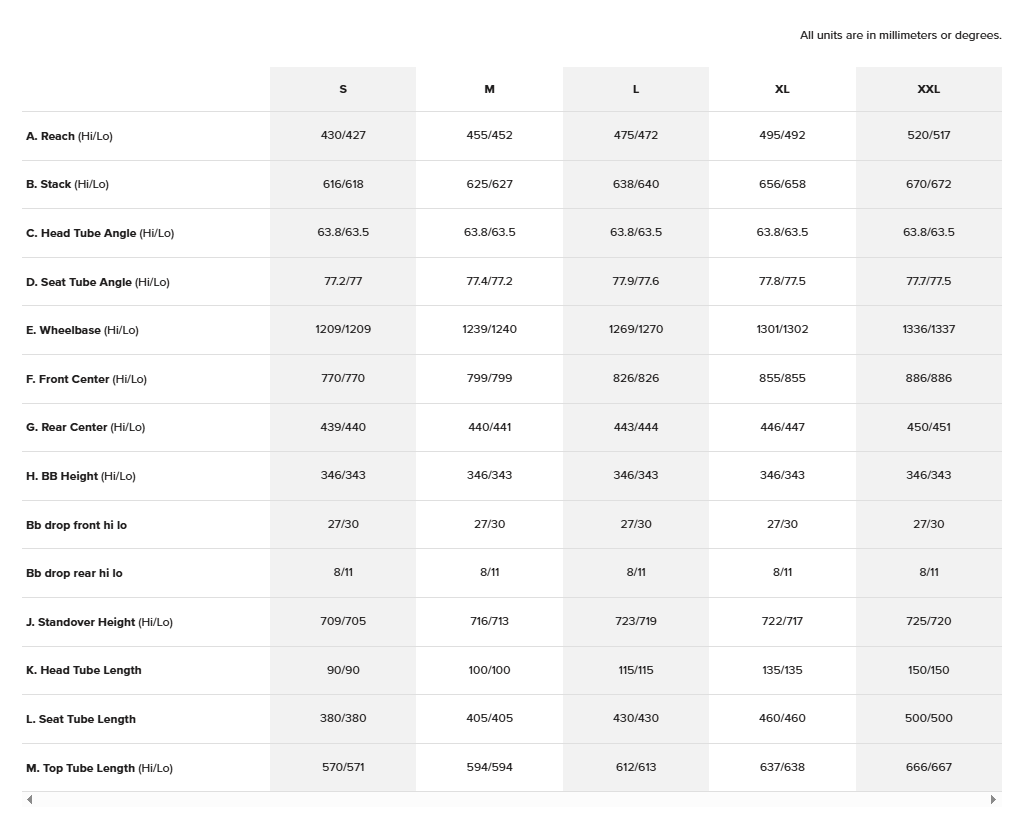

📏 Key Fit & Tech Details

• Headset: Integrated (IS41/52)

• Seatpost Diameter: 31.6mm

• Seat Clamp Diameter: 36.4mm

• Rear Brake Mount: 200mm Post Mount

• Bottom Bracket Shell: 73mm Threaded

• Max Tire Clearance: 2.5”

• Water Bottle Mounts: 1

• Shock Size: 230x65mm

• Shock Hardware: 30x8mm front & rear

• Fork Offset: 44mm

🎯 Best For

✅ Gravity-focused riders looking for park-worthy performance
✅ Enduro racers who ride as hard as they race
✅ Senders who need a bike as tough as they are
✅ Riders who want the newest T-Type tech on a proven platform
