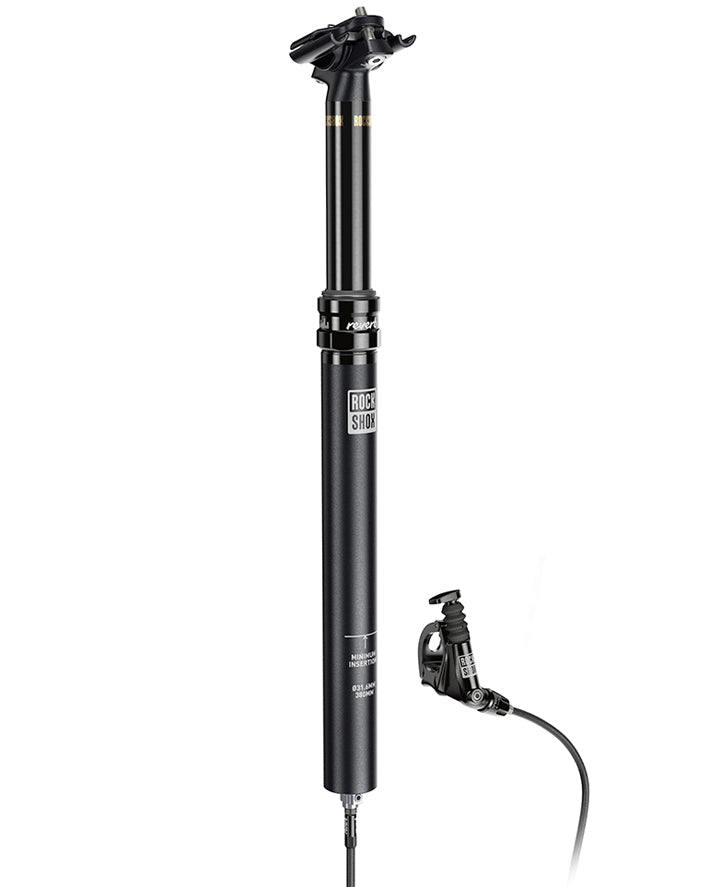

RockShox Reverb Stealth Dropper Post

New Guts, New Glory

Don’t let its familiar good looks fool you—Reverb is a whole new weapon. Its internals have been completely re-engineered to improve on its already legendary performance and to offer enhanced reliability: all the smallest details, down to the single seal, have been re-evaluated and updated to pass the hardest and longest durability tests. Additional bushing overlap also improves performance over time, while new 150- and 170-millimeter travel options are available to tame even the gnarliest of descents. This is the brand-new Reverb, engineered for the next-generation mountain biker.

• Completely redesigned internals with new SKF internal floating piston
• Improved performance and durability in all conditions
• 150mm and 170mm travel options available in all diameters
• Increased bushing overlap
• New dedicated post length per travel length

• Stealth model: designed for frames with internal tubing routing for a cleaner look
• B1 version with completely redesigned internals. Every seal has been reengineered, utilizing high-quality SKF seals at critical locations. Also has increased bushing overlaps for improved post performance and durability
• Connectamajig: allows the post to be disconnected from the remote and removed from the frame several times before bleeding is required
• Hydraulic actuation with a fork-style sealing system and an adjustable barrel-nut return speed feature integrated into the remote, (MatchMaker-X 'MMX' compatible) handlebar-mounted clamp
• MMX compatible handlebar clamp includes MatchMaker compatible shifter mount: can be run as a stand-alone clamp or combined with MMX brakes and/or shifter
• Triple-keyed telescoping design virtually eliminates twist and play between upper/lower shafts
• 3D-forged/butted 7050 aluminum construction with laser engraved logo/insertion graphics and a shot-peened mast for non-slip frame interface, plus a secure 2-bolt zero-offset head/clamp for fore/aft/tilt adjustment

• Shaft Material: 3D forged 7050 alloy
• Head Material: 7050 forged alloy
• Remote: Adjustable return speed at the handlebar
• Hardware: Discrete or Match Maker™ X, Left or Right
• Weight: 560g (weight based on 340mm post length, 30.9mm diameter, 100mm travel, MMX™ remote with shifter hardware and 1300mm hose)
