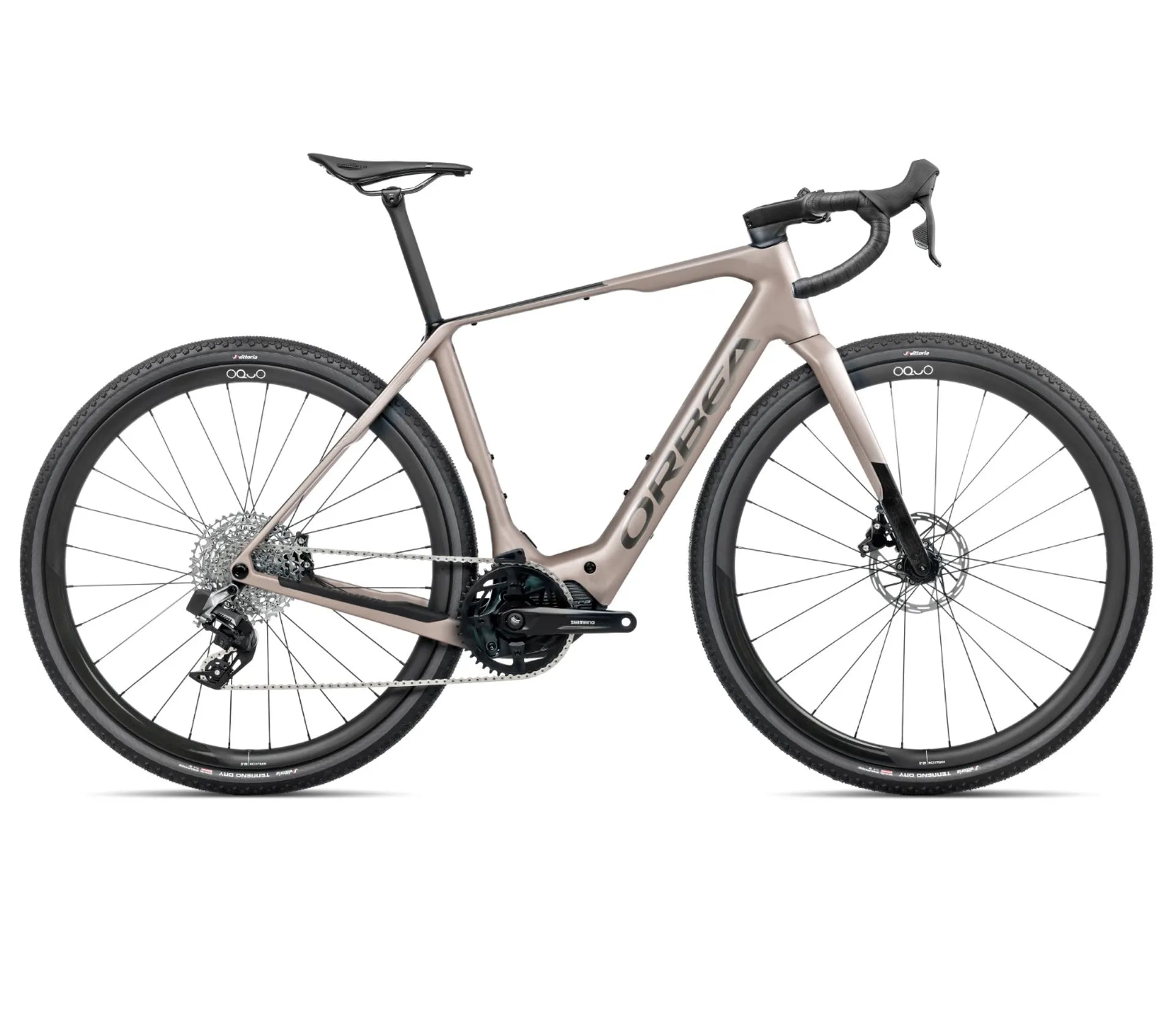

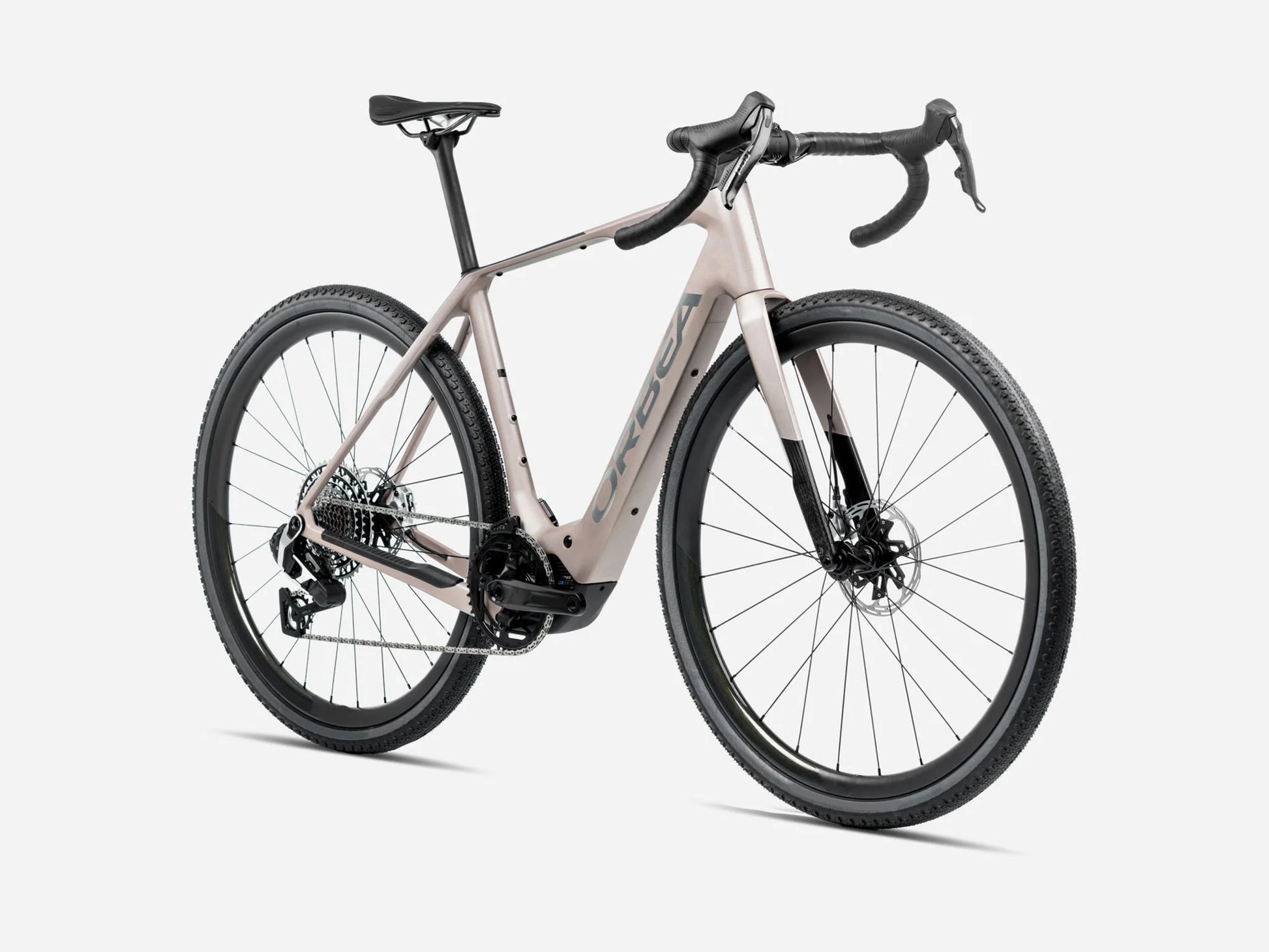

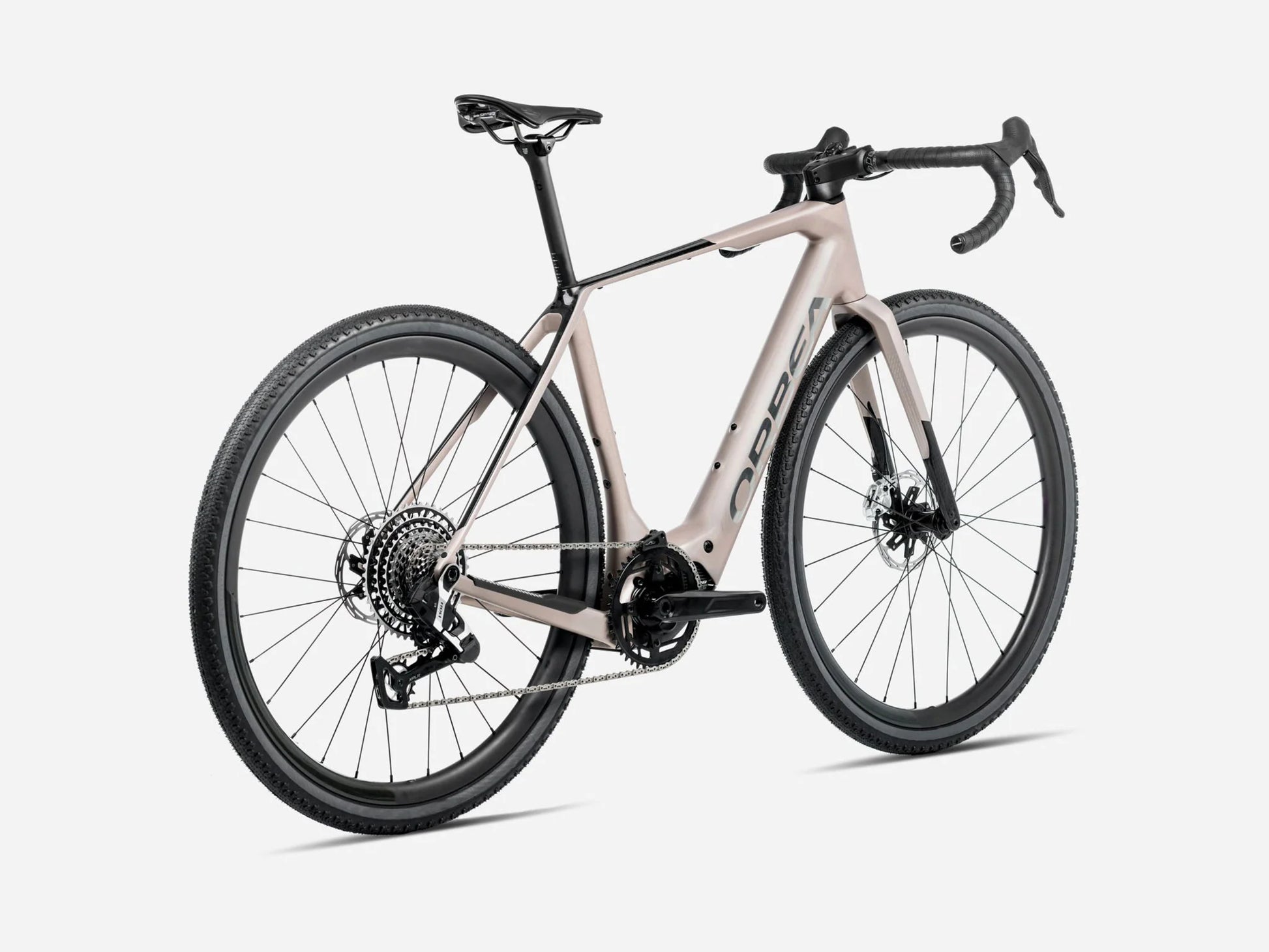

Orbea Denna M31e 700c 28mph - 2025

The Orbea Denna M31e is all about removing limits. Gravel-tuned assistance offers power for the steepest climbs, and range for the longest rides. Wide tire clearance and a frame designed for a smooth ride make big days in the saddle a pleasure.

Features:

  • SRAM Rival,1x12 drivetrain.
  • OQUO RC25 TEAM Wheelset.
  • Shimano EP801RS-Gravel motor with 420 Wh battery
  • 50C TIRE CLEARANCE

    Denna has clearance for up to 50C tires, so you can even fit many mountain bike tires for maximum grip and comfort.

    RC TUNE: FULL TORQUE AND BALANCED POWER

    Rider Synergy (RS Gen2) is central to Denna's go-anywhere capabilities. Weight, power and simplicity plus a best-in-class battery range means you can rewrite your idea of what is possible.

    420 WH BATTERY

    Our 420 Wh battery offers more power in a lighter, smaller package. Thanks to the energy savings from our RS Gen2 RC firmware, the average rider will get up to 3500m of climbing from this battery.

    FRAME ABSORPTION POINTS

    Specifically shaping the frame at key points allows controlled vertical flex to absorb bumps and chatter coming from rougher paths. The tube shapes here resist lateral flex, meaning we don't compromise Denna's pedalling efficiency or handling.

Specifications:

Frame UNI, Carbon, OMR
Wheel Size Front 28
Wheel Size Rear 28
Fork Orbea Denna OMR ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12xP1
Gears DERAILLEUR, Sram, 12
Tyres VITTORIA, Vittoria Terreno Dry Gravel G2.0 TLR 700x45c
Wheels OQUO, Oquo Road Control RC25TEAM
Shifters SRAM, Sram Rival eTap AXS
Front Brake SH, Sram Rival eTap AXS, Disc brake with hydraulic actuation
Chain SRAM, Sram Rival 12-Speed
Headset FSA, FSA 1-1/2" Integrated Aluminium Cup
Handlebar EASTON, Easton EC90 AX Carbon, flare 16º, Di2 internal routing
Stem OC, OC Road Performance RP10, -8º
Seatpost OC, OC Performance XP10 Carbon, 27.2mm, Setback 0
Saddle UNKNOWN, Selle San Marco Shortfit 2.0 Start Up Off Road Xilite
Battery Capacity 420
Battery Brand ORBEA
Battery Model Orbea Internal 420Wh
Drivetrain Brand Sram
Ebike Type Description Normal

Geometry:

offset 55
wheelbase 1054
head_angle 71
frame_reach 400
frame_stack 592
toptube_length 570
seat_tube_angle 73
chainstay_length 425
head_tube_length 178
seat_tube_length 504
front_fork_length 390
stand_over_height 819
bottom_bracket_drop 76
bottom_bracket_height 286.5

Orbea

Orbea Denna M31e 700c 28mph - Nickel Matt-Carbon Raw Gloss - 2025

Orbea Denna M31e 700c 28mph - Nickel Matt-Carbon Raw Gloss - 2025

Regular price $6,999.00
Regular price $6,999.00 Sale price $6,999.00
