Description

This dependable UST road wheel gives you the confidence you need to tackle rugged, adventurous roads with smooth control.

With a wide 23mm rim profile that's optimized for high-volume tires, this UST Road Tubeless wheel system is built for adventure.

Perfect for riding on rough roads, gravel or dirt, it gives you the smooth-riding performance of tubeless tires and makes it easy to set them up without any hassles. Low rolling resistance and a reduced risk of punctures add up to a better overall riding experience, especially on rugged terrain.

The wheels are engineered for the unique demands of disc brakes, built up with 24 straight-pull spokes, which are stronger than J-bend spokes. So wherever the road goes, and however rough it gets, you're ready to keep things rolling.

Purpose-built for riding rough roads, gravel, or dirt.

  • 22mm wide rim takes the tire up to 62mm.
  • UST Road Tubeless technology improves comfort and rolling resistance and reduces the risk of punctures.
  • Compatible with all standard retention systems.

Proven performance and reliability at an attainable cost.

  • High-quality QRM cartridge bearings.
  • Disc-brake-specific, sleeved-style rim technology.
  • Straight-pull round spokes, which are stronger than J-bend spokes.

Rolling efficiency and nimble ride quality

  • Sleeve joint rim minimizes weight.
  • Consistent and stable spoke lacing.
  • Low-friction hubs.

Specifications:

Rims

  • Material: S6000 Aluminum
  • Height: 22 mm
  • Joint: sleeved
  • Internal width: 23 mm
  • Drilling: traditional (front/rear 24 holes)
  • Braking: disc
  • ETRTO size: 622x23TC
  • Tire: UST Tubeless Ready - Use with Mavic Tubeless Tape

Spokes

  • Material: steel
  • Shape: straight, round (front and rear)
  • Nipples: steel, ABS, incolor
  • Lacing: crossed 2 (front and rear)

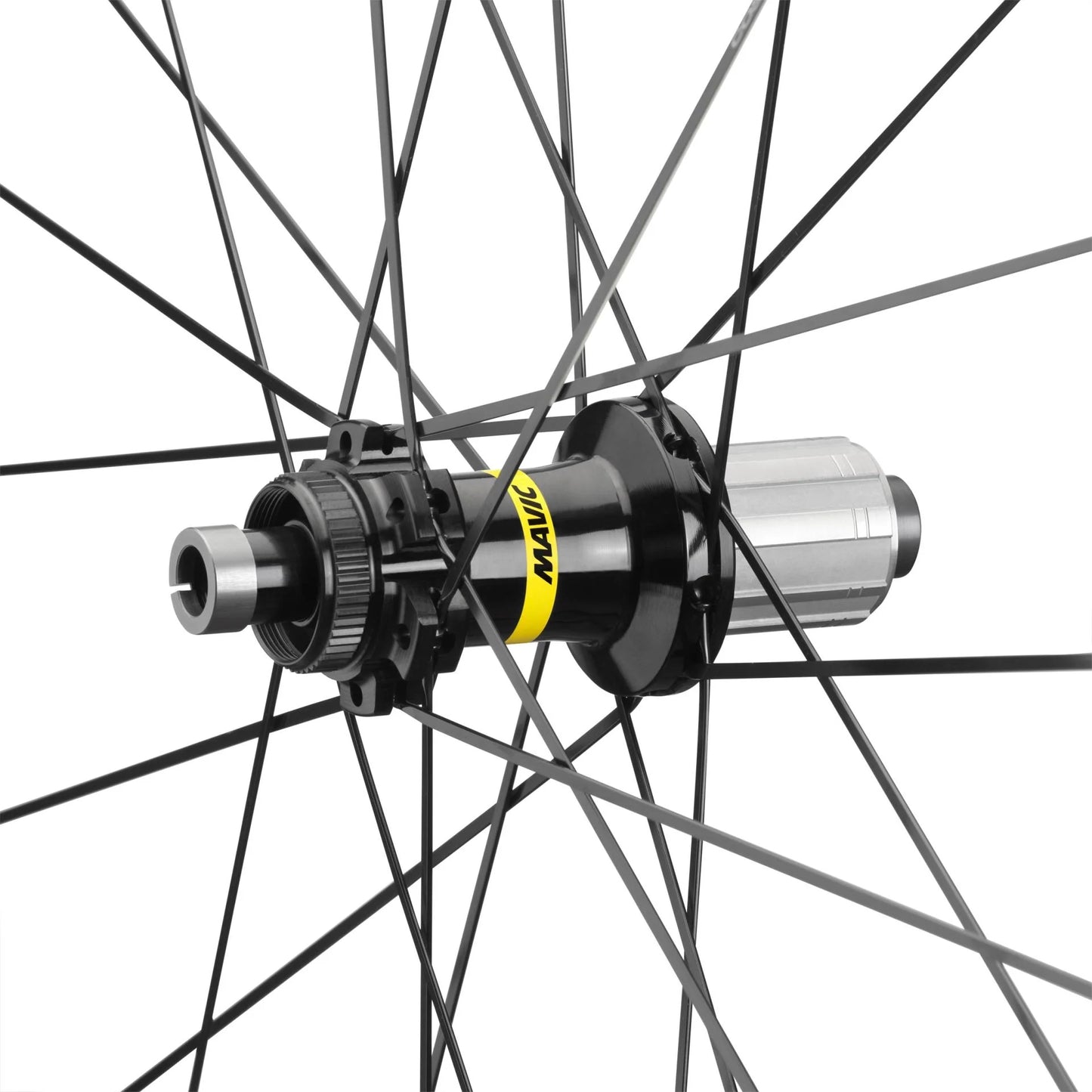

Hubs

  • Body material: aluminum
  • Disc standard: Center Lock®
  • Axle material: aluminum
  • Axle size: front 12x100 / rear 12x142 - Convertible to quick release with included adapters
  • Freewheel technology: Instant Drive 360
  • Freewheel: Shimano HG road
  • Bearing technology: QRM automatic setting - sealed cartridge

Intended use

  • ASTM CATEGORY 2: road and offroad with jumps less than 15cm
  • For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesn't exceed 120kg, bike included
  • Maximum tyre pressure: 5.5bar/80PSI with a 28mm tyre - 3.25bar/47PSI with a 64mm tyre
  • Recommended tire sizes: 28 to 64 mm (1.1 to 2.5)
  • Max. Pressure: see indication on wheel and tire. If they differ, use the lowest of the 2
  • Weight: 1020g

Mavic

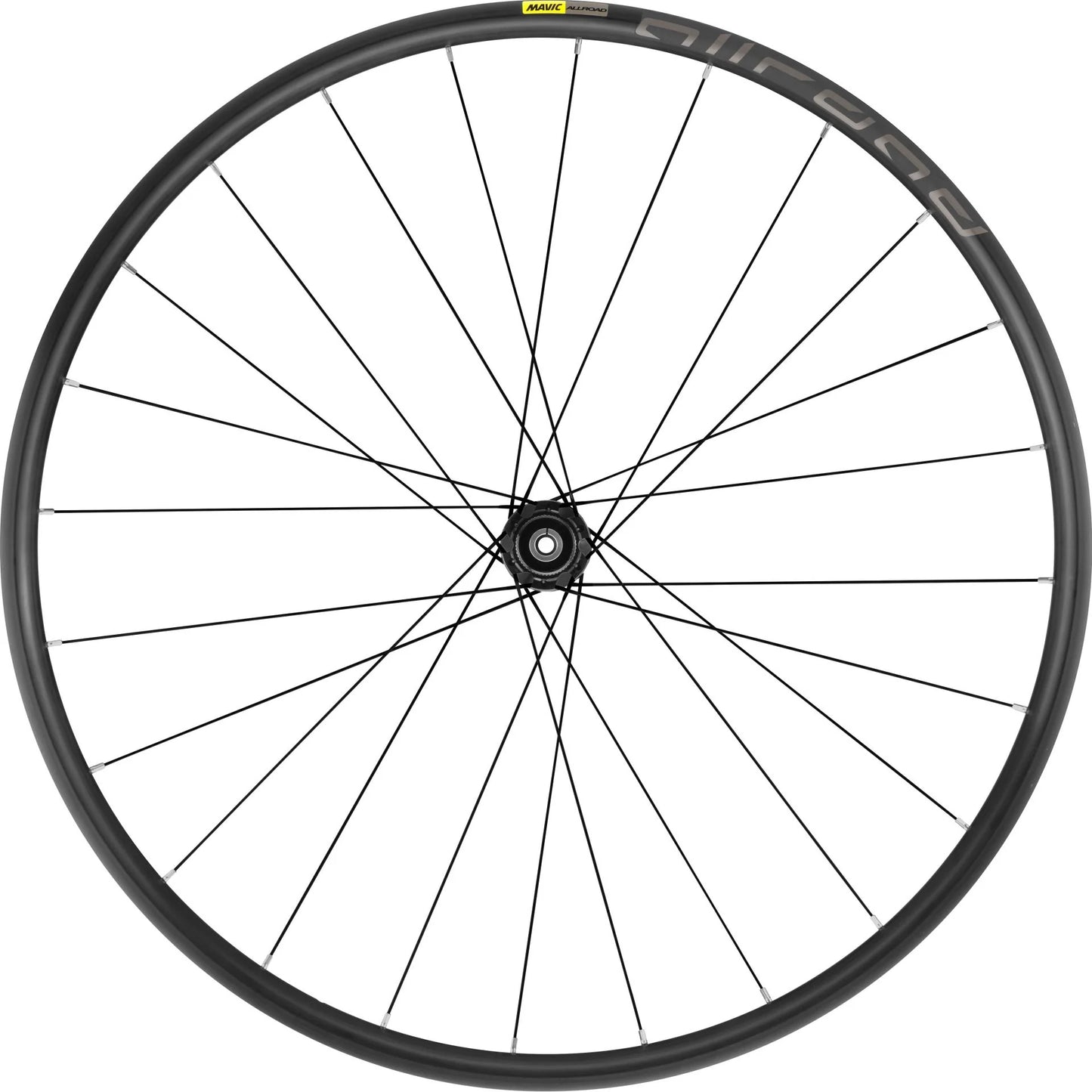

Mavic Allroad Disc 700c Gravel Wheel - Center Lock - Rear

Mavic Allroad Disc 700c Gravel Wheel - Center Lock - Rear

Regular price $200.00
Regular price $199.00 Sale price $200.00
Mavic Logo

Color
Size

Product ID: GM120623-24

Only 1 Items Left
