Description

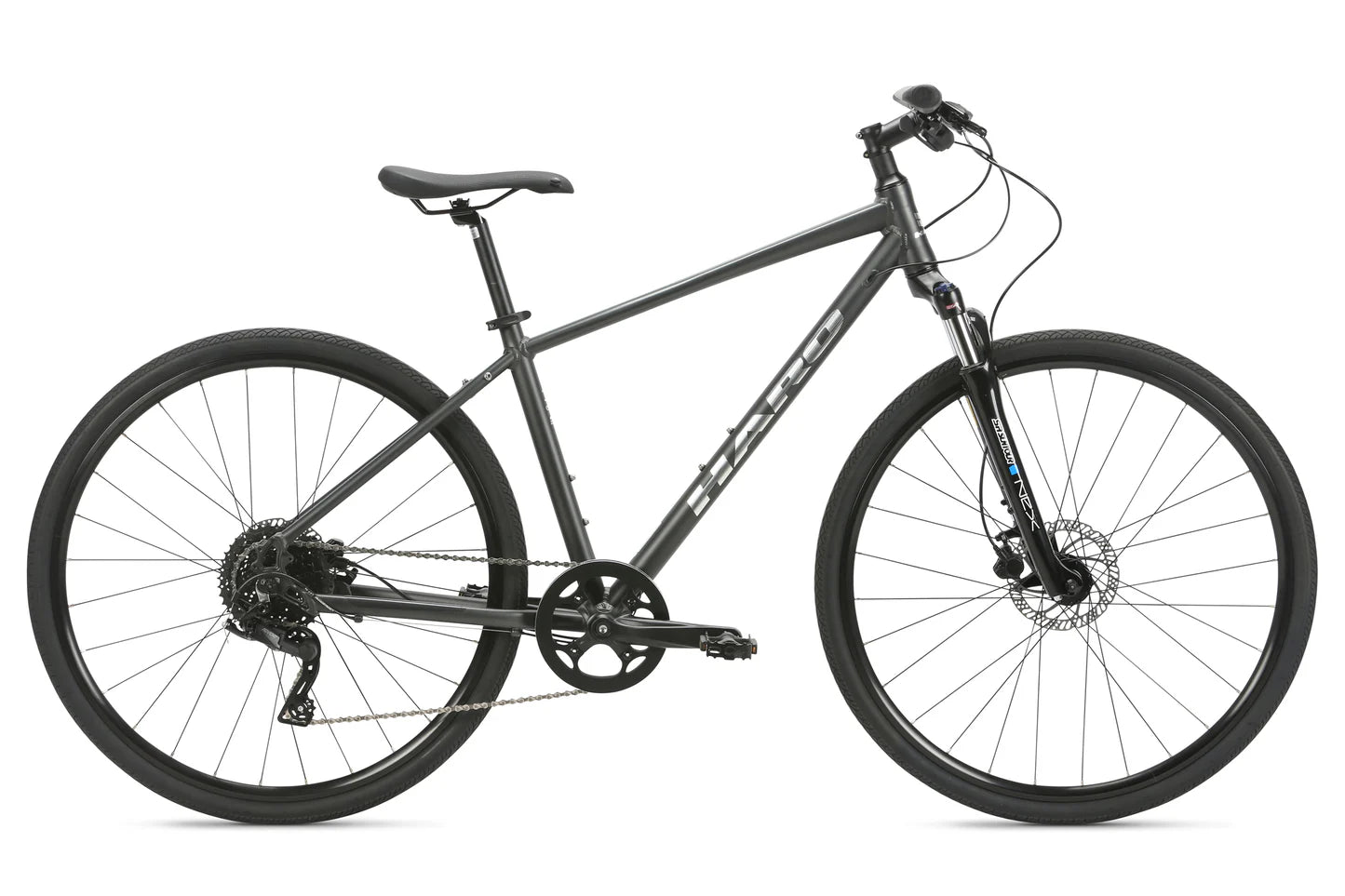

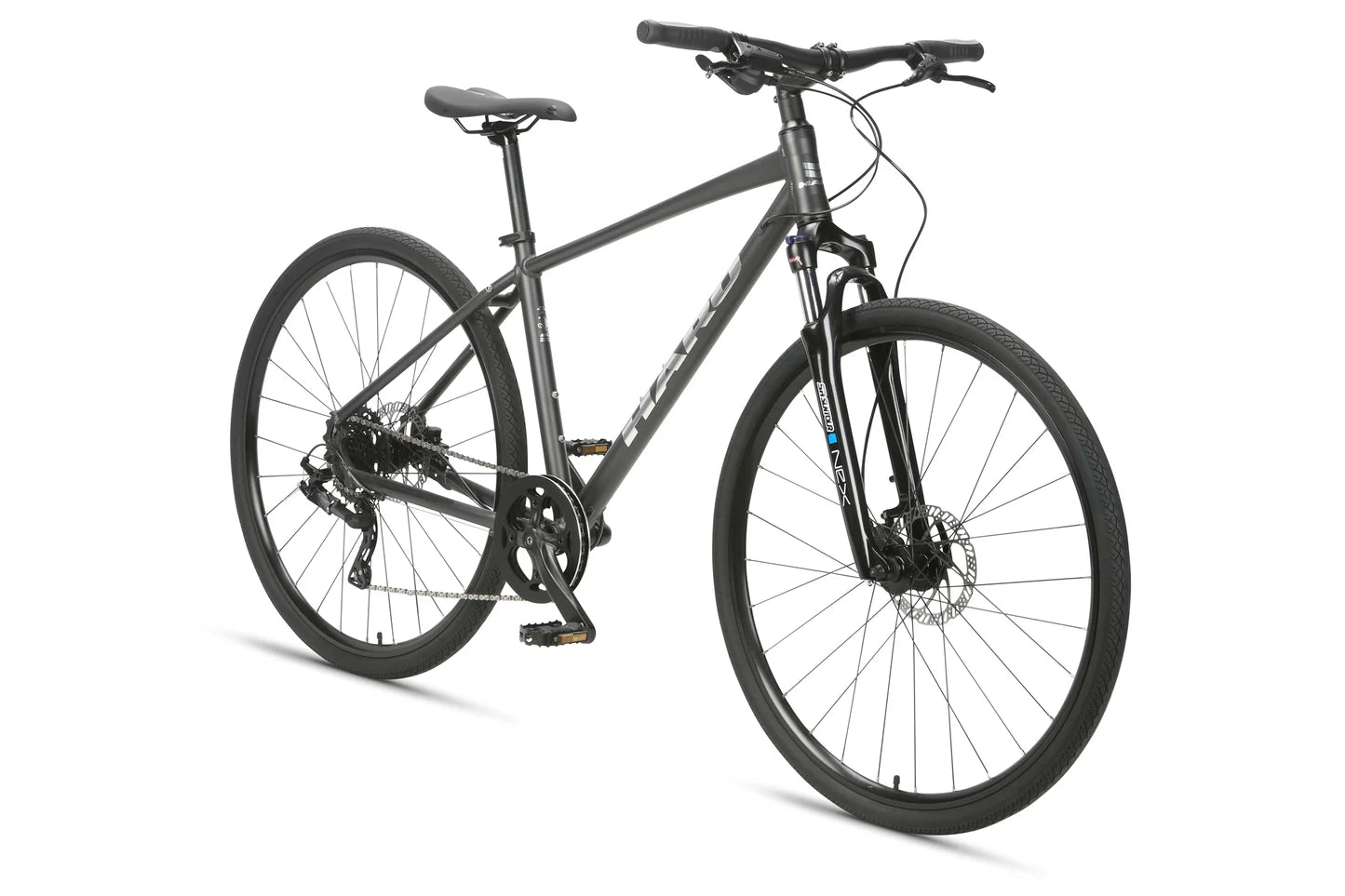

Haro Westlake 700c

Westlake MicroSHIFT from Haro.

As the world gets unnecessarily more complex: meetings to meet about... ahem... meetings—with this confusing backdrop, one bike—this bike—The Westlake—creates irrefutable simplicity. Lovely, glorious, wondrous simplicity through a wholehearted approach to being a bicycle. Not a gravel bike, not a road bike, not an enduro bike, not a KOM bike, PR bike, aero bike, training bike, or even aero training bike (it does exist, mind you). In a world of needless confusion, The Westlake provides straightforward bicycleness, one direct Shimano 1x9 shift at a time, as it should.

Features:

- Simple and efficient 1 x 9 wide-range drivetrain keeps shifting crisp while retaining easy gearing for hills and hard gearing for fast flats
- Dual alloy chainguards prevent the chain from falling off, even over rough terrain
- Quality Tektro hydraulic brakes provide consistent, strong stopping power even in wet conditions
- Lockout suspension fork allows for efficient pavement riding
- Mid-width tires allow for efficient on-road or smooth off-road versatility
- Alloy wheels, frame, and components stay rust free

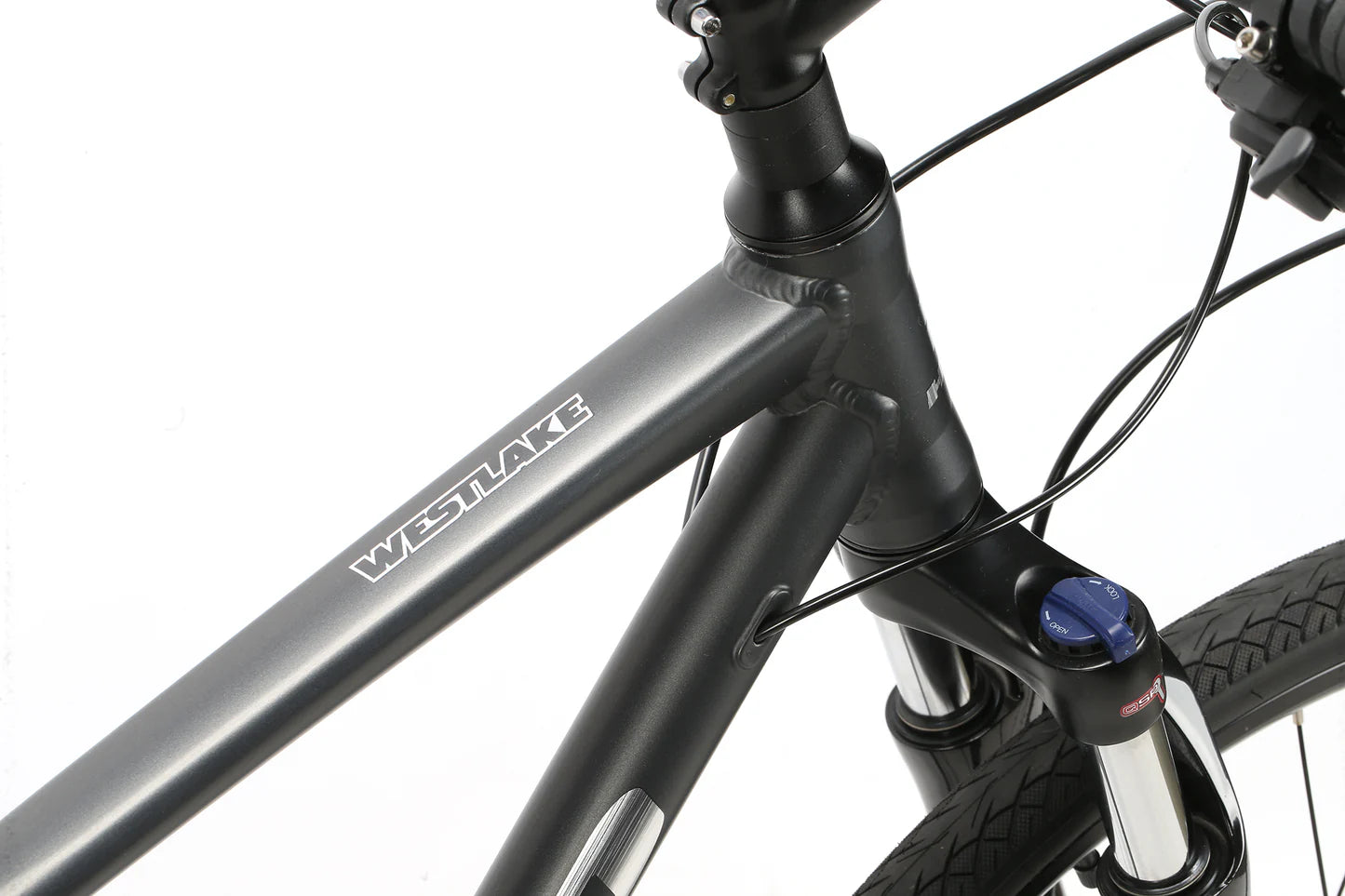

Frame	6061-T6 aluminum \| Rider-tuned geometry \| 68mm threaded BSA BB shell \| Flat Mount

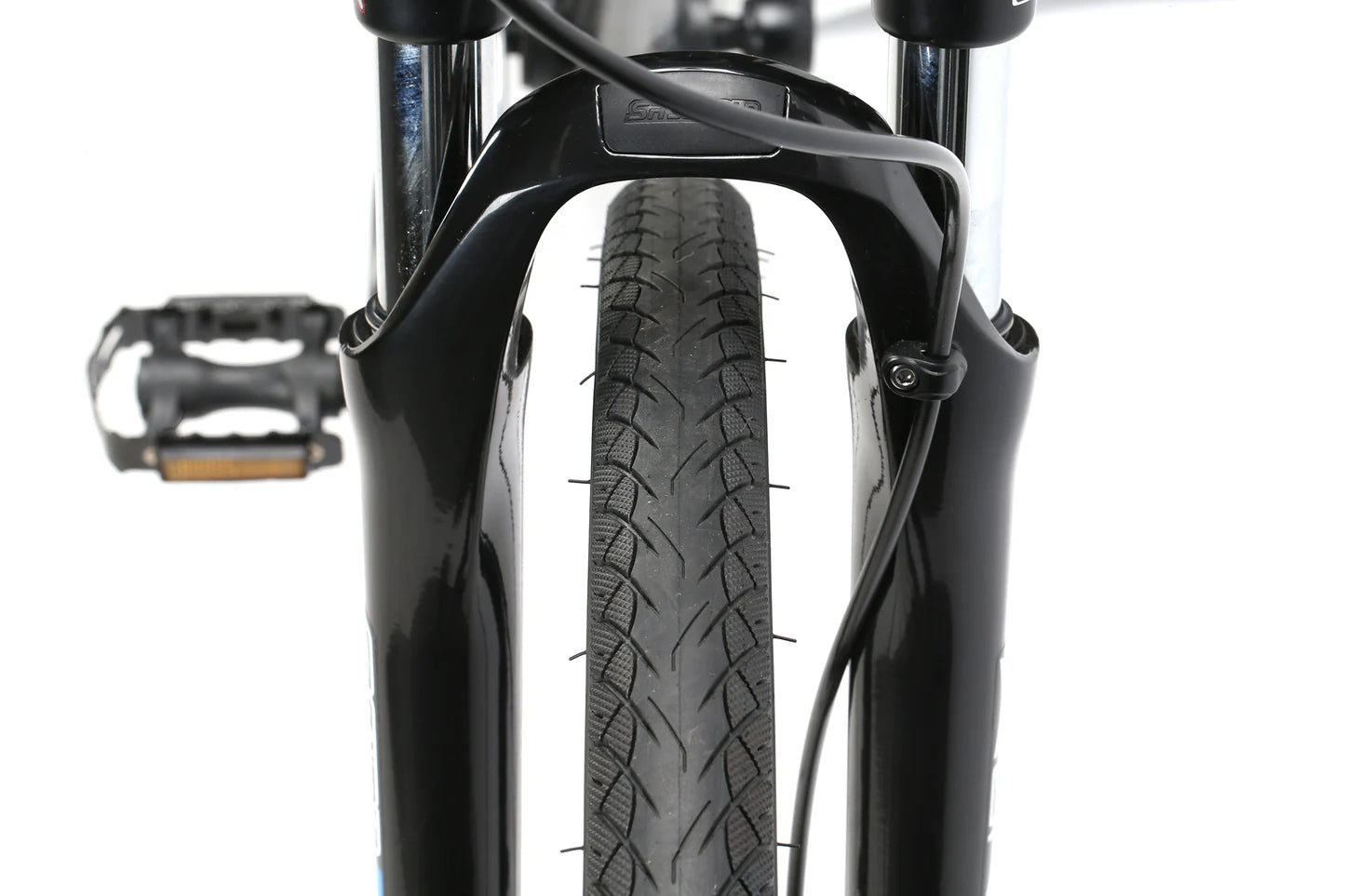

Fork	Suntour SF20 NEX HLO-DS \| 63mm travel \| Hydraulic Lockout \| Post-mount
Frame Shock	N/A
Colors	Matte Charcoal
DRIVETRAIN

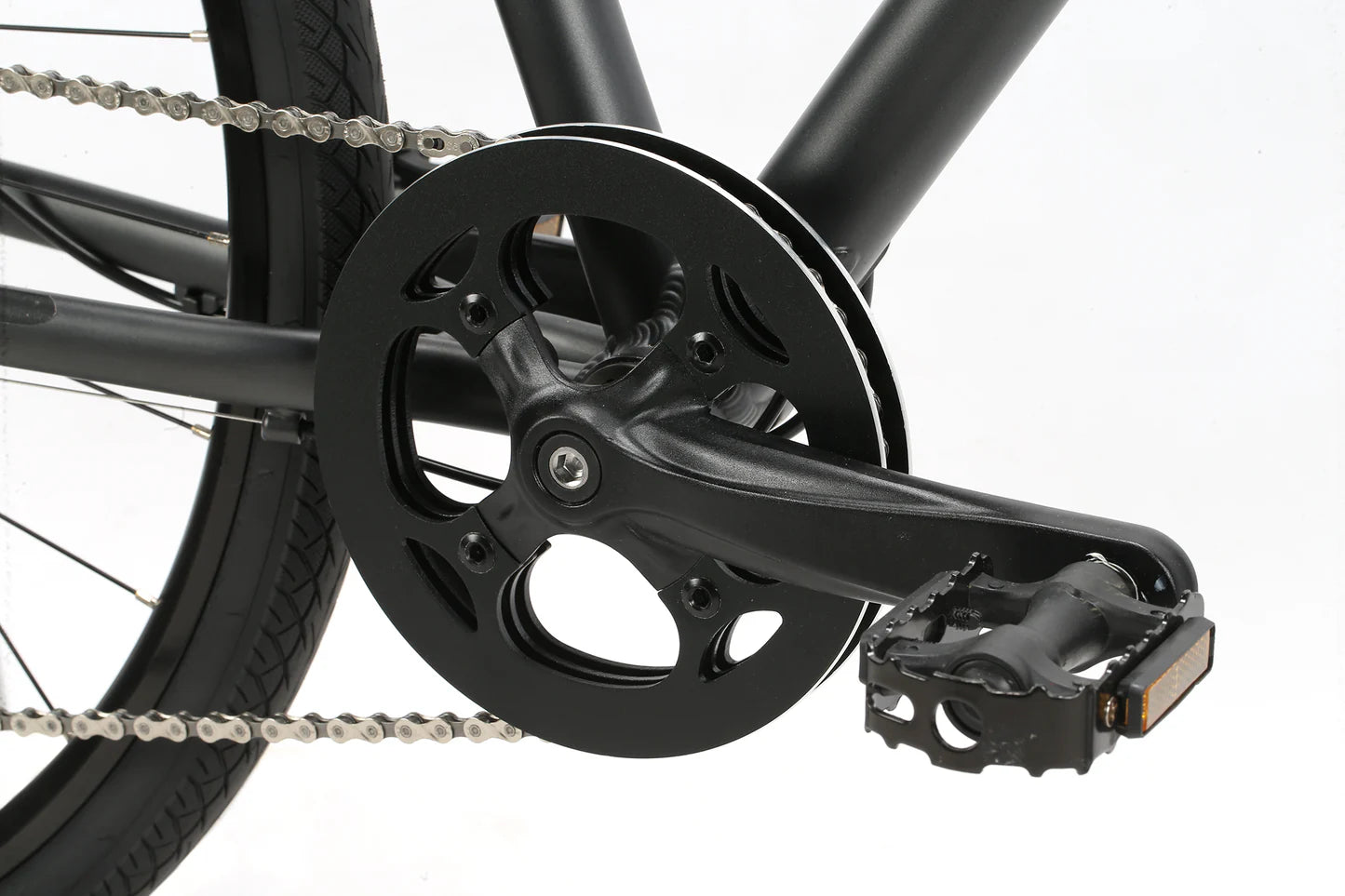

Cranks	3-pc aluminum \| 42T single chainring \| 104mm BCD \| Dual aluminum chainguards \| 170 / 175mm
Pedals	VP \| 990S \| Nylon body with steel cages \| Chromoly axles
Chain	KMC X9 \| 9-speed \| NP/NP with missing link
Bottom Bracket	Threaded BSA 68mm BB shell \| 118mm spindle \| Sealed cartridge
Front Derailleur	N/A
Rear Derailleur	Microshift RD-M619M
Derailleur Shifter	Microshift SL-M819R-9 \| 1 x 9-speed
Freewheel/Cassette	Wide-range \| 9-speed \| 11-40T
WHEELS
Tires	Kenda Kwick Bitumen, 700 x 38c
Wheels/Rims	Haro 700c \| 19mm inner width \| 28h \| Alloy double wall \| Disc-brake specifc
Hubs	KT-68 alloy 28H \| Cassette rear hub \| Front & rear quick release
BRAKING SYSTEM

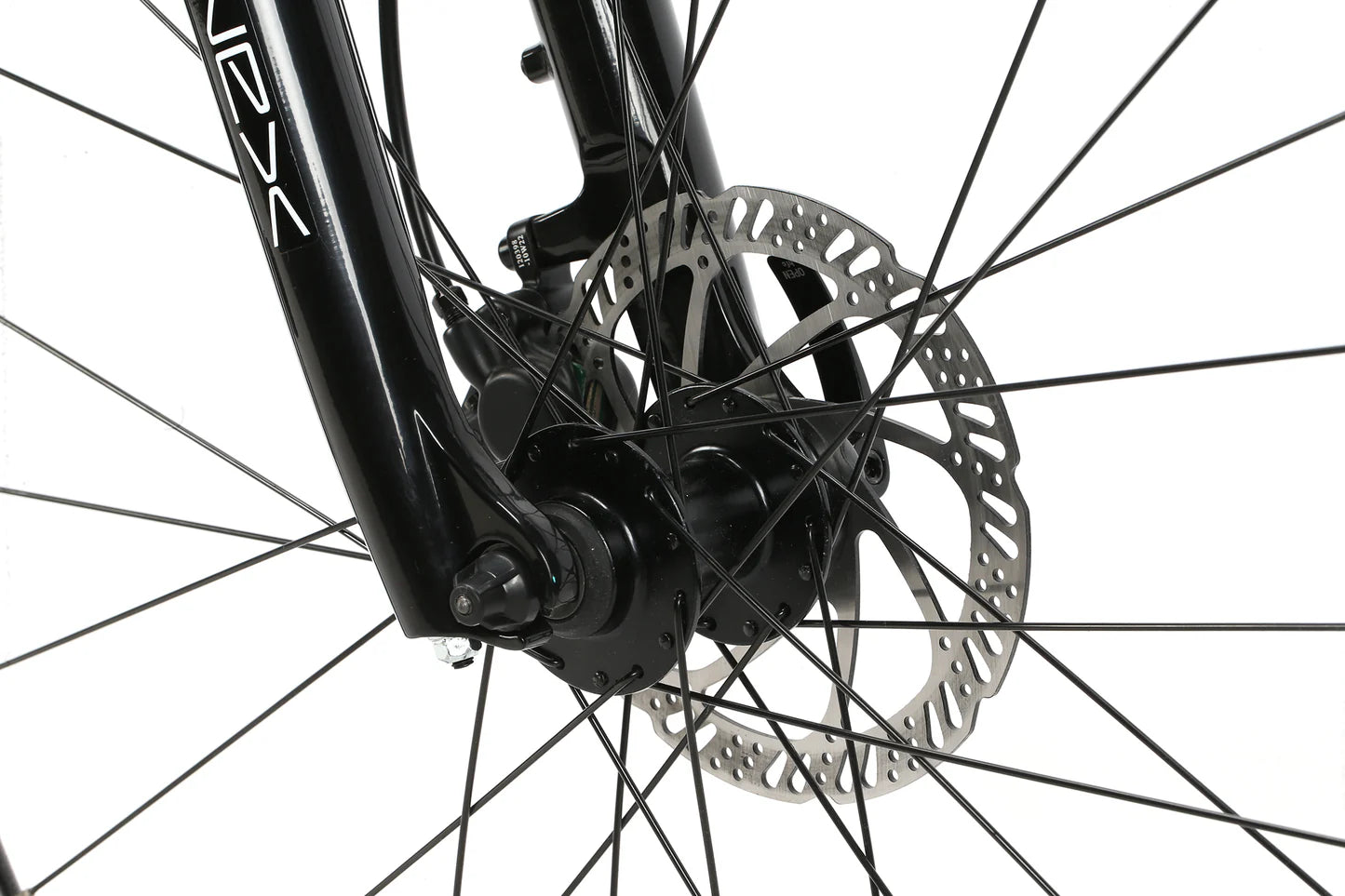

Brakes	Flat mount \| Mechanical disc \| IS 6-bolt rotors \| F: 180mm R: 160mm
Brake Levers	Tektro alloy hydraulic \| 3-finger
OTHER COMPONENTS
Grips/Tape	Haro \| Dual-density durometer \| Active tuned
Handlebar	Haro Alloy \| 25mm rise \| 31.8mm \| 9° sweep \| 620mm / 640mm
Stem	Haro Maverick Stem \| Alloy \| Positive Positioning \| 7° rise \| 15.5": 70mm; 17.5" & 19": 90mm; 21 & 23": 100mm
Headset	Haro Precision Plus \| 1-1/8" threadless \| Internal \| For 50mm OD headtube

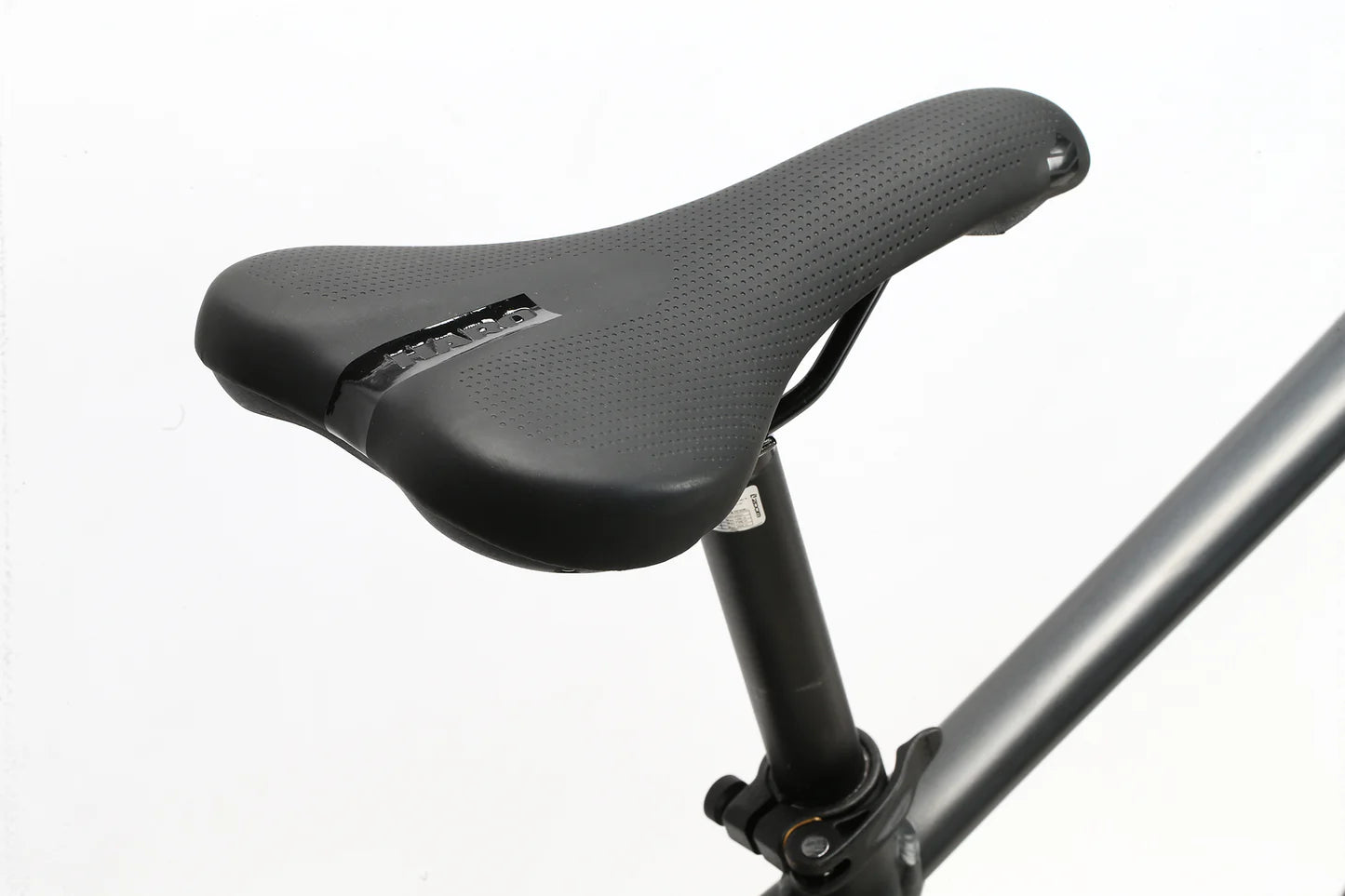

Saddle	Haro \| Dual-sport tuned padding \| Weather-resistant cover
Seat Post	Haro aluminum \| Micro-adjust \| 27.2mm x 350mm \| Zero-offset \| 2-bolt design
Seat Clamp	Haro Aluminum 31.8mm Quick release
Extras	Rack and fender mounts

Geometry:

SIZE	S	M	L	XL	XL+
Seat Tube (C-T)	394mm (15.5")	445mm (17.5")	483mm (19")	533mm (21")	584mm (23")
Top Tube (Effective)	575mm (15.5")	585mm (17.5")	600mm (19")	615mm (21")	625mm (23")
Head Tube Angle	70.5°	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle	73°	73°	73°	73°	73°
Chainstay Length	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")
BB Drop	60mm (2.4")	60mm (2.4")	60mm (2.4")	60mm (2.4")	60mm (2.4")
Wheelbase	1067mm (42")	1078mm (42.4")	1093mm (43")	1109mm (43.7")	1119mm (44.1")
Head Tube Length	110mm (4.3")	120mm (4.7")	130mm (5.1")	140mm (5.5")	155mm (6.1")
Standover	743mm (29.3")	768mm (30.2")	787mm (31")	815mm (32.1")	847mm (33.3")
Stack Height	594mm (23.4")	603mm (23.7")	613mm (24.1")	622mm (24.5")	636mm (25")
Reach	393mm (15.5")	400mm (15.7")	412mm (16.2")	424mm (16.7")	430mm (16.9")
Axle to Crown	468mm (18.4")	468mm (18.4")	468mm (18.4")	468mm (18.4")	468mm (18.4")
Fork Offset	42mm (1.7")	42mm (1.7")	42mm (1.7")	42mm (1.7")	42mm (1.7")
Stem Length	70mm	90mm	90mm	100mm	100mm
Bar Width	640mm	640mm	660mm	660mm	660mm
Crank Length	170mm	170mm	175mm	175mm	175mm

Sizing Guide:

Size	Inches	CM
S	5'1" - 5'6"	155 - 167.5
M	5'5" - 5'10"	165 - 177.5
L	5'9" - 6'2"	175 - 187.5
XL	6'1" - 6'4"	185 - 192.5
XL+	6'3" - 6'6"	190 - 200
