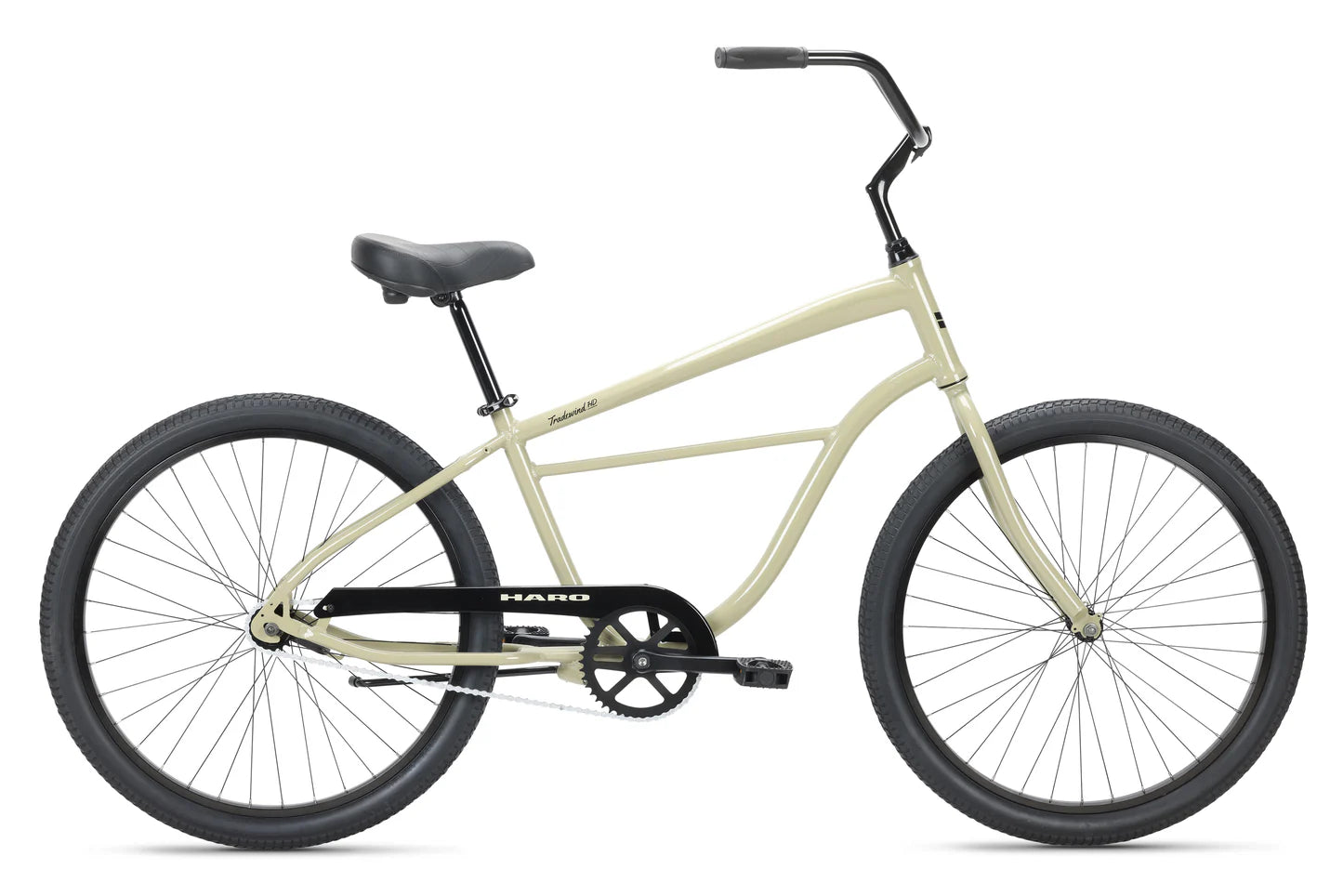

Haro Tradewind HD

Day-in, day-out, the Tradewind HD keeps on trucking. With a lightweight, durable aluminum frame, every part of the Tradewind HD, including the chain, is rust-resistant, and each component is chosen to go the distance: Thorn-proof inner tubes, a quick release seat clamp, alloy handlebars and a durable steel fork. Equally at home in the rental fleet or making daily runs to the beach, the Tradewind HD is a cool, comfy workhorse, designed for the long haul.

Features:

Aluminum frame, components, and crank keep things rust-free and rolling for the long haul.
KMC Rust-Buster chain defies salty environments and an outdoor storage.
Thorn-proof tubes keep the Tradewind HD rolling flat-tire free.
Alloy quick-release seat clamp makes seat positioning simple for different-sized riders.
Pedal-forward positioning allows for full leg extension while easily putting a foot down at a stops.

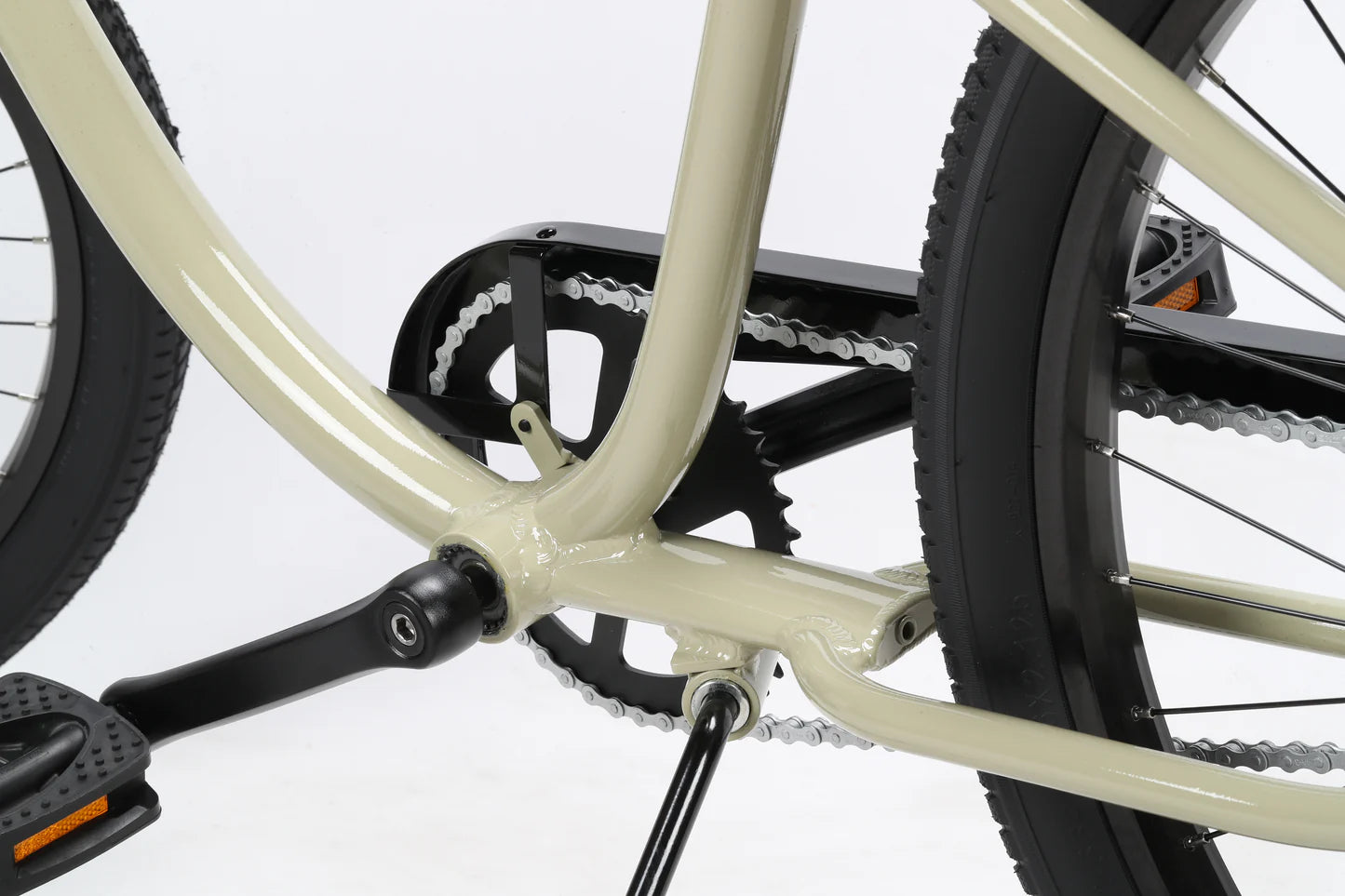

"ST" Step-through version available.

Specifications:

Frame	Tradewind HD. Rust-proof 6061 heat-treated aluminum. Tig-welded construction. 68mm threaded BSA bottom bracket shell. Coaster brake mount. 110mm dropout spacing. Cartridge kickstand mount.
Fork	Classic raked cruiser. Steel construction. 1" threaded.
Colors	Black, Tan
DRIVETRAIN
Cranks	3-piece forged 170mm alloy. 44T alloy chainring.

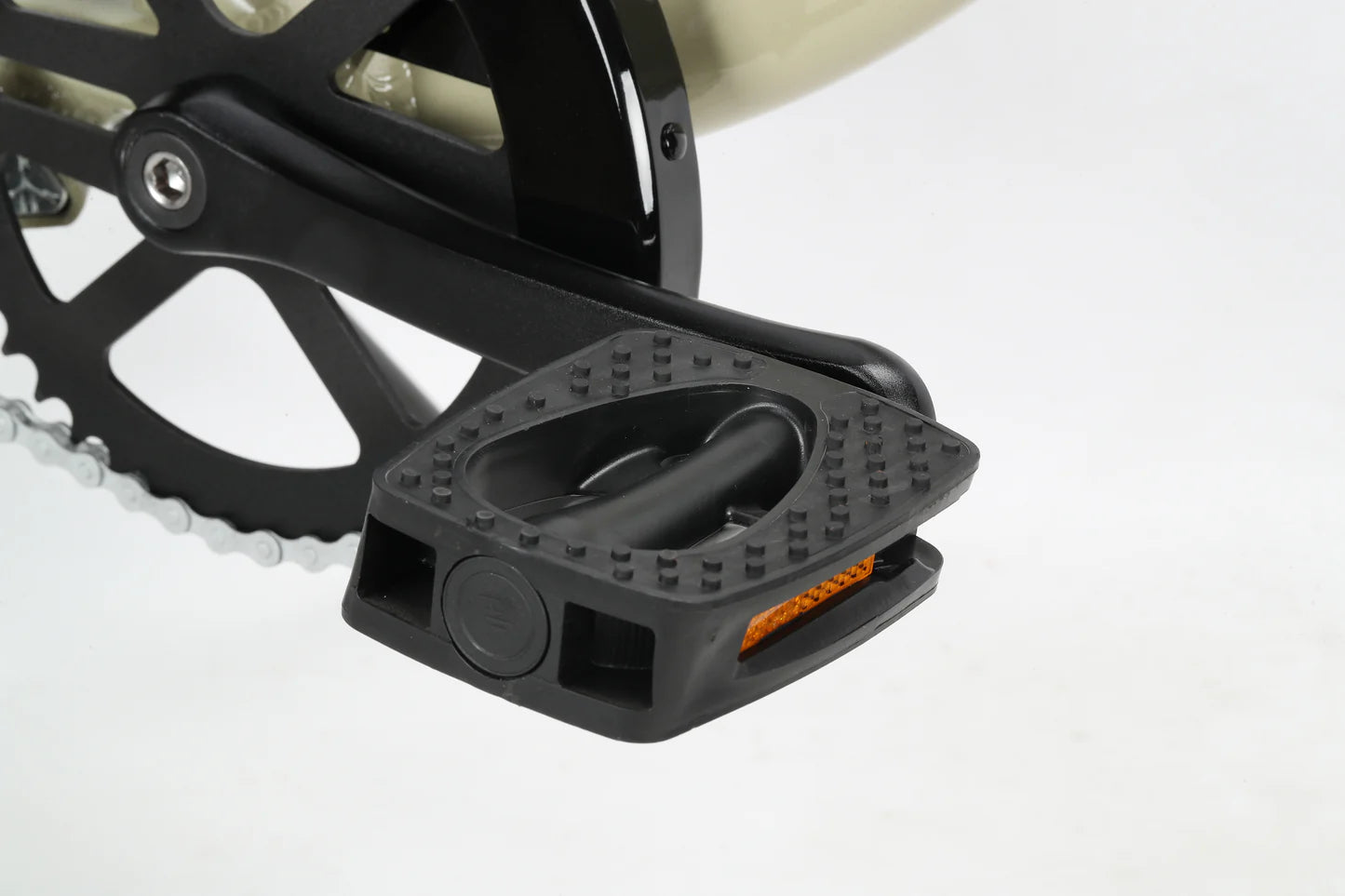

Pedals	Boardwalk cruiser. Shock-absorbing surface.
Chain	KMC S1 Rust Buster.
Bottom Bracket	Threaded 68mm BSA. JIS square taper spindle. Sealed cartridge bearings.
Front Derailleur
Rear Derailleur
Derailleur Shifter
Freewheel/Cassette	Rust Proof 18T coaster brake cog.
WHEELS
Tires	Kenda Kruiser 26x2.125" front & rear with thorn-proof tubes.
Wheels/Rims	Alloy 24mm wide. 36 hole.
Front Hub	Alloy 3/8" x 100mm. 36h.

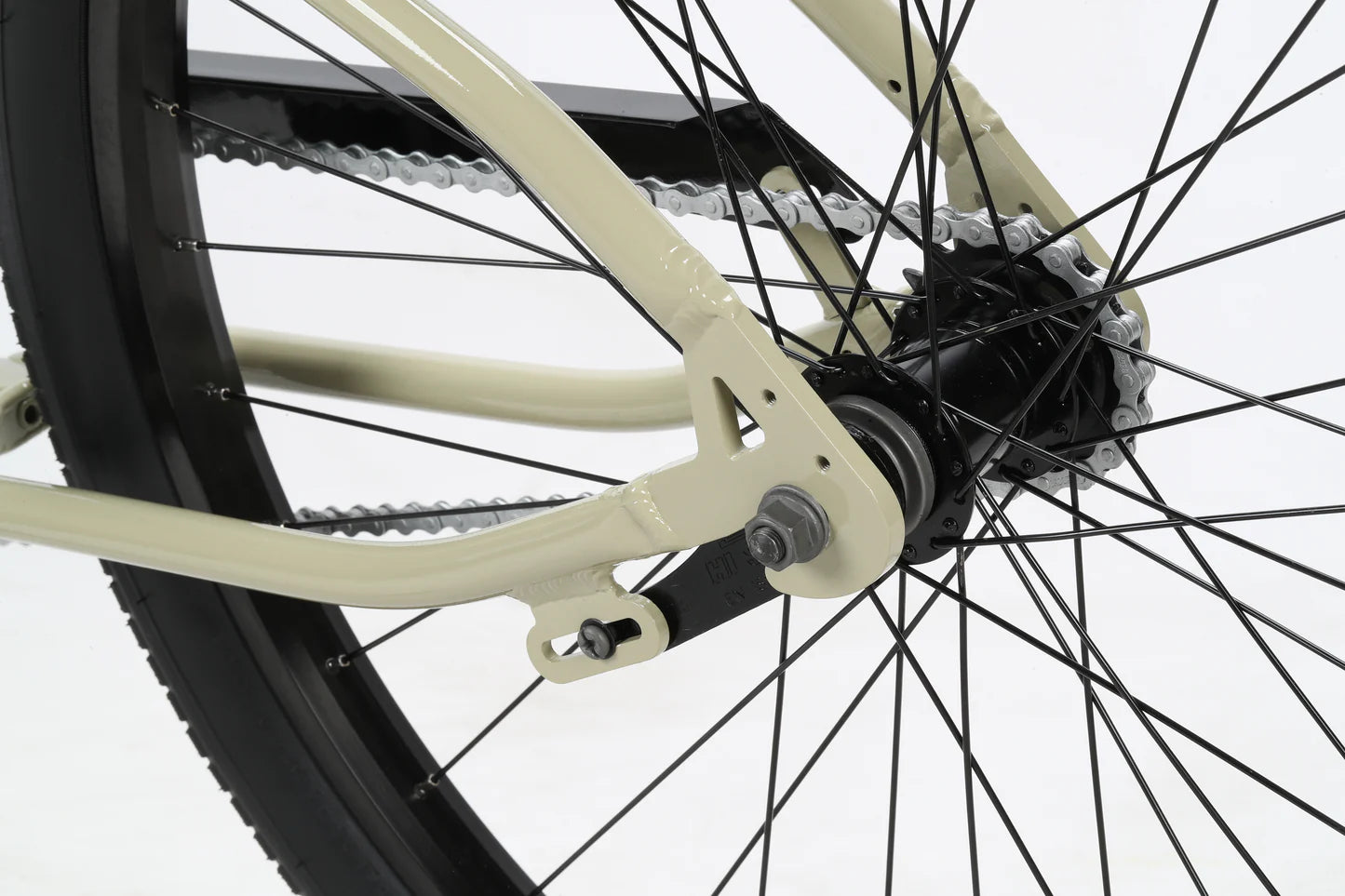

Rear Hub	Steel coaster brake with corrosion-resistant coating. 36h.
BRAKING SYSTEM
Brakes	Coaster brake.
OTHER COMPONENTS

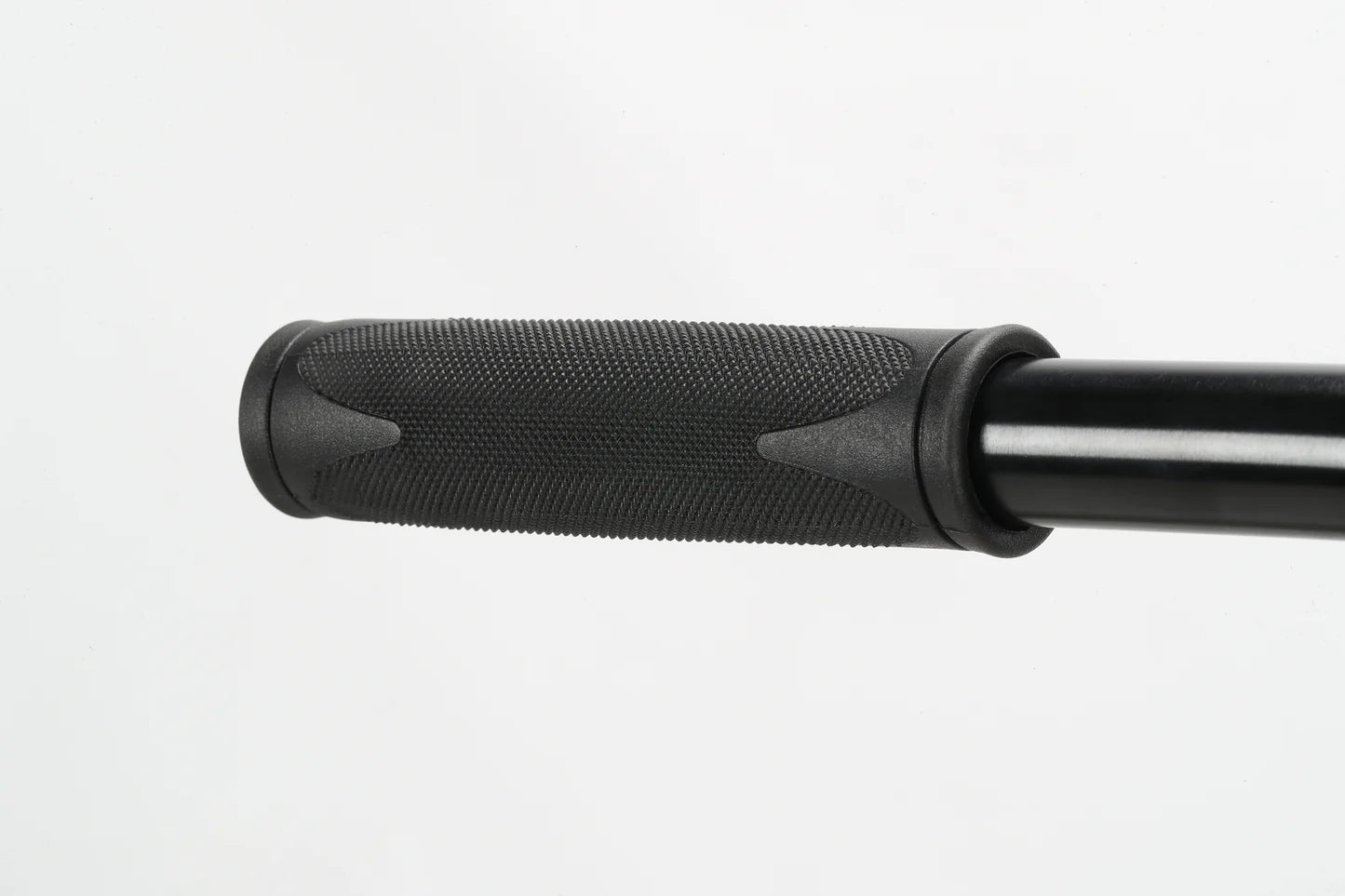

Grips/Tape	Kraton rubber. Closed end with internal plug.

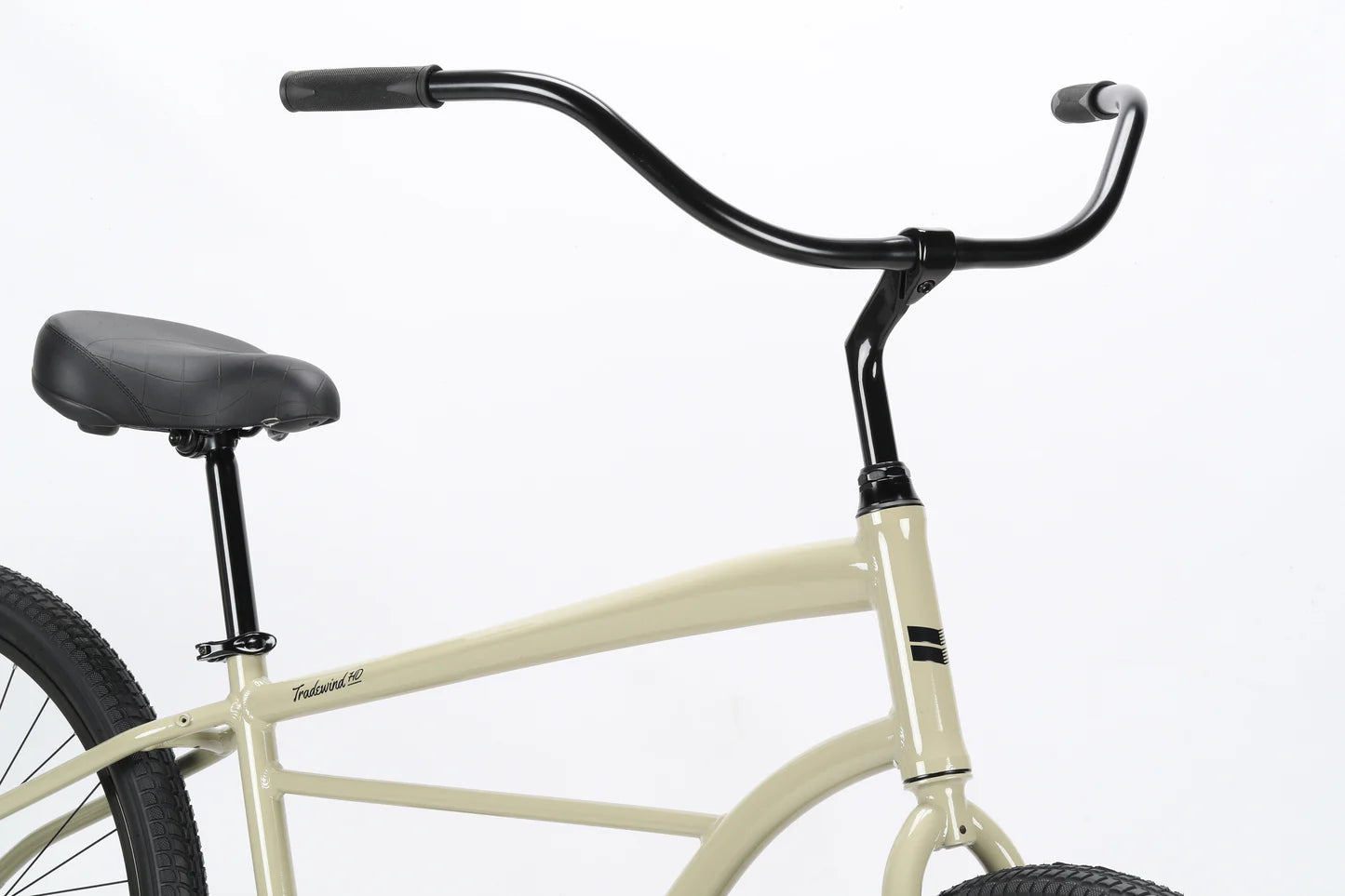

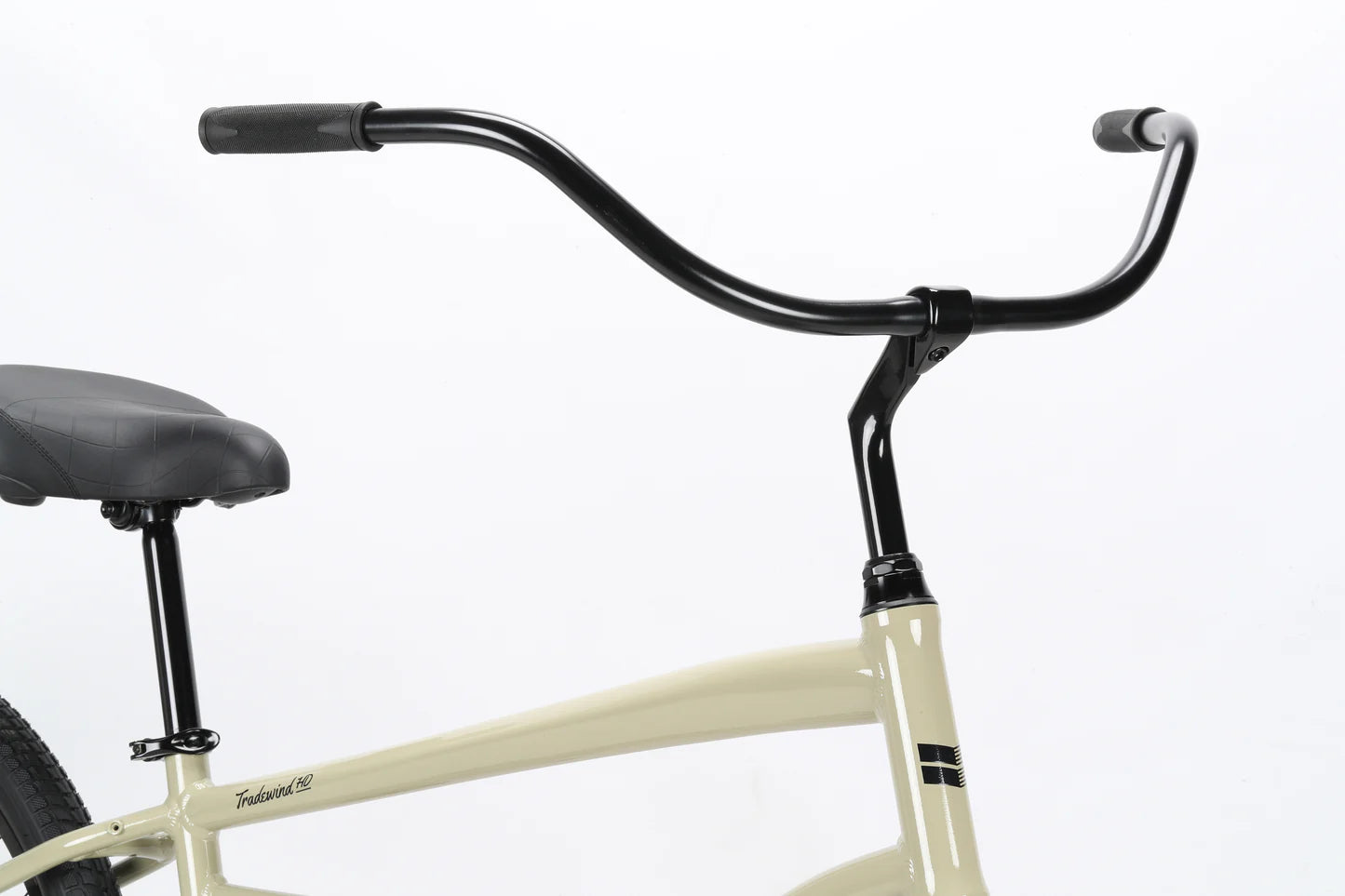

Handlebar	Heat-treated alloy SuperCruise. 700mm wide.
Stem	Quill alloy 30° rise. 25.4mm bar bore. 100mm length.
Headset	Alloy. 1" threaded. Semi-sealed cartridge bearings.

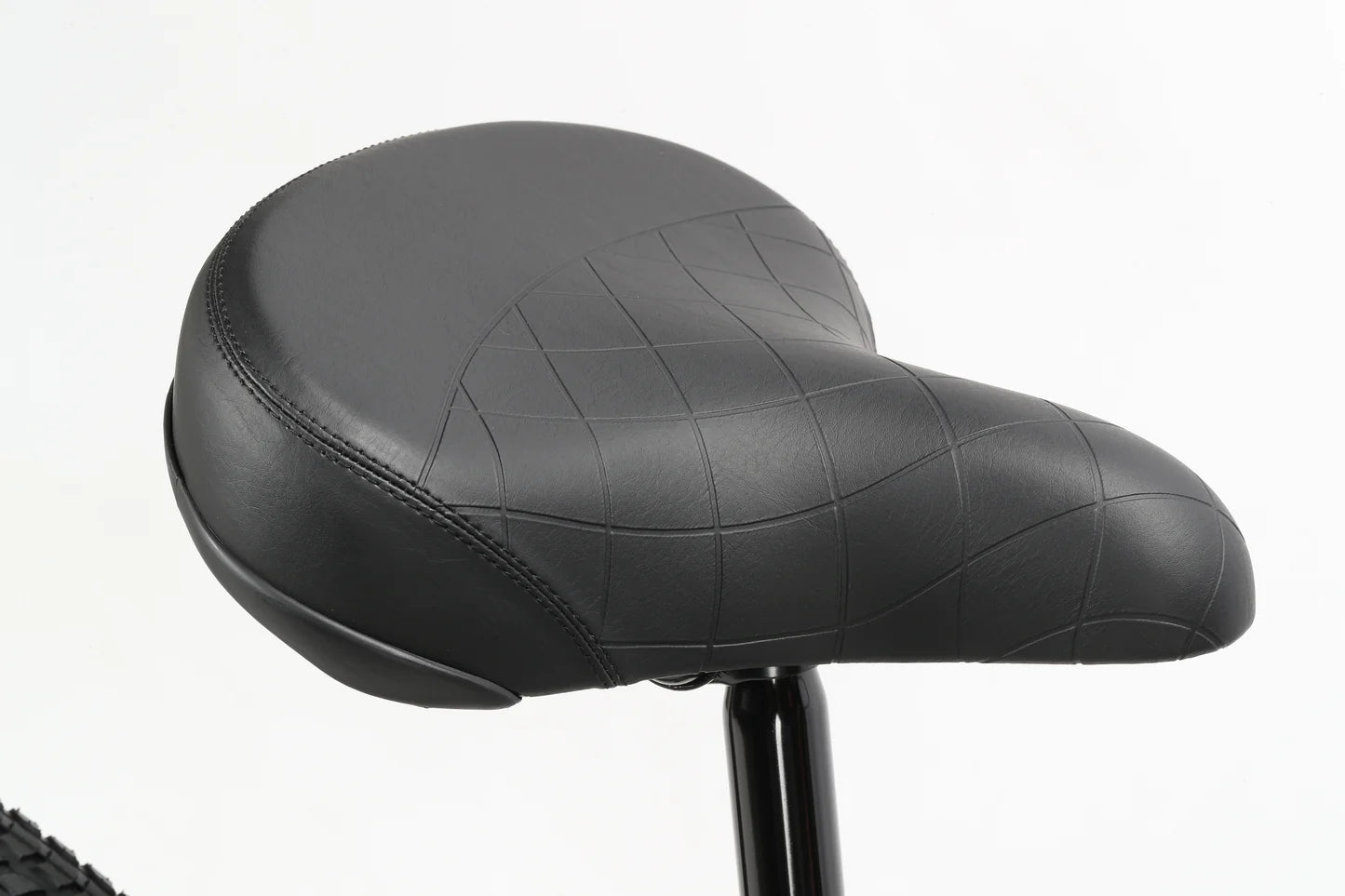

Saddle	Haro elastomer Cruiser.
Seat Post	Alloy 27.2mm x 400mm

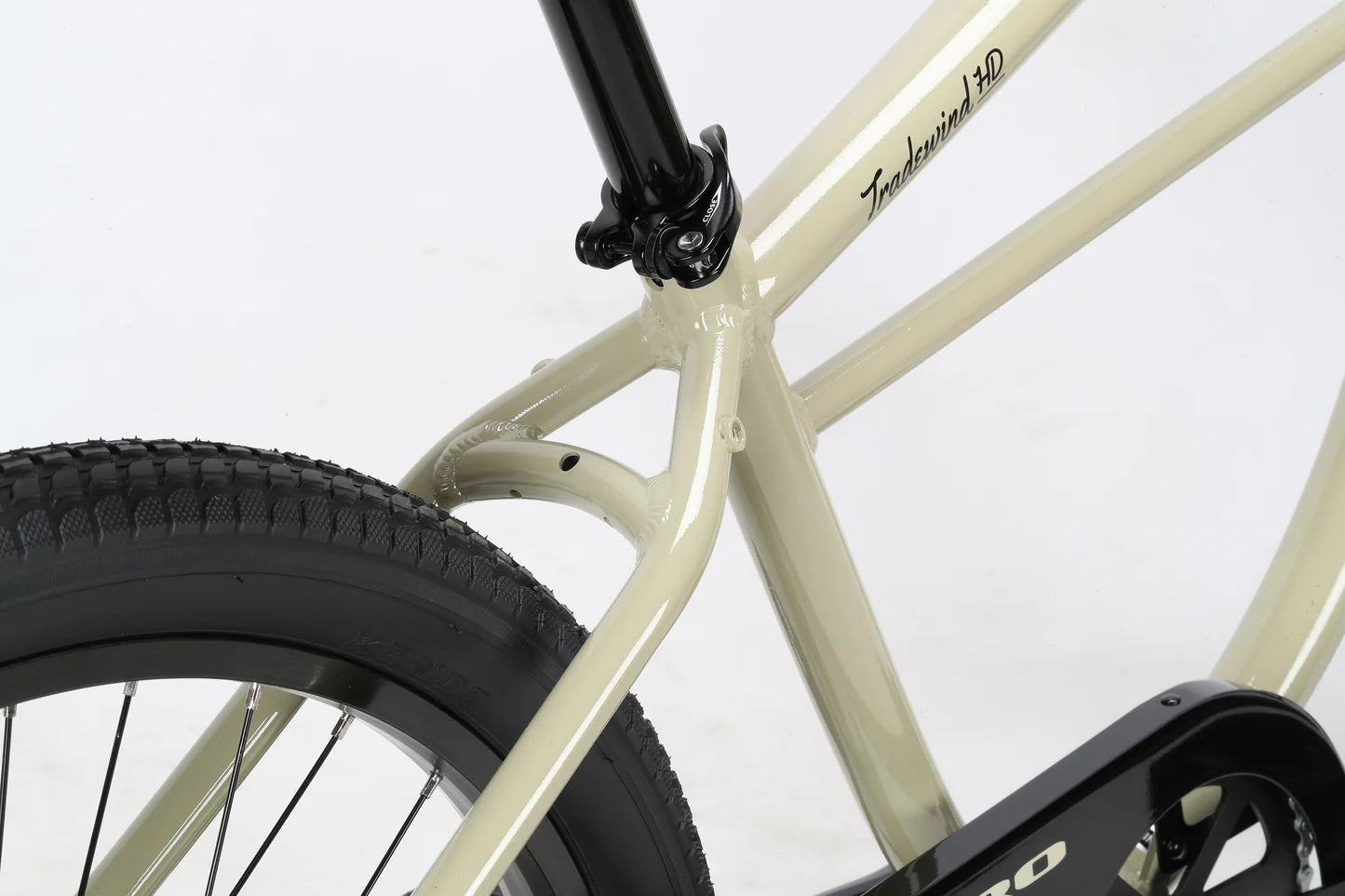

Seat Clamp	Alloy quick-release. 31.8mm. Anti-rust coating on internal cam hardware.
Extras	Rack and fender mounts. Steel cartridge kickstand.

Geometry:

SIZE	Mens	Womens
A. Top Tube (Effective)	689mm (27.1")	689mm (27.1")
B. Seat Tube (C-T)	432mm (17")	390mm (15.4")
C. Standover Height	727mm (28.6")	529mm (20.8")
D. Head Tube Length	190mm (7.5")	190mm (7.5")
E. Head Angle	67°	67°
F. Seat Angle	67°	67°
G. Wheelbase	1196mm (47.1")	1196mm (47.1")
H. Chainstay	537mm (21.1")	537mm (21.1")
I. BB Drop	45mm (1.8")	45mm (1.8")
J. Stem Length	100mm	100mm
K. Bar Width	700mm	700mm
L. Crank Length	170mm	170mm
M. Wheel Size	26	26
