Description

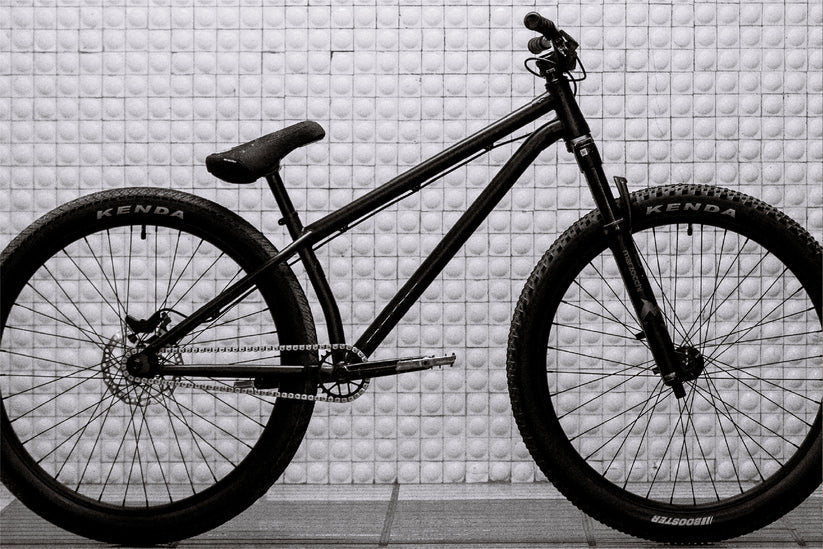

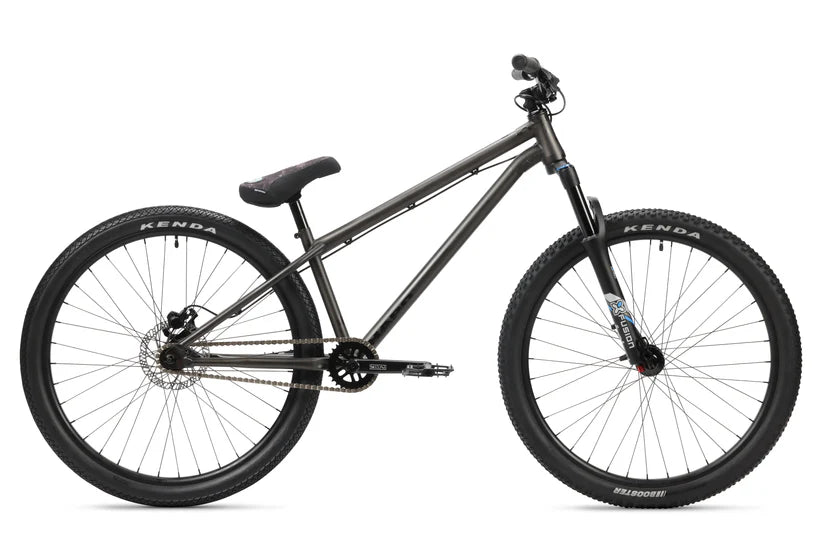

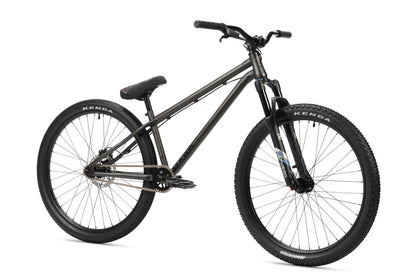

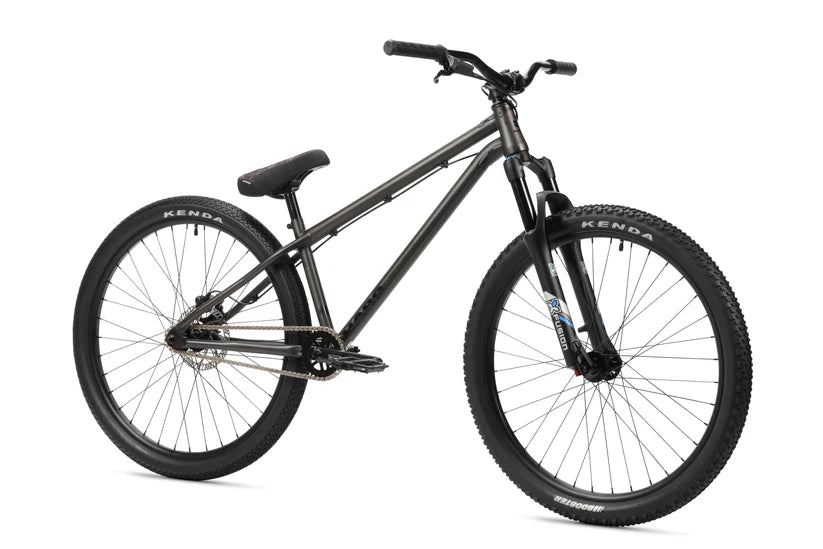

Haro Steel Reserve 2 26"

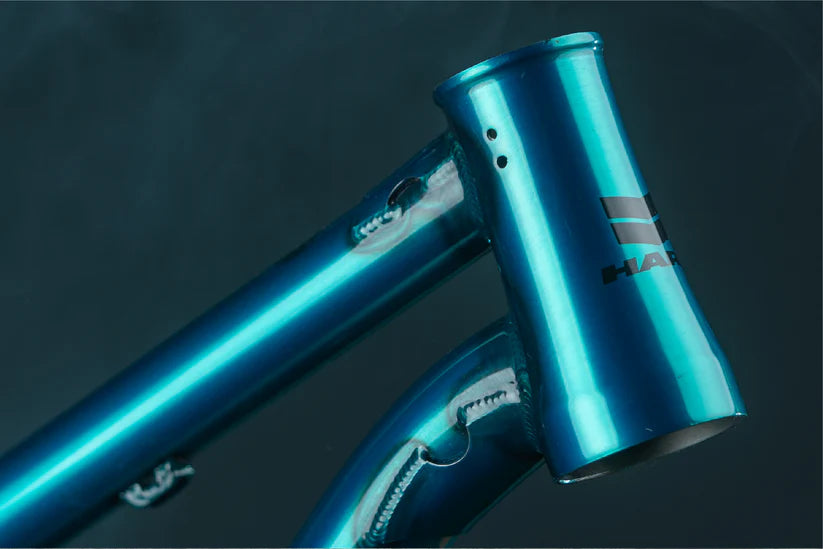

Level up. The Haro Steel Reserve 2 Dirt Jumper features an all-new, all-chromoly frame with a tapered, integrated head tube and gusseted top and down tubes. Other high-end details include cable guides, an integrated seat clamp and chain tensioners to keep it all tight and rattle-free. Updated from previous SR frames with a longer top tube for more room in the front end, balanced with a short rear triangle, the SR2 is just as stable in the air as it is tracking through the turns. A 100mm travel Slant 34 fork takes the brunt of the landings, with BMX-inspired parts like our Baseline 3-piece chromoly cranks, 28T forged sprocket, Pivotal seat/post and Premium CK grips. Sealed bearings all around, double-wall 36h rims and a hydraulic disc rear brake slows this rig down when and if the need arises.

Features:

Full chromoly frame w/integrated HT, Euro BB, integrated chain tensioners
SLANT 34 fork, Thru-axle 15mm, tapered alloy steerer, 1-1/8"-1.5", 26" x 100mm Travel
Haro Baseline 3-pc chromoly 8-spline. 165mm
28T Forged alloy sprocket
28/14
Baseline Halflink chain
Alloy 6061 PG bars; 50mm rise; 35mm bore; 780w; 9° back; 5° up
Premium "CK" Grips
26", 36 Hole Alloy, Double Wall, Pinned 30 Inner Width
Front - 26x2.4" Kenda booster SRC / Rear - 26x2.25" Kenda 360 SRC
Tektro Auriga Hydraulic Disc Brake; 160mm Rotor

Specifications:

Frame	100% Chromoly frame with integrated headtube, Euro BB, integrated chain tensioners
Fork	X-Fusion SLANT 34, 15mm thru axle, Alloy Tapered Steerer, 100mm Travel
Colors	Matte Black, Atlantic Blue
DRIVETRAIN
Cranks	Baseline 8-Spline Chromoly 165mm
Pedals	Polycarbonate with replaceable pins
Chain	Baseline Halflink Chain
Bottom Bracket	Double row sealed bearing Euro BB

WHEELS
Tires	Front - 26x2.4" Kenda booster SRC, Rear - 26x2.25" Kenda 360 SRC
Wheels/Rims	26", 36 Hole Alloy, Double Wall, Pinned 30mm Inner Width
Front Hub	CNC Alloy Sealed Bearing 15mm through axle
Rear Hub	Alloy sealed Cassette
BRAKING SYSTEM
Brakes	Tektro Auriga Hydraliuc Disc Brake 160mm Rotor
OTHER COMPONENTS
Grips/Tape	Premium "CK" Grips
Handlebar	6061 Aluminum 50mm rise, 35mm clamp, 780mm width, 9° back, 5° up
Stem	Aluminum 50mm reach, 35mm clamp
Headset	FSA 45° X 45° ACB Sealed 1-1/8" - 1.5"
Saddle	Baseline Pivotal
Seat Post	27.2 Alloy Pivotal
Seat Clamp	Integrated

Geometry:

SIZE
Seat Tube (C-T)	320mm
Top Tube (Effective)	586.5mm
Head Tube Angle	69°
Seat Tube Angle	67.5°
Chainstay Length	399mm
BB Drop	17.5mm
Wheelbase	1064.5mm
Head Tube Length	112mm
Standover
Stack Height
Reach	415mm
Axle to Crown	478mm
Fork Offset	40mm
