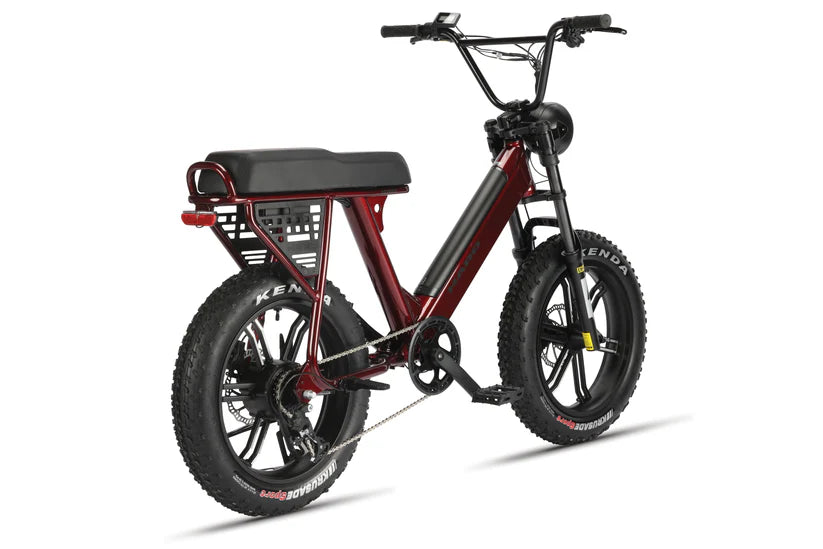

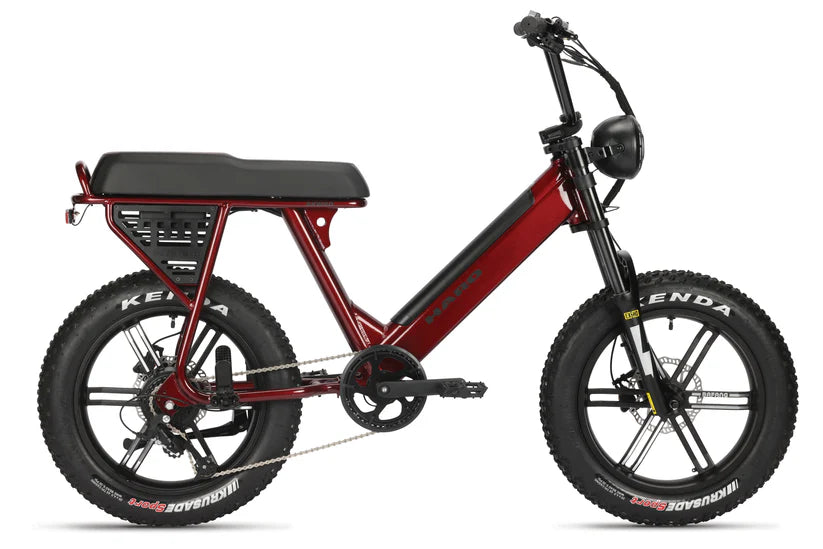

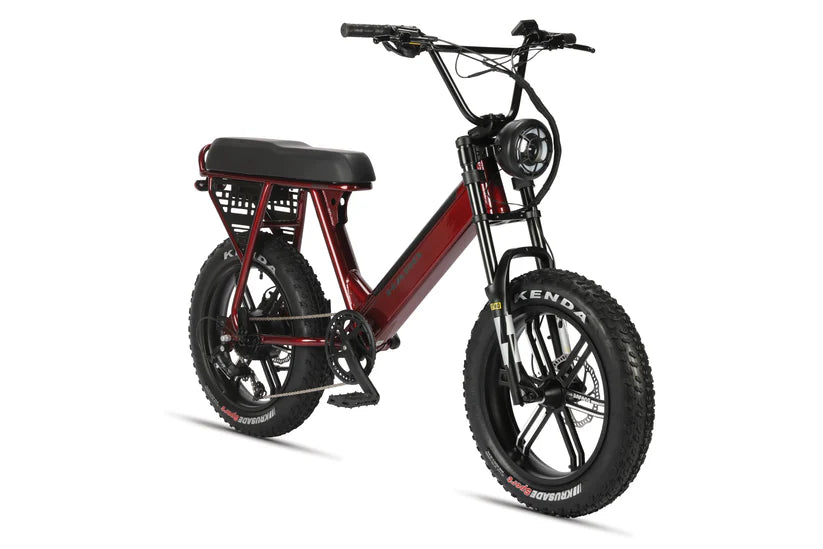

Haro Skwad 1 I/O

Skwad up. The Skwad 1 is our fan-favorite Skwad E-bike re-upped with a few tweaks to keep it "current", if you will. Electric bike puns aside, the Skwad 1 is the powerhouse of our E-lineup with a 750W motor, aluminum frame, 100mm travel suspension fork and a big, comfy seat. On the bottom side, you get 6-spoke alloy wheels with 20 X 4" tires for the perfect combination of traction, cushion and shock-absorbing qualities. Five pedal assist levels, with a thumb-throttle and 7-speeds on the drive train get you where you want to go, in style.

Features:

6061 T6 Aluminium frame. Tapered head tube, internal downtube battery and built-in grid mounting plate

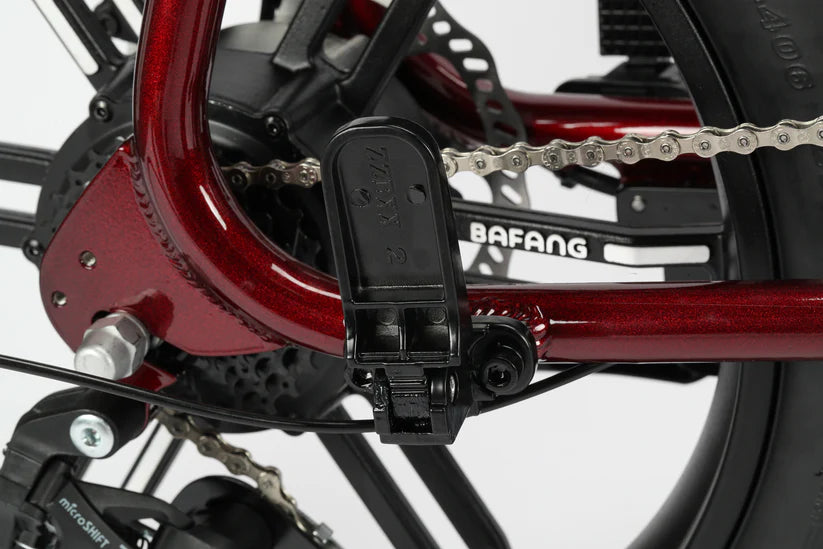

Bafang 750W drive unit
48v, 13.2AH internal downtube battery, UL certified
40+ mile range
Dual-piston hydraulic disc brakes with 180mm rotors, front & rear

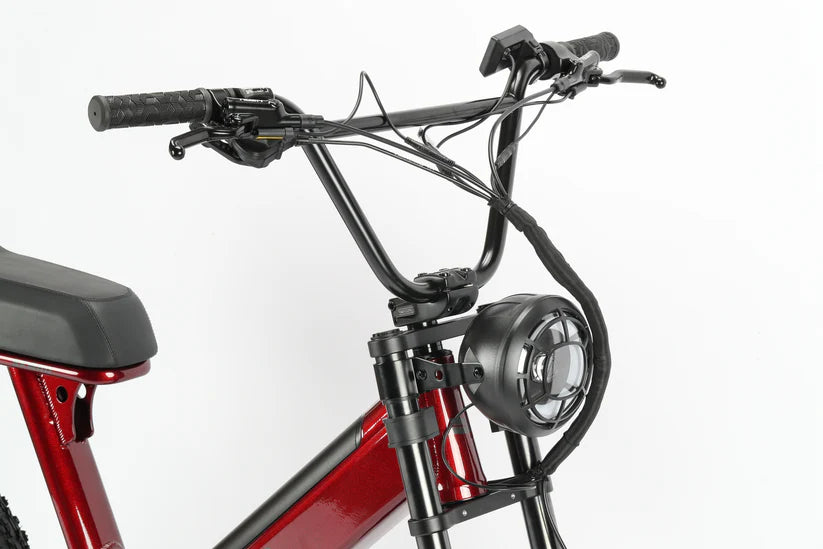

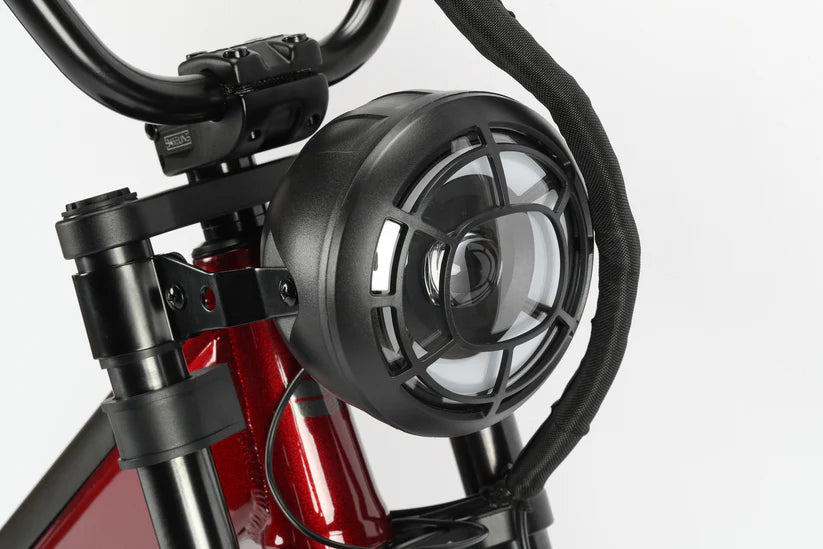

MX Style front headlight and rear brake alert light

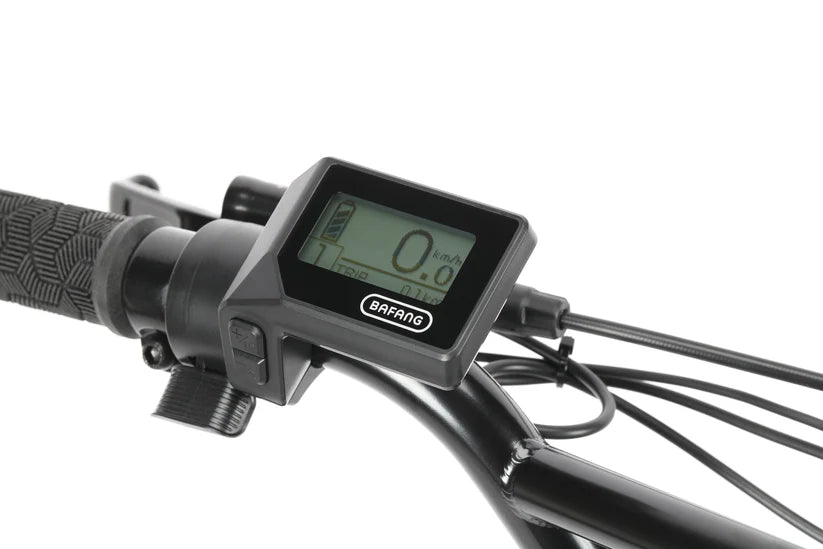

Left-side thumb throttle, five levels of pedal assist

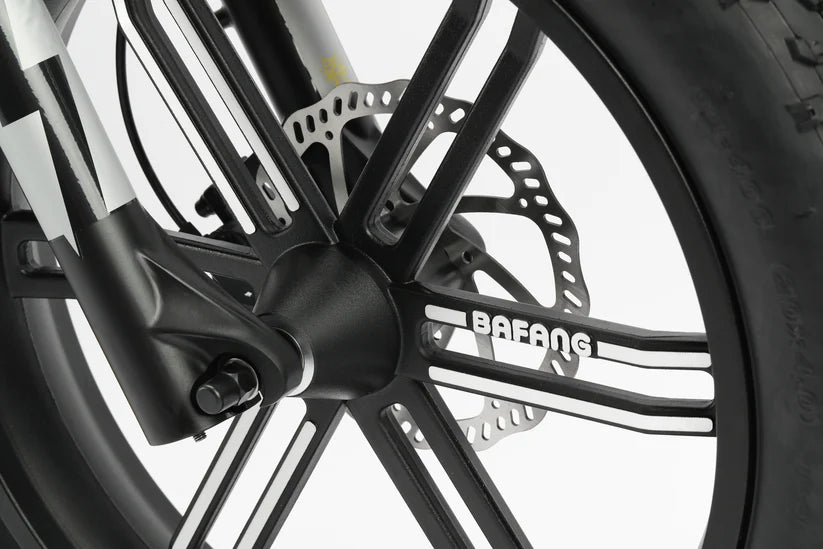

Alloy 6-spoke mag wheels with 20 x 4" Kenda tires
Triple crown suspension fork, 100mm travel
Ebike classification: Class 2, 750W/20MPH

Specifications:

Frame	6061 T6 Aluminium; tapered head tube and internal battery. Built-in grid mounting plate
Fork	100mm travel I Triple crown with alloy steerer tube I Aluminum 32mm stanchions
Colors	Pearl White, Cherry Cola
DRIVETRAIN
Cranks	Forged aluminum \| 170MM
Pedals	9/16" Chromoly axle, Alloy Body
Chain	KMC Z7 \| 7SPD
Bottom Bracket	Square Taper \| 73mm \| 148mm Spindle I Cadence Sensor
Front Derailleur
Rear Derailleur	Microshift RD-M26L
Derailleur Shifter	Microshift TS39-7
Freewheel/Cassette	Shimano mf-TZ500-7SPD 14-28T
Drive Unit	Bafang 750W. Class 2, 750W/20MPH, five levels of pedal assist
Battery	Bafang 48V 13.2 AH 576WH, 13S4P, EVE 2900 cells, UL certified
WHEELS
Tires	Kenda Krusade 20"X4"
Wheels/Rims	Bafang Alloy 6 Spoke Mag Wheel
BRAKING SYSTEM
Brakes	Rush Dual Piston \| Open System \| 180mm Rotors \| STD Mount
Brake Levers	Radius 2.5 Finger \| Sensor Control Cut Off \| Reach Adjustment
OTHER COMPONENTS
Grips/Tape	Dual locking 135mm Velo Grips
Handlebar	Haro Baseline 2-piece 9.5"

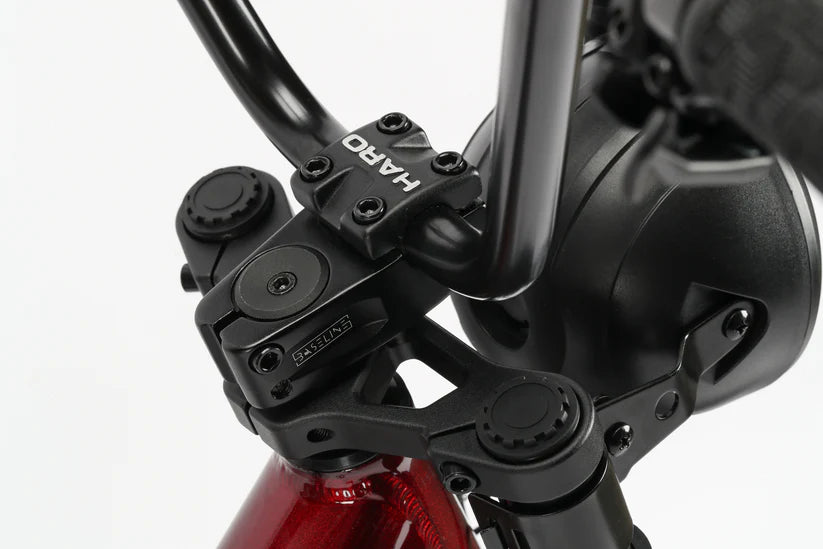

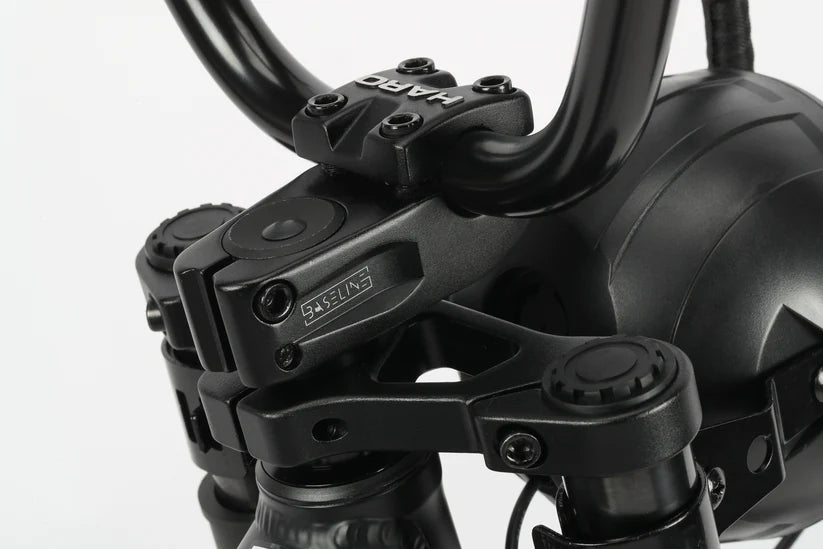

Stem	Haro Baseline 48mm reach
Headset	1-1/8" - 1-1/5" tapered internal headset

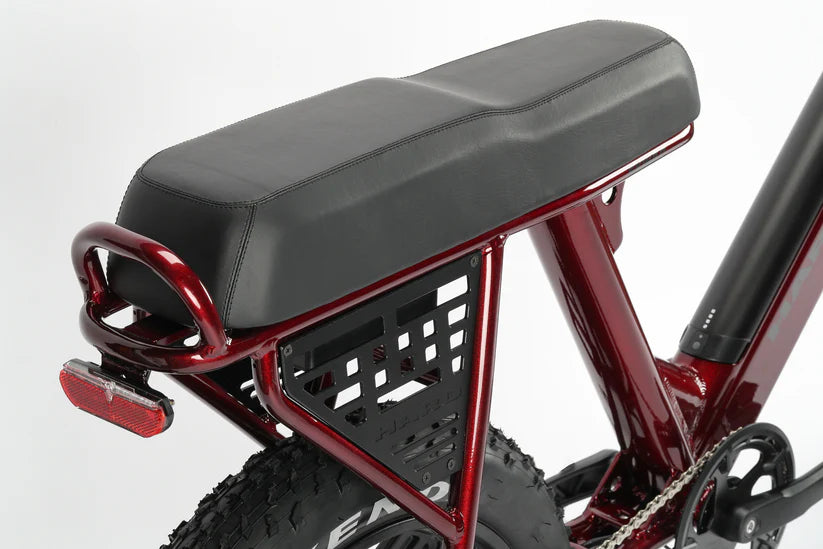

Saddle	Haro Cafe
Seat Post
Extras	Rear brake Light; Front MX style headlight; left thumb throttle

Geometry:

SIZE	20
A. Top Tube (Effective)	668mm (26.30")
B. Seat Tube (C-T)	460mm (18.1")
C. Standover Height	mm (")
D. Head Tube Length	mm (")
E. Head Angle	71°
F. Seat Angle	°
G. Wheelbase
H. Chainstay	466mm (18.3")
