Description

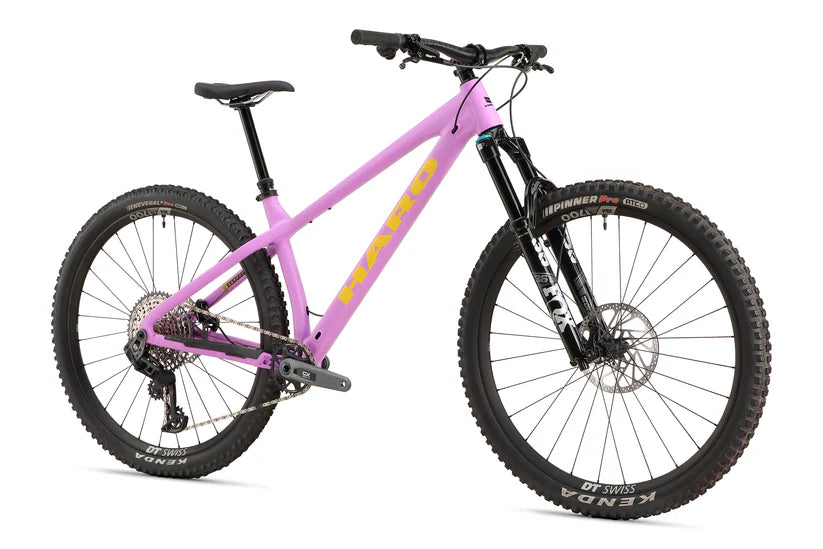

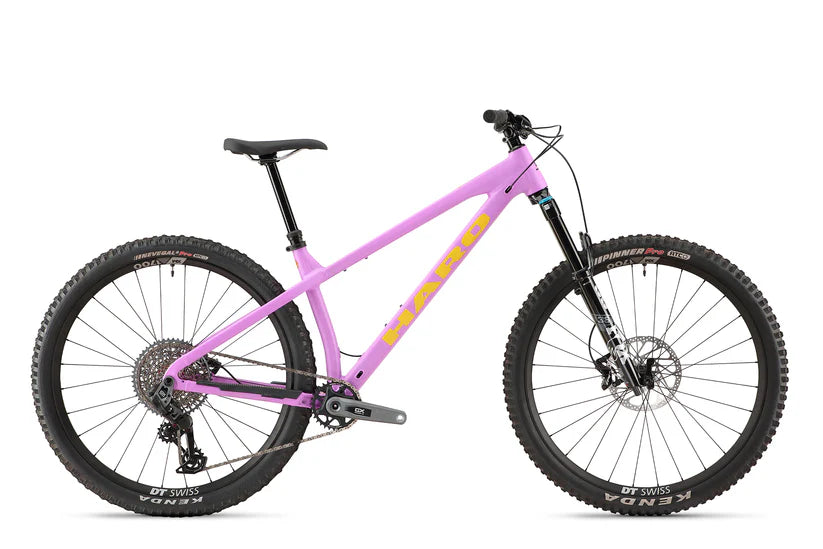

Haro Saguaro 1 29"

Simple, slack and full-on fun. The Saguaro 29-inch hardtail is purpose built to be the most versatile bike in your quiver. Make no mistake, this hardcore hardtail is no XC bike. With an aggressive geometry and slack head angle that is more inclined to hauling down hills than pedaling up them, the Saguaro is stretched out in the front and shortened up in the back for a stable ride at speed. As one of our testers put it: "It makes mellow trails more fun". Hit the jumps, hammer the single track and rip the turns. The Saguaro is everything you need, and nothing you don't. All three models of the Saguaro bike collection feature our heat-treated, hydroformed 6061 aluminum Saguaro frame with three spec levels to fit your needs (and budget). Saguaro One. No corners were cut in creating the Saguaro 1. We didn't skimp on secondary components, either. From the Fox 36 Elite fork, to the DT Swiss wheel set mounted with tubeless tires, to the Race Face cockpit and SRAM GX Transmission, every single part is ready for the highest level ride. No upgrades necessary.

Features:

  • Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. Tapered head tube.
  • Modern geometry: 64.5 degree head tube angle with a longer front triangle and shorter rear end.
  • Fox 36 Performance Elite 140mm fork. Plenty of travel for steep, techy descents.
  • DT Swiss 32 hole aluminum wheel set. Sealed DT hubs with Boost thru-axles (15mm front, 12mm rear).
  • SRAM GX Transmission 12-speed drivetrain
  • Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4"ATC (rear). Sealant included.
  • TranzX JD-YSP15 dropper post, size-specific per frame size.
  • TRP Trail Evo 4-piston hydraulic brakes, 203mm rotor (front), 180mm rotor (rear)
  • Full 29er. Small size features "mullet" wheel configuration with 29" front, 27.5" rear

Specifications:

Frame Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Double-butted top and down tubes. Internal cable routing. UDH derailleur hanger. Tapered head tube. Frame will accommodate up to 2.6" tires.
Fork FOX 36 Performance Elite; 140mm travel. Grip X. 44mm rake.
Colors Metallic Green, Matte Mauve
DRIVETRAIN

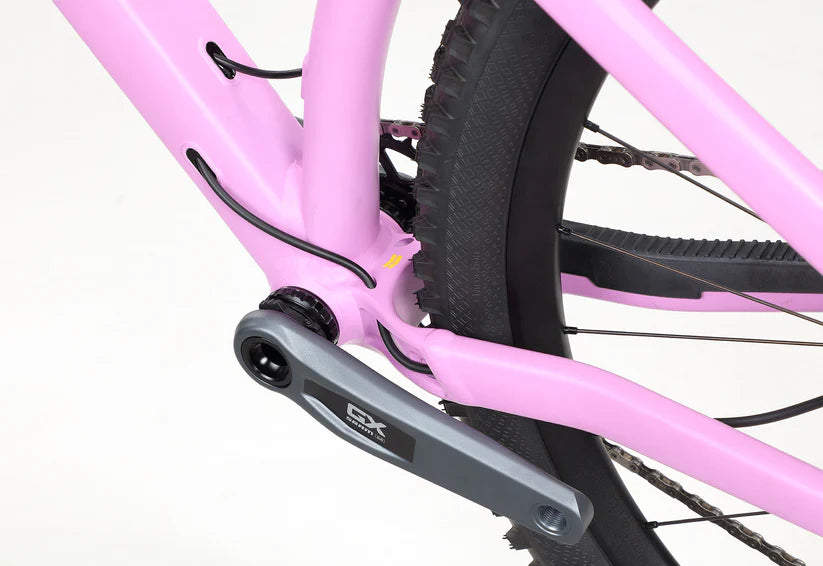

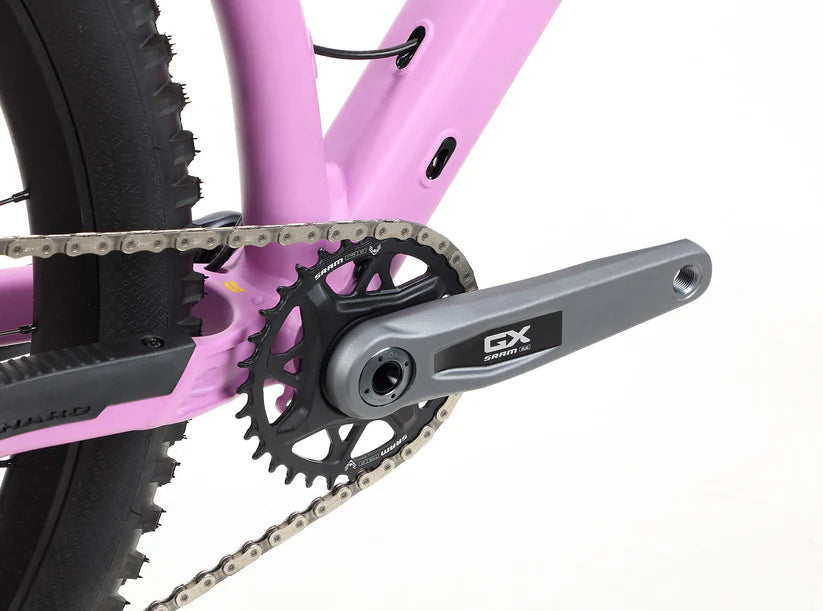

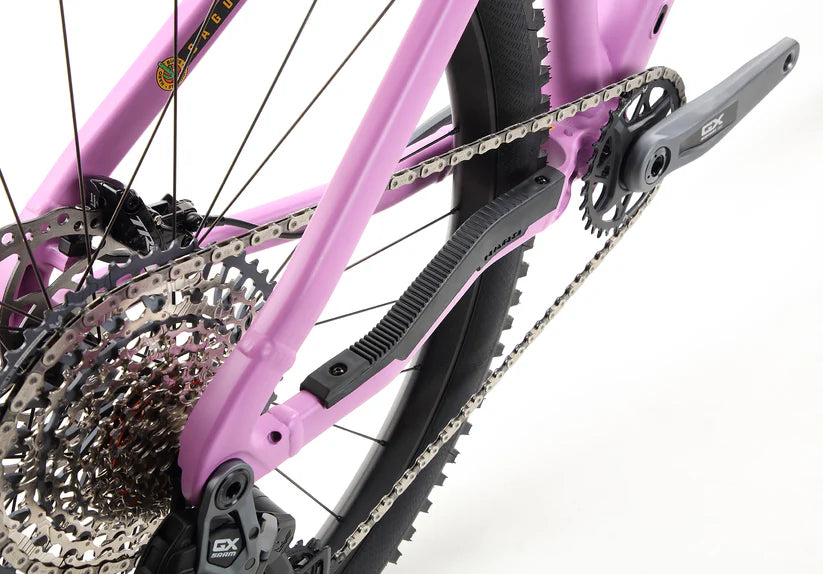

Cranks SRAM GX Transmission 32T Chainring, 170mm
Pedals

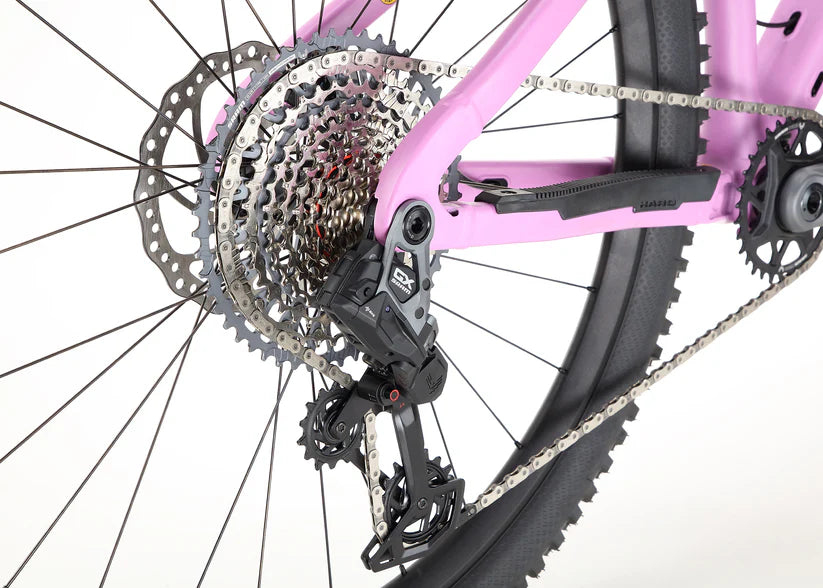

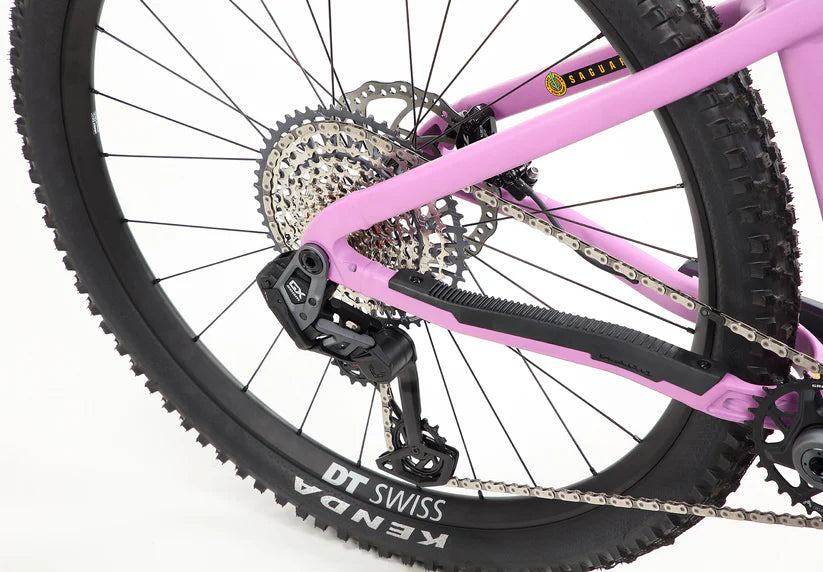

Rear Derailleur SRAM GX Transmission 12-speed
Derailleur Shifter SRAM GX Transmission
Freewheel/Cassette SRAM GX Transmission 10-52T
WHEELS

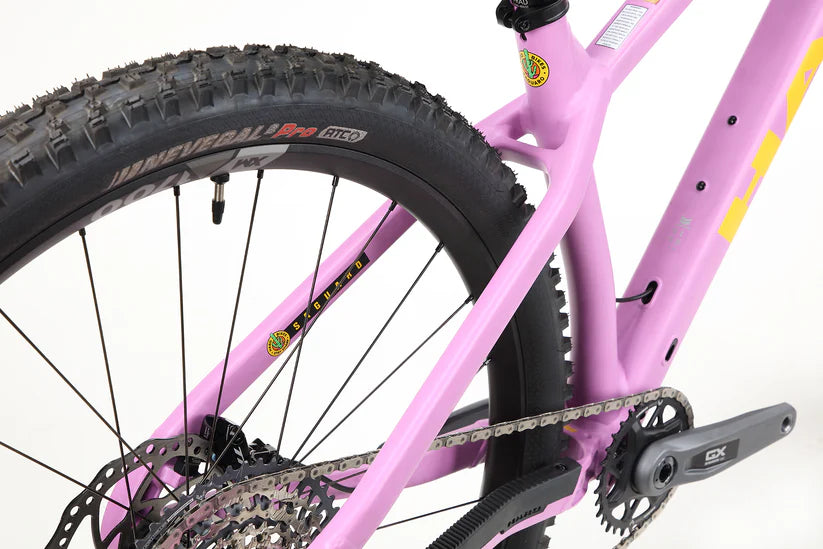

Tires Tubeless Kenda Pinner 29 X 2.4" ATC (front)/Kenda Nevegal 2, 29 X 2.4" ATC (rear). Sealant included. Small size features 27.5 X 2.4" rear "mullet" configuration.
Wheels/Rims DT Swiss XM 1700 Aluminum, Hooked, Crotchet tubeless TC, 30mm inner width, 32H
Front Hub DT Swiss XM 1700 Spline, 110 x 15mm boost thru-axle
Rear Hub DT Swiss XM 1700 Spline, 148 x 12mm boost thru-axle
BRAKING SYSTEM

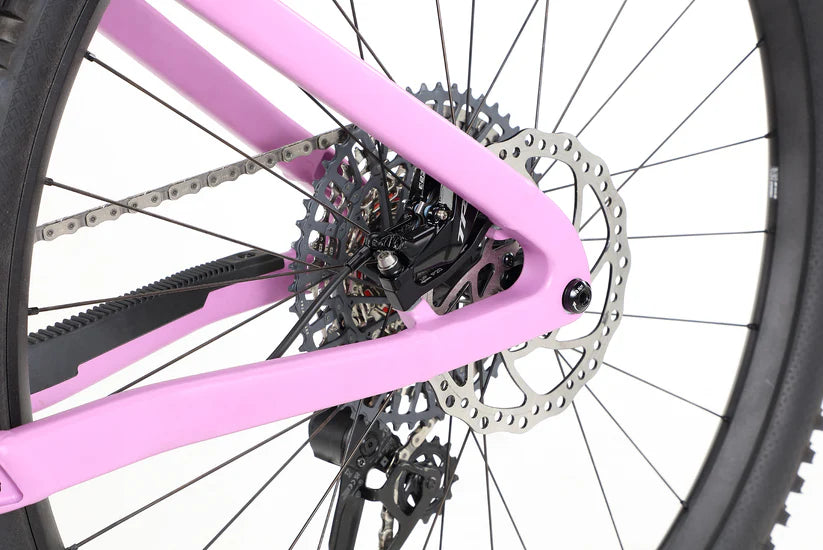

Brakes TRP Trail Evo 4-piston brakes, 203mm rotor (front), 180mm rotor (rear)
OTHER COMPONENTS
Grips/Tape WTB Wavelength Lock-On

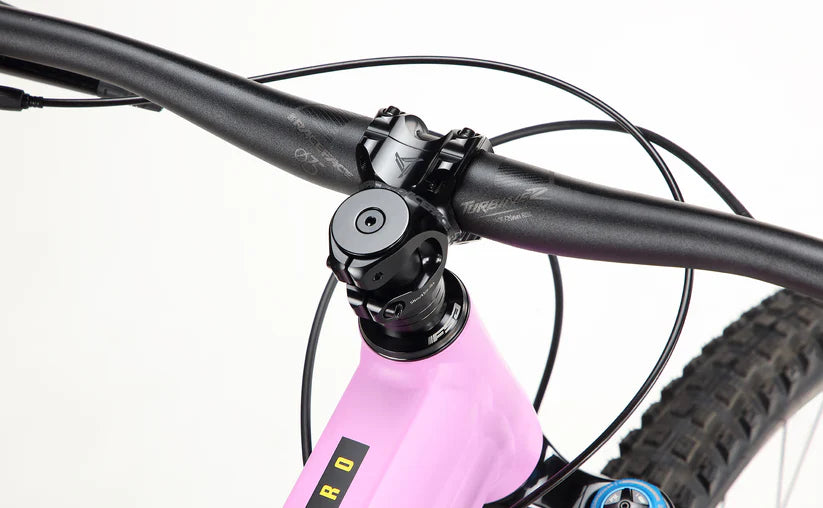

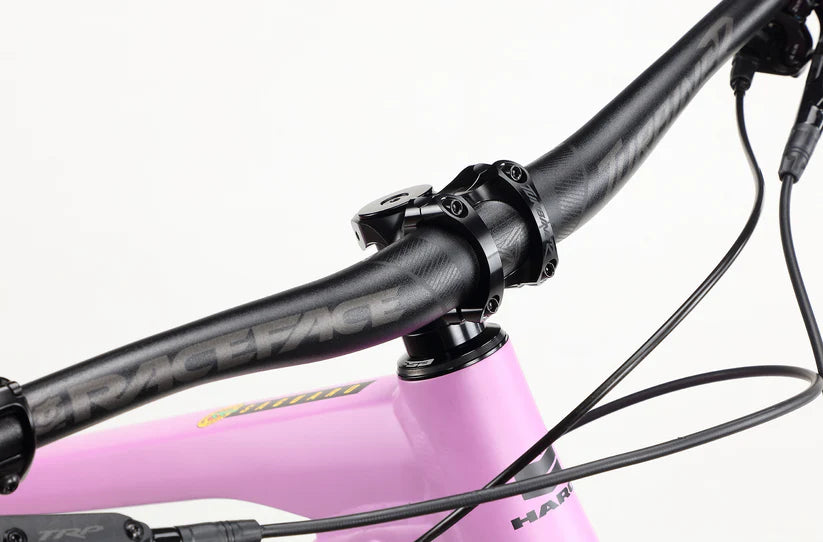

Handlebar Race Face Turbine R. 800mm wide X 20mm rise

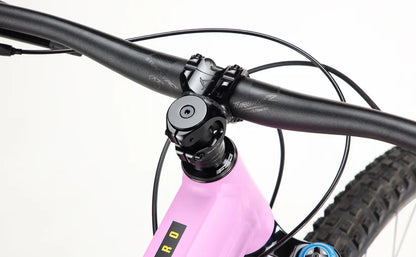

Stem Race Face Turbine R. 35mm Reach

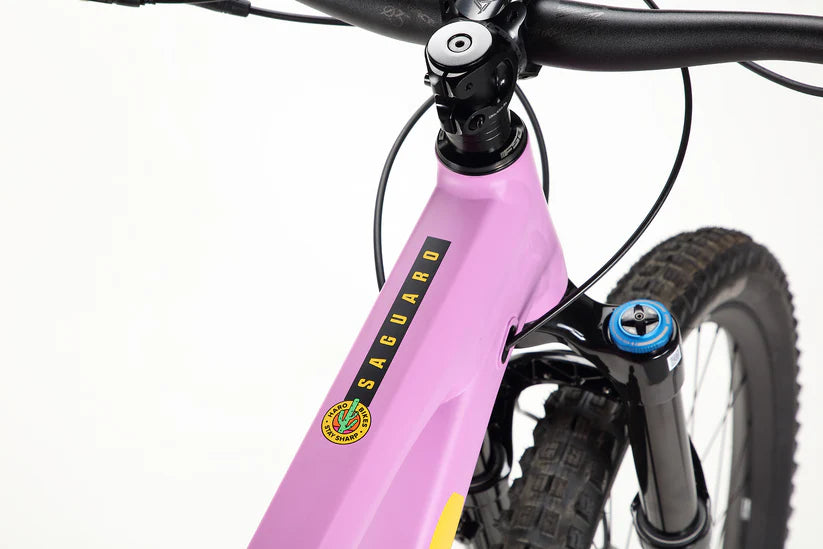

Headset FSA Orbit sealed, tapered 1-1/8" - 1-1/5"
Saddle WTB Volt Medium chromoly rails. PU Leather. Flex-tuned.

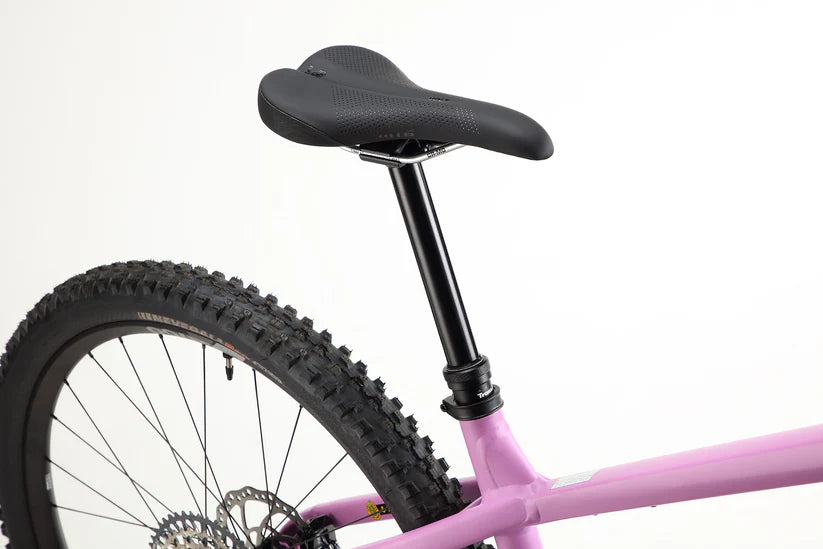

Seat Post TranzX JD-YSP15 dropper. Small 160mm, Medium/Large/X-Large 180mm
Extras Tubeless tire sealant included.

Geometry:

SIZE S M L XL
Seat Tube (C-T) 350mm 405mm 430mm 480mm
Top Tube (Effective) 574.2mm 601.2mm 633.4mm 650.7mm
Head Tube Angle 64.5° 64.5° 64.5° 64.5°
Seat Tube Angle 76° 76.5° 76.5° 76.5°
Chainstay Length 418mm 430mm 435mm 435mm
BB Drop 50mm 70mm 70mm 70mm
Wheelbase 1156.6mm 1195.1mm 1234.4mm 1253.7mm
Head Tube Length 100mm 110mm 120mm 130mm
Standover 694mm 706mm 709mm 709mm
Stack Height 642.3mm 650.8mm 659.9mm 668.9mm
Reach 420mm 445mm 475mm 490mm
Axle to Crown
Fork Offset 44mm 44mm 44mm 44mm
Wheel Size 29" Front / 27.5" Rear 29" 29" 29"

Size Guide:

Size Inches CM
S 5" - 5' 6" 153 - 166
M 5' 4" - 5' 11" 162 - 180
L 5' 9"- 6' 2" 175 - 187
XL 6' - 6' 5" 180 - 196

Haro

Haro Saguaro 1 29" - Matte Mauve

Haro Saguaro 1 29" - Matte Mauve

Regular price $2,499.99
Regular price $3,999.99 Sale price $2,499.99 Was $3,999.99 Save $1,500.00
Color
Size

Product ID: GM071425-79

Only 2 Items Left
