Description

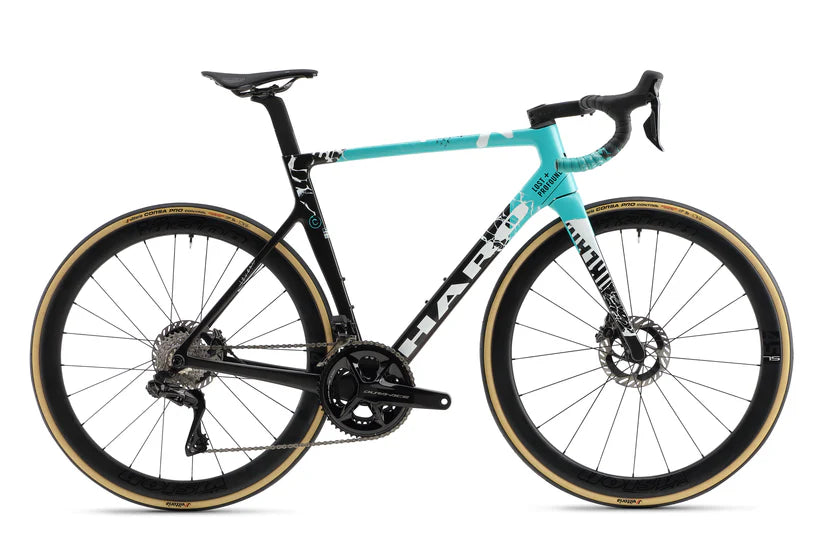

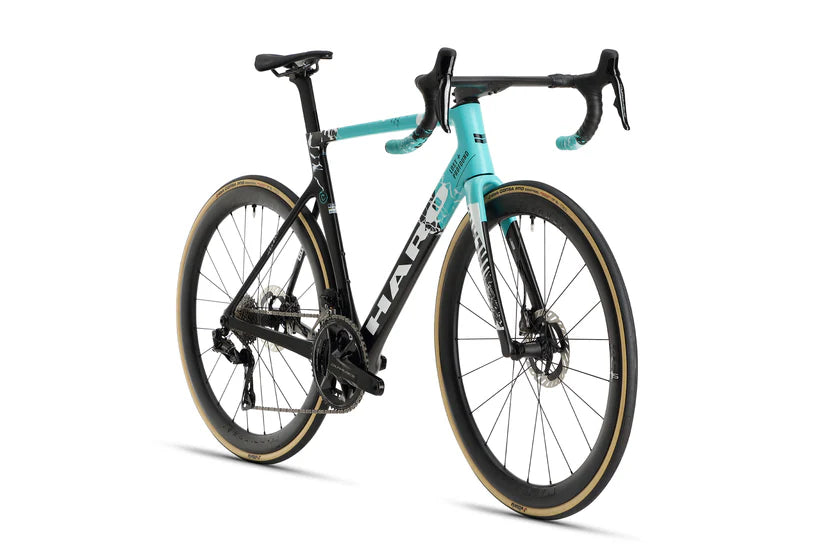

Haro Rivette Carbon Top Shelf 700c

Who says you can't have it all (in a road bike)? The Rivette is our race-ready all-arounder, meticulously crafted from a mix of high-pitch carbon fiber in custom size-specific layups for an unmatched blend of unwavering stiffness and feathery weight. The Rivette's stiff headtube delivers precise steering for razor-sharp cornering and control. Aero tube shapes and fully internal cable routing create clean lines and reduce drag, ensuring every watt translates to pure speed. And with a short rear end for explosive acceleration, the Rivette's geometry is fine-tuned to let you conquer climbs, attack descents and carve through corners at race pace. Feel the road disappear beneath you as you push your limits and chase the podium on the Rivette. Our dream road bike, the Rivette Top Shelf is spec'd with the highest-level race-ready components including DURA-ACE Di2, Vision Metron 45 SL tubeless carbon wheels and Vittoria Corsa Pro tires. With an integrated aero cockpit featuring a one-piece bar/stem combo, complete with a computer mount, this speed demon is ready for full race mode.

Features:

  • UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.

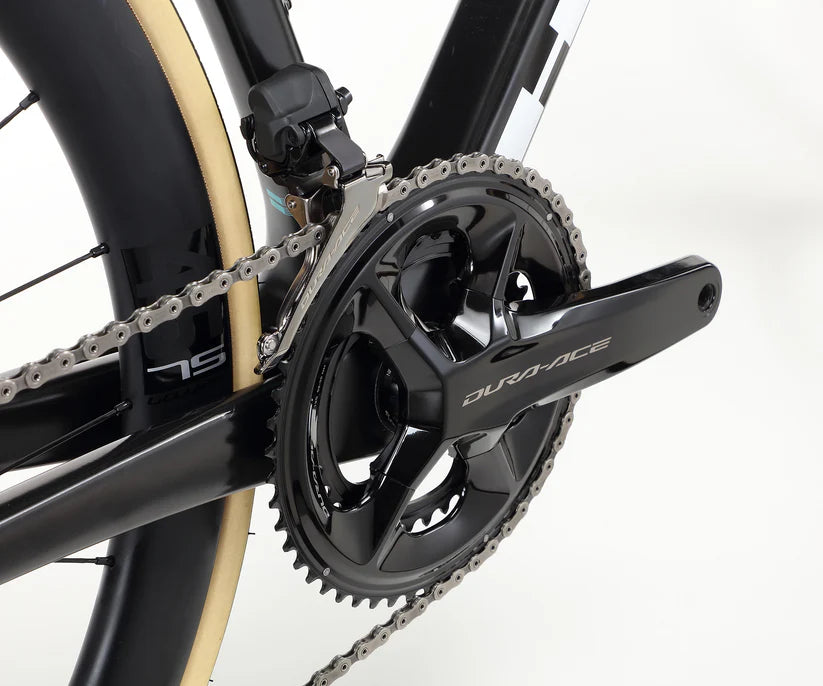

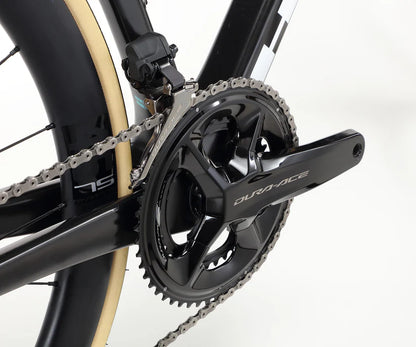

  • Shimano Dura-Ace Di2 with size-specific crank lengths.
  • Shimano Dura-Ace hydraulic disc brakes with 160mm rotors.
  • Vision Carbon Metron 45 SL tubeless clincher wheelset. Valves, tape and sealant included.
  • Vittoria Corsa Pro tubeless-ready tires, 700x30c with tan sidewalls. *Max tire width 700x36c.
  • Headset for internal cable routing.
  • Custom bar tape to match frame graphics.
  • Designed around a Universal Derailleur Hanger (UDH).

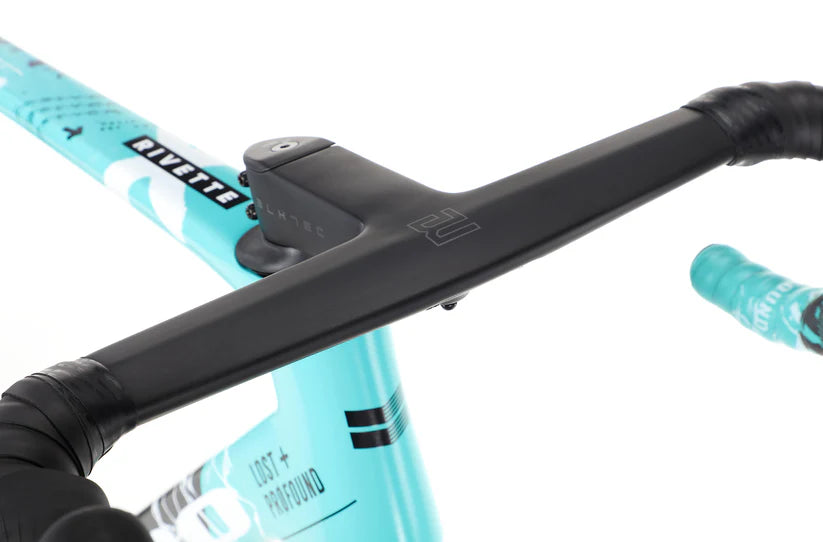

  • Size-specific BLKTEC R8 one-piece combined bar and stem with computer mount.

Specifications:

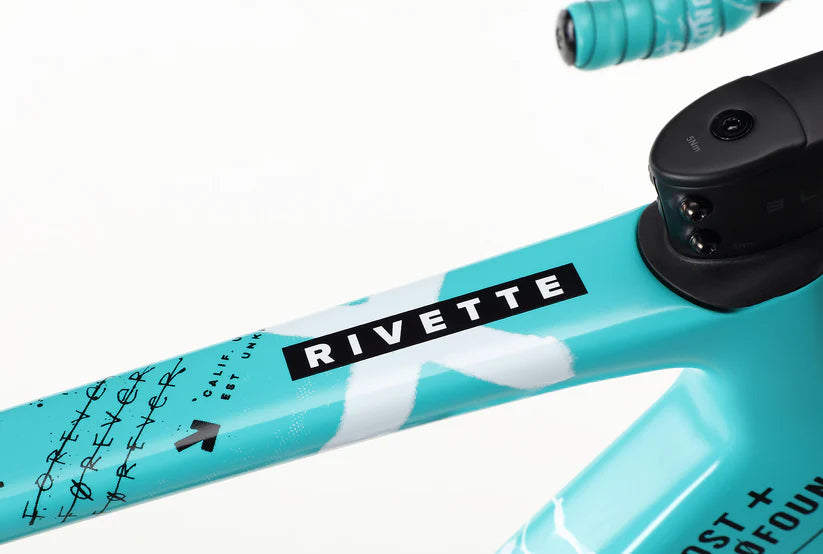

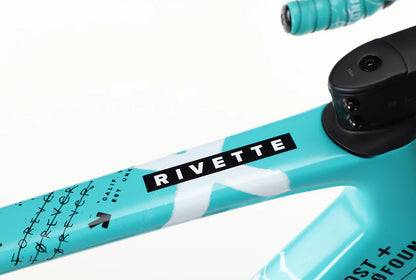

Frame Haro Rivette Carbon Frame
Fork Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer
Colors Matte Black / Teal, Gloss Rose / Gold
Weight 16.18 lbs 7.34 kg, (56cm)
DRIVETRAIN
Cranks Shimano Dura-Ace 52-36T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals
Chain Shimano HG 12spd, CN-M9100
Bottom Bracket T47, 76.75mm, ø24

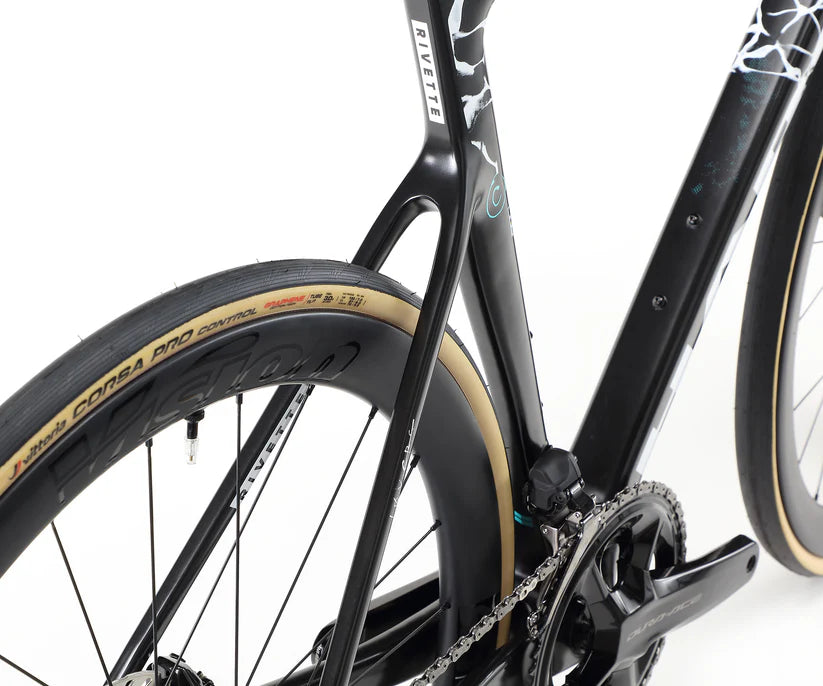

Front Derailleur Shimano Dura-Ace Di2, FD-R9250

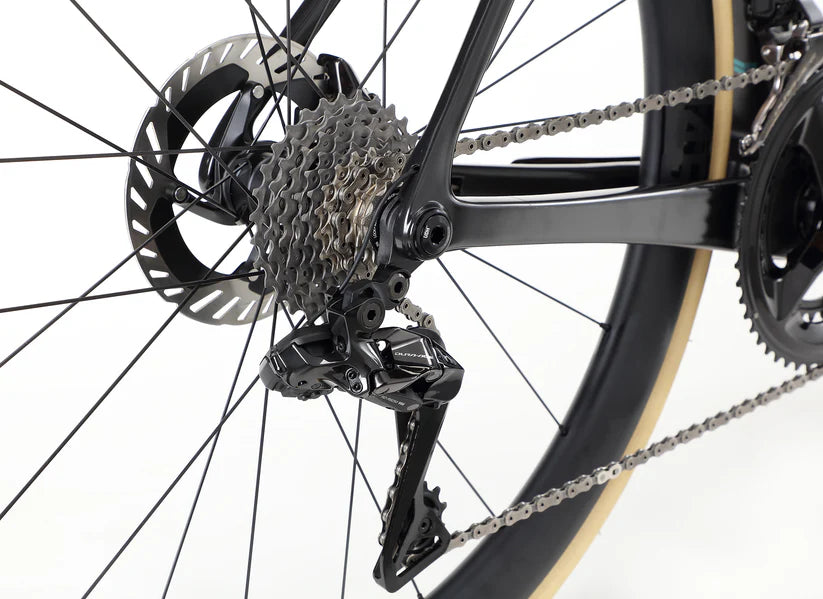

Rear Derailleur Shimano Dura-Ace Di2, RD-R9250
Derailleur Shifter Shimano Dura-Ace Di2, ST-R9270
Freewheel/Cassette Shimano Dura-Ace, 11-30T CS-R9200
WHEELS
Tires Vittoria Corsa Pro 30-622 fold TLR (tubeless ready) G2.0 700x30c.
Wheels/Rims Vision Carbon 45 SL tubeless clincher wheelset. Valves, tape and sealant included.
BRAKING SYSTEM
Brakes Shimano DURA-ACE Hydraulic Disc Brakes with 160mm Center Lock Rotors
Brake Levers Shimano DURA-ACE Di2
OTHER COMPONENTS
Grips/Tape Ciclovation Advanced, Leather touch, 3mm Thick

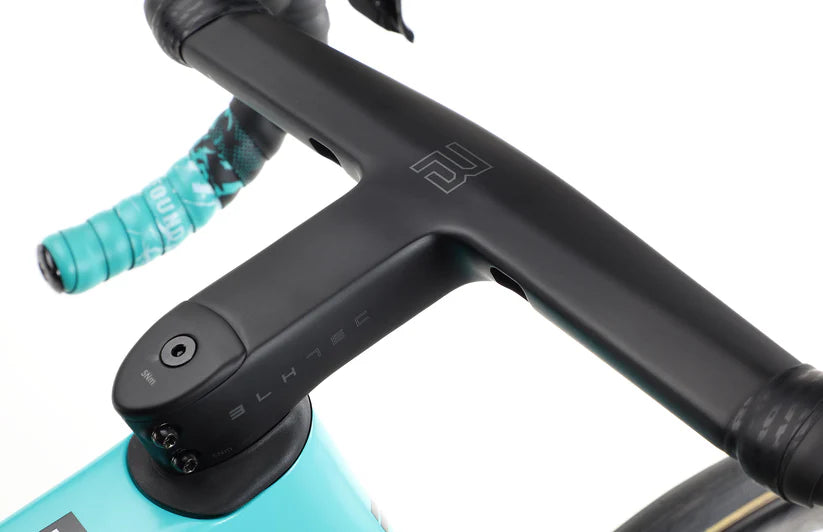

Handlebar BLKTEC R8 Carbon Bar Stem Combo, 48cm, 90mm/38cm; 51cm, 100mm/38cm; 54cm, 100mm/40cm; 56cm, 110mm/40cm; 58cm, 110mm/42cm; 61cm, 120mm/42cm
Stem Integrated w/handlebar
Headset Token A-Box Headset with internal cable routing

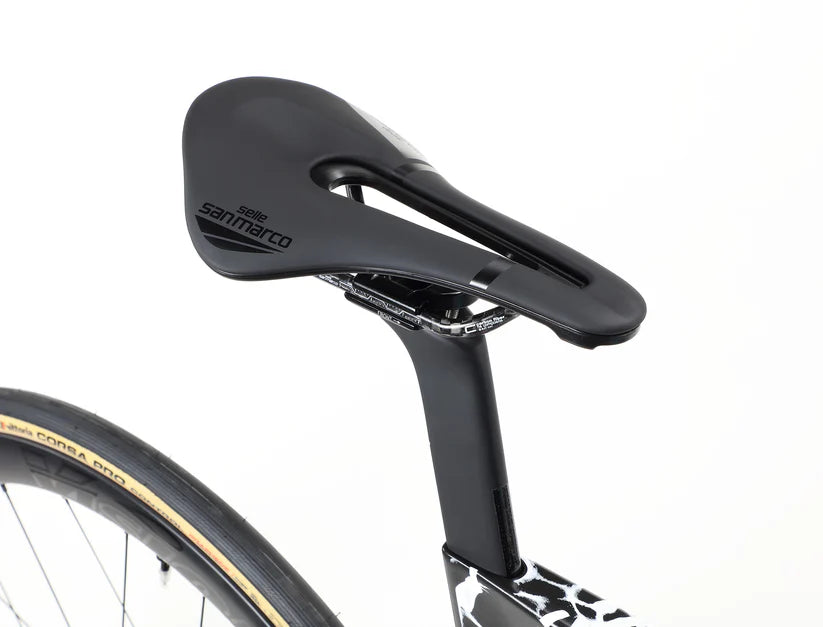

Saddle Selle San Marco Shortfit 2.0 Open-Fit Carbon FX

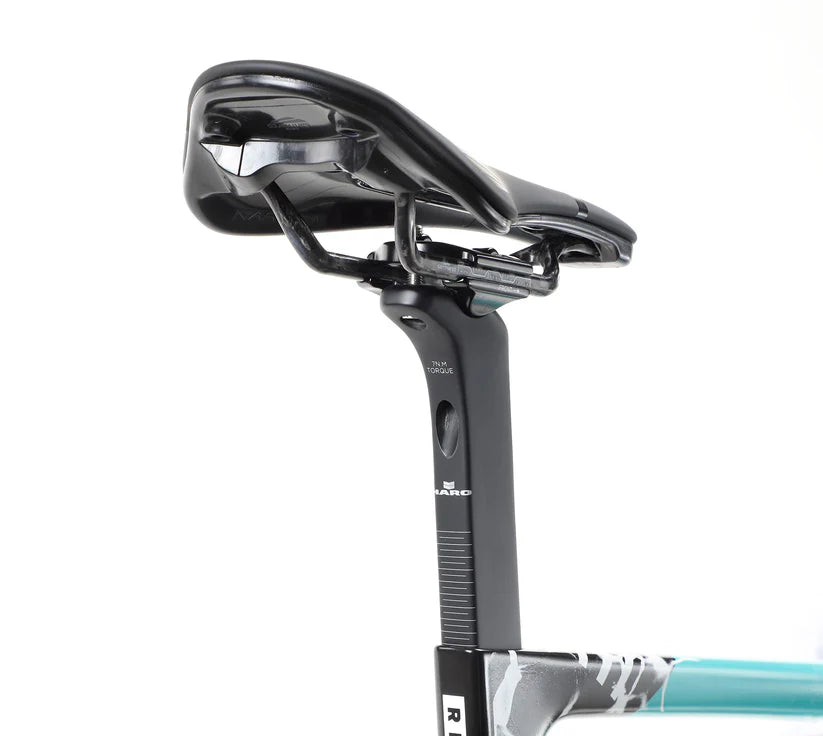

Seat Post Haro Rivette Carbon Aero; 275mm for 48/51/54 / 375mm for 56/58/61
Seat Clamp Internal
Extras Computer mount. Tubeless valves, tapes and sealant included.

Geometry:

SIZE 48 51 54 56 58 61
Top Tube (Effective) 518mm 533mm 549mm 565mm 581mm 605mm
Seat Tube (C-T) 430mm 470mm 510mm 536mm 558mm 590mm
Stack Height 513mm 533mm 553mm 574mm 594mm 624mm
Reach 374mm 383mm 387mm 393mm 398mm 406mm
Standover 721mm 753mm 786mm 809mm 832mm 862mm
Head Tube Length 110mm 130mm 153mm 164mm 188mm 220mm
Head Angle 70.9° 71.2° 71.2° 73° 73° 73°
Seat Angle 74.6° 74.3° 74.3° 73.3° 72.9° 72.3°
Wheel Base 983mm 997mm 1009mm 995mm 1008mm 1025mm
Chainstay 408mm 408mm 408mm 408mm 408mm 408mm
BB Drop 74mm 74mm 72mm 72mm 69mm 69mm
Axle to Crown 376mm 376mm 376mm 376mm 376mm 376mm
Fork Offset 53mm 53mm 53mm 45mm 45mm 45mm
Stem Length 90mm 100mm 100mm 110mm 110mm 120mm
Bar Width 380mm 380mm 400mm 400mm 420mm 420mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Trail 62.7mm 60.4mm 60.7mm 57.8mm 57.8mm 57.8mm
Wheel Size 700c 700c 700c 700c 700c 700c

Sizing Guide:

Size Inches CM
48 5'1" - 5'4" 153 - 163
51 5'4" - 5'7" 163 - 170
54 5'7" - 5'9" 170 - 175
56 5'9" - 5'11" 175 - 180
58 5'11" - 6'2" 180 - 188
61 6'2" - 6'5" 188 - 196



Haro

Haro Rivette Carbon Top Shelf 700c - Matte Black-Teal

Haro Rivette Carbon Top Shelf 700c - Matte Black-Teal

Regular price $7,999.99
Regular price $8,999.99 Sale price $7,999.99 Was $8,999.99 Save $1,000.00
Color
Size

Product ID: GM071425-352

Only 3 Items Left
