Description

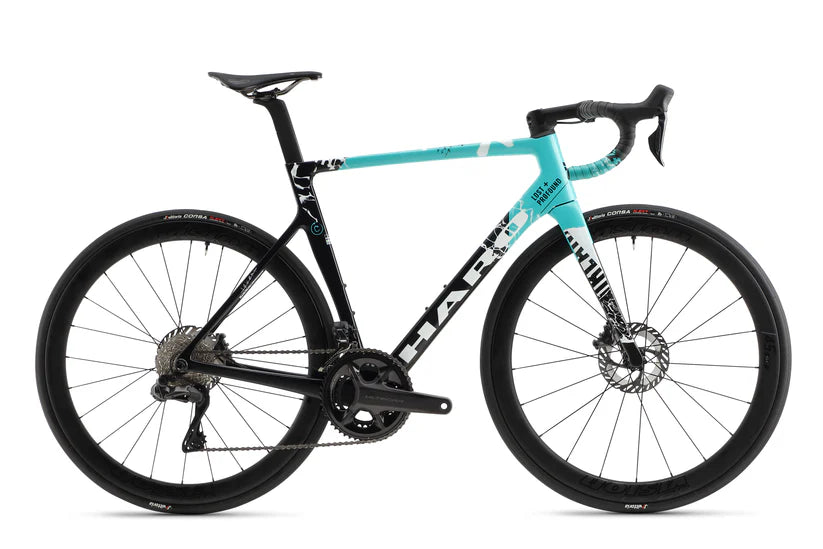

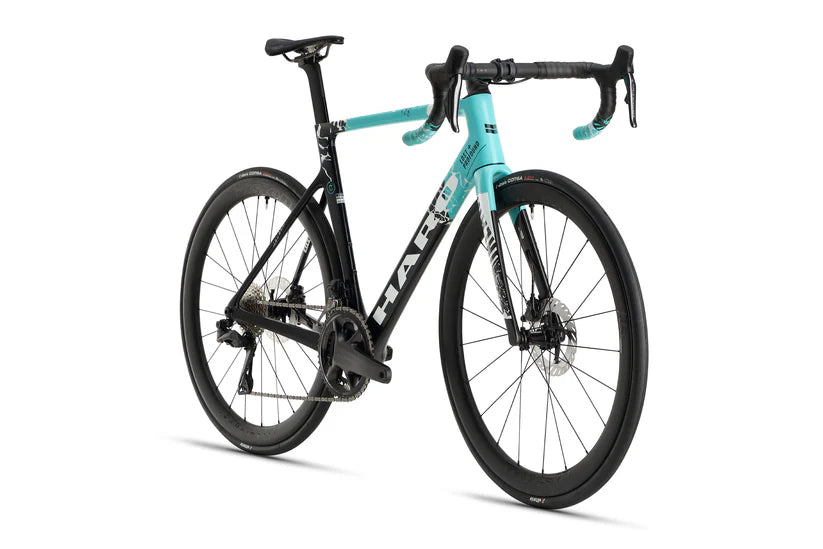

Haro Rivette Carbon 1

Who says you can't have it all (in a road bike)? The Rivette is our race-ready all-arounder, meticulously crafted from a mix of high-pitch carbon fiber in custom size-specific layups for an unmatched blend of unwavering stiffness and feathery weight. The Rivette's stiff headtube delivers precise steering for razor-sharp cornering and control. Aero tube shapes and fully internal cable routing create clean lines and reduce drag, ensuring every watt translates to pure speed. And with a short rear end for explosive acceleration, the Rivette's geometry is fine-tuned to let you conquer climbs, attack descents and carve through corners at race pace. Feel the road disappear beneath you as you push your limits and chase the podium on the Rivette. The Rivette Carbon 1 features the same featherweight carbon fiber frame and fork fine-tuned for full speed, at a competitive level requiring no parts swaps. Spec'd with a full Ultegra Di2 group, it features the latest components including new Vision SC45 tubeless carbon wheels.

Features:

  • UCI-certified carbon frame and fork with tapered steerer tube in custom size-specific carbon layups. Designed to work exclusively with electronic groupsets.
  • Shimano Ultegra Di2 with size-specific crank lengths.
  • Shimano Ultegra hydraulic disc brakes with 160mm rotors.
  • Shimano Ultegra hydraulic disc brakes with 160mm rotors.
  • Vittoria Corsa N.EXT tubeless-ready tires, 700x30c. *Max tire width 700x36c.
  • Vittoria Corsa N.EXT tubeless-ready tires, 700x30c. *Max tire width 700x36c.
  • Headset for internal cable routing, and size-specific bar width and stem length.
  • Custom bar tape to match frame graphics.
  • Designed around a Universal Derailleur Hanger (UDH)

Specifications:

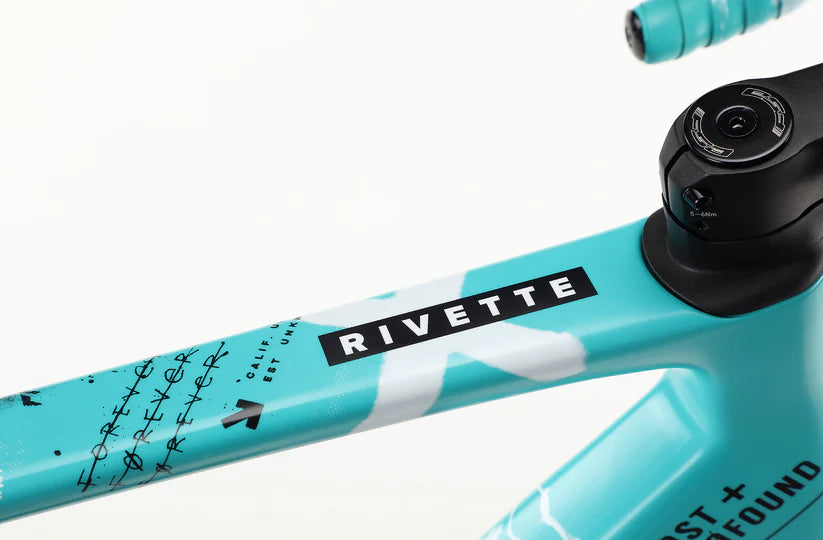

Frame Haro Rivette Carbon Frame
Fork Haro Rivette Carbon Fork with internal routing and Carbon Tapered steerer
Colors Matte Black / Teal, Gloss Rose / Gold
Weight 16.97 lbs 7.7 kg, (56cm)
DRIVETRAIN

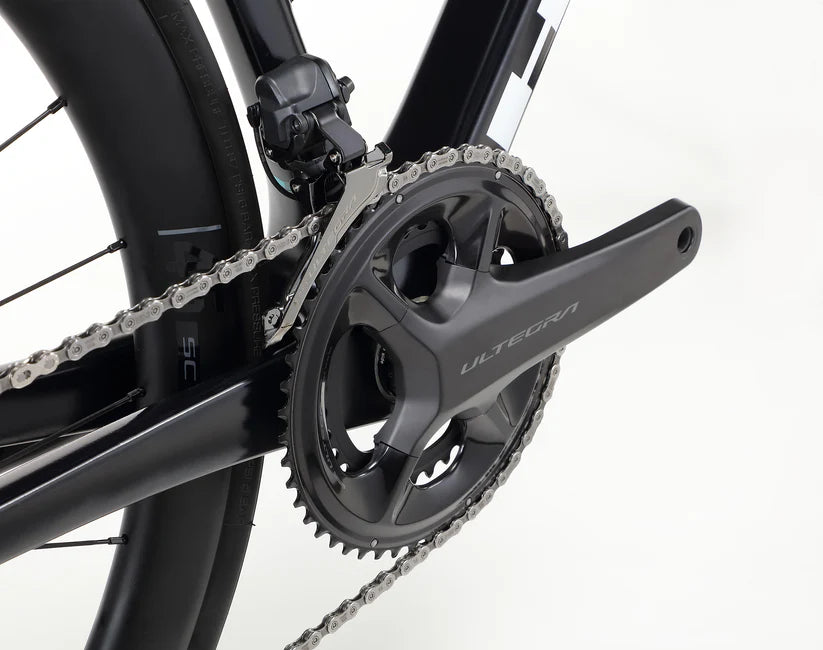

Cranks Shimano Ultegra FC-R8100 50-34T; 48cm, 165mm; 51cm, 170mm; 54cm, 172.5mm; 56cm, 172.5mm; 58cm, 175mm; 61cm, 175mm
Pedals
Chain Shimano HG 12spd, CN-M8100

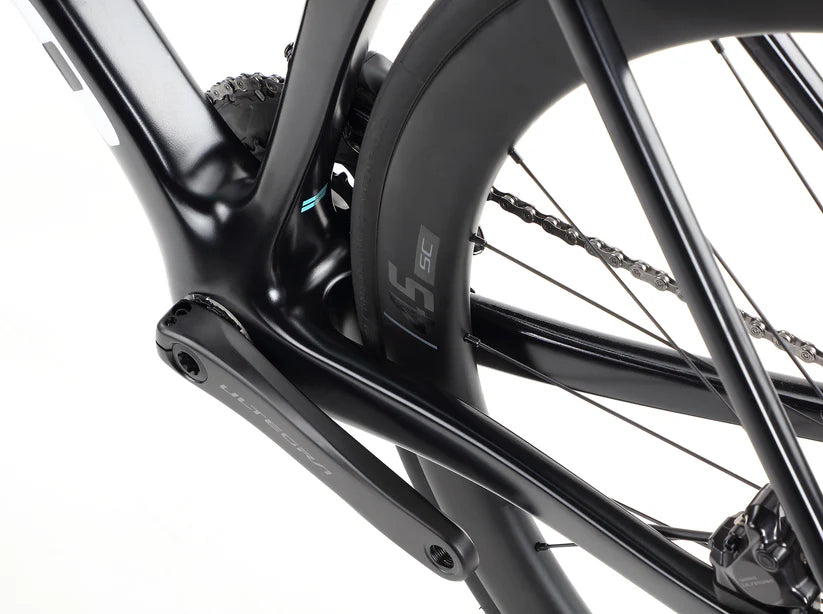

Bottom Bracket T47, 76.75mm, ø24
Front Derailleur Shimano Ultegra Di2, FD-R8150

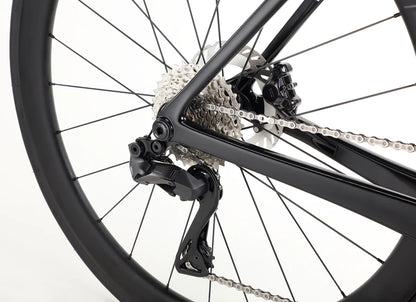

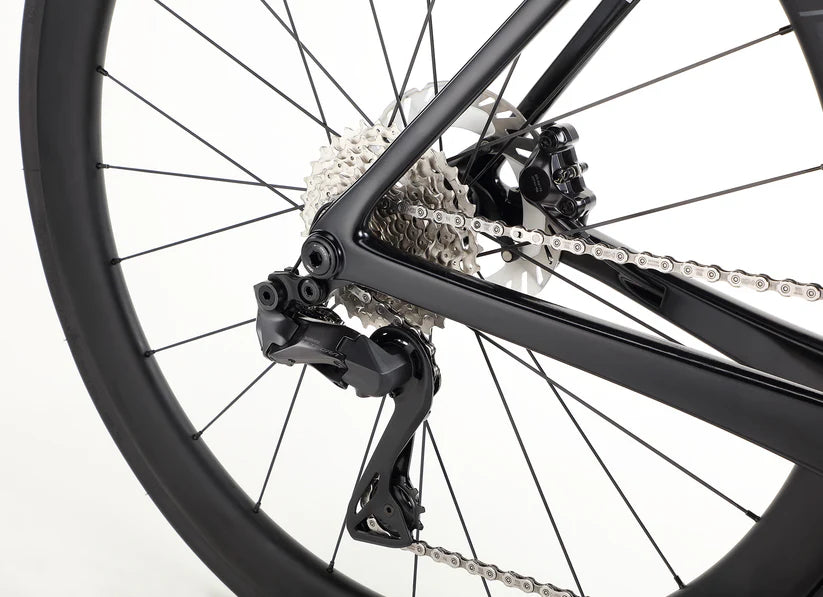

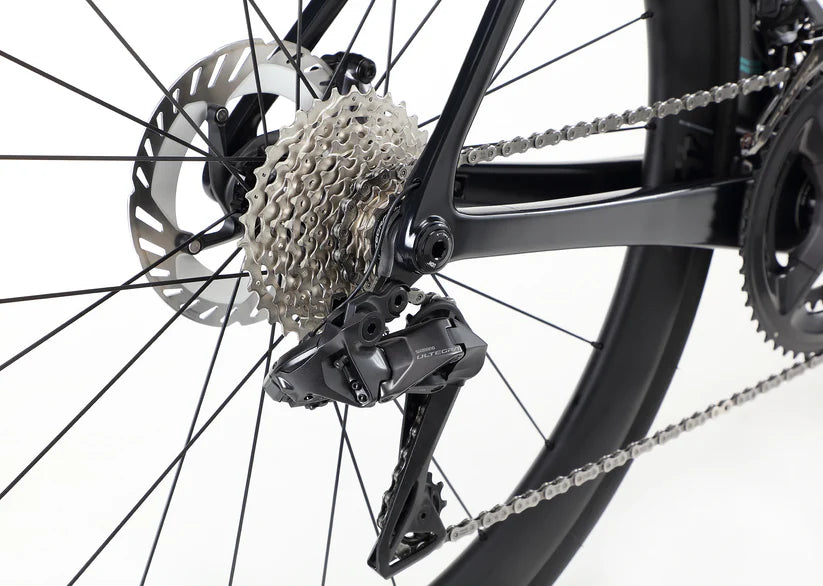

Rear Derailleur Shimano Ultegra Di2 12spd, RD-8150

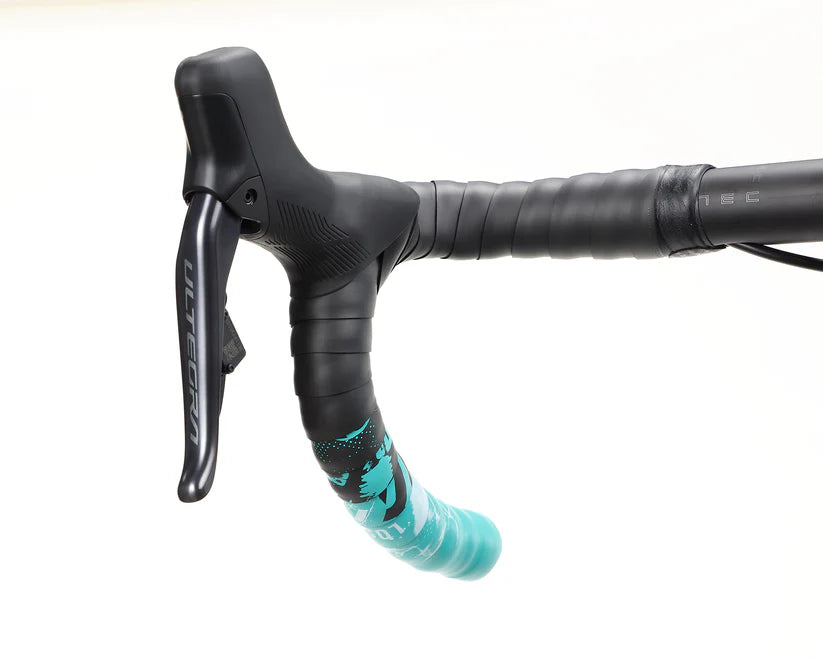

Derailleur Shifter Shimano Ultegra Di2 12 spd, ST-R8170
Freewheel/Cassette Shimano Ultegra 12spd, 11-34T
WHEELS

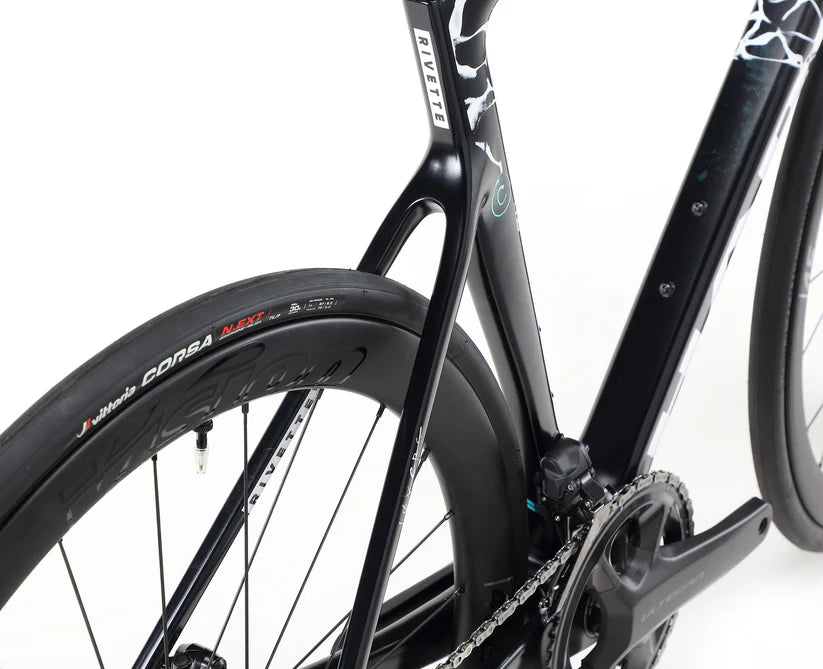

Tires Vittoria Corsa N.EXT 30-622 TLR (tubeless ready) G2.0 700x30c
Wheels/Rims Vision Carbon SC45 Tubeless Clincher
BRAKING SYSTEM

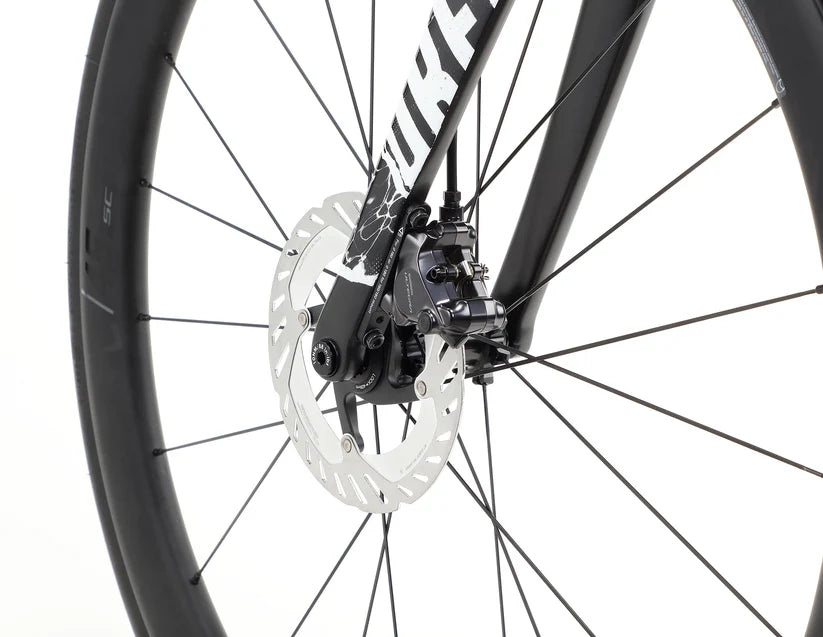

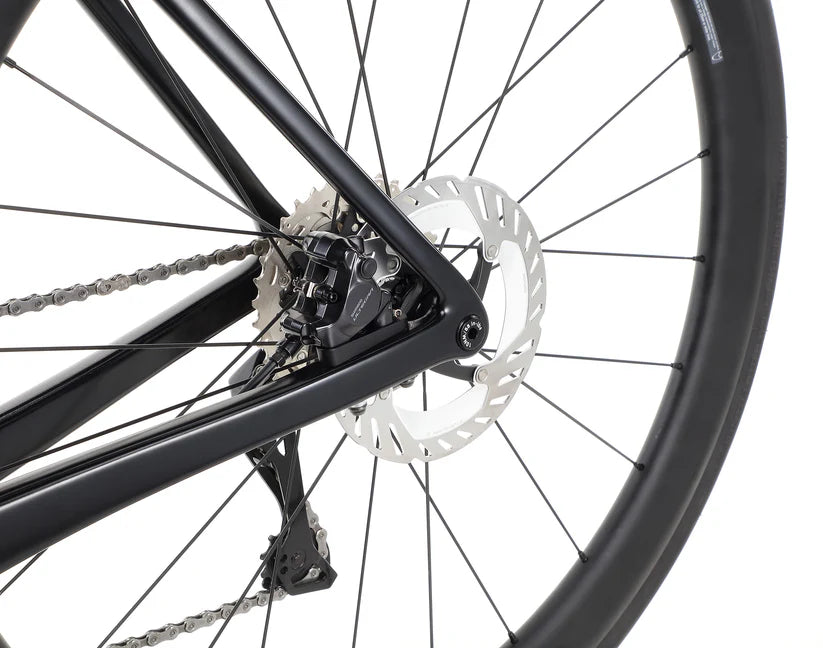

Brakes Shimano Ultegra Hydraulic Disc Brakes with 160mm Center Lock Rotors
Brake Levers Shimano Ultegra Di2
OTHER COMPONENTS
Grips/Tape Ciclovation Advanced, Leather touch, 3mm Thick

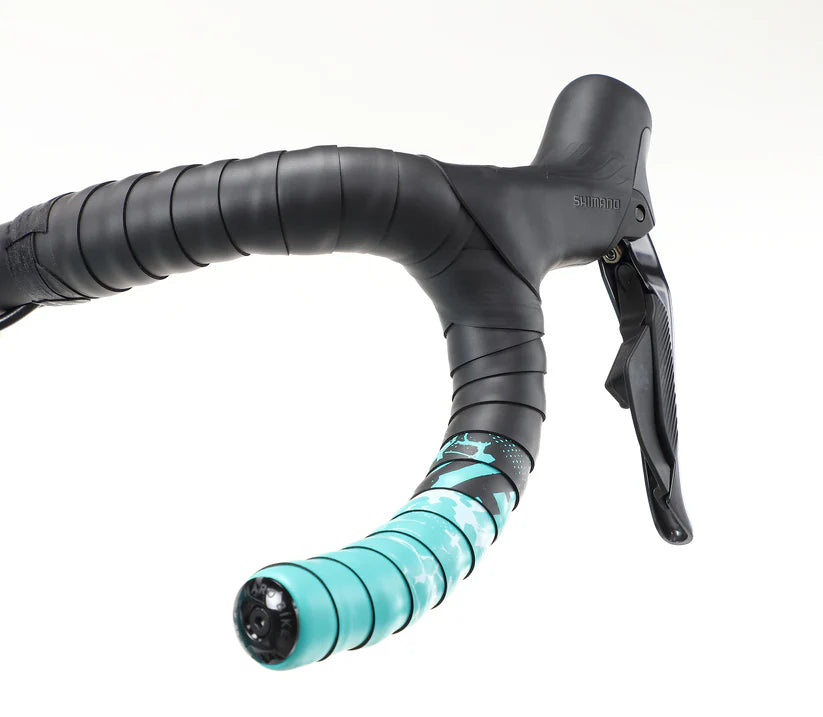

Handlebar BLKTEC R2 Carbon Bars; 48cm, 38cm; 51cm, 38cm; 54cm, 40cm; 56cm, 40cm; 58cm;42cm; 61cm, 42cm

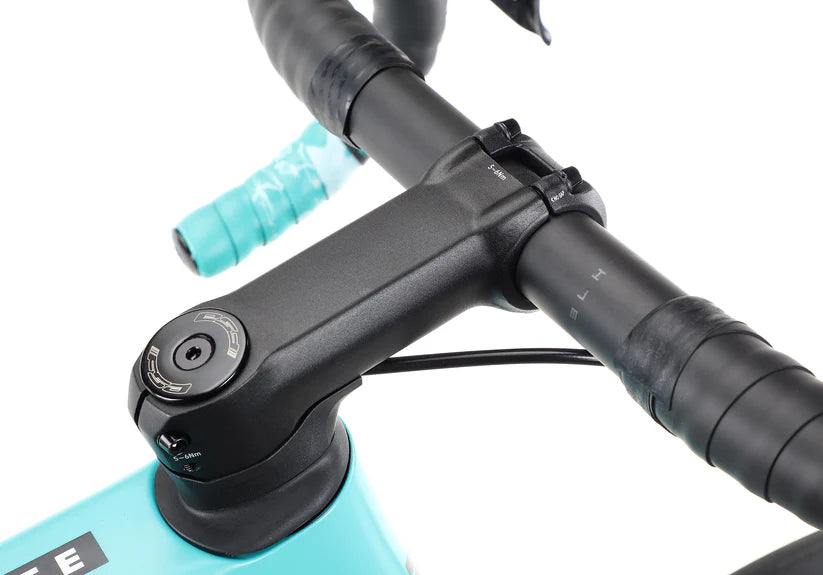

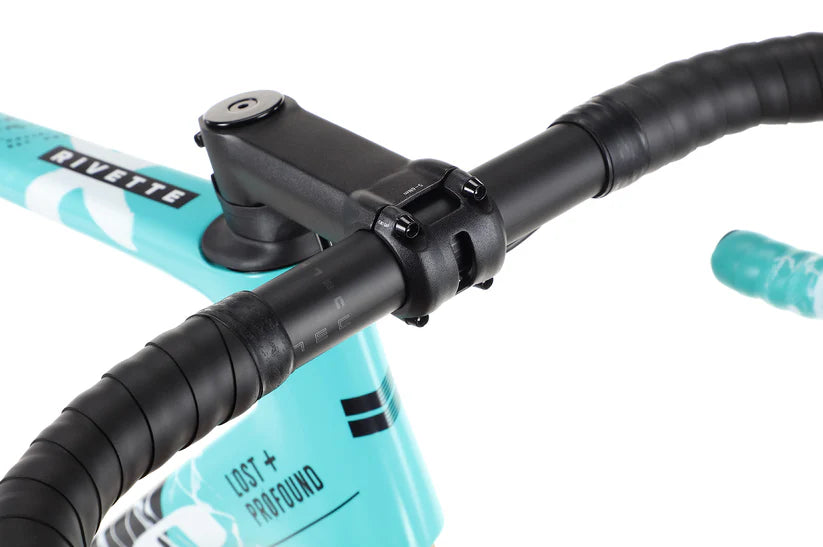

Stem BLKTEC Alloy AL6061-T6; 48cm, 90mm; 51cm, 100mm; 54cm, 100mm; 56cm, 110mm; 58cm, 110mm; 61cm, 120mm
Headset Token A-Box Headset with internal cable routing

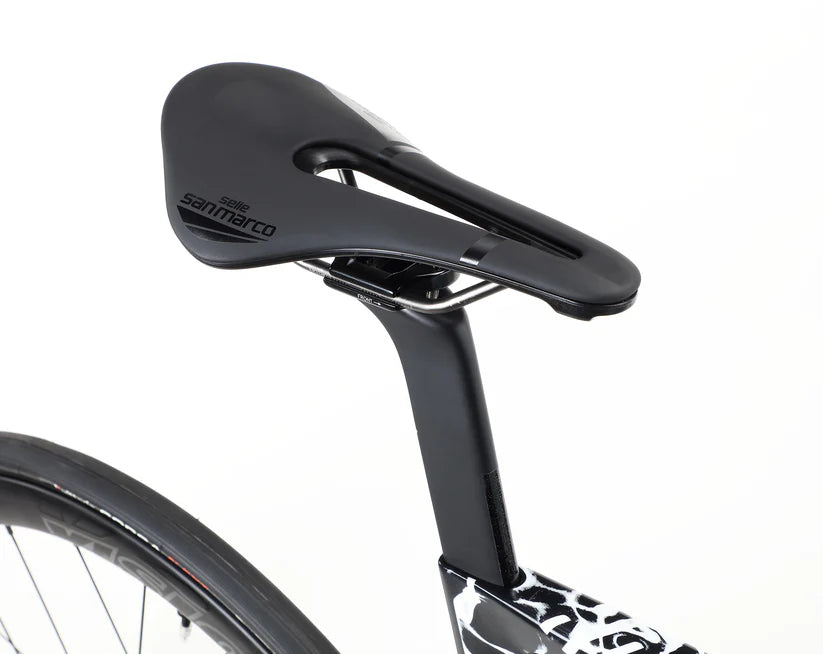

Saddle Selle San Marco Shortfit 2.0 Open-Fit Racing Xsilite rails
Seat Post Haro Rivette Carbon Aero; 275mm for 48/51/54/375mm for 56/58/61
Seat Clamp Internal
Extras Includes Tubeless Valves, Tape and Sealant

Geometry:

SIZE 48 51 54 56 58 61
Top Tube (Effective) 518mm 533mm 549mm 565mm 581mm 605mm
Seat Tube (C-T) 430mm 470mm 510mm 536mm 558mm 590mm
Stack Height 513mm 533mm 553mm 574mm 594mm 624mm
Reach 374mm 383mm 387mm 393mm 398mm 406mm
Standover 721mm 753mm 786mm 809mm 832mm 862mm
Head Tube Length 110mm 130mm 153mm 164mm 188mm 220mm
Head Angle 70.9° 71.2° 71.2° 73° 73° 73°
Seat Angle 74.6° 74.3° 74.3° 73.3° 72.9° 72.3°
Wheel Base 983mm 997mm 1009mm 995mm 1008mm 1025mm
Chainstay 408mm 408mm 408mm 408mm 408mm 408mm
BB Drop 74mm 74mm 72mm 72mm 69mm 69mm
Axle to Crown 376mm 376mm 376mm 376mm 376mm 376mm
Fork Offset 53mm 53mm 53mm 45mm 45mm 45mm
Stem Length 90mm 100mm 100mm 110mm 110mm 120mm
Bar Width 380mm 380mm 400mm 400mm 420mm 420mm
Crank Length 165mm 170mm 172.5mm 172.5mm 175mm 175mm
Trail 62.7mm 60.4mm 60.7mm 57.8mm 57.8mm 57.8mm
Wheel Size 700c 700c 700c 700c 700c 700c

Sizing Guide:

Size Inches CM
48 5'1" - 5'4" 153 - 163
51 5'4" - 5'7" 163 - 170
54 5'7" - 5'9" 170 - 175
56 5'9" - 5'11" 175 - 180
58 5'11" - 6'2" 180 - 188
61 6'2" - 6'5" 188 - 196



Haro

Haro Rivette Carbon 1 700c - Matte Black-Teal

Haro Rivette Carbon 1 700c - Matte Black-Teal

Regular price $5,499.99
Regular price $6,999.99 Sale price $5,499.99 Was $6,999.99 Save $1,500.00
Color
Size

Product ID: GM071425-360

Only 2 Items Left
