Description

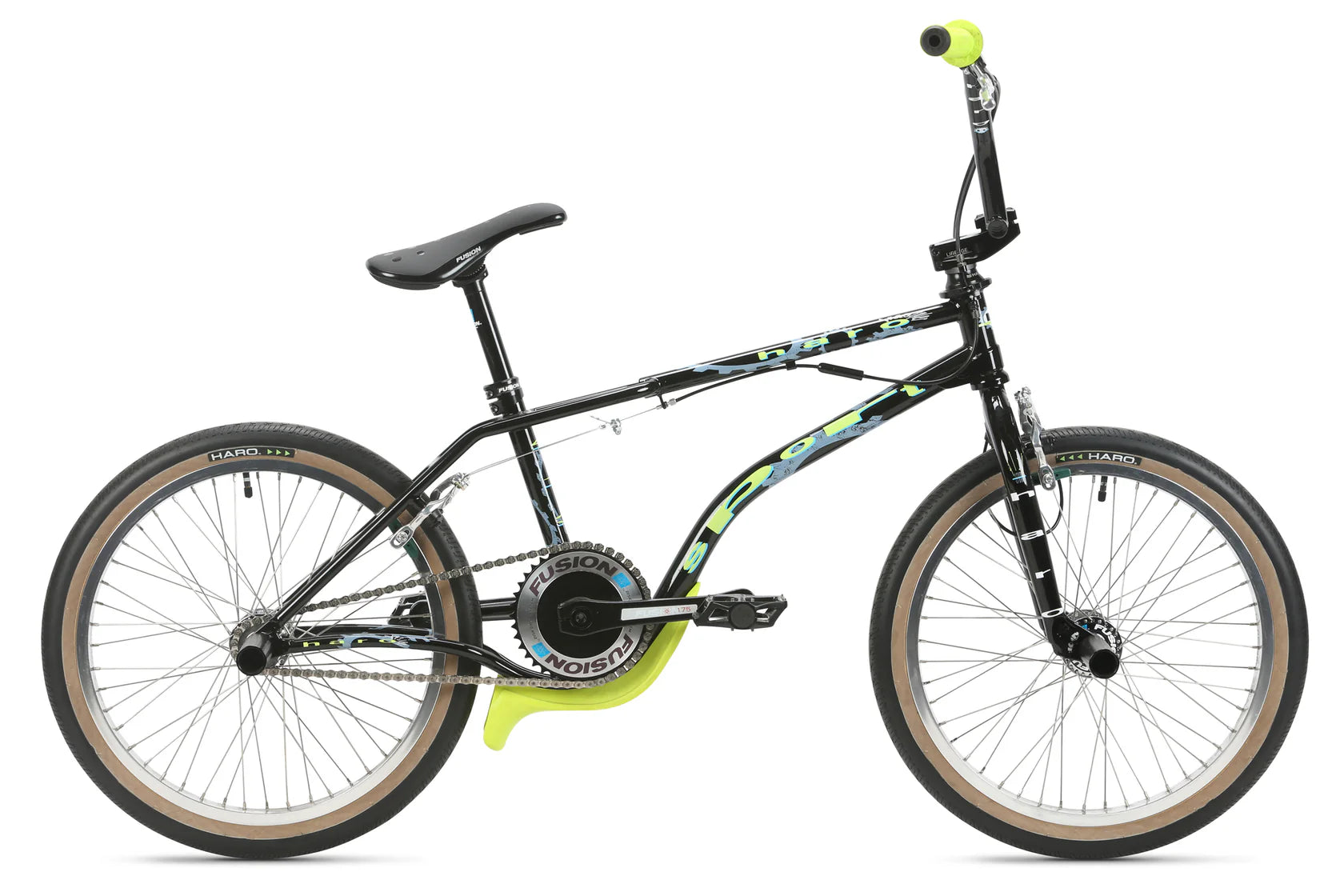

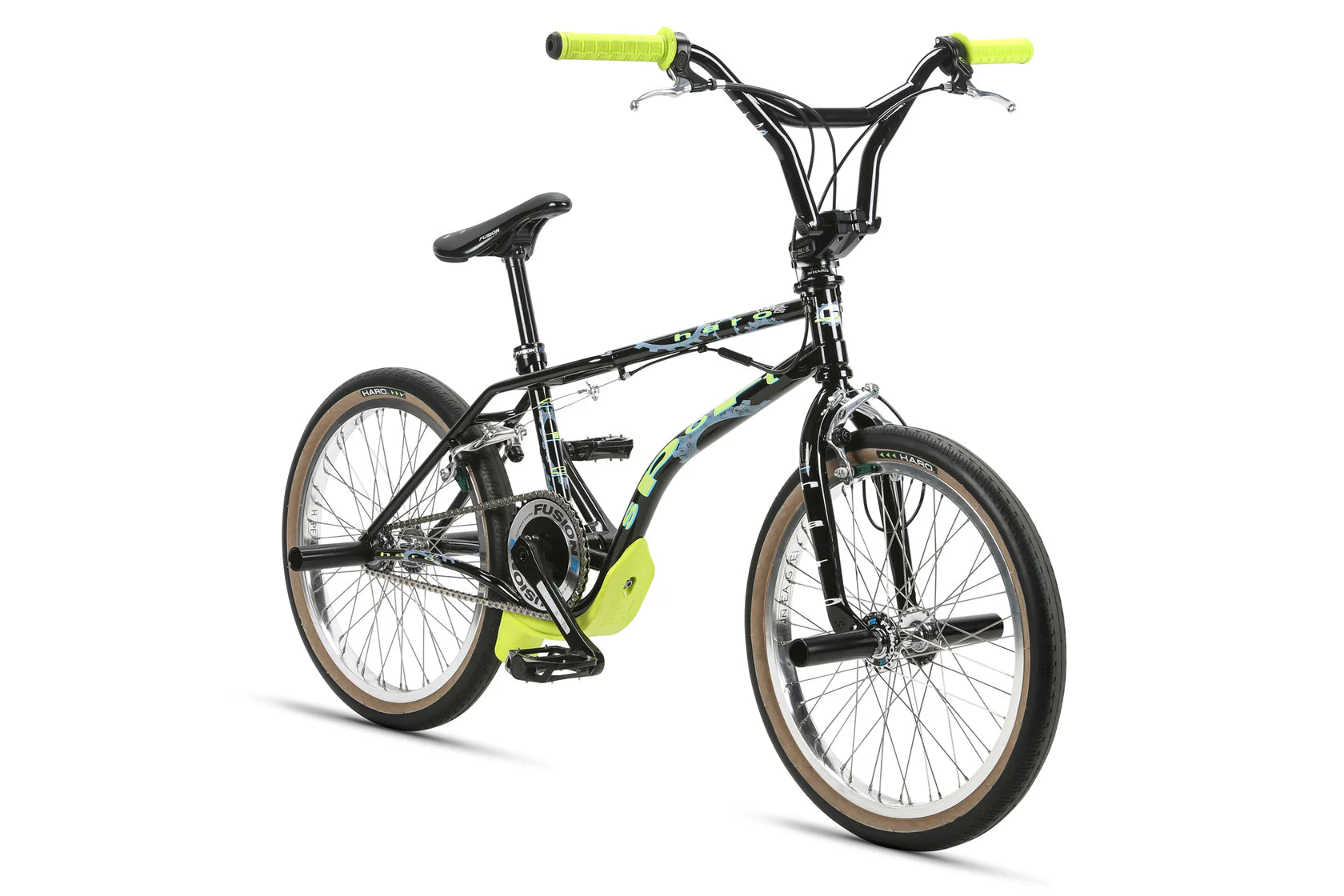

Haro Lineage Sport Bashguard 20" BMX

"Bash guard BMX subculture" is a thing and the seeds for the Lineage Sport Bashguard were planted in 1992. In the here and now, this bike is designed to do everything it could then (and a lot of things it couldn't). All chromoly construction with a durable, replaceable nylon bash guard. A roomy 21" top tube length, hourglass mid BB shell, seatstay brake mounts and heat-treated chromoly forks are all ready for big riders to go big. The wheel set is era-correct and ready for action: Double wall rims, high flange hubs and 100PSI Haro HPF tires roll fast and stay tight. Bolt on Kneesaver bars, knurled alloy pegs and a collection of our Fusion parts line for a timeless BMX dream machine.

Features:

100% chromoly Lineage Sport frame with platform and bash guard, Mid BB shell, integrated head tube and Lineage cast dropouts with integrated chain tensioners. 21" top tube length
100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, investment cast dropouts and 990 brake mounts with internal brake cable routing

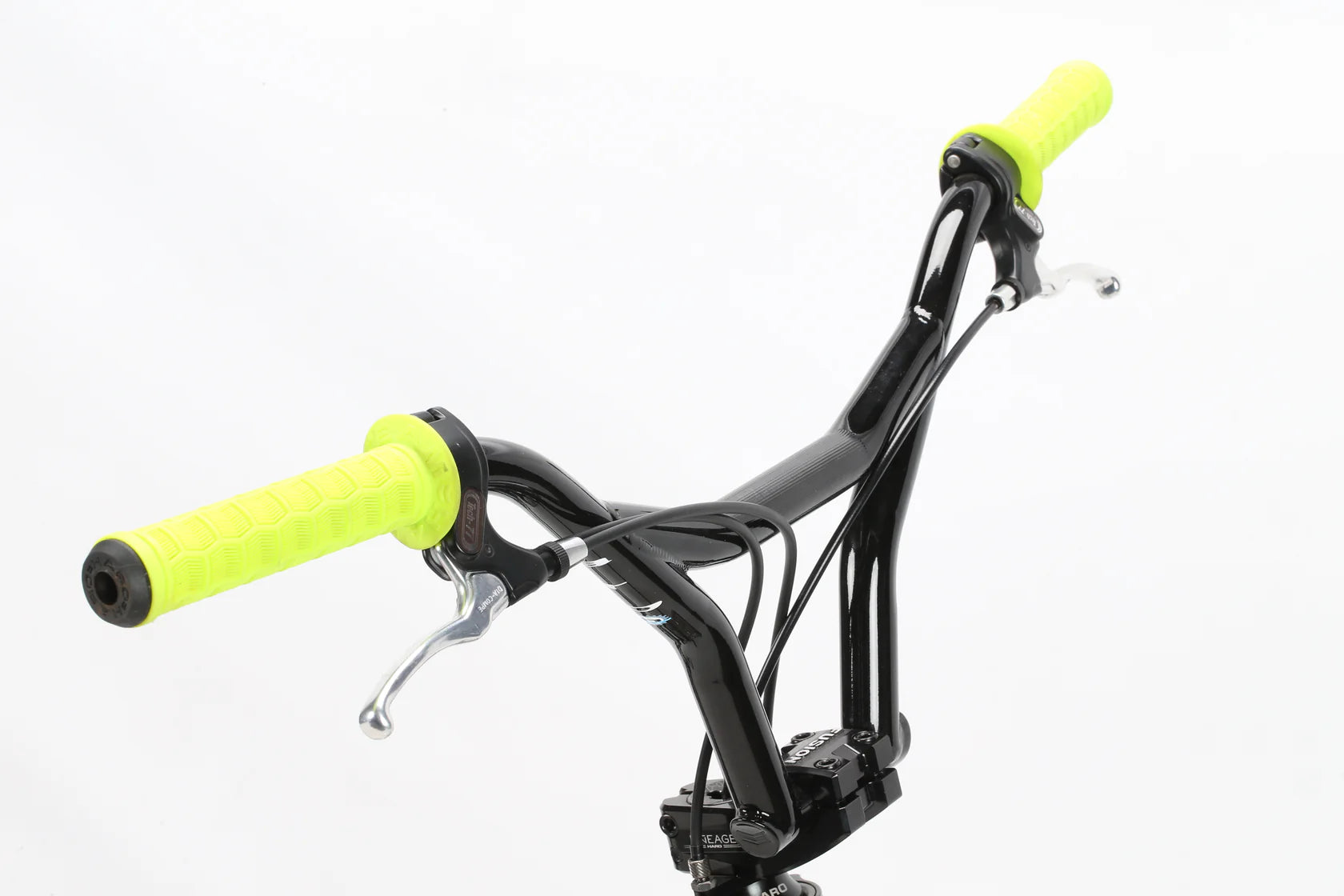

100% heat-treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem

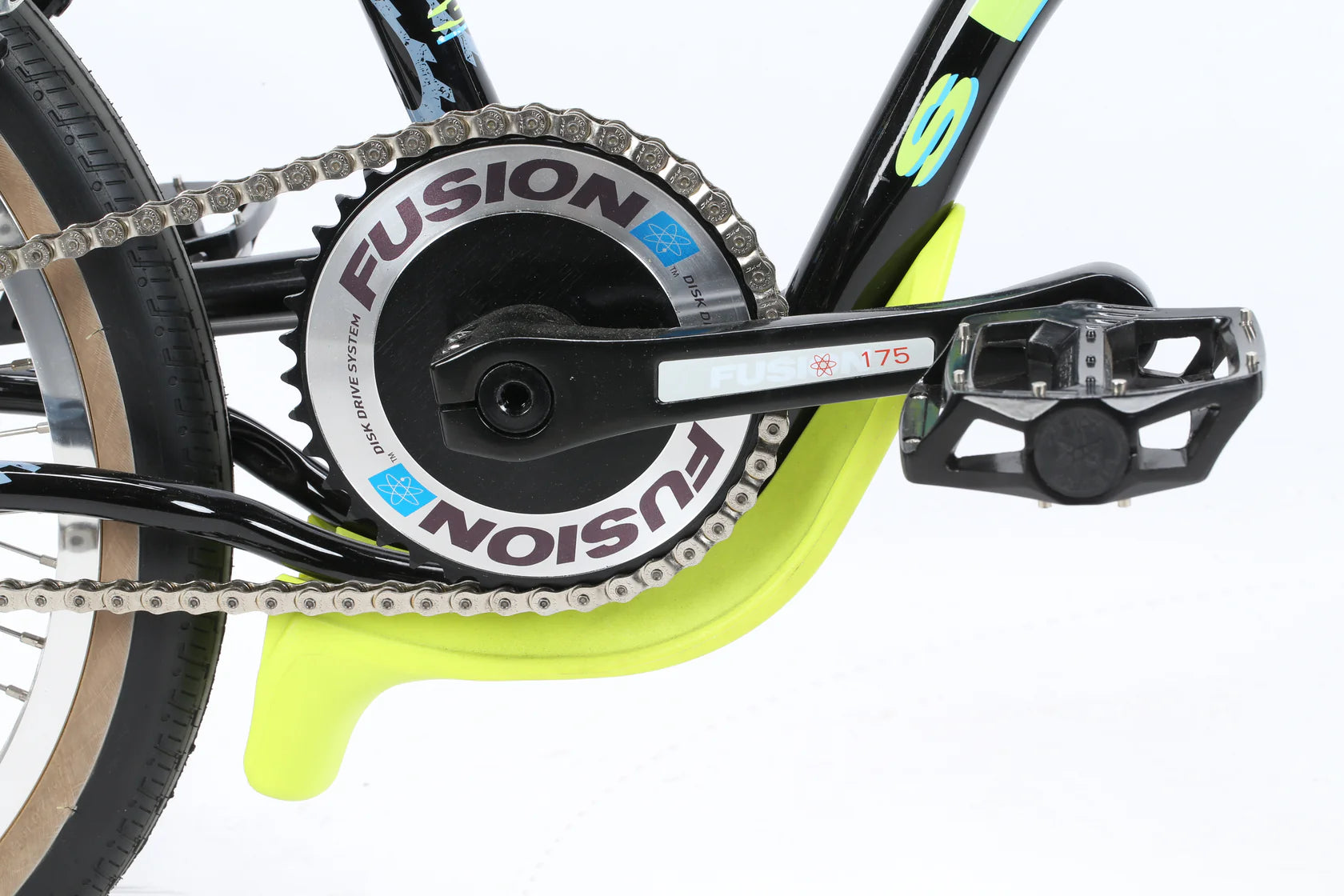

Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc 39T CNC alloy bolt drive sprocket and sealed Mid BB
39/14 gearing
Fully sealed 36-hole wheels with Lineage high flange hubs, 14T cassette rear. Double-wall alloy rims
Haro HPF 100 psi tires 20 x 2.2" front and rear

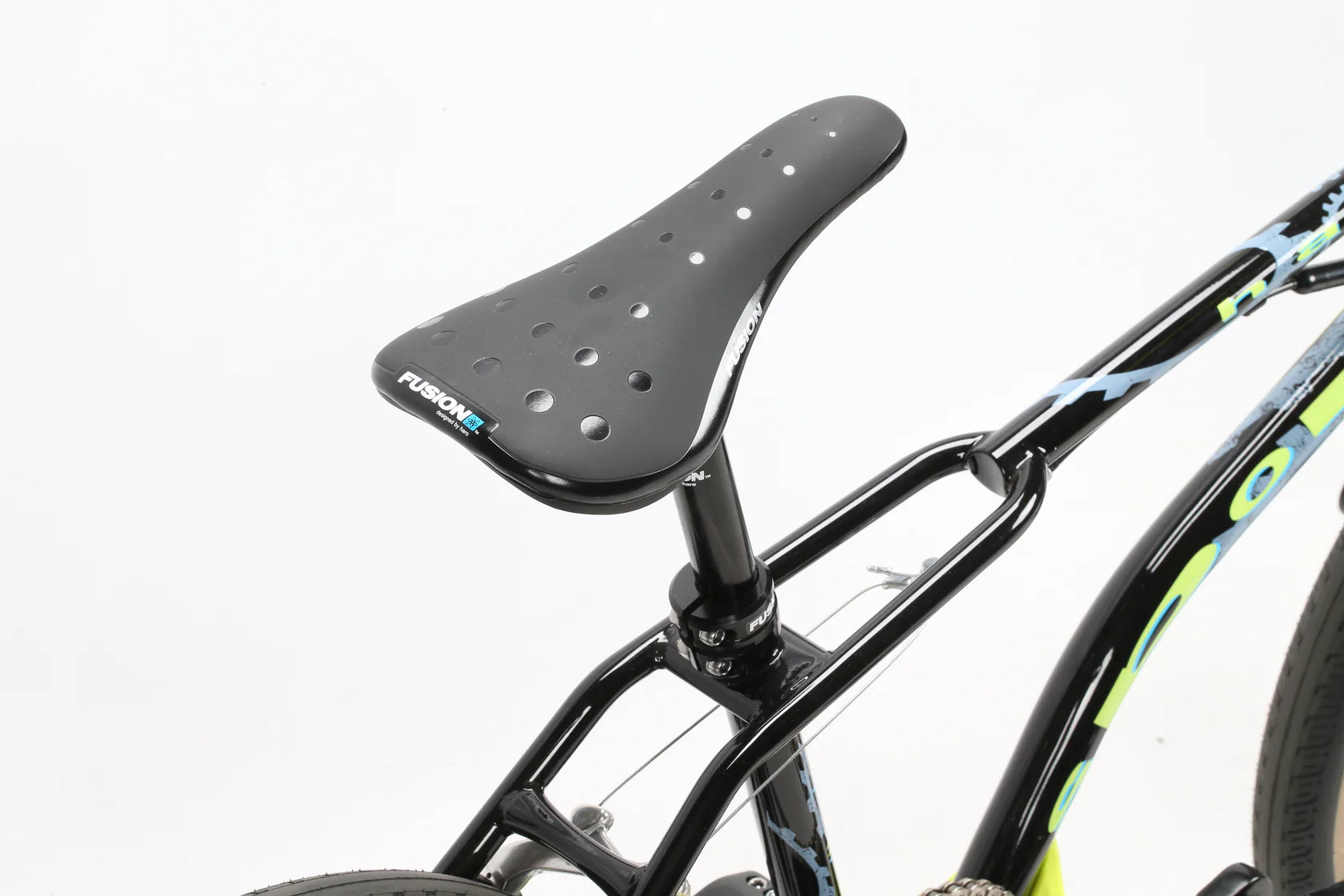

Haro Lineage padded Pivotal stealth Fusion seat with alloy Lineage Pivotal fluted post
Haro Fusion alloy pedals

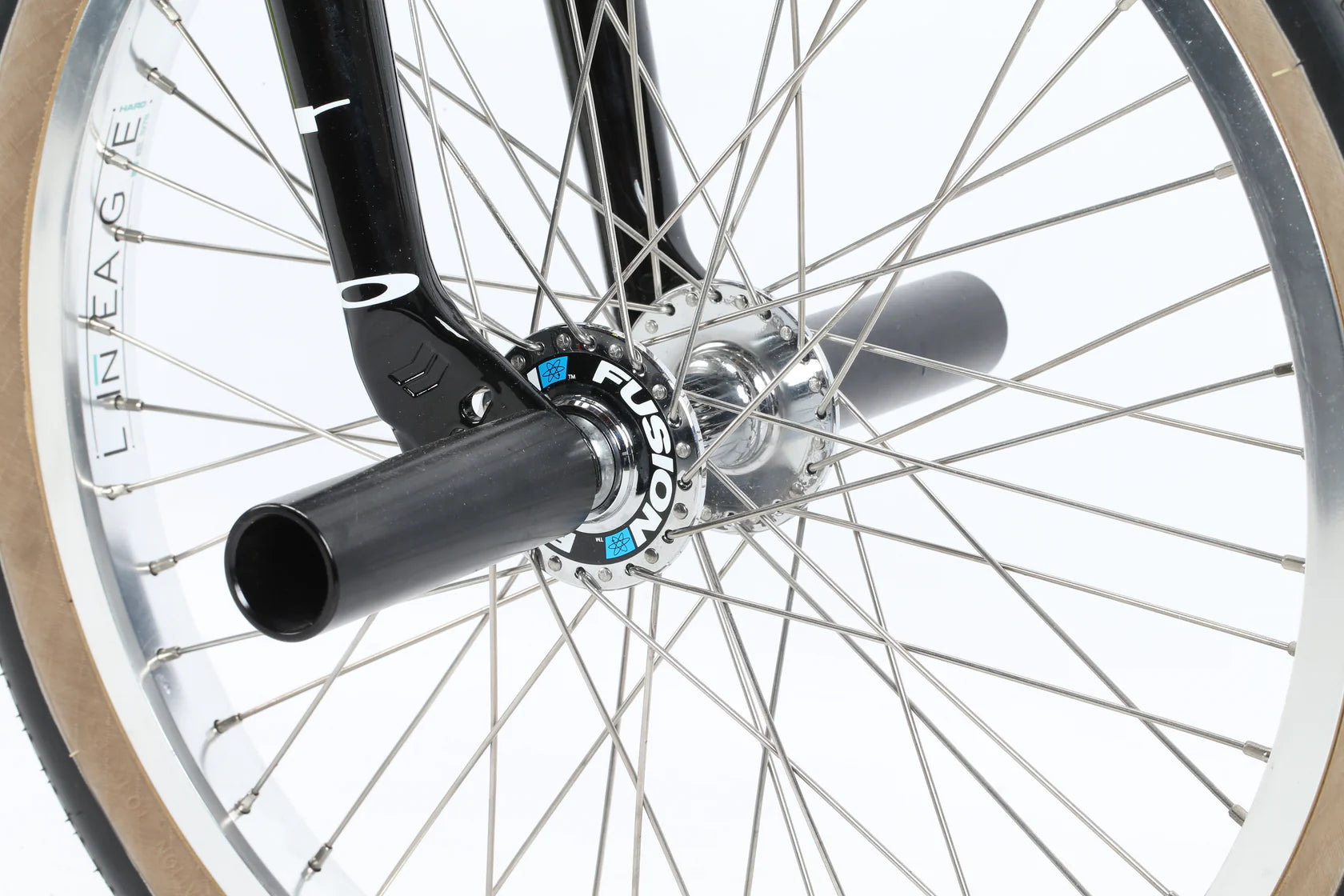

CNC alloy pegs
CNC alloy gyro with Teflon bearing
Haro Team grips
KMC K710SL super light chain

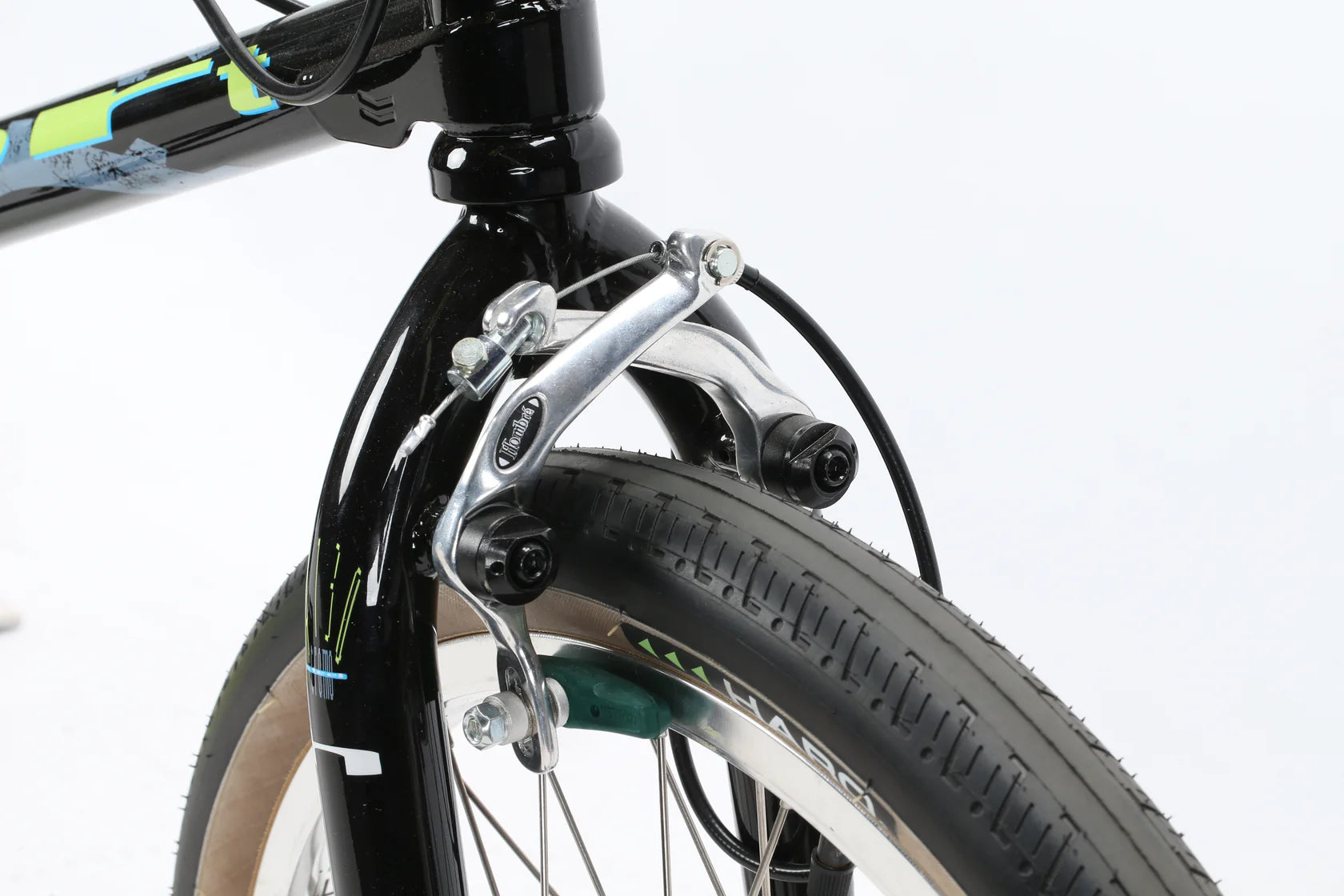

Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers

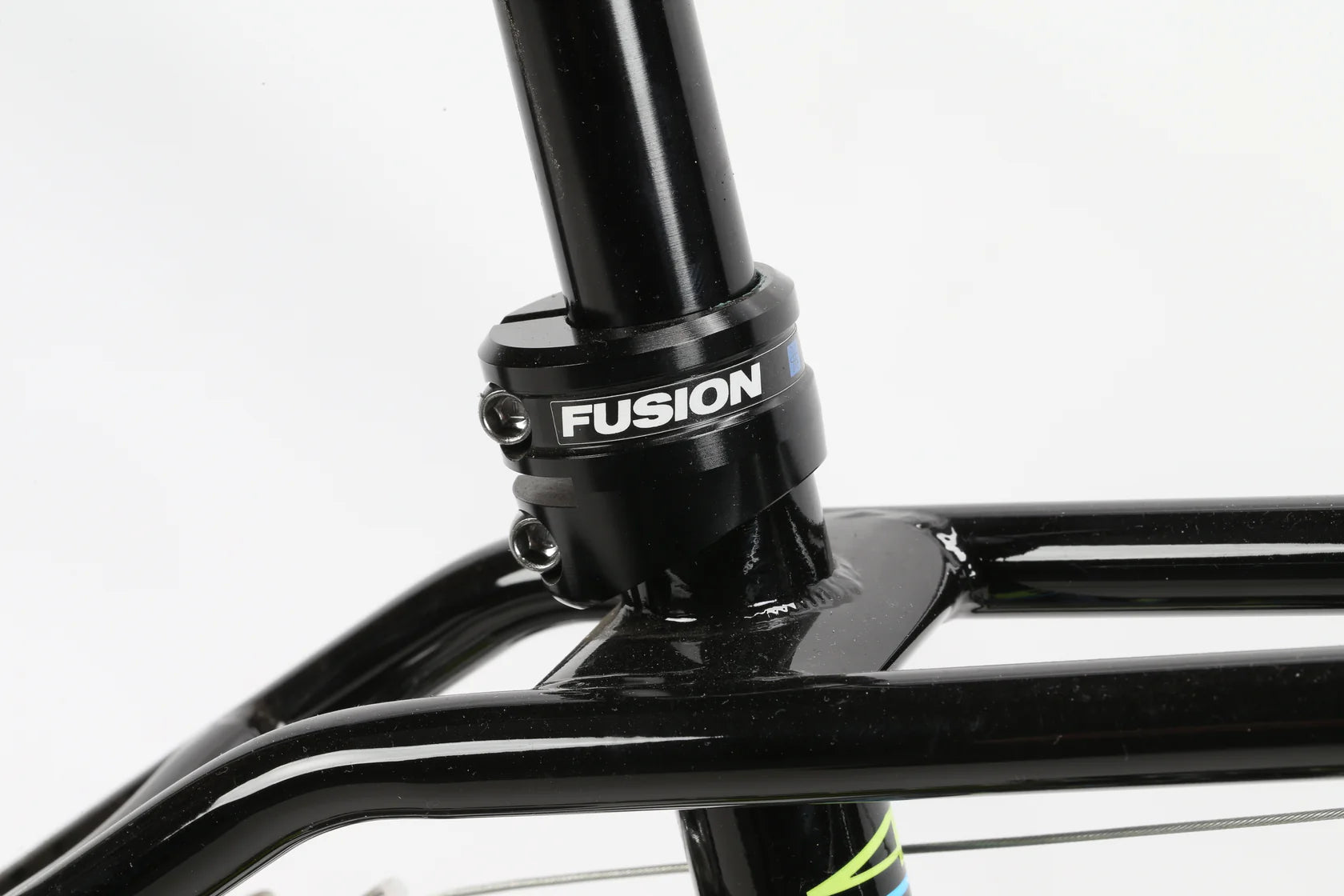

Haro Lineage two-bolt alloy seat post clamp

Specifications:

Frame	Lineage Sport Bashguard frame - 21" full chromoly with integrated head tube - with removable Gyro tab mounting holes; welded brake mounts.
Fork	Haro Lineage fork with 990 mounts and internal cable routing; 33mm offset; 3/8" axle; fluted one piece cnc cr-mo steerer; tapered fluted legs with Investment cast dropouts
Colors	Black
DRIVETRAIN
Cranks	Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Bottom Bracket	Sealed MID 22mm BB
Sprocket	Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 39t ; solid ring w/ machined teeth, included sprocket adapter
Gearing	39/14
Pedals	Haro Fusion; alloy pedal body; crmo axle
Chain	KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
WHEELS
Tires	Haro HPF tire; 20x2.20; 100 max psi
Front Hub	36h alloy hub body; 3/8" chromoly axle; 2 sealed bearings
Rear Hub	Cassette hub (male bolt); sealed bearings; 14t driver; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
Rims	Fusion by Odyssey model litehouse 20x1.75"; 36H with double wall welded joint
BRAKING SYSTEM
Brake	Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Lever	Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
Rotor	Teflon bearing gyro - full cnc 6061 t6 included a-plate
OTHER COMPONENTS
Grips	Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).
Handlebar	Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted
Stem	Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
Headset	Sealed Integrated, 1 1/8"
Seat	Haro Fusion slim stealth pivotal seat
Seat Post	Haro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Post Clamp	Haro Fusion twintorc clamp; alloy 6061
Pegs	6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

Geometry:

Size	Head Angle	Seat Angle	Top Tube	Seat Tube	Chainstay	BB Height	Stand Over
21	75°	71.5°	21" (533mm)	10.2" (260mm)	13.7" (349mm)	11.5" (293mm)	21.5" (546mm)
