Description

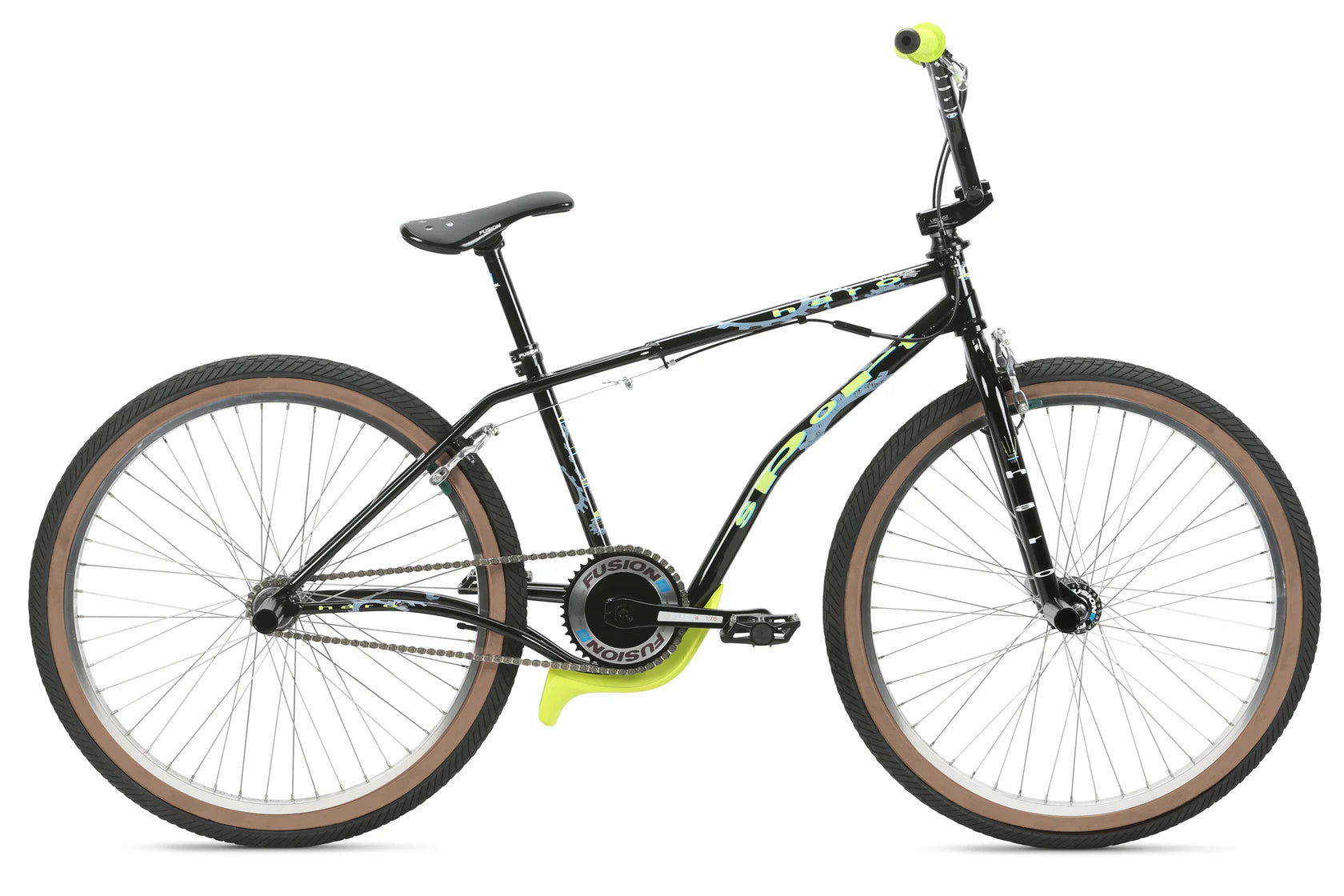

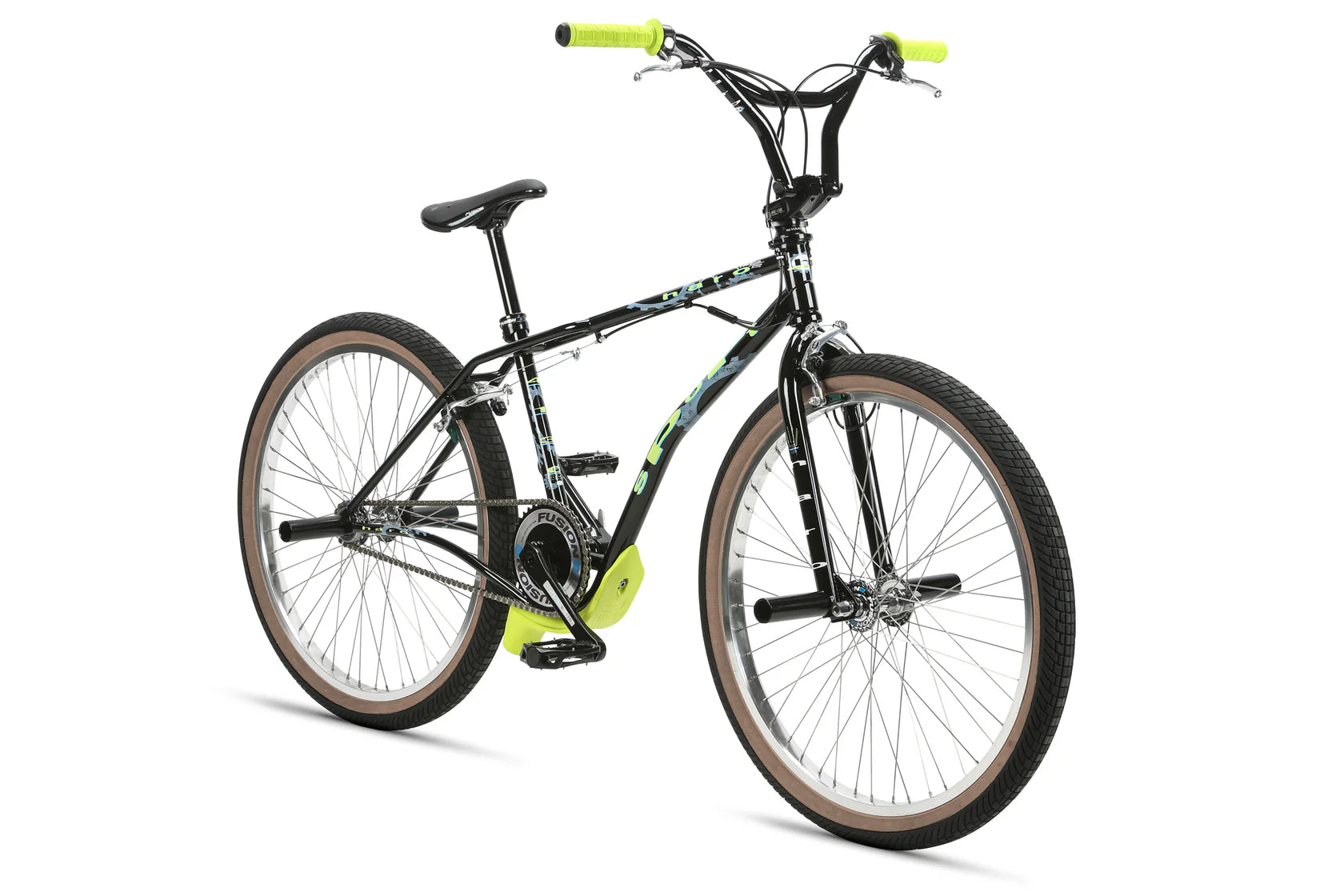

Haro Lineage Sport Bashguard 26" BMX

Welcome to the big and tall bash guard department. The Lineage Sport Bashguard 26" is the bike your teenaged self couldn't have imagined. Ready to monster-truck over anything in it's path, with a 90's inspired all chromoly frame, fitted with a replaceable nylon bash guard and chromoly forks with peg bosses for the included smooth alloy pegs. Satin finish double-wall alloy rims, sealed high flange hubs and Kenda Kranium tires to put the power to the ground. Add to that Haro Kneesaver bars, mated with our Lineage and Fusion parts and you get an upsized BMX bike that rides the line between your past and future self.

Features:

100% chromoly Lineage Sport 26" frame with platform and bash guard, Mid BB shell, integrated head tube and invest-cast drop outs with integrated chain tensioners. 22.5" top tube length.
100% chromoly 26" fork with internal threaded steer tube, tapered legs, 1989 style peg bosses, 990 brake mounts with internal brake cable routing routing
100% heat-treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem

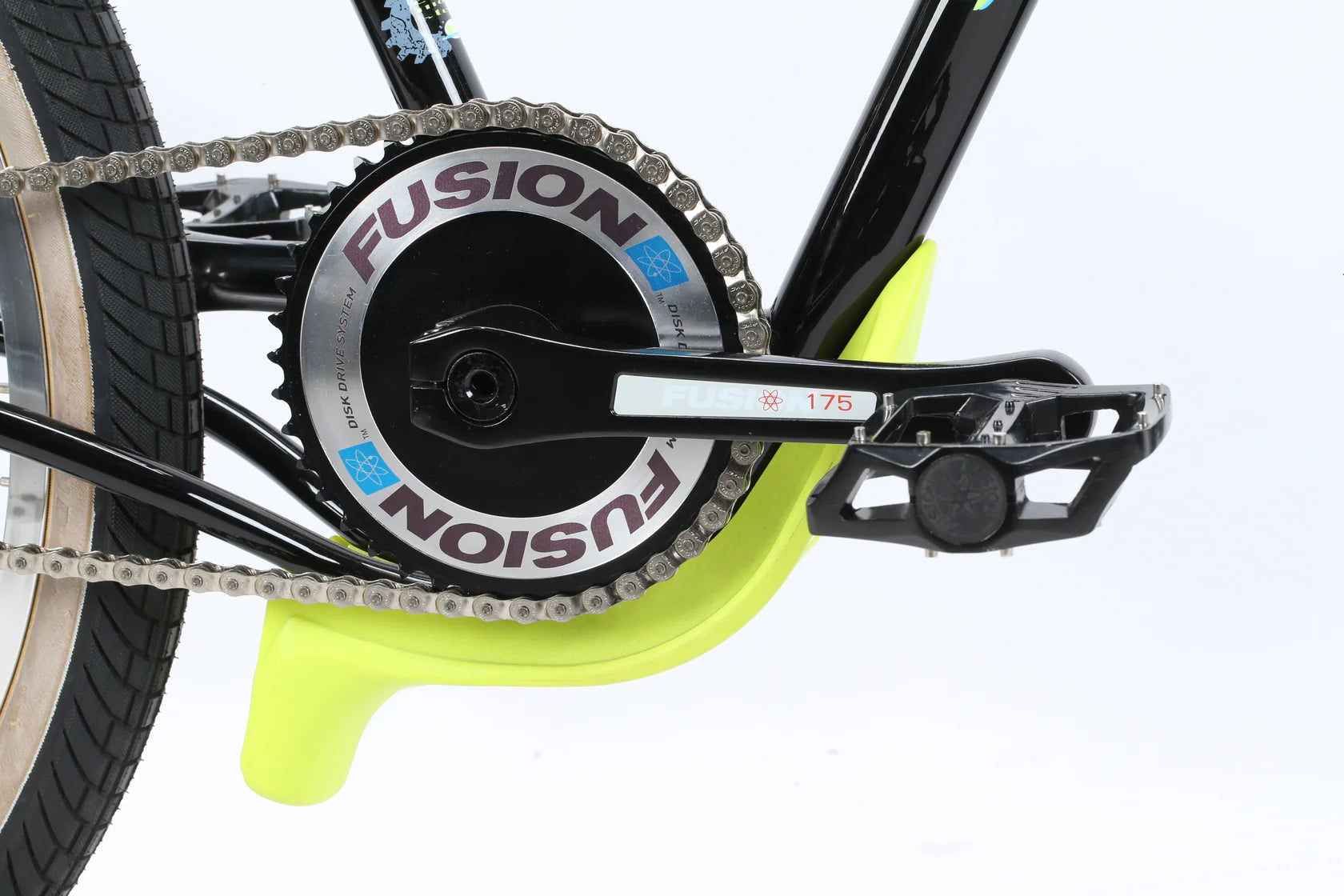

Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Lineage Fusion Disc 41T CNC alloy bolt drive sprocket and sealed Mid BB
41/17 gearing
Fully sealed 36 spoke wheels with Lineage high flange hubs and double-wall alloy rims
Kenda Kranium tires 26 x 2.1" front and rear

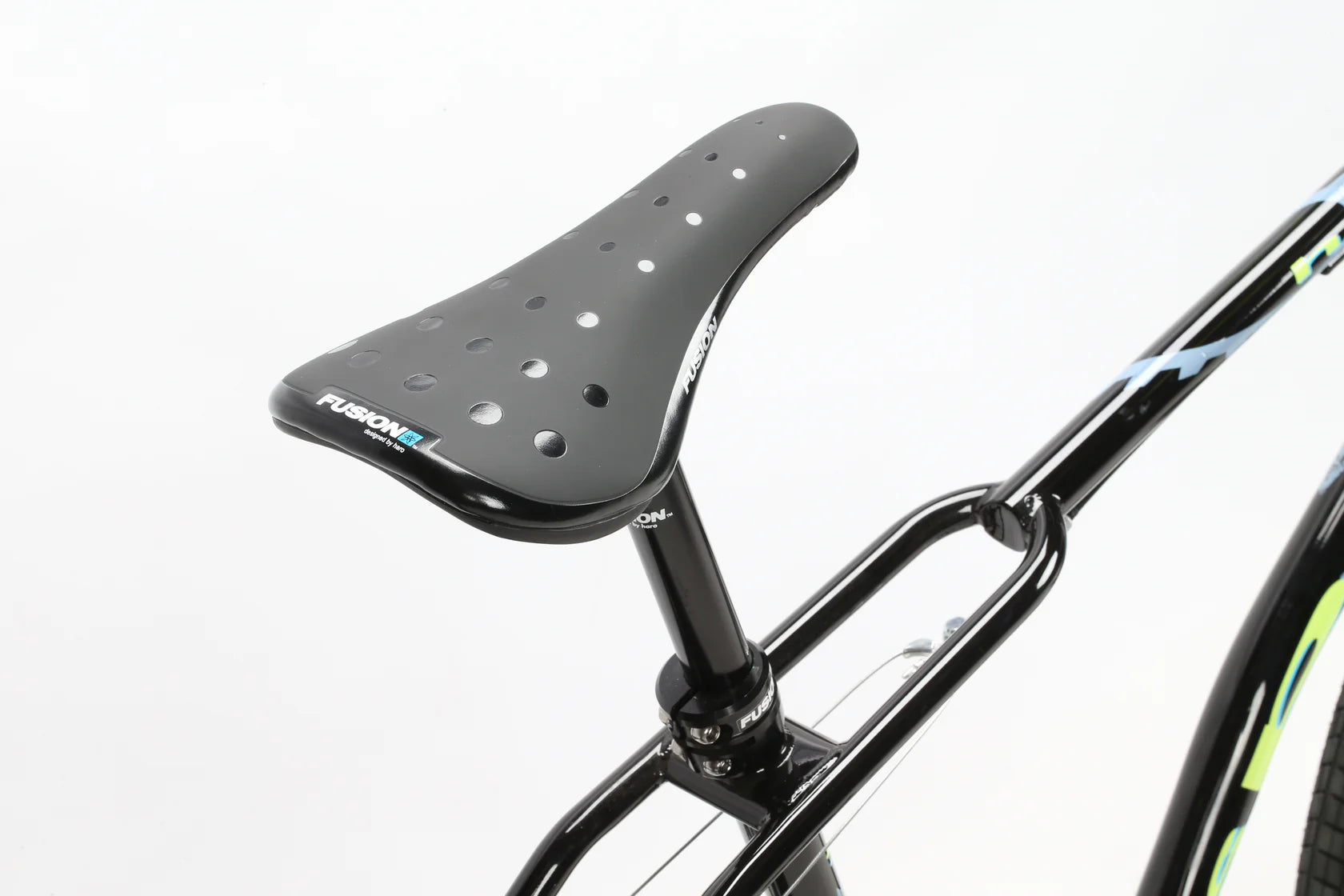

Haro Lineage padded Pivotal stealth Fusion seat with alloy Lineage Pivotal fluted post
Haro Fusion alloy pedals

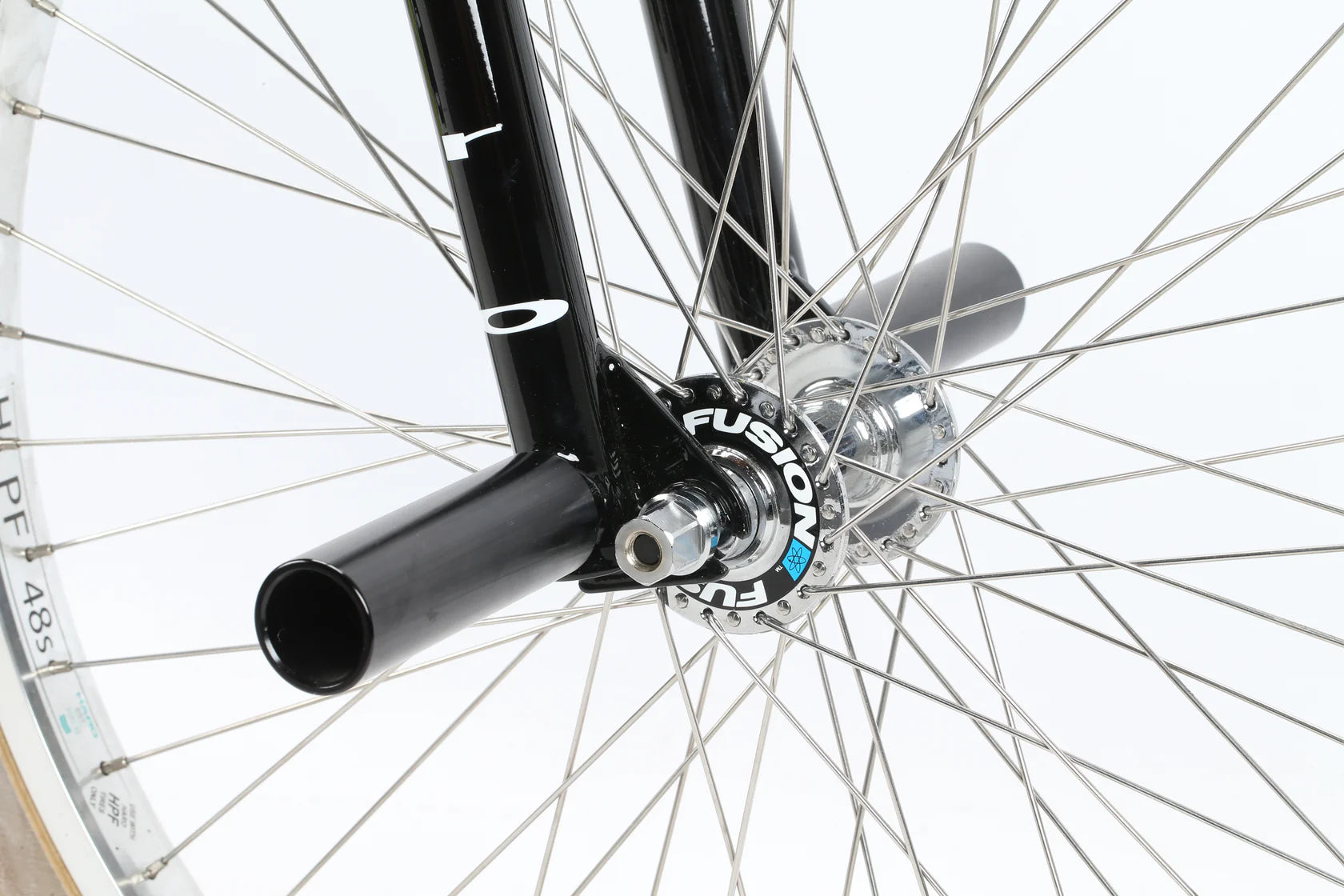

CNC alloy pegs
CNC alloy gyro with Teflon bearing
Haro Team grips
KMC K710SL super light chain

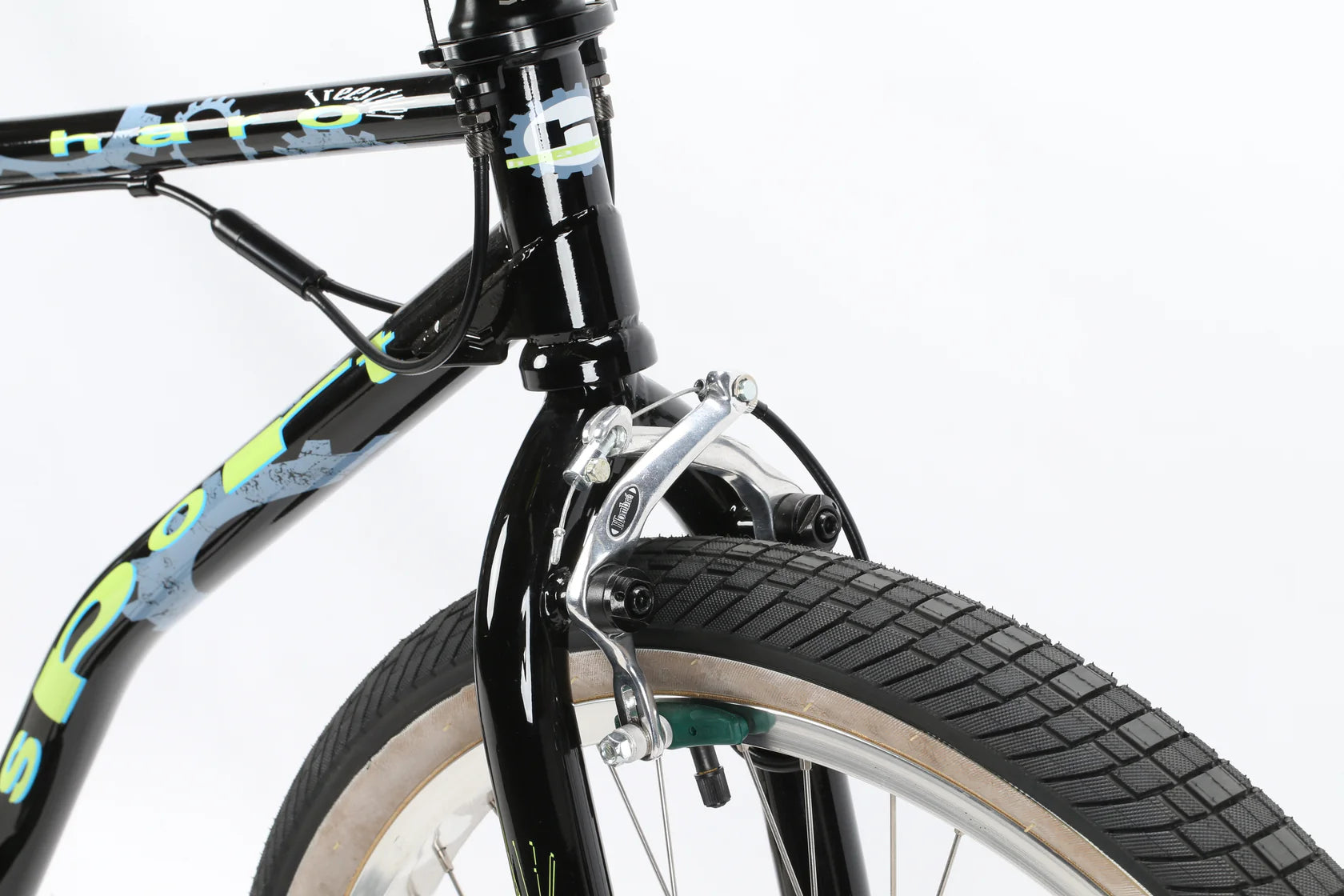

Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers

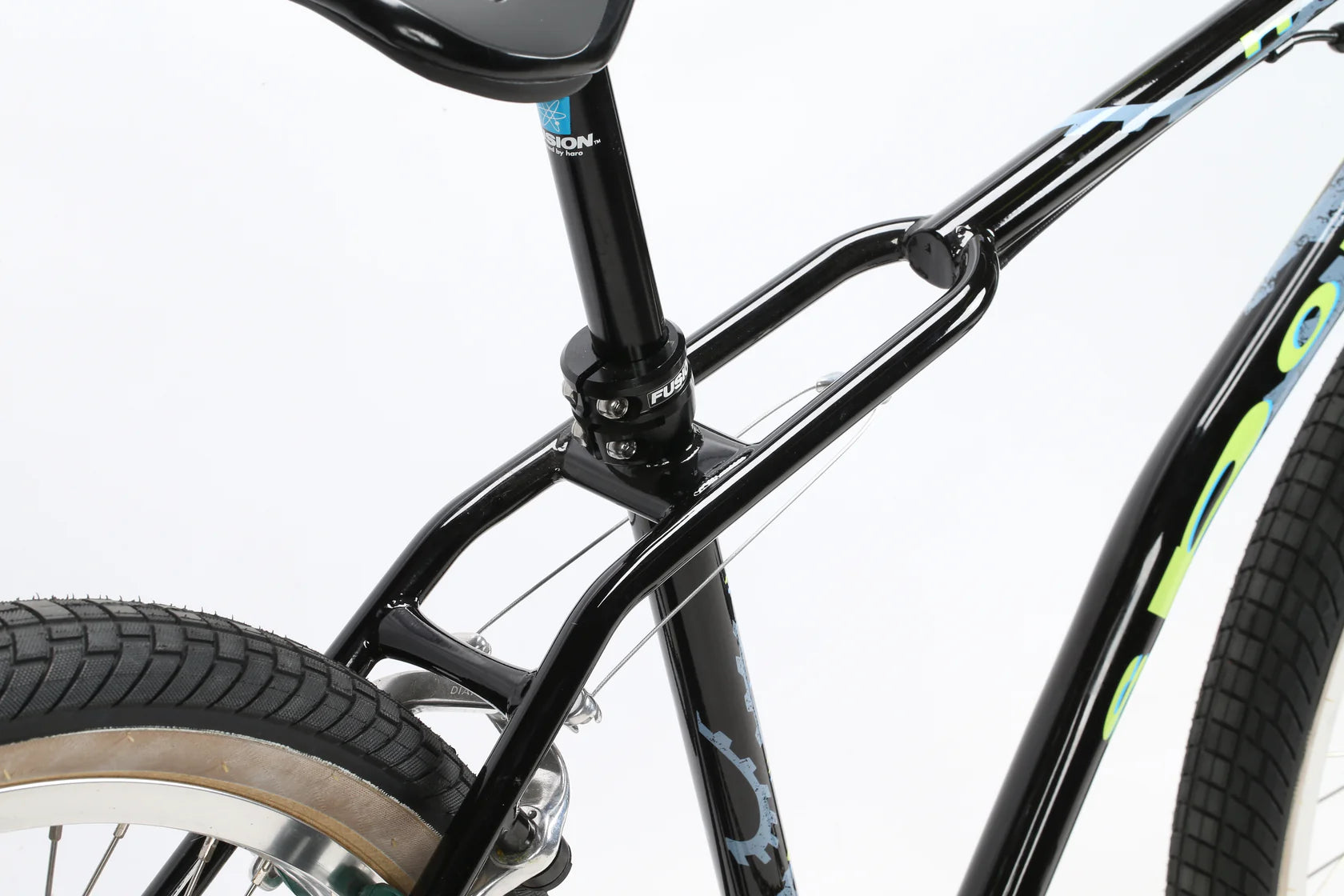

Haro Lineage two-bolt alloy seat post clamp

Specifications:

Frame	Lineage Sport Bashguard 26" frame - 22.5" full chromoly - with removable Gyro tab mounting holes; removable brake mounts.
Fork	Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs
Colors	Black
DRIVETRAIN
Cranks	Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Bottom Bracket	Sealed MID 22mm BB
Sprocket	Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter
Gearing	25/9
Pedals	Haro Fusion; alloy pedal body; crmo axle
Chain	KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
WHEELS
Tires	Kinda Kranium tire; 26x2.25; 60 max psi
Front Hub	36h alloy hub body; 3/8" chromoly straight axle; 2 sealed bearings
Rear Hub	Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
Rims	Haro Lineage 26x1.75"; 46h, double wall welded joint
BRAKING SYSTEM
Brake	Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Lever	Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
Rotor	Teflon bearing gyro - full cnc 6061 t6 included a-plate
OTHER COMPONENTS
Grips	Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).

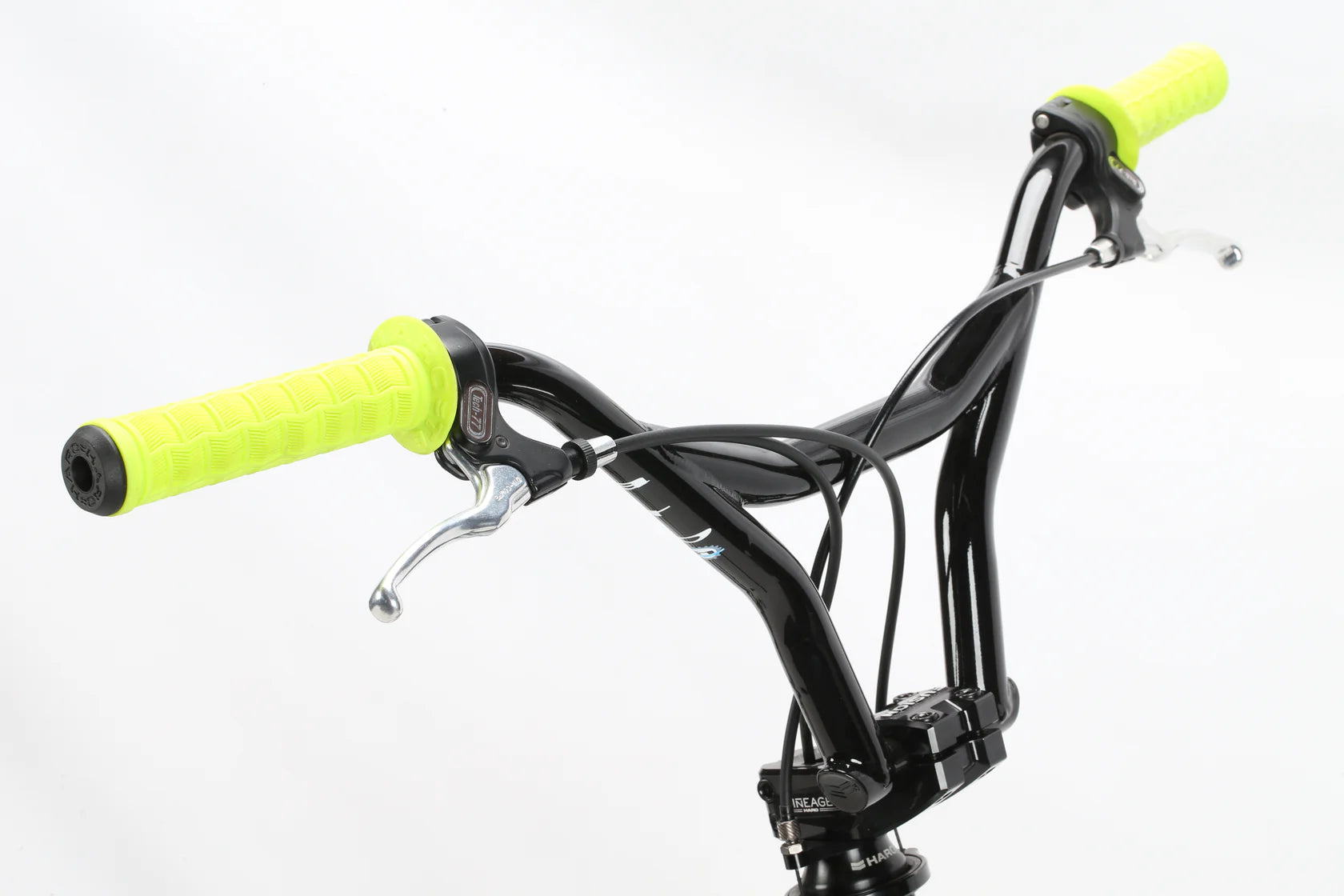

Handlebar	Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted

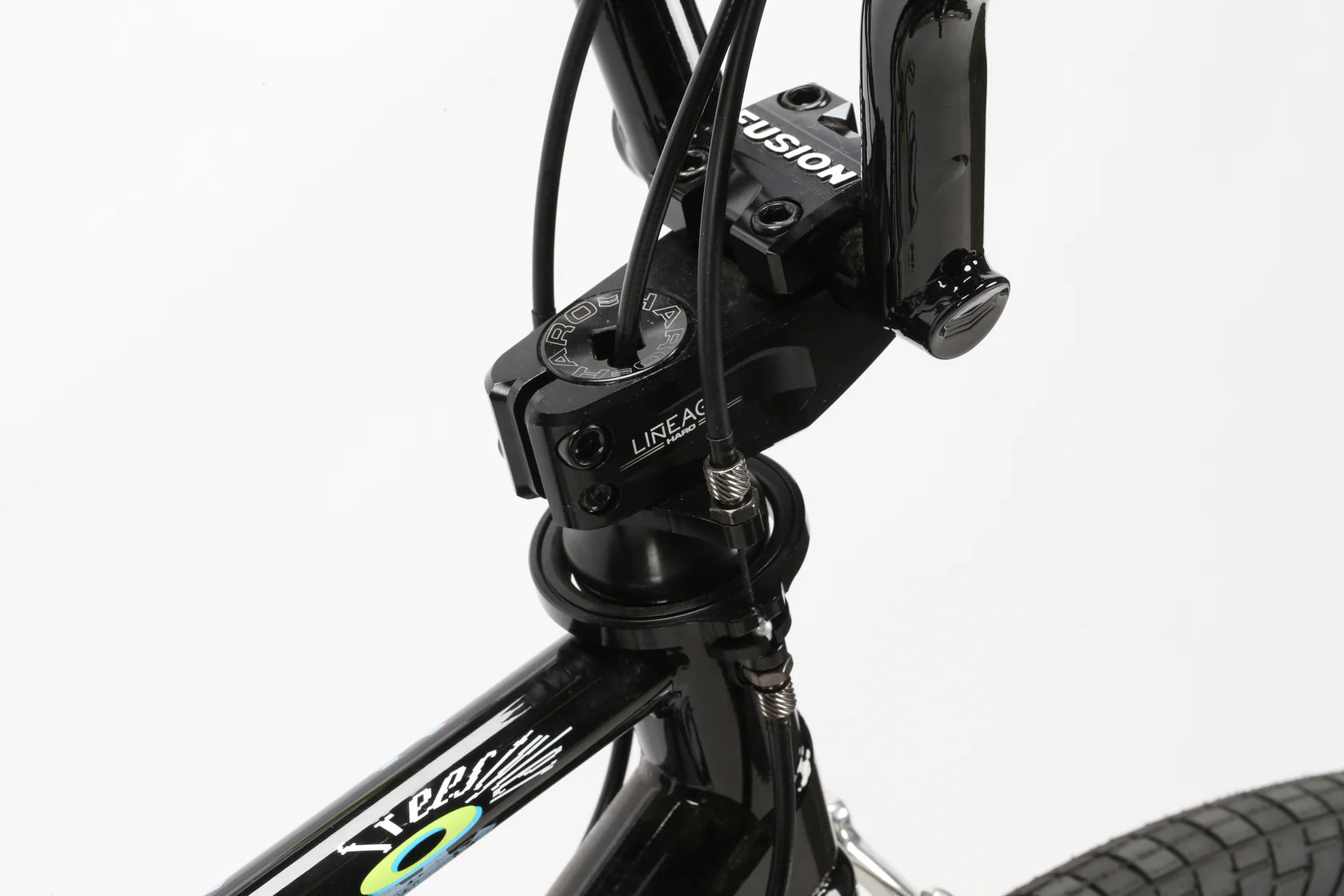

Stem	Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
Headset	Sealed Integrated, 1 1/8"
Seat	Haro Fusion slim stealth pivotal seat
Seat Post	Haro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Post Clamp	Haro Fusion twintorc clamp; alloy 6061
Pegs	6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

Geometry:

Size	Head Angle	Seat Angle	Top Tube	Seat Tube	Chainstay	BB Height	Stand Over
22.5	73°	69°	22.5" (571.5mm)	10.2" (368mm)	13.7" (461mm)	11.5" (293mm)	21.5" (546mm)
