Haro Lineage Ground Master 26"

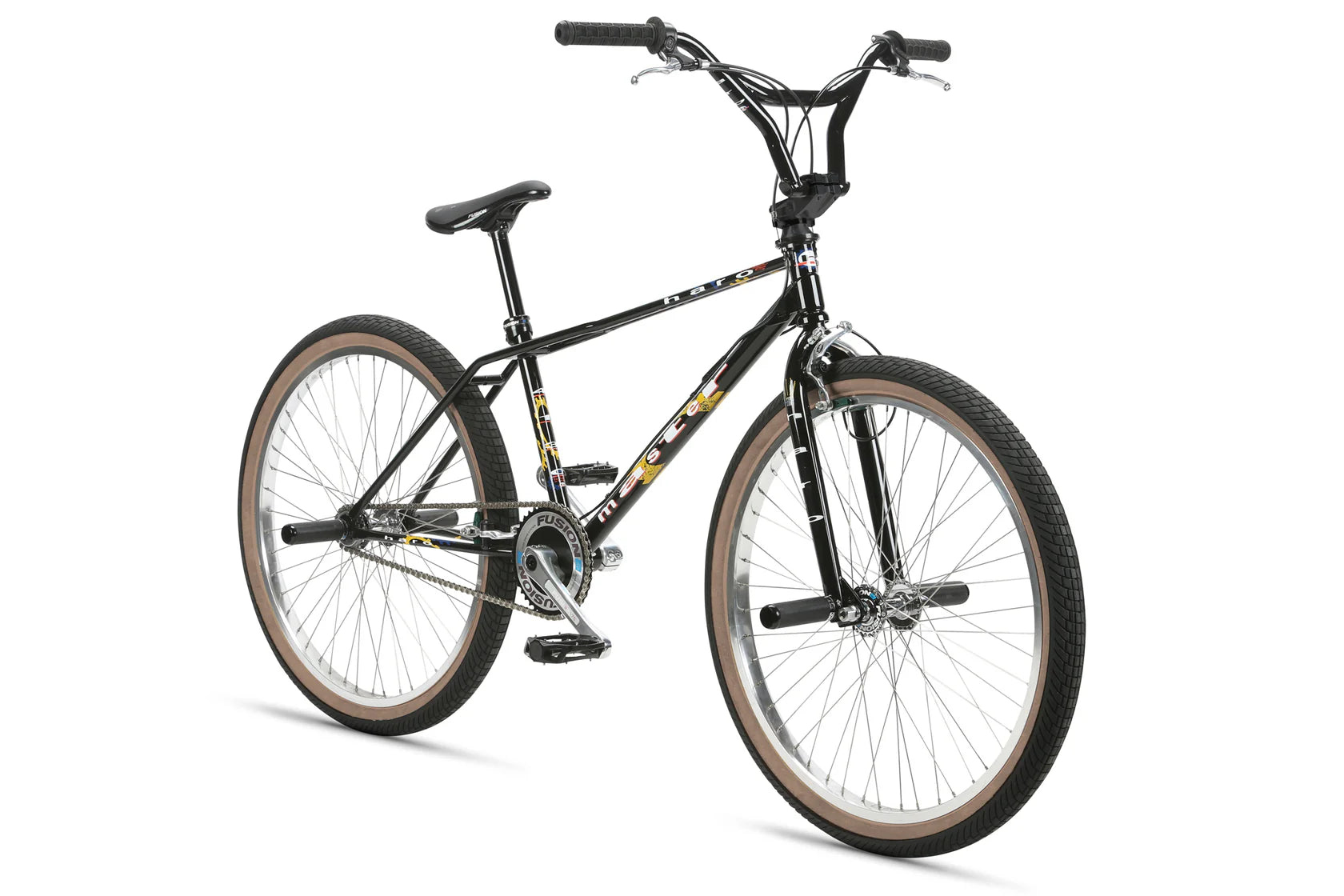

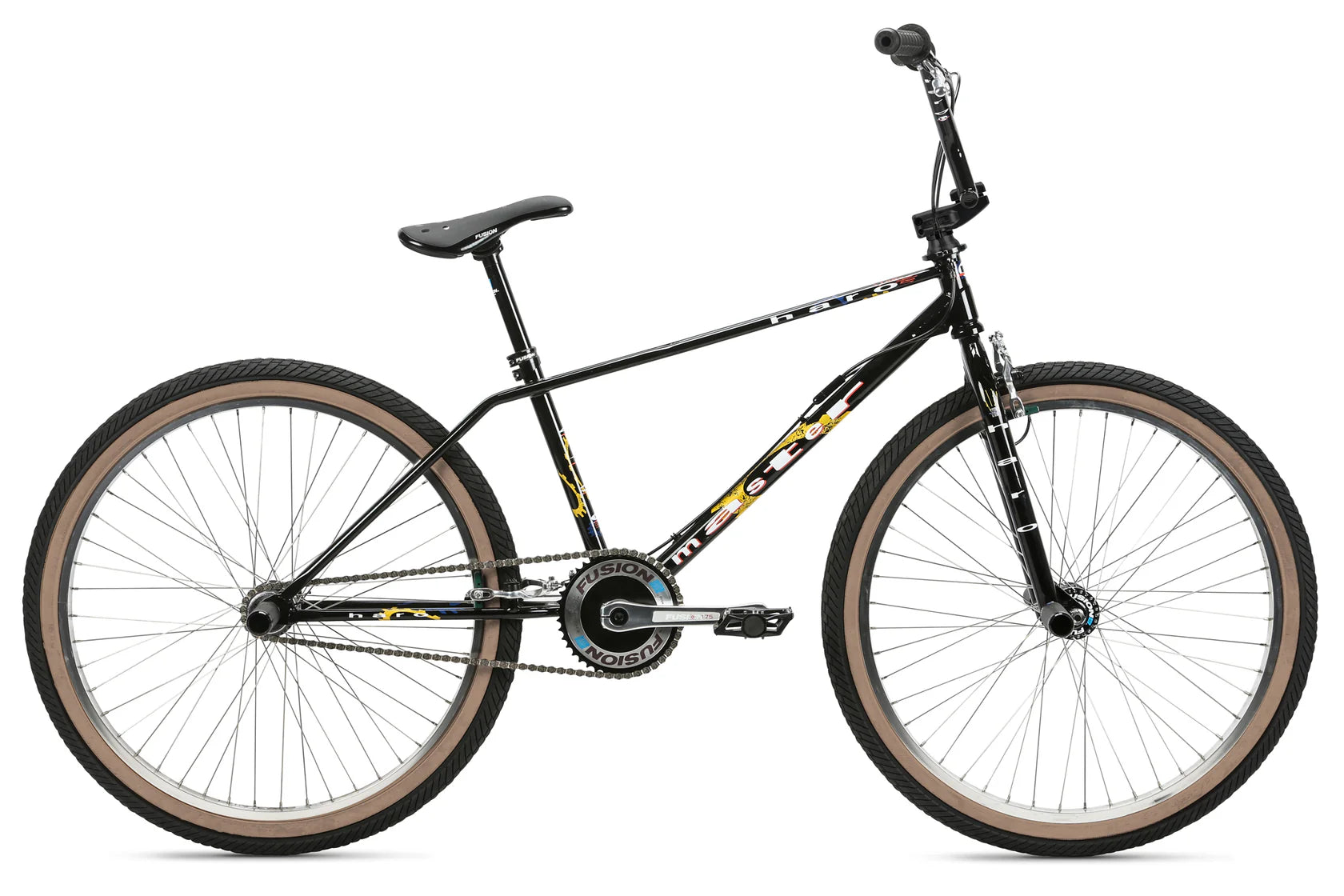

The Ground Master 26" is the big brother to the 20" version with a few changes to keep it tight and right on a larger scale. You get the 1992-inspired all chromoly twin top tube frame and heat treated chromoly fork, Kneesaver bars and Fusion parts throughout. Down below, we're rolling steady on double-wall alloy rims, laced to sealed high flange hubs, mounted with Kenda Kranium 26 X 2.25" tires. Smooth, larger diameter pegs are easy on your feet. Chainstay mounted rear brakes and internally routed front brakes keep the bike in control, even when you aren't. "Tricks are for kids" does not apply to the Ground Master 26".

Features:

100% chromoly Lineage Ground Master frame with twin top tubes, hour glass Mid BB shell, integrated head tube and Lineage dropouts. 22.5" top tube length
100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing

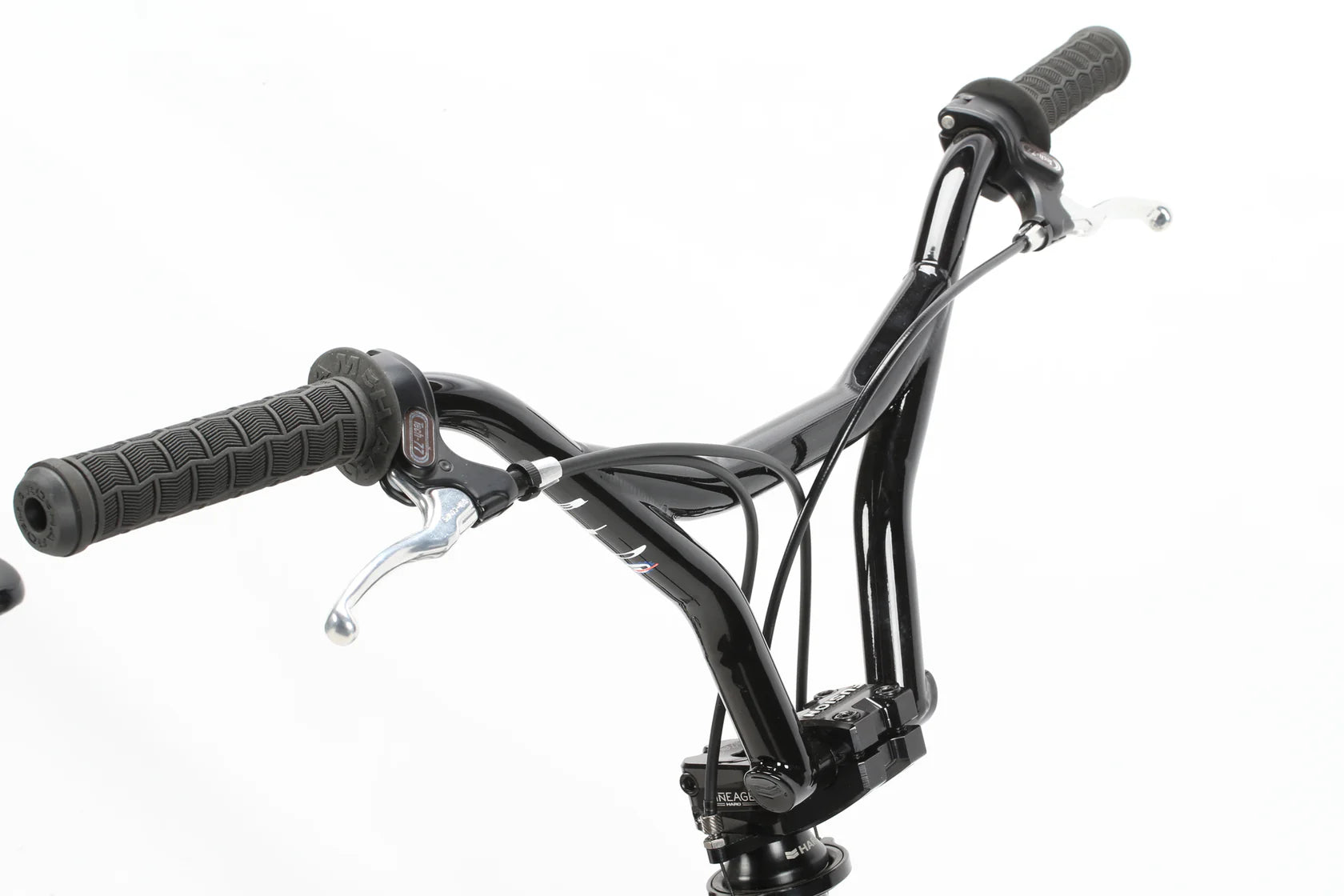

100% heat-treated and butted chromoly Lineage Kneesaver 8.5" bars with Fusion Lineage CNC alloy top load stem

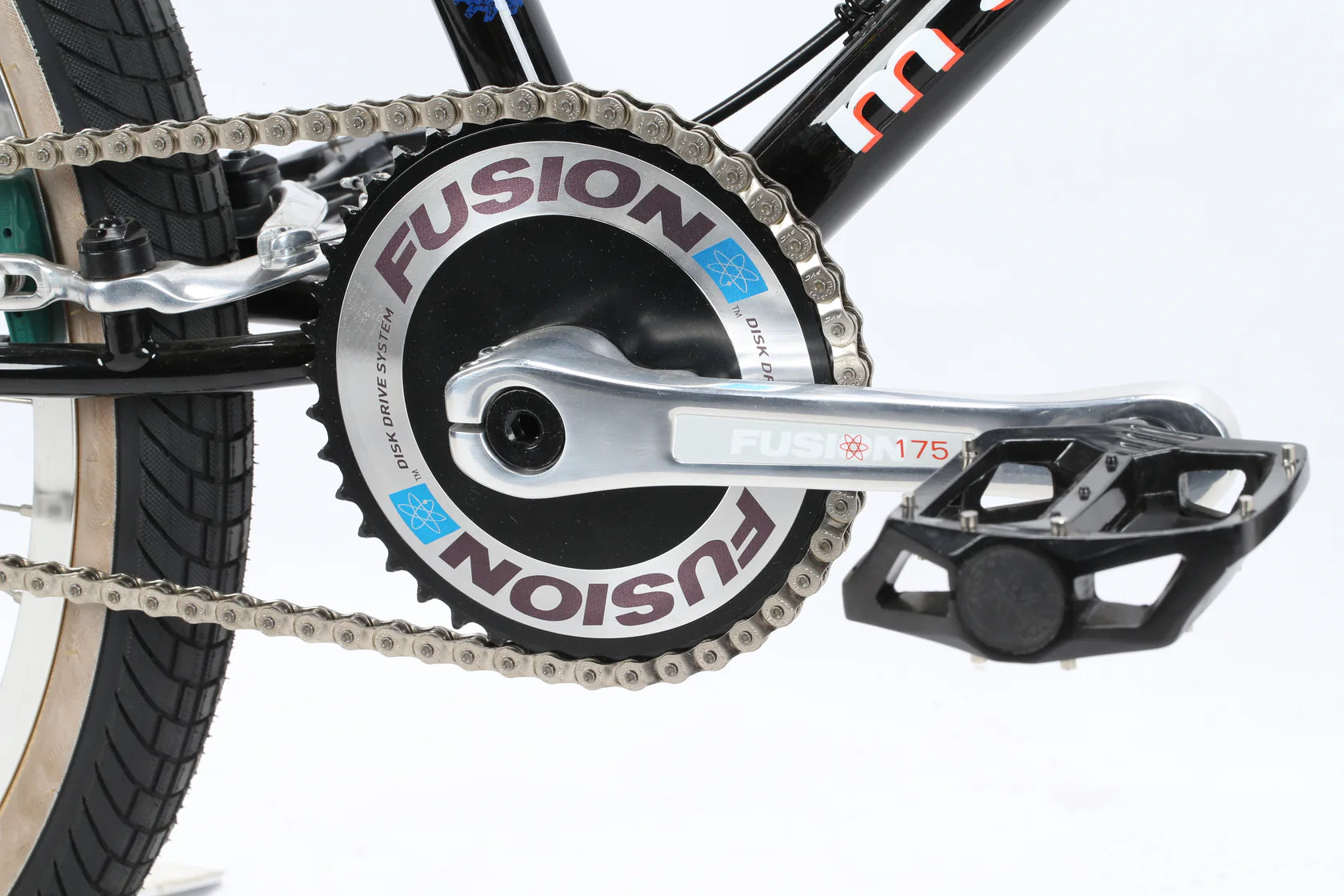

Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc CNC alloy 41T sprocket. Sealed Mid BB
41/17 gearing
Fully sealed 36-hole wheels with Lineage high flange hubs with freewheel rear. Double-wall 36H alloy rims.
Kenda Kranium tires 26 x 2.1" front and rear

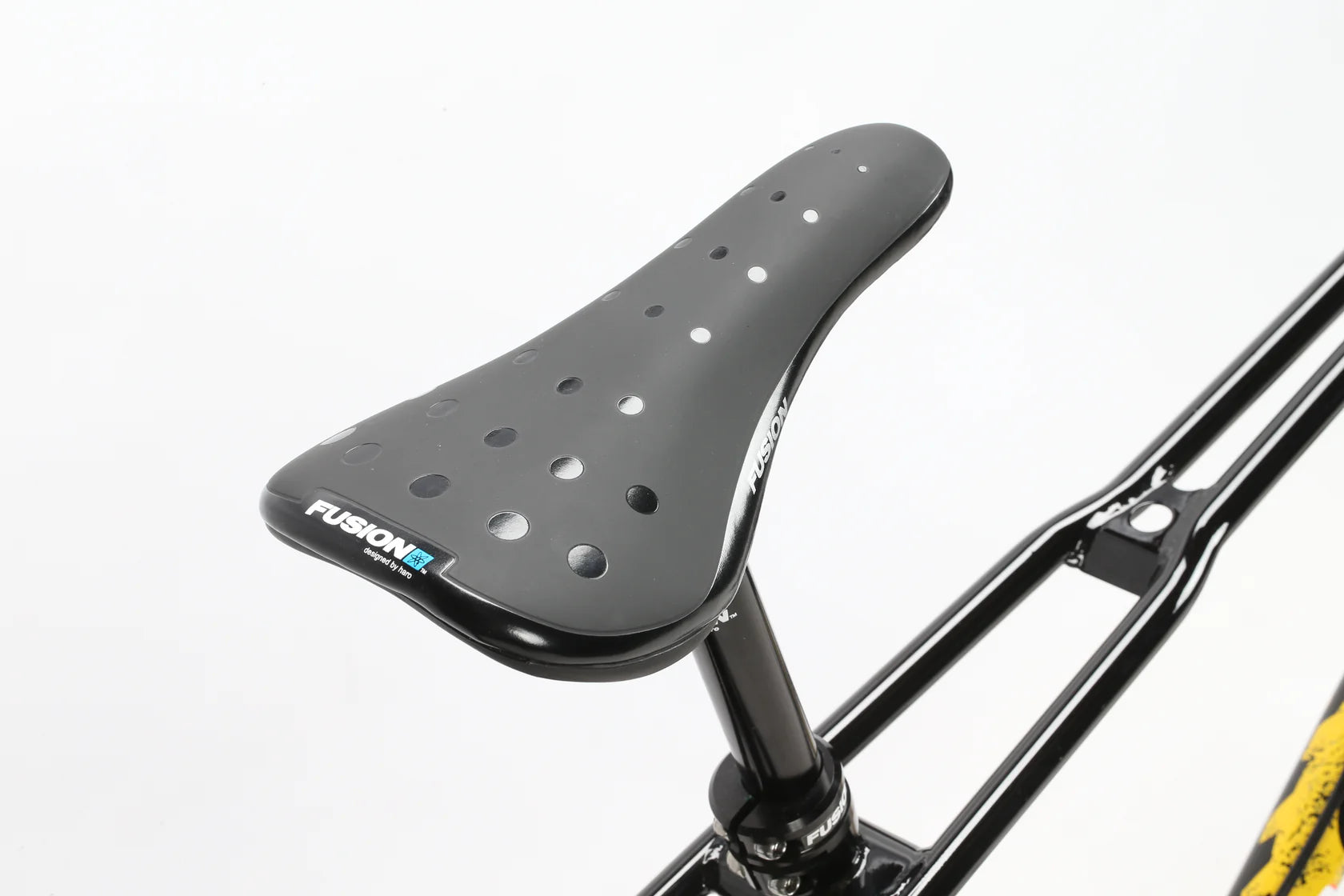

Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal post
Haro Fusion pedals

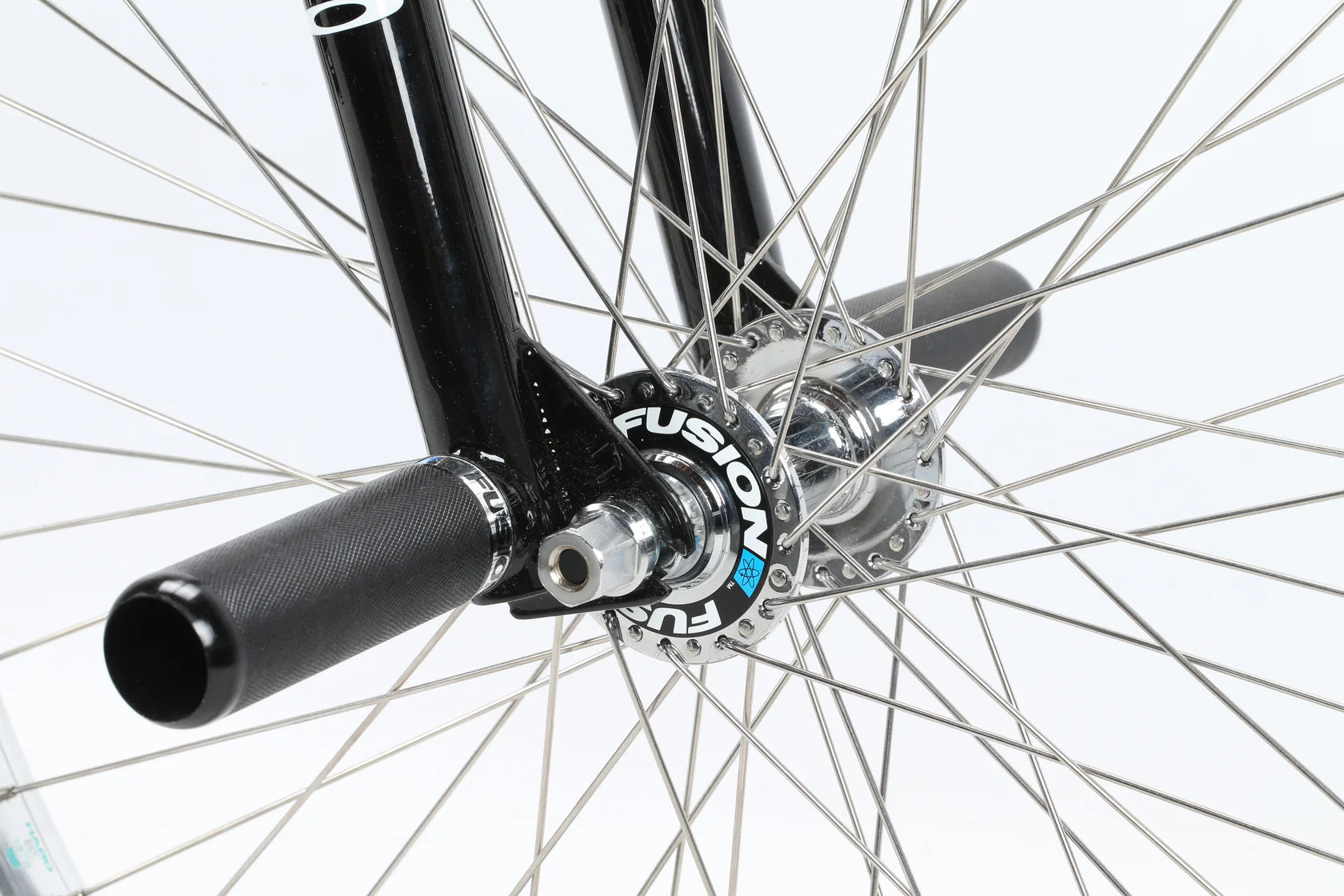

CNC alloy pegs
CNC alloy gyro with Teflon bearing

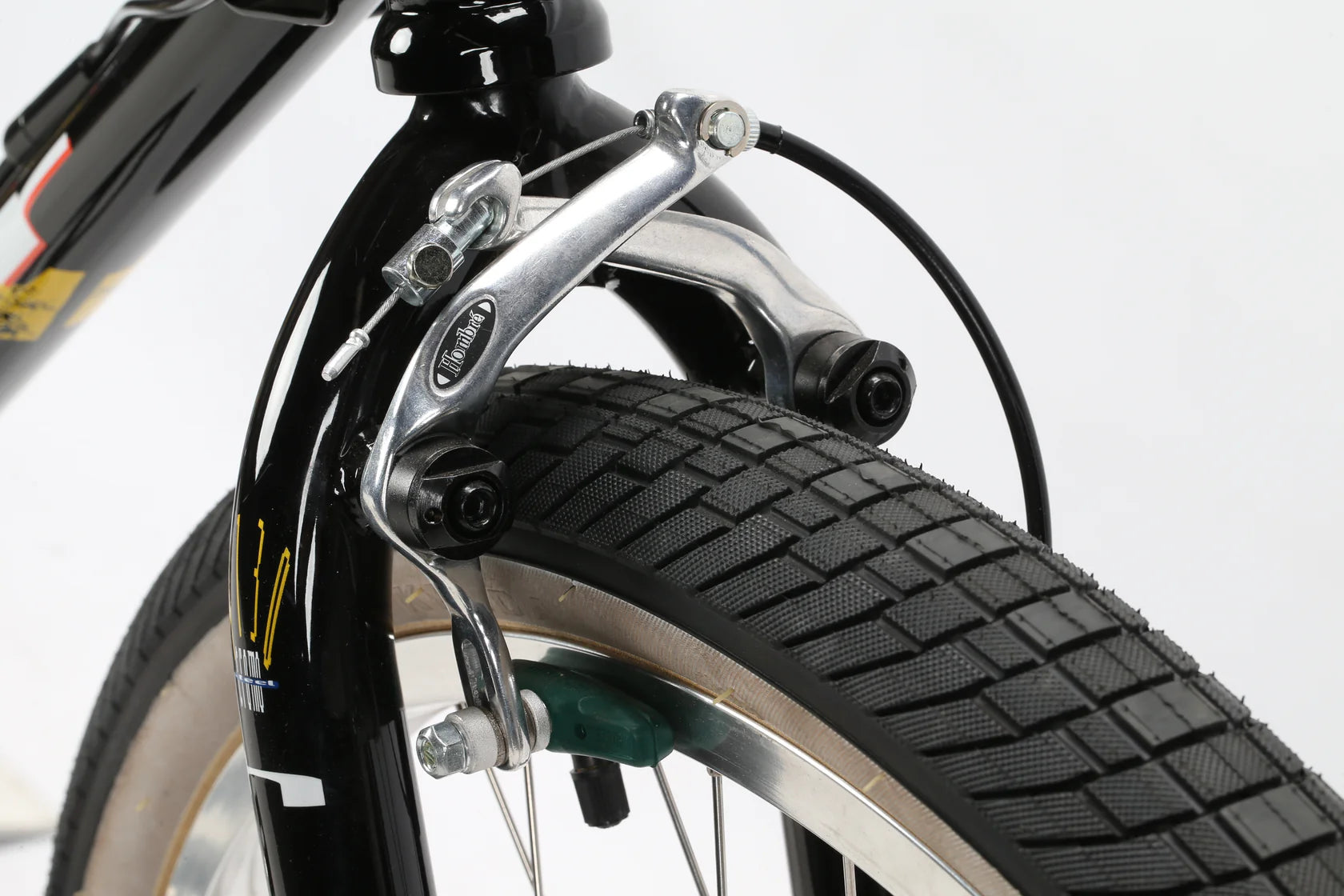

Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers.
Haro Lineage alloy two-bolt seat post clamp

Specifications:

Frame	Lineage Master Bashguard 26" frame - 22.5" full chromoly; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts.
Fork	Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs
Colors	Black
DRIVETRAIN
Cranks	Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle
Bottom Bracket	Sealed MID BB
Sprocket	Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter
Gearing	41/17
Pedals	Haro Fusion; alloy pedal body; chromoly axle
Chain	KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
WHEELS
Tires	Kinda Kranium tire; 26x2.25; 60 max psi
Front Hub	36H alloy hub body; 3/8" chromoly straight axle; 2 sealed bearings
Rear Hub	Haro Lineage sealed bearings; 17t Freewheel; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts
Rims	Haro Lineage 26x1.75"; 36H (double wall welded joint)
BRAKING SYSTEM
Brake	Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts
Brake Lever	Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
Rotor	Teflon bearing gyro - full cnc 6061 t6 included a-plate
OTHER COMPONENTS
Grips	Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).
Handlebar	Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted
Stem	Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
Headset	Sealed Integrated, 1 1/8"
Seat	Haro Fusion slim stealth pivotal seat
Seat Post	Haro Fusion stealth pivotal seat post; 25.4 x 300mm
Seat Post Clamp	Haro Fusion twintorc clamp; alloy 6061
Pegs	6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

Geometry:

Size	Head Angle	Seat Angle	Top Tube	Seat Tube	Chainstay	BB Height	Stand Over
22.5	73°	69°	22.5" (571.5mm)	10.2" (368mm)	13.7" (461mm)	11.5" (293mm)	21.5" (546mm)
