Description

Haro La Bastille Cassette 20" BMX

Designed and built for pure freestyle performance, the La Bastille is quite literally the bike that can do it all. Designed by flatland world champion, Matthias Dandois, this bike is at home with the most technical flatland riding imaginable as it is in the streets, on ramps or at the trails. A responsive 20.25" top tube frame is perfect for mid-sized riders and is the go-to frame for younger riders on the Haro crew. The LaBastille Cassette version has a cassette rear hub for full speed ahead engagement.

Features:

Full chromoly frame with 1-1/8" steerer tube and mid BB shell; 20.25" top Tube
Full chromoly with tapered legs & internally threaded 1-piece steerer tube. 15mm offset
Haro full chromoly 9" rise 2-piece
Haro Baseline stem
Haro Baseline grips
Haro Baseline chromoly 8 spline 19mm cranks; 165mm length
Sealed front hub and rear cassette, 36H double wall alloy rims
25/9 gear ratio
Haro Base line half link chain
Haro La Mesa tires 20x2.4" front/rear
Flatland specific geometry featuring 19.5" top tube, 75.5° head tube, 71° seat tube, 12.75" chain stays

Specifications:

Frame	Full chromoly frame w/ 1-1/8" integrated headtube, mid BB shell, removable brakes mounts & 14mm dropouts. 20.25" top tube., 75.5° head tube. 12.75"chain stay.
Fork	Full chromoly 1 1/8" threadless internally threaded steerer tube & tapered legs. 15mm offset
Colors	Sea Foam
DRIVETRAIN

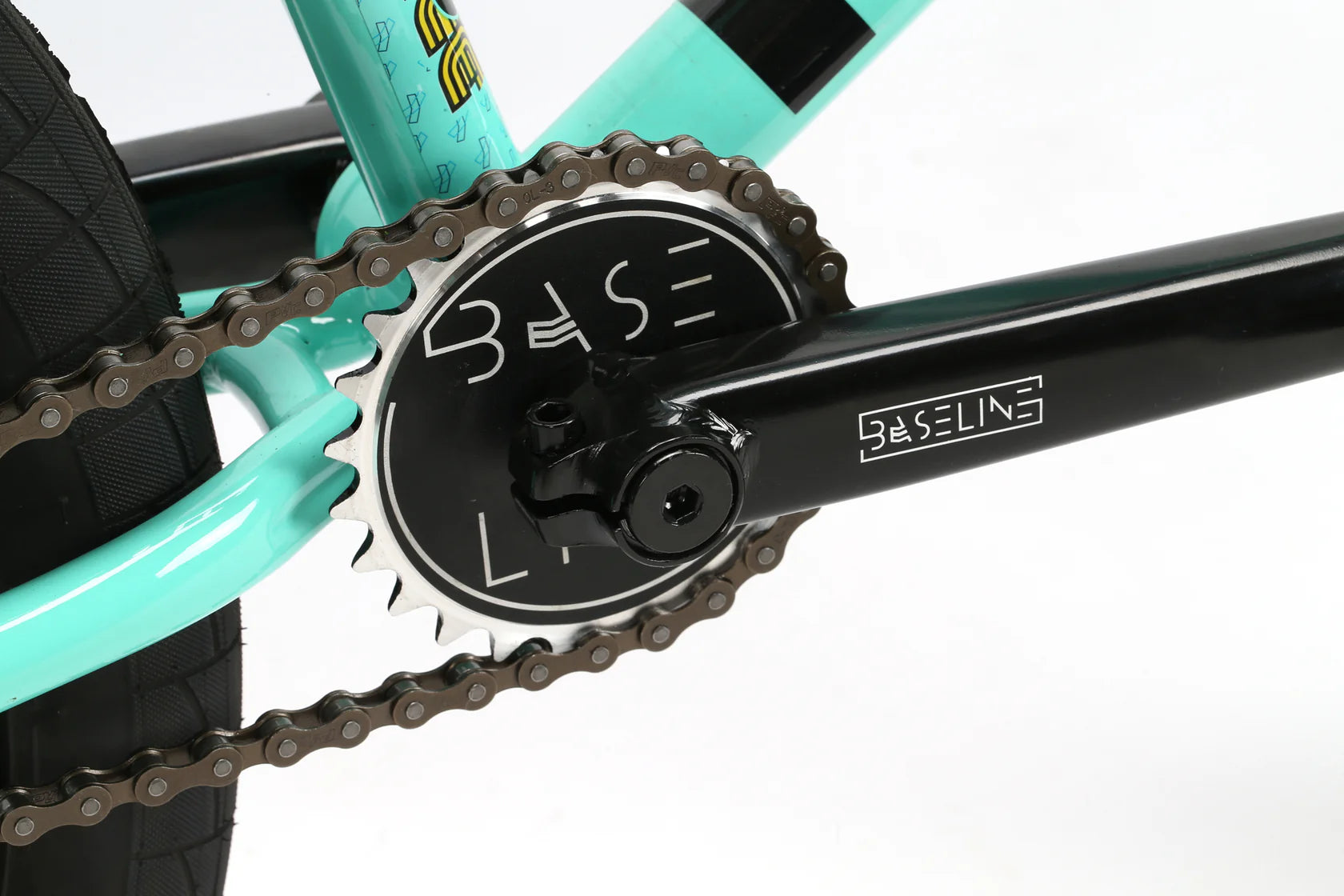

Cranks	Haro Baseline 3-pc chromoly 8 Spline 165mm
Bottom Bracket	Sealed bearing mid
Sprocket	25t Steel Chainring
Gearing	25/9
Pedals	Poly platform. Chromoly 9/16" Axle
Chain	Baseline chain
WHEELS
Tires	Haro La Mesa 20 x 2.4"

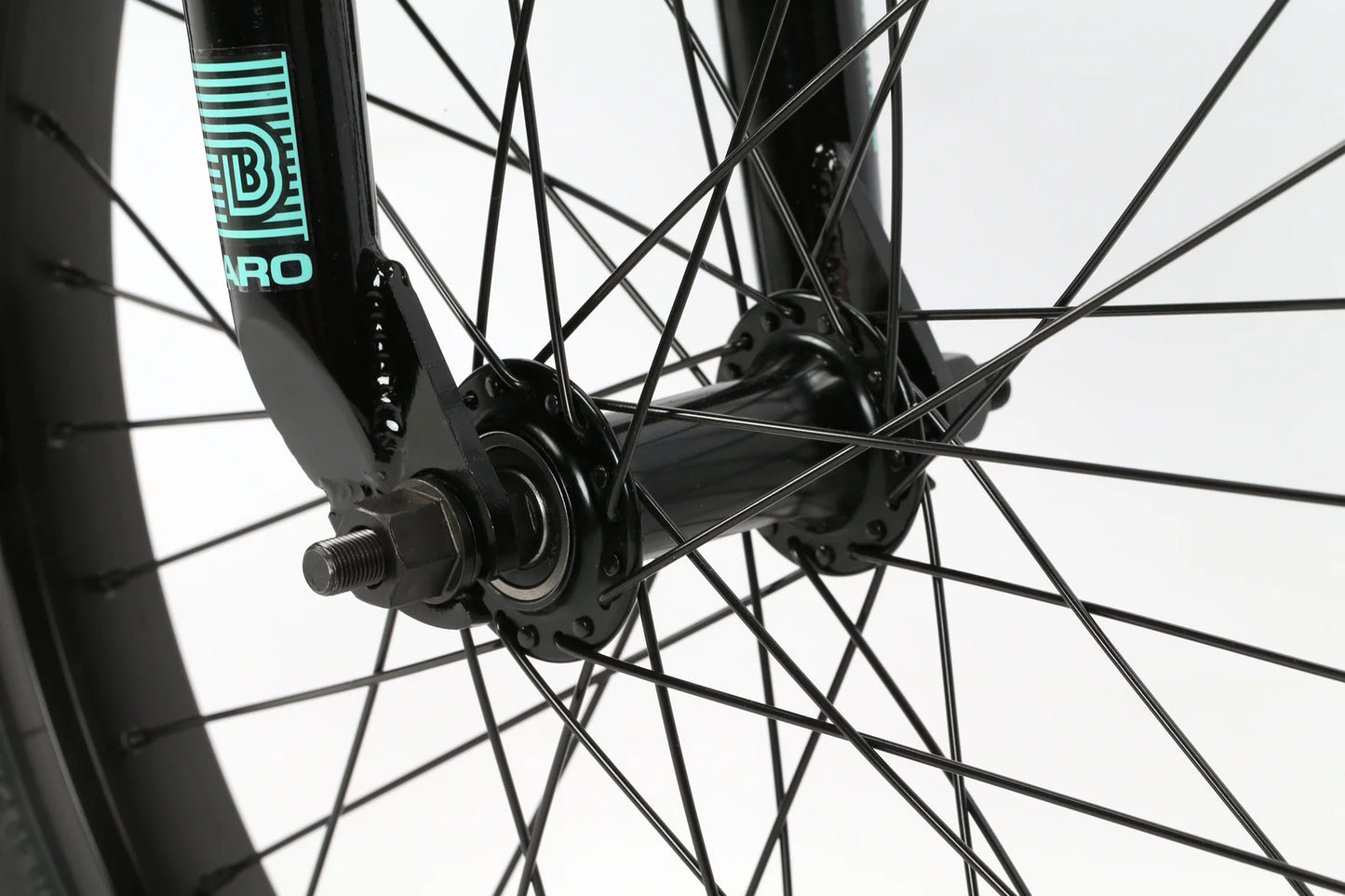

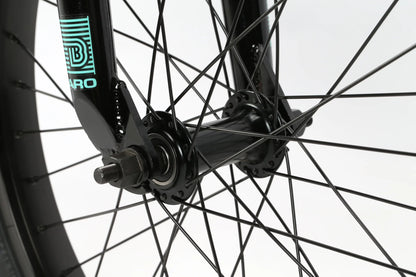

Front Hub	36h alloy sealed, female axle
Rear Hub	Alloy 9t cassette rear. 14mm male axle
Axle	36h alloy sealed, female axle
Rims	20" alloy double-wall rims. 36 holes.
BRAKING SYSTEM
Brake	Alloy 990 U-Brake
Brake Lever	Haro Baseline two-finger
OTHER COMPONENTS

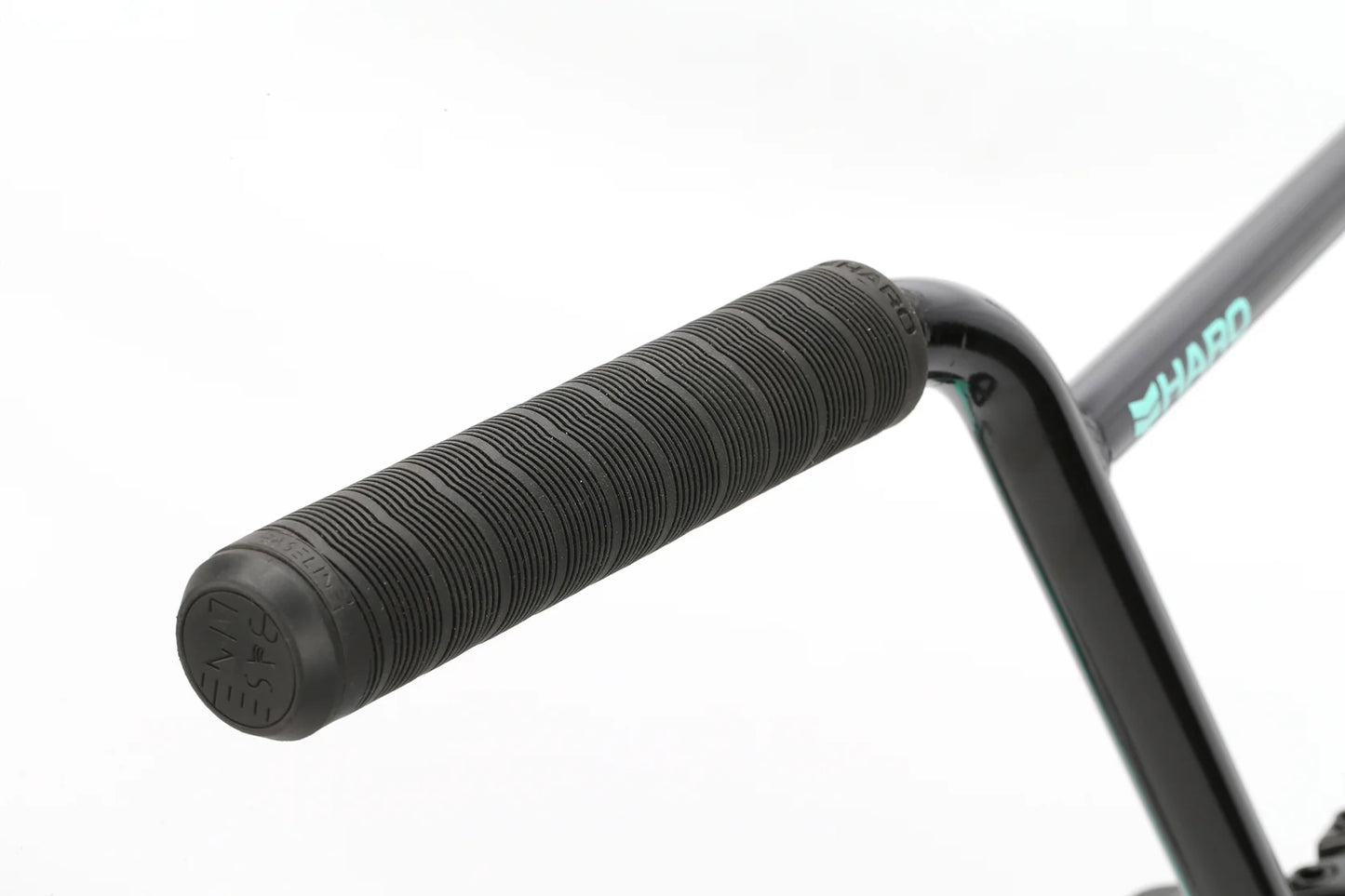

Grips	Haro Baseline 163mm flangeless
Handlebar	Haro chromoly, 9" rise 2-piece

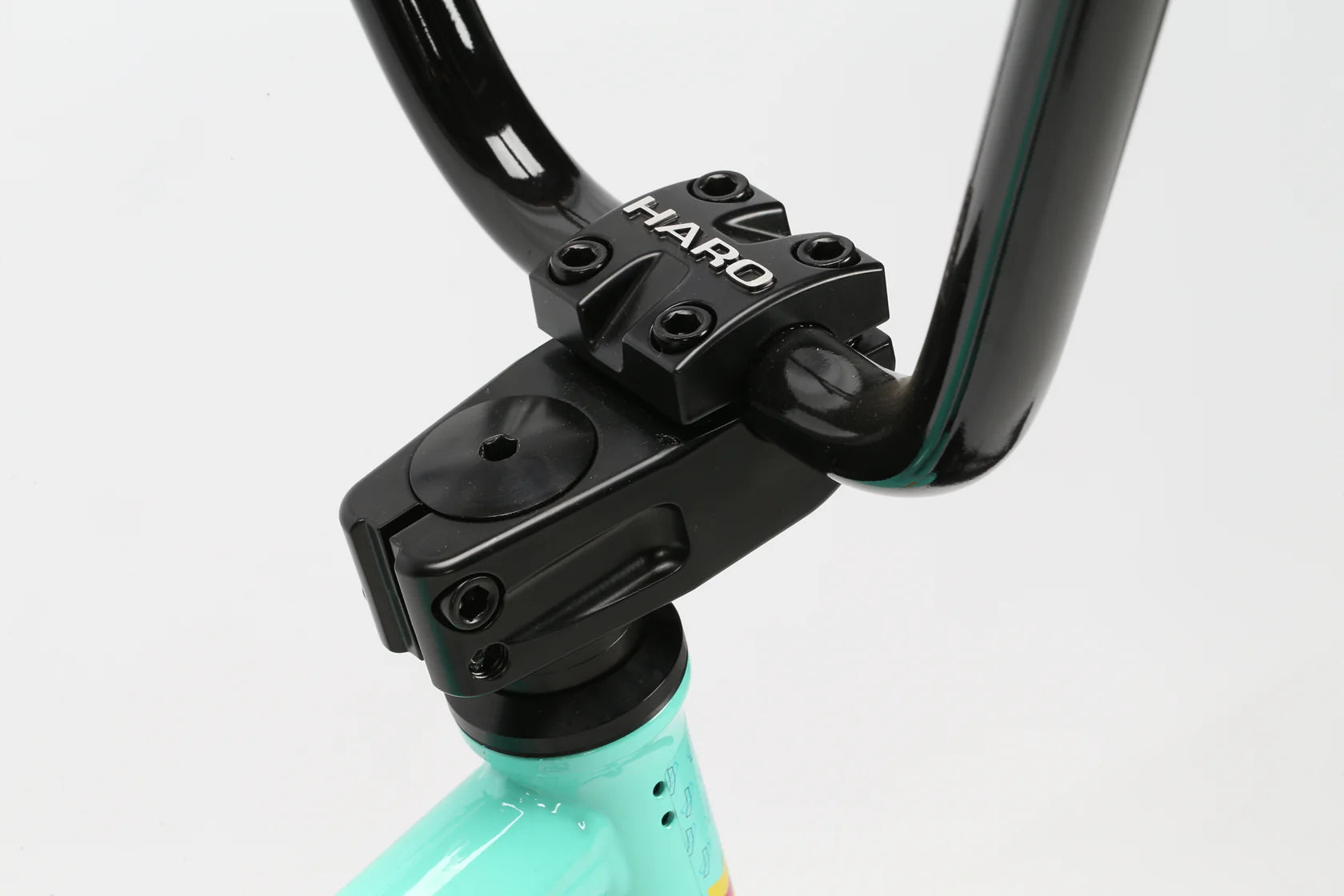

Stem	Haro Baseline 48mm reach
Headset	Integrated 1-1/8" threadless sealed bearings
Seat	Baseline 5° seat/post combo
Seat Post	Aluminium 25.4mm
Seat Post Clamp	Integrated

Geometry:

Size	Head Angle	Seat Angle	Top Tube	Seat Tube	Chainstay	BB Height	Stand Over
20.25	75.5°	71°	20.25" (495.5mm)	9" (230mm)	12.75" (322mm)	11.5" (293mm)
