Description

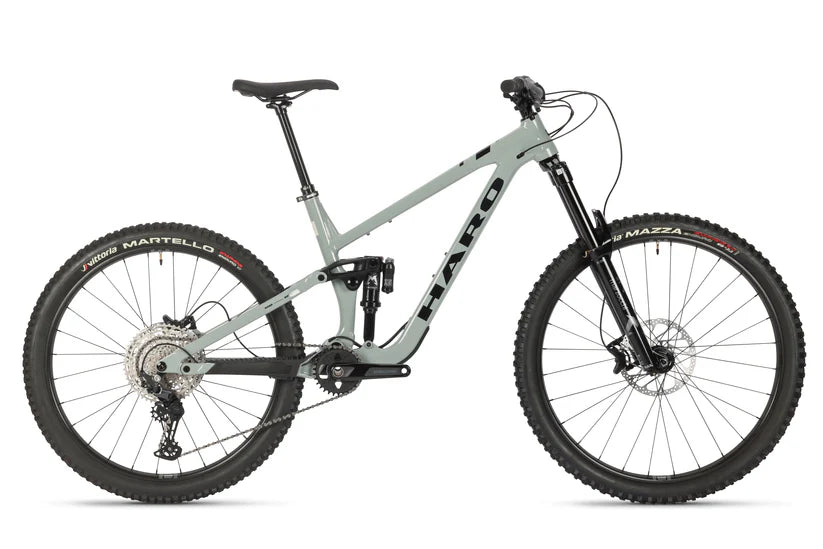

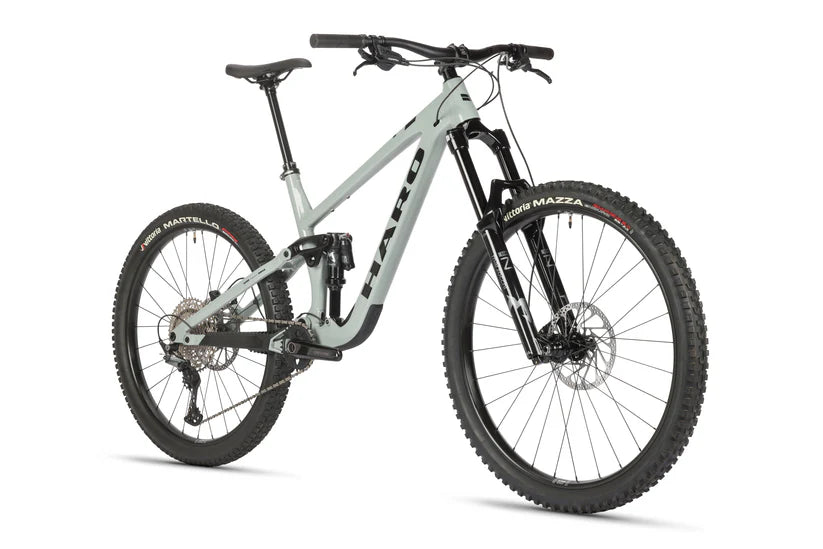

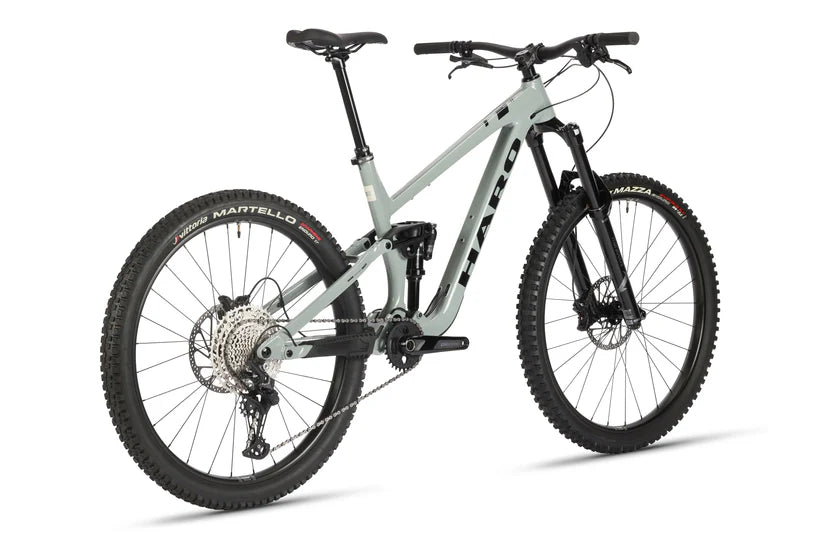

Haro Greer Alloy 2 29"

Shred-ready and built for business. The Haro Greer is refined, modern and aggressive, set up for the steep and deep with 170/160mm travel. Start with our performance alloy Greer frame, with custom tuned, progressive suspension for each spec level. The 29/27.5 "mullet" wheel configuration means business in the front and party in the back, but make no mistake, this whole bike is ready to throw down. Designed by riders for riders to plow through the chunk and send the biggest hits. Drop the seat and drop in.

Features:

Haro Greer alloy full-suspension alloy frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Marzocchi Inline shock with rebound and dampening adjustment, 160mm travel
Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 15mm thru-axle, 44mm offset, 170mm travel
Shimano Deore M6100 drivetrain
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
WTB KOM Team I35, sleeved double-wall alloy rims, 28H
Tektro Gemini SL 4-piston hydraulic disc brakes, with 2.3mm rotors, 203mm front & rear
WTB Wavelength 130mm lock-on grips
Kind Shock I900 dropper post, size specific
Includes tubeless valves and sealant

Specifications:

Frame	Haro Greer alloy full-suspension alloy frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger

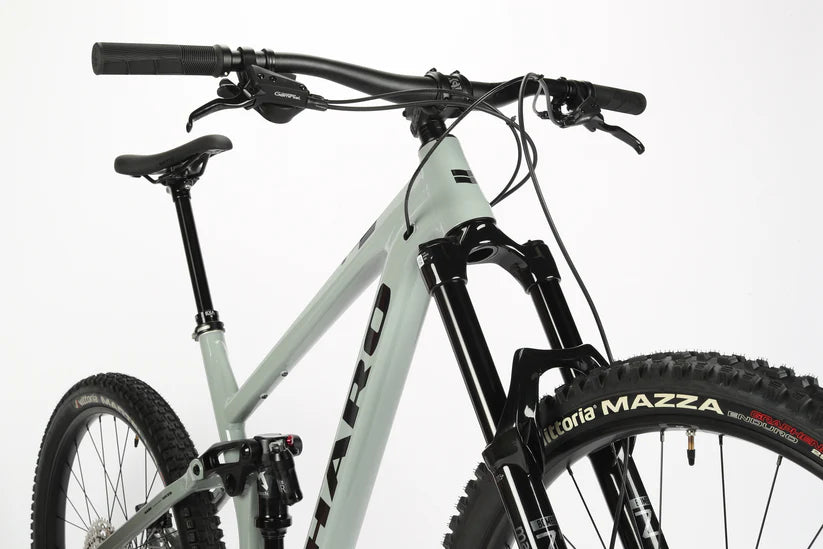

Fork	Marzocchi Bomber Z2, Rail - Sweep Adjust, Kabolt 110 x 15mm thru-axle, 44mm offset, 170mm travel

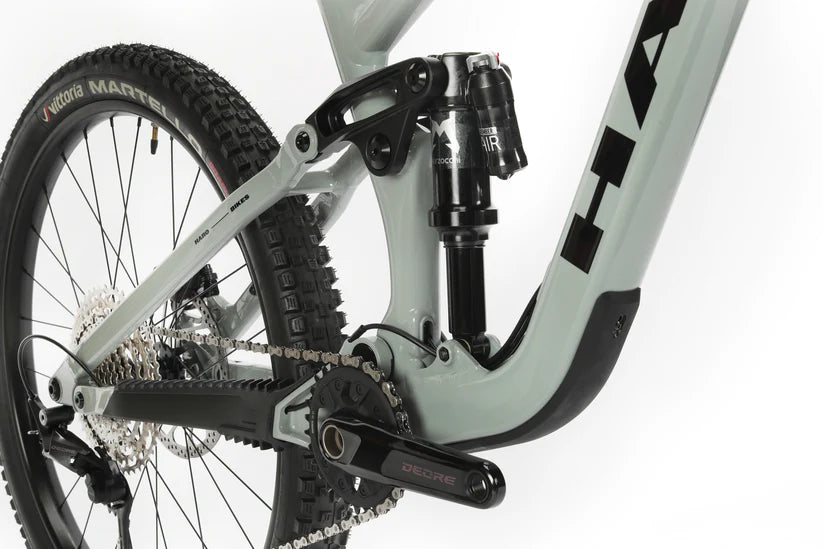

Frame Shock	Marzocchi Inline with rebound and dampening adjustment, 160mm travel
Colors	Gloss Cedar Brown / Orange, Semi-Gloss Slate Blue
Weight	38.14 lbs 17.63 kg, (L)
DRIVETRAIN

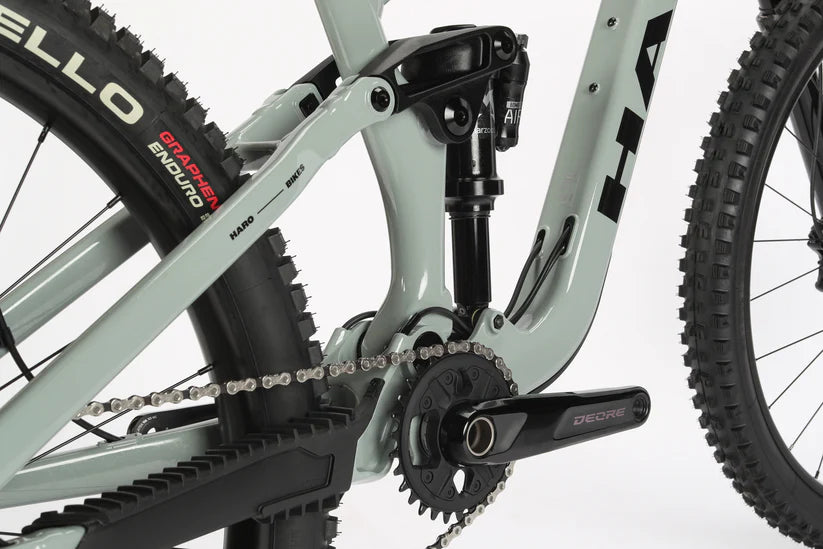

Cranks	Shimano Deore FC-M6120-1, 165mm 30T chainring
Pedals	N/A
Chain	KMC X12
Bottom Bracket	Shimano BB-MT501 BSA 68/73mm
Front Derailleur	N/A
Rear Derailleur	Shimano Deore 12-speed, RD-M6100 Shadow Plus
Derailleur Shifter	Shimano Deore Rapid Fire, SL-M6100-R
Freewheel/Cassette	Shimano 12-speed CS-M6100-12, Hyper Glide Plus, 10-51T
WHEELS
Tires	Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims	WTB KOM Team I35, sleeved double-wall alloy, 28H, TSC 2.0
Hubs	Alloy CNC 4 sealed bearings, 110x15 front axle, 148x12 rear axle
BRAKING SYSTEM
Brakes	Tektro Gemini SL 4-piston hydraulic disc, with 2.3mm thick rotors, 203mm front & rear
Brake Levers	Tektro Gemini
OTHER COMPONENTS
Grips/Tape	WTB Wavelength 130mm lock-on

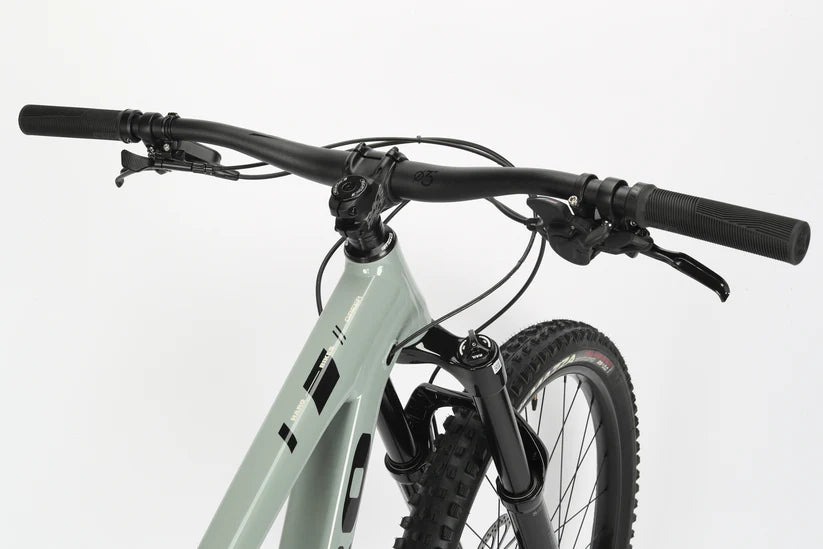

Handlebar	Race Face Chester 35mm OD, 780mm wide, 35mm rise
Stem	Race Face Chester, 35mm ID, 40mm reach
Headset	FSA Orbit 1.5E ZS/ NO.57E tapered headset, 44/56mm head tube
Saddle	WTB Volt Medium, w/steel rails

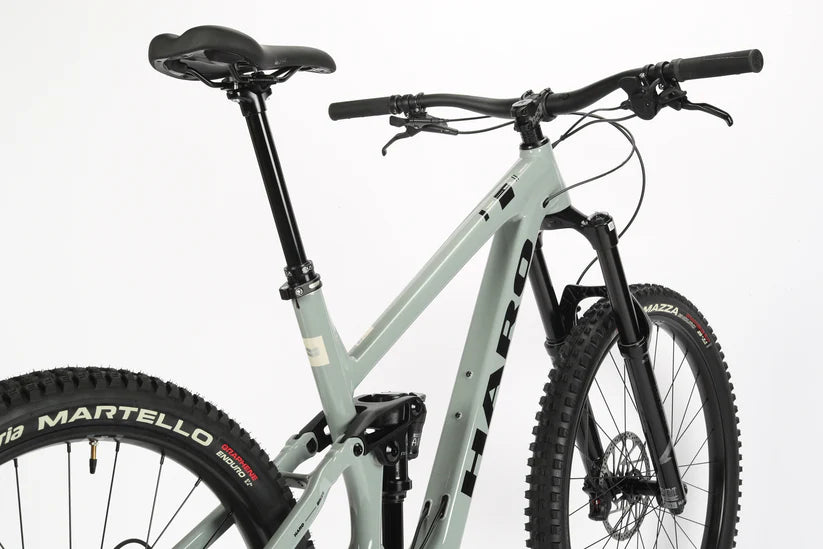

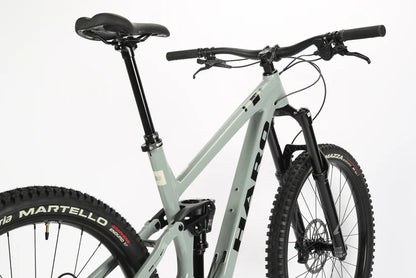

Seat Post	Kind Shock I900 dropper post, 34.9 OD. Sizes: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm
Seat Clamp	3D Forged 6061 aluminum 38.9mm ID
Extras	Includes tubeless valves and sealant

Geometry:

SIZE	S	M	L	XL
Seat Tube (C-T)	361mm	410mm	448mm	473mm
Top Tube (Effective)	553mm	590mm	617mm	644mm
Head Tube Angle	64.5°	64.5°	64.5°	64.5°
Seat Tube Angle	78°	78°	78°	78°
Chainstay Length	428mm	445mm	445mm	445mm
BB Drop	23mm	33mm	33mm	33mm
Wheelbase	1172mm	1237mm	1266mm	1296mm
Head Tube Length	90mm	100mm	110mm	120mm
Standover	691mm	685mm	705mm	705mm
Stack Height	579mm	610mm	619mm	628mm
Reach	430mm	460mm	485mm	510mm
Axle to Crown	544mm	561mm	561mm	561mm
Fork Offset	44mm	44mm	44mm	44mm

Wheel Size	29F / 27.5R	29F / 27.5R	29F / 27.5R	29F / 27.5R

Sizing Guide:

Size	Inches	CM
S	5" - 5' 6"	153 - 166
M	5' 4" - 5' 11"	162 - 180
L	5' 9"- 6' 2"	175 - 187
XL	6' - 6' 5"	180 - 196
