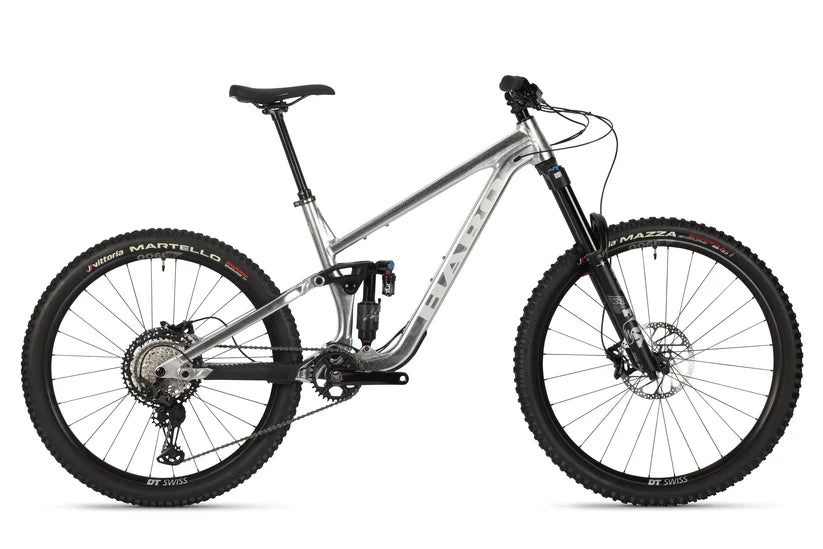

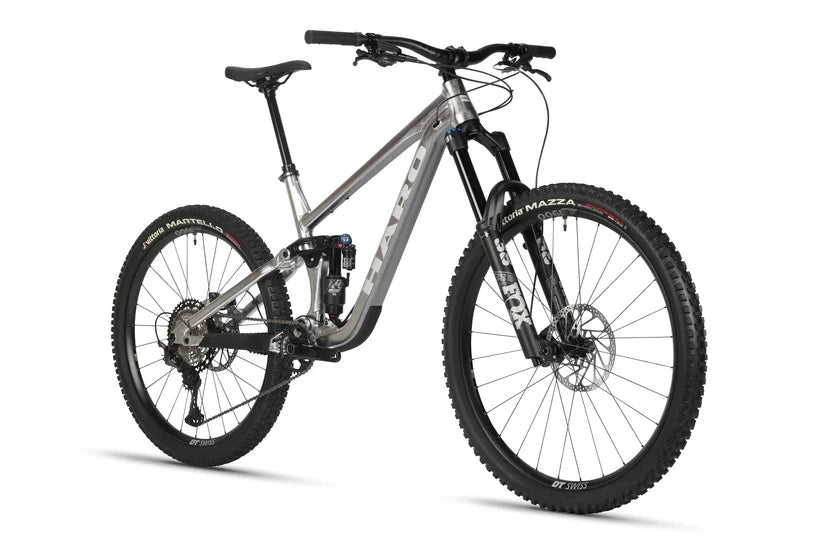

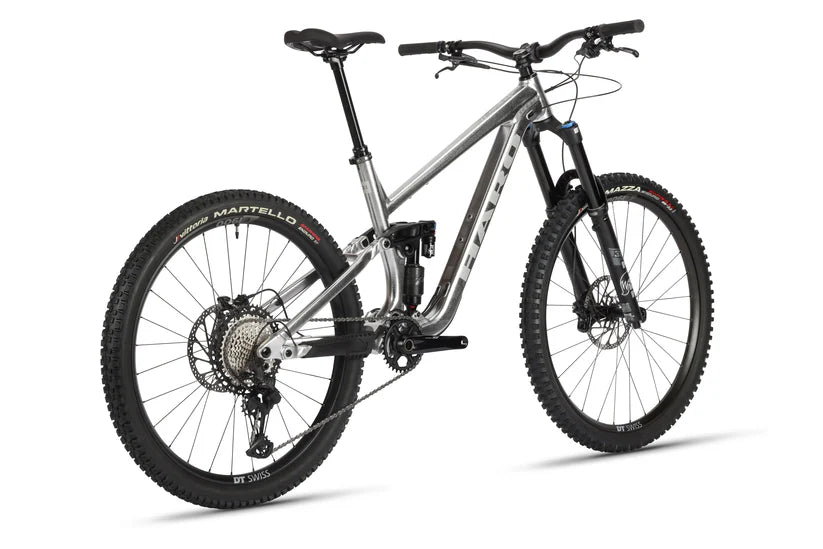

Haro Greer Alloy 2 LTD 29"

Get raw! During the R&D phase of the new Haro Greer alloy full-suspension MTB, the overwhelming response was that we should offer a production version of the raw aluminum frame. We answered that call with the limited edition Greer Raw LTD 1 and LTD 2. The anodized raw finish over the burnished surface and etched detail looks clean, fast and ready to rip. Plus, it comes in two premium builds with Fox suspension. The Greer Alloy Raw LTD 1 & Greer Alloy Raw LTD 2 are available now in limited quantities.

Features:

Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
Fox Float X2 Performance Elite shock, 160mm travel
Fox Float 38 Performance Elite with Grip X, 170mm travel
Shimano XT drivetrain
DT Swiss M 1900 wheel set
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
Race Face Turbine bars & Aeffect R stem
Kind Shock Rage-I dropper post, size specific

Specifications:

Frame	Haro Greer alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger

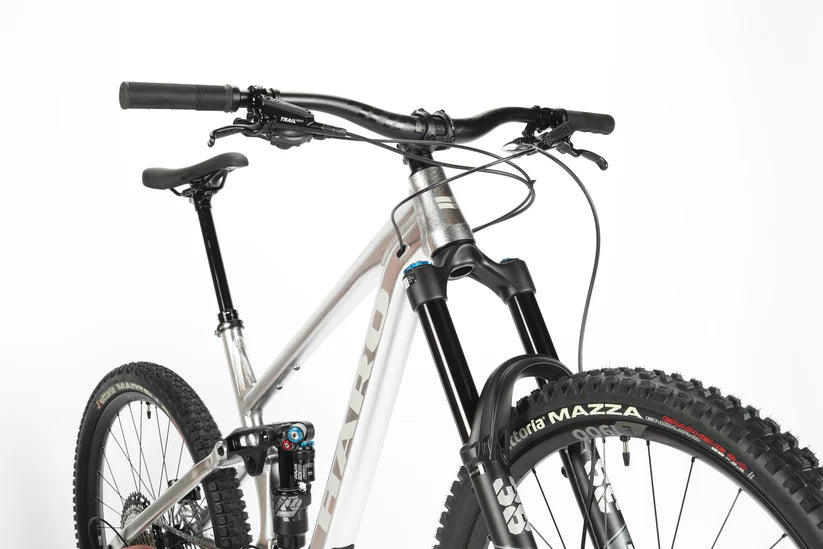

Fork	Fox Float 38 Performance Elite with Grip X, 170mm travel

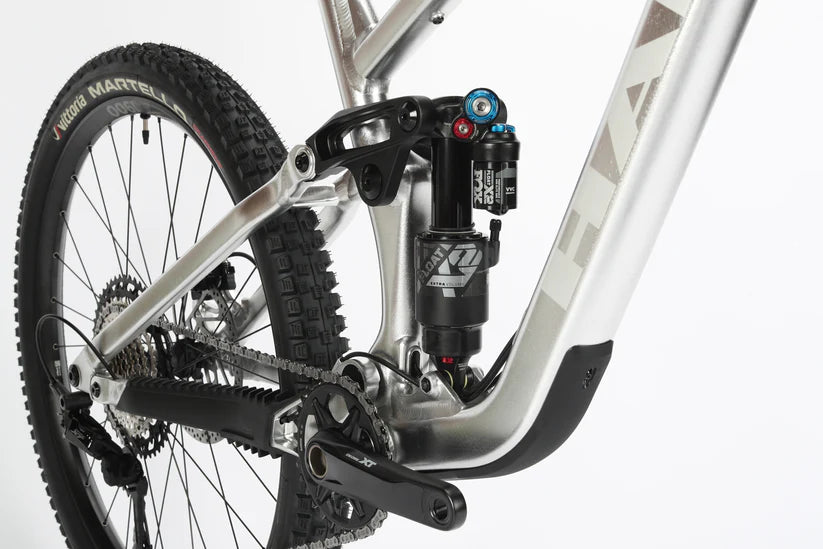

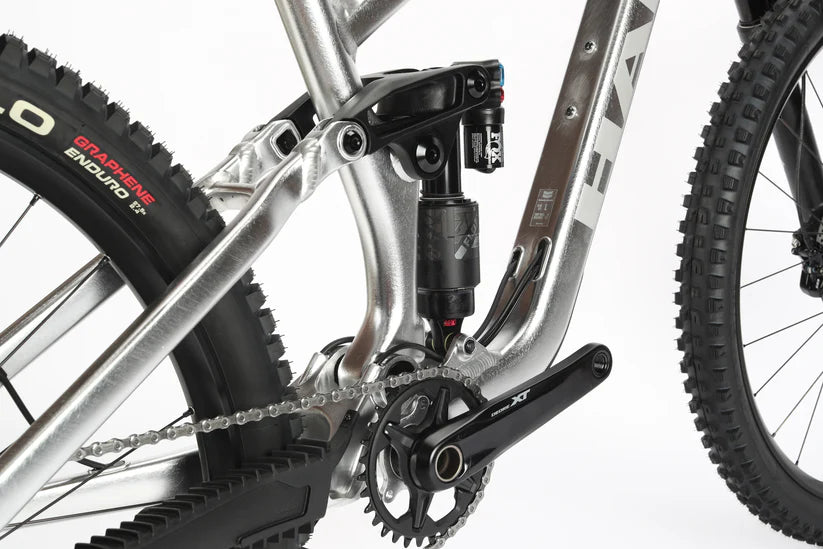

Frame Shock	Fox Float X2 Performance Elite shock, 160mm travel
Colors	Raw
Weight	38.9 lbs 17.49 kg, (L)
DRIVETRAIN
Cranks	Shimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
Pedals	N/A
Chain	Shimano CN-M8100 HG 12-speed
Bottom Bracket	Shimano BB-MT501 BSA 68/73mm
Front Derailleur	N/A
Rear Derailleur	Shimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur Shifter	Shimano XT 12-speed, SL-M8100R
Freewheel/Cassette	Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
Tires	Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims	DT Swiss M 1900 wheel set
BRAKING SYSTEM
Brakes	TRP Trail EVO 4-piston hydraulic disc with 2.3mm thick, 203mm rotors, front & rear
Brake Levers	TRP Trail EVO
OTHER COMPONENTS
Grips/Tape	WTB Wavelength 130mm lock-on

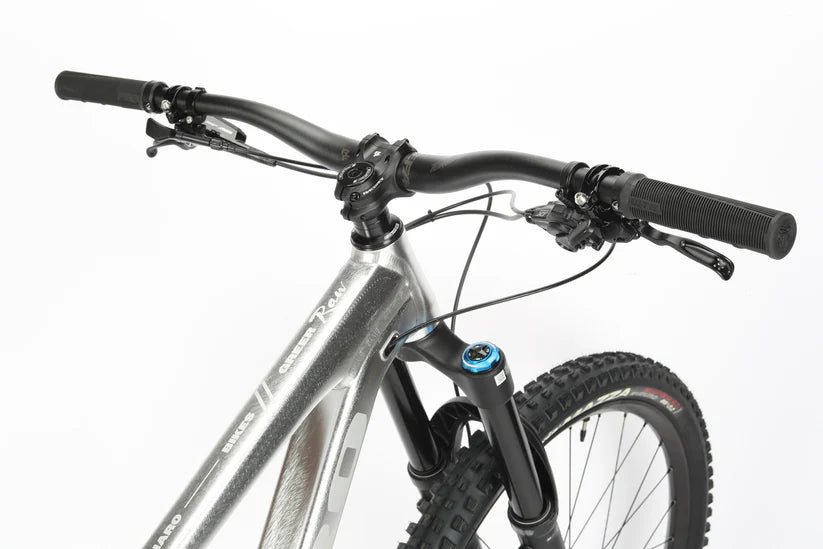

Handlebar	Race Face MY25 Turbine, 35mm OD, 40mm rise, 800mm wide
Stem	Race Face Aeffect R, 35mm ID, 40mm reach
Headset	FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle	WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners

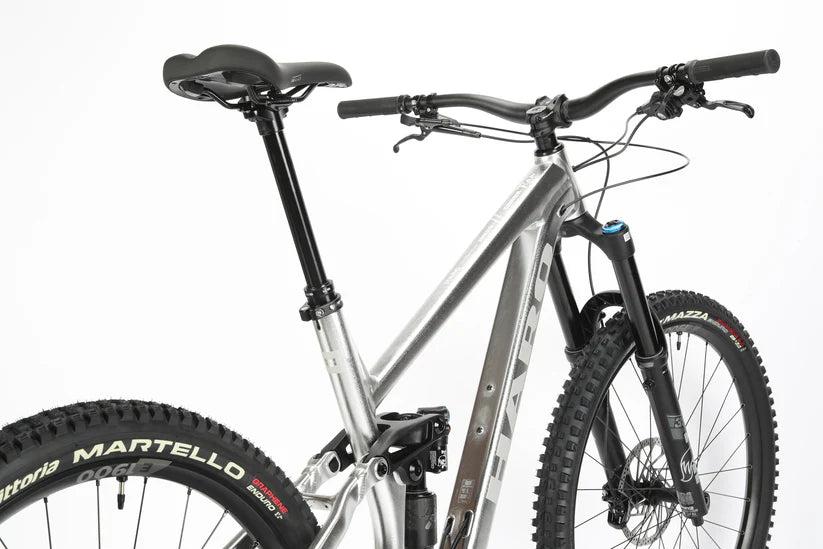

Seat Post	Kind Shock Rage-I dropper, 34.9OD, sizes: Small 150mm, Medium 170mm, Large 190mm, X-Large 190MM
Seat Clamp	3D Forged 6061 aluminum 38.9mm ID
Extras	Includes tubeless valves and sealant

Geometry:

SIZE	S	M	L	XL
Seat Tube (C-T)	361mm	410mm	448mm	473mm
Top Tube (Effective)	561mm	593mm	620mm	646mm
Head Tube Angle	63.8°	63.8°	63.8°	63.8°
Seat Tube Angle	78°	78°	78°	78°
Chainstay Length	435mm	435mm	435mm	435mm
BB Drop	30mm	30mm	30mm	30mm
Wheelbase	1210mm	1244mm	1273mm	1303mm
Head Tube Length	90mm	100mm	110mm	120mm
Standover	697mm	701mm	714mm	714mm
Stack Height	615mm	624mm	633mm	642mm
Reach	430mm	460mm	485mm	510mm
Axle to Crown	584mm	584mm	584mm	584mm
Fork Offset	44mm	44mm	44mm	44mm



Wheel Size	29F / 27.5R	29F / 27.5R	29F / 27.5R	29F / 27.5R

Sizing Guide:

Size	Inches	CM
S	5" - 5' 6"	153 - 166
M	5' 4" - 5' 11"	162 - 180
L	5' 9"- 6' 2"	175 - 187
XL	6' - 6' 5"	180 - 196
