Description

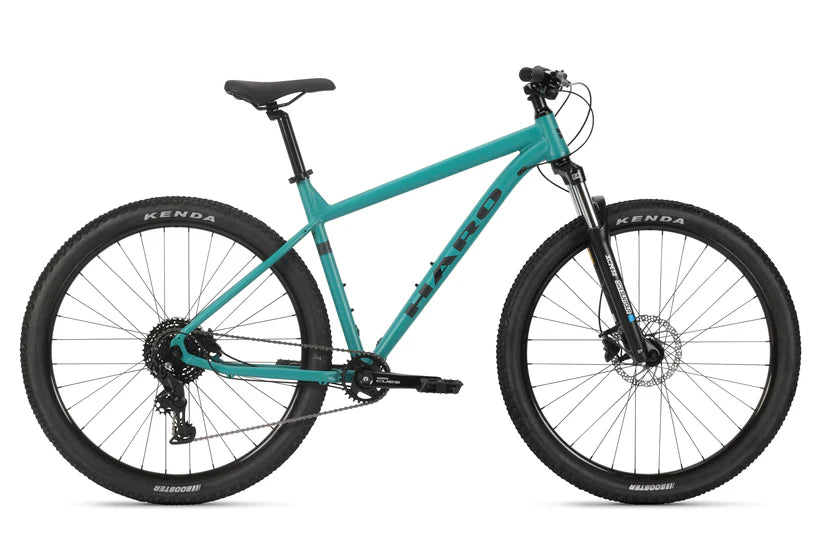

Haro Flightline LTD 29"

The Flightline is our most popular MTB and the Flightline LTD shakes things up with 1 X 9 Shimano Cues gearing setup, an SR Suntour SF19-XCT30 100mm travel fork and Tektro hydraulic brakes with a 160mm front and 180mm rear rotor for maximum stopping power in all conditions. Built on our proven Flightline aluminum frame, the Flightline LTD performs at a high level, without the high price tag.

Features:

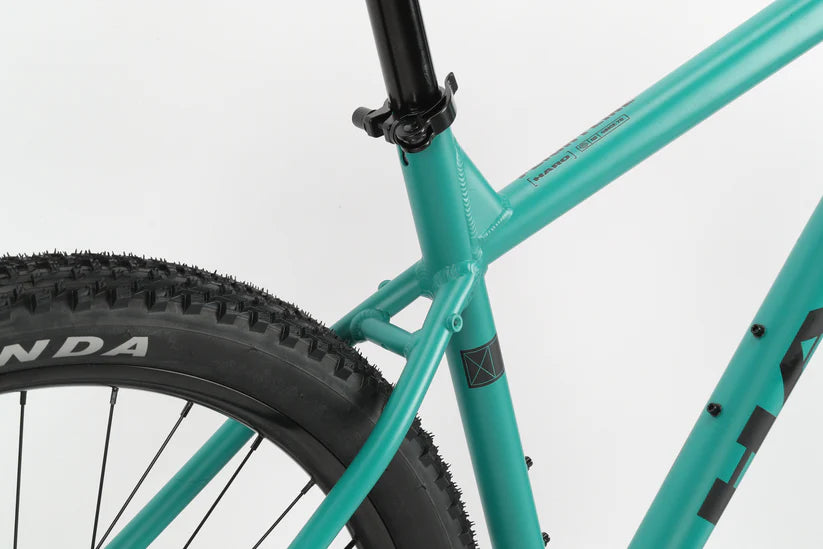

Haro Flightline 6061-T6 Aluminum frame, with internal cable routing and tapered head tube
SR Suntour SF19-XCT30 100mm suspension fork

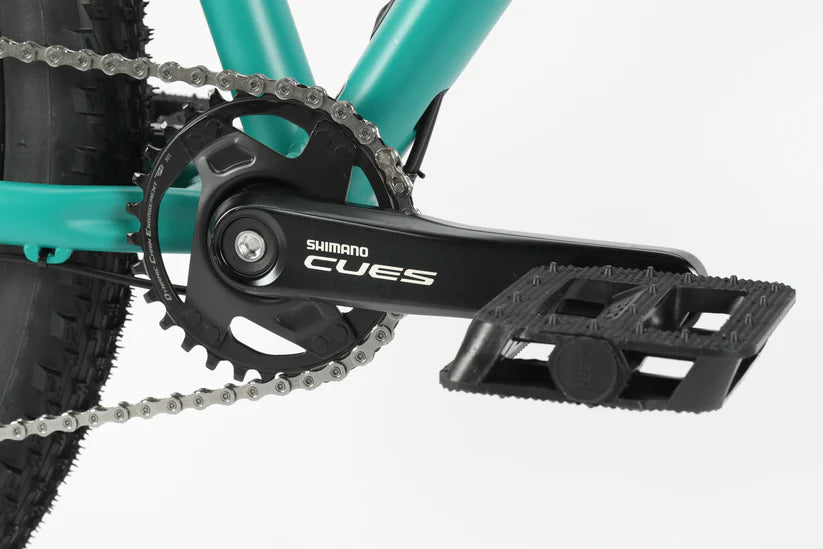

Prowheel 3-piece alloy cranks with 32T chainring
Shimano Cues 1 X 9-speed, 11-42T cassette
Double-wall i25 alloy rims with quick-release hubs

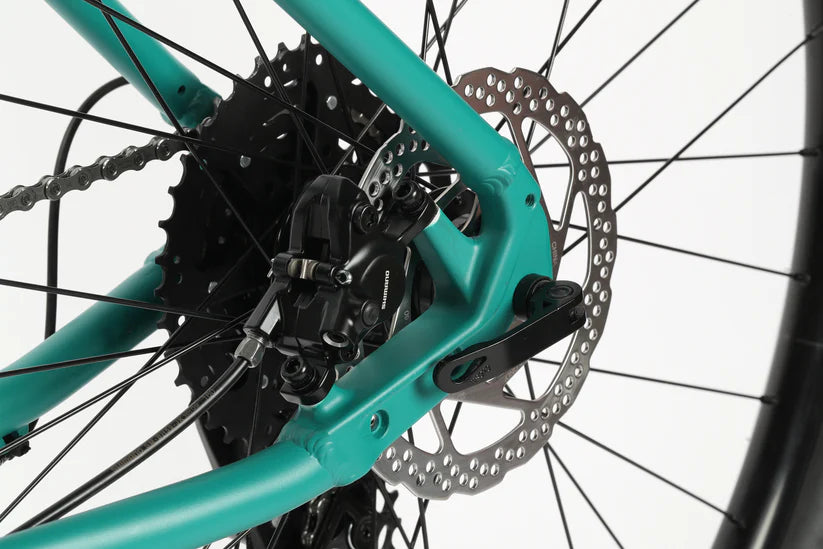

Tektro hydraulic disc brakes with 160mm front and 180mm rear rotors
Frame can be upgraded with aftermarket dropper post (with internal routing) and tapered front fork

Specifications:

Frame	Haro Flightline 6061-T6 Aluminum frame, with internal cable routing and tapered head tube
Fork	SR Suntour SF19-XCT30 100mm suspension fork
Colors	Gloss Black, Matte Green
DRIVETRAIN
Cranks	Prowheel 3-piece alloy cranks with 32T chainring
Pedals	FPD nylon platform 9/16"
Chain	9-speed
Bottom Bracket	Sealed cartridge, 73mm
Front Derailleur
Rear Derailleur	Shimano Cues 1 X 9-speed
Derailleur Shifter	Shimano Cues 9-speed Rapidfire Plus with optical display
Freewheel/Cassette	Shimano Cues 9-speed 11-42T
WHEELS
Tires	Kenda K1153 29 x 2.35" (front & rear)
Wheels/Rims	Double-wall i25 alloy rims
Hubs	Alloy quick-release
BRAKING SYSTEM
Brakes	Tektro hydraulic disc with 160mm front and 180mm rear rotors
Brake Levers	Tektro 2-finger
OTHER COMPONENTS
Grips/Tape	DDK TPR 130mm
Handlebar	780mm wide, 15mm Rise, 9° back sweep, 5° up sweep
Stem	Alloy 3D forged 60mm reach
Headset	Neco 1-1/8" threadless
Saddle	DDK MTB
Seat Post	Alloy micro-adjust
Seat Clamp	Alloy quick-release
Extras	Frame can be upgraded with aftermarket dropper post (with internal routing) and tapered front fork.

Geometry

SIZE	S	M	L	XL
Seat Tube (C-T)	406mm	457mm	508mm	559mm
Top Tube (Effective)	595mm	610mm	635mm	645mm
Head Tube Angle	69°	69°	69°	69°
Seat Tube Angle	72.5°	72.5°	72.5°	72.5°
Chainstay Length	450mm	450mm	450mm	450mm
BB Drop	64mm	64mm	64mm	64mm
Wheelbase	1105.98mm	1136mm	1146.64mm	1157.3mm
Head Tube Length	100mm	100mm	110mm	120mm
Standover	721mm	740mm	773.7mm	799mm
Stack Height
Reach	394mm	425mm	435mm
Axle to Crown	515mm	515mm	515mm	515mm
Fork Offset	44mm	44mm	44mm	44mm

Size Guide:

Size	Inches	CM
S	5'4" - 5'8"	162.5 - 172.5
M	5'7" - 6'	170 - 182.5
L	5'11" - 6'2"	180 - 187.5
XL	6'1" - 6'5"	185 - 195
