Description

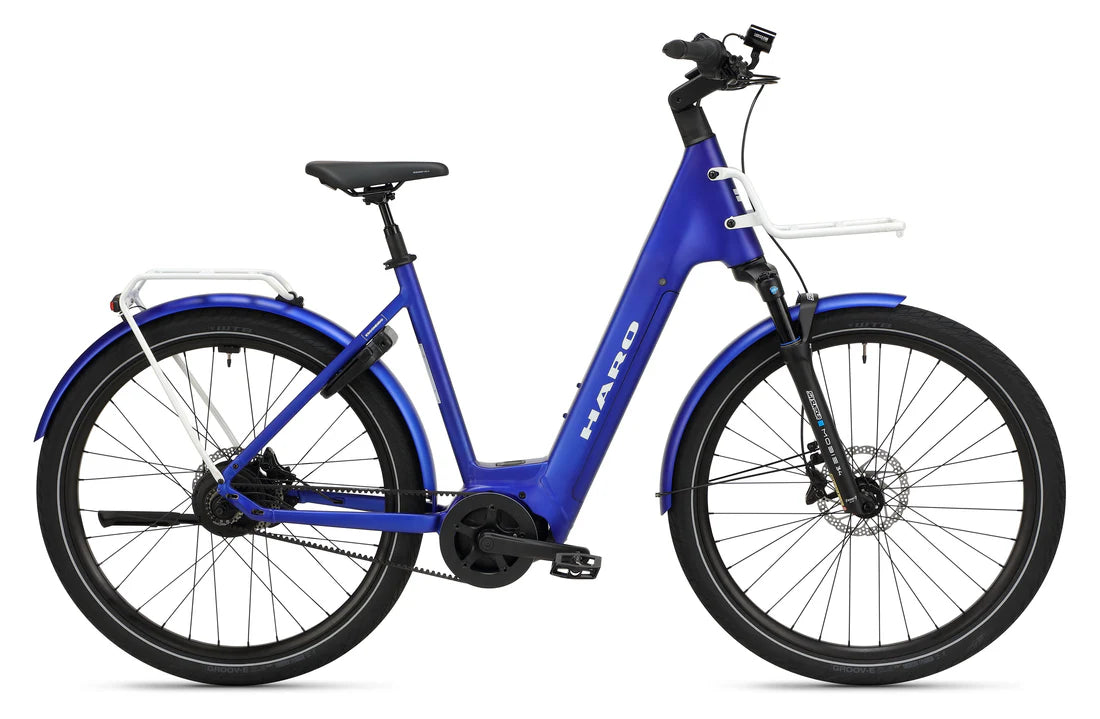

Haro Escondido 1 29"
Do you want to travel further, faster, and with even more comfort?
Then the Escondido 1 is exactly the bike for you. Designed for those who value more power, longer range, and a particularly low-maintenance riding experience, whether for everyday use or touring.

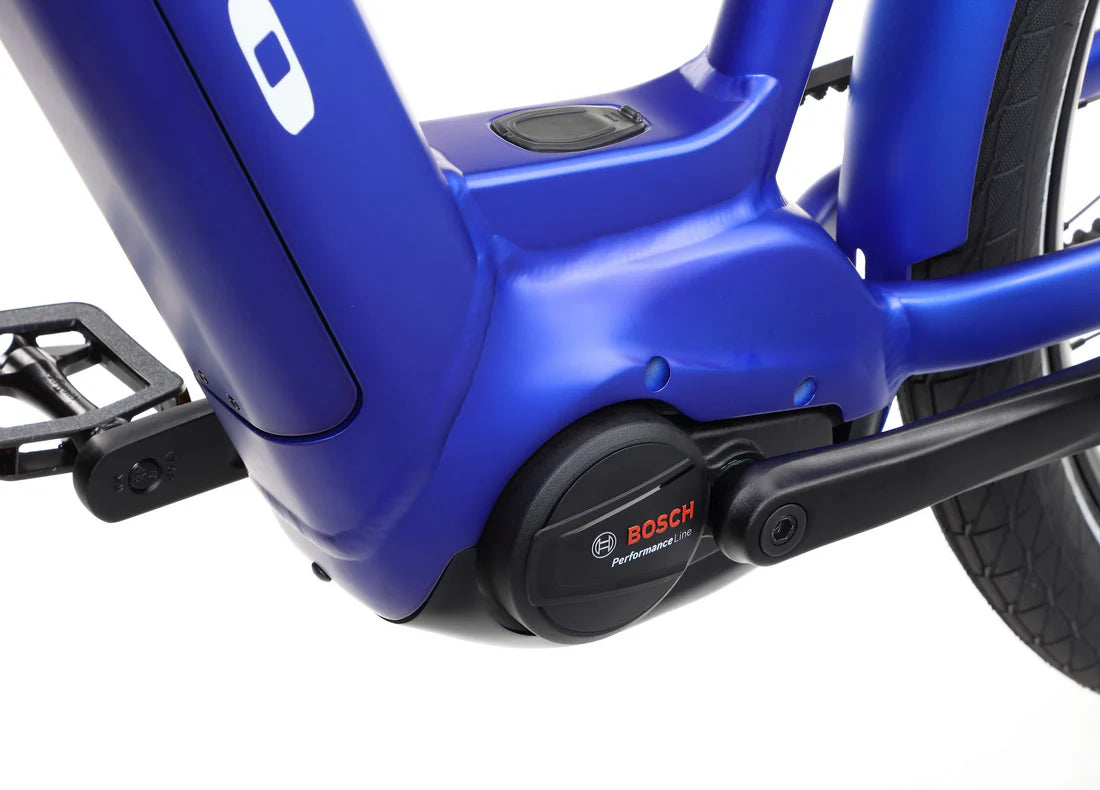

At the heart of the Escondido 1 is the Bosch Performance Line motor – powerful, quiet, and perfectly tuned for sporty rides or longer commutes. Combined with the large 625 Wh battery, it reliably gets you through the day with a range of up to 110 km .
Simply hop on and ride:

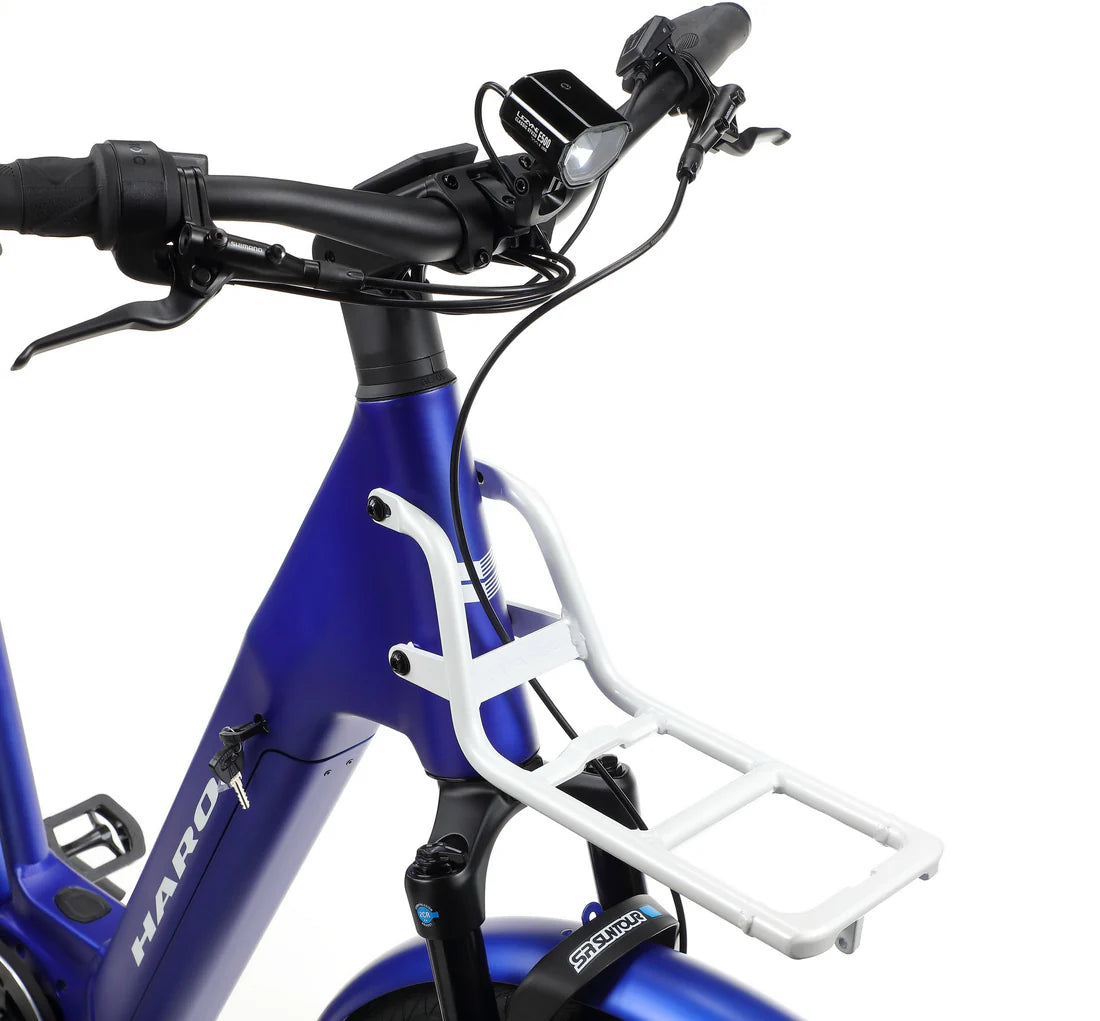

The low step-through makes getting on and off particularly comfortable – even with luggage. And this is where the Escondido 1 really shines: The integrated Atran Velo luggage rack system allows you to easily and securely attach bags, baskets, or other attachments – without the hassle of lashing them down. Whether shopping, everyday office life, or a weekend getaway – the bike adapts to your lifestyle.
And now things get really smart:

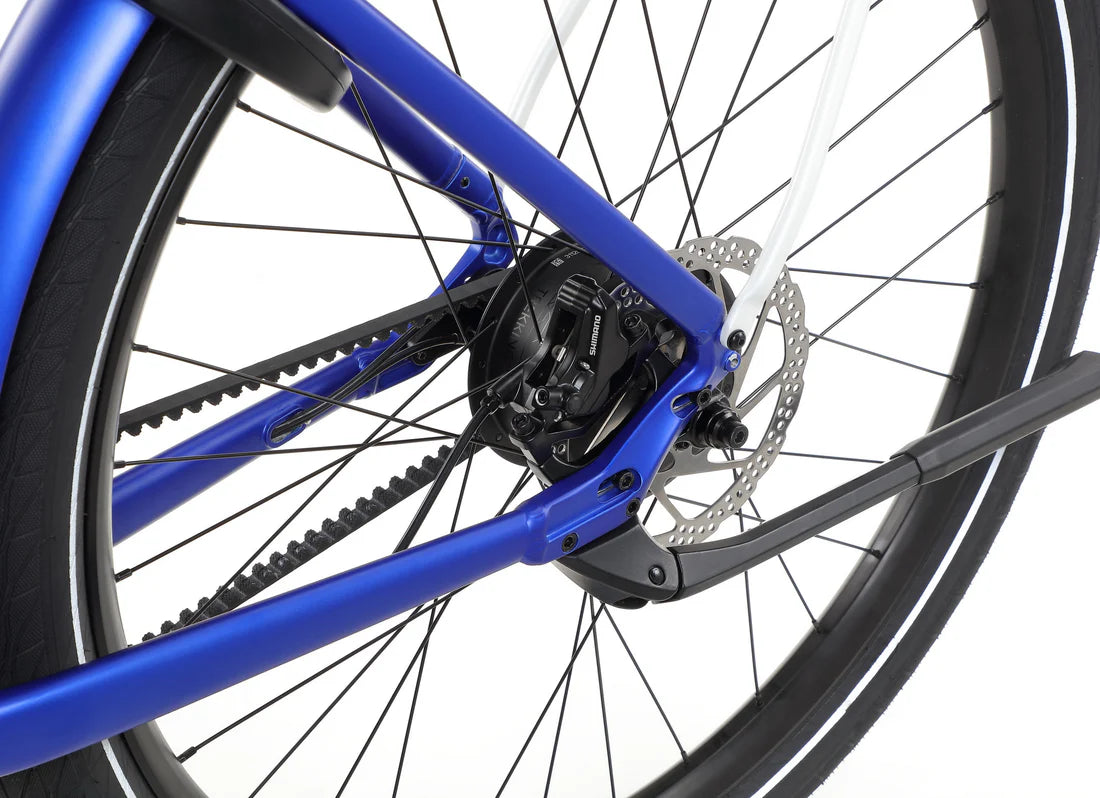

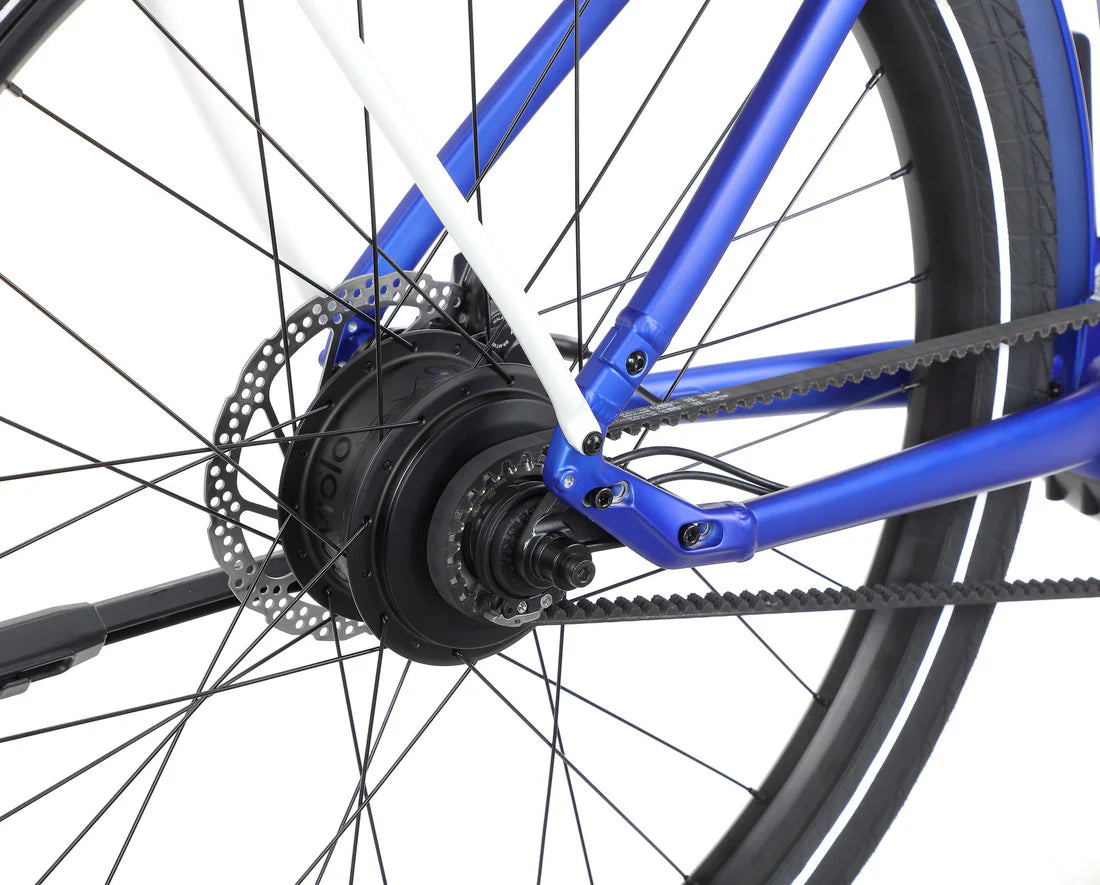

The Escondido 1 is equipped with the maintenance-free Gates belt drive and an Enviolo hub gear with continuously variable transmission . You shift gears smoothly – while stationary, while riding, uphill, or downhill – without any harsh gear changes or chain rattle. Simple, quiet, and clean.
Features:
- Alloy E-Commuter Frame for Bosch PowerTube
 - Bosch Performance Line Gen 3, 65 Nm
 - Bosch PowerTube 625 Wh

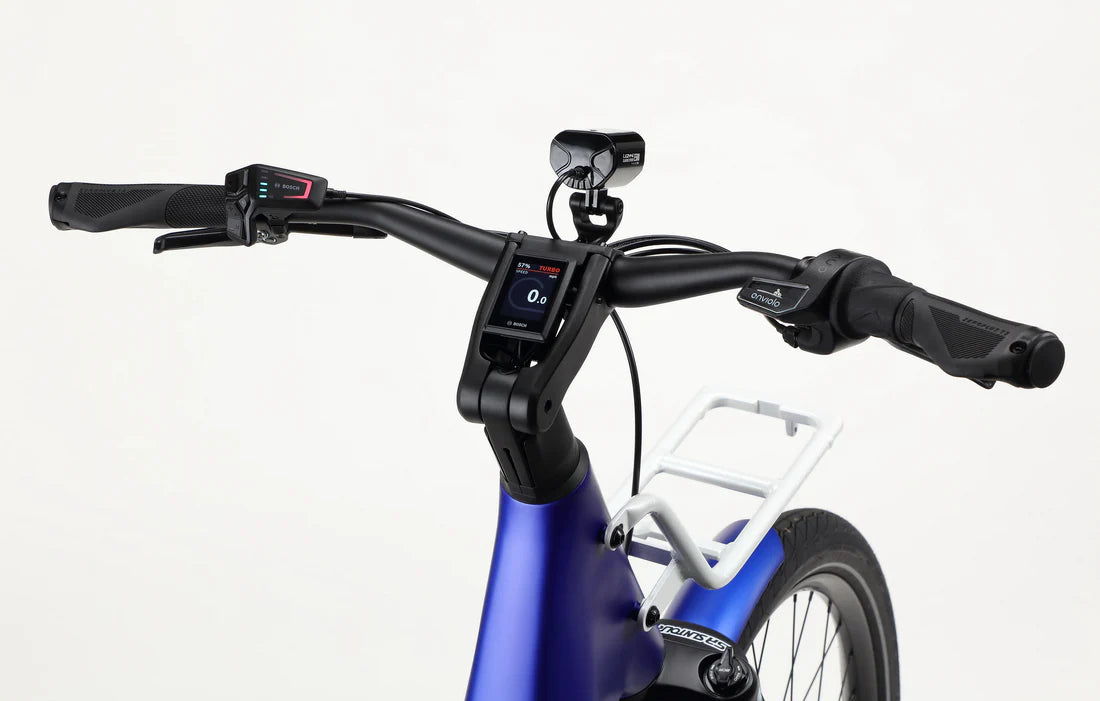

 - Bosch Kiosk Display 300
 - Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light.
 - SR Suntour Mobie 34 Boost, 110 × 15 mm thru axle, 80 mm travel, Air EQ Adjust, 2CR
 - Enviolo Trekking 380% gear range, 148 mm modular thru axle
 - Shimano BL-4100
 - A-Rim POM 30, 32H, pinned
 - Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy
 - Selle Royal Essenza Moderate saddle
 - Aluminum Icor adjustable suspension seatpost, 350 mm, size L

Specifications:
| Frame | Alloy E-Commuter Frame for Bosch PowerTube |
|---|---|
| Fork | SR Suntour Mobie 34 Boost, 110 × 15 mm thru axle, 80 mm travel, Air EQ Adjust, 2CR |
| Colors | Oxford Green, Cobalt Blue |
| Weight | 27.2 kg |
| E COMPONENTS | |
| Motor | Bosch Performance Line Gen 3, 65 Nm |
| Battery | Bosch PowerTube 625 Wh |
| Display | Bosch Kiosk Display 300 |
| Remote | Bosch Mini Remote |
| Lights | Front: Lezyne Micro Drive 500 with 500 lumens. Rear: Lezyne Super Bright Alert with integrated brake light. |
| DRIVETRAIN | |
| Cranks | Samox forged aluminum crankset, 170 mm with Gates CDC 50T sprocket |
| Pedals | Wellgo alloy platform pedals with sandpaper top |
| Chain | Gates CDC belt drive |
| Bottom Bracket | *Sea motor |
| Front derailleur | - |
| Rear Derailleur | Enviolo Trekking 380% gear range, 148 mm modular thru axle |
| Derailleur Shifter | - |
| Freewheel/Cassette | - |
| WHEELS | |
| Tires | WTB E-Groove 29 × 2.4" tires |
| Wheels/Rim | A-Rim POM 30, 32H, pinned |
| BRAKING SYSTEM | |
| Brakes | Shimano BL-4100 4 Piston, 180mm front rotor, 160mm rear rotor, center lock |
| Brake levers | Shimano BL-4100 |
| OTHER COMPONENTS | |
| Grips/Tape | DDK Ergo grips with PC lock ring |
| Handlebar | Satori Noir 35 handlebar, 30° sweep, 35 mm rise, 680 mm width, 6061 alloy |
| Stem | Satori Catamaran stem, 95 mm extension, 70 mm reach, 0°–90° angle adjustment, Integrated Bosch Kiosk display mount |
| Headset | Across AZX-589 R2 headset, semi-integrated, designed for internal cable routing |
| Saddle | Selle Royal Essenza Moderate saddle |
| Seat Post | Aluminum Icor adjustable suspension seatpost, 350 mm, size L |
| Seat Clamp | Quick release seat clamp |

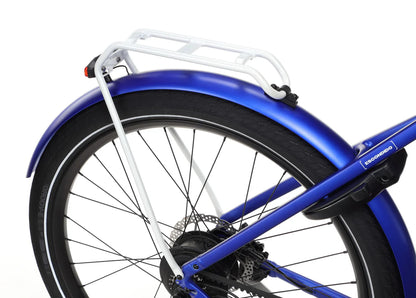

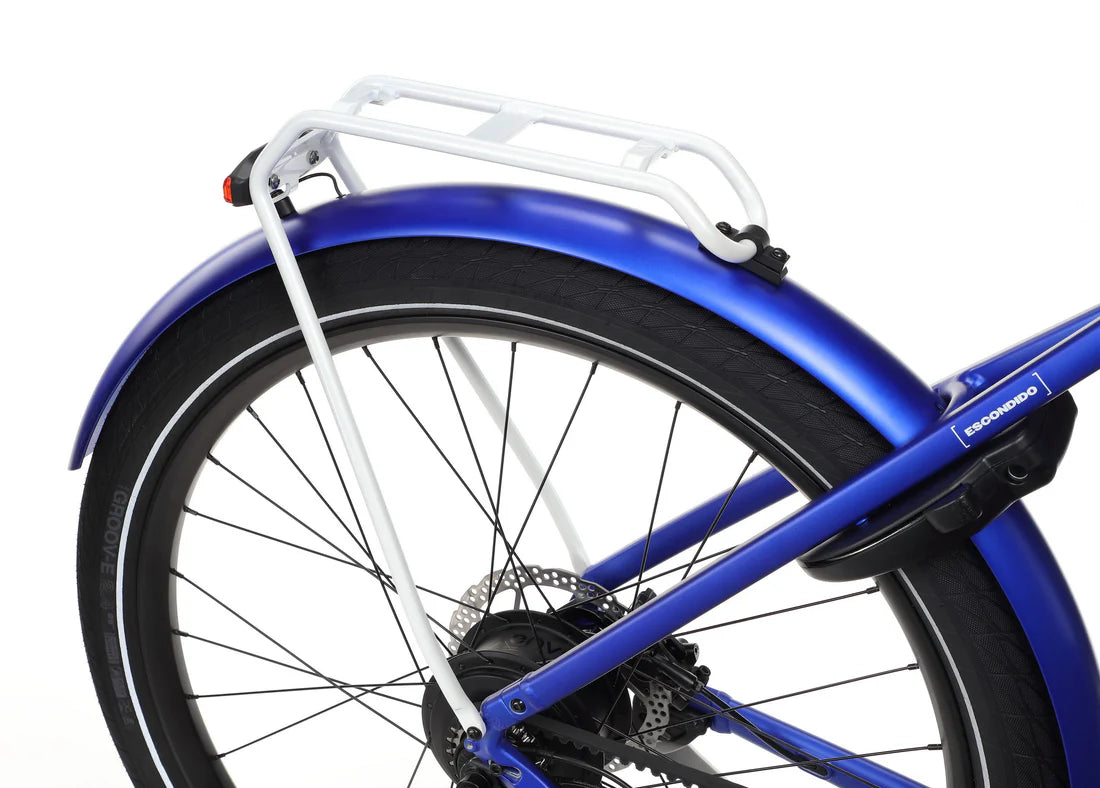

| Extras | Front and rear Atran Velo-compatible racks |
Geometry:
| SIZE | SMALL | MEDIUM | LARGE |
|---|---|---|---|
| Front Wheel Size | 29" | 29" | 29" |
| Rear Wheel Size | 29" | 29" | 29" |
| Seat Tube | 470mm | 510mm | 550mm |
| Top Tube Effective | 604mm | 620.9mm | 625.9mm |
| Head Tube Angle | 69˚ | 69˚ | 69˚ |
| Seat Tube Angle | 65.2˚ | 65.2˚ | 65.2˚ |
| Chain Stay / RC Length | 503.6mm | 503.6mm | 503.6mm |
| BB Drop | 68mm | 68mm | 68mm |
| Wheel Base | 1197mm | 1206mm | 1204mm |
| Head Tube Length | 205mm | 235mm | 235mm |
| Stand Over | 700mm | 734mm | 738mm |
| Stack Height | N/A | N/A | N/A |
| Reach | 390mm | 395mm | 400mm |
| Axle to Crown | 498mm | 498mm | 498mm |
| Fork Offset | 45mm | 45mm | 45mm |
Size Guide:
| Size | CM |
|---|---|
| S | 160 - 172 cm |
| M | 170 - 182 cm |
| L | 180 - 190 cm |
