Description

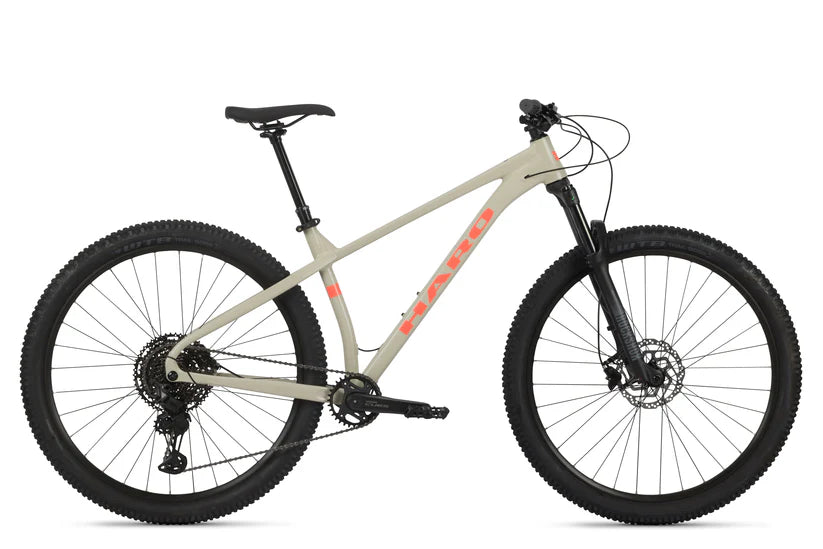

Haro Double Peak 1 29"

Life is a series of peaks and valleys--the Double Peak collection is ready for all of it! The Double Peak 1 is our all-mountain machine featuring a hydroformed aluminum frame with a tapered head tube, matched with a 120mm travel Rock Shox Judy fork. A Shimano Cues 1 X 11 drivetrain is simple, smooth and efficient. Double wall rims are laced tight with Shimano Center lock hubs with a 12mm Boost rear axle and 15mm front. WTB Trail Boss tires get you down the trail, while Shimano hydraulic disc brakes slow it down at the bottom of the hill. Fun, easy, and won't break the bank. The Double Peak is ready.

Features:

Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes with148mm Boost rear axle spacing.
Rock Shox Judy Silver TK fork with 120mm travel
Shimano Cues 11-speed drivetrain with 11-50T gearing
Double-wall 32H alloy rims with Shimano TC500 center-lock hubs, 12mm rear, 15mm front
WTB Trail Boss 29 x 2.4" tires, front and rear
Shimano MT200 Hydraulic 2-piston disc brake with 180/160mm rotors
KS I900 dropper seat post

Specifications:

Frame	Hydroformed, heat-treated 6061-T6 aluminum hardtail frame. Tapered head tube with double-butted top and down tubes. 148mm Boost rear axle spacing. Internal cable routing. UDH derailleur hanger.
Fork	Rock Shox Judy Silver TK with crown adjust, 29", 15x110mm axle, Solo Air, 120mm travel
Colors	Matte Black / Teal, Gloss Tan / Lava
DRIVETRAIN

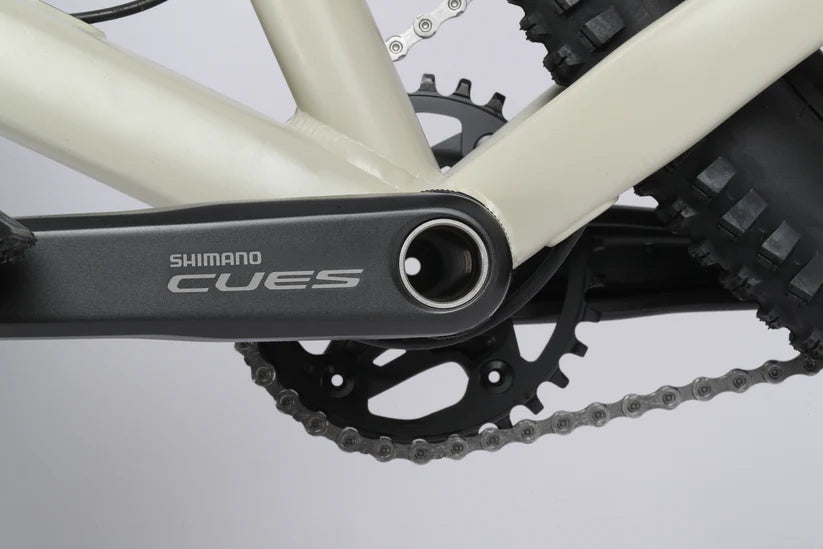

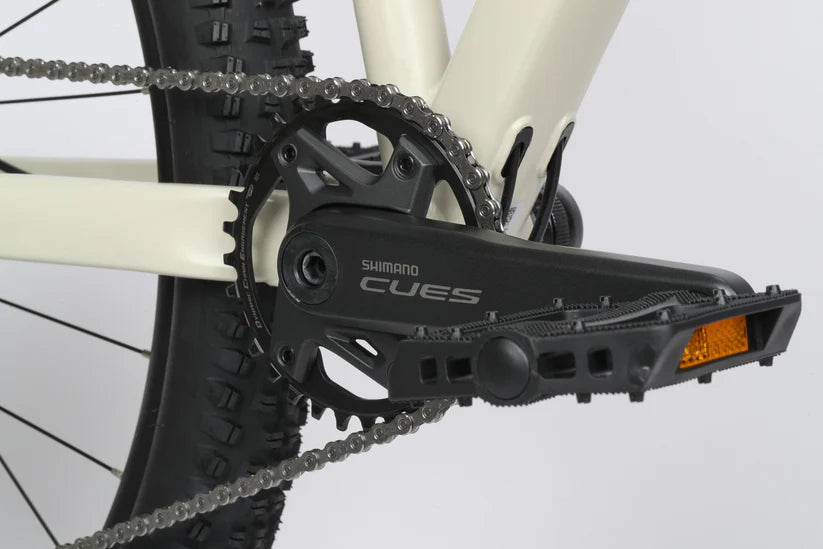

Cranks	Shimano Cues 2-piece, FC-U6000-1, 170mm, 32T chainring
Pedals	FPD PC
Chain	Shimano Linkglide CN-LG500
Bottom Bracket	Shimano Cues BB-MT501 BSA 73mm
Front Derailleur
Rear Derailleur	Shimano XT Linkglide 11-speed
Derailleur Shifter	Shimano Cues 11-speed with optical window
Freewheel/Cassette	Shimano Cues CS-LG400-11, 11-50T
WHEELS
Tires	WTB Trail Boss 29 x 2.4" front and rear
Wheels/Rims	Alloy double-wall, pinned seams, 32h w/eyelets
Front Hub	Shimano HB-TC500 Center Lock 32h, 15mm thru-axle
Rear Hub	Shimano FH-TC500, Center lock, 32h, 12mm thru-axle
BRAKING SYSTEM

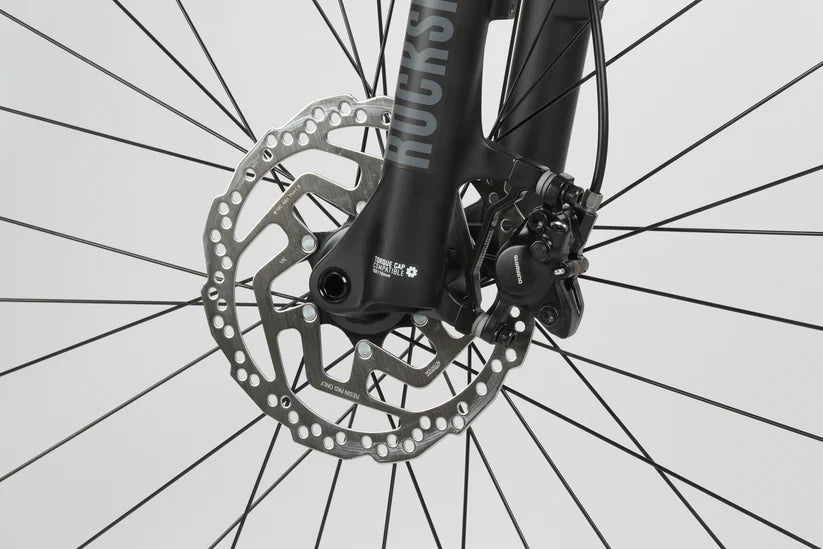

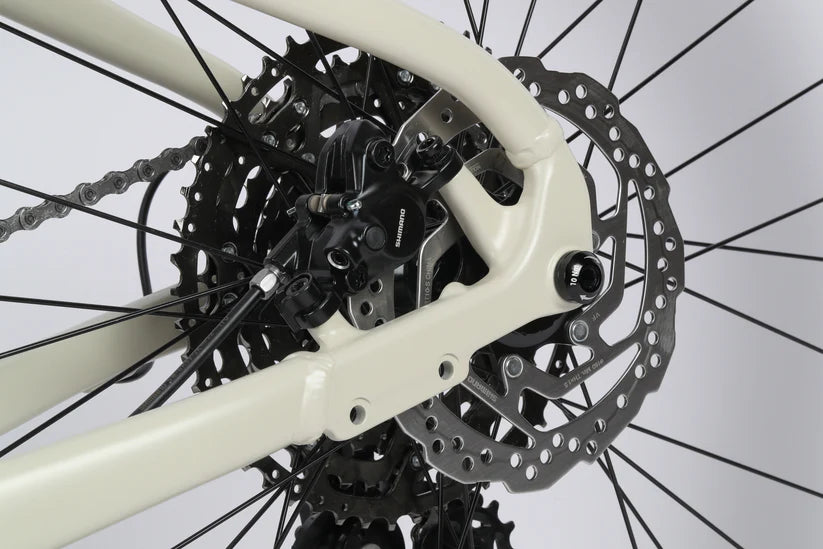

Brakes	Shimano MT200 Hydraulic 2-piston disc brake with 180mm rotor front and 160mm rotor rear
OTHER COMPONENTS

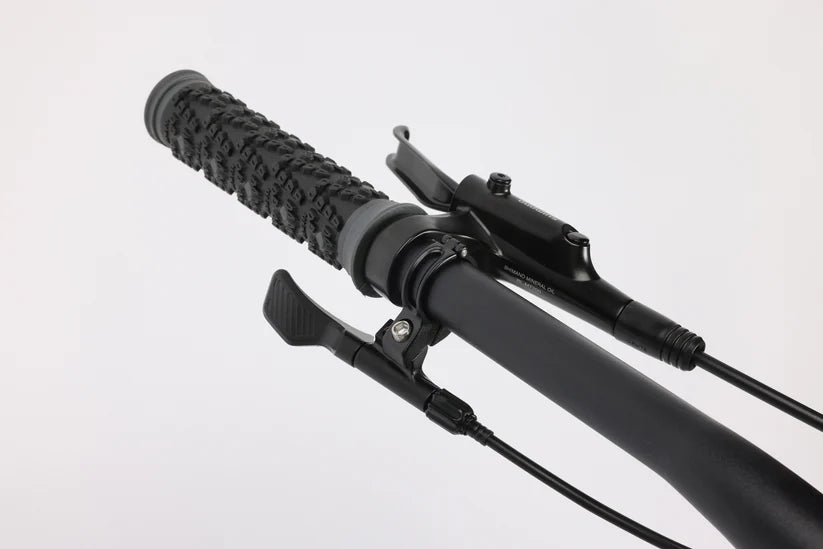

Grips/Tape	WTB WeirWolf

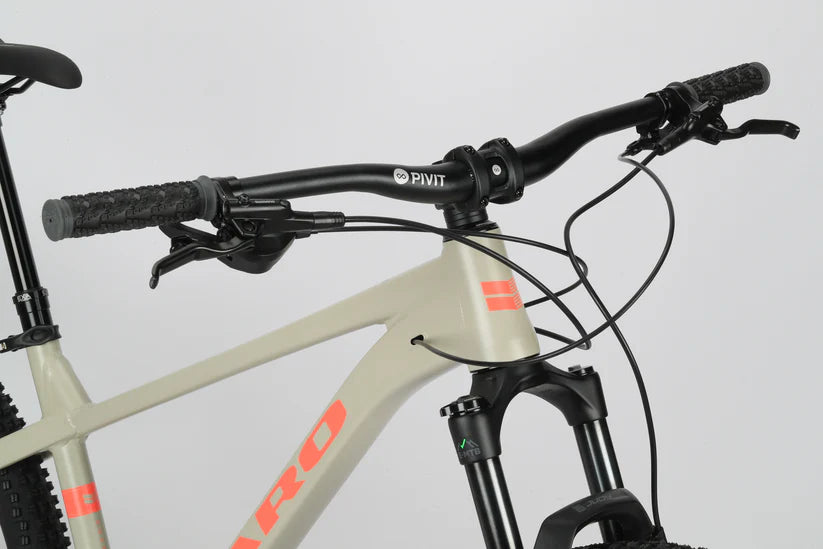

Handlebar	Haro Alloy 6061 Pivot MTB riser bar, 780 wide, 20mm rise
Stem	Alloy 6061 Forged 40mm reach
Headset	FSA Orbit sealed, tapered 1-1/8" - 1-1/5" FSA (44/56mm)

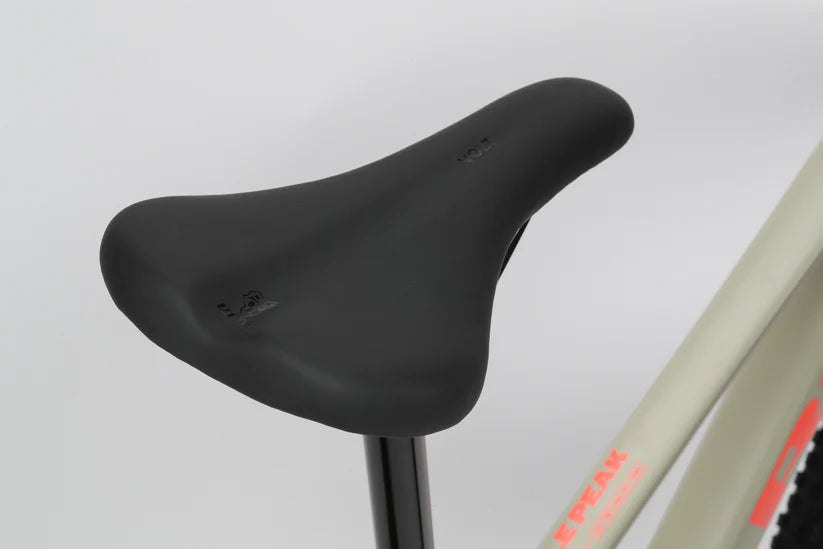

Saddle	WTB Volt Medium

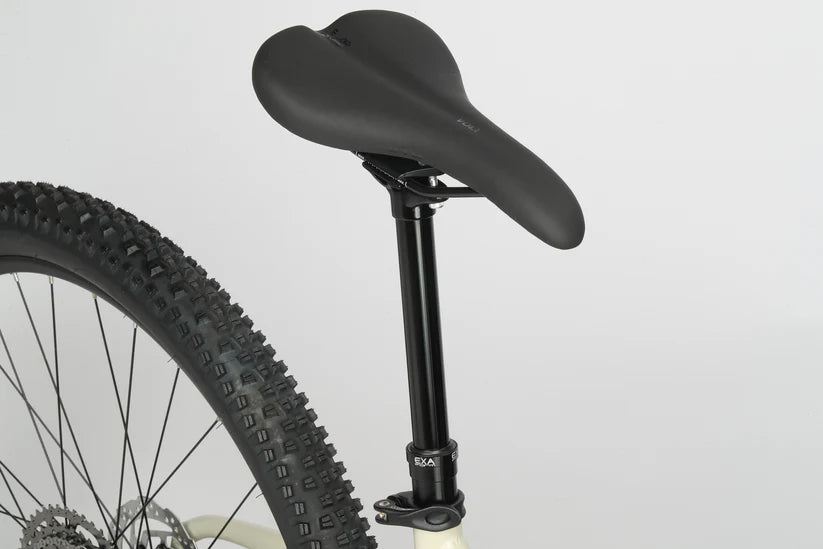

Seat Post	KS I900 dropper post

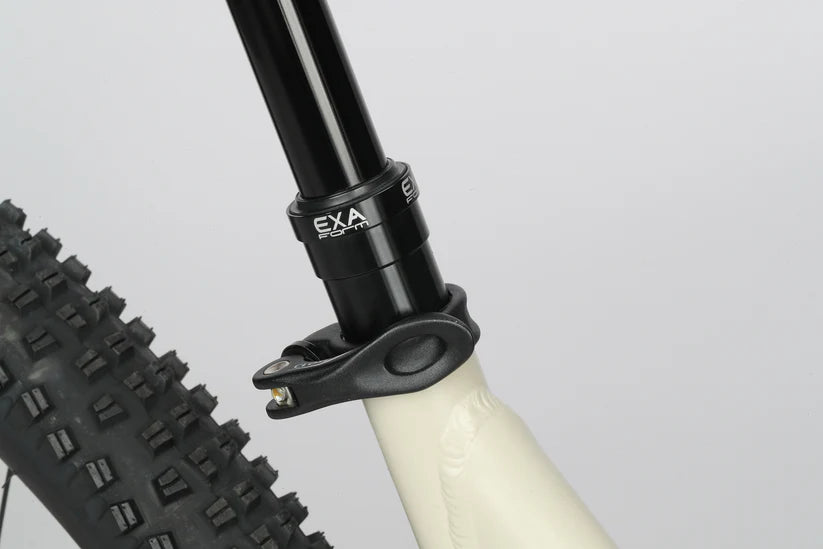

Seat Clamp	Forged Alloy 6061
Extras	Tubeless tire sealant included.

Size Guide:

Size	Inches	CM
S	5'4" - 5'8"	162.5 - 172.5
M	5'7" - 6'	170 - 182.5
L	5'11" - 6'2"	180 - 187.5
XL	6'1" - 6'5"	185 - 195
