Description

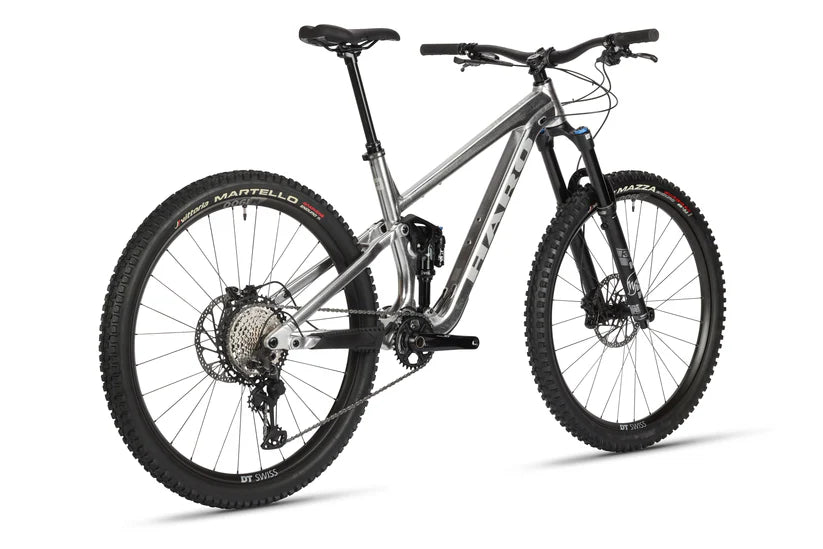

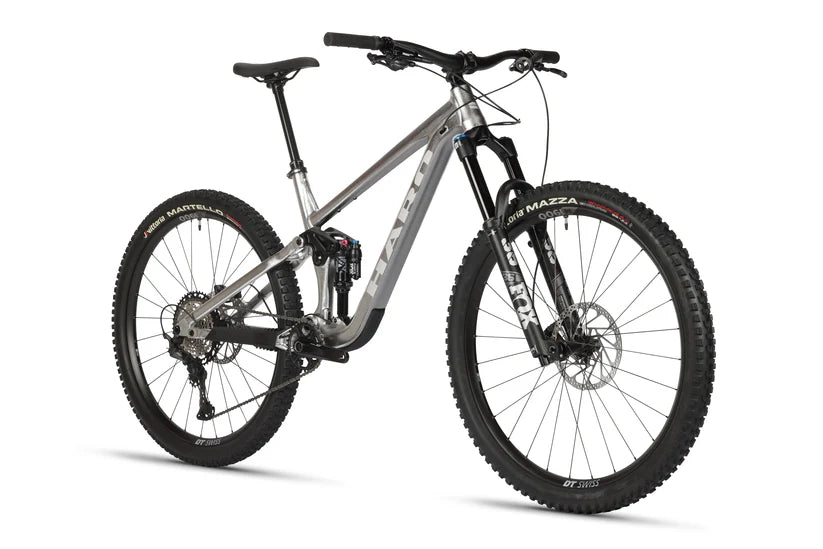

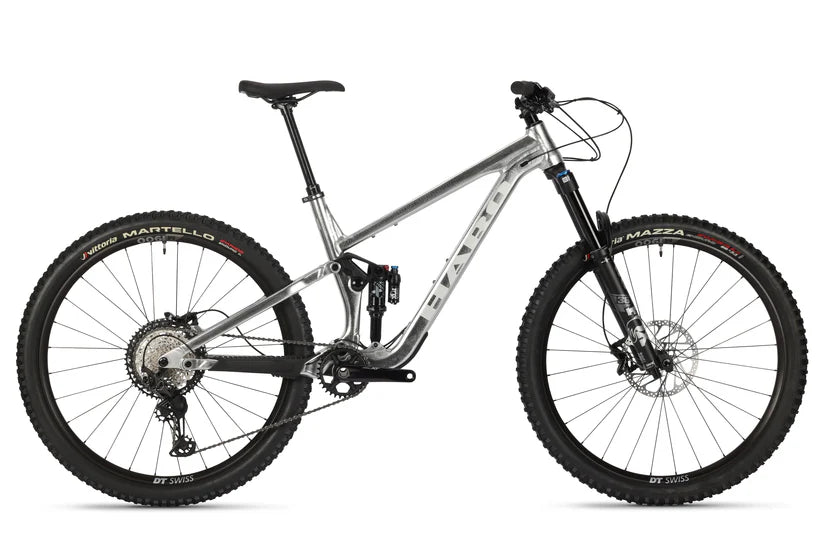

Haro Daley Alloy 2 LTD 29"

Raw and rowdy! Introducing the Haro Daley Alloy Raw LTD 1 and LTD 2. The limited edition raw finish for our Daley Alloy MTB comes by request. We answered with an anodized raw finish over a burnished alloy surface with etched logo detail for a clean, crisp look that hits hard. Available in two premium builds with Fox suspension. Ready to rock and roll.

Features:

Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger

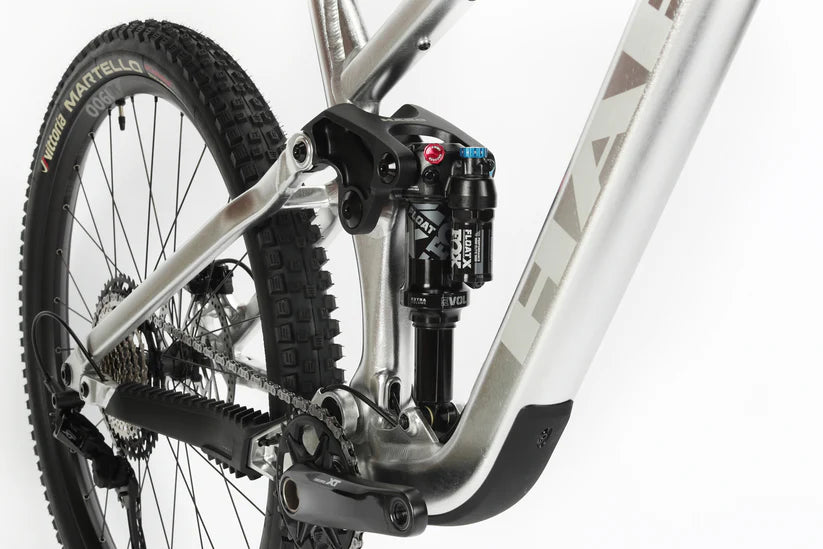

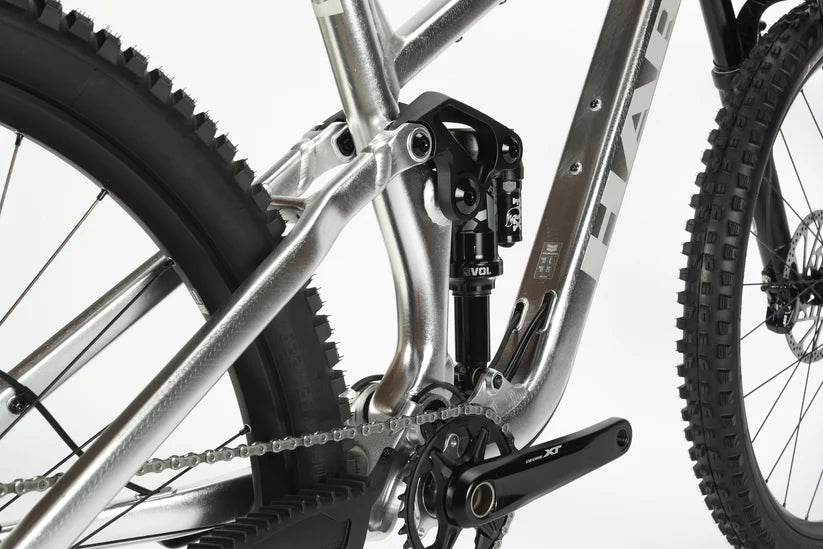

Fox Float X2 Performance Elite shock, 140mm travel
Fox Float 36 Performance Elite fork with Grip X, 150mm travel
Shimano XT drivetrain
DT Swiss M 1900 Spline wheel set
Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear

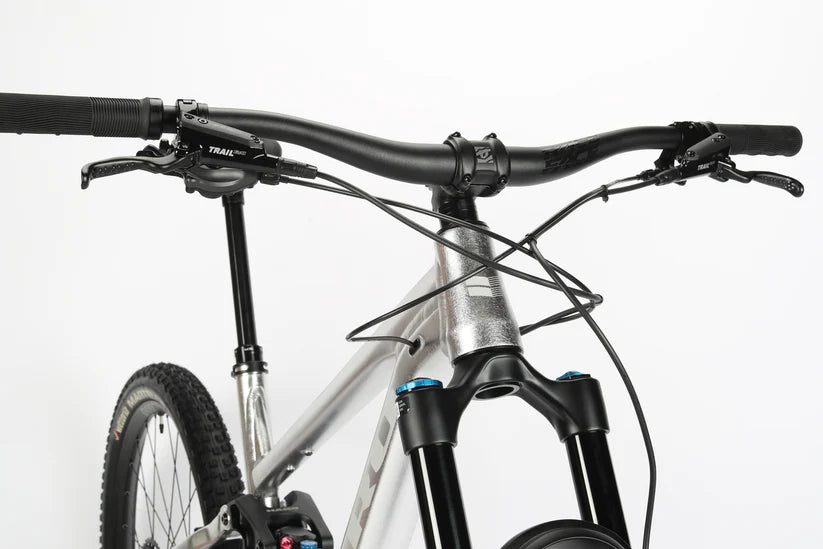

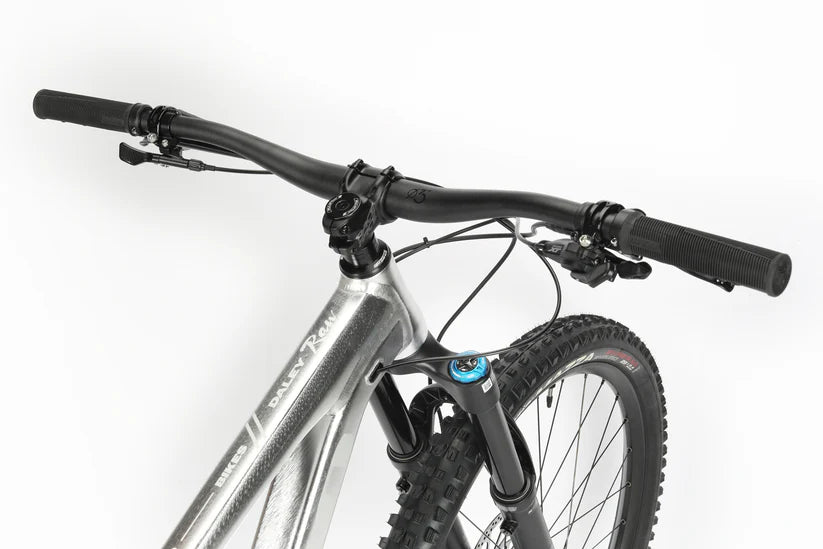

Race Face Chester bars & stem

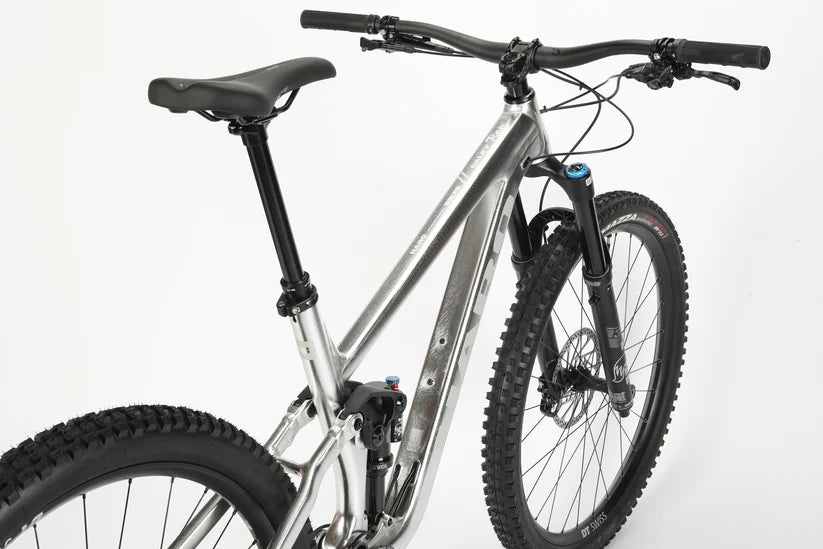

Kind Shock Rage-I dropper post, size specific

Specifications:

Frame	Haro Daley alloy full-suspension frame with raw anodized finish, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger
Fork	Fox Float 36 Performance Elite with Grip X, 150mm travel
Frame Shock	Fox Float X Performance Elite, 140mm travel
Colors	Raw
Weight	38.2 lbs 17.29 kg, (L)
DRIVETRAIN
Cranks	Shimano XT, FC-M8120-1, 165mm, 32T chainring, 55:CL
Pedals	N/A
Chain	Shimano CN-M8100 HG 12-speed
Bottom Bracket	Shimano BB-MT501 BSA 68/73mm
Front Derailleur	N/A
Rear Derailleur	Shimano XT 12-speed, Shadow Plus, RD-M8100
Derailleur Shifter	Shimano XT 12-speed, SL-M8100R
Freewheel/Cassette	Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T
WHEELS
Tires	Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI
Wheels/Rims	DT Swiss M 1900 wheel set
BRAKING SYSTEM
Brakes	TRP Trail EVO 4-piston hydraulic disc with 203mm rotors, front & rear
Brake Levers	TRP Trail EVO
OTHER COMPONENTS
Grips/Tape	WTB Wavelength 130mm lock-on
Handlebar	Race Face Chester 35mm OD, 35mm rise, 780mm wide
Stem	Race Face Chester 35mm ID, 40mm reach
Headset	FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube
Saddle	WTB Volt Medium PU leather, flex-tuned, chromoly rails, with ABR corners
Seat Post	Kind Shock Rage-I, 34.9OD, sizes: Small 150mm, Medium 170mm, Large 190mm, X-Large 190MM
Seat Clamp	3D Forged 6061 aluminum 38.9mm ID
Extras	Includes tubeless valves and sealant

Geometry:

SIZE	S	M	L	XL
Seat Tube (C-T)	361mm	410mm	448mm	473mm
Top Tube (Effective)	553mm	590mm	617mm	644mm
Head Tube Angle	64.5°	64.5°	64.5°	64.5°
Seat Tube Angle	78°	78°	78°	78°
Chainstay Length	428mm	445mm	445mm	445mm
BB Drop	23mm	33mm	33mm	33mm
Wheelbase	1172mm	1237mm	1266mm	1296mm
Head Tube Length	90mm	100mm	110mm	120mm
Standover	691mm	685mm	705mm	705mm
Stack Height	579mm	610mm	619mm	628mm
Reach	430mm	460mm	485mm	510mm
Axle to Crown	544mm	561mm	561mm	561mm
Fork Offset	44mm	44mm	44mm	44mm

Wheel Size	27.5	29	29	29

Sizing Guide:

Size	Inches	CM
S	5" - 5' 6"	153 - 166
M	5' 4" - 5' 11"	162 - 180
L	5' 9"- 6' 2"	175 - 187
XL	6' - 6' 5"	180 - 196
