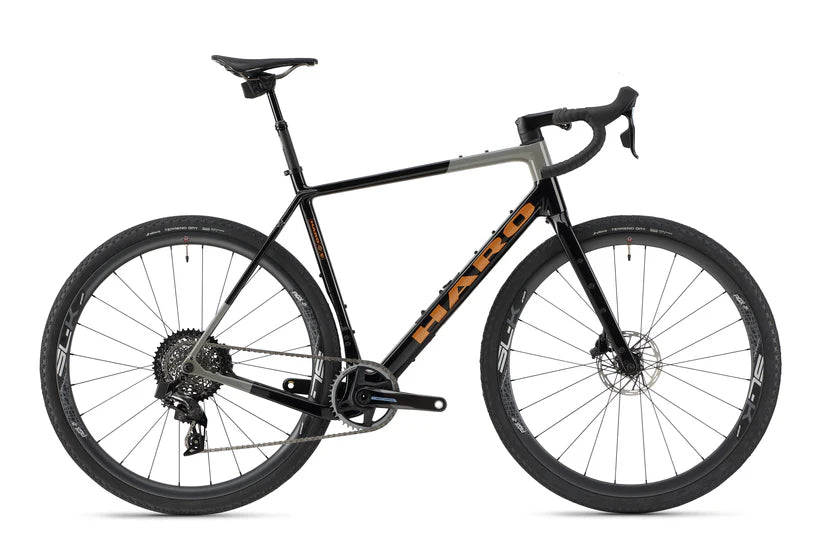

Haro Buzzard Carbon Top Shelf 700c
Some days speed and efficiency are king, and we need to get to the finish line - fast. Other days, gravel roads beckon us to explore off the beaten path. With its split personality - both race-oriented and self-sufficient - the Buzzard is ready for it all. Our versatile carbon gravel bike has a long front triangle for stability and a short rear end with flared chain stays that make it easy to whip through tight singletrack. In-frame downtube storage and 18 mounts accommodate racks, fenders and panniers for multi-day adventure rides. Internal cable routing, UDH compatibility and space for wide tires (up to a 45c in the rear) make the Buzzard sleek and functional. Whether it's a quick gravel grind, a destination race, or an epic bikepacking adventure, the Buzzard will take you on roads less traveled. Built on a lightweight carbon frame and fork, the Top Shelf Buzzard is spec'd for the most efficient combination of speed and technical performance. Featuring a SRAM Force 1x group, FSA SL-K AGX tubeless carbon wheels and Vittoria Terreno Dry gravel tires, it's our race-day rig. Plus, a RockShox Reverb wireless dropper post lets you drop your saddle for those spicy drop-bar descents.
Features:

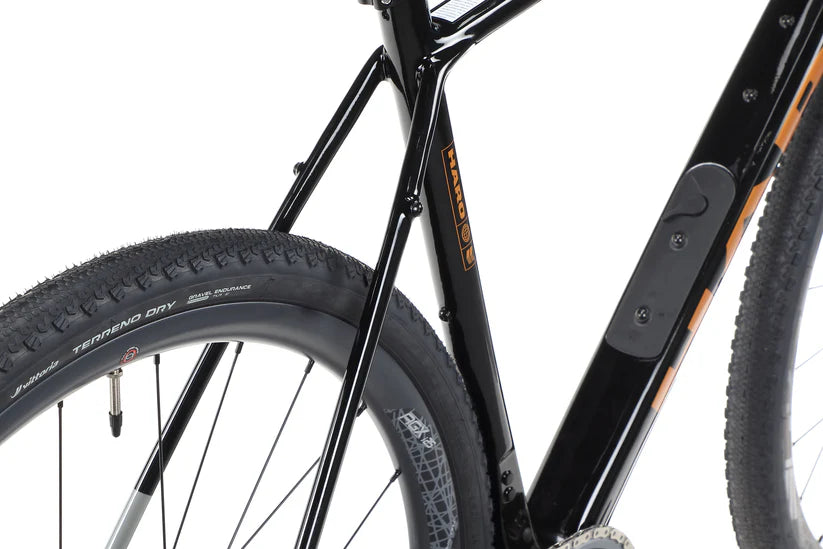

- Haro Buzzard Carbon Frame, including in-frame storage, and internal headtube routing
- Haro Buzzard Fork, Full Carbon, tapered steerer tube
- SRAM Force XPLR AXS 1x Groupset
- SRAM Force Hydraulic Disc Brakes with 160mm Rotors
- Vittoria Terreno Dry G2.0 TNT 45-622 IC Graphene 120TPI 700X45c
- FSA Carbon SL-K AGX i25 tubeless wheelset
- Easton EC90 AX Carbon Handlebars, size specific
- Selle San Marco Shortfit 2.0 Open-Fit Manganese rails

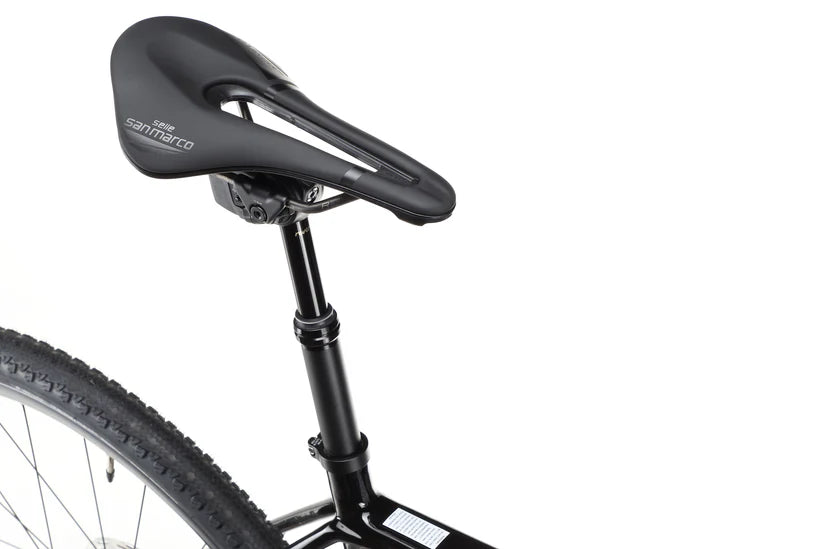

- RockShox Reverb AXS Dropper Post, ø27.2 / 75mm Drop
- 3D forged 6061-T6 Alloy Stem for Internal Headset Routing
- Includes Tubeless Valves, Tape and Sealant
Specifications:
| Frame | Haro Buzzard Carbon Frame, including in-frame storage, and internal headtube routing |
|---|---|
| Fork | Haro Buzzard Fork, full carbon, tapered steerer tube |
| Colors | Gloss Jet Black Grey / Copper, Semi-Gloss Slate Blue Black Fade / White |
| Weight | 19.4 lbs 8.8 kg, (56cm) |
| DRIVETRAIN | |

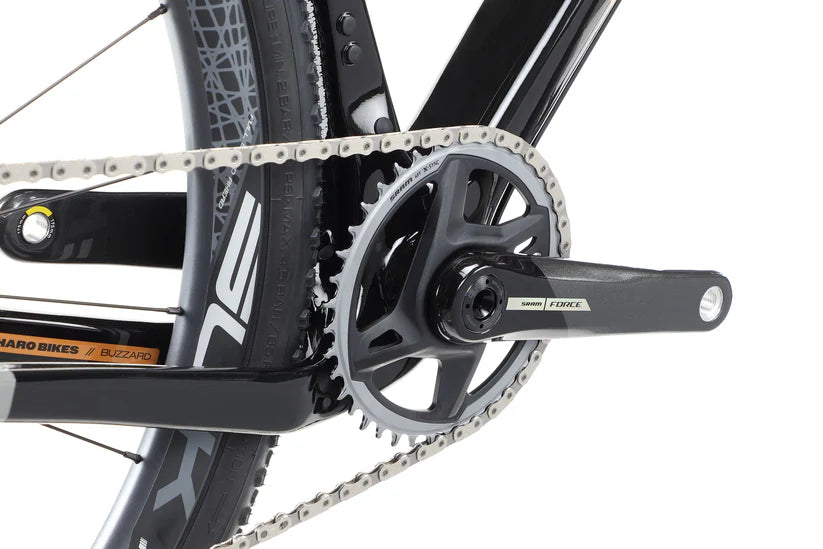

| Cranks | SRAM Force XPLR 40T; XS-165mm, S-170mm, M-172.5mm, L&XL-175mm |
| Pedals | |
| Chain | SRAM Force 12-speed |
| Bottom Bracket | SRAM DUB T47 x 85.5w |
| Front Derailleur | |

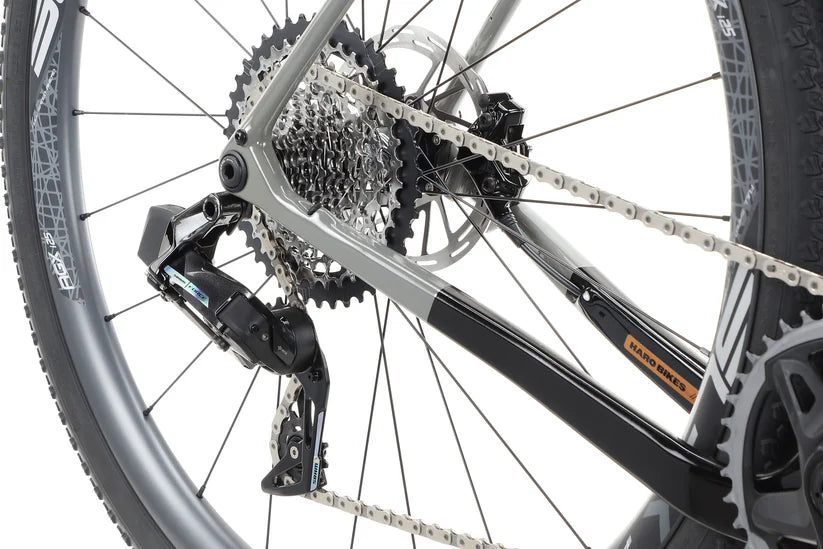

| Rear Derailleur | SRAM Force AXS XPLR 12-speed |
| Derailleur Shifter | SRAM Force AXS 1x12 |
| Freewheel/Cassette | SRAM Force XG-1271 XPLR 10-44T |
| WHEELS | |
| Tires | Vittoria Terreno Dry G2.0 TNT 45-622 IC Graphene 120TPI 700X45c |
| Wheels/Rims | FSA Carbon SL-K AGX i25 |
| BRAKING SYSTEM | |

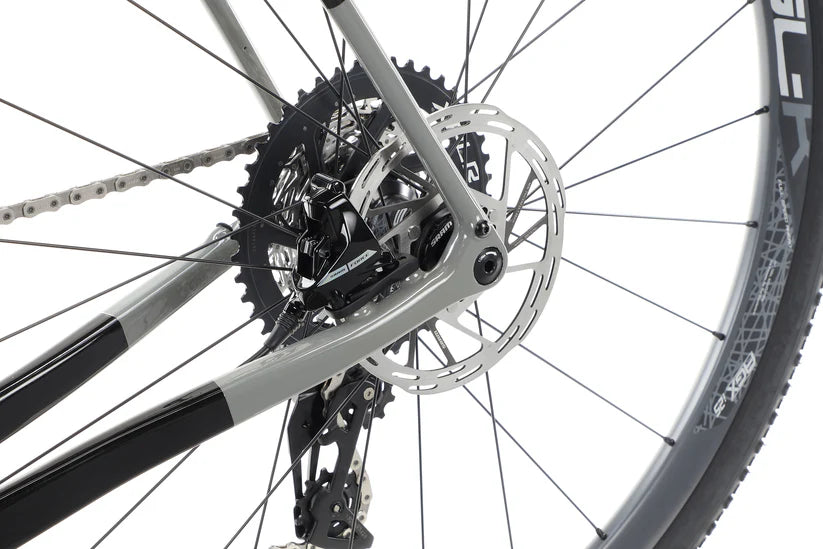

| Brakes | SRAM Force Hydraulic Disc Brakes with 160mm Rotors |

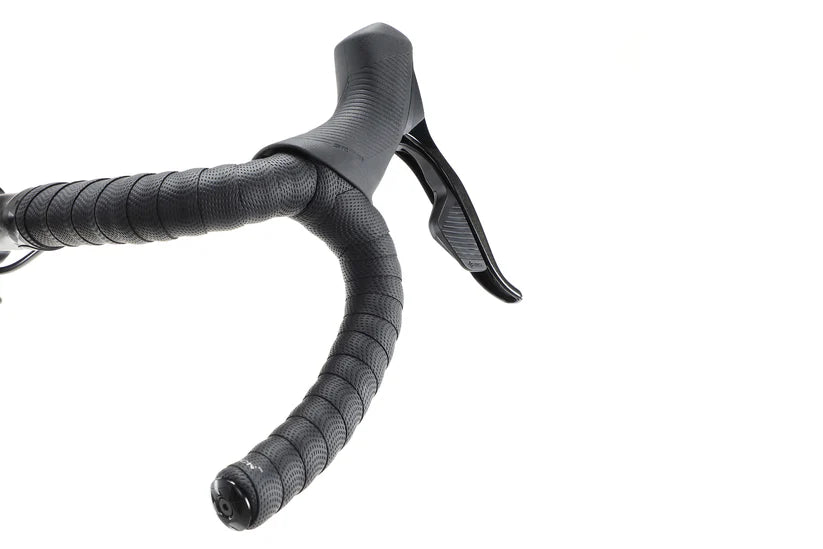

| Brake Levers | SRAM Force |
| OTHER COMPONENTS | |
| Grips/Tape | Ciclovation Advanced leather touch |

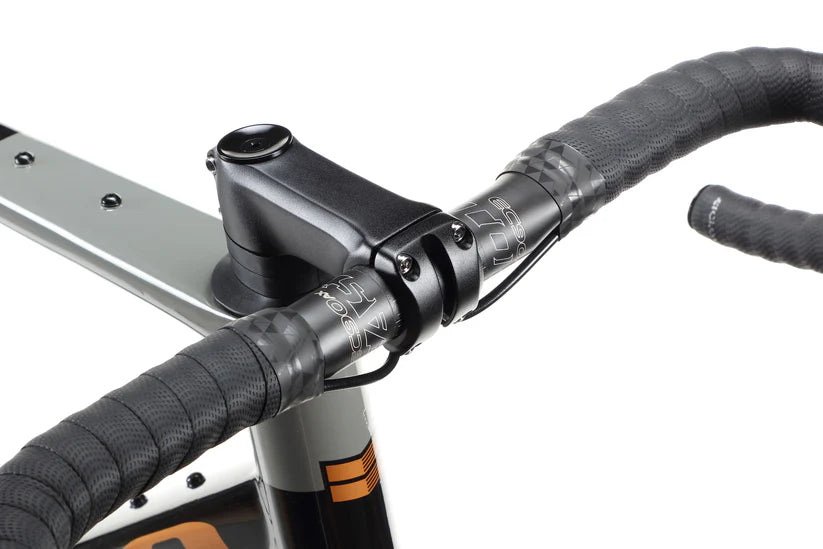

| Handlebar | Easton EC90 AX Carbon; XS-40cm, S-42cm, M-44cm, L & XL-46cm |

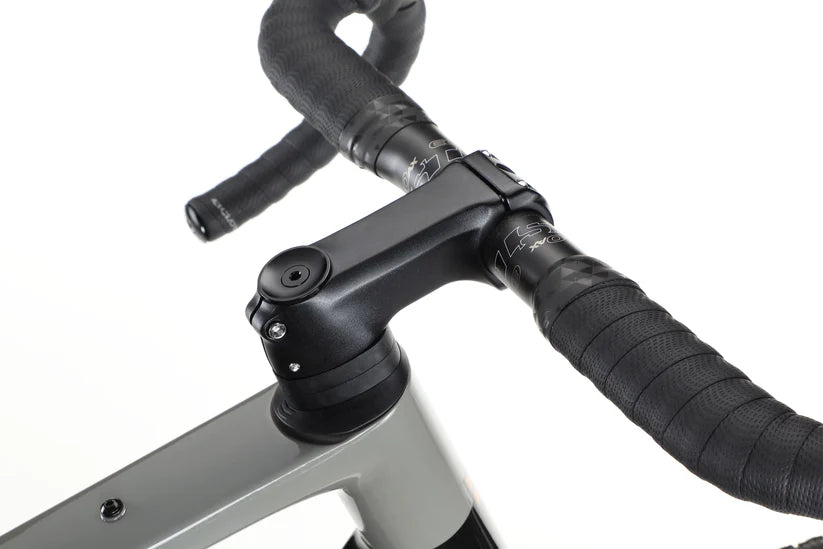

| Stem | 3D forged 6061-T6 Alloy, for Token A-Box; XS & S-70mm, M-80mm, L & XL-90mm |
| Headset | Token A-Box Headset with internal cable routing |
| Saddle | Selle San Marco Shortfit 2.0 Open-Fit Manganese rails |
| Seat Post | RockShox Reverb AXS ø27.2 / 75mm drop |
| Seat Clamp | Haro 3D forged 6061-T6 alloy |
| Extras | Includes tubeless valves, tape and sealant |
Geometry:
| SIZE | 48 | 51 | 54 | 56 | 59 |
|---|---|---|---|---|---|
| Top Tube (Effective) | 535mm | 553mm | 569mm | 586mm | 603mm |
| Seat Tube (C-T) | 436mm | 462mm | 491mm | 512mm | 541mm |
| Stack Height | 519mm | 545mm | 571mm | 596mm | 622mm |
| Reach | 377mm | 386mm | 395mm | 404mm | 413mm |
| Standover | 751mm | 776mm | 804mm | 826mm | 853mm |
| Head Tube Length | 101mm | 129mm | 148mm | 175mm | 202mm |
| Head Angle | 71° | 71° | 72° | 72° | 72° |
| Seat Angle | 73° | 73° | 73° | 73° | 73° |
| Wheel Base | 1009mm | 1027mm | 1024mm | 1041mm | 1059mm |
| Chainstay | 415mm | 415mm | 415mm | 415mm | 415mm |
| BB Drop | 70mm | 70mm | 70mm | 70mm | 70mm |
| Axle to Crown | |||||
| Fork Offset | 65mm | 65mm | 55mm | 55mm | 55mm |
Sizing Guide:
| Size | Inches | CM |
|---|---|---|
| 48 | 5'1" - 5'4" | 153 - 163 |
| 51 | 5'4" - 5'7" | 163 - 170 |
| 54 | 5'7" - 5'11" | 170 - 175 |
| 56 | 5'11" - 6'2" | 175 - 180 |
| 59 | 6'2" - 6'5" | 180 - 188 |
