Description

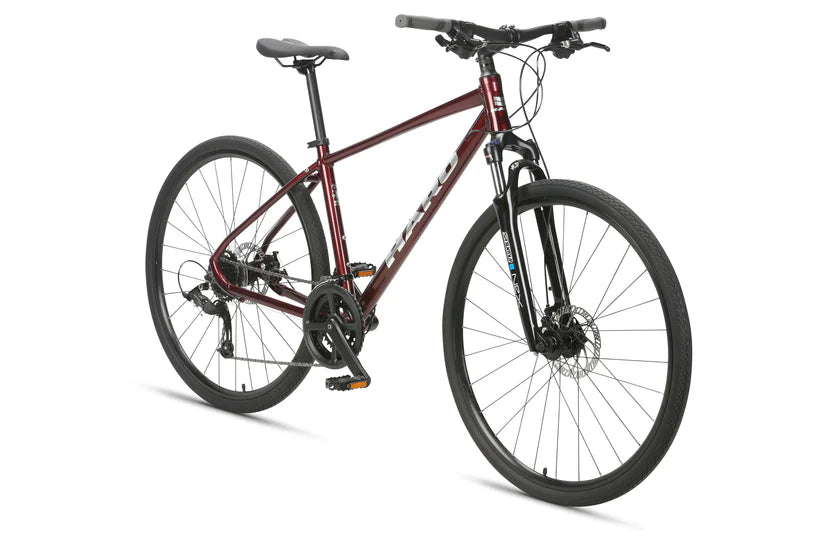

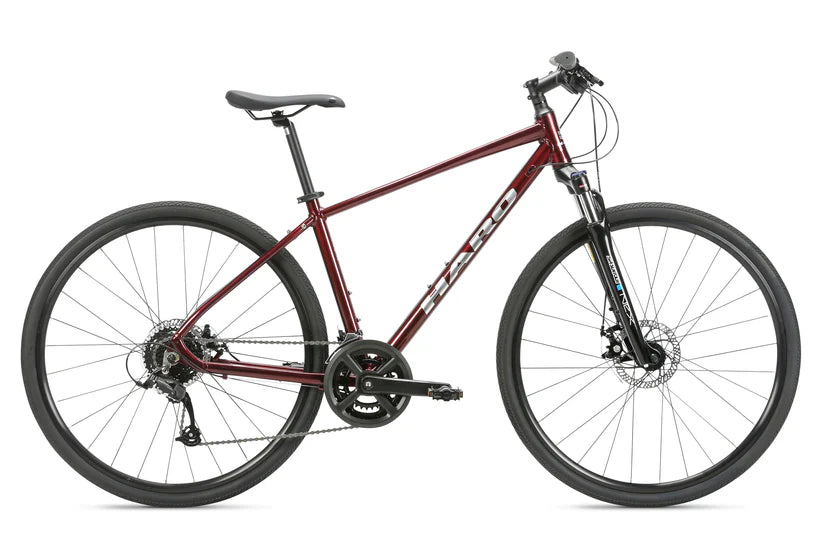

Haro Bridgeport Microshift 700c

Lighter than a mountain bike, more comfy that a road bike... it's a bird, it's a plane, it's... da duhhn... the Bridgeport. Coming to a nicer bike shop near you, "The Bridgeport" (Rated R, starts Friday) has the can-do attitude of a suspension-fork-equipped mountain bike, the svelte poise of a sprightly road bike, the unflappable countenance of a LA-Z-Boy, all in a price-conscious package that's the MUST HAVE of this summer! Shop now for limitless mobile comfort or forever regret purchasing indecision.

Features:

- Smooth-riding SR Suntour NEX suspension fork with hydraulic lockout for smooth roads
- Upright posture aids in visibility and comfort
- 6061 heat-treated aluminum frame makes for a lightweight bicycle
- Mid-width tires allow for speed on bike paths while providing enough float to venture off pavement
- Alloy frame, components, and wheels stay rust free
- Small front chainring allows for easy gearing on steep hills
- Thick 8-speed chain resists stretching and wearing out
- Name-brand Shimano drivetrain makes for proven shifting

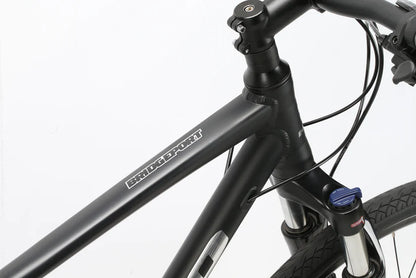

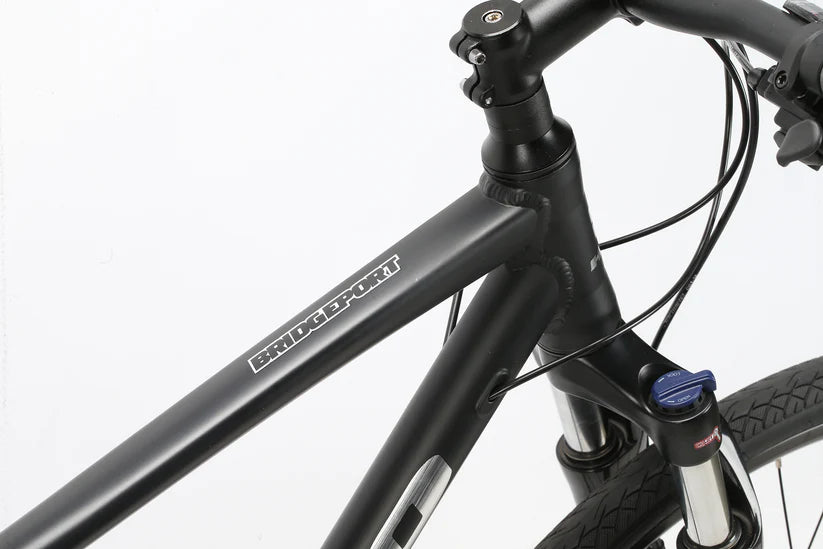

Frame	6061-T6 aluminum \| Rider-tuned geometry \| 68mm BSA BB shell \| Flat mount

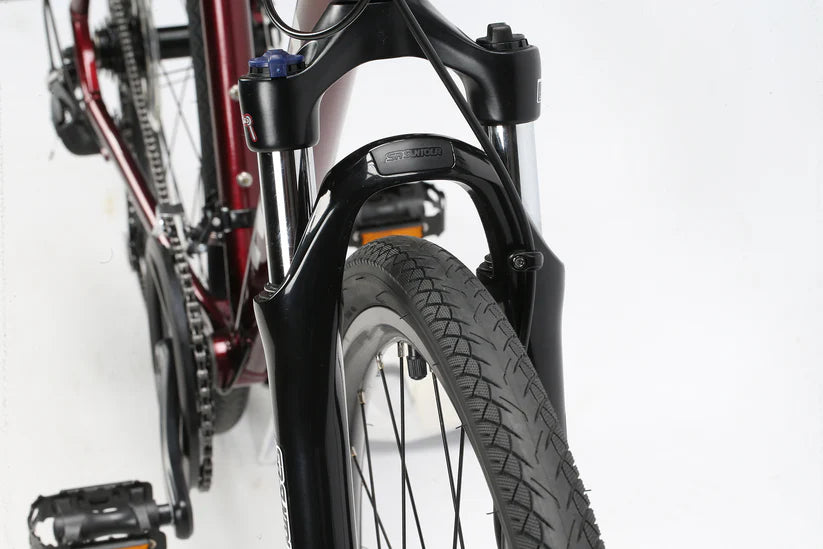

Fork	Suntour SF20 NEX HLO-DS \| 63mm travel \|Hydraulic Lockout \| Post-mount
Frame Shock	N/A
Colors	Matte Black, Cherry Cola
DRIVETRAIN

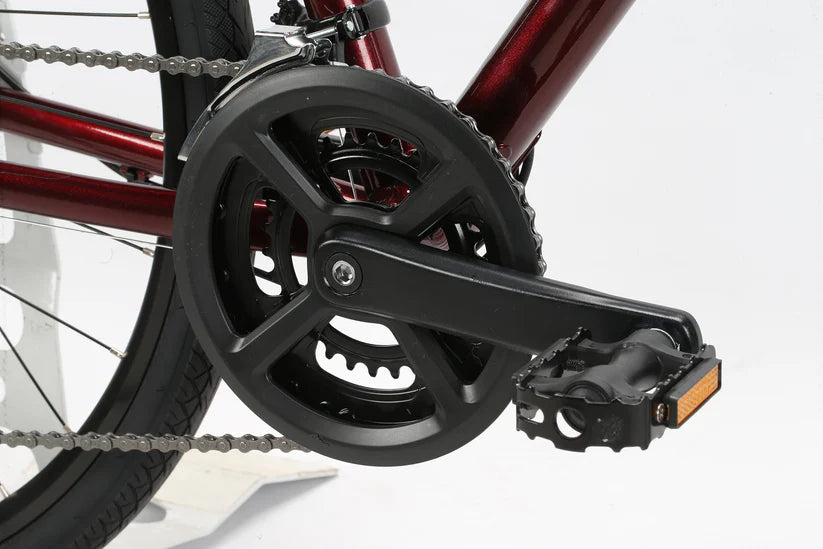

Cranks	Prowheel TB-CY01 \| 46/30T \| 8-speed \| 170 / 175mm
Pedals	VP \| 990S \| Nylon body with steel cages \| Chromoly axles
Chain	KMC Z8.1 \| 8-speed
Bottom Bracket	Feimin FP-902W \| Threaded BSA 68mm BB shell \| 123mm spindle \| Sealed cartridge
Front Derailleur	Microshift FD-T202 \| Top swing \| 34.9mm band diameter
Rear Derailleur	Microshift RD-M36L
Derailleur Shifter	Microshift TS39-2 & FD-T202 \| 2 x 8-speed
Freewheel/Cassette	Mid-range \| CS-M5008 8-Speed 11-34T \| ED Black
WHEELS
Tires	Kenda Kwick Bitumen \| 700 x 38c
Wheels/Rims	Haro 700c \| 19mm inner width \| 28h \| Alloy double wall \| Disc-brake specifc
Hubs	KT-68 alloy 28H \| Cassette rear hub \| Front & rear quick release
BRAKING SYSTEM

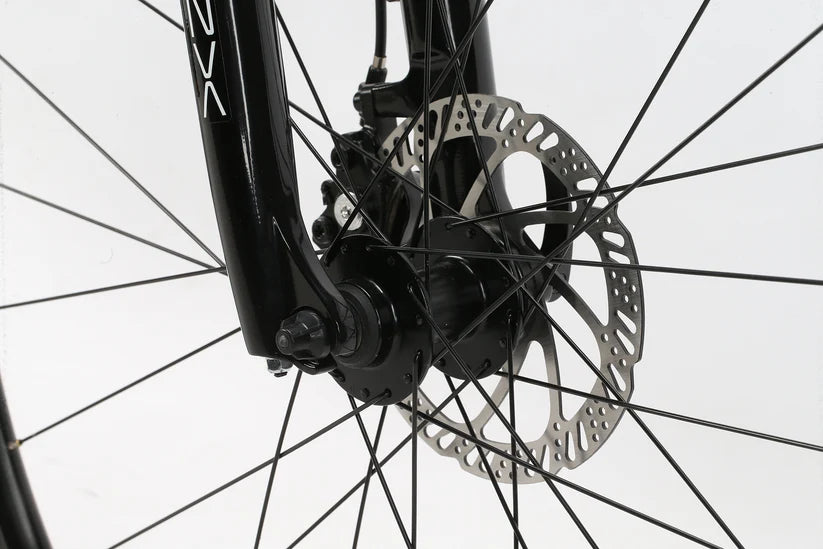

Brakes	Tektro MD-M280 \| Mechanical disc \| IS 6-bolt rotors \| F: 180mm, R: 160mm
Brake Levers	Alloy 3-finger
OTHER COMPONENTS
Grips/Tape	Haro \| Dual-density durometer \| Active tuned

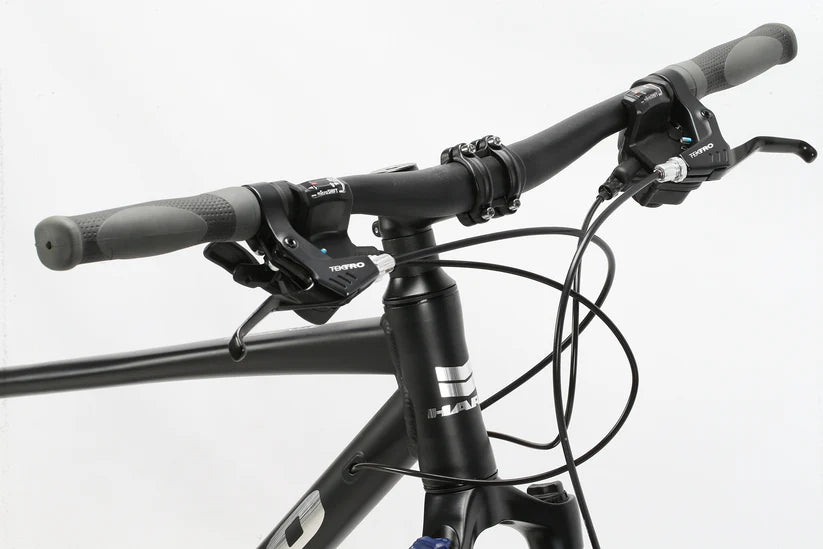

Handlebar	Haro Alloy \| 25mm rise \| 31.8mm x 640 / 660mm \| 9° backsweep
Stem	Haro Alloy \| 7° rise \| 70mm / 90mm / 100mm
Headset	Haro 1-1/8" threadless Internal \| For 50mm OD headtube

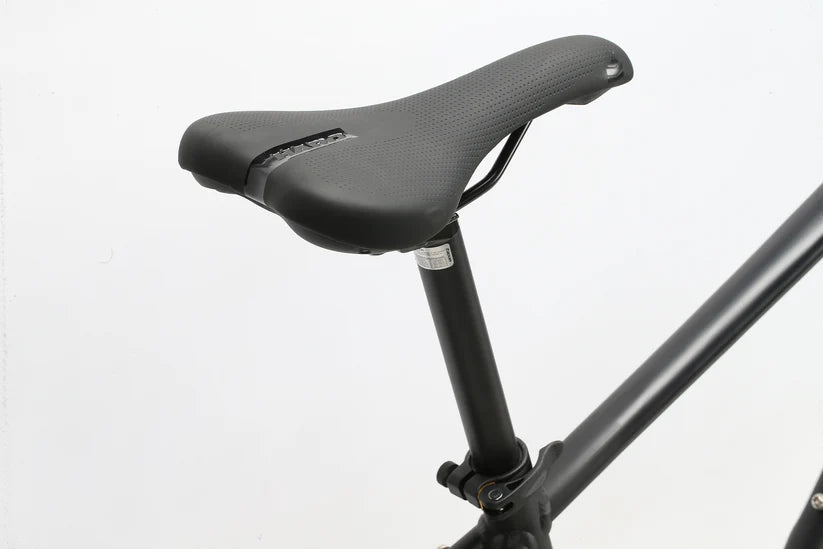

Saddle	Haro \| Dual-sport tuned padding \| Weather-resistant cover
Seat Post	Haro Alloy \| Micro-Adjust \| 27.2mm x 350mm \| single Bolt
Seat Clamp	Haro Aluminum 31.8mm Quick release
Extras	Rack and fender mounts

Geometry:

SIZE	S	M	L	XL	XL+
Seat Tube (C-T)	394mm (15.5")	445mm (17.5")	483mm (19")	533mm (21")	584mm (23")
Top Tube (Effective)	575mm (15.5")	585mm (17.5")	600mm (19")	615mm (21")	625mm (23")
Head Tube Angle	70.5°	70.5°	70.5°	70.5°	70.5°
Seat Tube Angle	73°	73°	73°	73°	73°
Chainstay Length	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")
BB Drop	60mm (2.4")	60mm (2.4")	60mm (2.4")	60mm (2.4")	60mm (2.4")
Wheelbase	1067mm (42")	1078mm (42.4")	1093mm (43")	1109mm (43.7")	1119mm (44.1")
Head Tube Length	110mm (4.3")	120mm (4.7")	130mm (5.1")	140mm (5.5")	155mm (6.1")
Standover	743mm (29.3")	768mm (30.2")	787mm (31")	815mm (32.1")	847mm (33.3")
Stack Height	594mm (23.4")	603mm (23.7")	613mm (24.1")	622mm (24.5")	636mm (25")
Reach	393mm (15.5")	400mm (15.7")	412mm (16.2")	424mm (16.7")	430mm (16.9")
Axle to Crown	468mm (18.4")	468mm (18.4")	468mm (18.4")	468mm (18.4")	468mm (18.4")
Fork Offset	42mm (1.7")	42mm (1.7")	42mm (1.7")	42mm (1.7")	42mm (1.7")
Stem Length	70mm	90mm	90mm	100mm	100mm
Bar Width	640mm	640mm	660mm	660mm	660mm
Crank Length	170mm	170mm	175mm	175mm	175mm

Sizing Guide:

Size	Inches	CM
S	5'1" - 5'6"	155 - 167.5
M	5'5" - 5'10"	165 - 177.5
L	5'9" - 6'2"	175 - 187.5
XL	6'1" - 6'4"	185 - 192.5
XL+	6'3" - 6'6"	190 - 200
