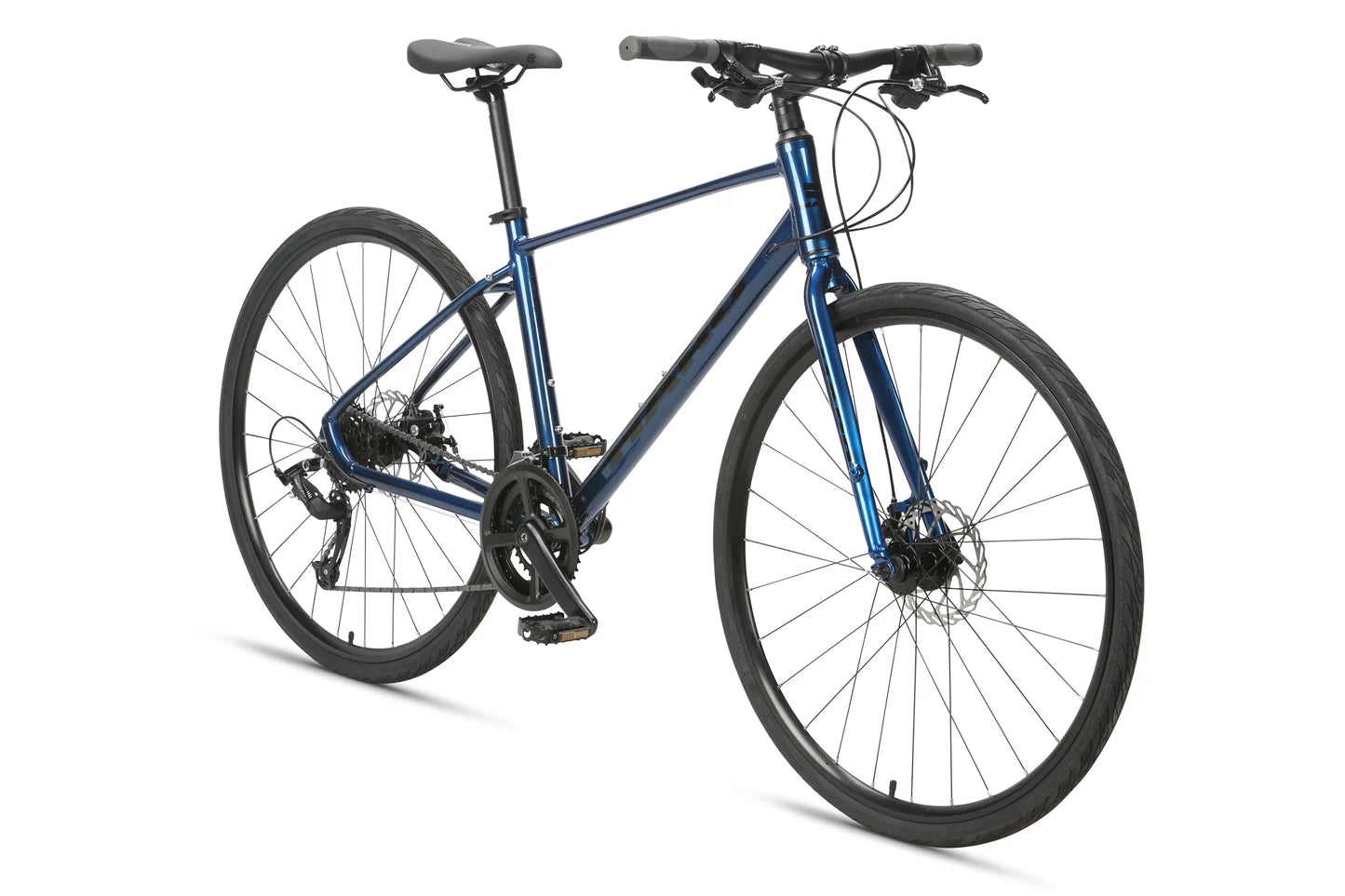

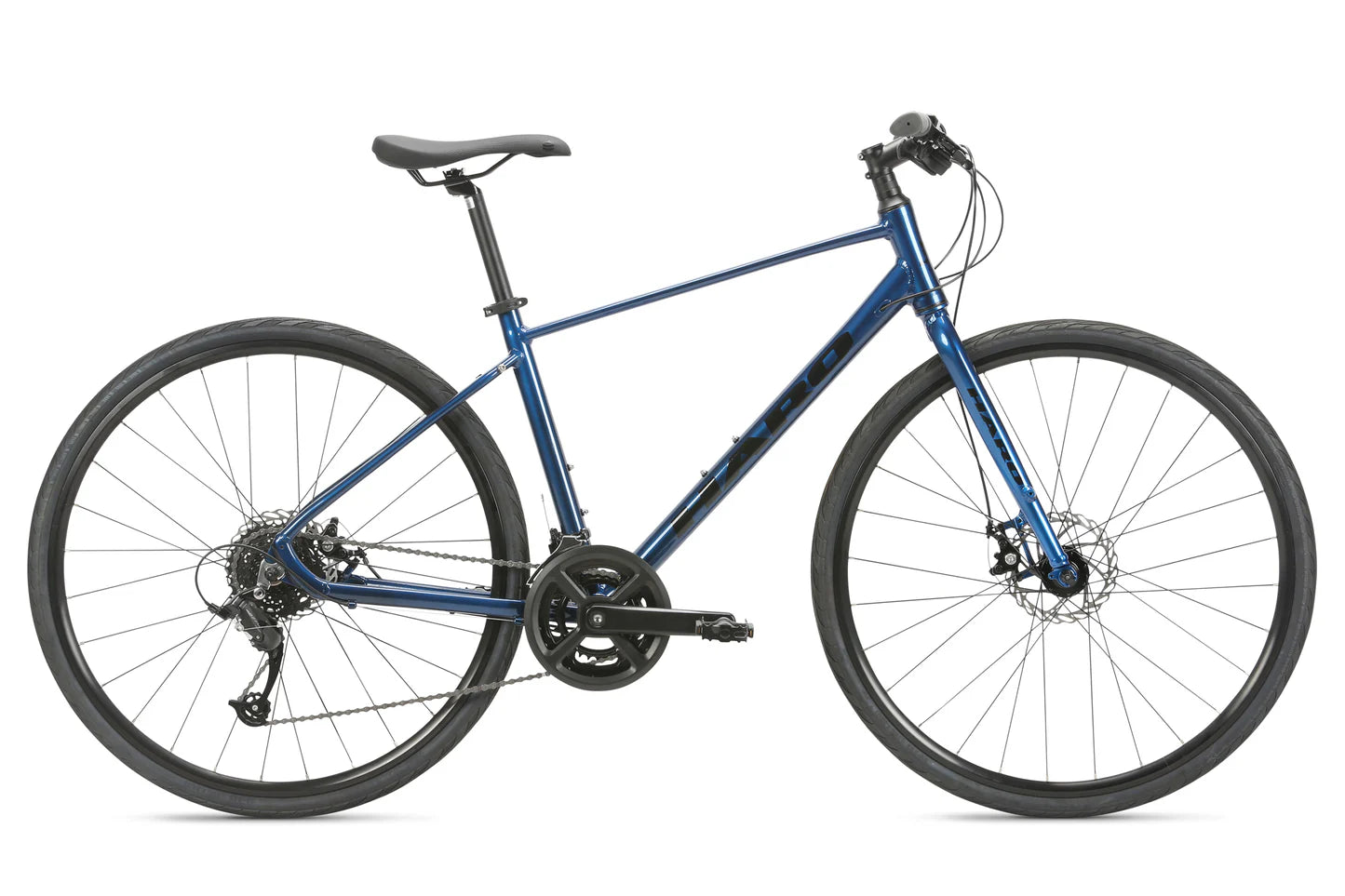

Haro Aeras Microshift 700c

Fitness has never been so fun. The Haro Aeras is lightweight, fast and as easy to ride as it is to load onto the bike rack. Built on a lightweight aluminum frame, with 700C wheels and tires, the Aeras features a 2 X 8 Microshift gearing setup for smooth, efficient pedaling, anywhere you want to go.

Features:

6061-T6 aluminum frame with rider-tuned geometry
Microshift 2 x 8-speed gearing
Haro 700C double wall alloy rims with quick release axles, front and rear
Kenda Kwick 700 x 38c tires
Haro Dual-sport tuned padded seat with micro-adjust post and quick adjust clamp
Tecktro Mechanical Disc Brakes

Specifications:

Frame	6061-T6 aluminum \| Rider-tuned geometry \| 68mm threaded BSA BB shell \| Post mount
Fork	Haro Ventus \| Classic steel \| flat mount disc \| 100mm quick-release spacing
Frame Shock	N/A
Colors	Matte Deep Waters
DRIVETRAIN

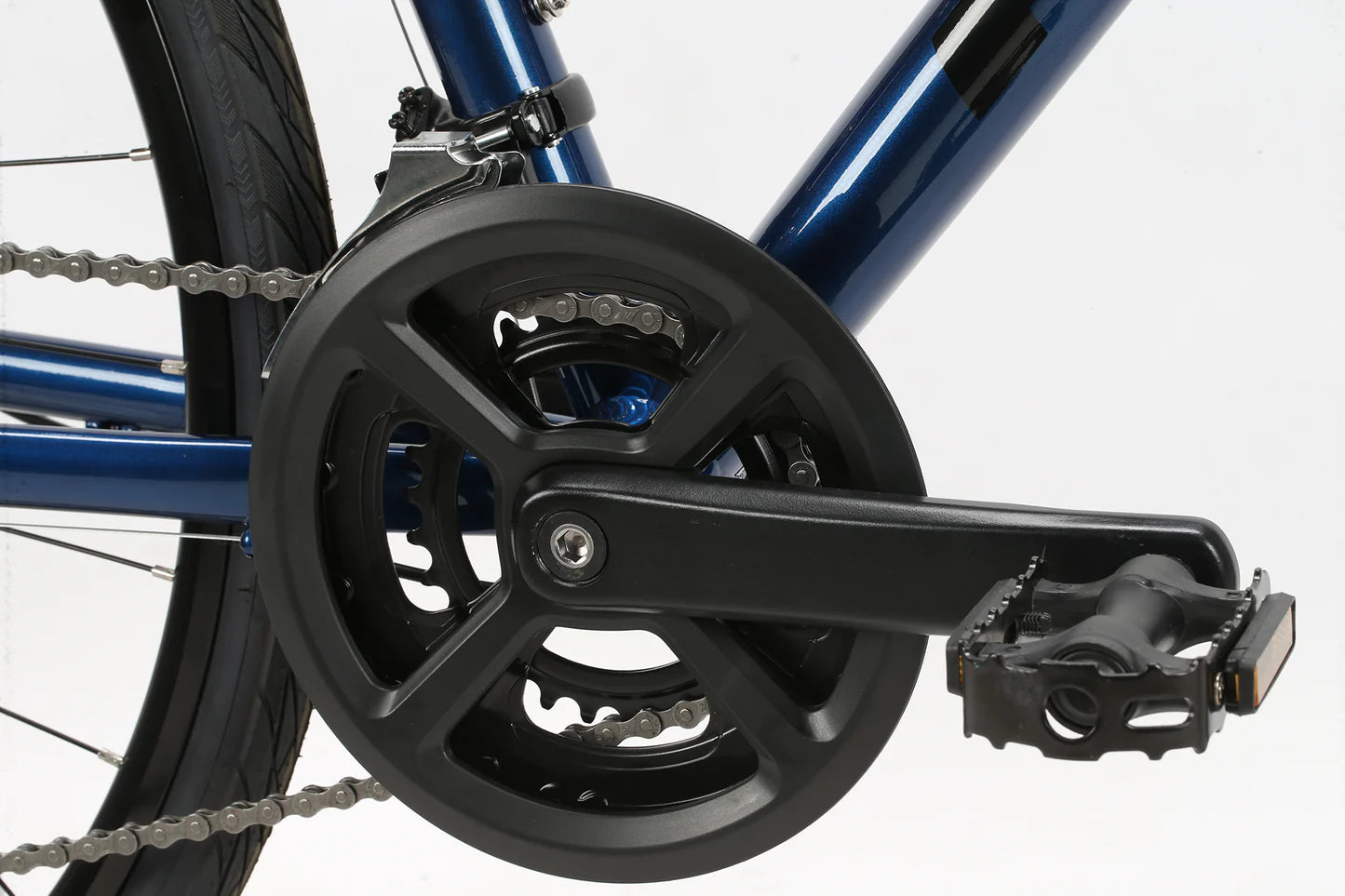

Cranks	Prowheel TB-CY01 \| 46/30T \| 8-speed \| 170 / 175mm
Pedals	VP \| 990S \| Nylon body with steel cages \| Chromoly axles
Chain	KMC Z8.1 \| 8-speed
Bottom Bracket	Feimin FP-902W \| Threaded BSA 68mm BB shell \| 123mm spindle \| Sealed cartridge
Front Derailleur	Microshift FD-T202 \| Top swing \| 34.9mm band diameter
Rear Derailleur	Microshift RD-M36L
Derailleur Shifter	Microshift TS39-2 & FD-T202 \| 2 x 8-speed
Freewheel/Cassette	Mid-range \| CS-M5008 8-Speed 11-34T \| ED Black
WHEELS
Tires	Kenda Kwick Bitumen \| 700 x 38c
Wheels/Rims	Haro 700c \| 19mm inner width \| 28h \| Alloy double wall \| Disc-brake specifc
Hubs	KT-68 alloy 28H \| Cassette rear hub \| Front & rear quick release
BRAKING SYSTEM

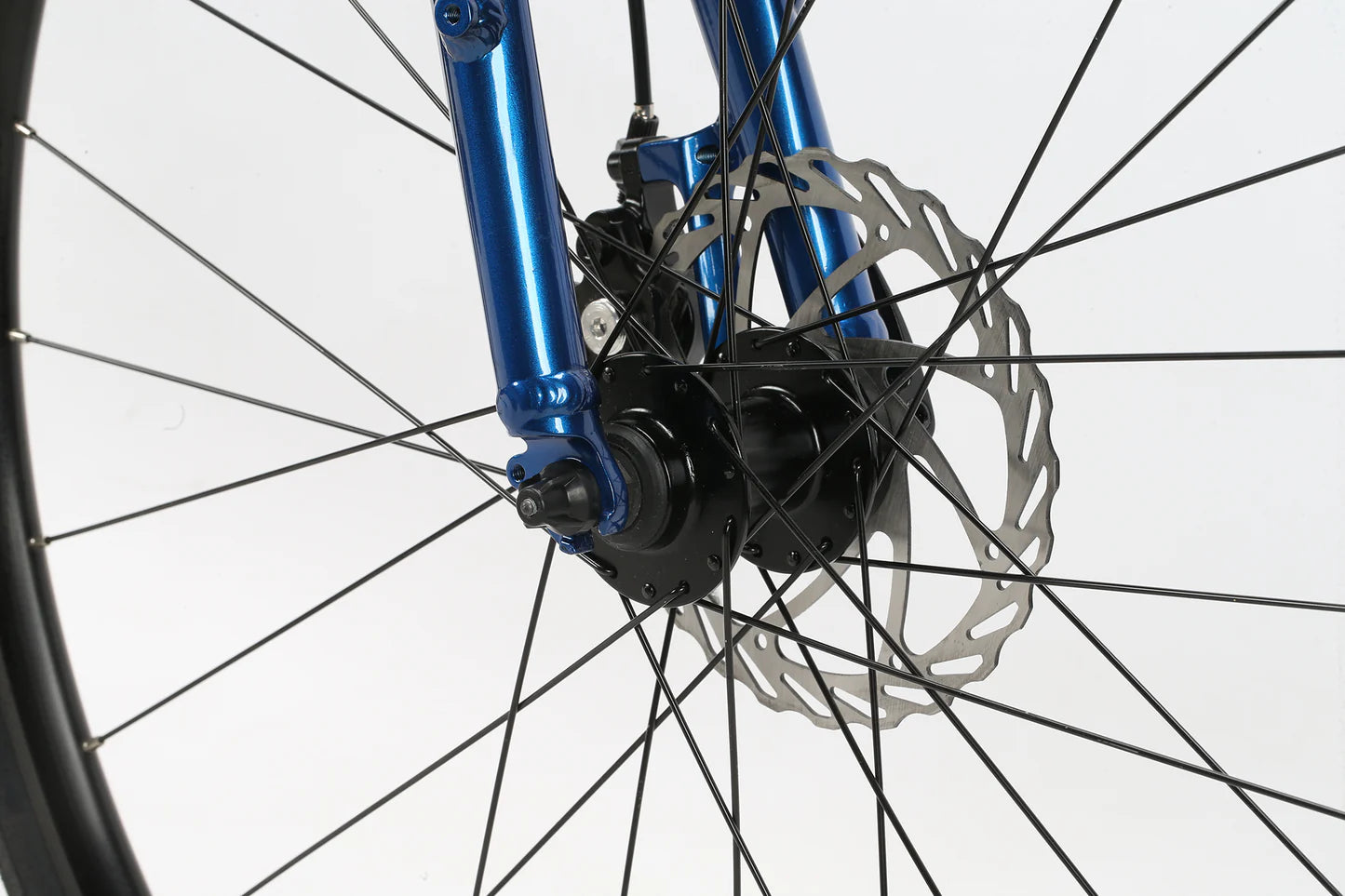

Brakes	Tektro MD-M280 \| Mechanical disc \| IS 6-bolt rotors \| F: 180mm, R: 160mm
Brake Levers	Alloy 3-finger
OTHER COMPONENTS

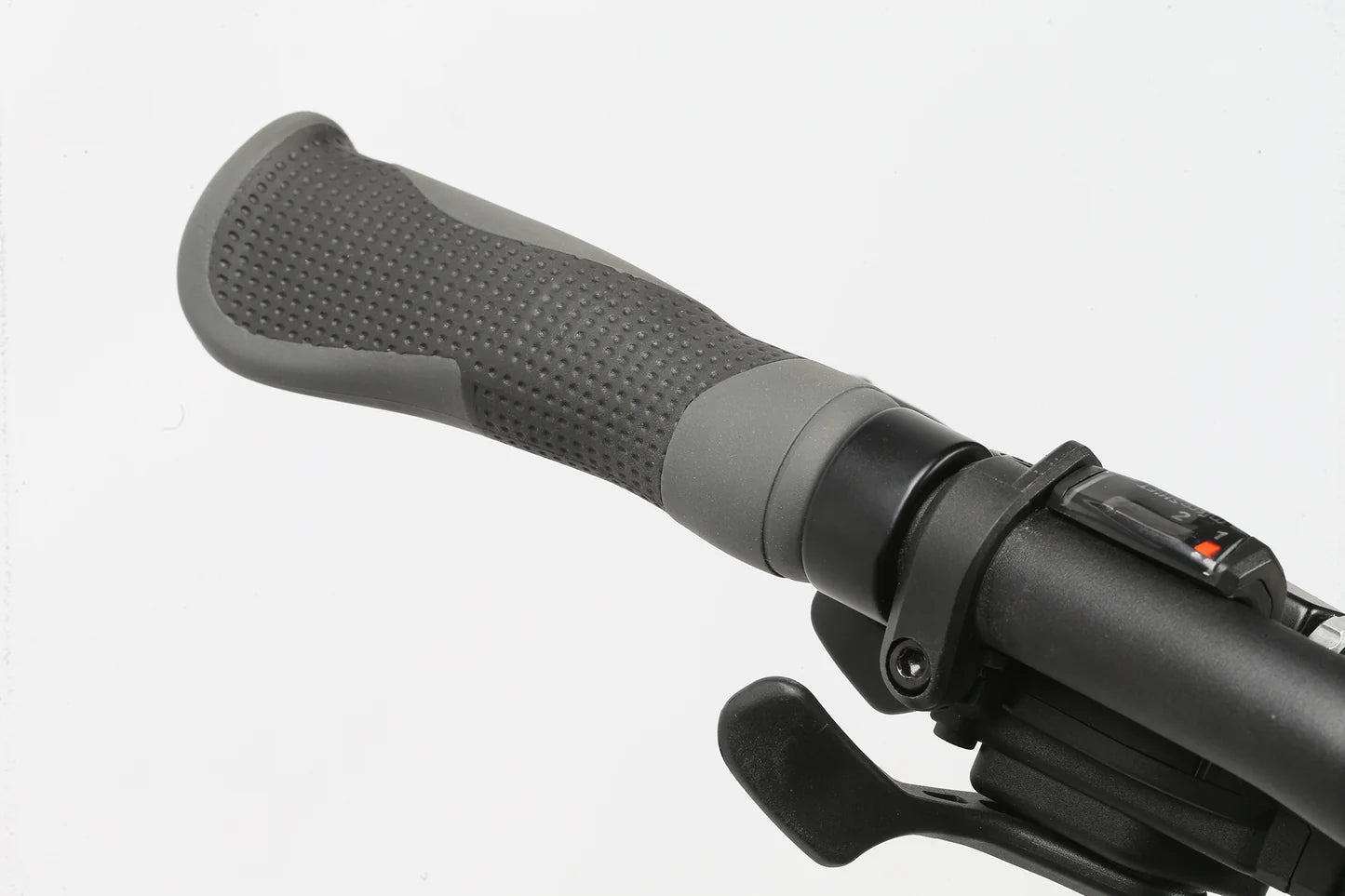

Grips/Tape	Haro \| Dual-density durometer \| Active tuned

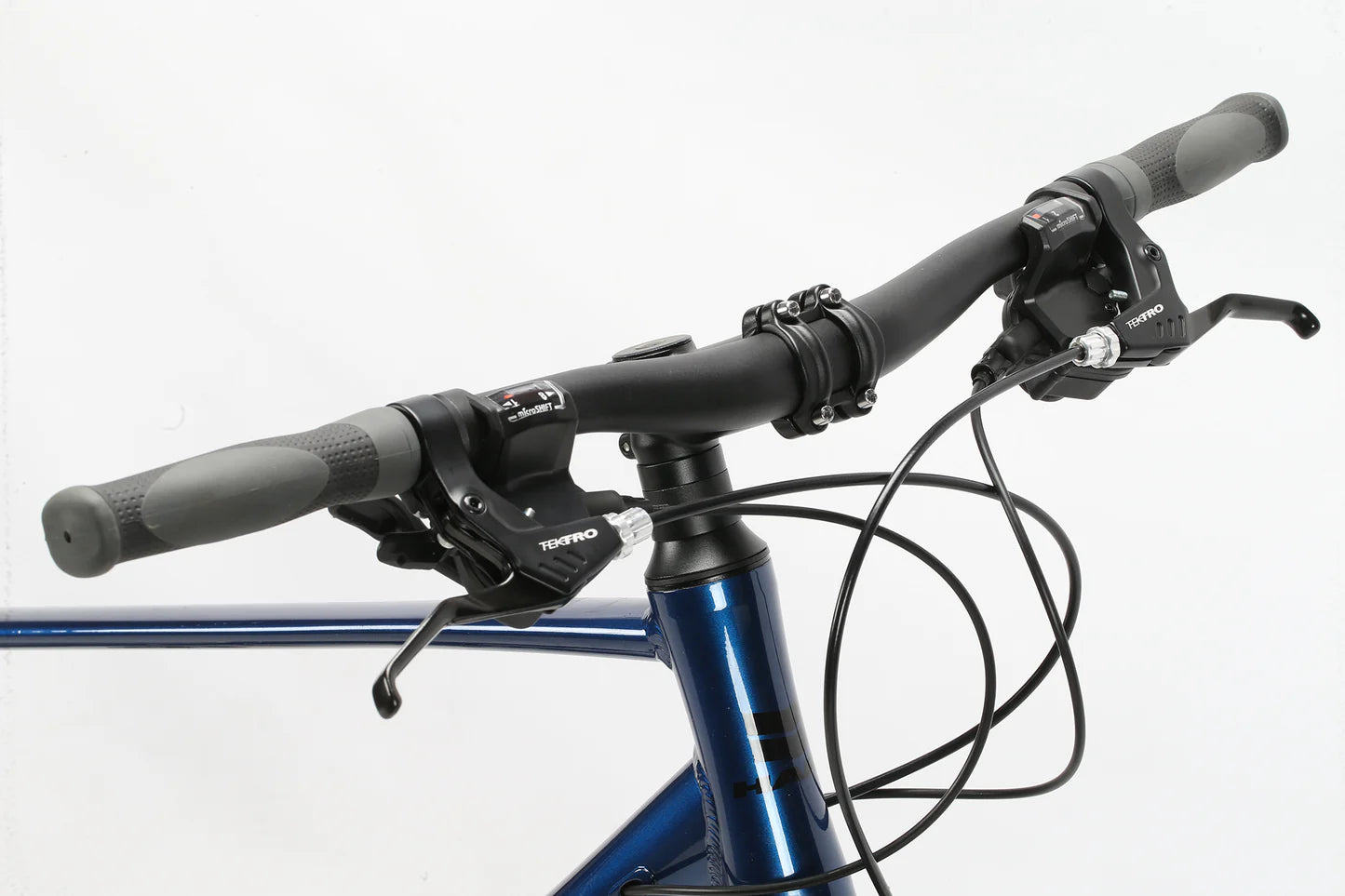

Handlebar	Haro Alloy \| 25mm rise \| 31.8mm \| 9° sweep \| 620mm / 640mm
Stem	Haro Alloy \| 7° rise \| 70mm / 90mm / 100mm
Headset	Haro 1-1/8" threadless Internal \| For 50mm OD headtube

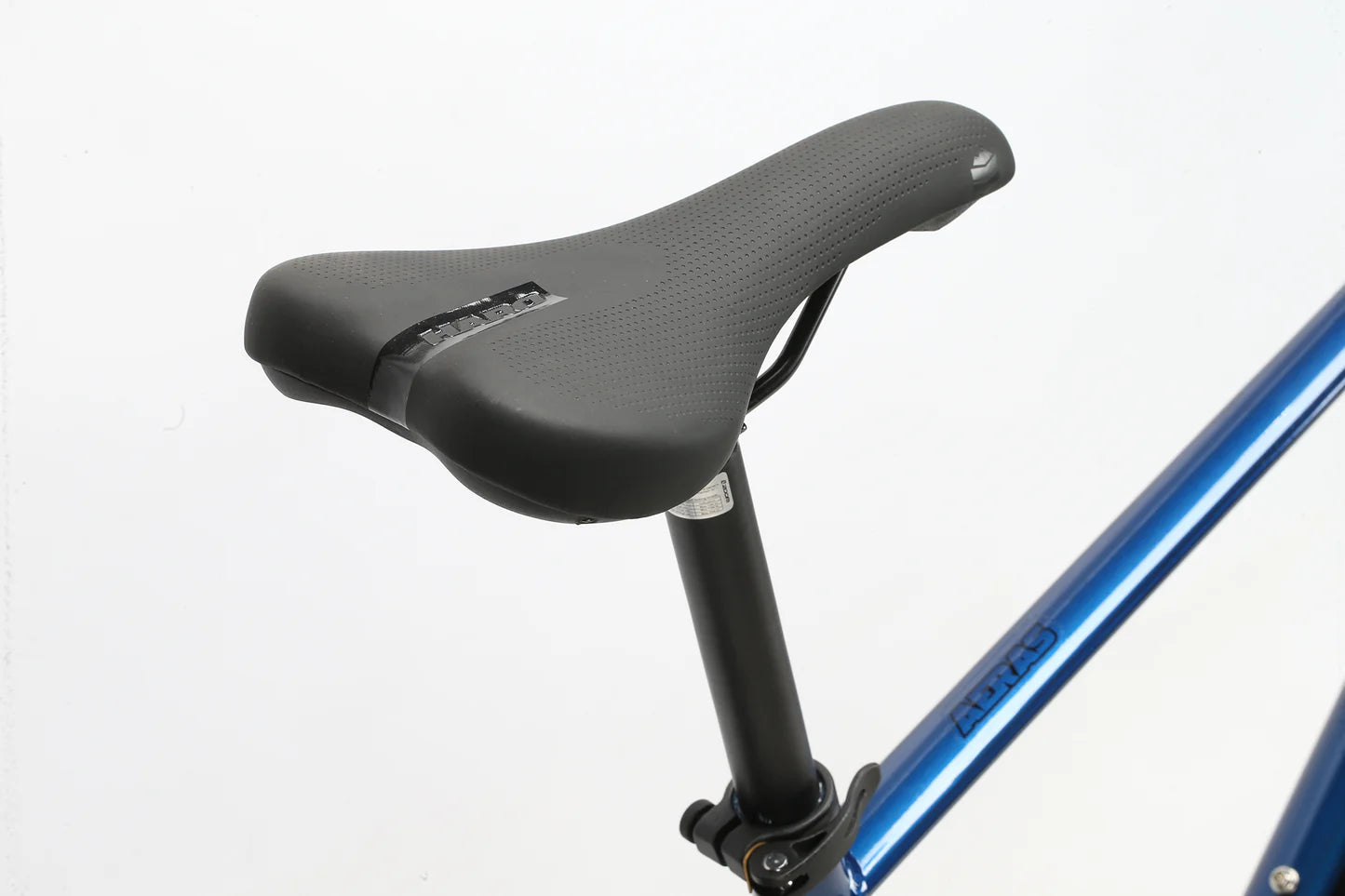

Saddle	Haro \| Dual-sport tuned padding \| Weather-resistant cover
Seat Post	Haro Alloy \| Micro-adjust \| 27.2mm x 350mm \| Zero-offset \| 2-bolt design
Seat Clamp	Haro Aluminum 31.8mm Quick release
Extras	Rack and fender mounts

Geometry:

SIZE	S	M	L	XL	XL+
Seat Tube (C-T)	394mm (15.5")	445mm (17.5")	483mm (19")	533mm (21")	584mm (23")
Top Tube (Effective)	555mm (21.9")	570mm (22.4")	580mm (22.8")	600mm (23.6")	620mm (24.4")
Head Tube Angle	70.5°	70.5°	71°	71.5°	71.5°
Seat Tube Angle	73.5°	73.5°	73.5°	73°	73°
Chainstay Length	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")	445mm (17.5")
BB Drop	60mm (2.4")	60mm (2.4")	60mm (2.4")	60mm (2.4")	60mm (2.4")
Wheelbase	1053mm (41.5")	1069mm (42.1")	1075mm (42.3")	1085mm (42.7")	1106mm (43.5")
Head Tube Length	120mm (4.7")	140mm (5.5")	160mm (6.3")	190mm (7.5")	220mm (8.7")
Standover	719mm (28.3")	748mm (29.4")	776mm (30.6")	814mm (32")	852mm (33.5")
Stack Height	537mm (21.1")	555mm (21.9")	576mm (22.7")	607mm (23.9")	635mm (25")
Reach	396mm (15.6")	405mm (15.9")	409mm (16.1")	414mm (16.3")	425mm (16.7")
Axle to Crown	401mm (15.8")	401mm (15.8")	401mm (15.8")	401mm (15.8")	401mm (15.8")
Fork Offset	45mm (1.8")	45mm (1.8")	45mm (1.8")	45mm (1.8")	45mm (1.8")
Stem Length	70mm	90mm	90mm	100mm	100mm
Bar Width	620mm	620mm	640mm	640mm	640mm
Crank Length	170mm	170mm	175mm	175mm	175mm

Sizing Guide:

Size	Inches	CM
S	5'1" - 5'6"	155 - 167.5
M	5'5" - 5'10"	165 - 177.5
L	5'9" - 6'2"	175 - 187.5
XL	6'1" - 6'4"	185 - 192.5
XL+	6'3" - 6'6"	190 - 200
