Description

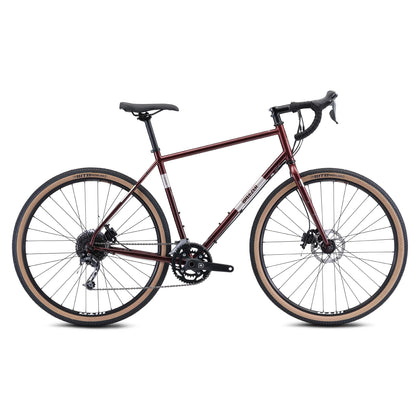

Breezer Radar Expert 700c

The RADAR is the ultimate Road And Dirt Adventure Rig. Let RADAR set your bearings toward determined velocities of distant desire. Constructed using a double-butted Chromoly frame and fork that features rack mounts, fiveÂ (yes, five) water bottle mounts, disc brakes, and clearance for off-road tires. The RADAR is the perfect choice for urban adventures, full-blown bikepacking, or anything in between. Wide range gearing will get you up the steepest climbs and back down again even when fully loaded with gear.

Key Details:

• Breezer off road capable geometry
• Butted CrMo with English threaded bottom bracket
• Compatible with off road tires
• Ready for racks and extra bottle cages
• Tubeless-compatible wheelset
• Tire Clearance: 700c x 50mm

Specifications:

Sizes	XS (45cm), S (48cm), M (51cm), L (54cm), XL (57cm), XXL (60cm)
Color(s)	Cherry Cola
Frame	Breezer butted chromoly steel, BSA threaded BB , Apex disc mount 135mm QR
Fork	Chromoly disc, 1 1/8", QR w/rack, fender & side bottle mounts
Crankset	Breezer 2-pc w/hollow axle, 46/30T
Bottom Bracket	Sealed-bearing, BSA
Pedals	N/A
Front Derailleur	MicroSHIFT R9
Rear Derailleur	MicroSHIFT R9
Shifters	MicroSHIFT R9, 9-speed
Cassette	MicroSHIFT H92, 11-36T, 9-speed
Chain	KMC X9
Wheelset	WTB STP i23 TCS disc, tubeless compatible, Formula sealed bearing hubs, 14g SS spokes, 32H

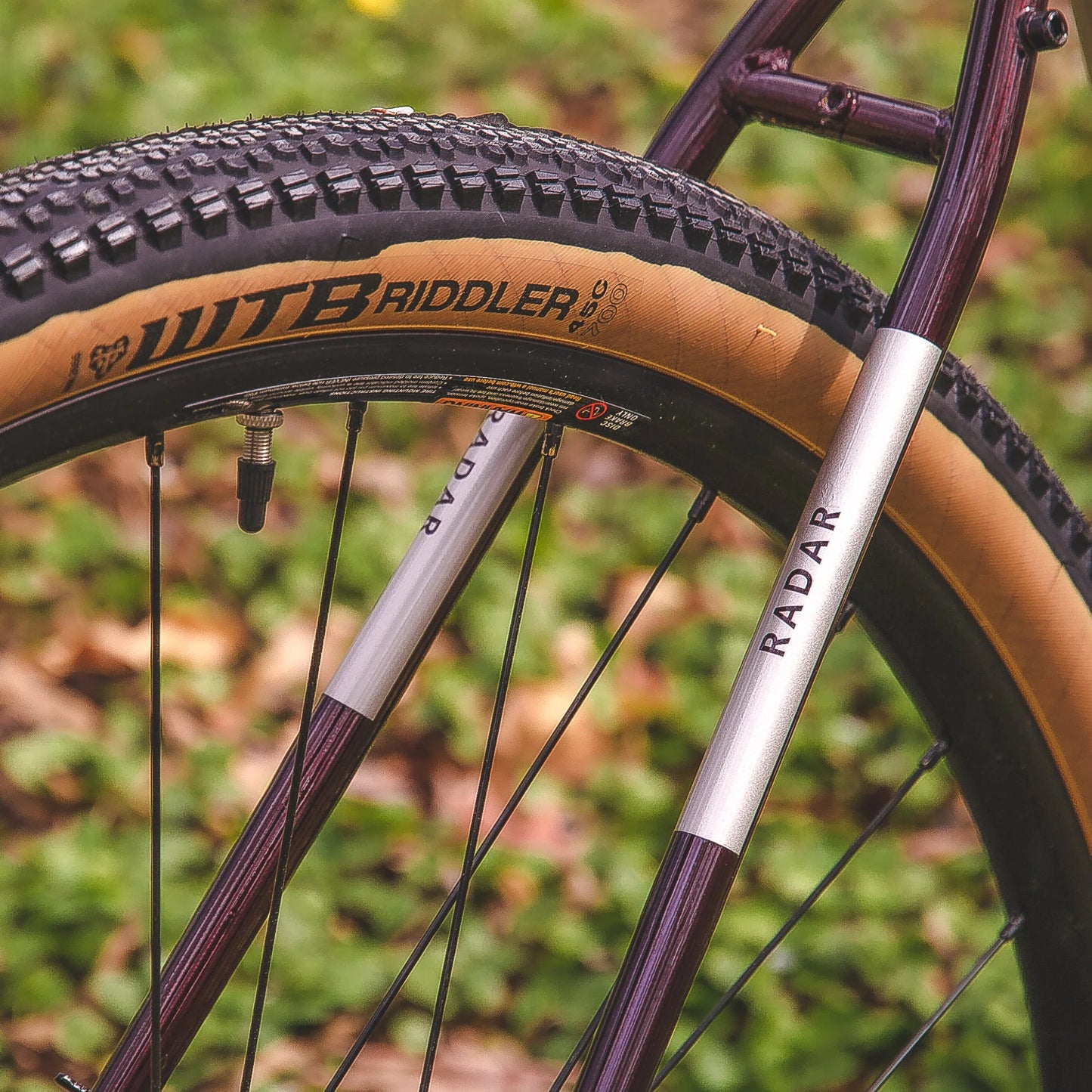

Tires	WTB Riddler Comp, 700 x 45c, wire bead
Brakeset	TRP HY/RD hydraulic caliper, 160mm rotors
Brake Levers	MicroSHIFT R9
Headset	FSA 1 1/8" Threadless, 6.5mm aluminum top cover
Handlebar	Breezer, 6061 alloy, 31.8mm clamp, 125mm drop, 25 degree flare, 4 degree sweep
Stem	Breezer B-Road, 3D-forged 6061 stem body, +/-6 degree
Tape	Selle San Marco Presa Corsa Dynamic
Saddle	Selle San Marco Monza Full Start Up
Seatpost	Breezer setback, 6061 alloy, 27.2mm diameter
Weight	13.09kgs / 28.86lbs

Sizing & Geometry:

Size(*Compact Frame)	XS	S	M	L	XL	XXL
	Bike Size(*Compact Frame)	45cm	48cm	51cm	54cm	57cm	60cm
A	Seat Tube, Center to Top	450	480	510	540	570	600
C	Top Tube, Effective	565	575	585	595	608	627
D	Head Tube Length	120	120	155	170	170	190
E	Seat Tube Angle	74°	72.5°	72.5°	72.5°	72.5°	72.5°
G	Head Tube Angle	70.5°	71.5°	71.5°	71.5°	71.5°	71.5.°
H	Chainstay Length	457	457	457	457	457	457
I	Wheelbase	1068	1068	1070	1080	1093	1113
J	Bottom Bracket Drop	75	75	75	75	75	75
K	Fork Offset	45	45	45	45	45	45
M	Stack	576	598	612.6	627	627	645.8
N	Reach	393	386	391.4	397	410	424
O	Standover	711.52	736.22	762.67	792.38	817	842
	Stem mm	70	80	80	90	100	100
	Handlebar Width cm	40	42	42	44	44	46
	Crank mm	170	170	175	175	175	175
	Wheel Size	700c	700c	700c	700c	700c	700c
	Seat Post Diameter mm	27.2	27.2	27.2	27.2	27.2	27.2
